NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0652 YEC723 DTC P0115 COOLANT TEMP SENYD22DDTI Wiring Diagram EC-1152

Page 1578 of 3051

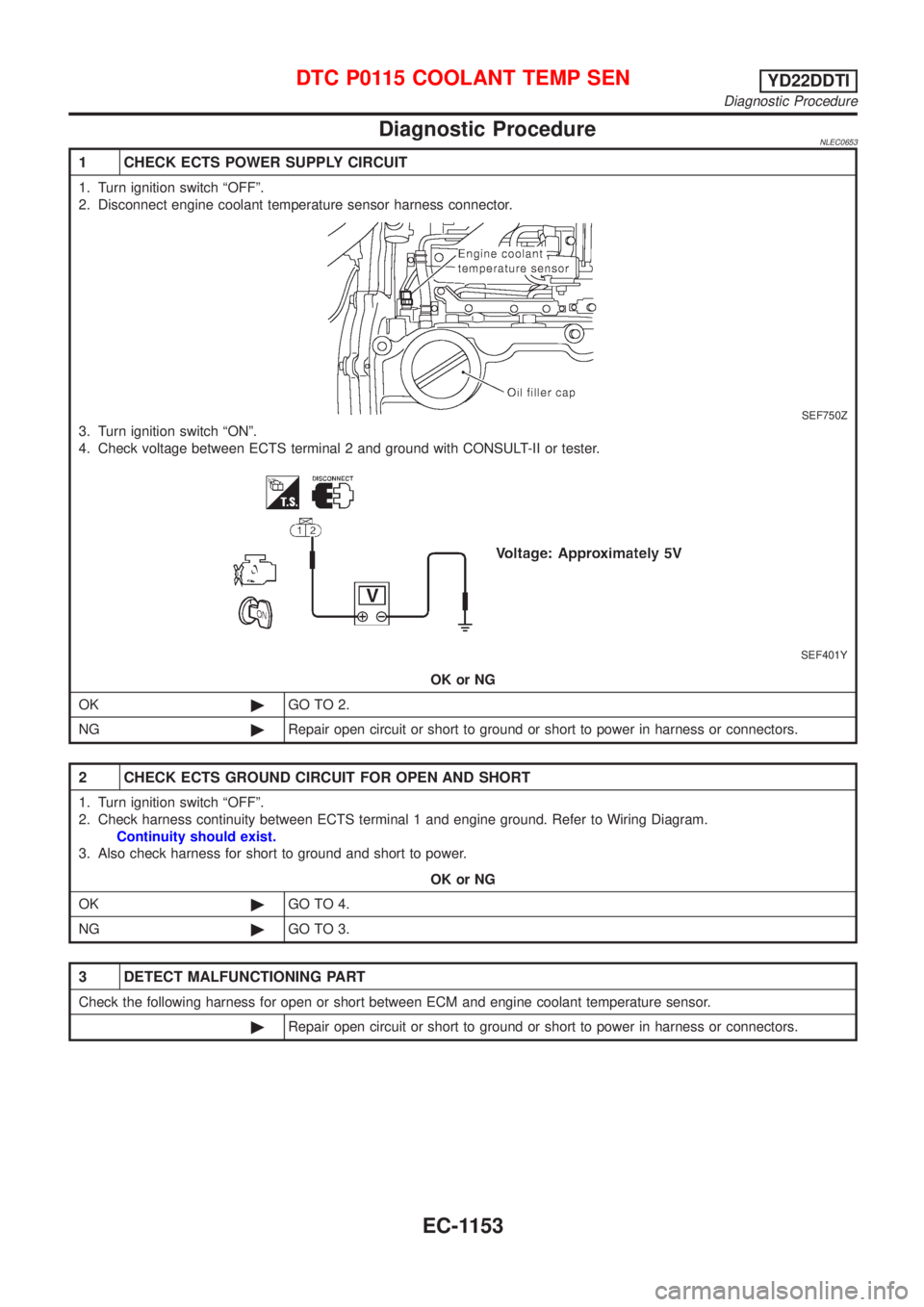

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0653 1 CHECK ECTS POWER SUPPLY CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect engine coolant temperature sensor harness connector. SEF750Z 3. Turn ignition switch ªON

Page 1579 of 3051

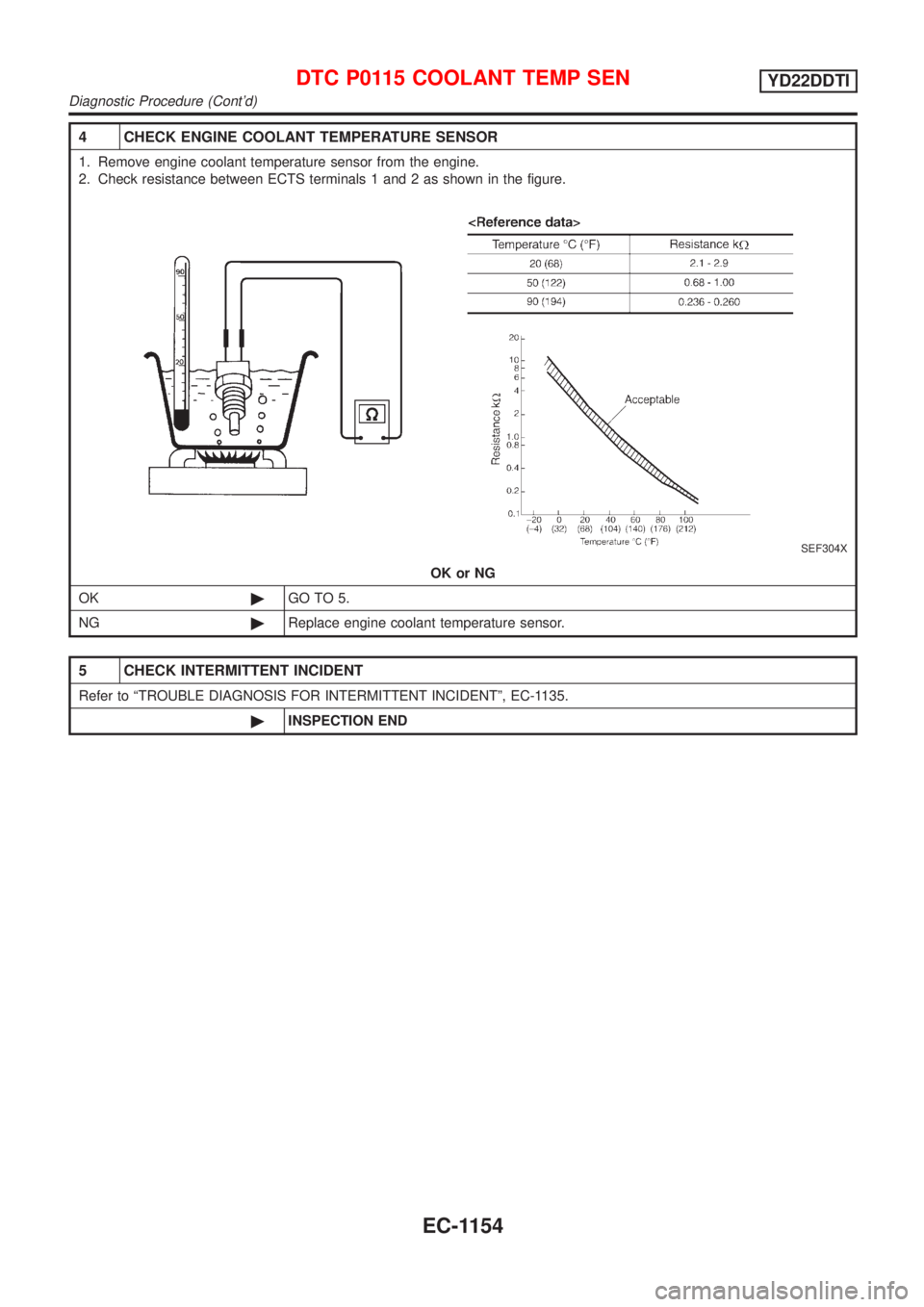

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK ENGINE COOLANT TEMPERATURE SENSOR 1. Remove engine coolant temperature sensor from the engine. 2. Check resistance between ECTS terminals 1 and 2 as shown in the figure. SEF304X OK or NG OK©G

Page 1580 of 3051

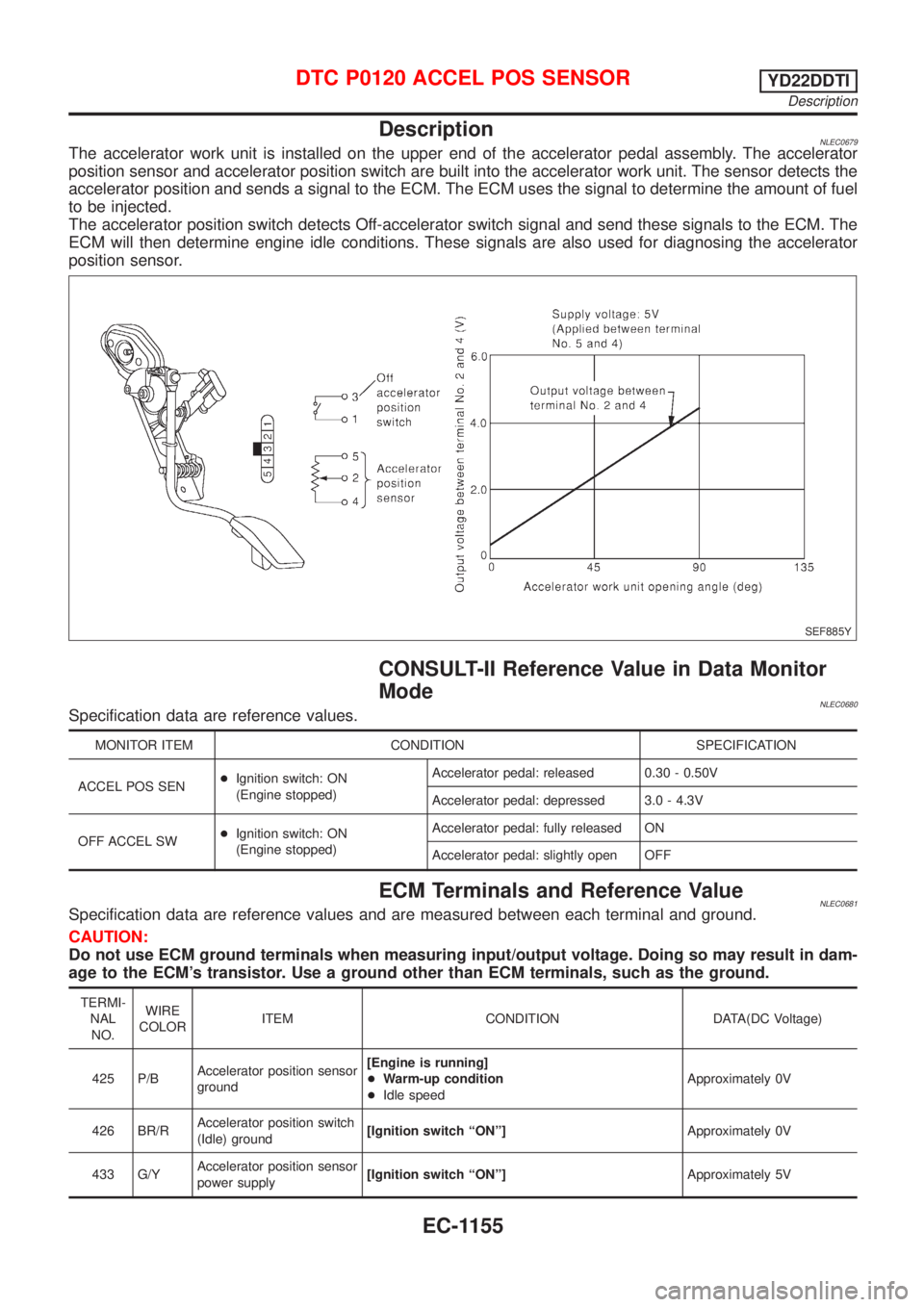

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLEC0679The accelerator work unit is installed on the upper end of the accelerator pedal assembly. The accelerator position sensor and accelerator position switch are built into the acceler

Page 1581 of 3051

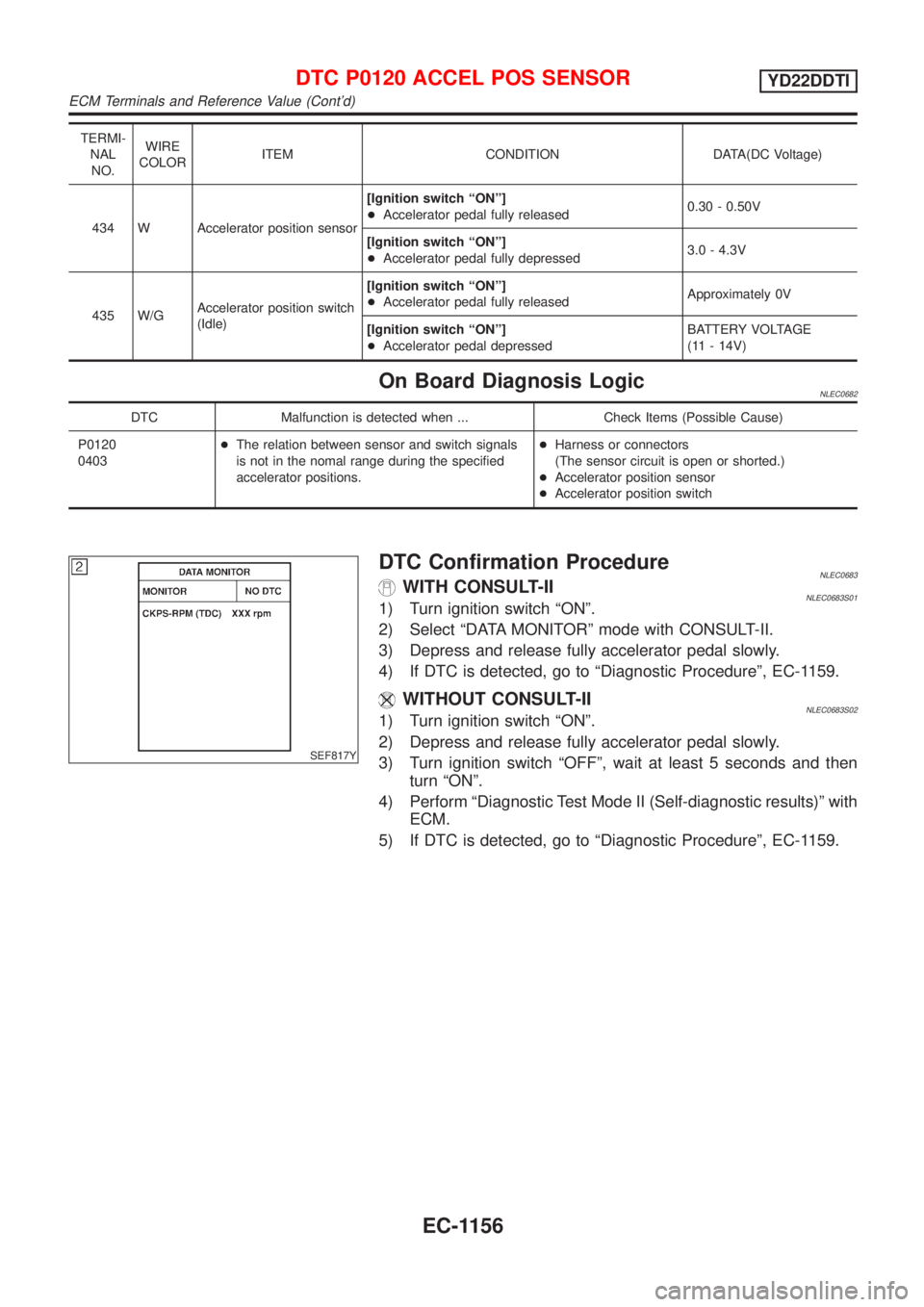

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI- NAL NO.WIRE COLORITEM CONDITION DATA(DC Voltage) 434 W Accelerator position sensor[Ignition switch ªONº] +Accelerator pedal fully released0.30 - 0.50V [Ignition switch ªONº] +Accelerator pe

Page 1582 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0684MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0684S01 YEC727 DTC P0120 ACCEL POS SENSORYD22DDTI Wiring Diagram EC-1157

Page 1583 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC0684S02 YEC859 DTC P0120 ACCEL POS SENSORYD22DDTI Wiring Diagram (Contd) EC-1158

Page 1584 of 3051

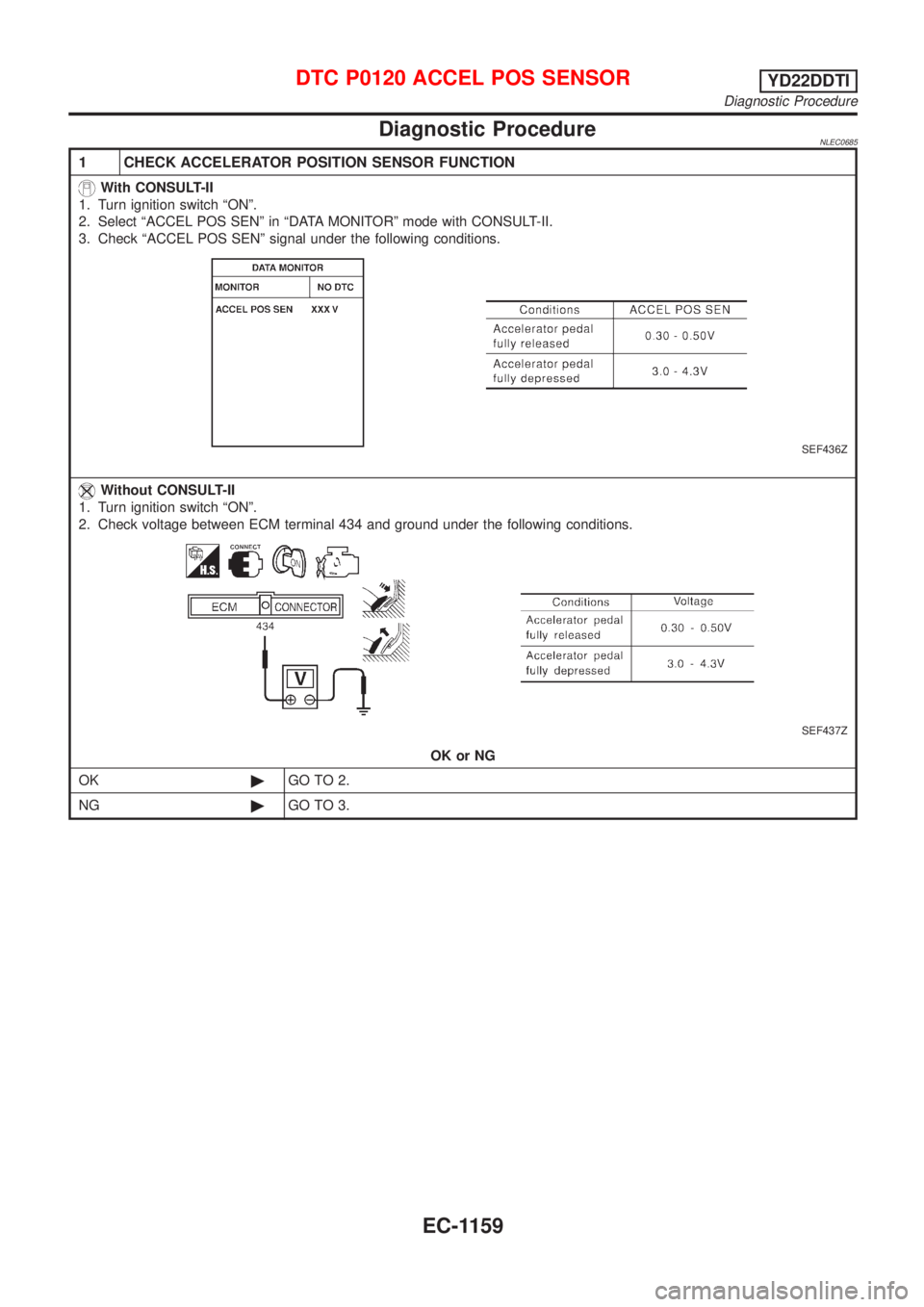

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0685 1 CHECK ACCELERATOR POSITION SENSOR FUNCTION With CONSULT-II 1. Turn ignition switch ªONº. 2. Select ªACCEL POS SENº in ªDATA MONITORº mode with CONSULT-II. 3. Check
