NISSAN ALMERA TINO 2001  Service Repair Manual ENGINE COMPARTMENT Ð LHD MODELS (MODELS WITH ECM IN CABIN)NLEL0342S06
YEL515C
HARNESS LAYOUT
Engine Room Harness (Contd)
EL-470

Page 2202 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual YEL516C
HARNESS LAYOUT
Engine Room Harness (Contd)
EL-471

Page 2203 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual PASSENGER COMPARTMENT Ð LHD MODELS (MODELS WITH ECM IN ENGINE
COMPARTMENT)
NLEL0342S04
YEL020C
HARNESS LAYOUT
Engine Room Harness (Contd)
EL-472

Page 2204 of 3051

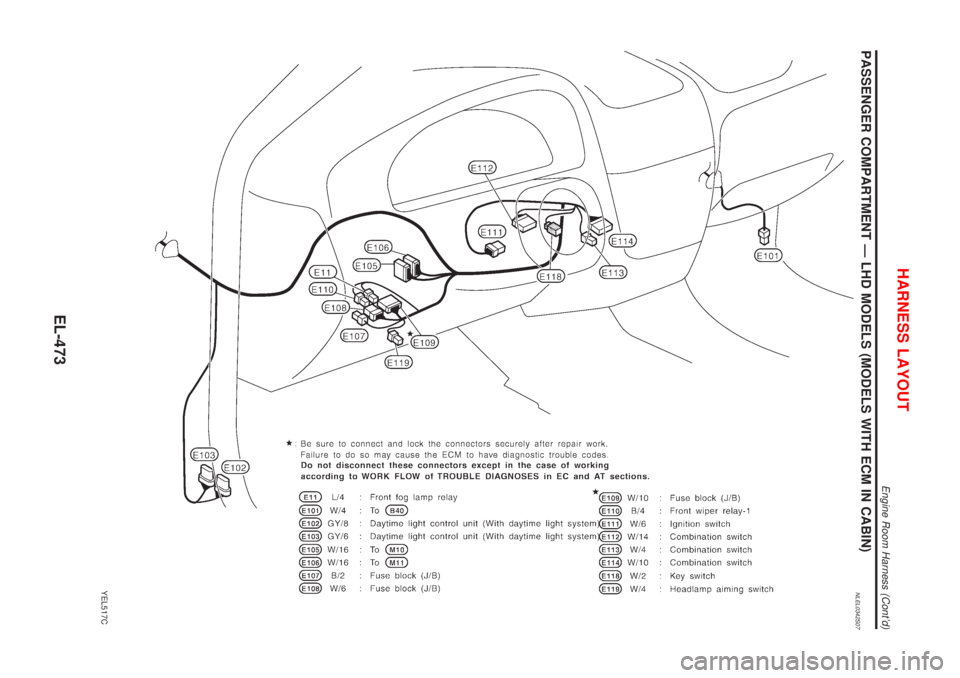

NISSAN ALMERA TINO 2001  Service Repair Manual PASSENGER COMPARTMENT Ð LHD MODELS (MODELS WITH ECM IN CABIN)NLEL0342S07
YEL517C
HARNESS LAYOUT
Engine Room Harness (Contd)
EL-473

Page 2205 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual ENGINE COMPARTMENT Ð RHD MODELS (MODELS WITH ECM IN ENGINE
COMPARTMENT)
NLEL0342S03
YEL021C

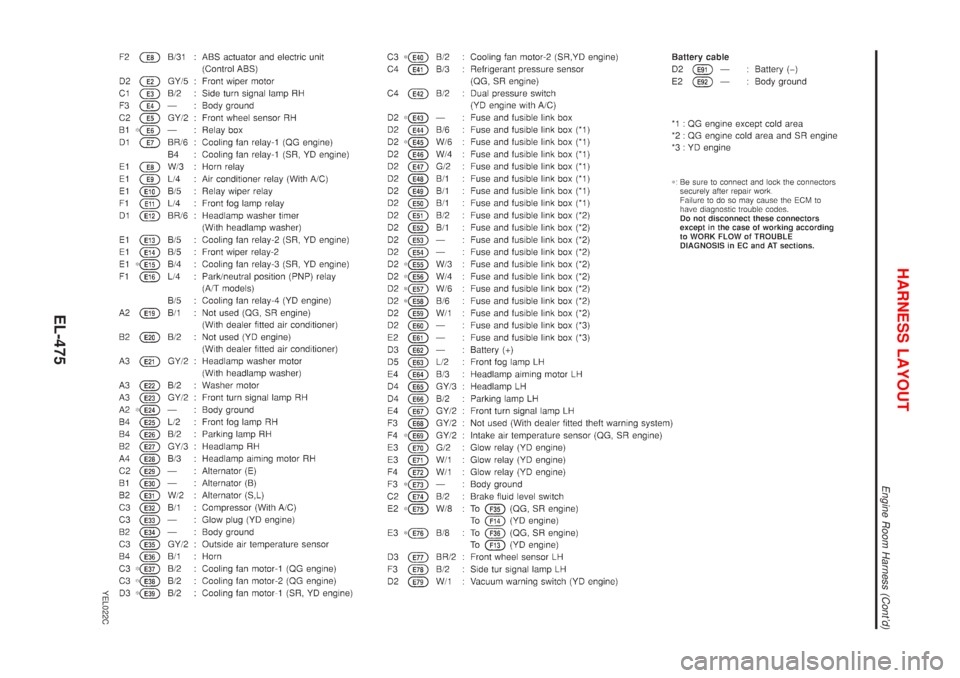

HARNESS LAYOUT
Engine Room Harness (Contd)
EL-474

Page 2206 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual YEL022C
HARNESS LAYOUT
Engine Room Harness (Contd)
EL-475

Page 2207 of 3051

NISSAN ALMERA TINO 2001  Service Repair Manual ENGINE COMPARTMENT Ð RHD MODELS (MODELS WITH ECM IN CABIN)NLEL0342S08
YEL518C
HARNESS LAYOUT
Engine Room Harness (Contd)
EL-476

Page 2208 of 3051

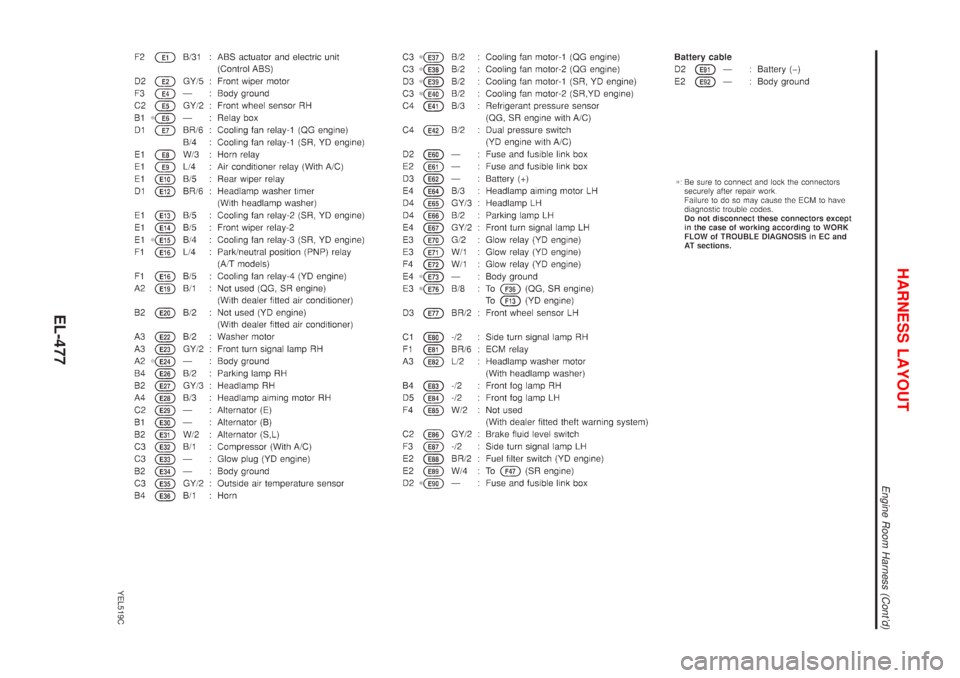

NISSAN ALMERA TINO 2001  Service Repair Manual YEL519C
HARNESS LAYOUT
Engine Room Harness (Contd)
