Page 1969 of 3051

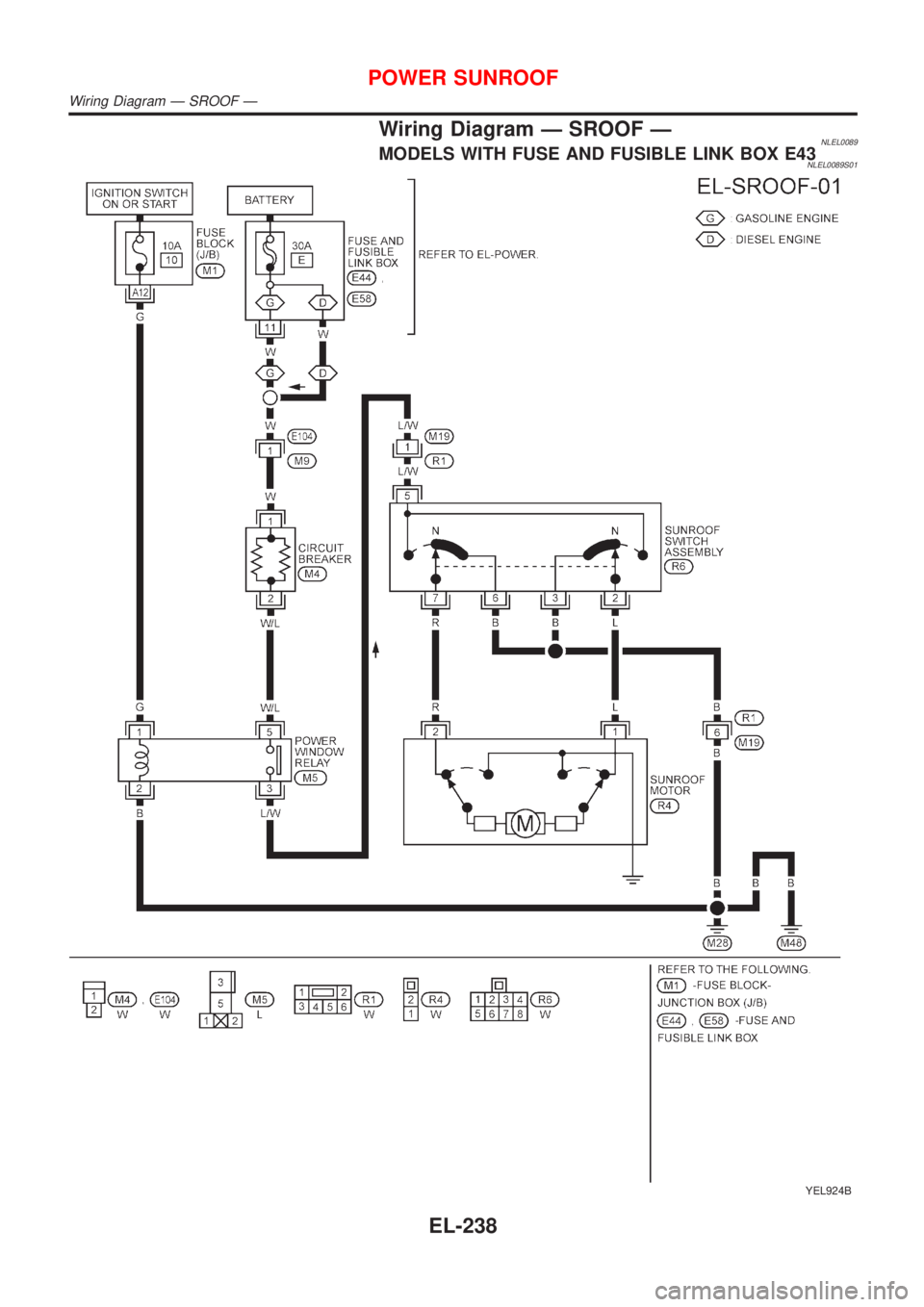

Wiring Diagram Ð SROOF ÐNLEL0089MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0089S01
YEL924B
POWER SUNROOF
Wiring Diagram Ð SROOF Ð
EL-238
Page 1970 of 3051

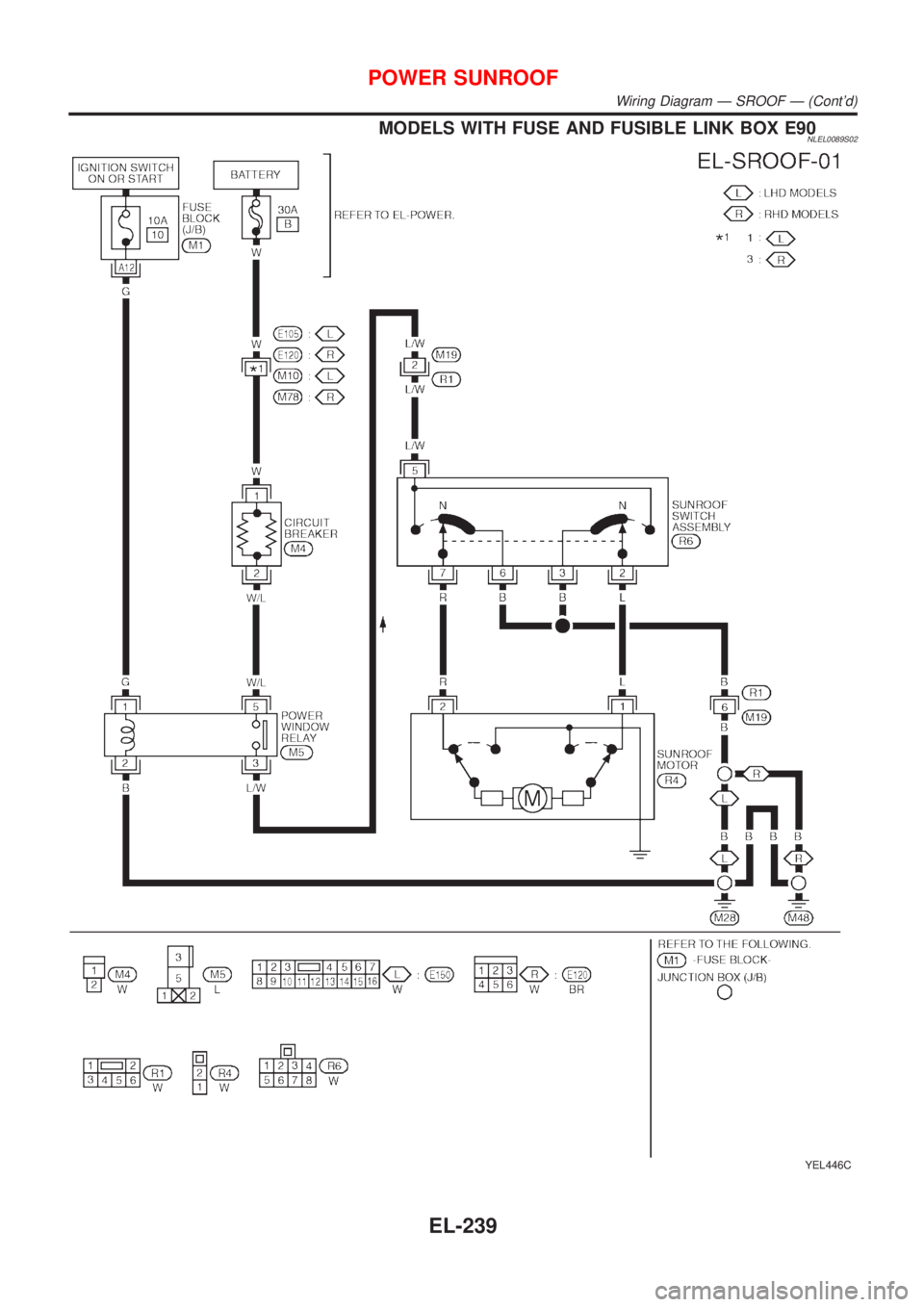

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0089S02
YEL446C
POWER SUNROOF
Wiring Diagram Ð SROOF Ð (Cont'd)
EL-239
Page 1971 of 3051

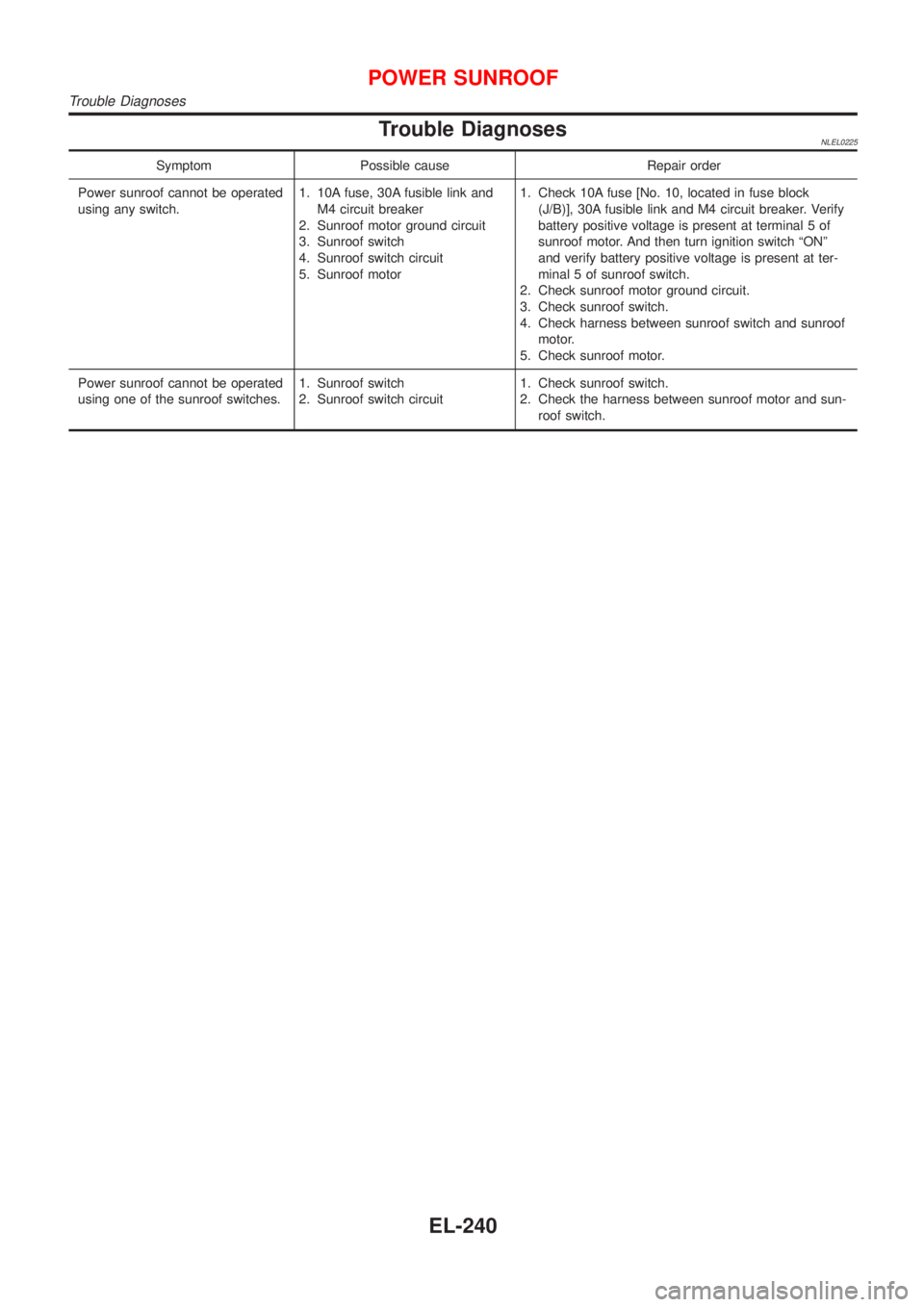

Trouble DiagnosesNLEL0225
Symptom Possible cause Repair order
Power sunroof cannot be operated
using any switch.1. 10A fuse, 30A fusible link and
M4 circuit breaker
2. Sunroof motor ground circuit
3. Sunroof switch
4. Sunroof switch circuit
5. Sunroof motor1. Check 10A fuse [No. 10, located in fuse block
(J/B)], 30A fusible link and M4 circuit breaker. Verify
battery positive voltage is present at terminal 5 of
sunroof motor. And then turn ignition switch ªONº
and verify battery positive voltage is present at ter-
minal 5 of sunroof switch.
2. Check sunroof motor ground circuit.
3. Check sunroof switch.
4. Check harness between sunroof switch and sunroof
motor.
5. Check sunroof motor.
Power sunroof cannot be operated
using one of the sunroof switches.1. Sunroof switch
2. Sunroof switch circuit1. Check sunroof switch.
2. Check the harness between sunroof motor and sun-
roof switch.
POWER SUNROOF
Trouble Diagnoses
EL-240
Page 1972 of 3051

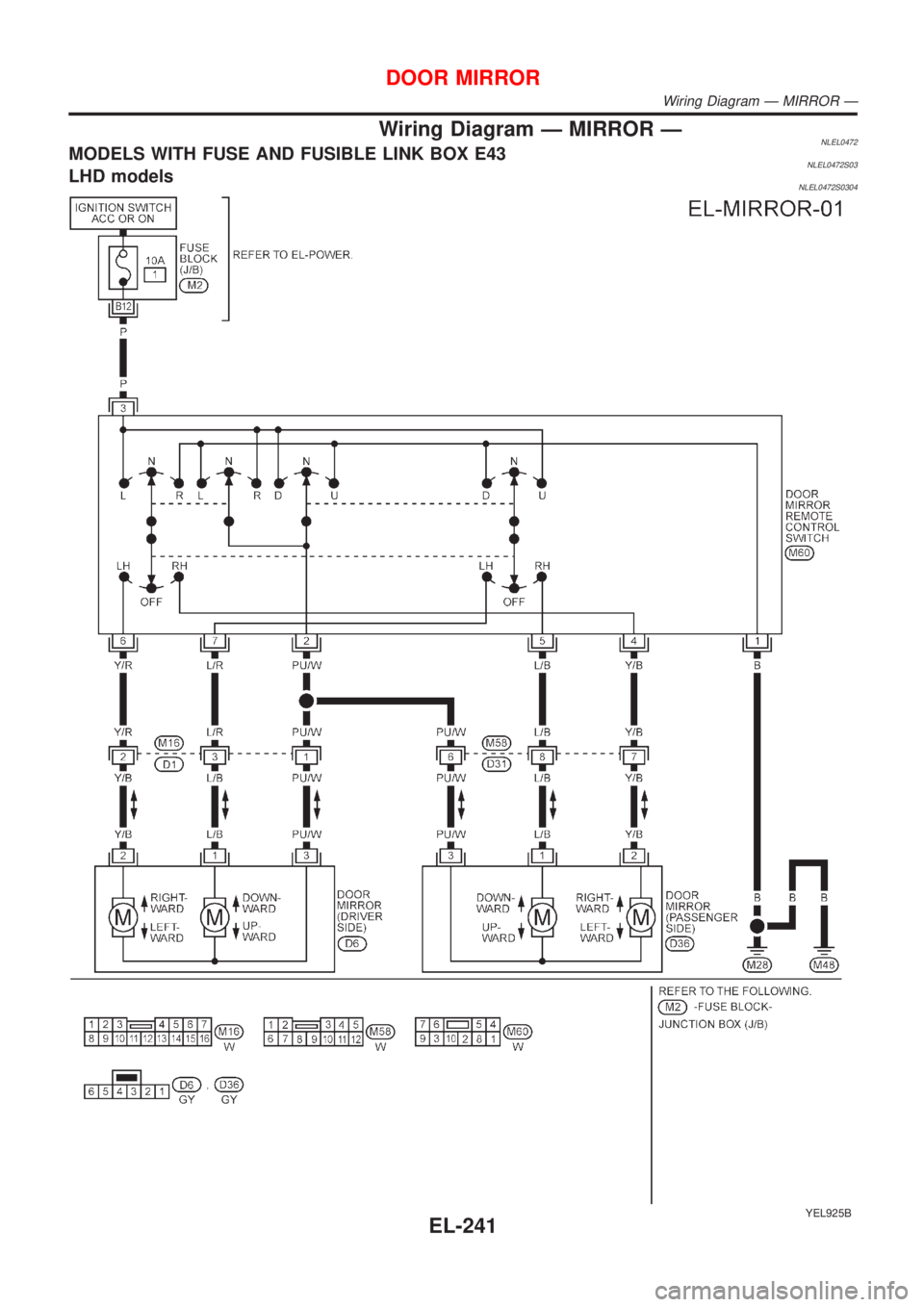

Wiring Diagram Ð MIRROR ÐNLEL0472MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0472S03LHD modelsNLEL0472S0304
YEL925B
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð
EL-241
Page 1973 of 3051

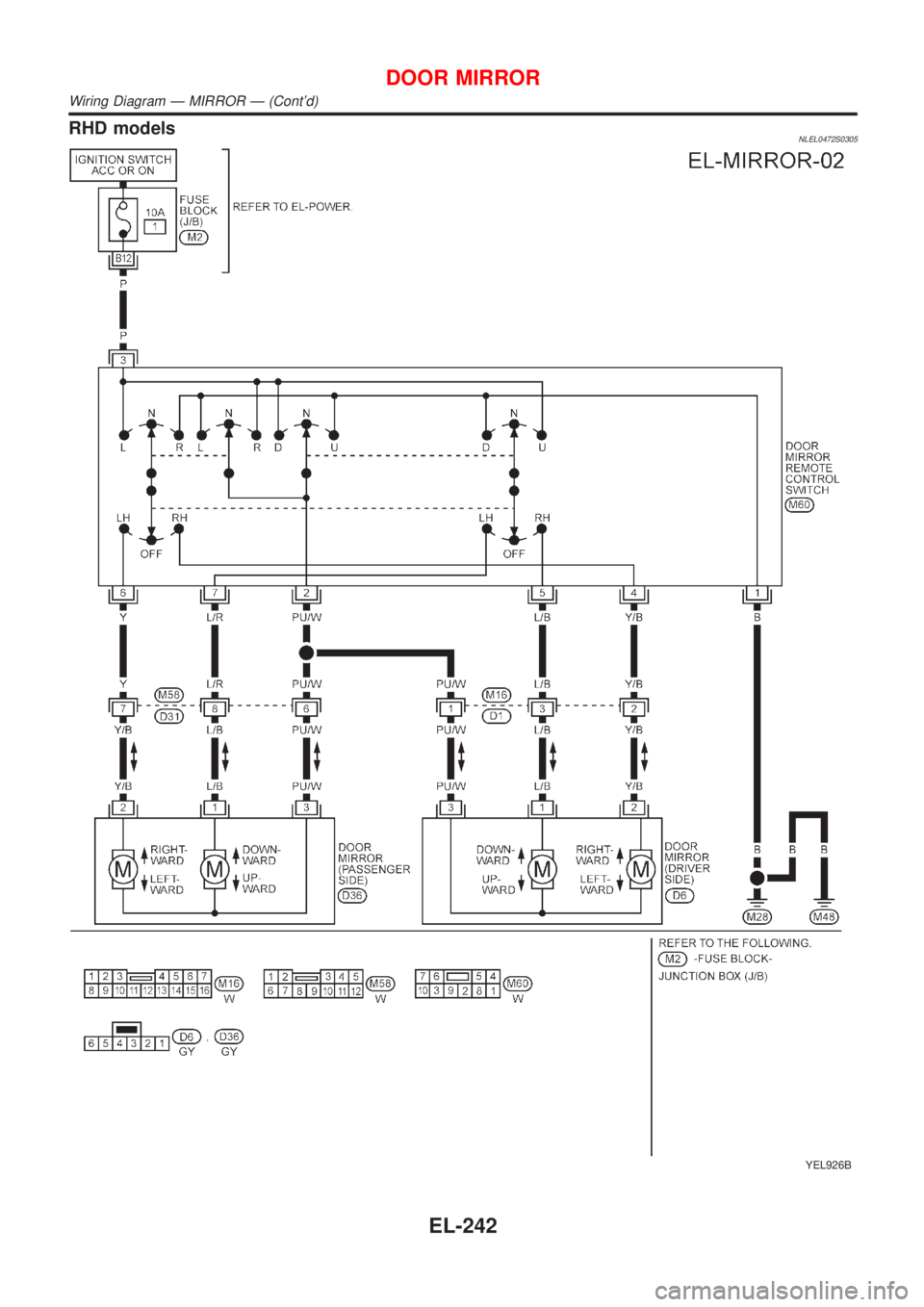

RHD modelsNLEL0472S0305
YEL926B
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð (Cont'd)
EL-242
Page 1974 of 3051

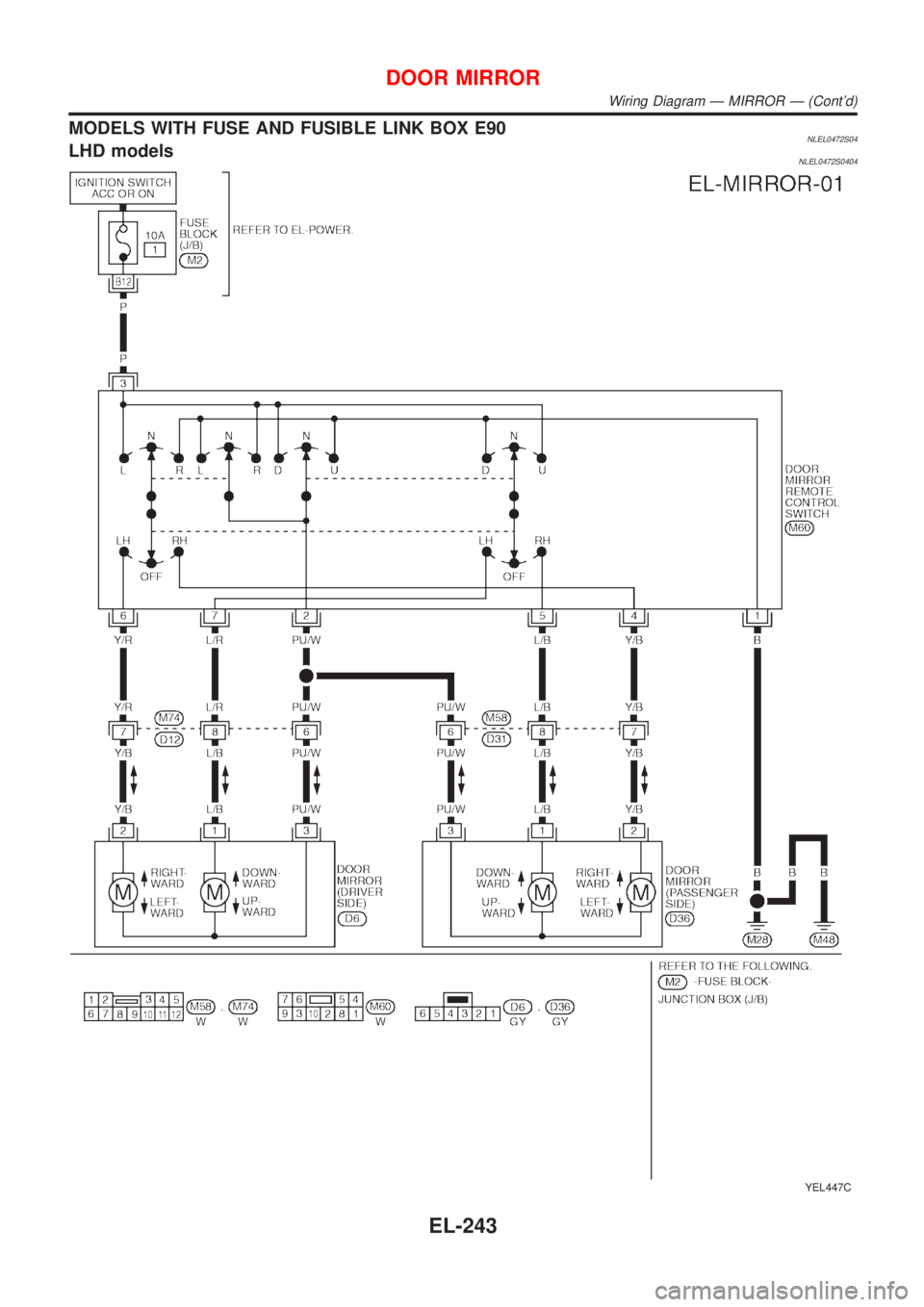

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0472S04LHD modelsNLEL0472S0404
YEL447C
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð (Cont'd)
EL-243
Page 1975 of 3051

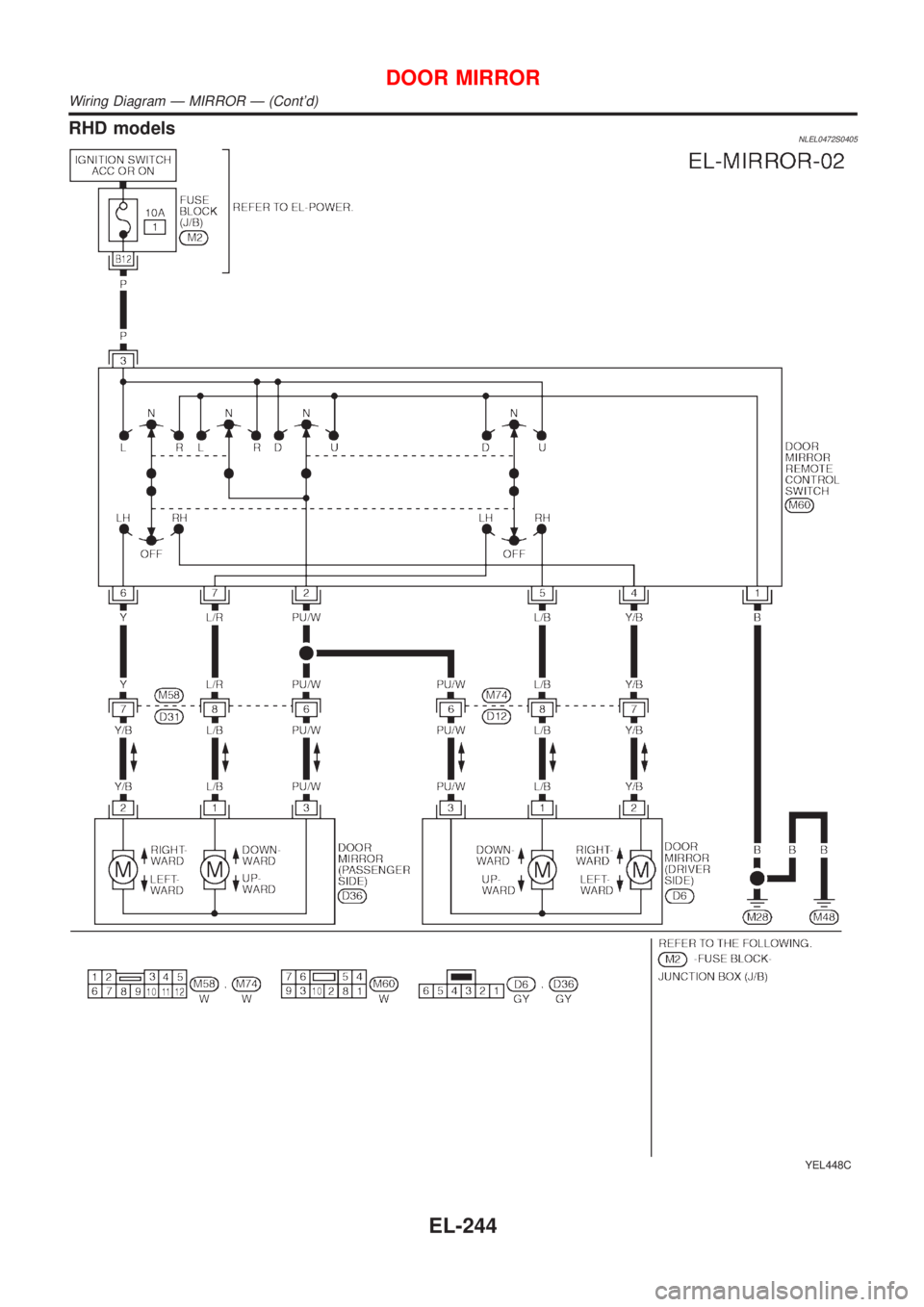

RHD modelsNLEL0472S0405
YEL448C
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð (Cont'd)
EL-244
Page 1976 of 3051

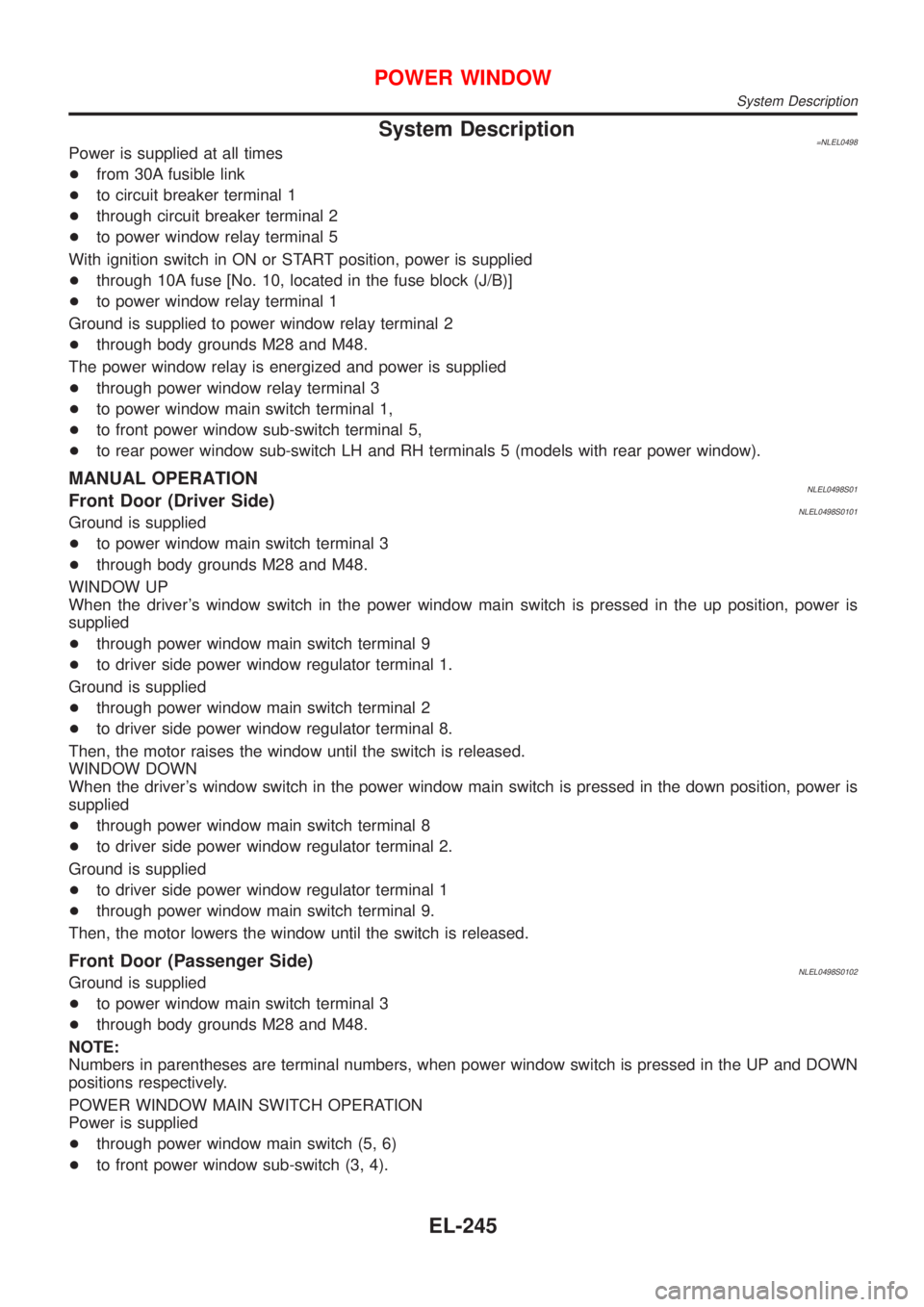

System Description=NLEL0498Power is supplied at all times
+from 30A fusible link
+to circuit breaker terminal 1
+through circuit breaker terminal 2
+to power window relay terminal 5
With ignition switch in ON or START position, power is supplied
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to power window relay terminal 1
Ground is supplied to power window relay terminal 2
+through body grounds M28 and M48.
The power window relay is energized and power is supplied
+through power window relay terminal 3
+to power window main switch terminal 1,
+to front power window sub-switch terminal 5,
+to rear power window sub-switch LH and RH terminals 5 (models with rear power window).
MANUAL OPERATIONNLEL0498S01Front Door (Driver Side)NLEL0498S0101Ground is supplied
+to power window main switch terminal 3
+through body grounds M28 and M48.
WINDOW UP
When the driver's window switch in the power window main switch is pressed in the up position, power is
supplied
+through power window main switch terminal 9
+to driver side power window regulator terminal 1.
Ground is supplied
+through power window main switch terminal 2
+to driver side power window regulator terminal 8.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver's window switch in the power window main switch is pressed in the down position, power is
supplied
+through power window main switch terminal 8
+to driver side power window regulator terminal 2.
Ground is supplied
+to driver side power window regulator terminal 1
+through power window main switch terminal 9.
Then, the motor lowers the window until the switch is released.
Front Door (Passenger Side)NLEL0498S0102Ground is supplied
+to power window main switch terminal 3
+through body grounds M28 and M48.
NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
POWER WINDOW MAIN SWITCH OPERATION
Power is supplied
+through power window main switch (5, 6)
+to front power window sub-switch (3, 4).
POWER WINDOW
System Description
EL-245
