Page 2289 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM096F REAR OIL SEAL=NLEM0015S031. Remove transaxle. Refer to MT-18, ªREMOVAL AND INSTAL- LATIONº. 2. Remove flywheel. 3. Remove rear oil seal. +Be careful not to scratch rear oil seal retainer. SE

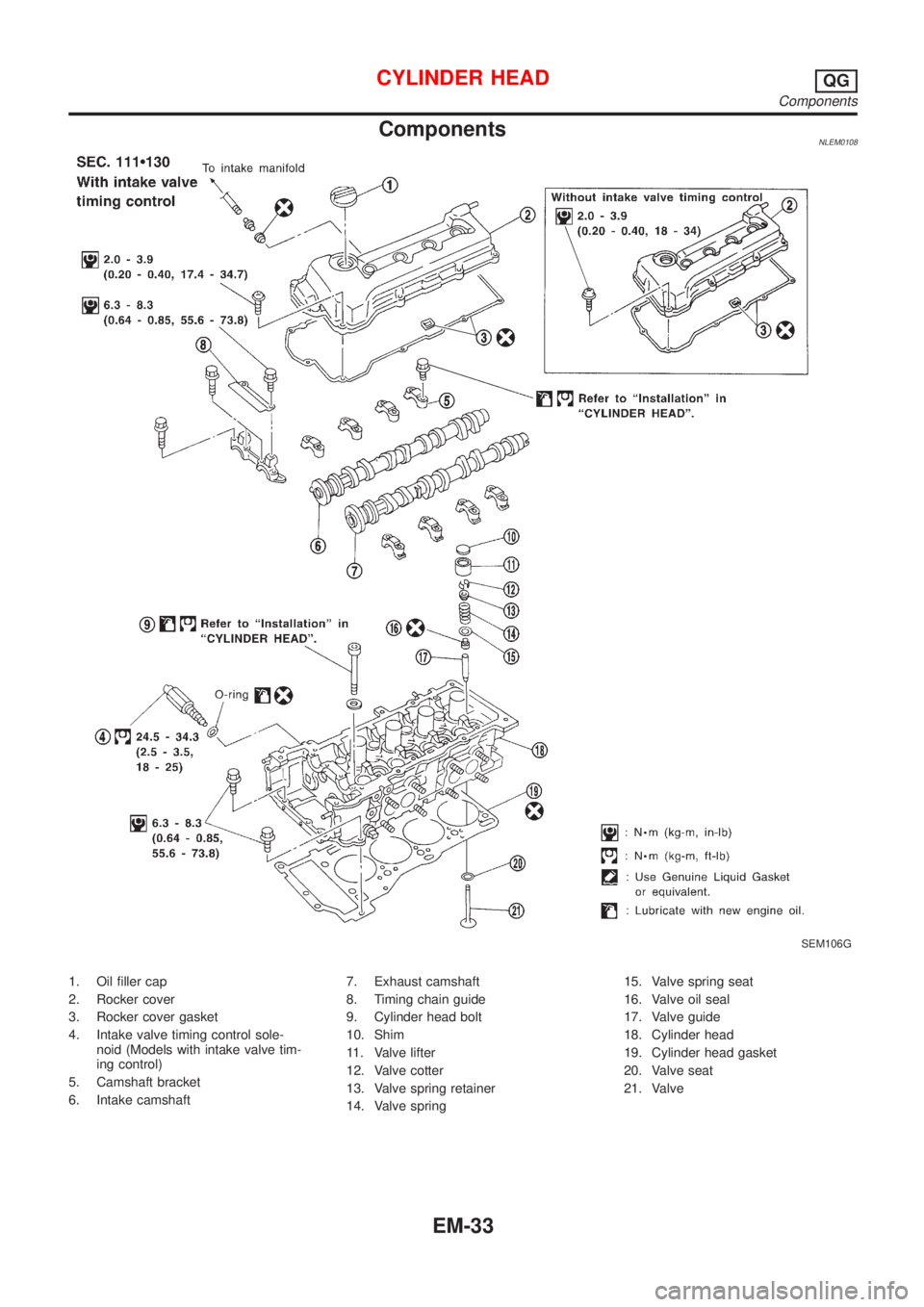

Page 2290 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual ComponentsNLEM0108 SEM106G 1. Oil filler cap 2. Rocker cover 3. Rocker cover gasket 4. Intake valve timing control sole- noid (Models with intake valve tim- ing control) 5. Camshaft bracket 6. Intake

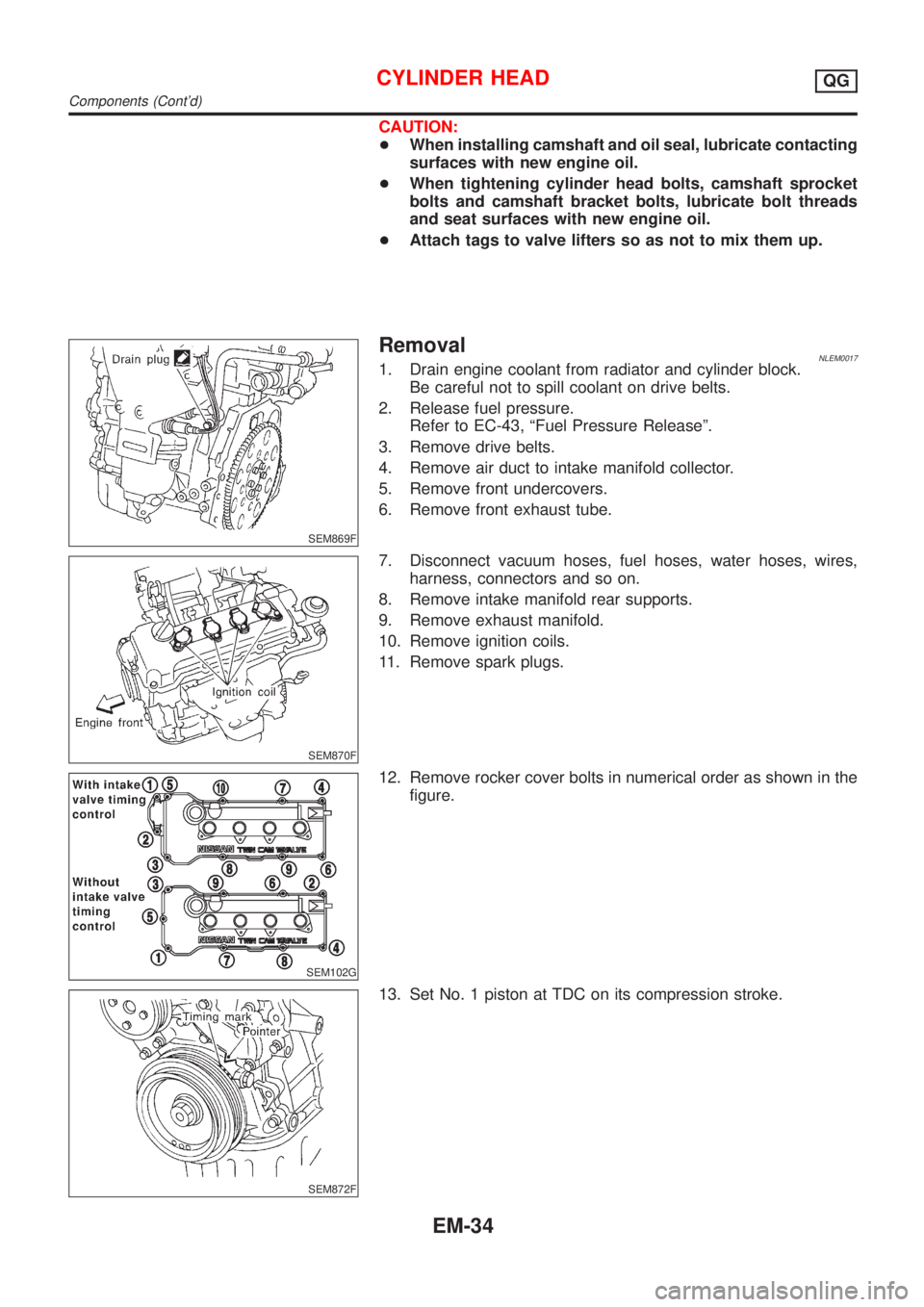

Page 2291 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual CAUTION: +When installing camshaft and oil seal, lubricate contacting surfaces with new engine oil. +When tightening cylinder head bolts, camshaft sprocket bolts and camshaft bracket bolts, lubricate

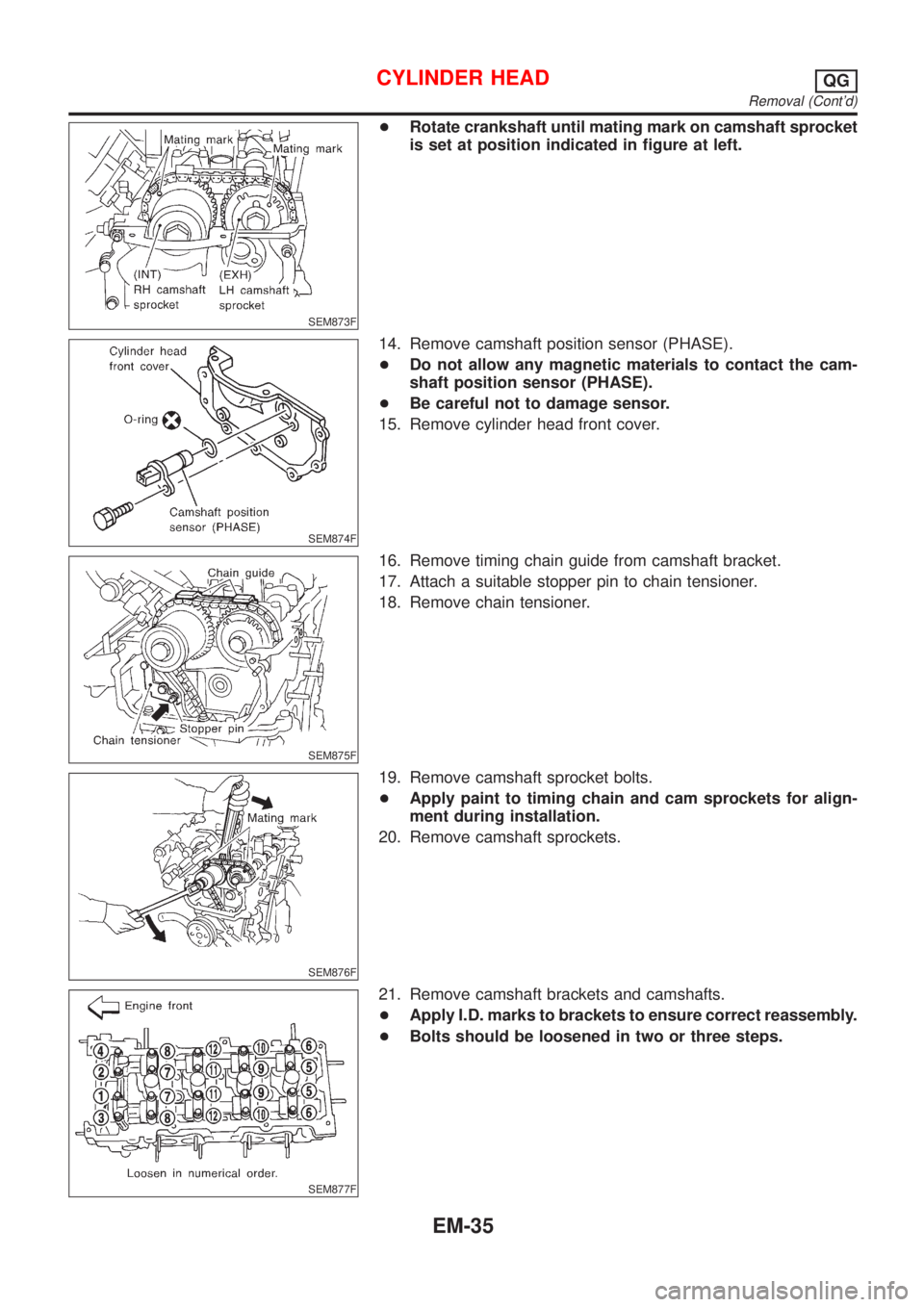

Page 2292 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM873F +Rotate crankshaft until mating mark on camshaft sprocket is set at position indicated in figure at left. SEM874F 14. Remove camshaft position sensor (PHASE). +Do not allow any magnetic materi

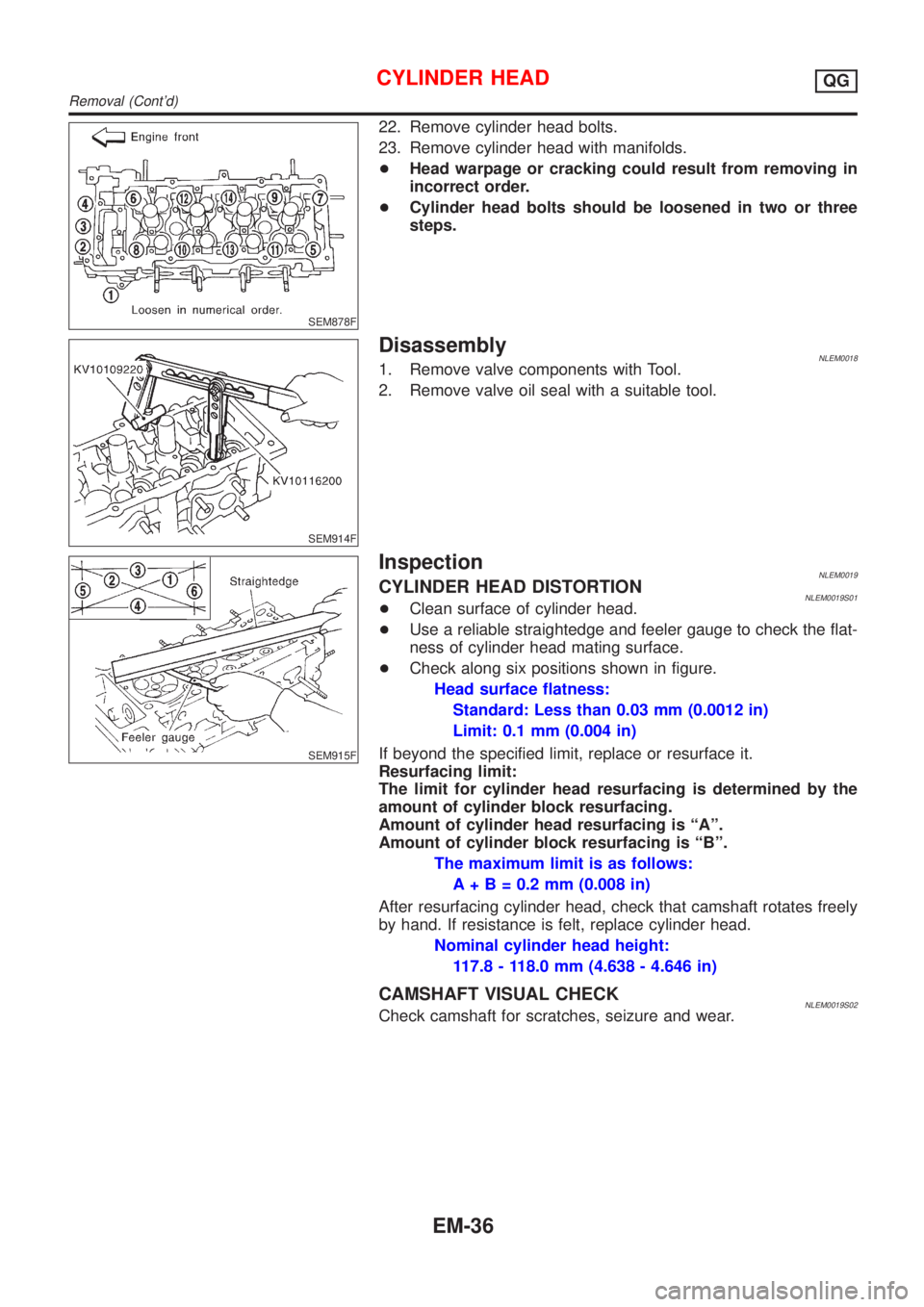

Page 2293 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM878F 22. Remove cylinder head bolts. 23. Remove cylinder head with manifolds. +Head warpage or cracking could result from removing in incorrect order. +Cylinder head bolts should be loosened in two

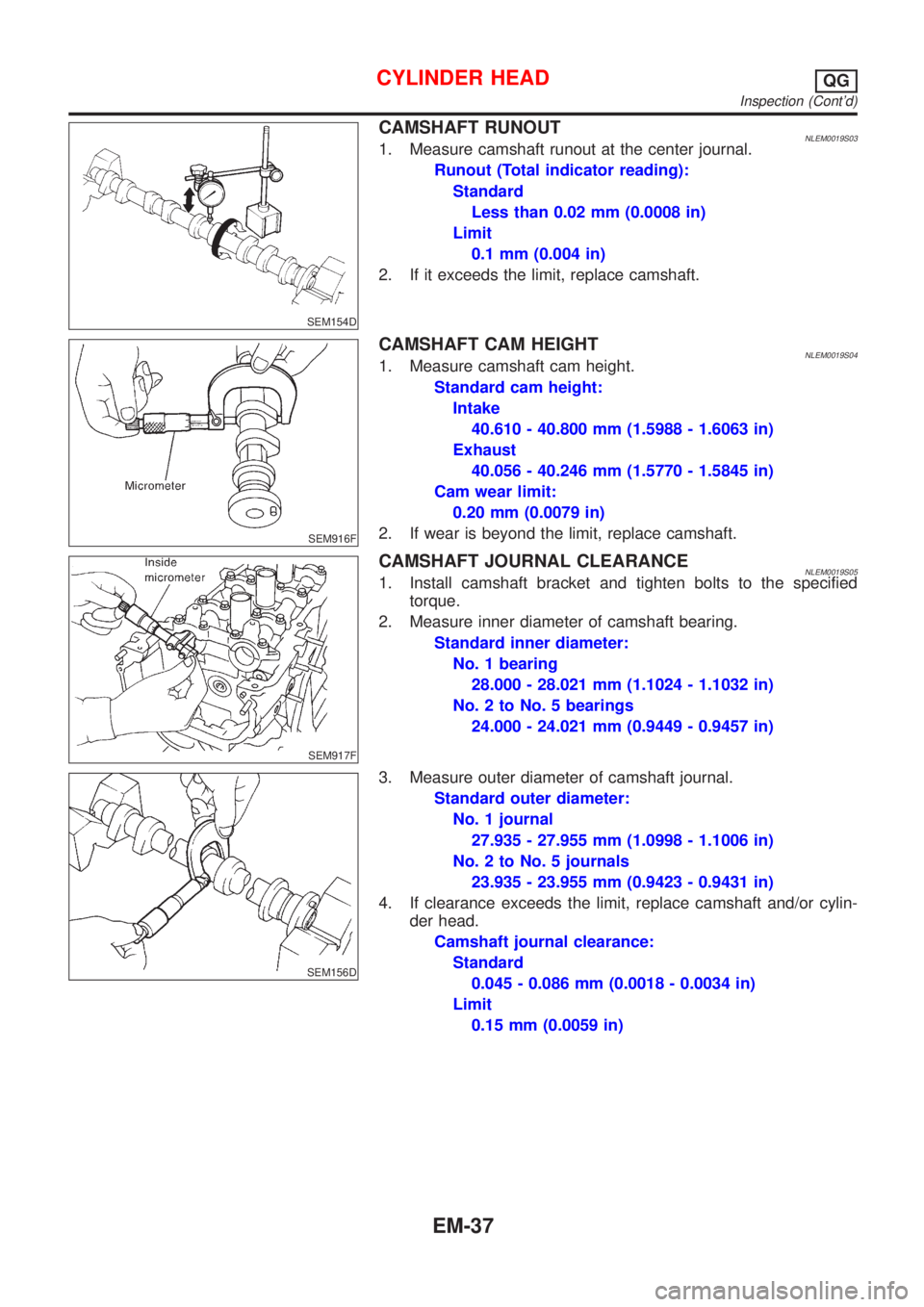

Page 2294 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM154D CAMSHAFT RUNOUTNLEM0019S031. Measure camshaft runout at the center journal. Runout (Total indicator reading): Standard Less than 0.02 mm (0.0008 in) Limit 0.1 mm (0.004 in) 2. If it exceeds th

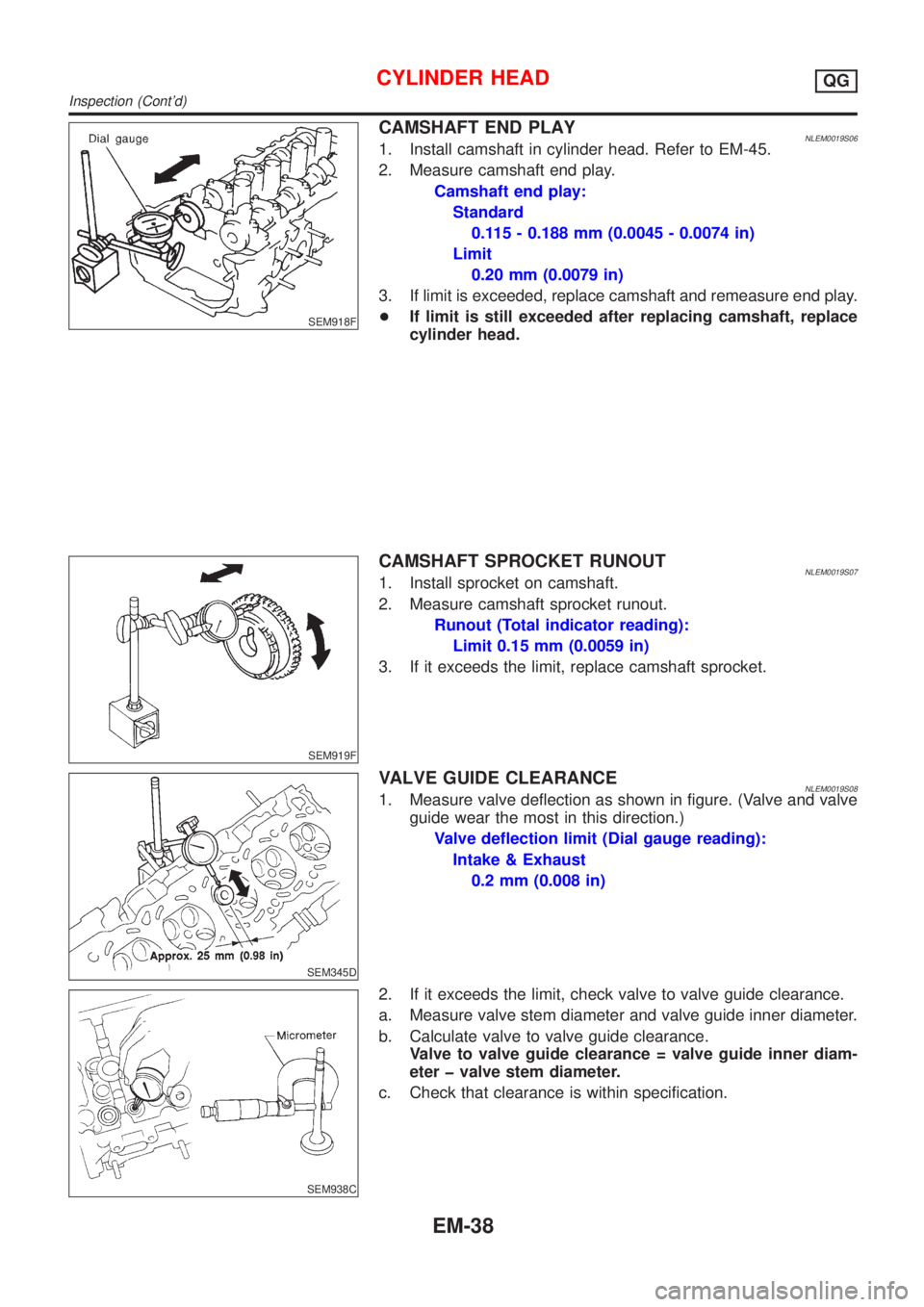

Page 2295 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEM918F CAMSHAFT END PLAYNLEM0019S061. Install camshaft in cylinder head. Refer to EM-45. 2. Measure camshaft end play. Camshaft end play: Standard 0.115 - 0.188 mm (0.0045 - 0.0074 in) Limit 0.20 mm

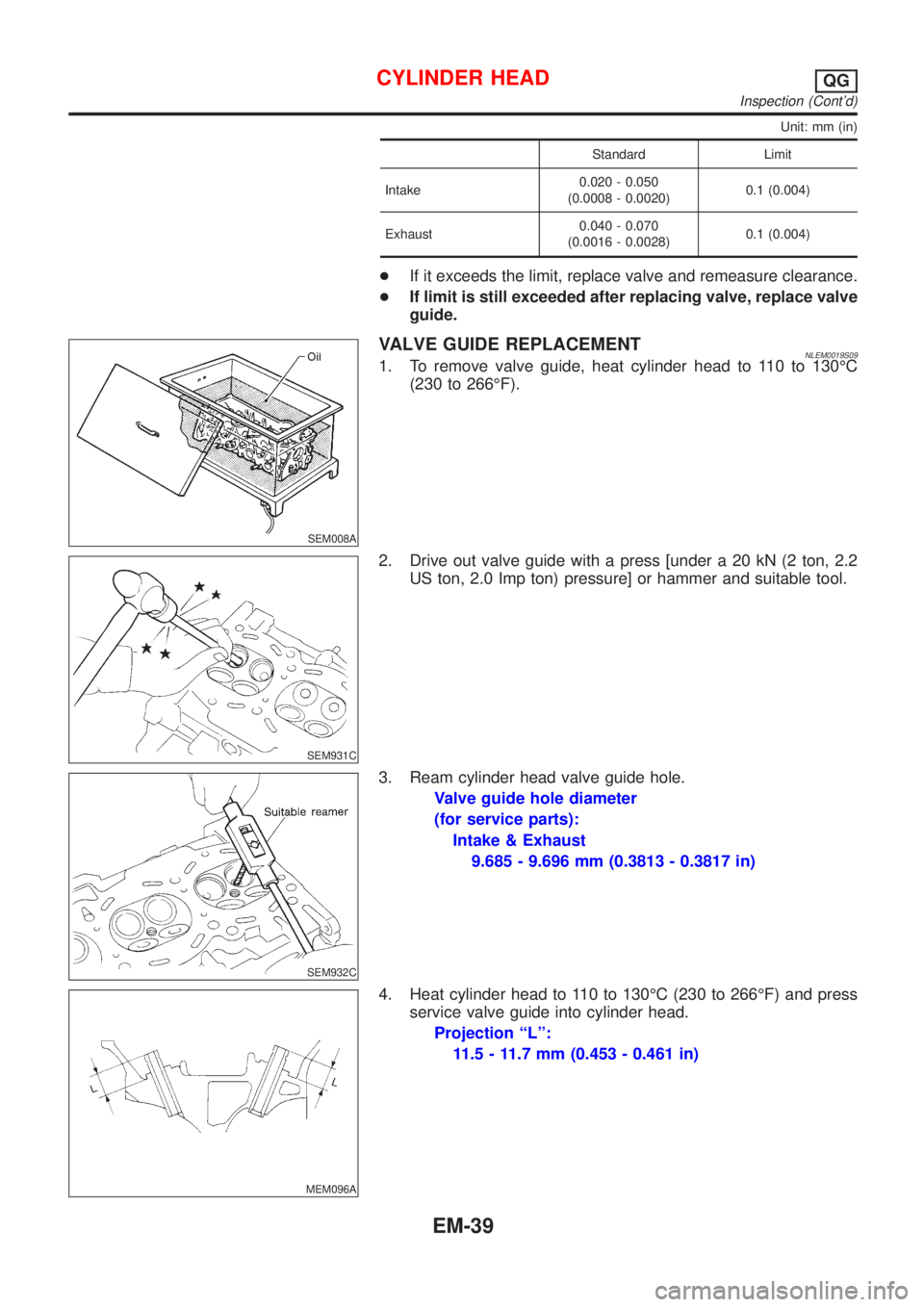

Page 2296 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Unit: mm (in) Standard Limit Intake0.020 - 0.050 (0.0008 - 0.0020)0.1 (0.004) Exhaust0.040 - 0.070 (0.0016 - 0.0028)0.1 (0.004) +If it exceeds the limit, replace valve and remeasure clearance. +If lim
