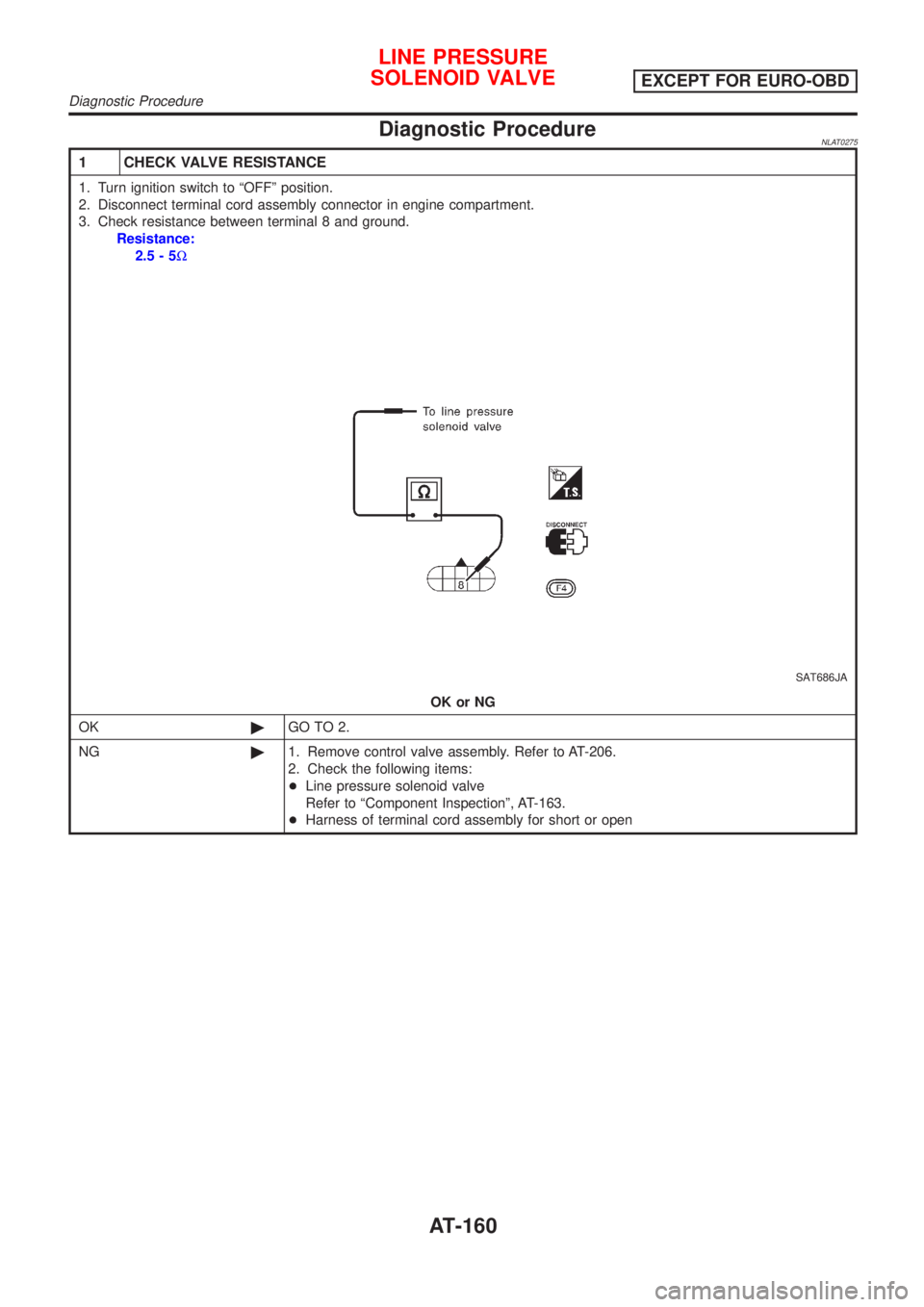

Page 161 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLAT0275 1 CHECK VALVE RESISTANCE 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between ter

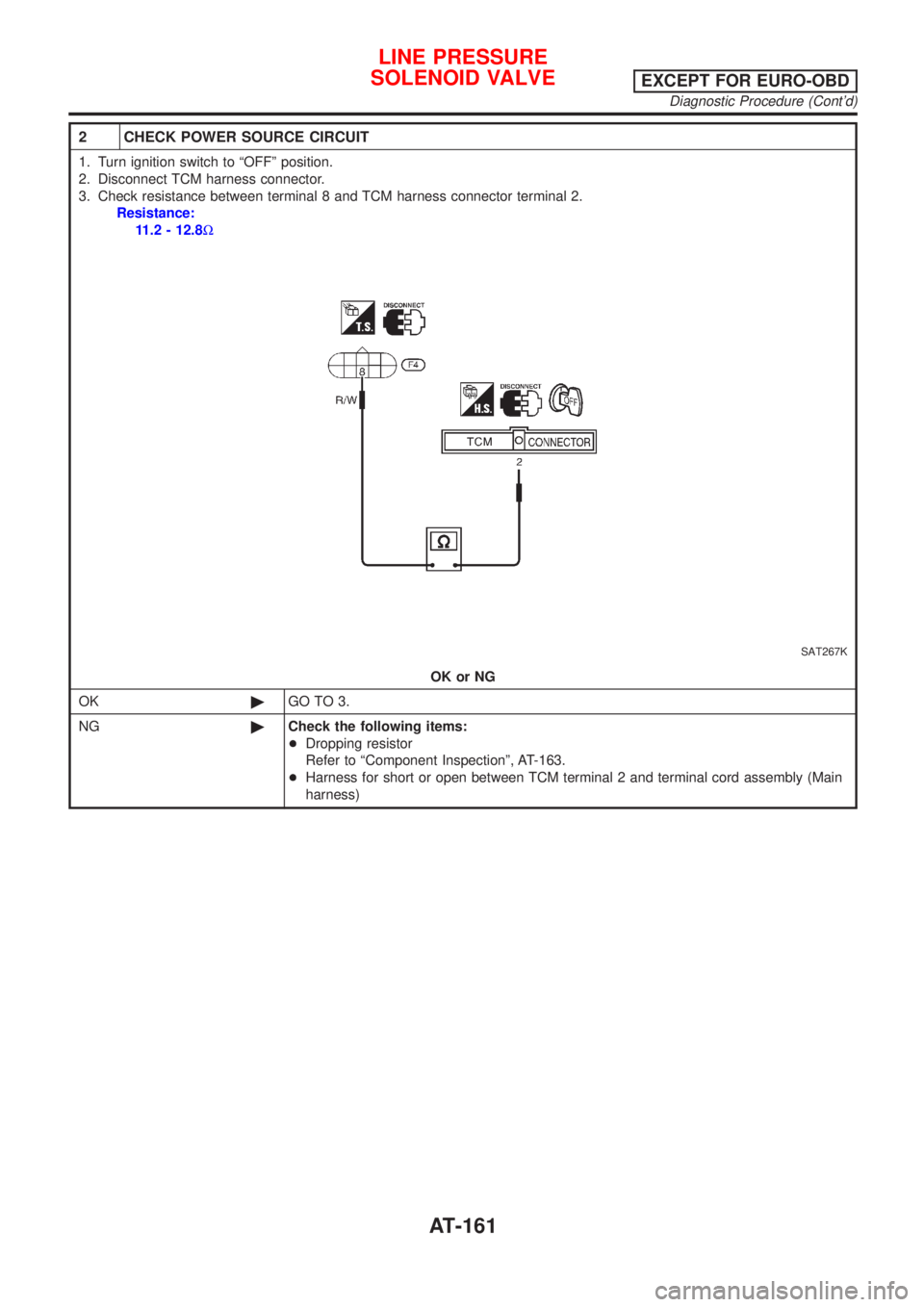

Page 162 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 2 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect TCM harness connector. 3. Check resistance between terminal 8 and TCM harness connector terminal 2. Resistance:

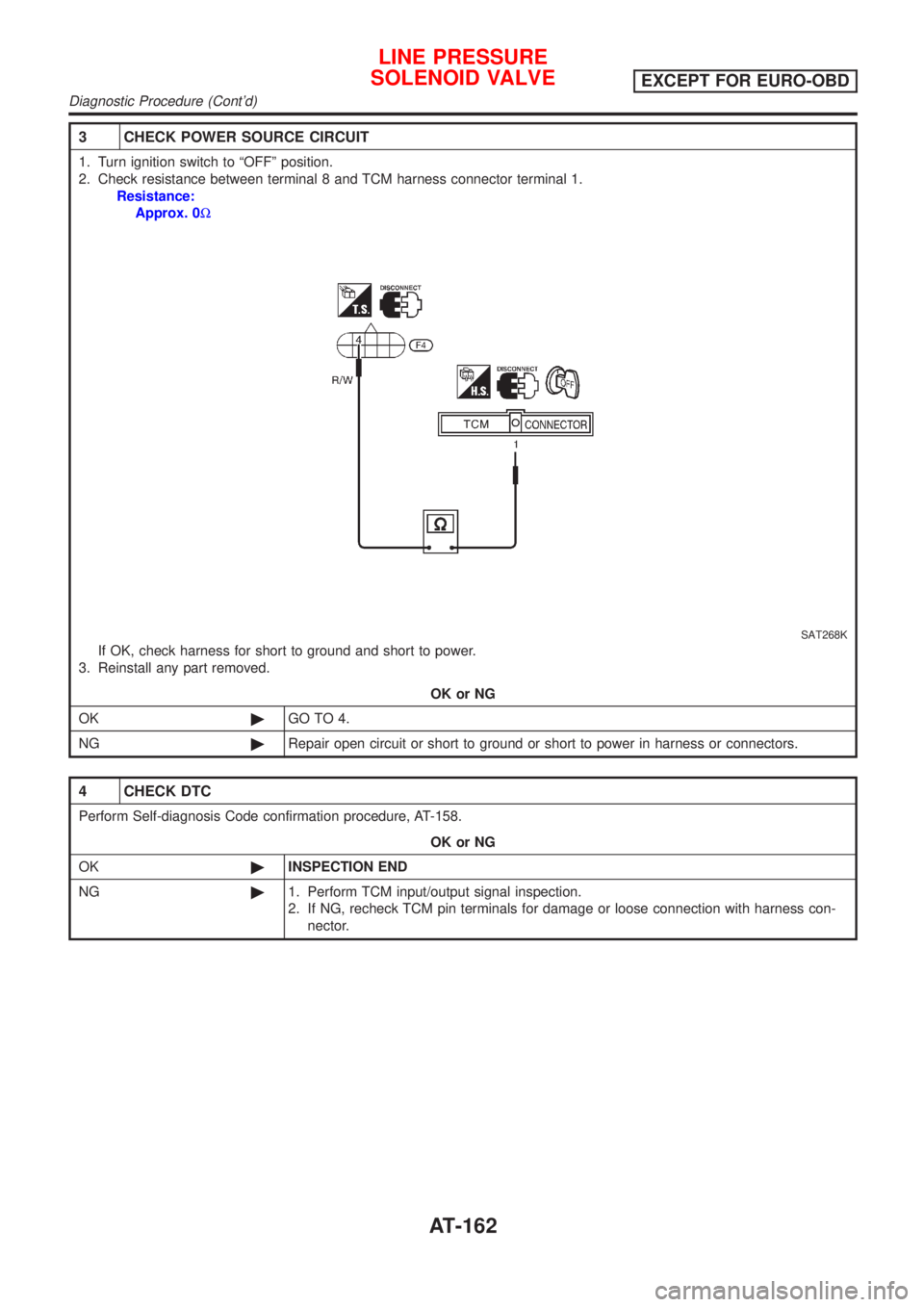

Page 163 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Check resistance between terminal 8 and TCM harness connector terminal 1. Resistance: Approx. 0W SAT268K If OK, check harne

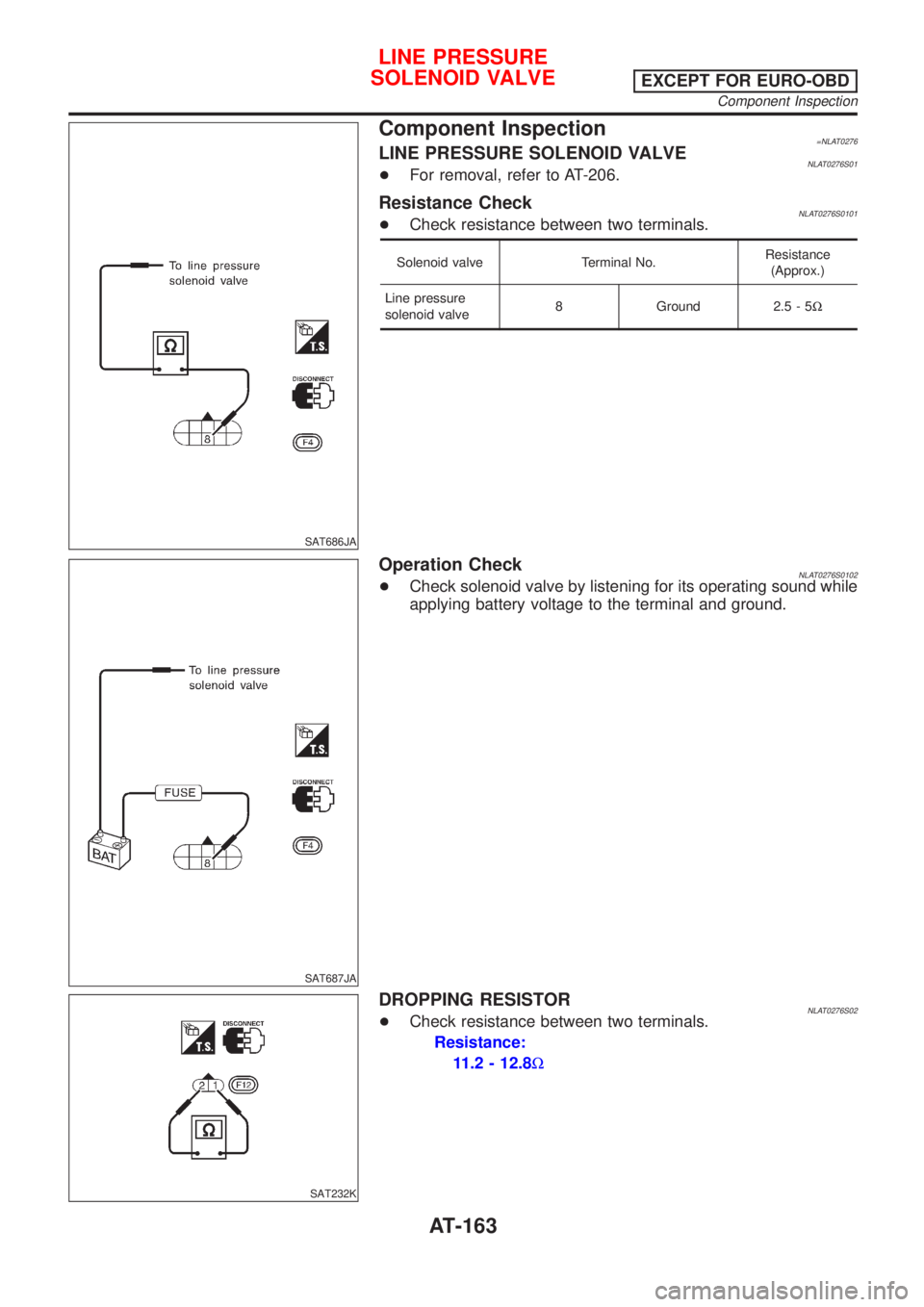

Page 164 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT686JA Component Inspection=NLAT0276LINE PRESSURE SOLENOID VALVENLAT0276S01+For removal, refer to AT-206. Resistance CheckNLAT0276S0101+Check resistance between two terminals. Solenoid valve Termina

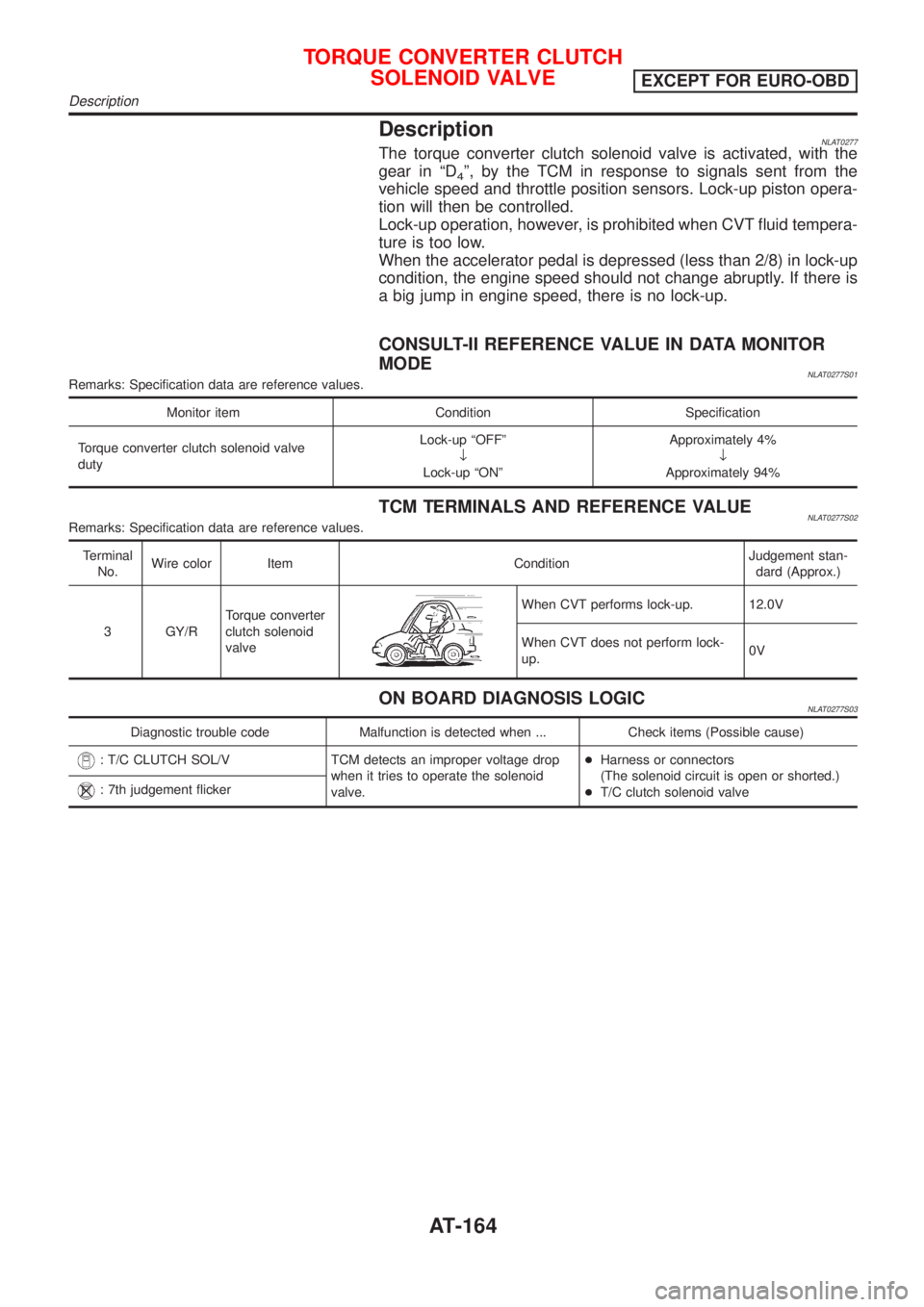

Page 165 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLAT0277The torque converter clutch solenoid valve is activated, with the gear in ªD 4º, by the TCM in response to signals sent from the vehicle speed and throttle position sensors. Lock-

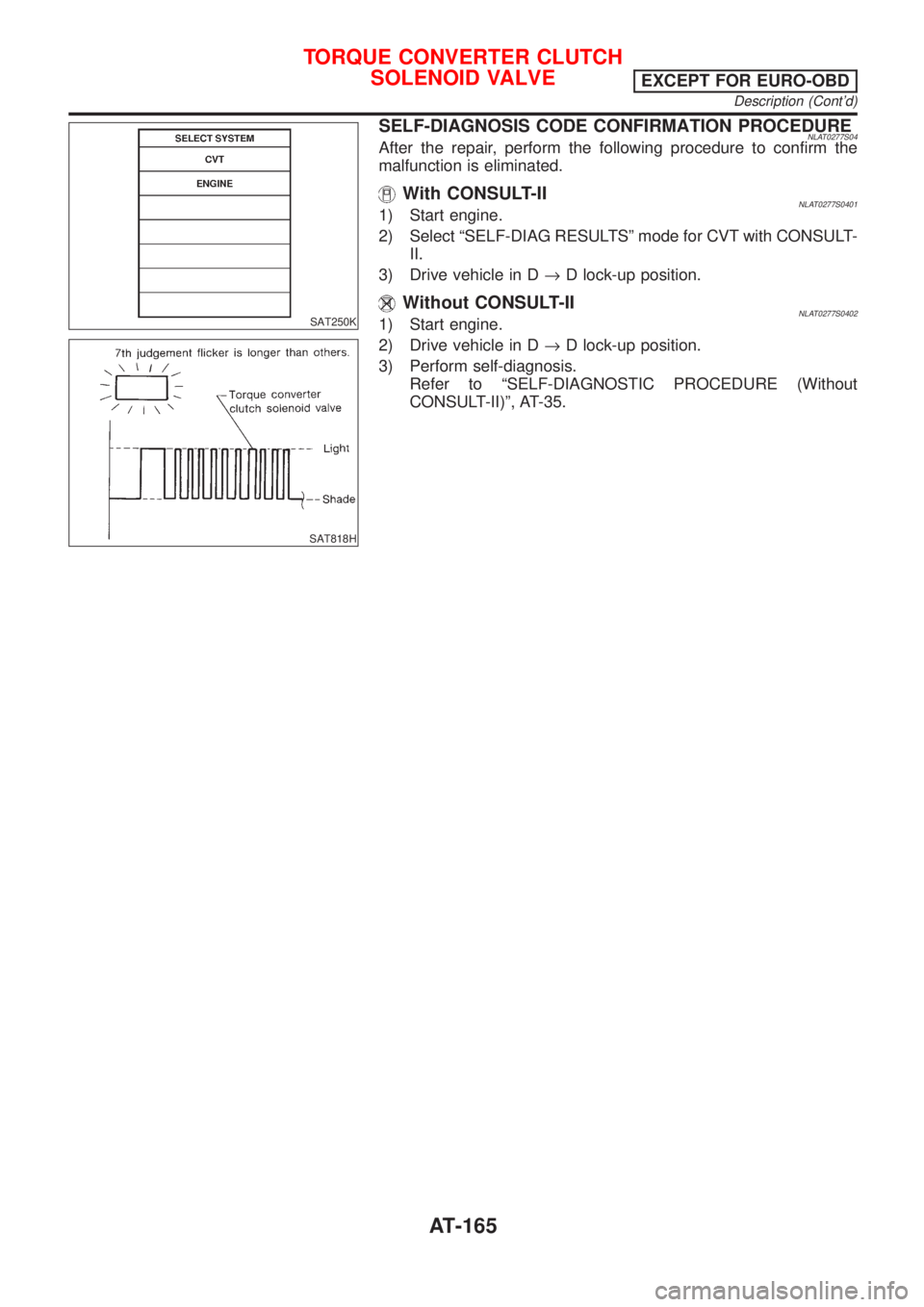

Page 166 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT250K SAT818H SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0277S04After the repair, perform the following procedure to confirm the malfunction is eliminated. With CONSULT-IINLAT0277S04011) Start en

Page 167 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð AT Ð TCVNLAT0278 YAT179 TORQUE CONVERTER CLUTCH SOLENOID VALVE EXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð TCV AT-166

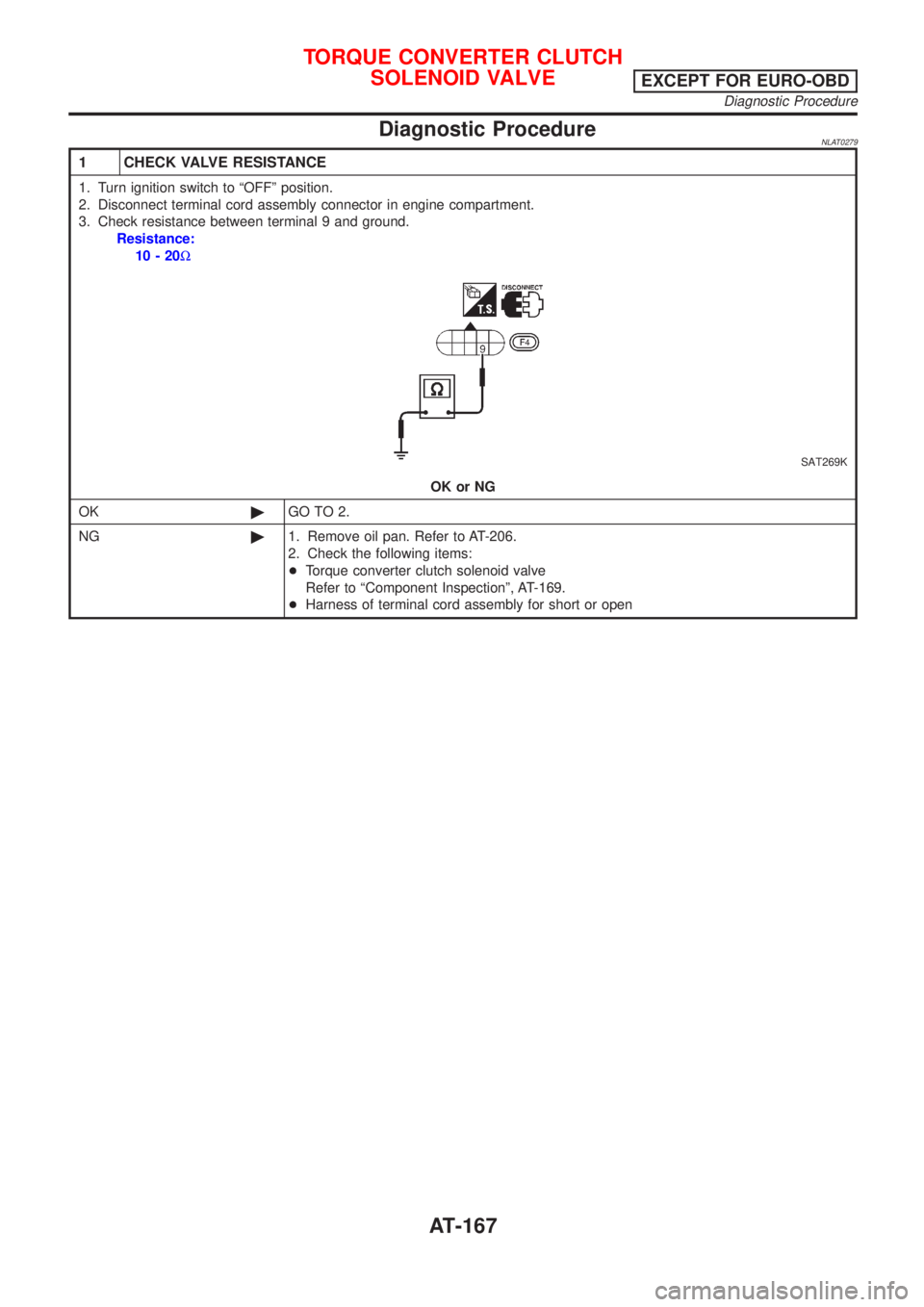

Page 168 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLAT0279 1 CHECK VALVE RESISTANCE 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between ter
