Page 953 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual If NG, replace power steering oil pressure switch. POWER STEERING OIL PRESSURE SWITCHQG18DE Component Inspection (Contd) EC-528

Page 954 of 3051

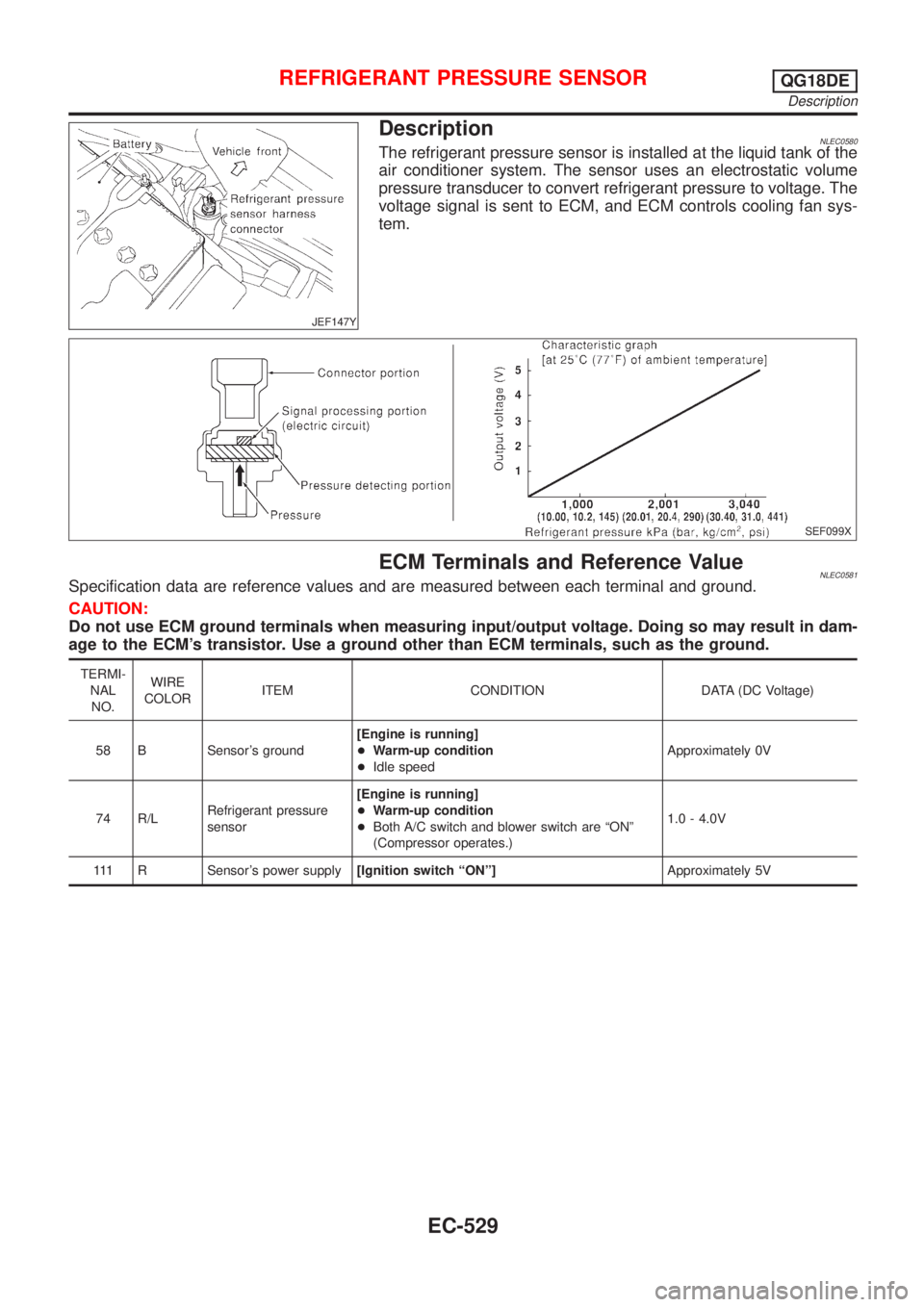

NISSAN ALMERA TINO 2001 Service Repair Manual JEF147Y DescriptionNLEC0580The refrigerant pressure sensor is installed at the liquid tank of the air conditioner system. The sensor uses an electrostatic volume pressure transducer to convert refrige

Page 955 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0582MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0582S03 YEC683 REFRIGERANT PRESSURE SENSORQG18DE Wiring Diagram EC-530

Page 956 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC0582S04 YEC906 REFRIGERANT PRESSURE SENSORQG18DE Wiring Diagram (Contd) EC-531

Page 957 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0590 1 CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION 1. Start engine and warm it up to normal operating temperature. 2. Turn A/C switch and blower switch ªONº. 3. Check

Page 958 of 3051

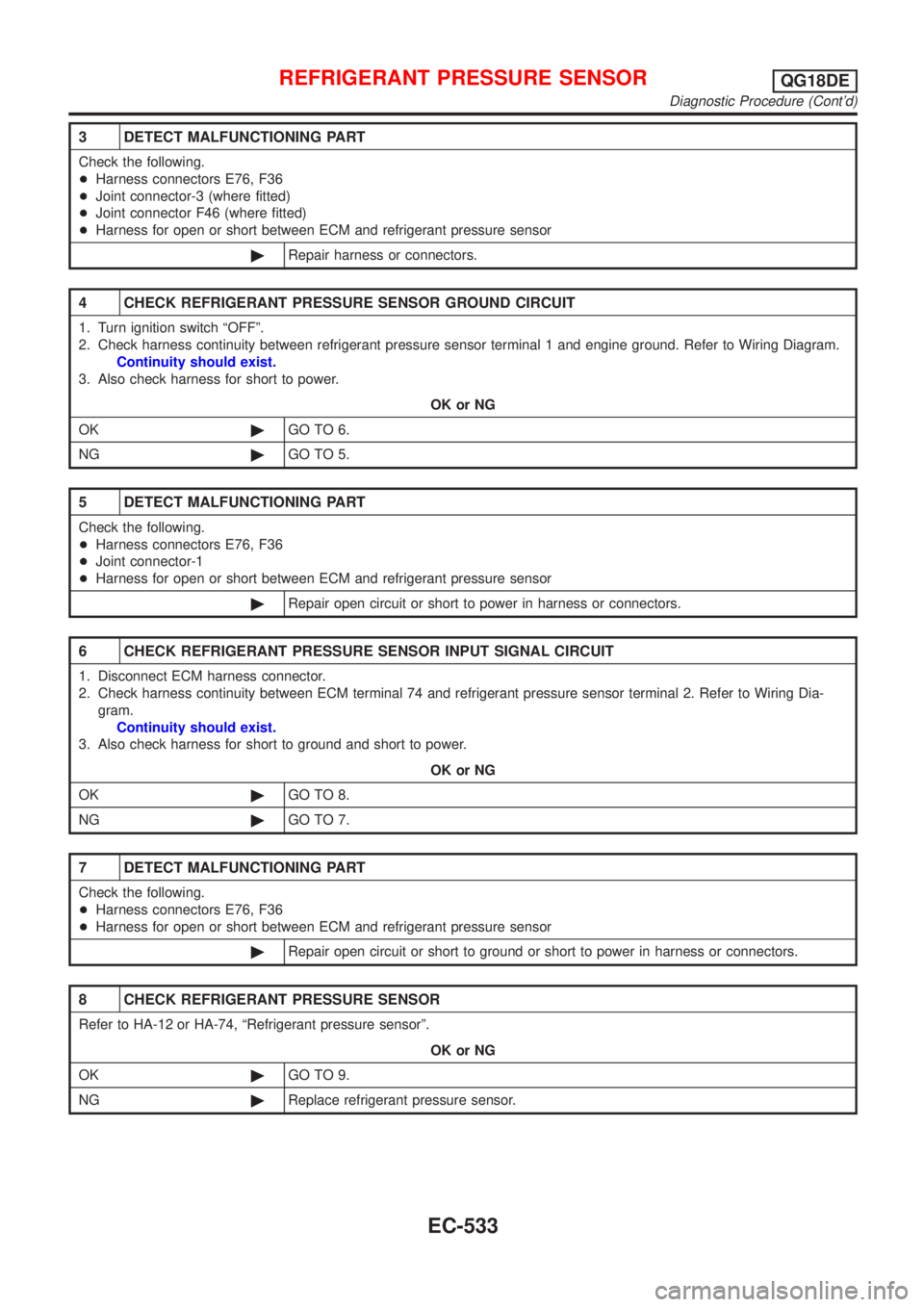

NISSAN ALMERA TINO 2001 Service Repair Manual 3 DETEC TMALFUNCTIONIN GPART 4 CHEC KREFRIGERAN TPRESSUR ESENSO RGROUN DCIRCUIT 5 DETEC TMALFUNCTIONIN GPART 6 CHEC KREFRIGERAN TPRESSUR ESENSO RINPU TSIGNA LCIRCUIT 7 DETEC TMALFUNCTIONIN GPART

Page 959 of 3051

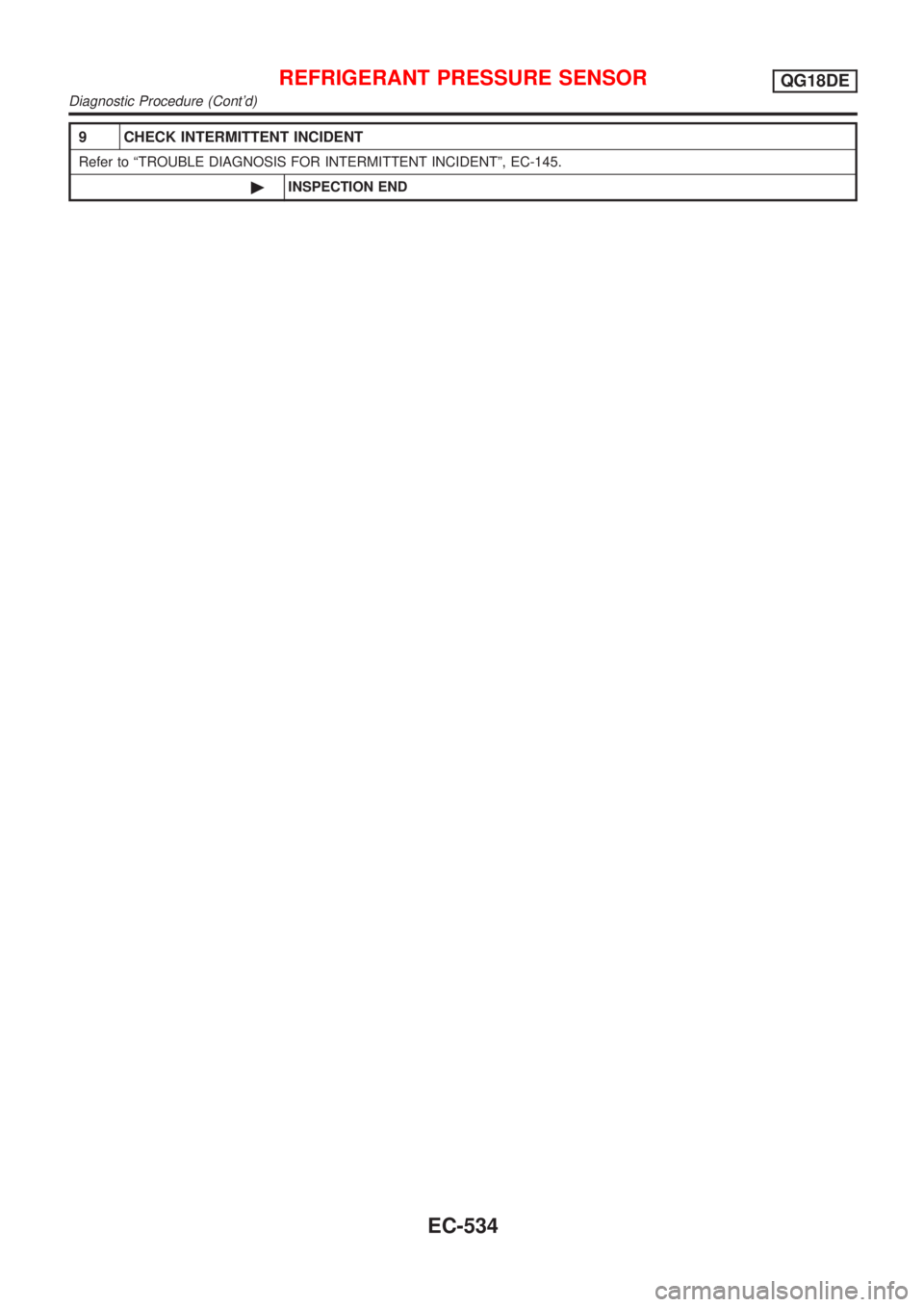

NISSAN ALMERA TINO 2001 Service Repair Manual 9 CHECK INTERMITTENT INCIDENT Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-145. ©INSPECTION END REFRIGERANT PRESSURE SENSORQG18DE Diagnostic Procedure (Contd) EC-534

Page 960 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual CONSULT-II Reference Value in Data Monitor Mode NLEC0548Specification data are reference values. MONITOR ITEM CONDITION SPECIFICATION LOAD SIGNAL+Ignition switch: ONRear window defogger is operating a
