Page 2089 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DIAGNOSTIC PROCEDURE 4=NLEL0411S08Self-diagnostic results: ªCHAIN OF IMMU-KEYº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªCHAIN OF IMMU-KEYº

Page 2090 of 3051

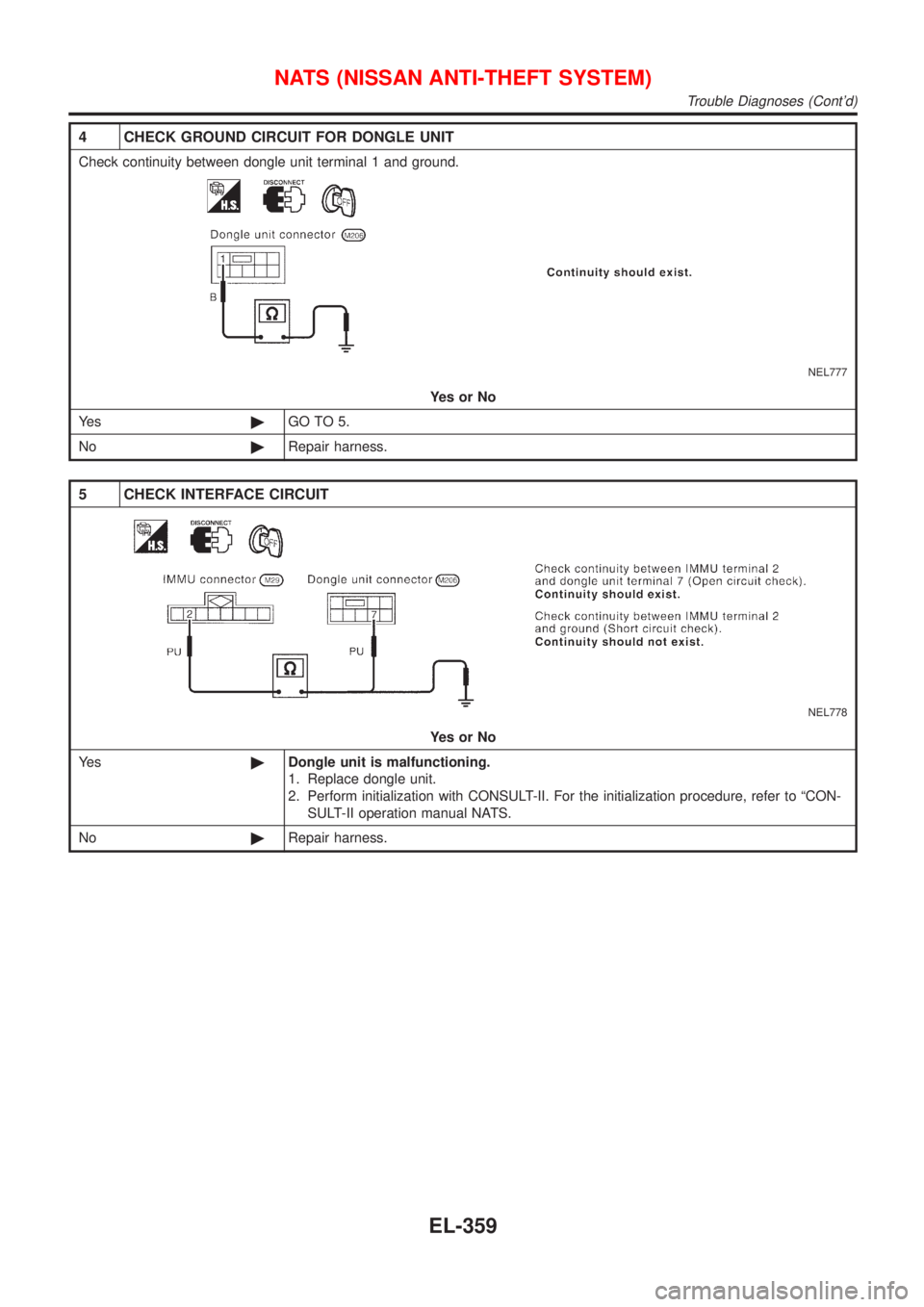

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK GROUND CIRCUIT FOR DONGLE UNIT Check continuity between dongle unit terminal 1 and ground. NEL777 YesorNo Ye s©GO TO 5. No©Repair harness. 5 CHECK INTERFACE CIRCUIT NEL778 YesorNo Ye s©Dong

Page 2091 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DIAGNOSTIC PROCEDURE 5=NLEL0411S09Self-diagnostic results: ªID DISCORD, IMM-ECMº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªID DISCORD, IMM-EC

Page 2092 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DIAGNOSTIC PROCEDURE 6 (MODELS WITH NATS SECURITY INDICATOR ON DASH BOARD) =NLEL0411S10ªSECURITY INDICATOR LAMP DOES NOT LIGHT UPº 1 CHECK FUSE Check 10A fuse [No. 12, located in the fuse block (J/B

Page 2093 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK IMMU FUNCTION 1. Connect IMMU connector. 2. Disconnect security indicator lamp connector. 3. Check continuity between IMMU terminal 6 and ground. NEL704 OK or NG OK©Check harness for open or

Page 2094 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DIAGNOSTIC PROCEDURE 6 (MODELS WITH NATS SECURITY INDICATOR IN COMBINATION METER) =NLEL0411S16ªSECURITY INDICATOR LAMP DOES NOT LIGHT UPº 1 CHECK FUSE Check 10A fuse [No. 12, located in the fuse blo

Page 2095 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK IMMU FUNCTION 1. Connect IMMU connector. 2. Disconnect combination meter (security indicator lamp) connector. 3. Check continuity between IMMU terminal 6 and ground. NEL704 OK or NG OK©Check

Page 2096 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DIAGNOSTIC PROCEDURE 7=NLEL0411S11Self-diagnostic results: ªLOCK MODEº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªLOCK MODEº is displayed on
