Page 2713 of 3051

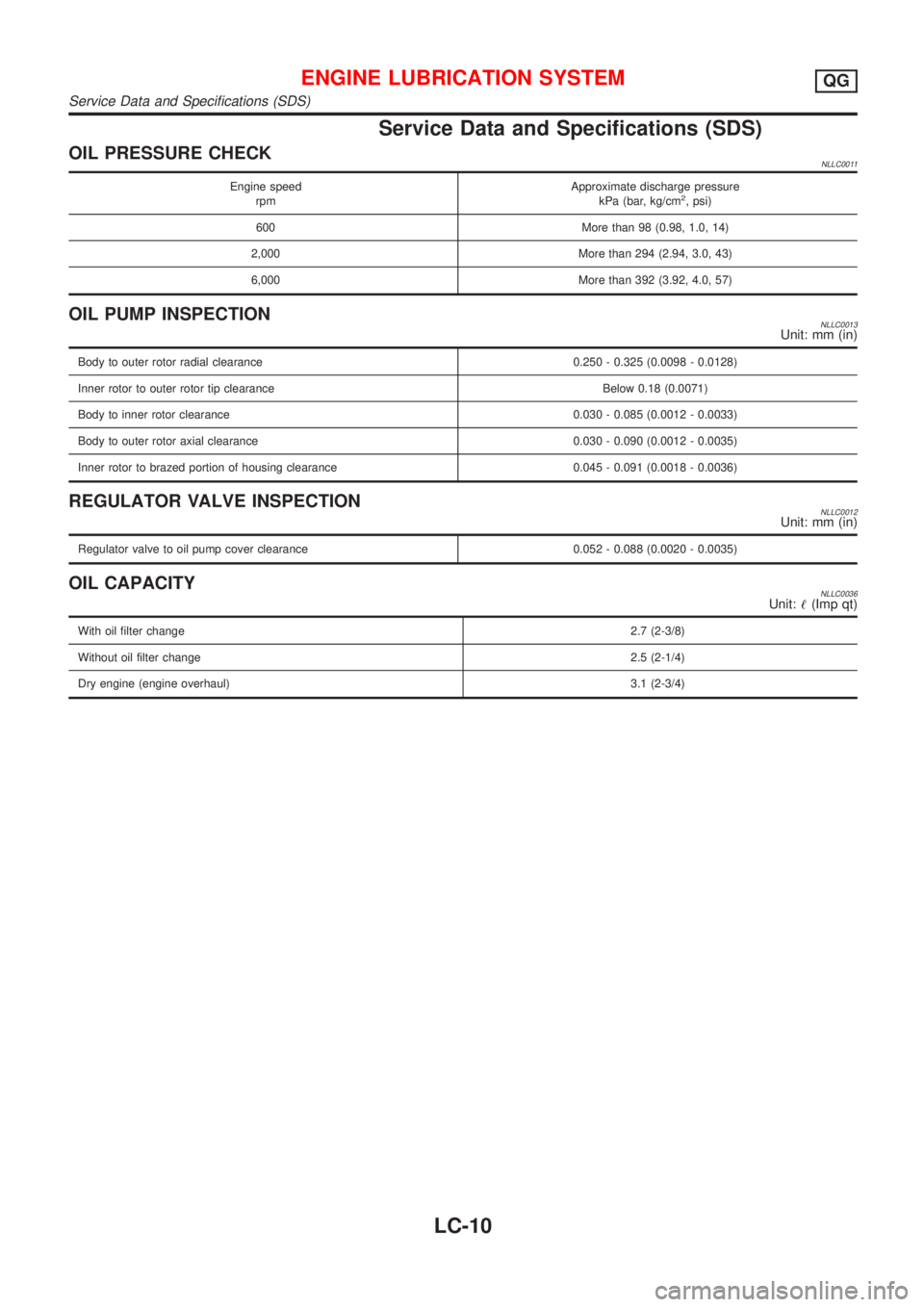

NISSAN ALMERA TINO 2001 Service Repair Manual Service Data and Specifications (SDS) OIL PRESSURE CHECKNLLC0011 Engine speed rpmApproximate discharge pressure kPa (bar, kg/cm2, psi) 600 More than 98 (0.98, 1.0, 14) 2,000 More than 294 (2.94, 3.0,

Page 2714 of 3051

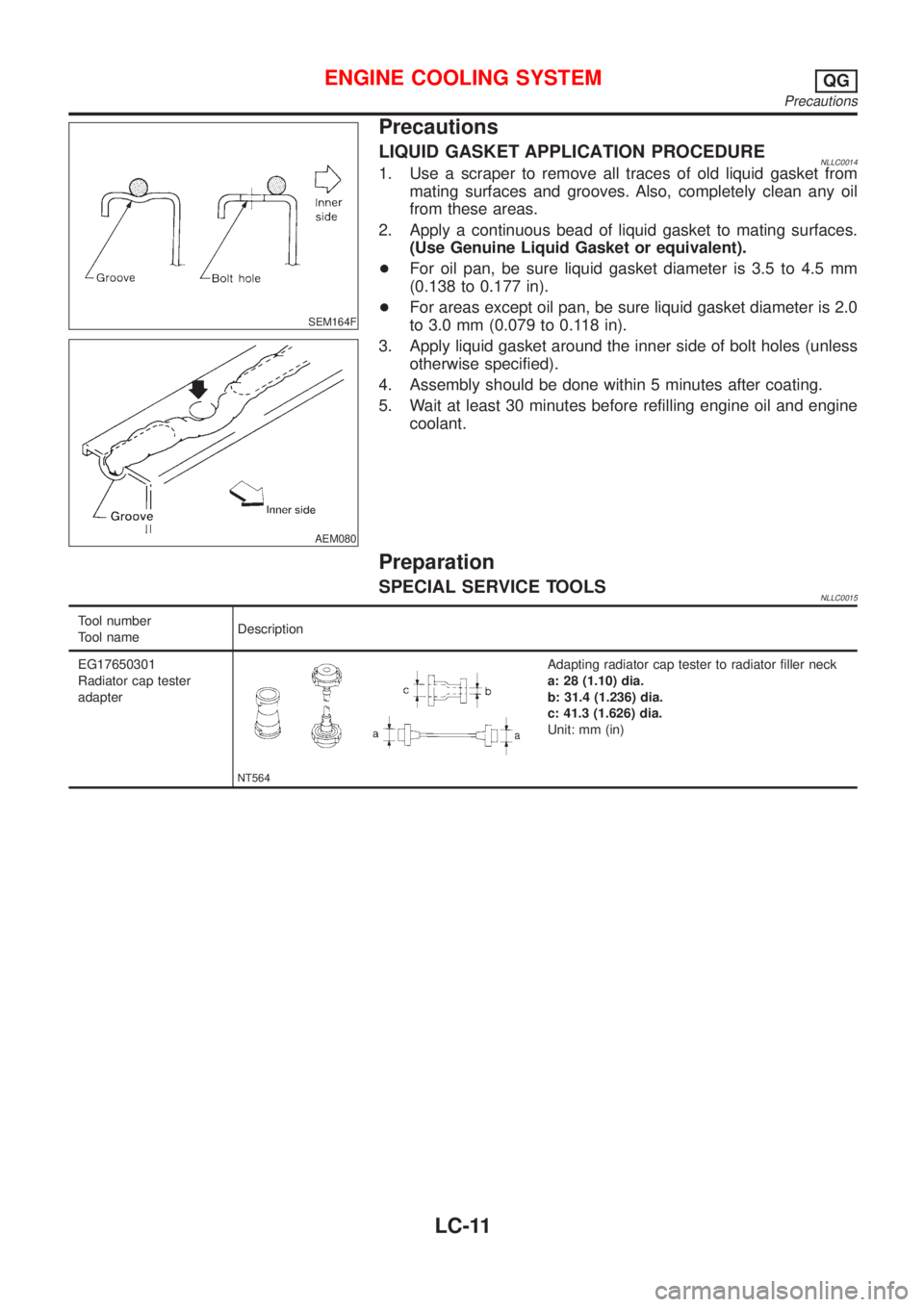

NISSAN ALMERA TINO 2001 Service Repair Manual SEM164F AEM080 Precautions LIQUID GASKET APPLICATION PROCEDURENLLC00141. Use a scraper to remove all traces of old liquid gasket from mating surfaces and grooves. Also, completely clean any oil from t

Page 2715 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Cooling CircuitNLLC0016 SLC317B System CheckNLLC0017WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure fluid escaping from the radiator. Wrap a

Page 2716 of 3051

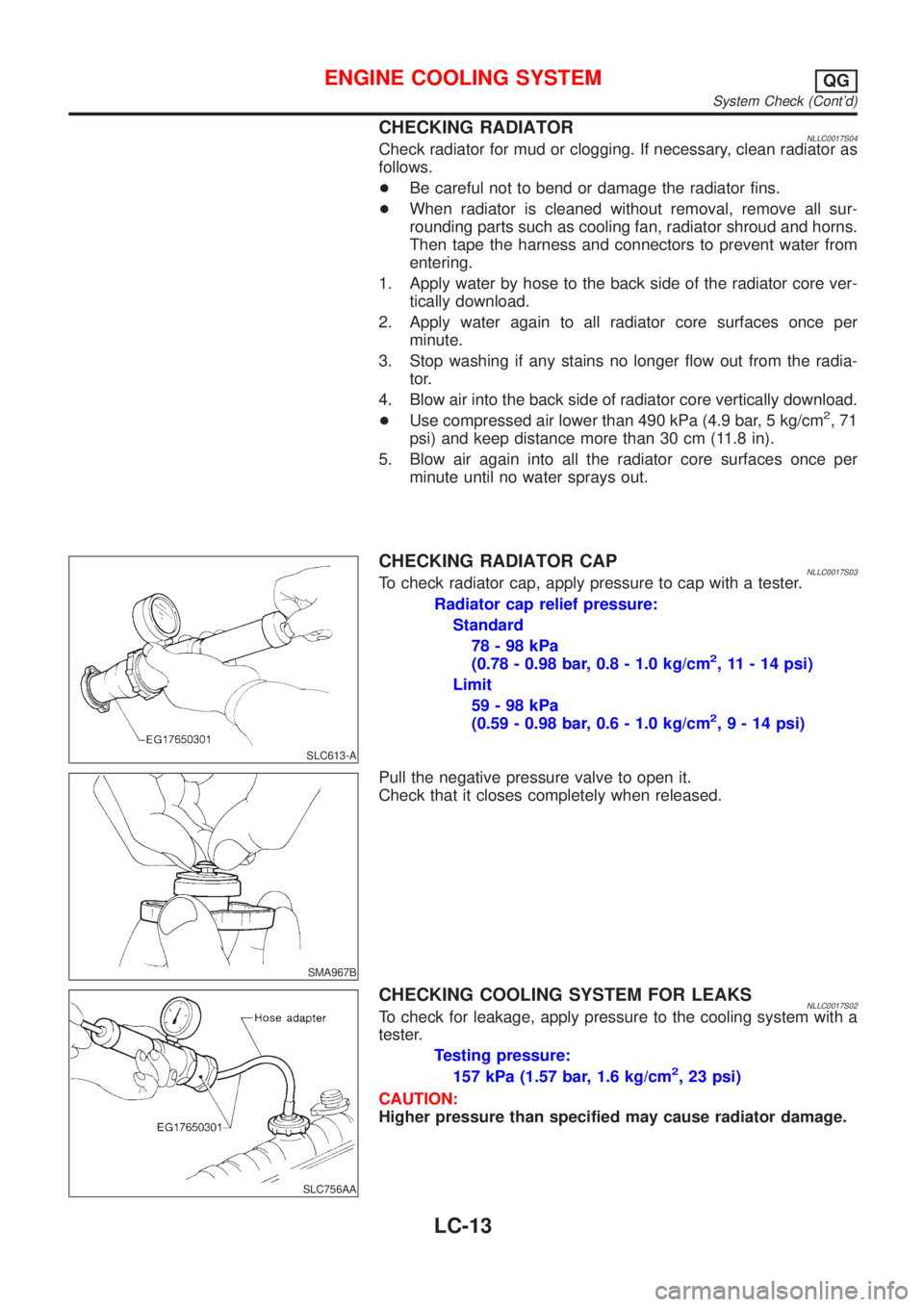

NISSAN ALMERA TINO 2001 Service Repair Manual CHECKING RADIATORNLLC0017S04Check radiator for mud or clogging. If necessary, clean radiator as follows. +Be careful not to bend or damage the radiator fins. +When radiator is cleaned without removal,

Page 2717 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Water Pump REMOVAL AND INSTALLATIONNLLC0018 SEM858F SEM859F CAUTION: +When removing water pump assembly, be careful not to get coolant on drive belt. +Water pump cannot be disassembled and should be r

Page 2718 of 3051

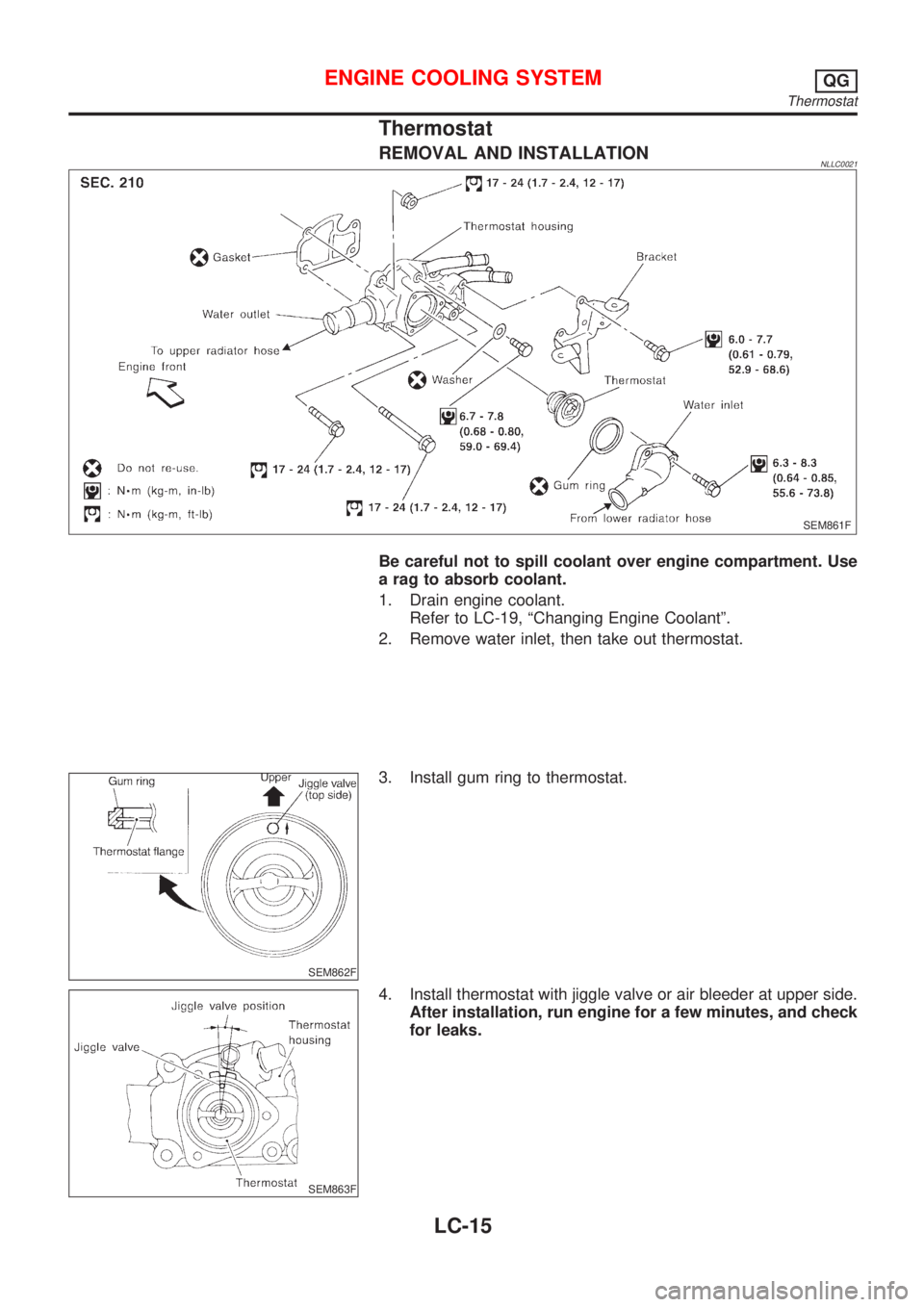

NISSAN ALMERA TINO 2001 Service Repair Manual Thermostat REMOVAL AND INSTALLATIONNLLC0021 SEM861F Be careful not to spill coolant over engine compartment. Use a rag to absorb coolant. 1. Drain engine coolant. Refer to LC-19, ªChanging Engine Coo

Page 2719 of 3051

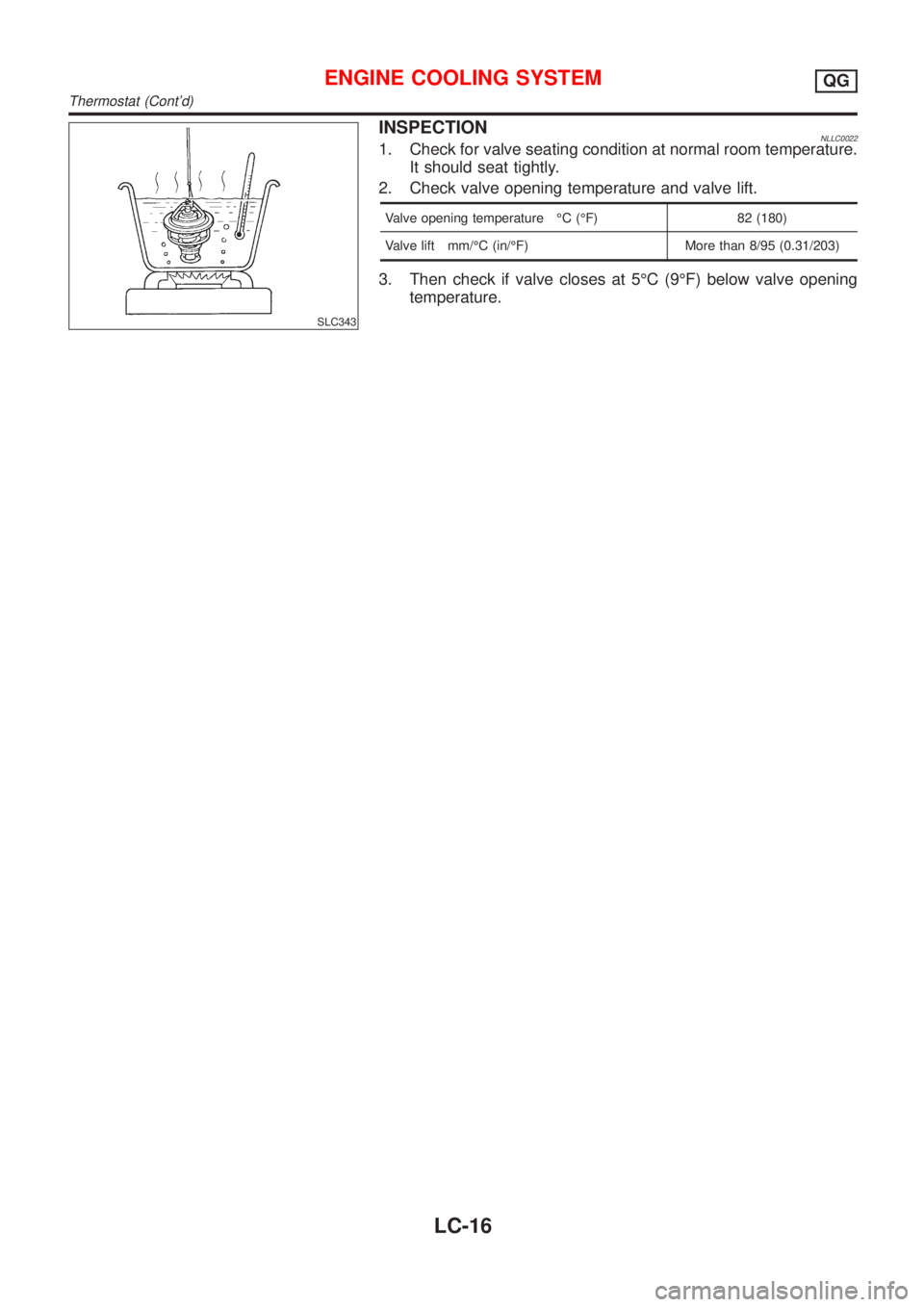

NISSAN ALMERA TINO 2001 Service Repair Manual SLC343 INSPECTIONNLLC00221. Check for valve seating condition at normal room temperature. It should seat tightly. 2. Check valve opening temperature and valve lift. Valve opening temperature ÉC (ÉF)

Page 2720 of 3051

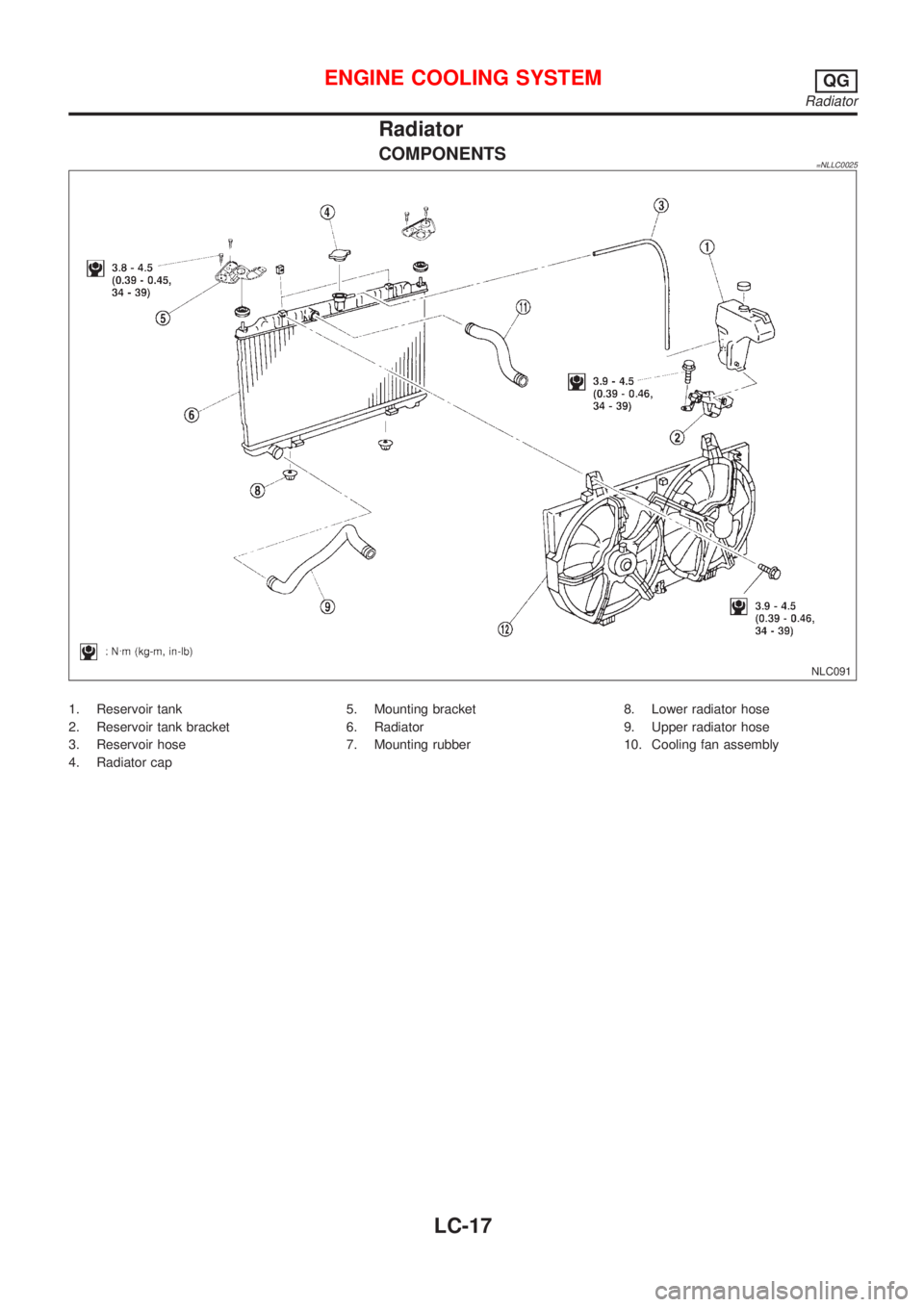

NISSAN ALMERA TINO 2001 Service Repair Manual Radiator COMPONENTS=NLLC0025 NLC091 1. Reservoir tank 2. Reservoir tank bracket 3. Reservoir hose 4. Radiator cap5. Mounting bracket 6. Radiator 7. Mounting rubber8. Lower radiator hose 9. Upper radia
