Page 2721 of 3051

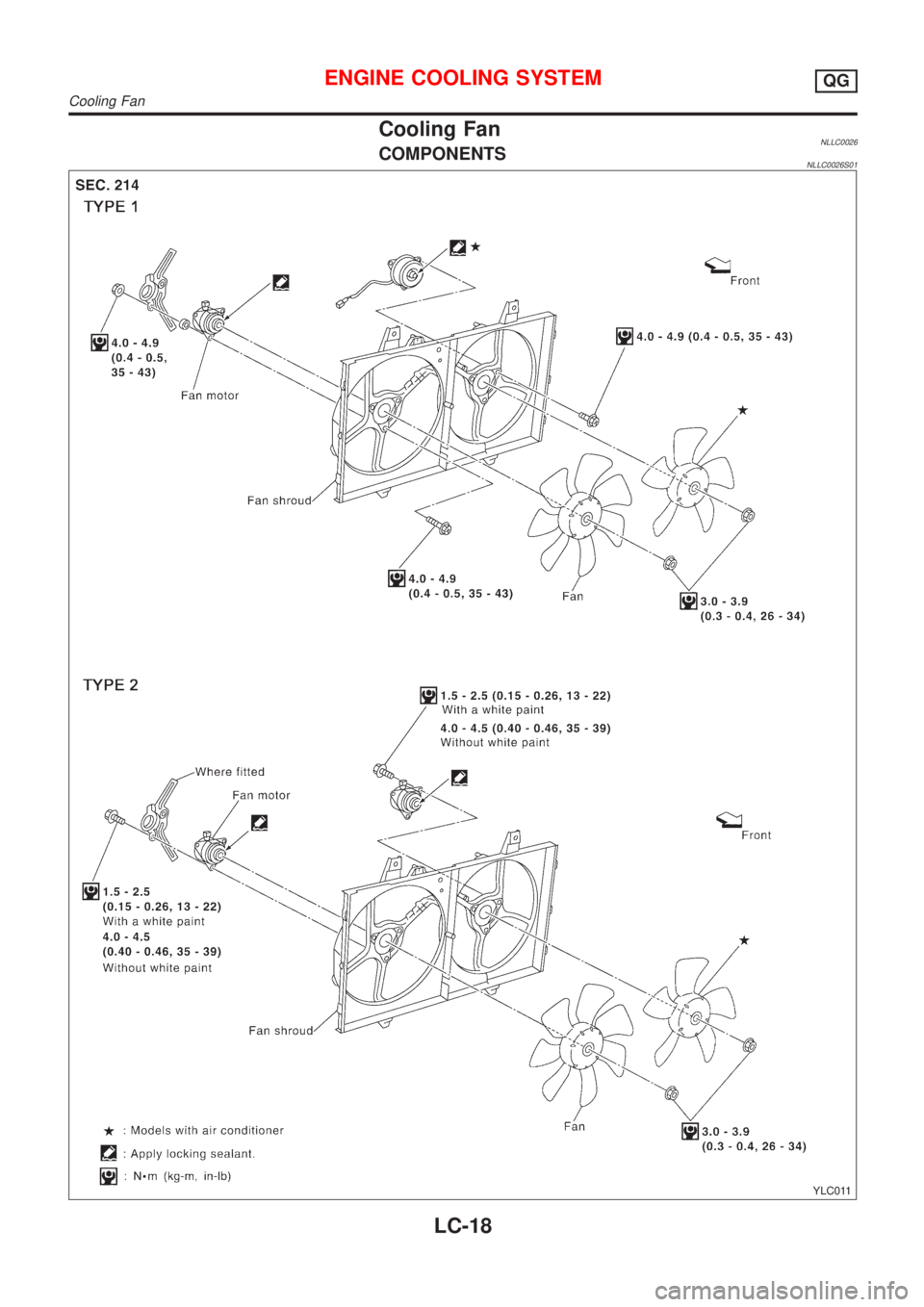

NISSAN ALMERA TINO 2001 Service Repair Manual Cooling FanNLLC0026COMPONENTSNLLC0026S01
YLC011
ENGINE COOLING SYSTEMQG
Cooling Fan
LC-18

Page 2722 of 3051

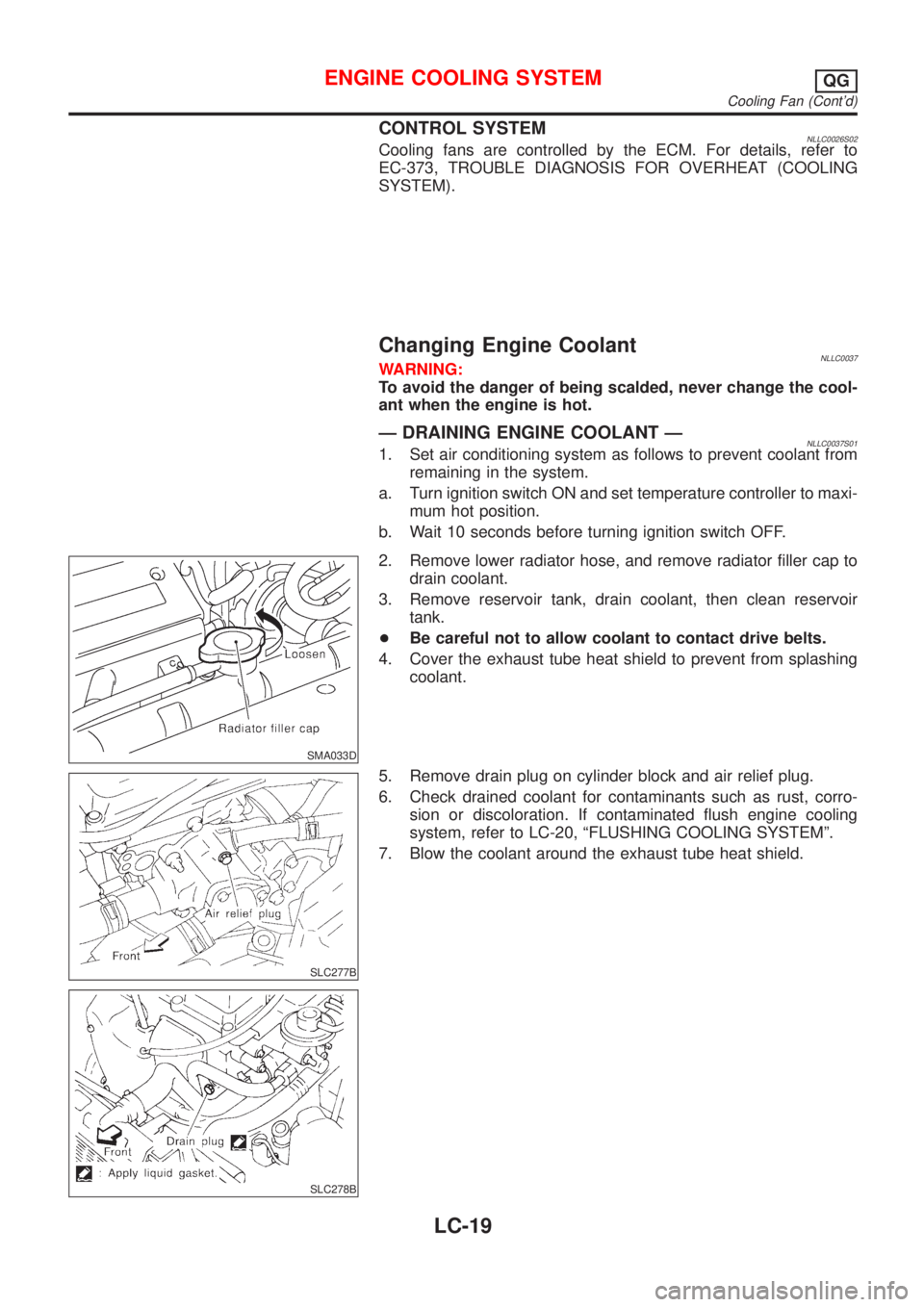

NISSAN ALMERA TINO 2001 Service Repair Manual CONTROLSYSTEM
SMA033D
SLC277B
SLC278B
Cooling Fan (Contd)

Page 2723 of 3051

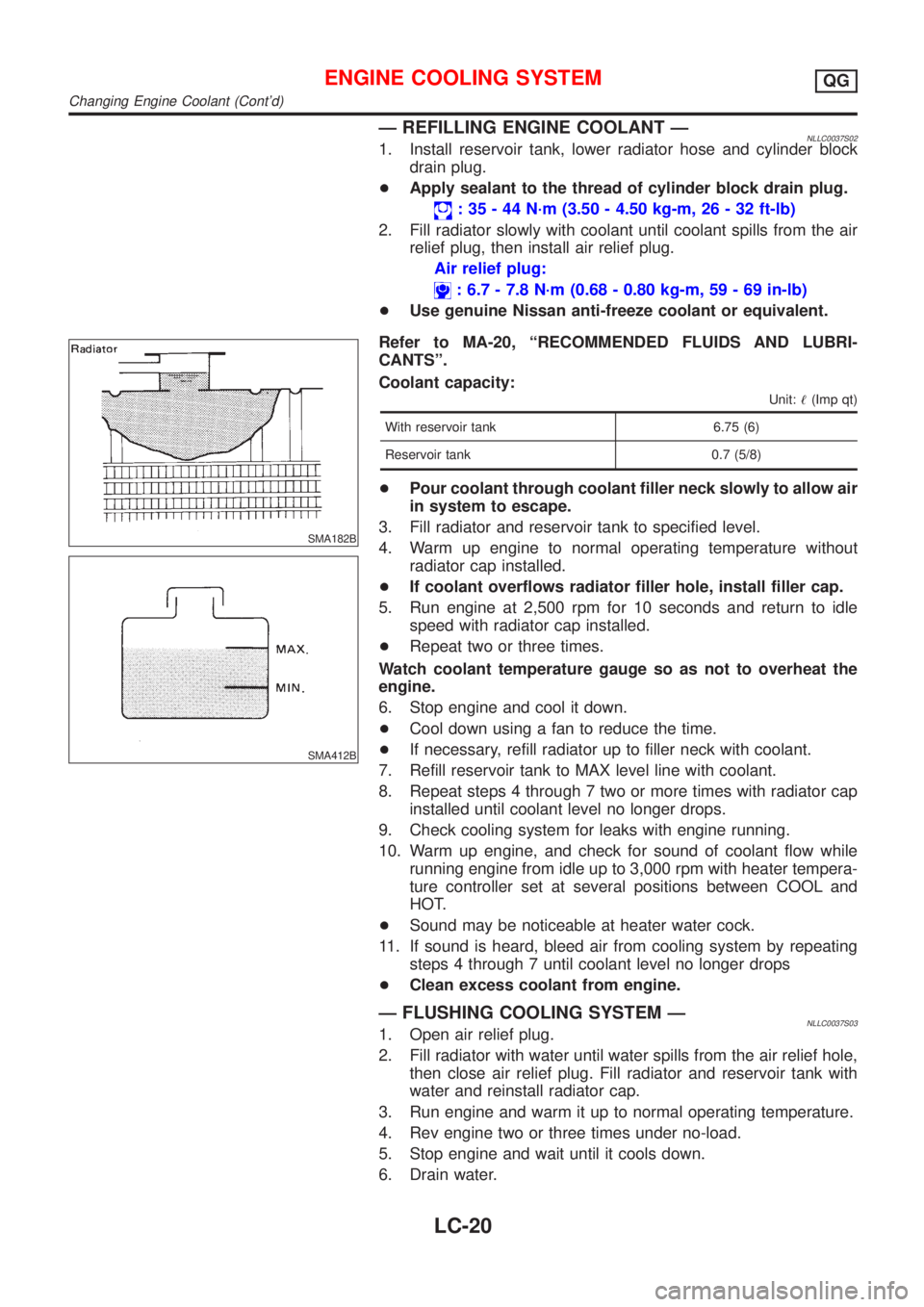

NISSAN ALMERA TINO 2001 Service Repair Manual Ð REFILLING ENGINE COOLANT ÐNLLC0037S021. Install reservoir tank, lower radiator hose and cylinder block
drain plug.
+Apply sealant to the thread of cylinder block drain plug.
: 35 - 44 N´m (3.50 -

Ð REFILLING ENGINE COOLANT ÐNLLC0037S021. Install reservoir tank, lower radiator hose and cylinder block
drain plug.
+Apply sealant to the thread of cylinder block drain plug.
: 35 - 44 N´m (3.50 - 4.50 kg-m, 26 - 32 ft-lb)
2. Fill radiator slowly with coolant until coolant spills from the air
relief plug, then install air relief plug.
Air relief plug:
: 6.7 - 7.8 N´m (0.68 - 0.80 kg-m, 59 - 69 in-lb)
+Use genuine Nissan anti-freeze coolant or equivalent.
SMA182B
SMA412B
Refer to MA-20, ªRECOMMENDED FLUIDS AND LUBRI-
CANTSº.
Coolant capacity:
Unit:!(Imp qt)
With reservoir tank 6.75 (6)
Reservoir tank 0.7 (5/8)
+Pour coolant through coolant filler neck slowly to allow air
in system to escape.
3. Fill radiator and reservoir tank to specified level.
4. Warm up engine to normal operating temperature without
radiator cap installed.
+If coolant overflows radiator filler hole, install filler cap.
5. Run engine at 2,500 rpm for 10 seconds and return to idle
speed with radiator cap installed.
+Repeat two or three times.
Watch coolant temperature gauge so as not to overheat the
engine.
6. Stop engine and cool it down.
+Cool down using a fan to reduce the time.
+If necessary, refill radiator up to filler neck with coolant.
7. Refill reservoir tank to MAX level line with coolant.
8. Repeat steps 4 through 7 two or more times with radiator cap
installed until coolant level no longer drops.
9. Check cooling system for leaks with engine running.
10. Warm up engine, and check for sound of coolant flow while
running engine from idle up to 3,000 rpm with heater tempera-
ture controller set at several positions between COOL and
HOT.
+Sound may be noticeable at heater water cock.
11. If sound is heard, bleed air from cooling system by repeating
steps 4 through 7 until coolant level no longer drops
+Clean excess coolant from engine.
Ð FLUSHING COOLING SYSTEM ÐNLLC0037S031. Open air relief plug.
2. Fill radiator with water until water spills from the air relief hole,
then close air relief plug. Fill radiator and reservoir tank with
water and reinstall radiator cap.
3. Run engine and warm it up to normal operating temperature.
4. Rev engine two or three times under no-load.
5. Stop engine and wait until it cools down.
6. Drain water.
ENGINE COOLING SYSTEMQG
Changing Engine Coolant (Cont'd)
LC-20

Page 2724 of 3051

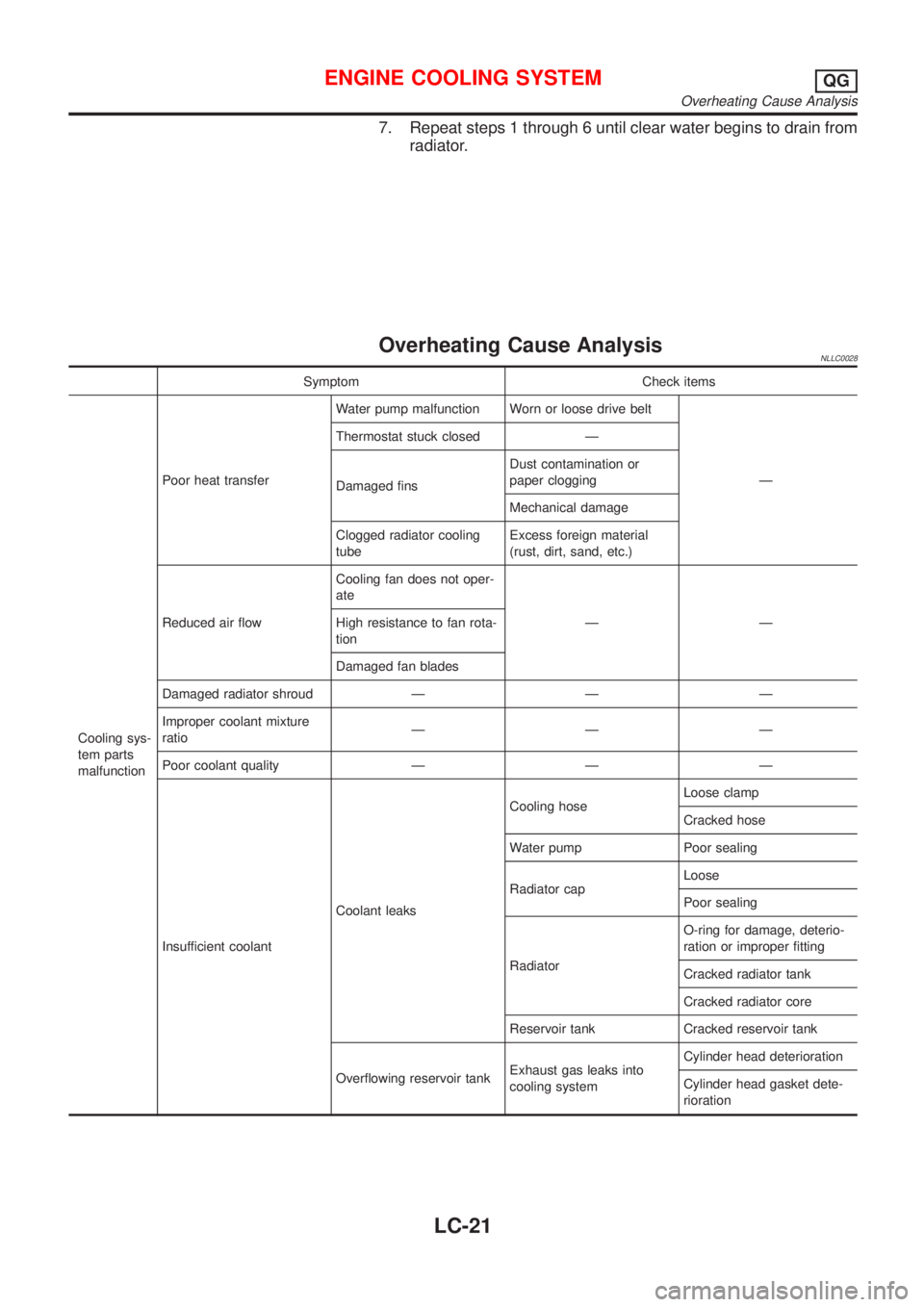

NISSAN ALMERA TINO 2001 Service Repair Manual 7. Repeat steps 1 through 6 until clear water begins to drain from
radiator.
Overheating Cause AnalysisNLLC0028
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfu

Page 2725 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Symptom Check items
Except cool-
ing system
parts mal-
functionÐ Overload on engineAbusive drivingHigh engine rpm under no
load
Driving in low gear for
extended time
Driving at extremely high
speed
P

Page 2726 of 3051

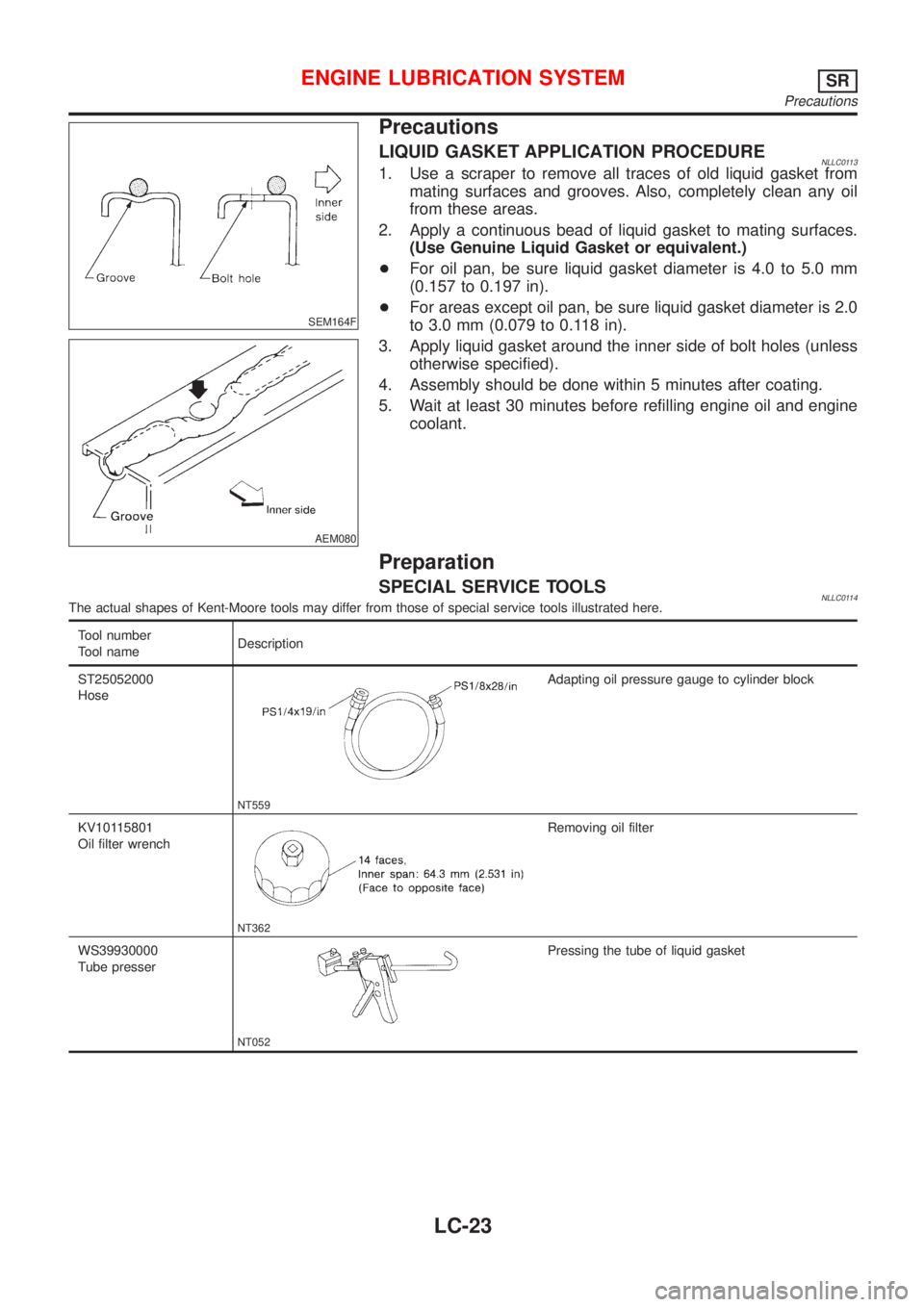

NISSAN ALMERA TINO 2001 Service Repair Manual SEM164F
AEM080
Precautions
LIQUID GASKET APPLICATION PROCEDURENLLC01131. Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from t

Page 2727 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Lubrication CircuitNLLC0115
SLC093B
NLC097
ENGINE LUBRICATION SYSTEMSR
Lubrication Circuit
LC-24

Page 2728 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual NLC045
Oil Pressure CheckNLLC0116WARNING:
+Be careful not to burn yourself, as the engine and oil may
be hot.
+For A/T models, put selector lever in Park ªPº position.
1. Check oil level.
2. Remove
