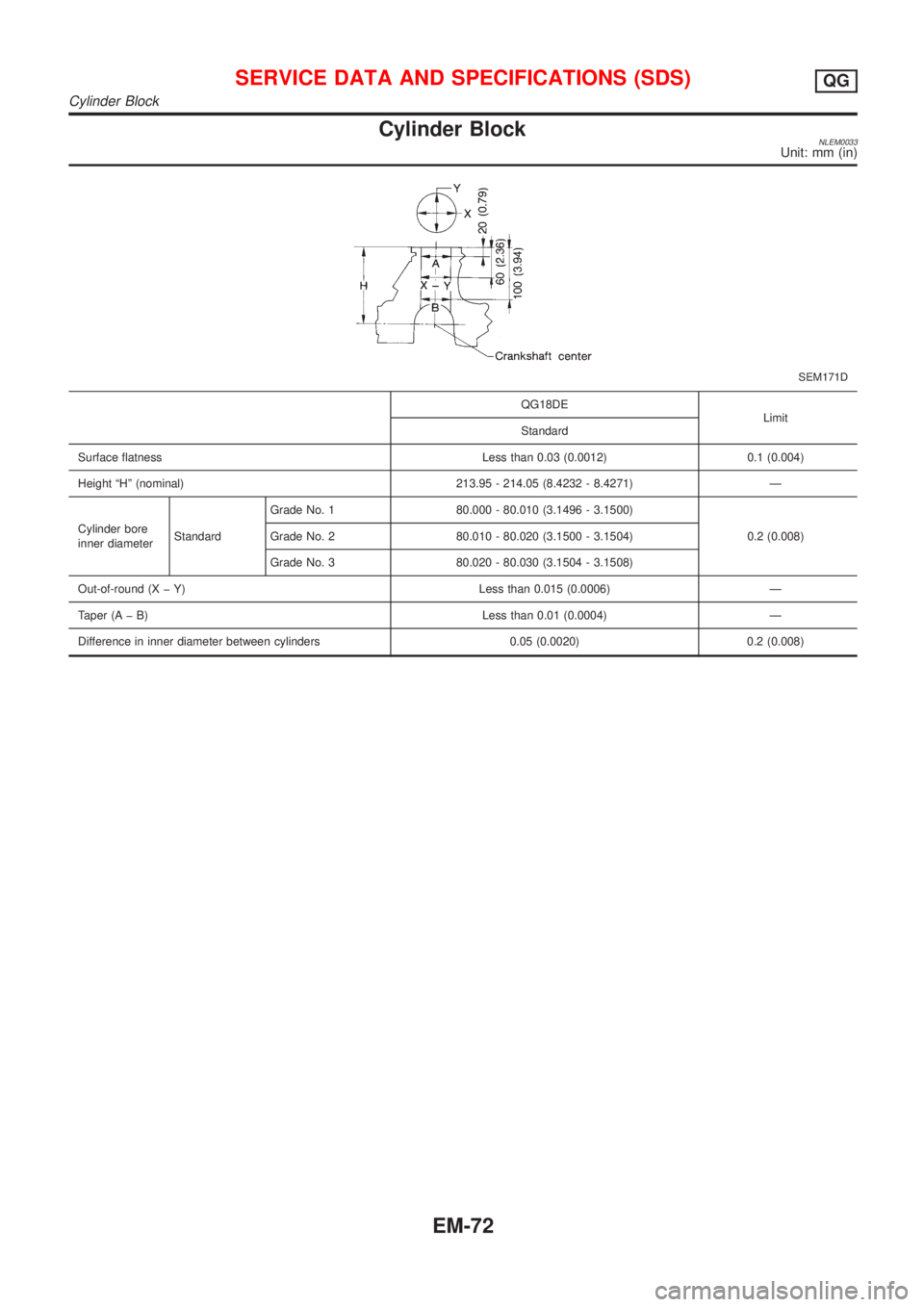

Cylinder BlockNLEM0033Unit: mm (in)
SEM171D
QG18DE
Limit
Standard
Surface flatness Less than 0.03 (0.0012) 0.1 (0.004)
Height ªHº (nominal) 213.95 - 214.05 (8.4232 - 8.4271) Ð
Cylinder bore
inner diameterStandardGrade No. 1 80.000 - 80.010 (3.1496 - 3.1500)
0.2 (0.008) Grade No. 2 80.010 - 80.020 (3.1500 - 3.1504)
Grade No. 3 80.020 - 80.030 (3.1504 - 3.1508)
Out-of-round (X þ Y) Less than 0.015 (0.0006) Ð
Taper (A þ B) Less than 0.01 (0.0004) Ð
Difference in inner diameter between cylinders 0.05 (0.0020) 0.2 (0.008)
SERVICE DATA AND SPECIFICATIONS (SDS)QG
Cylinder Block
EM-72
Page 2330 of 3051

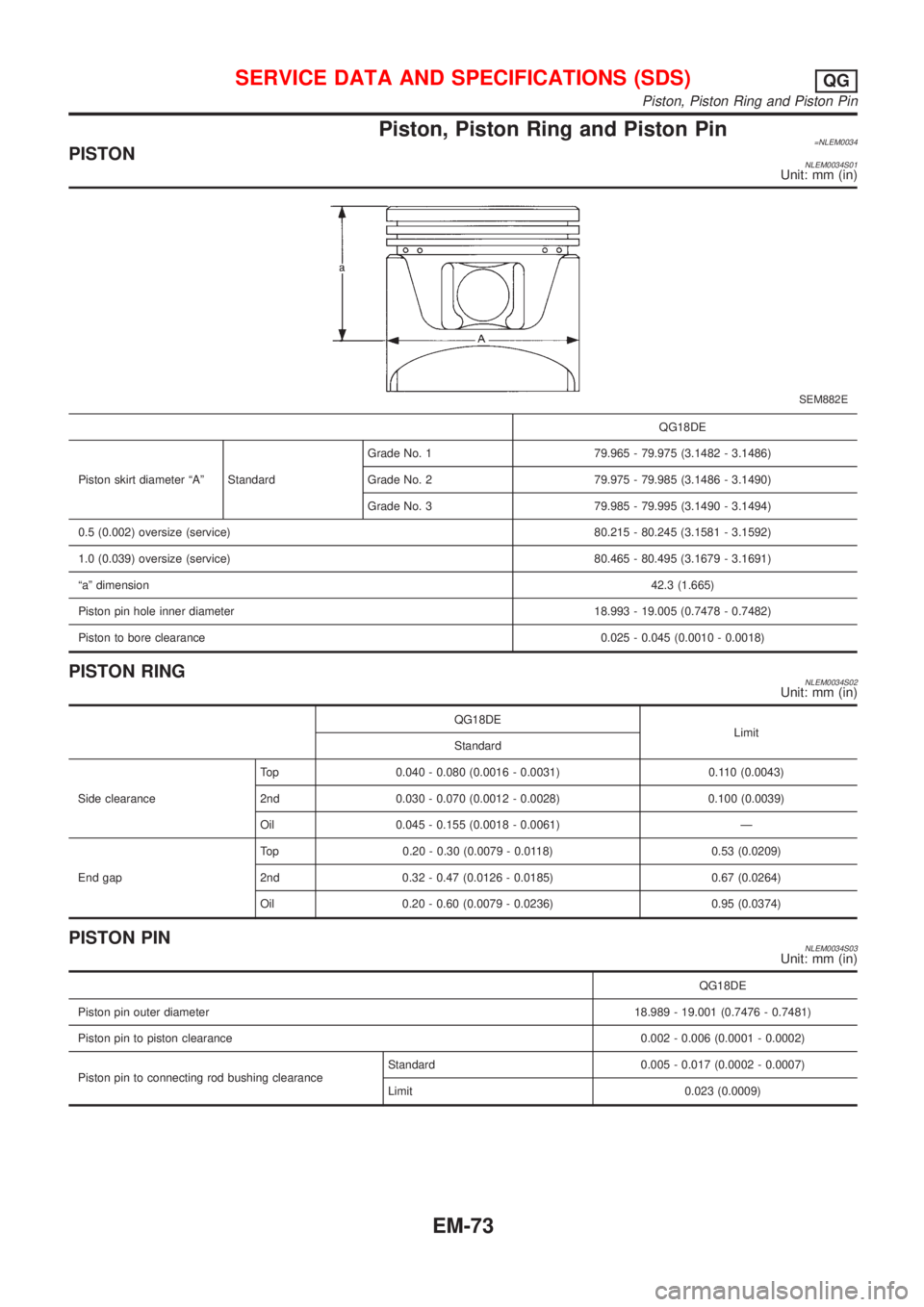

Piston, Piston Ring and Piston Pin=NLEM0034PISTONNLEM0034S01Unit: mm (in)
SEM882E
QG18DE
Piston skirt diameter ªAº StandardGrade No. 1 79.965 - 79.975 (3.1482 - 3.1486)
Grade No. 2 79.975 - 79.985 (3.1486 - 3.1490)
Grade No. 3 79.985 - 79.995 (3.1490 - 3.1494)
0.5 (0.002) oversize (service) 80.215 - 80.245 (3.1581 - 3.1592)
1.0 (0.039) oversize (service) 80.465 - 80.495 (3.1679 - 3.1691)
ªaº dimension42.3 (1.665)
Piston pin hole inner diameter 18.993 - 19.005 (0.7478 - 0.7482)
Piston to bore clearance0.025 - 0.045 (0.0010 - 0.0018)
PISTON RINGNLEM0034S02Unit: mm (in)
QG18DE
Limit
Standard
Side clearanceTop 0.040 - 0.080 (0.0016 - 0.0031) 0.110 (0.0043)
2nd 0.030 - 0.070 (0.0012 - 0.0028) 0.100 (0.0039)
Oil 0.045 - 0.155 (0.0018 - 0.0061) Ð
End gapTop 0.20 - 0.30 (0.0079 - 0.0118) 0.53 (0.0209)
2nd 0.32 - 0.47 (0.0126 - 0.0185) 0.67 (0.0264)
Oil 0.20 - 0.60 (0.0079 - 0.0236) 0.95 (0.0374)
PISTON PINNLEM0034S03Unit: mm (in)
QG18DE
Piston pin outer diameter18.989 - 19.001 (0.7476 - 0.7481)
Piston pin to piston clearance0.002 - 0.006 (0.0001 - 0.0002)
Piston pin to connecting rod bushing clearanceStandard 0.005 - 0.017 (0.0002 - 0.0007)
Limit 0.023 (0.0009)
SERVICE DATA AND SPECIFICATIONS (SDS)QG
Piston, Piston Ring and Piston Pin
EM-73
Page 2331 of 3051
![NISSAN ALMERA TINO 2001 Service Repair Manual Connecting RodNLEM0035Unit: mm (in)
Center distance140.45 - 140.55 (5.5295 - 5.5335)
Bend limit [per 100 (3.94)]0.15 (0.0059)
Torsion limit [per 100 (3.94)]0.3 (0.012)
Connecting rod bushing inner dia NISSAN ALMERA TINO 2001 Service Repair Manual Connecting RodNLEM0035Unit: mm (in)
Center distance140.45 - 140.55 (5.5295 - 5.5335)
Bend limit [per 100 (3.94)]0.15 (0.0059)
Torsion limit [per 100 (3.94)]0.3 (0.012)
Connecting rod bushing inner dia](/manual-img/5/57352/w960_57352-2330.png)

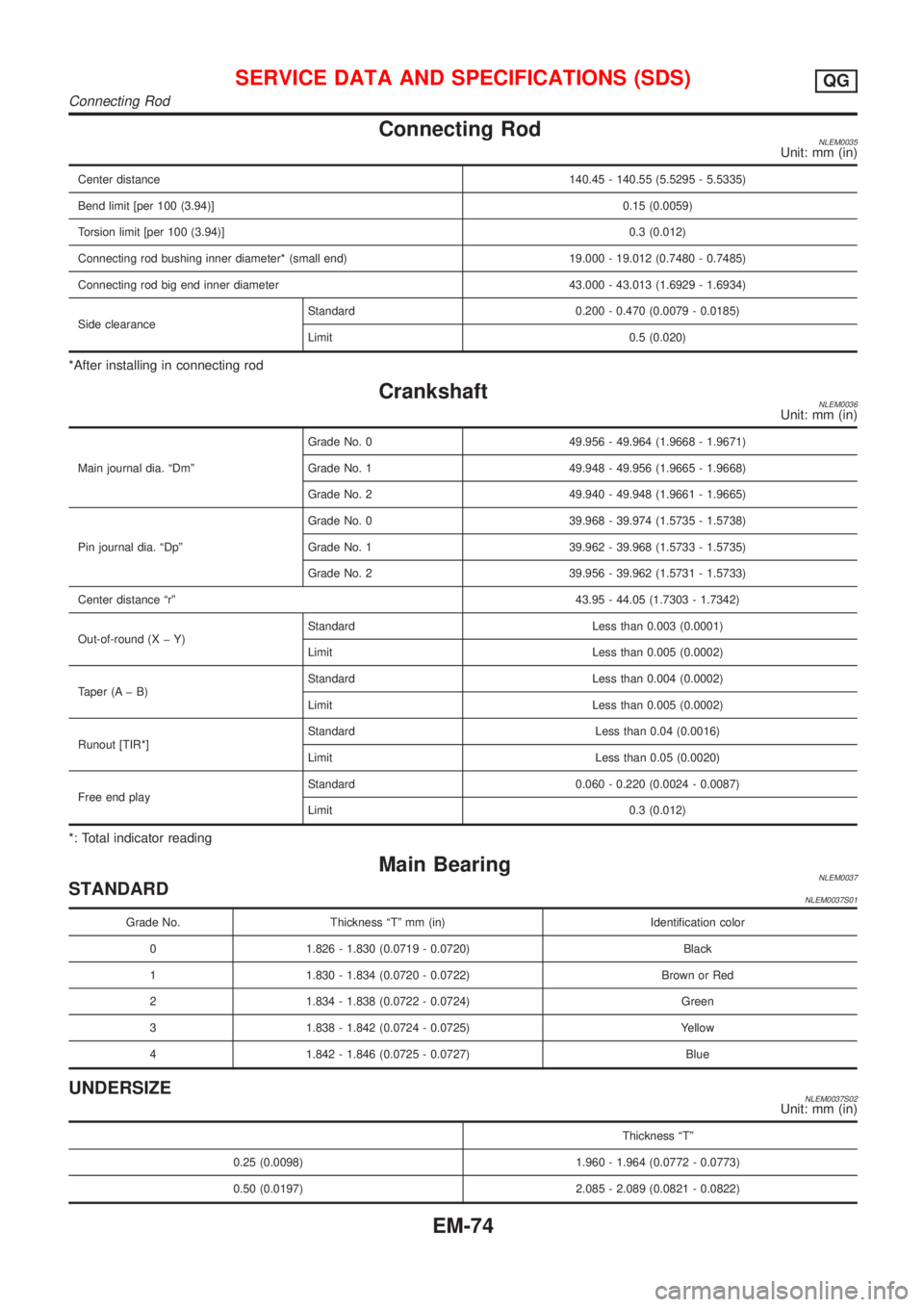

Connecting RodNLEM0035Unit: mm (in)
Center distance140.45 - 140.55 (5.5295 - 5.5335)
Bend limit [per 100 (3.94)]0.15 (0.0059)
Torsion limit [per 100 (3.94)]0.3 (0.012)
Connecting rod bushing inner diameter* (small end) 19.000 - 19.012 (0.7480 - 0.7485)
Connecting rod big end inner diameter 43.000 - 43.013 (1.6929 - 1.6934)
Side clearanceStandard 0.200 - 0.470 (0.0079 - 0.0185)
Limit 0.5 (0.020)
*After installing in connecting rod
CrankshaftNLEM0036Unit: mm (in)
Main journal dia. ªDmºGrade No. 0 49.956 - 49.964 (1.9668 - 1.9671)
Grade No. 1 49.948 - 49.956 (1.9665 - 1.9668)
Grade No. 2 49.940 - 49.948 (1.9661 - 1.9665)
Pin journal dia. ªDpºGrade No. 0 39.968 - 39.974 (1.5735 - 1.5738)
Grade No. 1 39.962 - 39.968 (1.5733 - 1.5735)
Grade No. 2 39.956 - 39.962 (1.5731 - 1.5733)
Center distance ªrº43.95 - 44.05 (1.7303 - 1.7342)
Out-of-round (X þ Y)Standard Less than 0.003 (0.0001)
Limit Less than 0.005 (0.0002)
Taper (A þ B)Standard Less than 0.004 (0.0002)
Limit Less than 0.005 (0.0002)
Runout [TIR*]Standard Less than 0.04 (0.0016)
Limit Less than 0.05 (0.0020)
Free end playStandard 0.060 - 0.220 (0.0024 - 0.0087)
Limit 0.3 (0.012)
*: Total indicator reading
Main BearingNLEM0037STANDARDNLEM0037S01
Grade No. Thickness ªTº mm (in) Identification color
0 1.826 - 1.830 (0.0719 - 0.0720) Black
1 1.830 - 1.834 (0.0720 - 0.0722) Brown or Red
2 1.834 - 1.838 (0.0722 - 0.0724) Green
3 1.838 - 1.842 (0.0724 - 0.0725) Yellow
4 1.842 - 1.846 (0.0725 - 0.0727) Blue
UNDERSIZENLEM0037S02Unit: mm (in)
Thickness ªTº
0.25 (0.0098) 1.960 - 1.964 (0.0772 - 0.0773)
0.50 (0.0197) 2.085 - 2.089 (0.0821 - 0.0822)
SERVICE DATA AND SPECIFICATIONS (SDS)QG
Connecting Rod
EM-74
Page 2332 of 3051
Connecting Rod BearingNLEM0038STANDARD SIZENLEM0038S01Unit: mm (in)
Grade No. Thickness Identification color or number
0 1.503 - 1.506 (0.0592 - 0.0593) Ð
1 1.506 - 1.509 (0.0593 - 0.0594) Brown
2 1.509 - 1.512 (0.0594 - 0.0595) Green
UNDERSIZENLEM0038S02Unit: mm (in)
Grade No. Thickness Identification color or number
0.08 (0.0031) 1.542 - 1.546 (0.0607 - 0.0609) Ð
0.12 (0.0047) 1.562 - 1.566 (0.0615 - 0.0617) Ð
0.25 (0.0098) 1.627 - 1.631 (0.0641 - 0.0642) Ð
Bearing ClearanceNLEM0039Unit: mm (in)
Main bearing clearanceStandard 0.020 - 0.044 (0.0008 - 0.0017)
Limit 0.1 (0.004)
Connecting rod bearing clearanceStandard 0.014 - 0.039 (0.0006 - 0.0015)
Limit 0.1 (0.004)
Miscellaneous ComponentsNLEM0040Unit: mm (in)
Flywheel runout [TIR*]Less than 0.15 (0.0059)
Camshaft sprocket runout [TIR*] Less than 0.15 (0.0059)
*: Total indicator reading
SERVICE DATA AND SPECIFICATIONS (SDS)QG
Connecting Rod Bearing
EM-75
Page 2333 of 3051

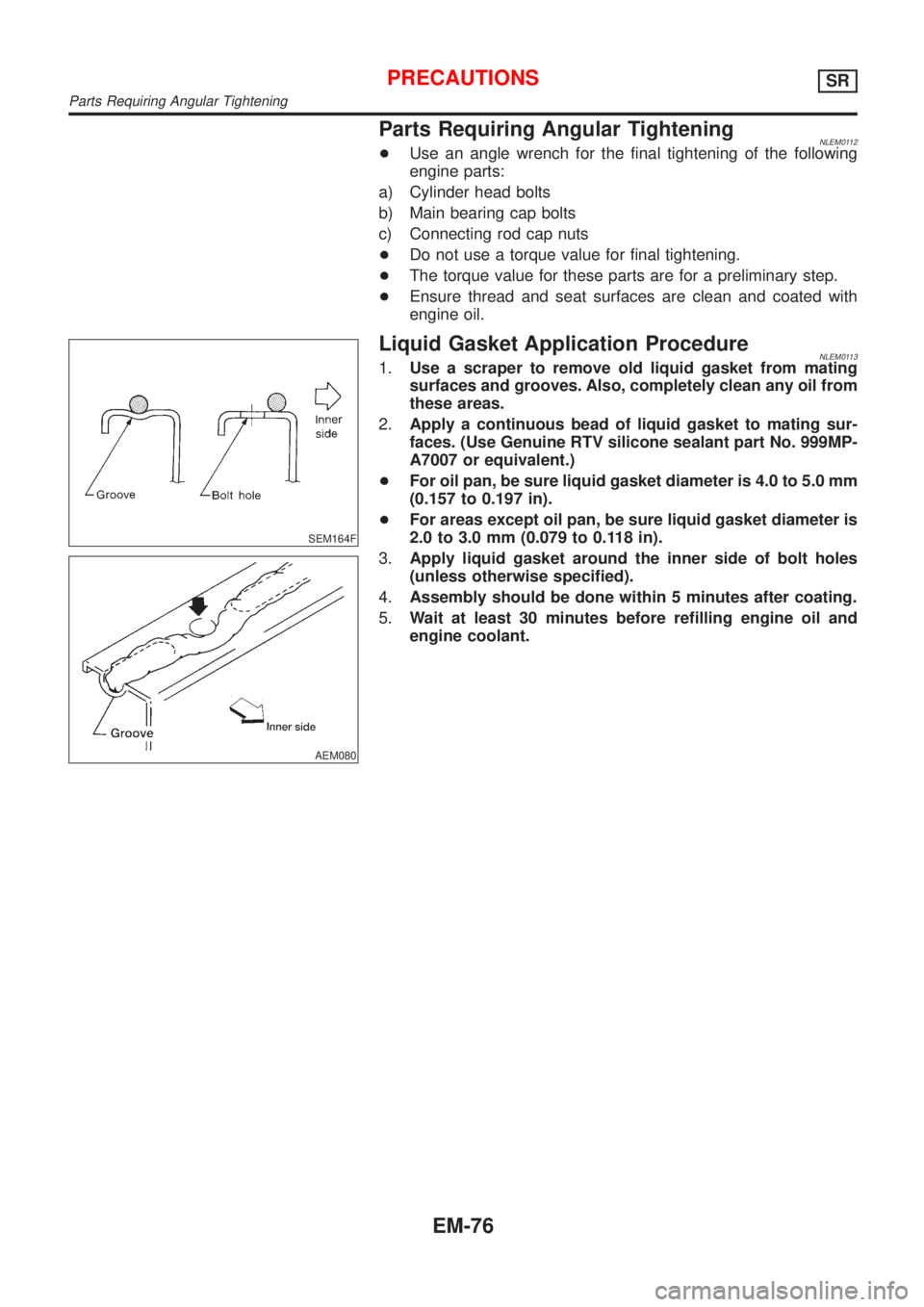

Parts Requiring Angular TighteningNLEM0112+Use an angle wrench for the final tightening of the following
engine parts:
a) Cylinder head bolts
b) Main bearing cap bolts
c) Connecting rod cap nuts
+Do not use a torque value for final tightening.
+The torque value for these parts are for a preliminary step.
+Ensure thread and seat surfaces are clean and coated with
engine oil.
SEM164F
AEM080
Liquid Gasket Application ProcedureNLEM01131.Use a scraper to remove old liquid gasket from mating
surfaces and grooves. Also, completely clean any oil from
these areas.
2.Apply a continuous bead of liquid gasket to mating sur-
faces. (Use Genuine RTV silicone sealant part No. 999MP-
A7007 or equivalent.)
+For oil pan, be sure liquid gasket diameter is 4.0 to 5.0 mm
(0.157 to 0.197 in).
+For areas except oil pan, be sure liquid gasket diameter is
2.0 to 3.0 mm (0.079 to 0.118 in).
3.Apply liquid gasket around the inner side of bolt holes
(unless otherwise specified).
4.Assembly should be done within 5 minutes after coating.
5.Wait at least 30 minutes before refilling engine oil and
engine coolant.
PRECAUTIONSSR
Parts Requiring Angular Tightening
EM-76
Page 2334 of 3051

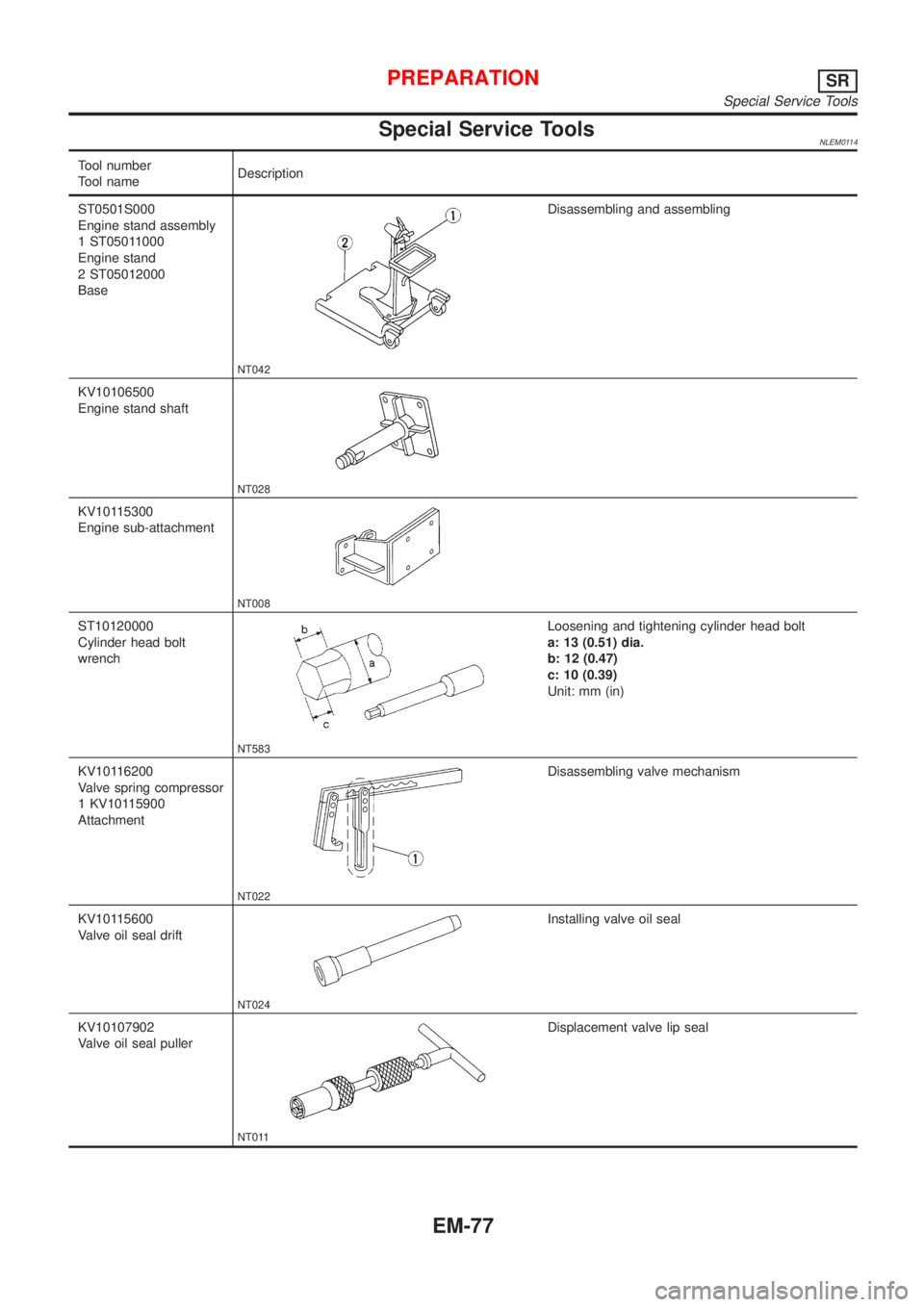

Special Service ToolsNLEM0114
Tool number
Tool nameDescription
ST0501S000
Engine stand assembly
1 ST05011000
Engine stand
2 ST05012000
Base
NT042
Disassembling and assembling
KV10106500
Engine stand shaft
NT028
KV10115300
Engine sub-attachment
NT008
ST10120000
Cylinder head bolt
wrench
NT583
Loosening and tightening cylinder head bolt
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
KV10116200
Valve spring compressor
1 KV10115900
Attachment
NT022
Disassembling valve mechanism
KV10115600
Valve oil seal drift
NT024
Installing valve oil seal
KV10107902
Valve oil seal puller
NT011
Displacement valve lip seal
PREPARATIONSR
Special Service Tools
EM-77
Page 2335 of 3051

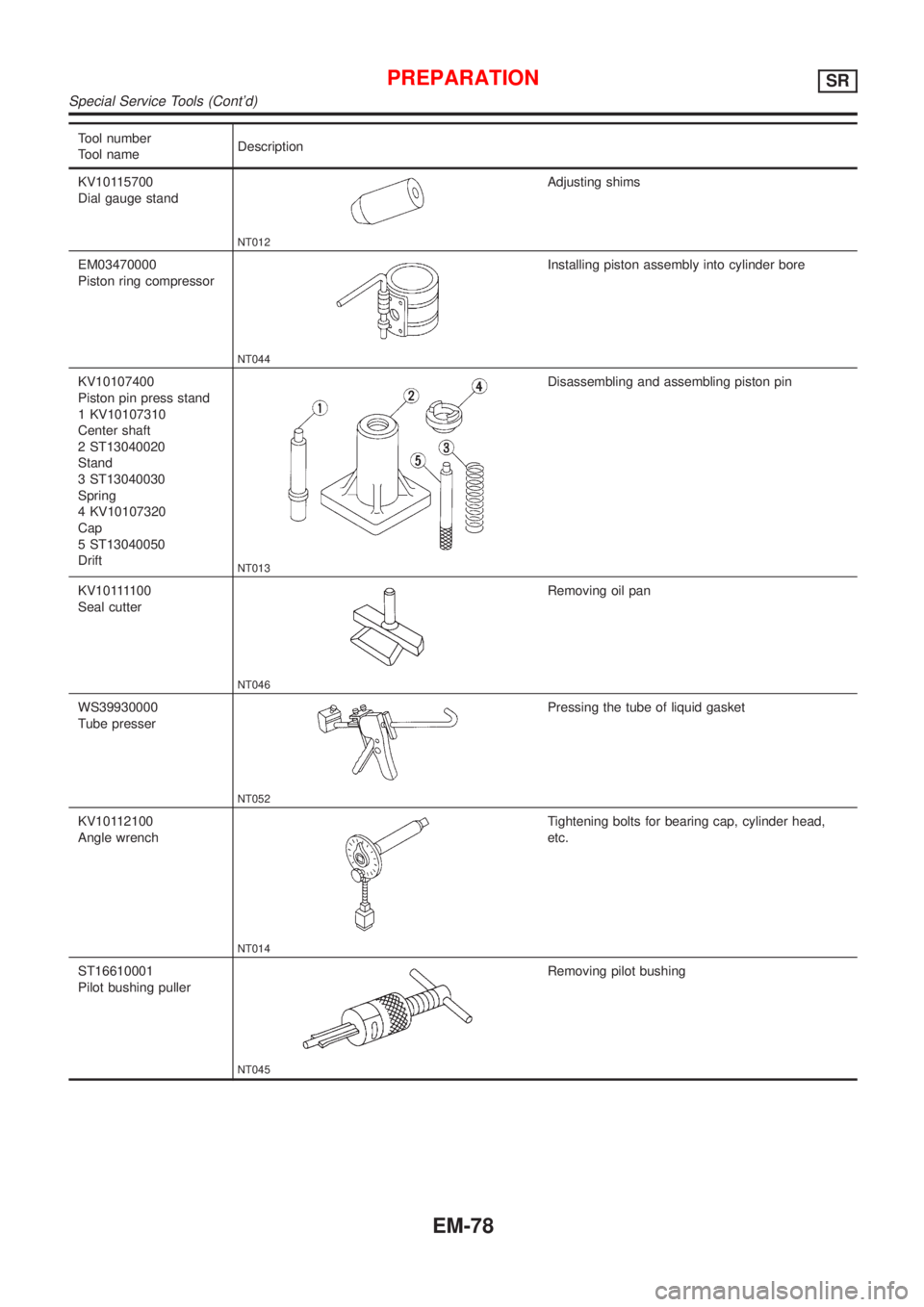

Tool number
Tool nameDescription
KV10115700
Dial gauge stand
NT012
Adjusting shims
EM03470000
Piston ring compressor
NT044
Installing piston assembly into cylinder bore
KV10107400
Piston pin press stand
1 KV10107310
Center shaft
2 ST13040020
Stand
3 ST13040030
Spring
4 KV10107320
Cap
5 ST13040050
Drift
NT013
Disassembling and assembling piston pin
KV101111 0 0
Seal cutter
NT046
Removing oil pan
WS39930000
Tube presser
NT052
Pressing the tube of liquid gasket
KV10112100
Angle wrench
NT014
Tightening bolts for bearing cap, cylinder head,
etc.
ST16610001
Pilot bushing puller
NT045
Removing pilot bushing
PREPARATIONSR
Special Service Tools (Cont'd)
EM-78
Page 2336 of 3051

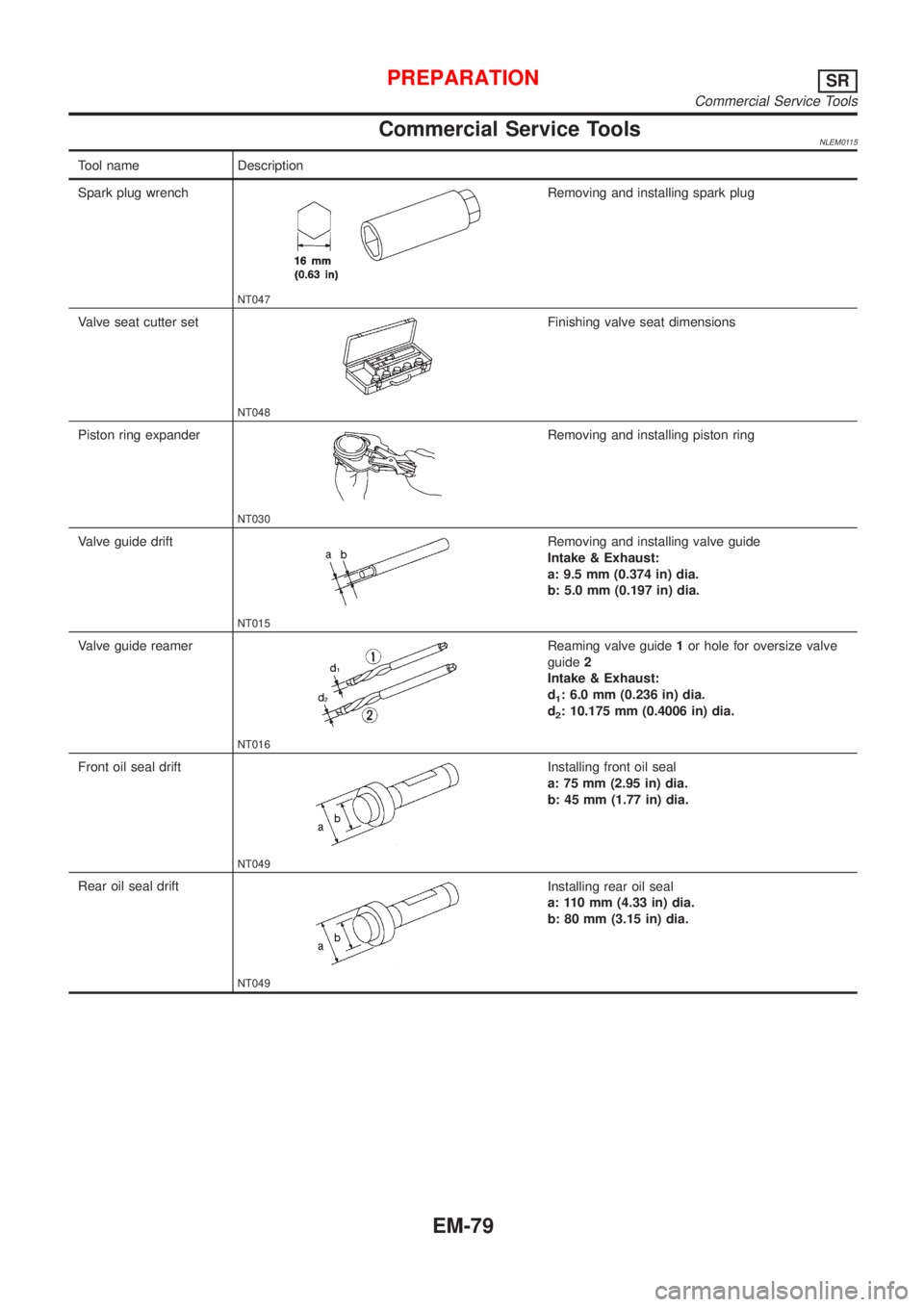

Commercial Service ToolsNLEM0115
Tool name Description
Spark plug wrench
NT047
Removing and installing spark plug
Valve seat cutter set
NT048
Finishing valve seat dimensions
Piston ring expander
NT030
Removing and installing piston ring
Valve guide drift
NT015
Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.0 mm (0.197 in) dia.
Valve guide reamer
NT016
Reaming valve guide1or hole for oversize valve
guide2
Intake & Exhaust:
d
1: 6.0 mm (0.236 in) dia.
d
2: 10.175 mm (0.4006 in) dia.
Front oil seal drift
NT049
Installing front oil seal
a: 75 mm (2.95 in) dia.
b: 45 mm (1.77 in) dia.
Rear oil seal drift
NT049
Installing rear oil seal
a: 110 mm (4.33 in) dia.
b: 80 mm (3.15 in) dia.
PREPARATIONSR
