NISSAN ALMERA TINO 2001 Service Repair Manual 3 DETECT MALFUNCTIONING PART Check the following. +15A fuse +Harness connectors E76, F36 +Harness for open or short between fuse and ECM relay +ECM relay +Harness for open or short between IACV-AAC an

Page 1426 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 6 CHECK AIR CONTROL VALVE (POWER STEERING) OPERATION-II Check the vacuum hose for vacuum existence when steering wheel is turned. SEF778Z Vacuum should exist. OK or NG OK©GO TO 9. NG©GO TO 7. 7 CHEC

Page 1427 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 8 CHECK VACUUM HOSES AND TUBES 1. Disconnect vacuum hoses between the air control valve (Power steering) and vacuum port, air control valve (Power steering) and air duct. 2. Check hoses and tubes for

Page 1428 of 3051

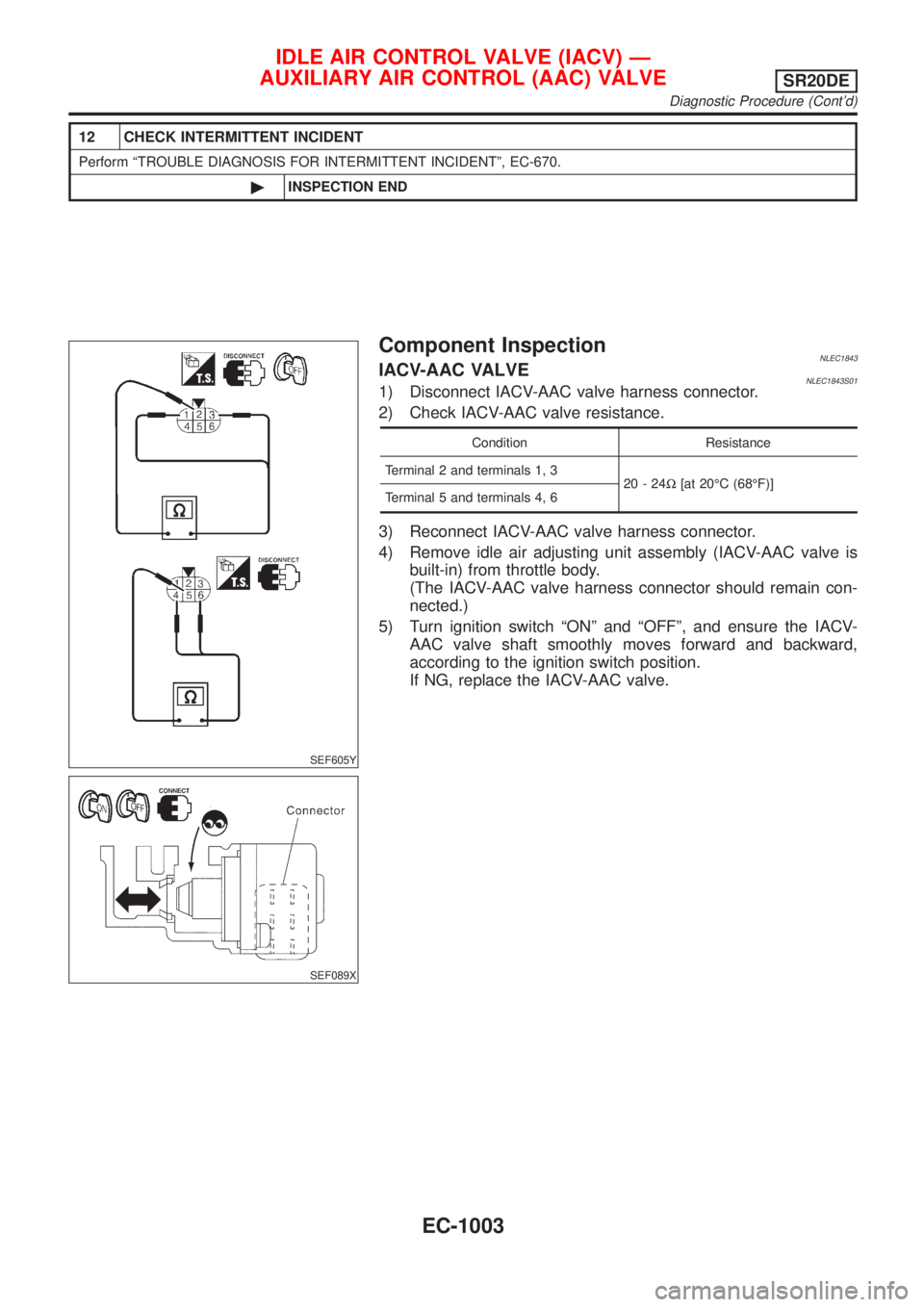

NISSAN ALMERA TINO 2001 Service Repair Manual 12 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-670. ©INSPECTION END SEF605Y SEF089X Component InspectionNLEC1843IACV-AAC VALVENLEC1843S011) Disconnect IACV

Page 1429 of 3051

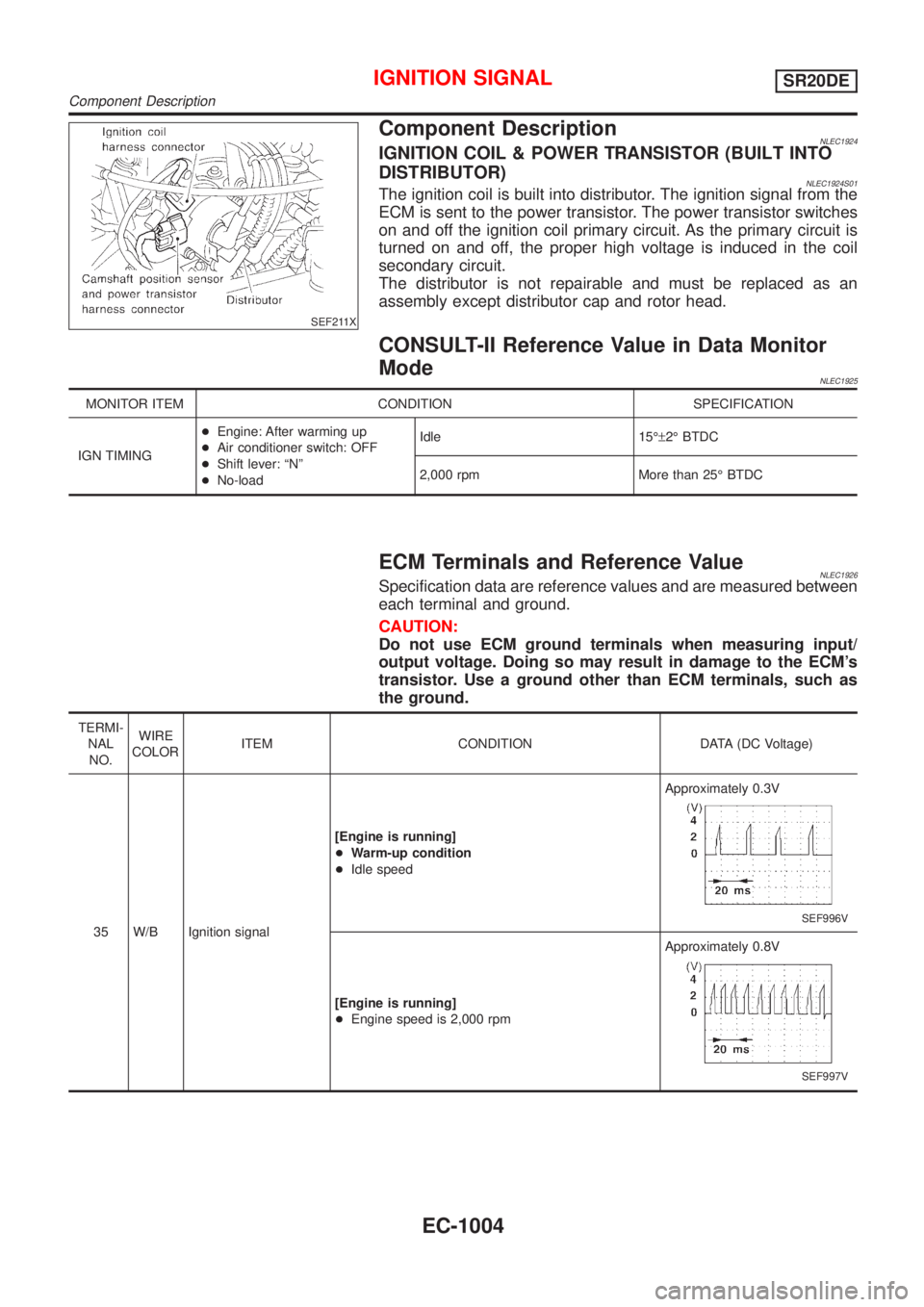

NISSAN ALMERA TINO 2001 Service Repair Manual SEF211X Component DescriptionNLEC1924IGNITION COIL & POWER TRANSISTOR (BUILT INTO DISTRIBUTOR) NLEC1924S01The ignition coil is built into distributor. The ignition signal from the ECM is sent to the p

Page 1430 of 3051

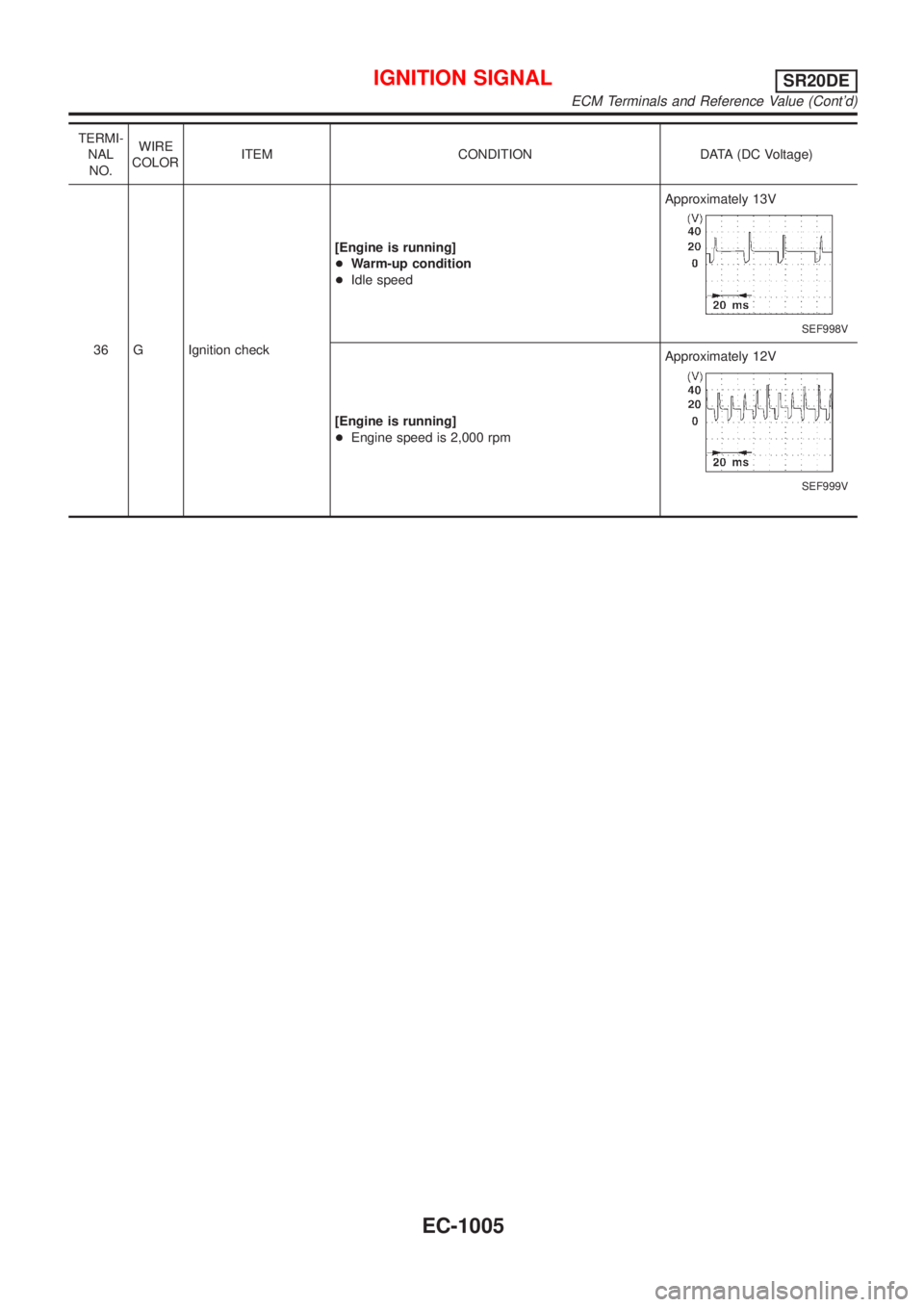

NISSAN ALMERA TINO 2001 Service Repair Manual TERMI- NAL NO.WIRE COLORITEM CONDITION DATA (DC Voltage) 36 G Ignition check[Engine is running] +Warm-up condition +Idle speedApproximately 13V SEF998V [Engine is running] +Engine speed is 2,000 rpmAp

Page 1431 of 3051

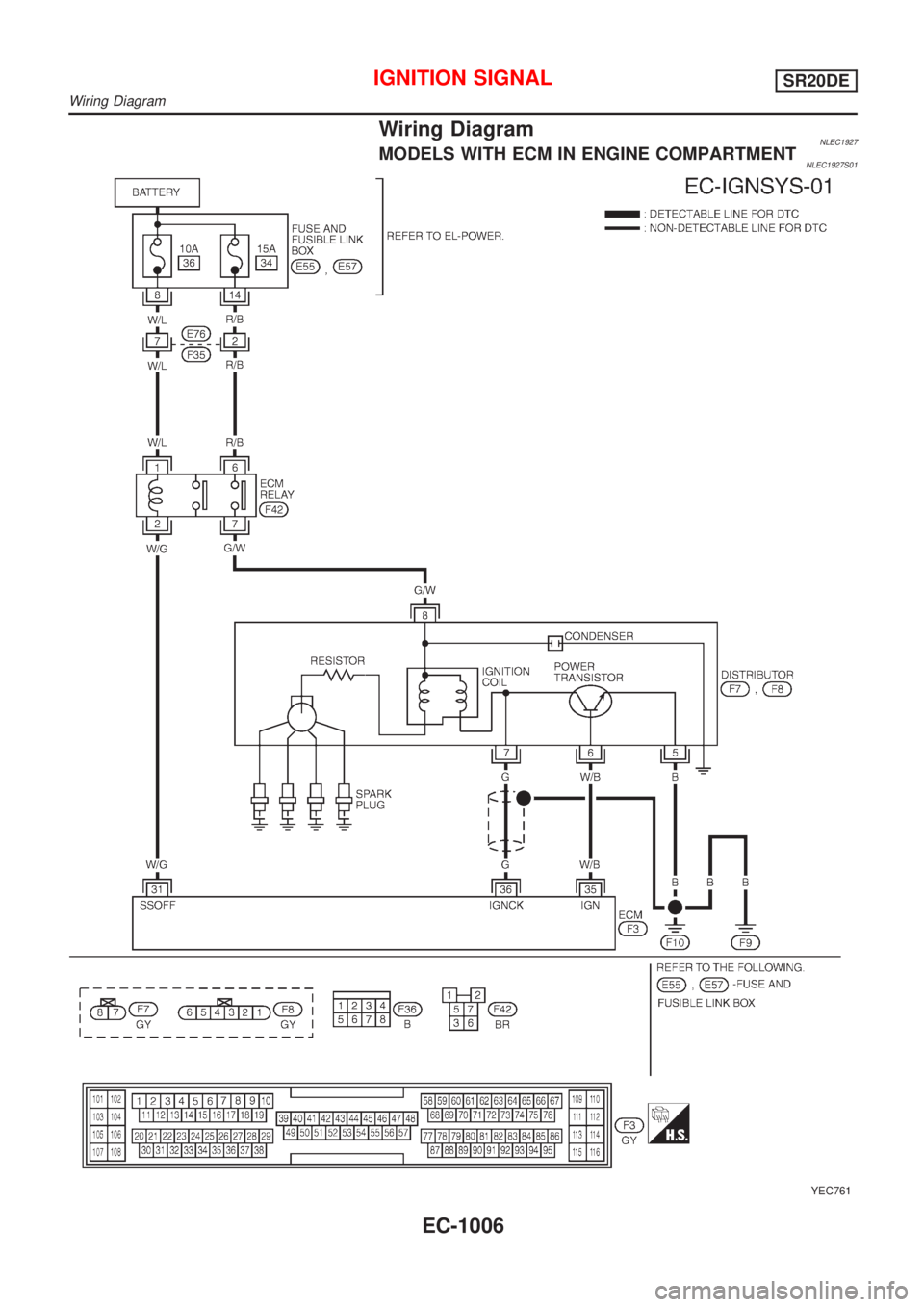

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC1927MODELS WITH ECM IN ENGINE COMPARTMENTNLEC1927S01 YEC761 IGNITION SIGNALSR20DE Wiring Diagram EC-1006

Page 1432 of 3051

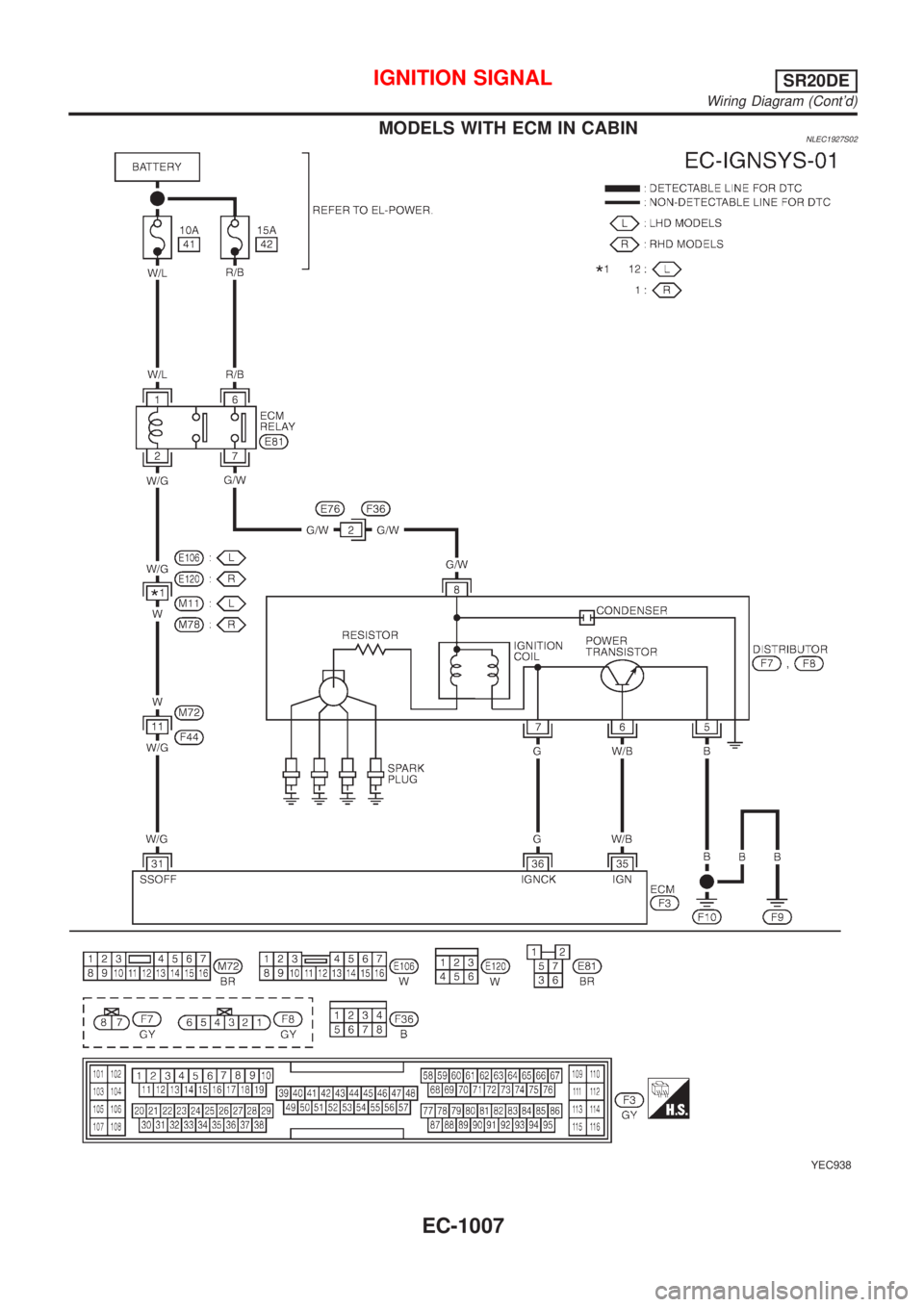

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC1927S02 YEC938 IGNITION SIGNALSR20DE Wiring Diagram (Contd) EC-1007
