Page 2265 of 3051

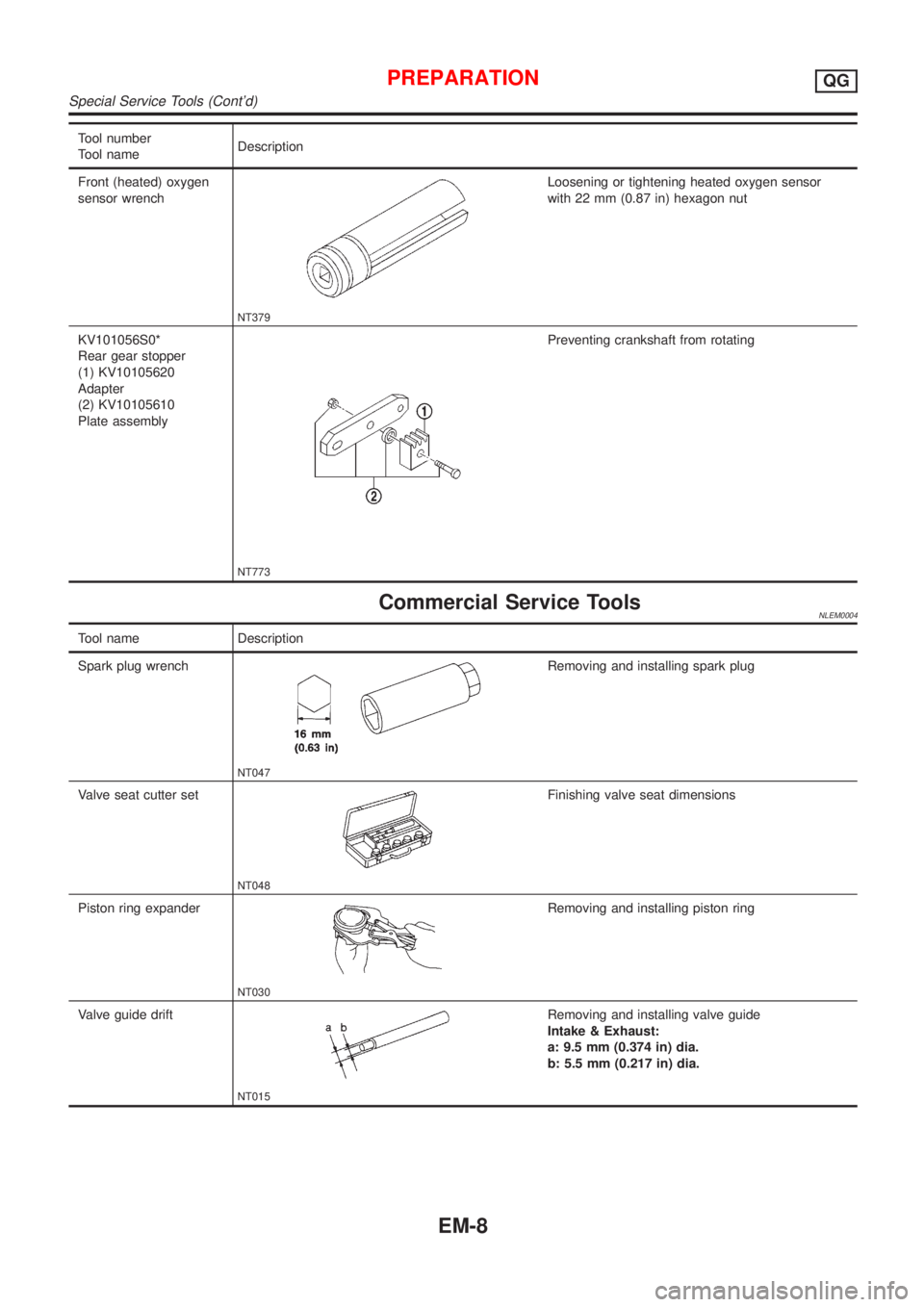

NISSAN ALMERA TINO 2001 Service Repair Manual Tool number Tool nameDescription Front (heated) oxygen sensor wrench NT379 Loosening or tightening heated oxygen sensor with 22 mm (0.87 in) hexagon nut KV101056S0* Rear gear stopper (1) KV10105620 Ad

Page 2266 of 3051

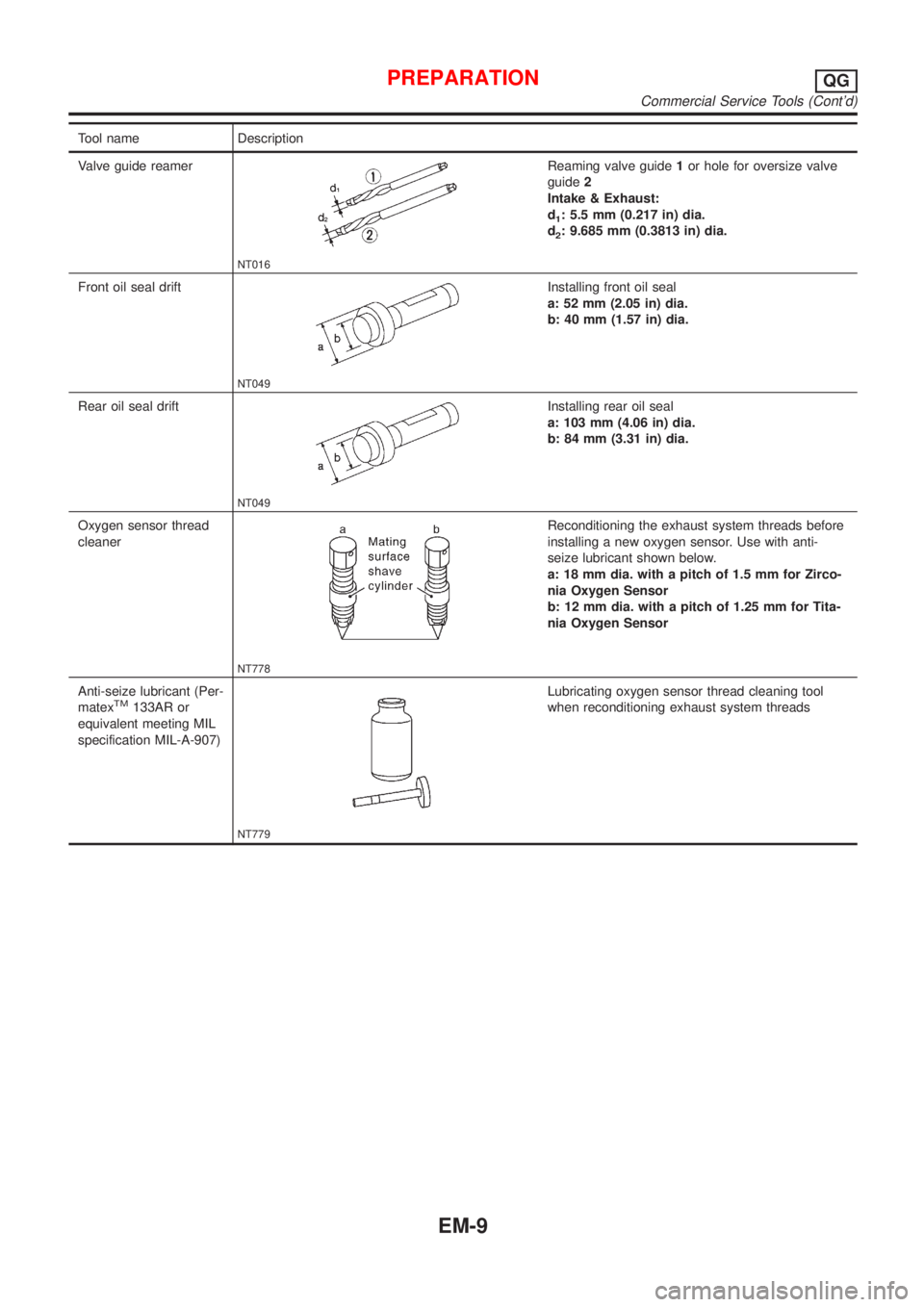

NISSAN ALMERA TINO 2001 Service Repair Manual Tool name Description Valve guide reamer NT016 Reaming valve guide1or hole for oversize valve guide2 Intake & Exhaust: d 1: 5.5 mm (0.217 in) dia. d 2: 9.685 mm (0.3813 in) dia. Front oil seal drift N

Page 2267 of 3051

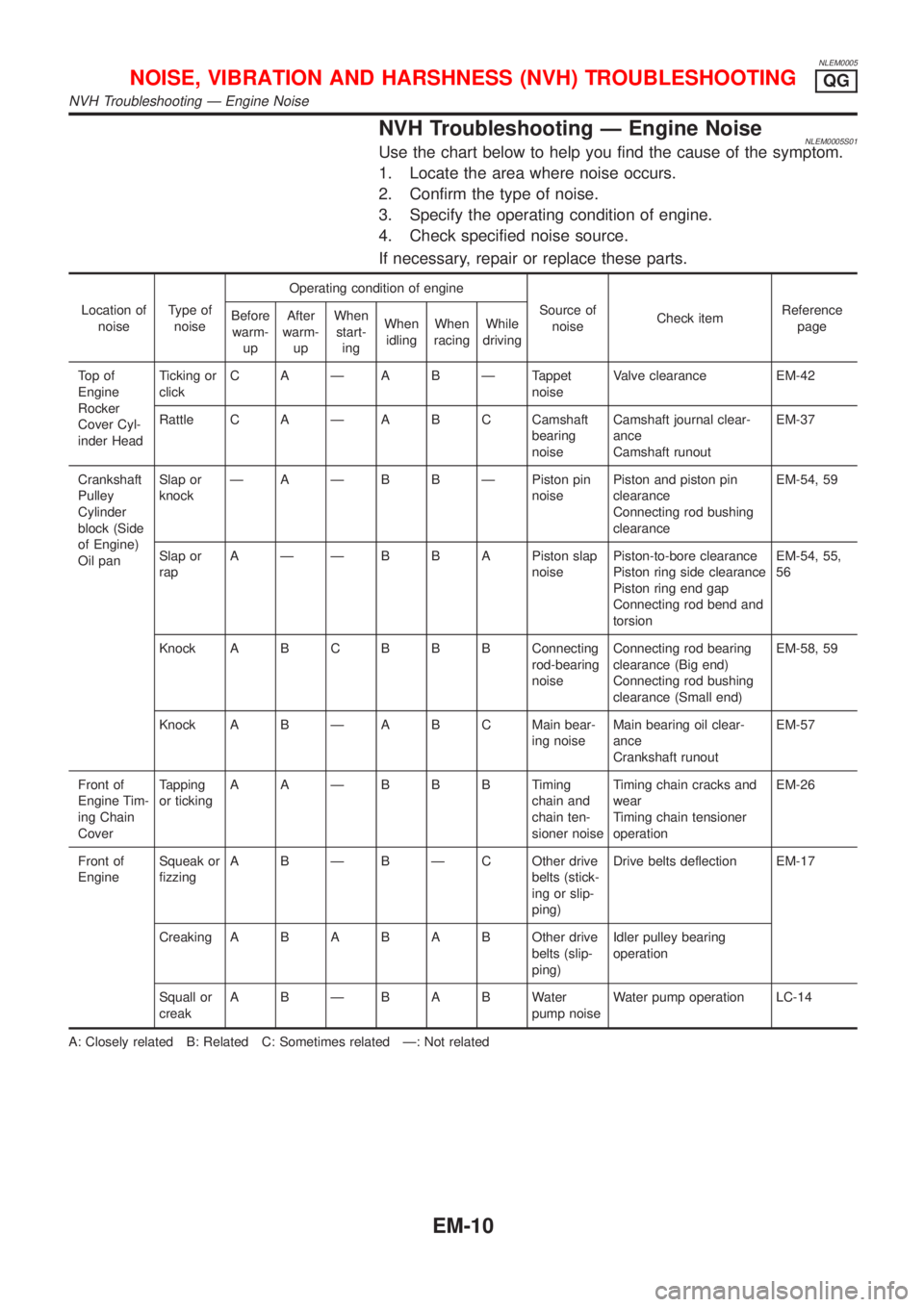

NISSAN ALMERA TINO 2001 Service Repair Manual NLEM0005 NVH Troubleshooting Ð Engine NoiseNLEM0005S01Use the chart below to help you find the cause of the symptom. 1. Locate the area where noise occurs. 2. Confirm the type of noise. 3. Specify th

Page 2268 of 3051

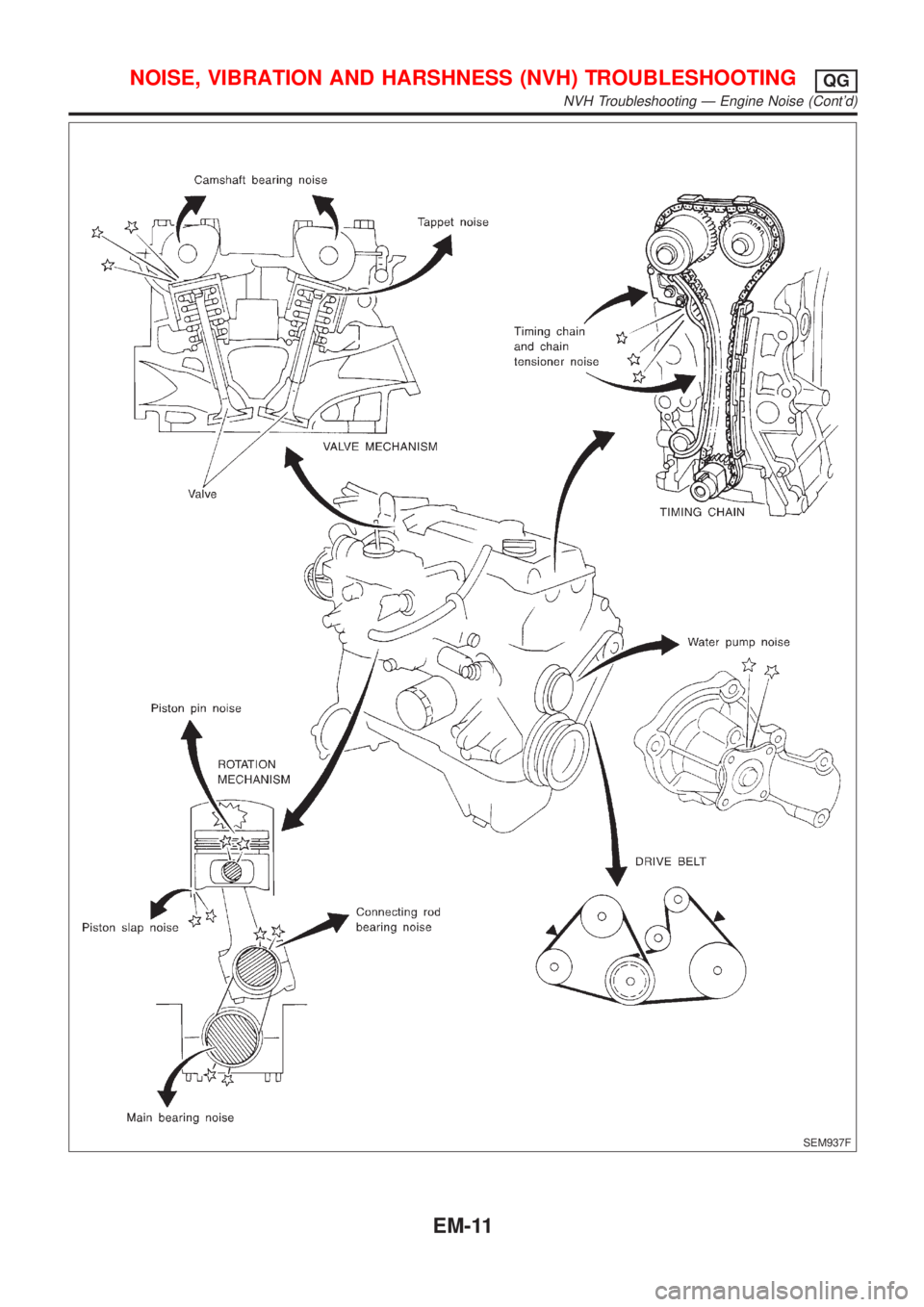

NISSAN ALMERA TINO 2001 Service Repair Manual SEM937F NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGQG NVH Troubleshooting Ð Engine Noise (Contd) EM-11

Page 2269 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Removal and InstallationNLEM0006 YEM002 1. Oil pressure switch 2. EGR valve 3. EGR tube 4. Air relief plug 5. Intake manifold6. Intake manifold upper support 7. Intake manifold lower supports 8. Oil f

Page 2270 of 3051

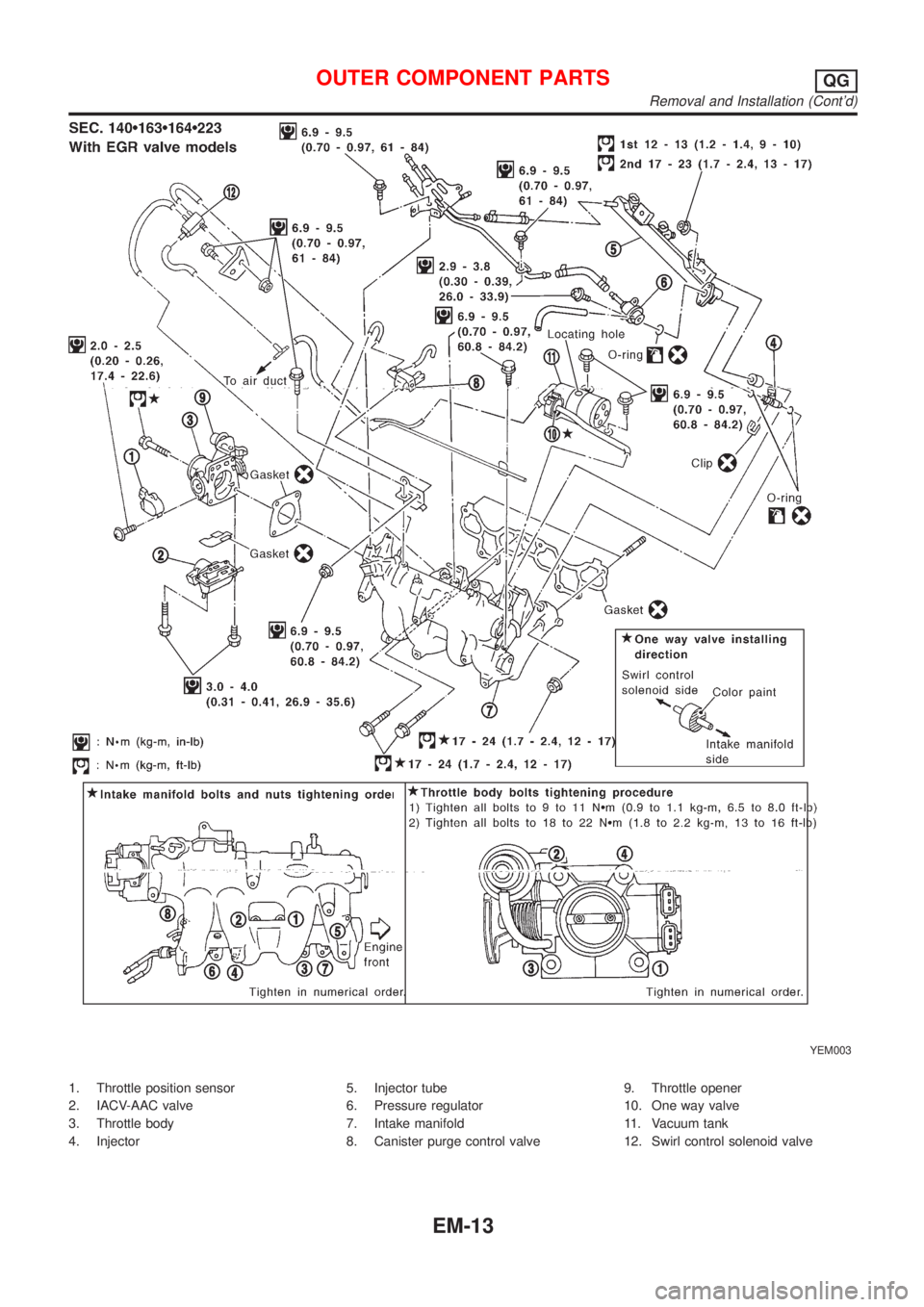

NISSAN ALMERA TINO 2001 Service Repair Manual YEM003 1. Throttle position sensor 2. IACV-AAC valve 3. Throttle body 4. Injector5. Injector tube 6. Pressure regulator 7. Intake manifold 8. Canister purge control valve9. Throttle opener 10. One way

Page 2271 of 3051

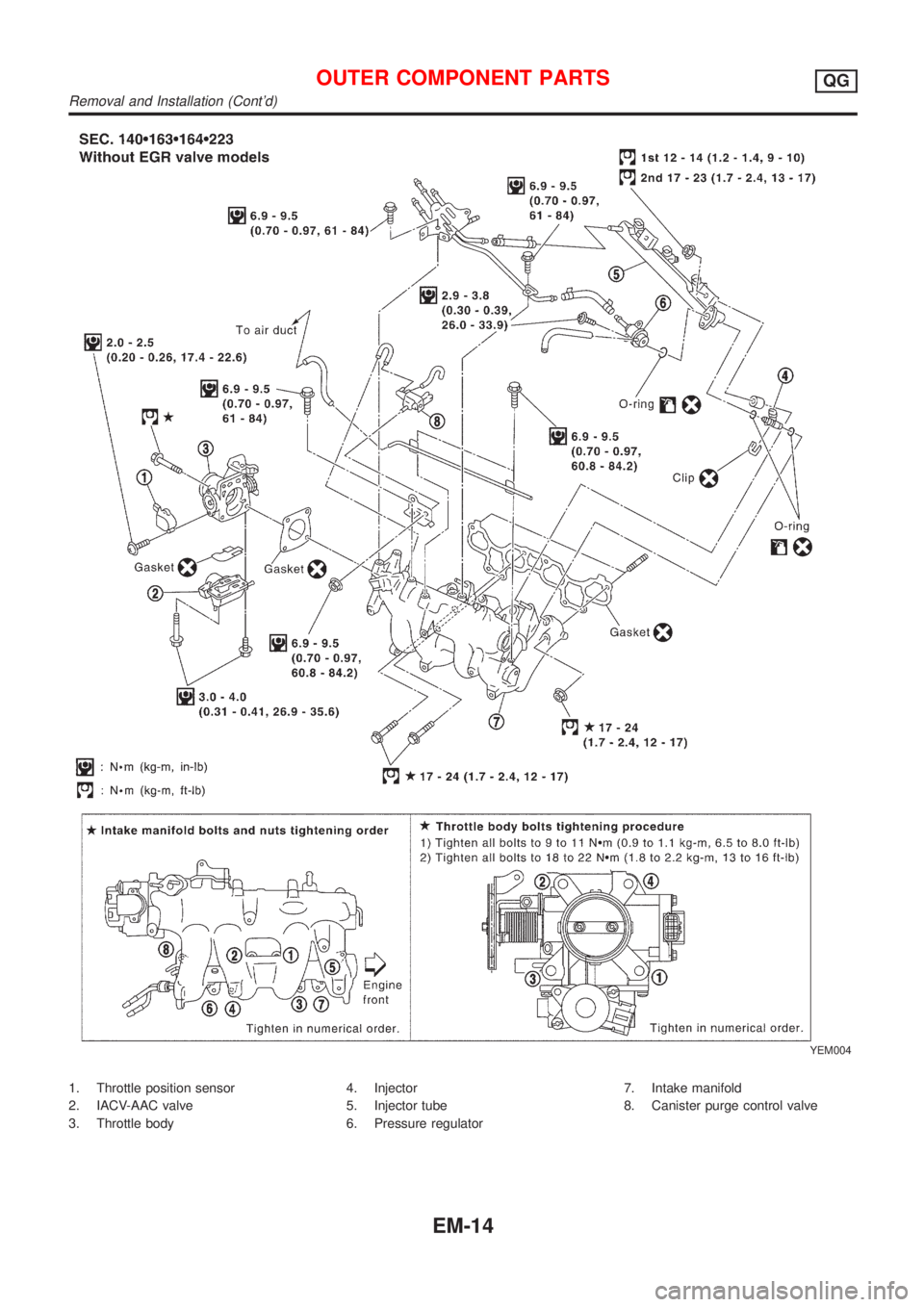

NISSAN ALMERA TINO 2001 Service Repair Manual YEM004 1. Throttle position sensor 2. IACV-AAC valve 3. Throttle body4. Injector 5. Injector tube 6. Pressure regulator7. Intake manifold 8. Canister purge control valve OUTER COMPONENT PARTSQG Remova

Page 2272 of 3051

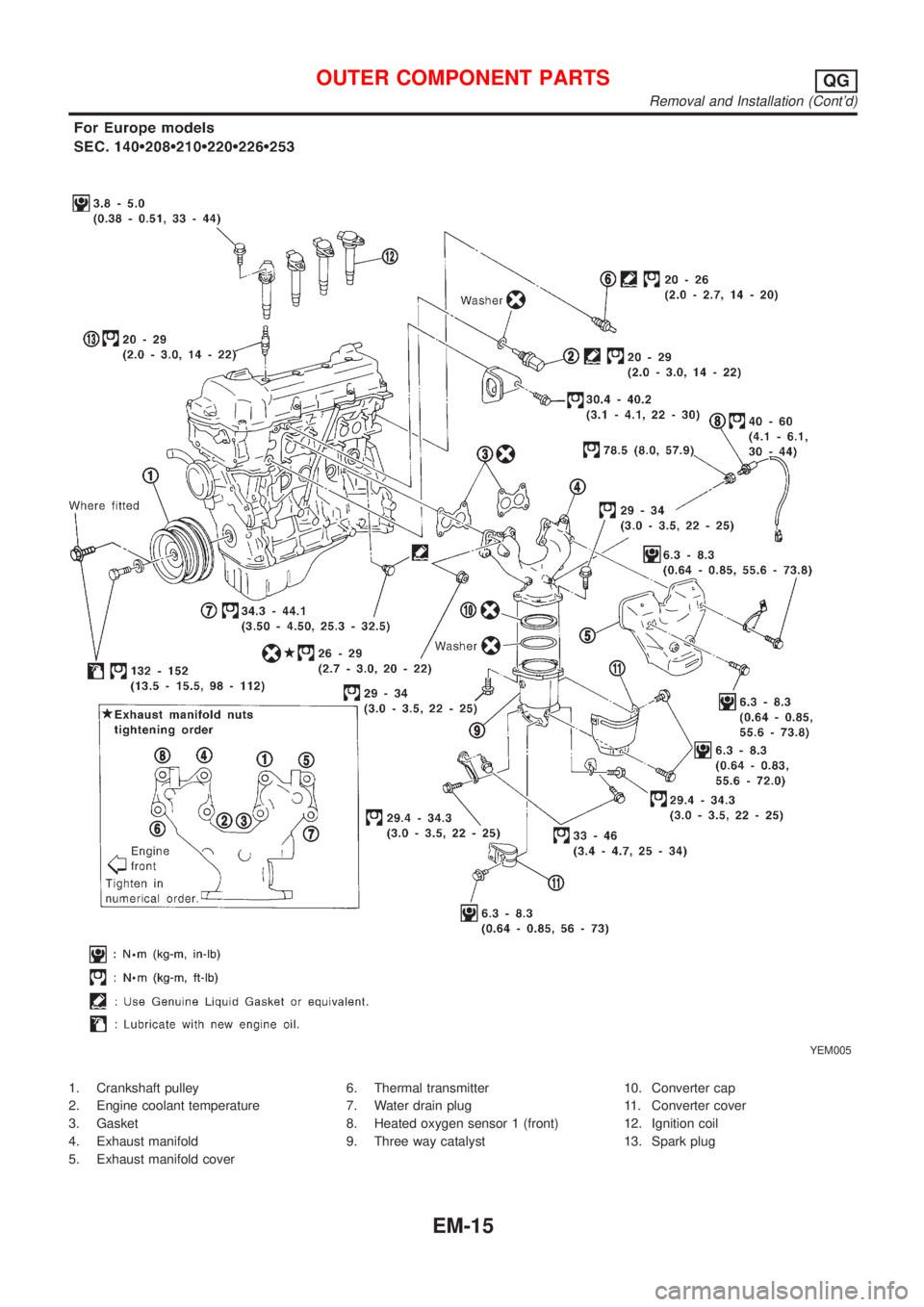

NISSAN ALMERA TINO 2001 Service Repair Manual YEM005 1. Crankshaft pulley 2. Engine coolant temperature 3. Gasket 4. Exhaust manifold 5. Exhaust manifold cover6. Thermal transmitter 7. Water drain plug 8. Heated oxygen sensor 1 (front) 9. Three w
