Page 1601 of 3051

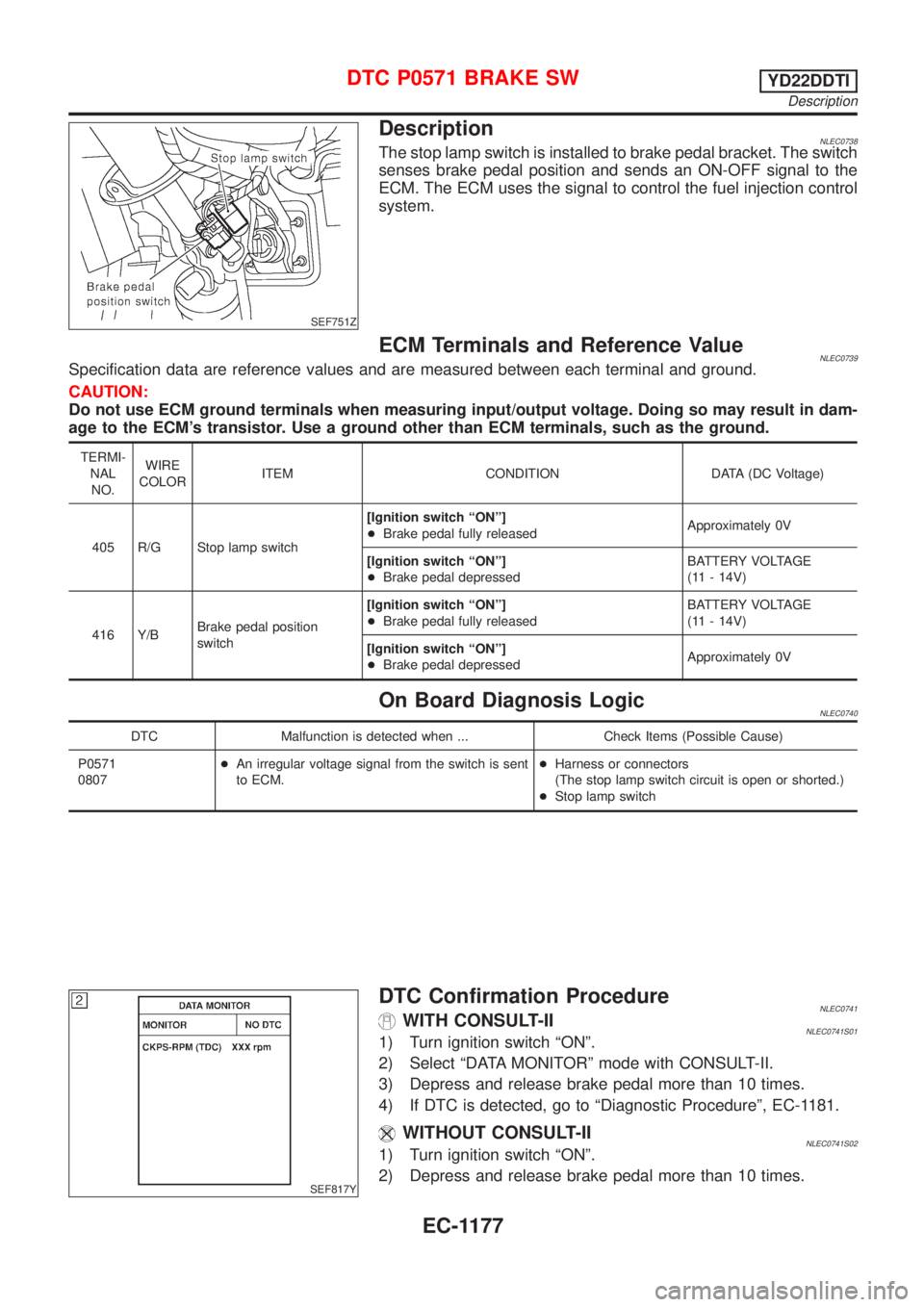

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0659 1 CHECK VEHICLE SPEED SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch ªOFFº. 2. Disconnect ECM harness connector and combination meter harness con

Page 1602 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF751Z DescriptionNLEC0738The stop lamp switch is installed to brake pedal bracket. The switch senses brake pedal position and sends an ON-OFF signal to the ECM. The ECM uses the signal to control th

Page 1603 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 3) Turn ignition switch ªOFFº, wait at least 5 seconds and then turn ªONº. 4) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM. 5) If DTC is detected, go to ªDiagnostic Proc

Page 1604 of 3051

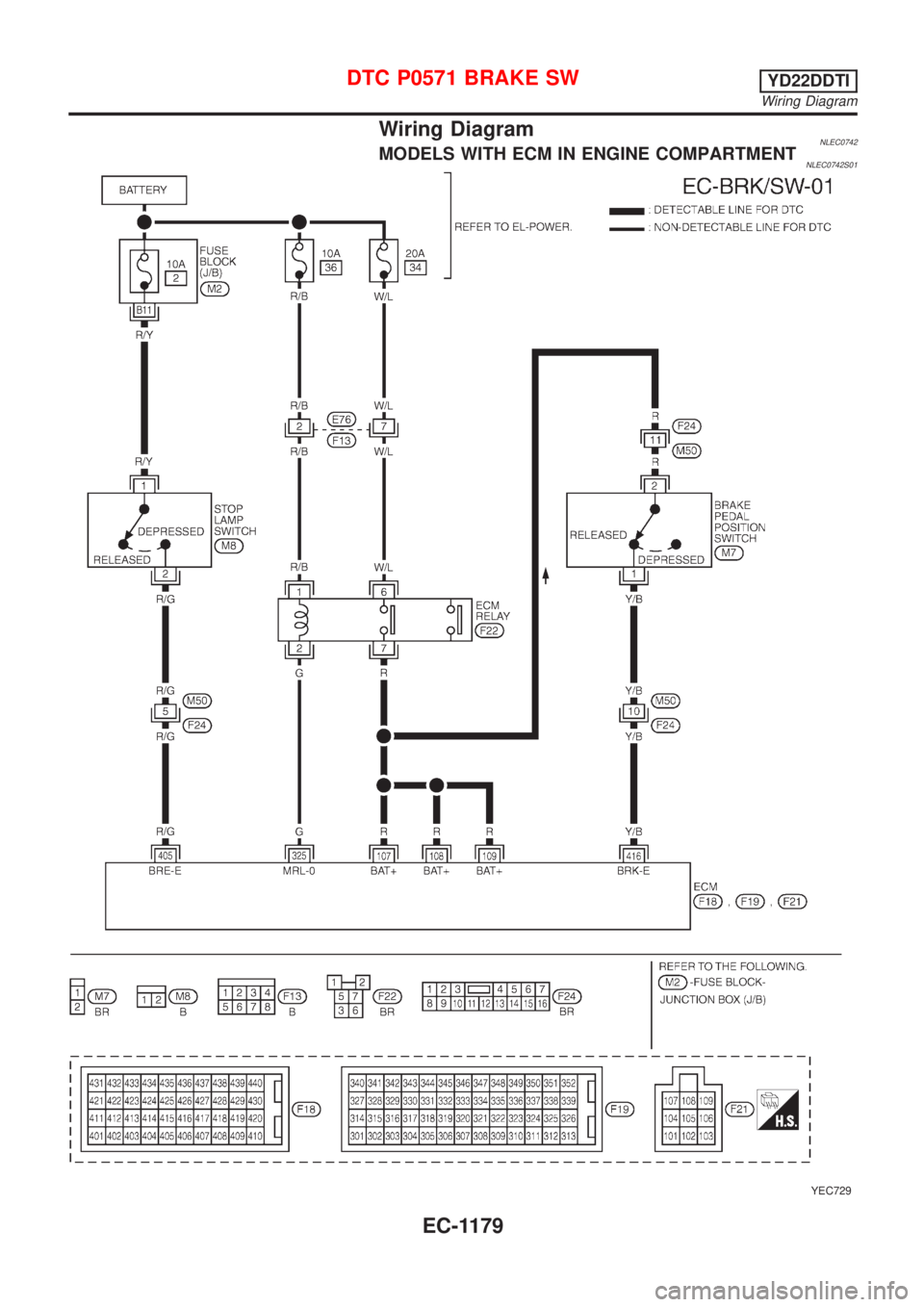

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0742MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0742S01 YEC729 DTC P0571 BRAKE SWYD22DDTI Wiring Diagram EC-1179

Page 1605 of 3051

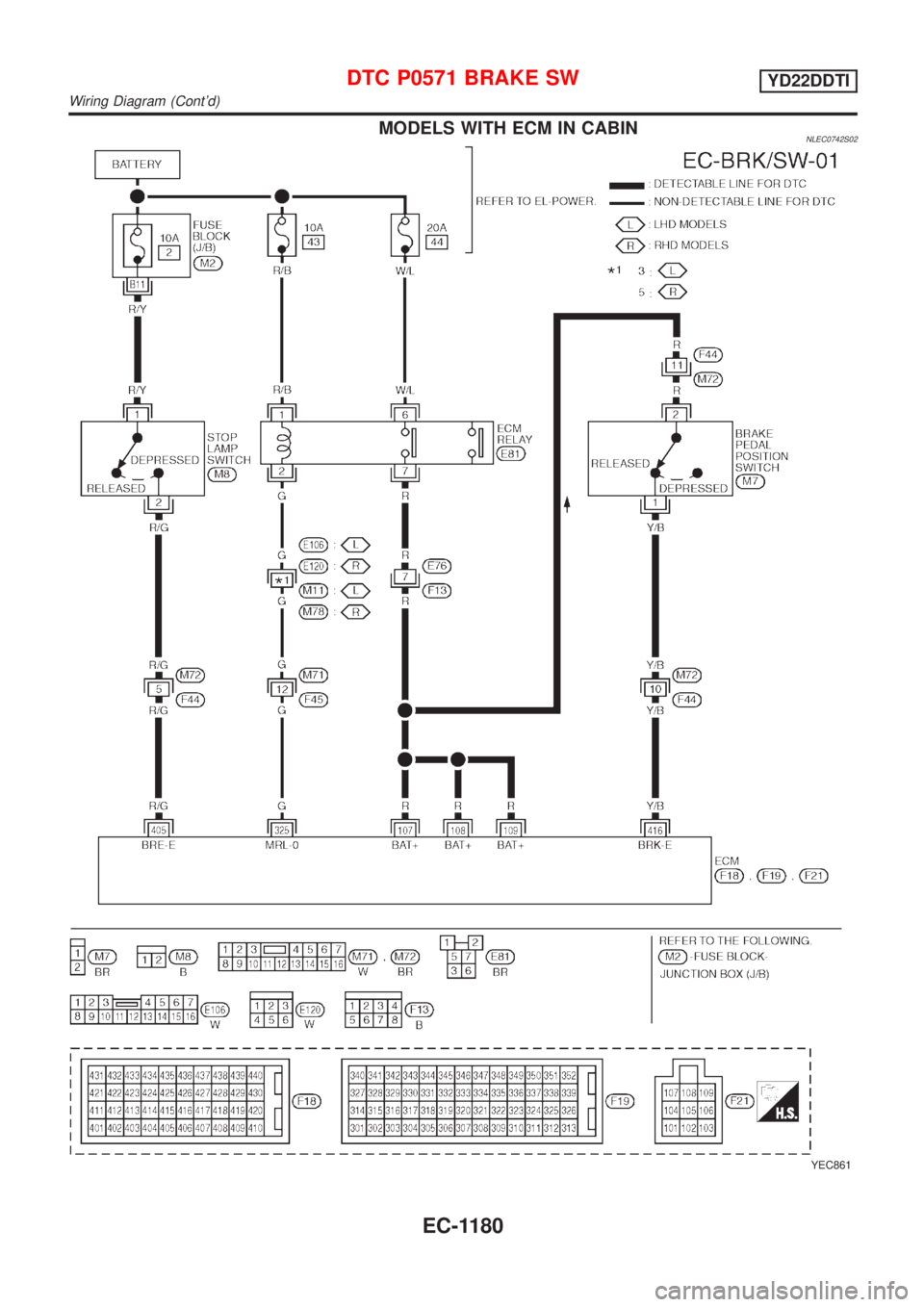

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC0742S02 YEC861 DTC P0571 BRAKE SWYD22DDTI Wiring Diagram (Contd) EC-1180

Page 1606 of 3051

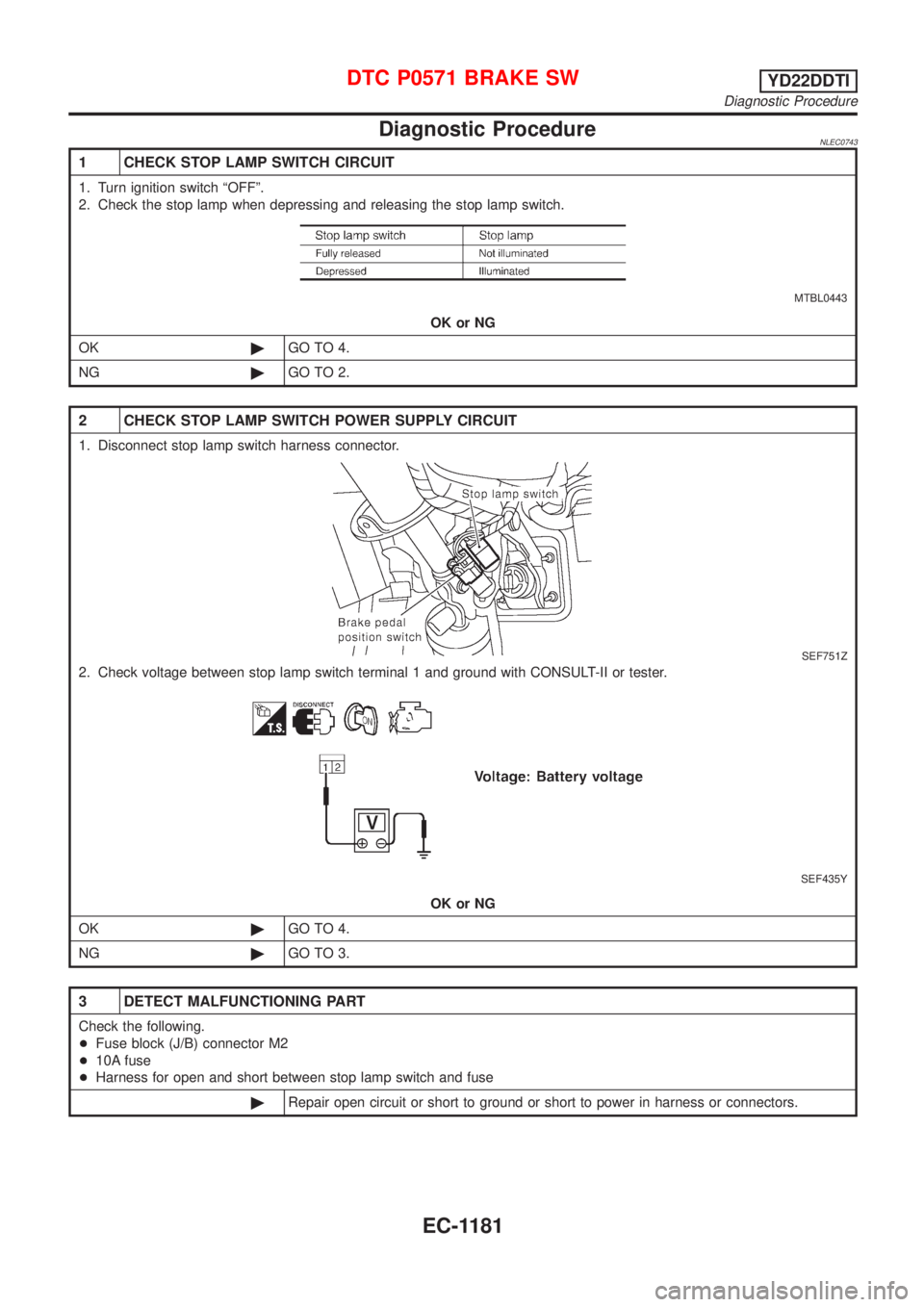

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0743 1 CHECK STOP LAMP SWITCH CIRCUIT 1. Turn ignition switch ªOFFº. 2. Check the stop lamp when depressing and releasing the stop lamp switch. MTBL0443 OK or NG OK©GO TO 4.

Page 1607 of 3051

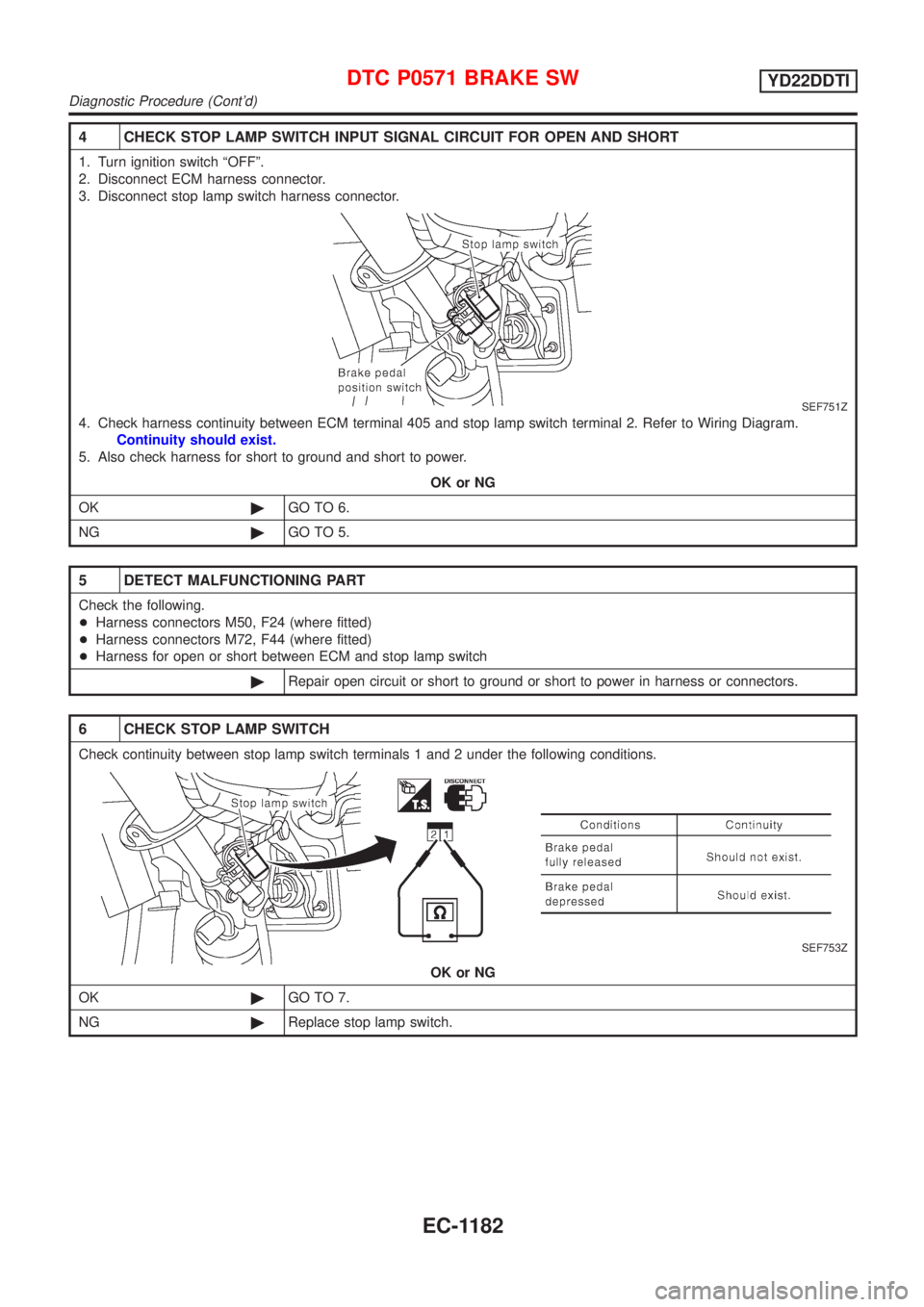

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch ªOFFº. 2. Disconnect ECM harness connector. 3. Disconnect stop lamp switch harness connector. SEF751Z 4. Chec

Page 1608 of 3051

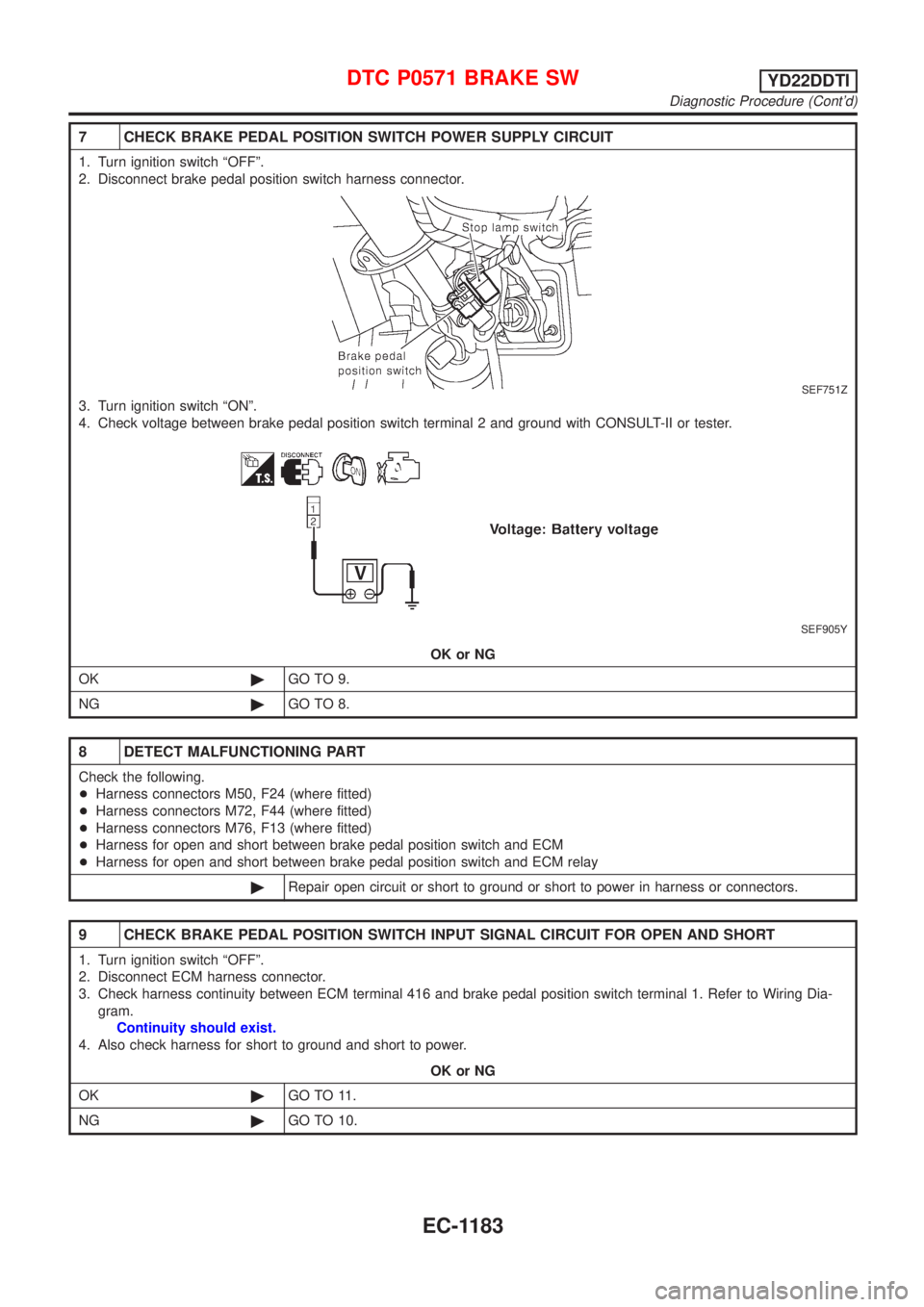

NISSAN ALMERA TINO 2001 Service Repair Manual 7 CHECK BRAKE PEDAL POSITION SWITCH POWER SUPPLY CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect brake pedal position switch harness connector. SEF751Z 3. Turn ignition switch ªONº. 4. Check
