Page 73 of 3051

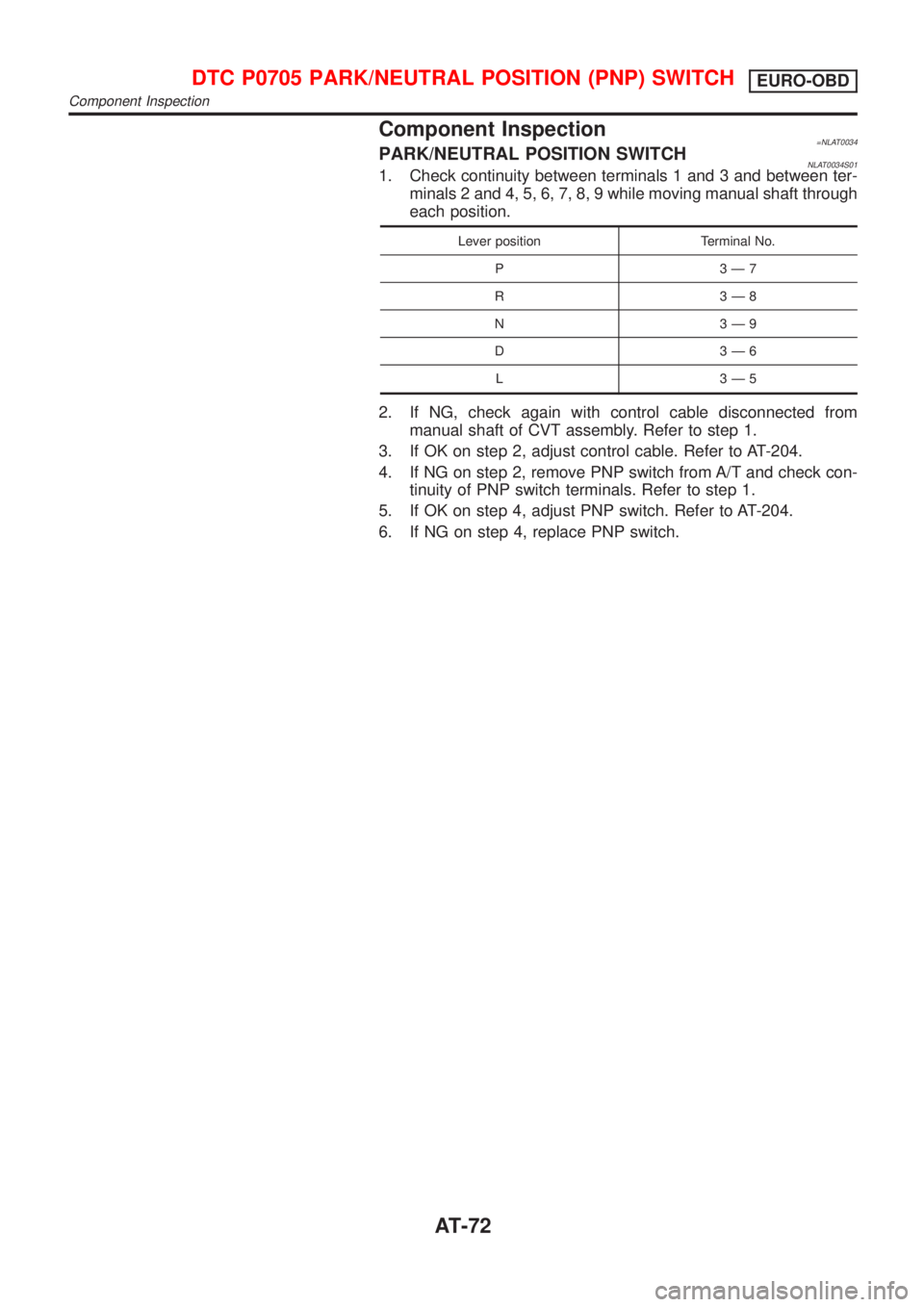

NISSAN ALMERA TINO 2001 Service Repair Manual Component Inspection=NLAT0034PARK/NEUTRAL POSITION SWITCHNLAT0034S011. Check continuity between terminals 1 and 3 and between ter- minals 2 and 4, 5, 6, 7, 8, 9 while moving manual shaft through each

Page 74 of 3051

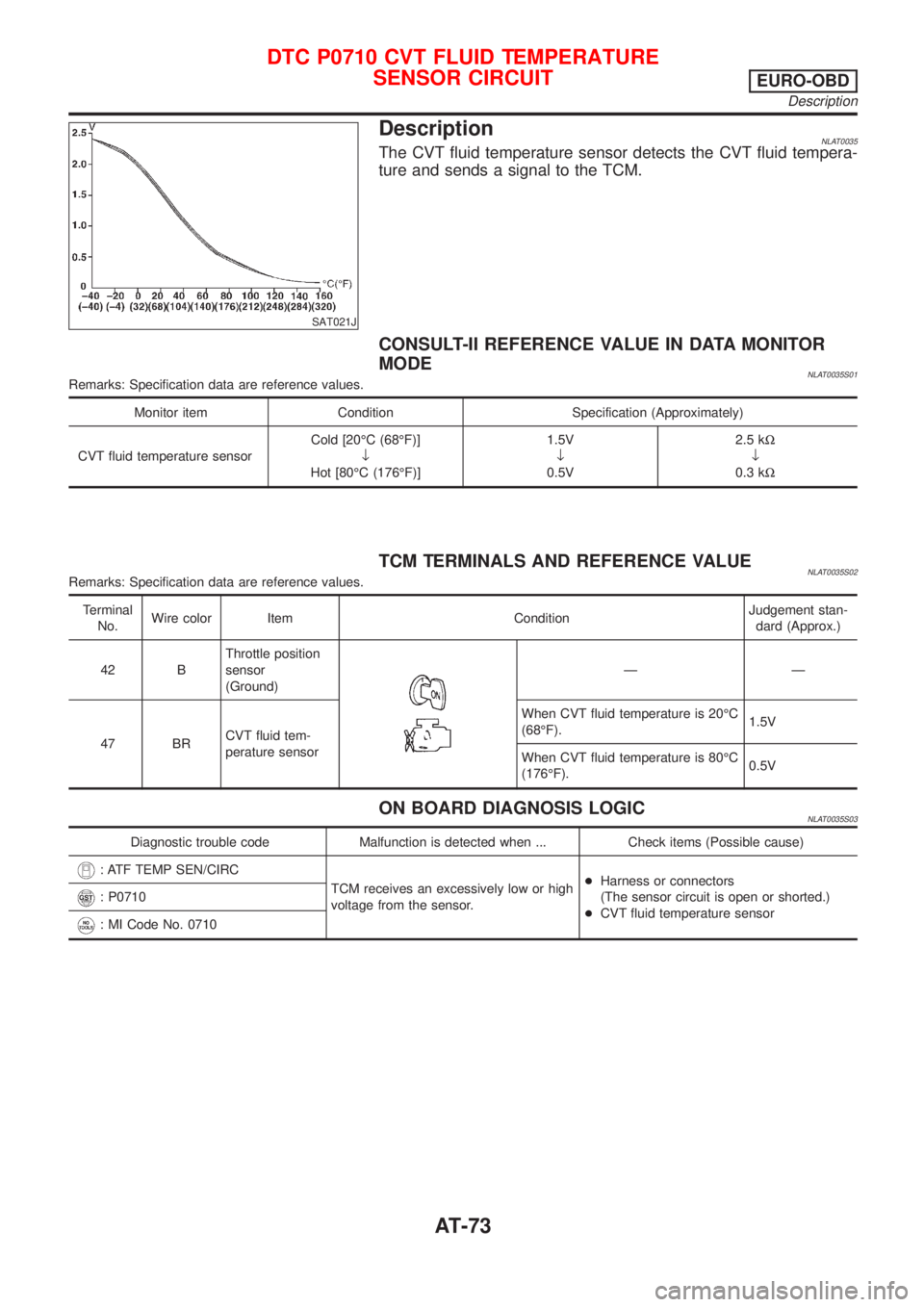

NISSAN ALMERA TINO 2001 Service Repair Manual SAT021J DescriptionNLAT0035The CVT fluid temperature sensor detects the CVT fluid tempera- ture and sends a signal to the TCM. CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE NLAT0035S01Remarks: Speci

Page 75 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT250K SAT255K DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE NLAT0035S04CAUTION: Always drive vehicle at a safe speed. NOTE: If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE- DUREº has been pr

Page 76 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð AT Ð FTSNLAT0200MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0200S01 YAT175 DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT EURO-OBD Wiring Diagram Ð AT Ð FTS AT-75

Page 77 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLAT0200S02 YAT214 DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT EURO-OBD Wiring Diagram Ð AT Ð FTS (Contd) AT-76

Page 78 of 3051

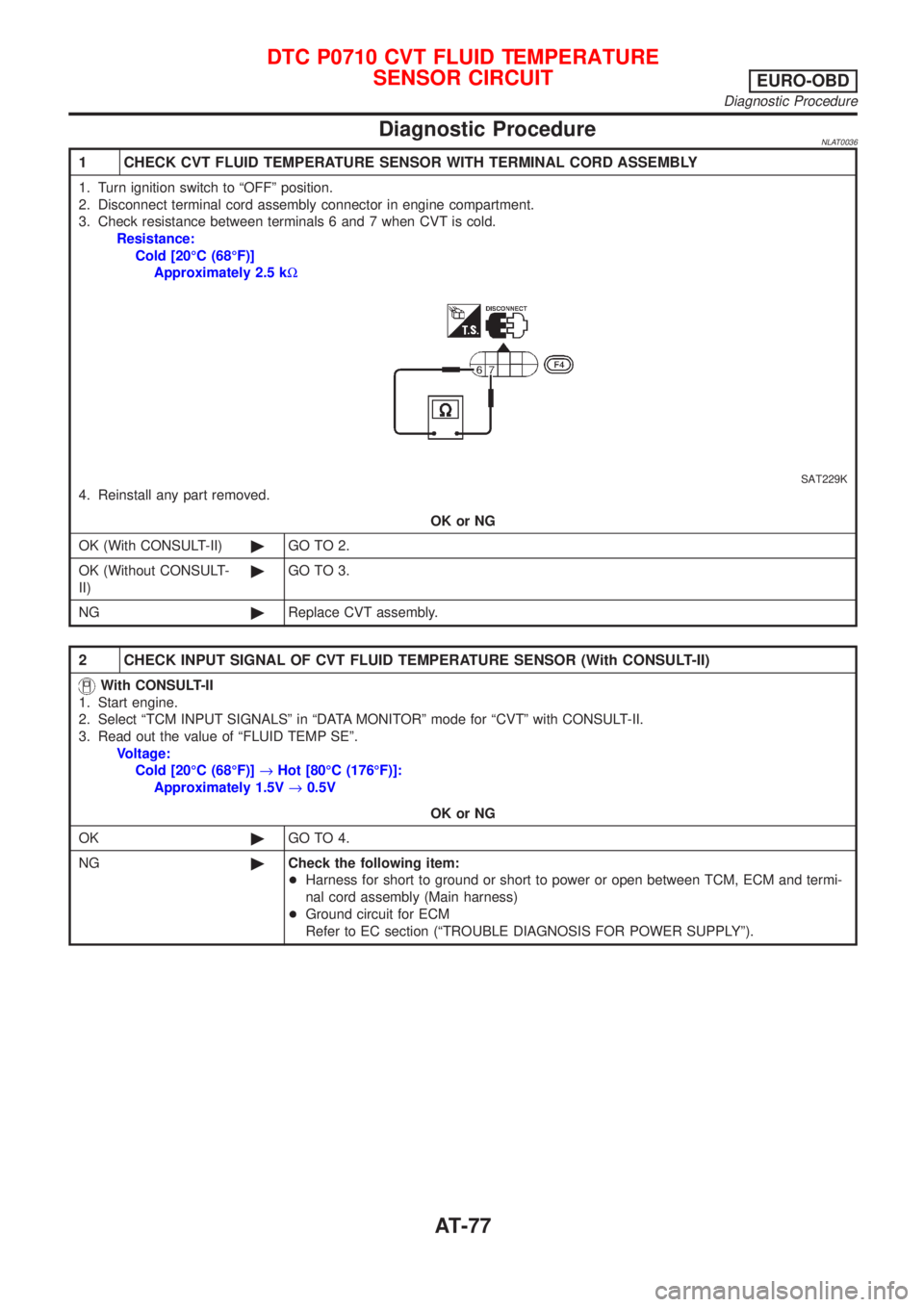

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLAT0036 1 CHECK CVT FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine comp

Page 79 of 3051

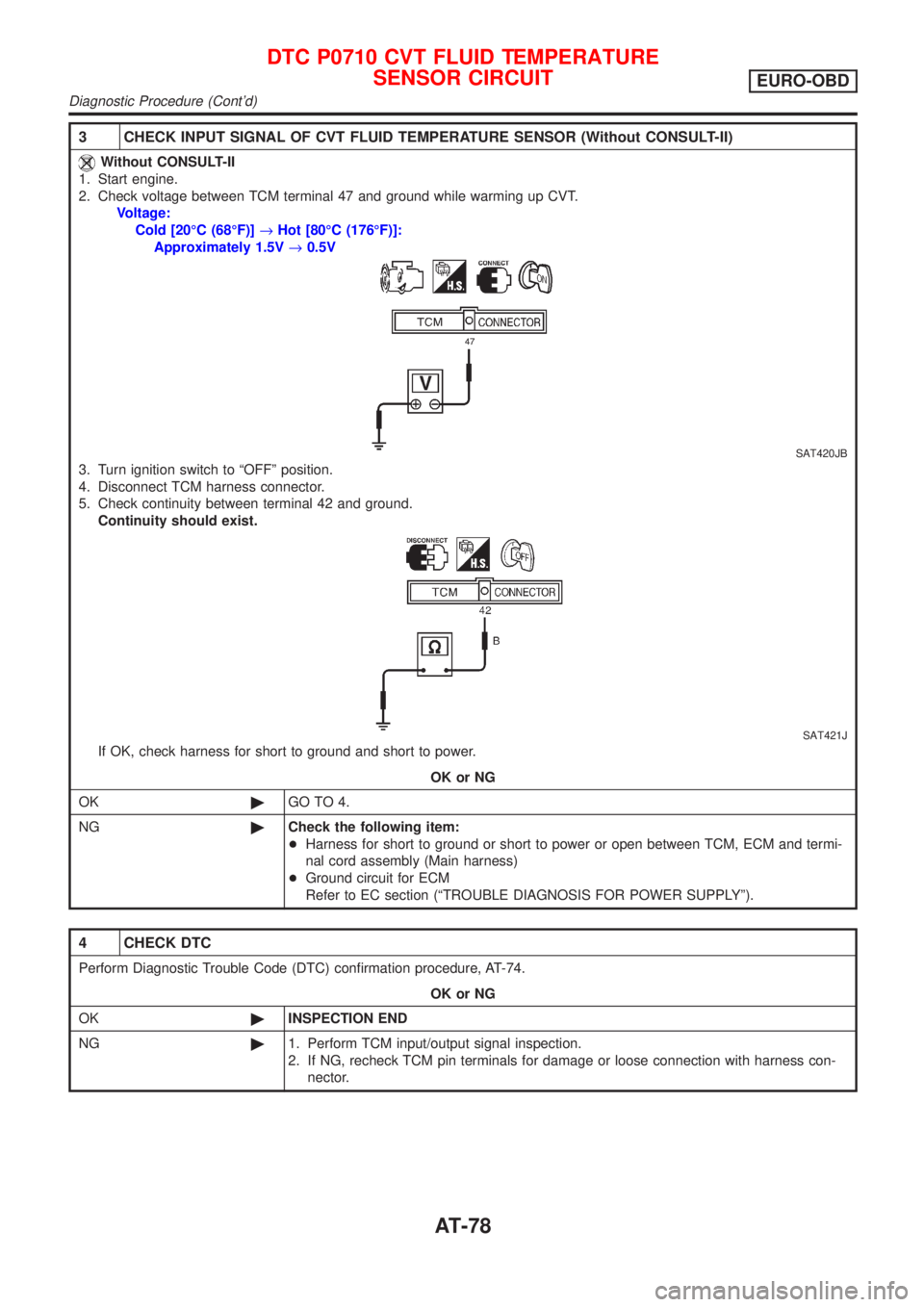

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK INPUT SIGNAL OF CVT FLUID TEMPERATURE SENSOR (Without CONSULT-II) Without CONSULT-II 1. Start engine. 2. Check voltage between TCM terminal 47 and ground while warming up CVT. Voltage: Cold [2

Page 80 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLAT0220The primary speed sensor detects the primary pulley revolution speed sends a signal to the ECM. TCM TERMINALS AND REFERENCE VALUENLAT0220S01Remarks: Specification data are reference
