Page 1113 of 3051

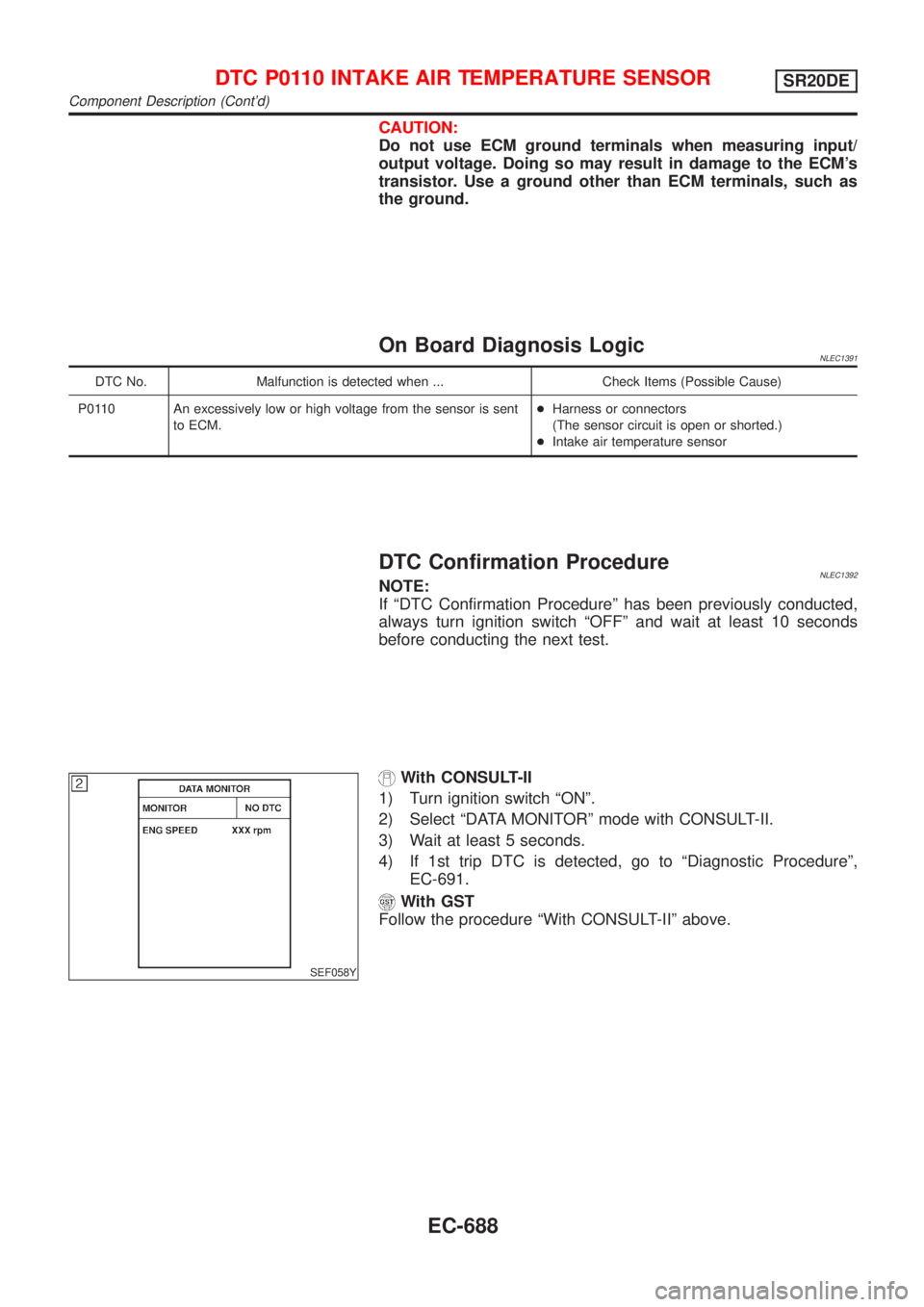

NISSAN ALMERA TINO 2001 Service Repair Manual CAUTION: Do not use ECM ground terminals when measuring input/ output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground. On Boar

Page 1114 of 3051

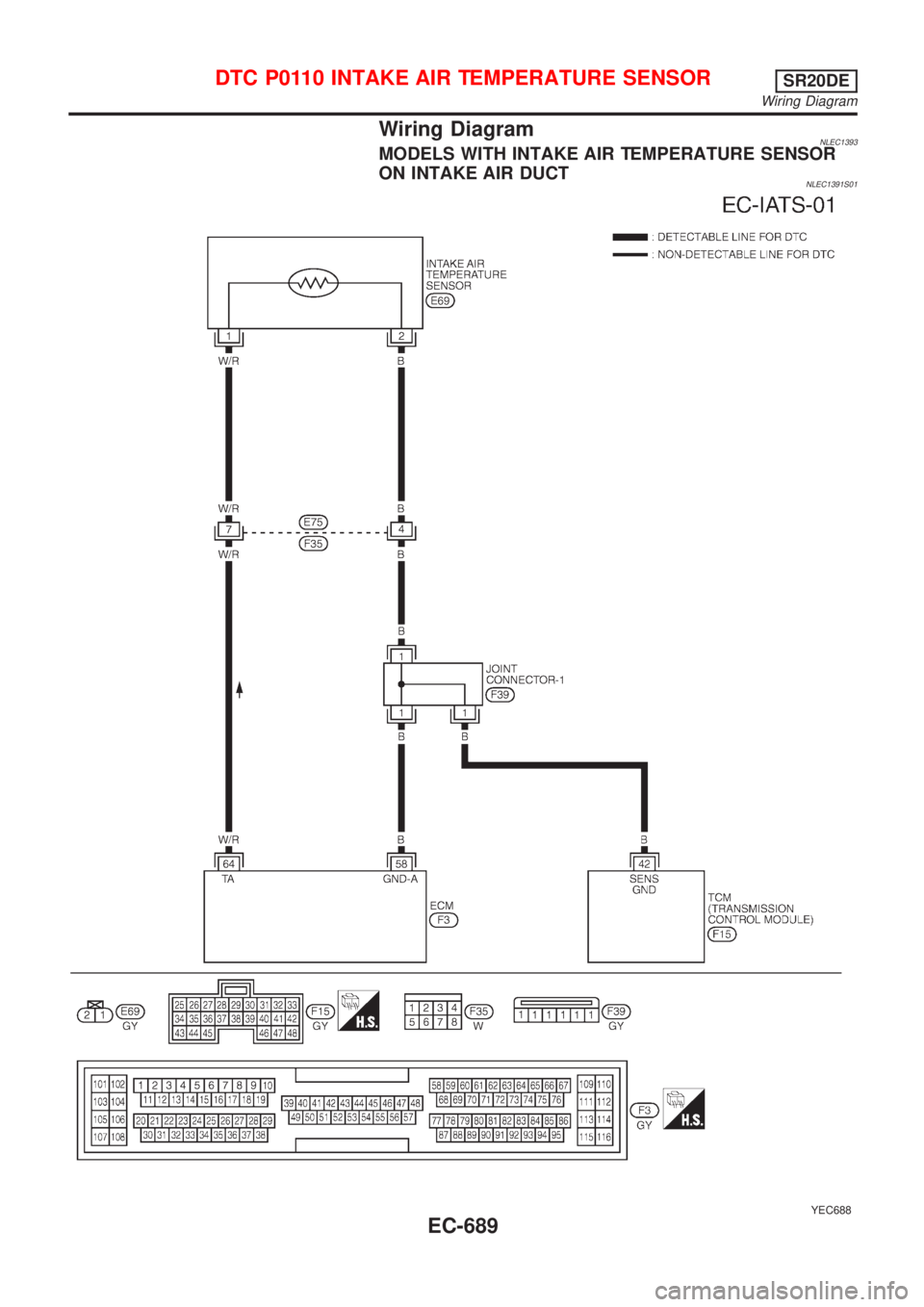

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC1393MODELS WITH INTAKE AIR TEMPERATURE SENSOR ON INTAKE AIR DUCT NLEC1391S01 YEC688 DTC P0110 INTAKE AIR TEMPERATURE SENSORSR20DE Wiring Diagram EC-689

Page 1115 of 3051

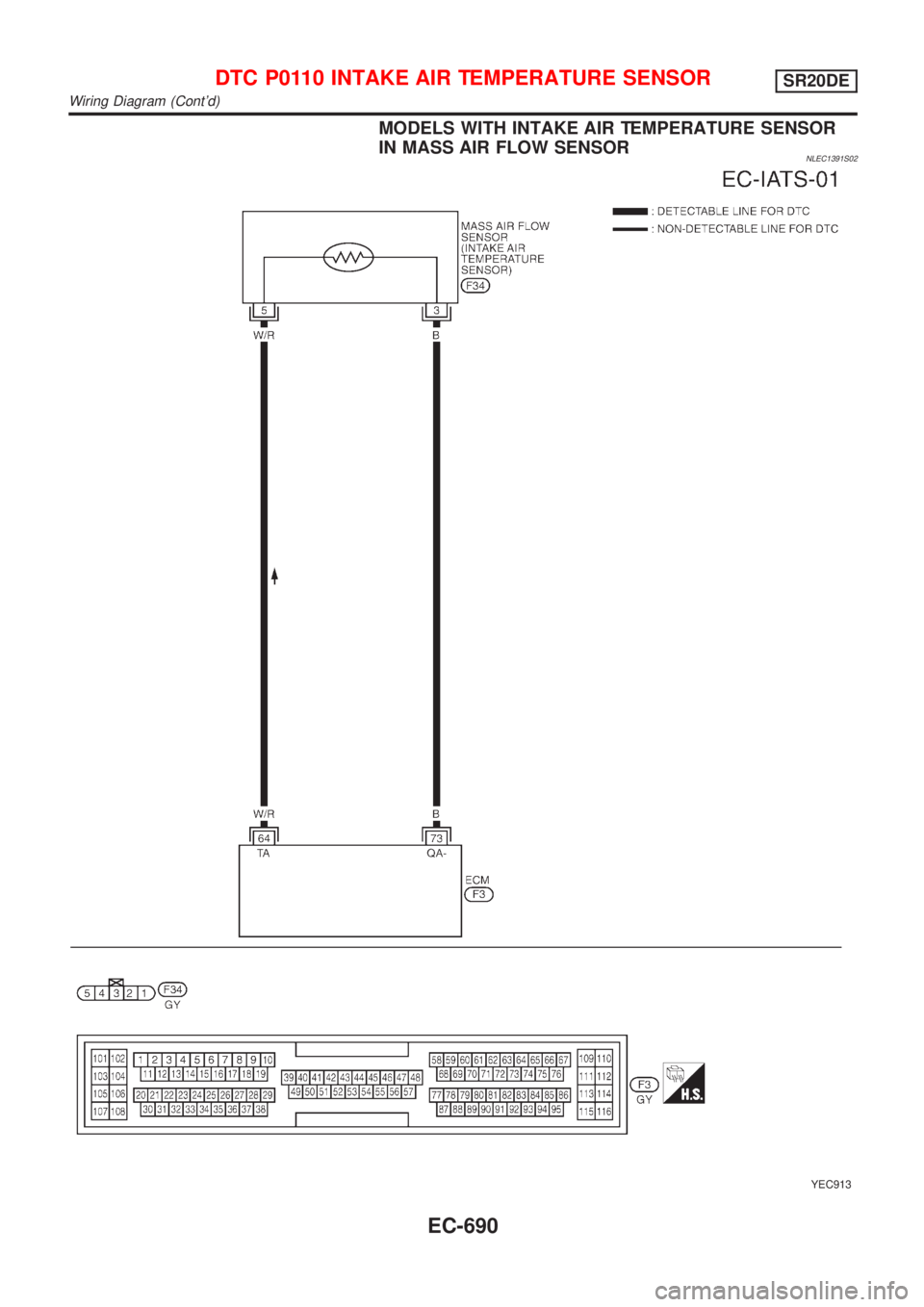

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH INTAKE AIR TEMPERATURE SENSOR IN MASS AIR FLOW SENSOR NLEC1391S02 YEC913 DTC P0110 INTAKE AIR TEMPERATURE SENSORSR20DE Wiring Diagram (Contd) EC-690

Page 1116 of 3051

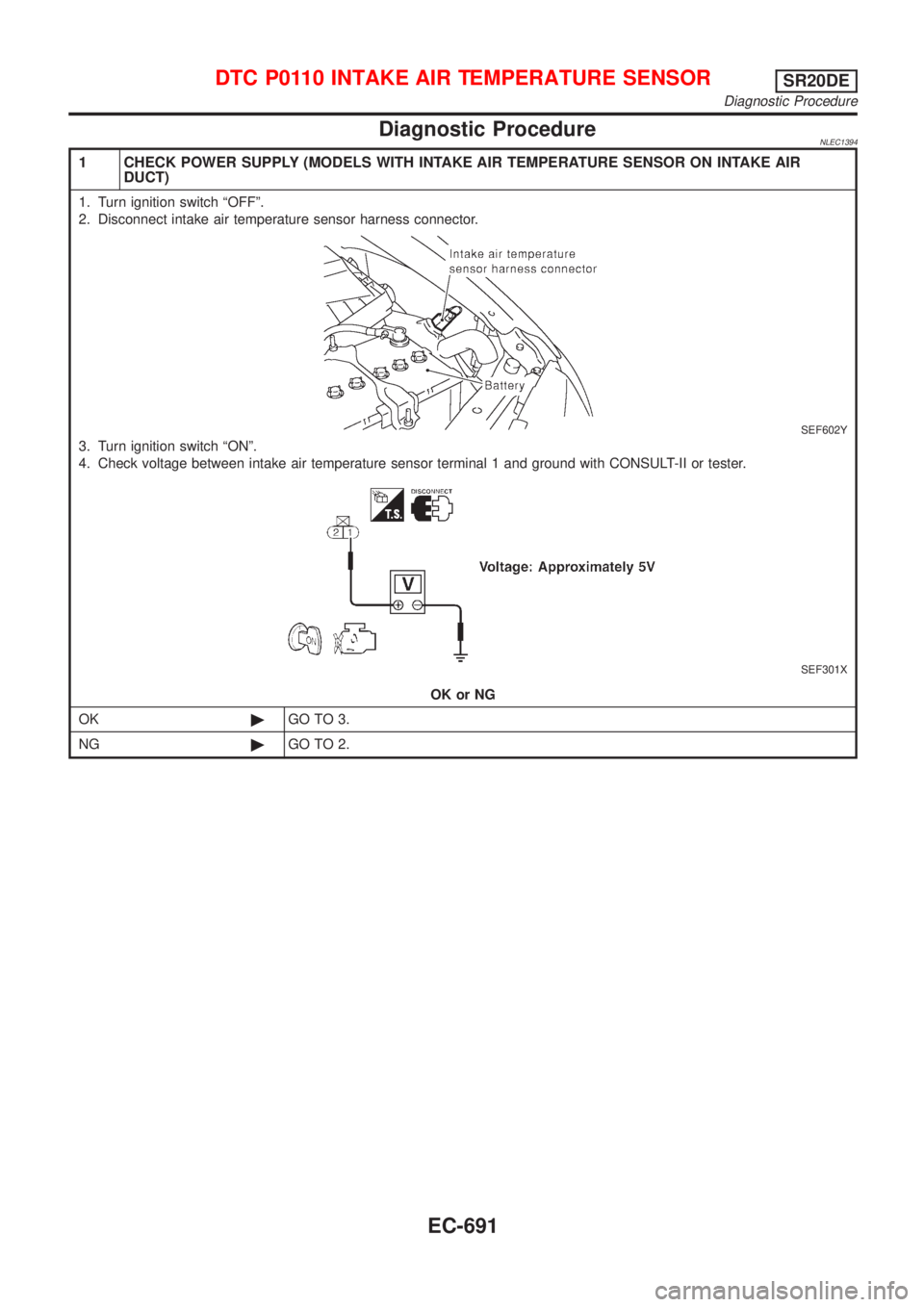

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1394 1 CHECK POWER SUPPLY (MODELS WITH INTAKE AIR TEMPERATURE SENSOR ON INTAKE AIR DUCT) 1. Turn ignition switch ªOFFº. 2. Disconnect intake air temperature sensor harness co

Page 1117 of 3051

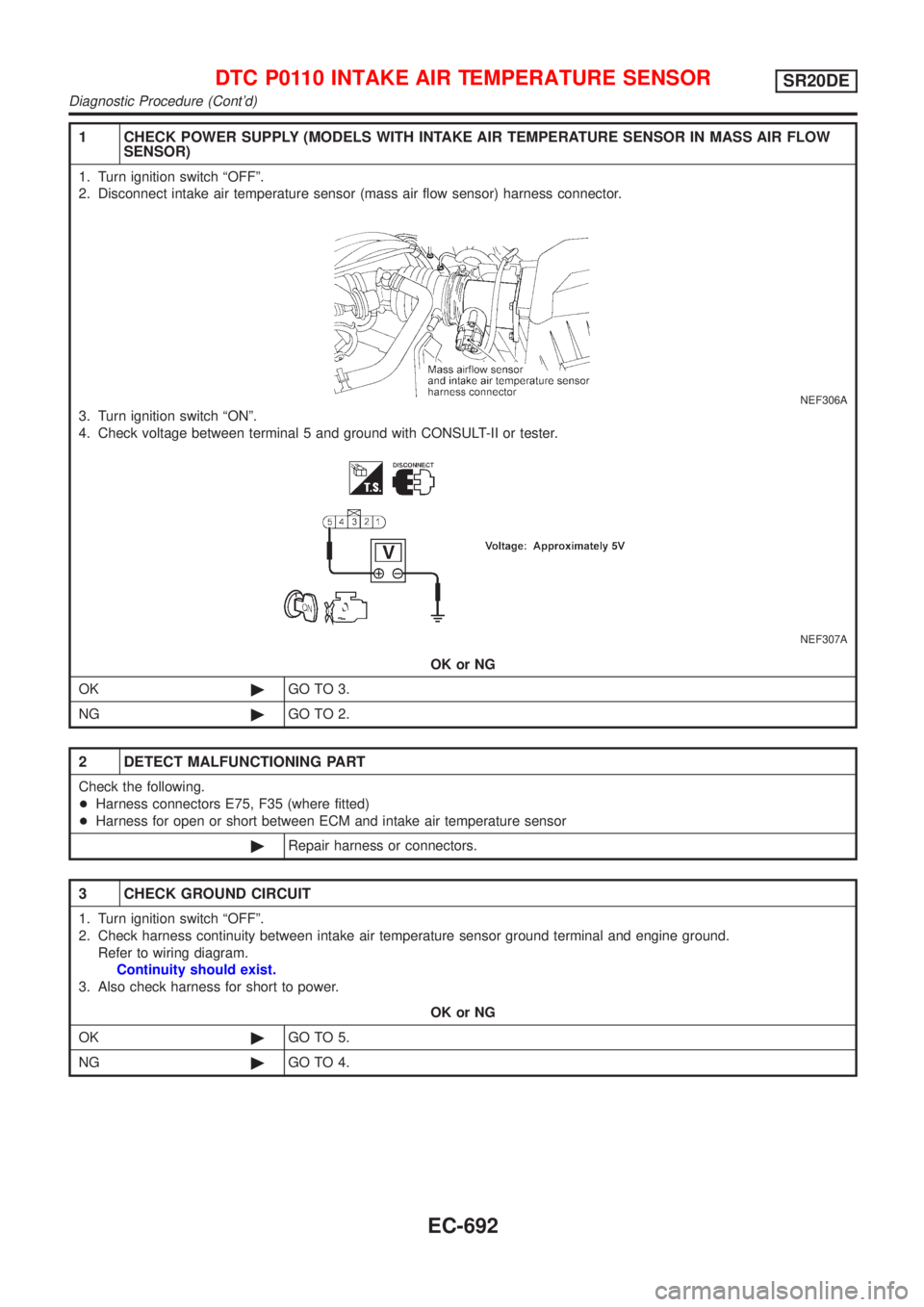

NISSAN ALMERA TINO 2001 Service Repair Manual 1 CHECK POWER SUPPLY (MODELS WITH INTAKE AIR TEMPERATURE SENSOR IN MASS AIR FLOW SENSOR) 1. Turn ignition switch ªOFFº. 2. Disconnect intake air temperature sensor (mass air flow sensor) harness con

Page 1118 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 DETECT MALFUNCTIONING PART Check the following. +Joint connector-1 (where fitted) +Harness connectors E75, F35 (where fitted) +Harness for open or short between ECM and intake air temperature sensor

Page 1119 of 3051

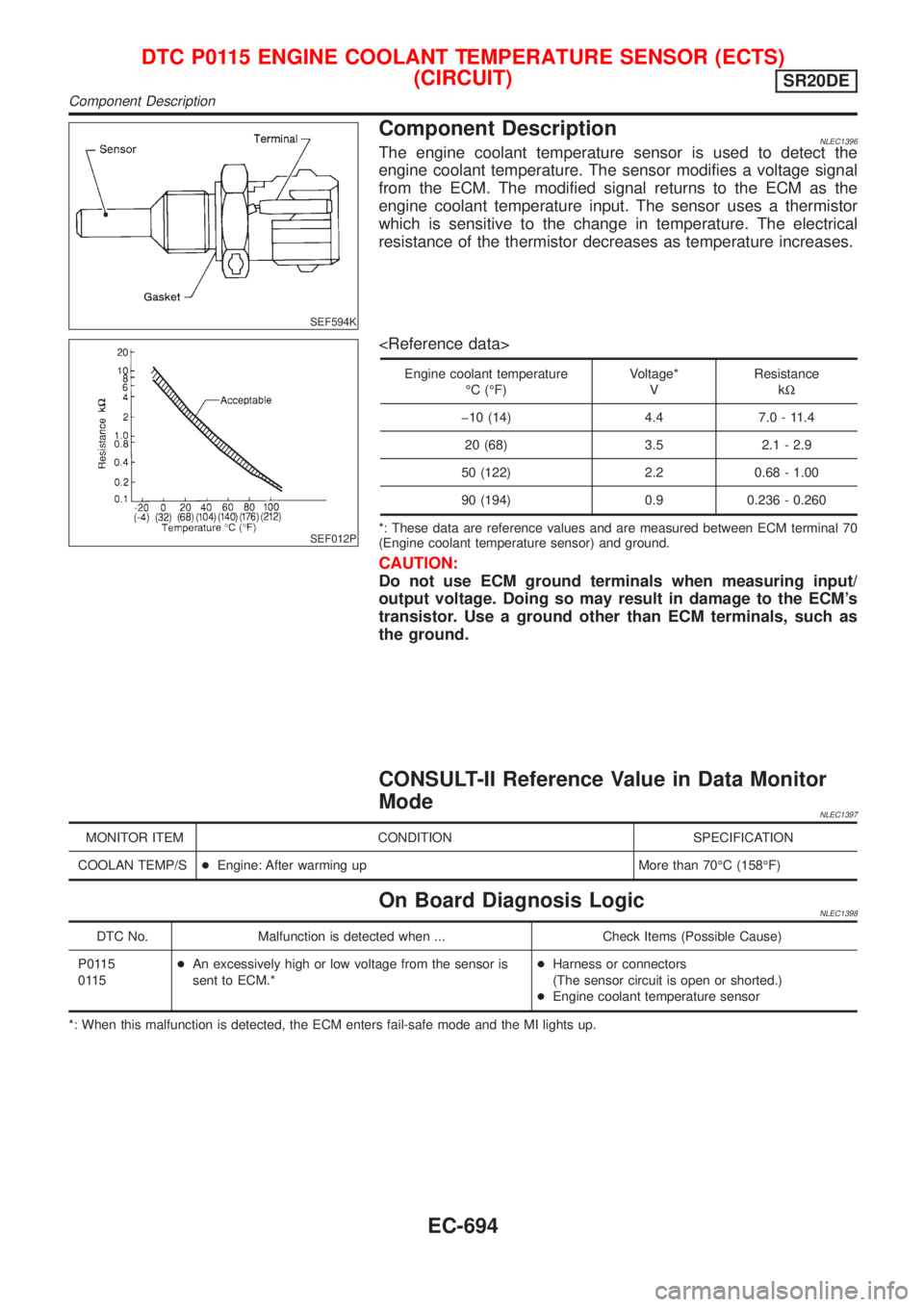

NISSAN ALMERA TINO 2001 Service Repair Manual SEF594K Component DescriptionNLEC1396The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal retu

Page 1120 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Fail-safe ModeNLEC1399 Detected items Engine operating condition in fail-safe mode Engine coolant tempera- ture sensor circuitEngine coolant temperature will be determined by ECM based on the time aft
