Page 209 of 3051

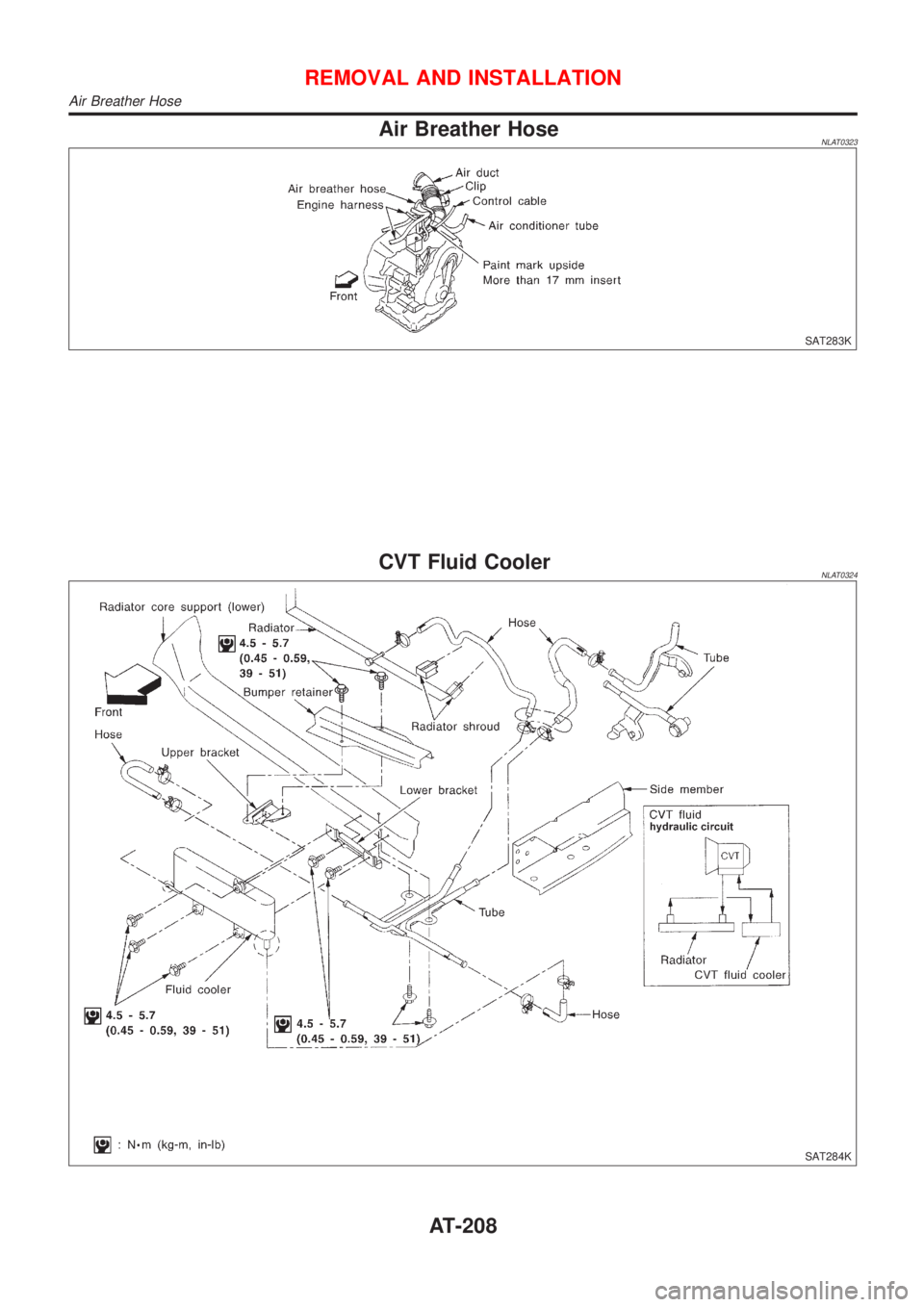

Air Breather HoseNLAT0323
SAT283K
CVT Fluid CoolerNLAT0324
SAT284K
REMOVAL AND INSTALLATION
Air Breather Hose
AT-208
Page 210 of 3051

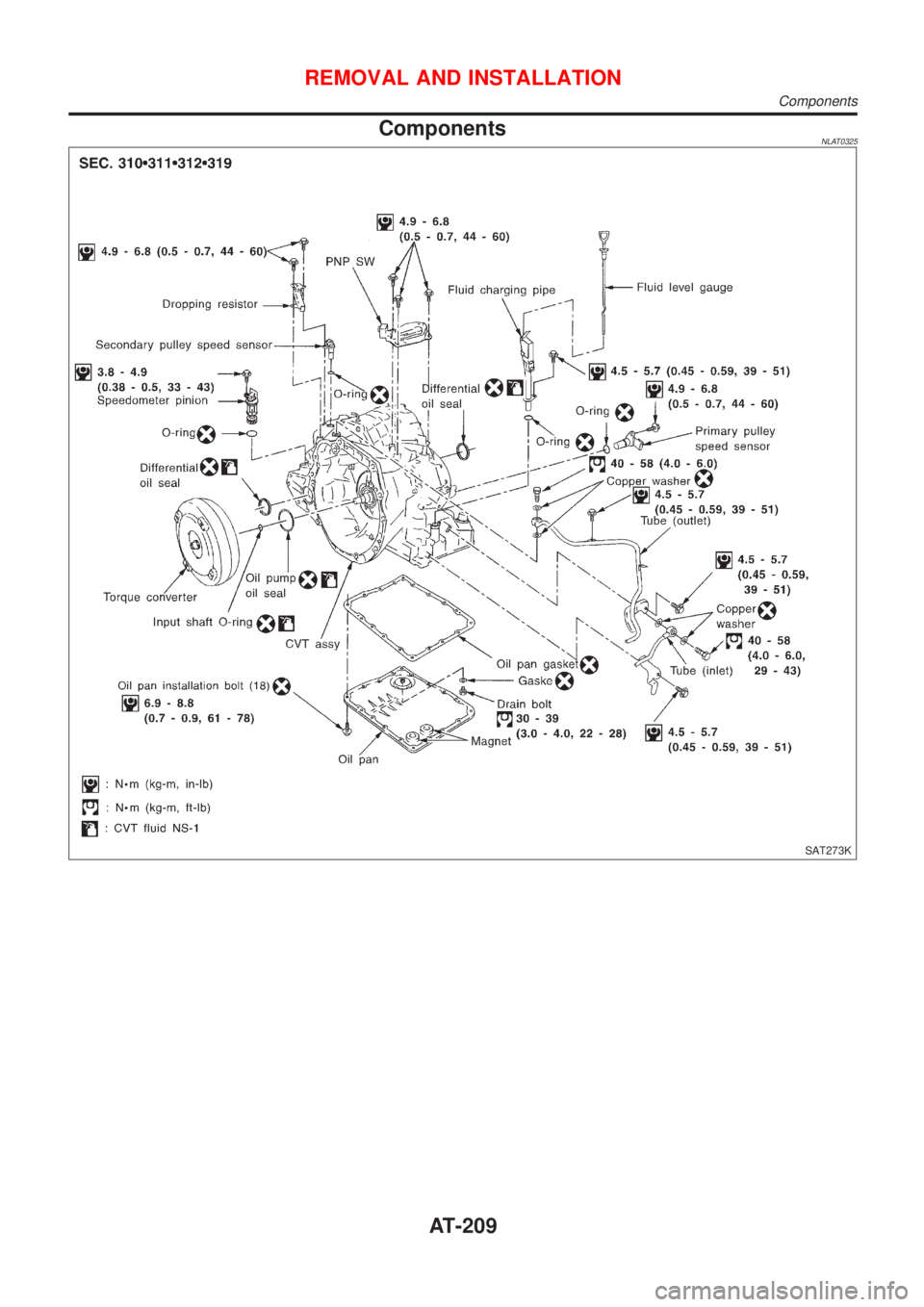

ComponentsNLAT0325
SAT273K
REMOVAL AND INSTALLATION
Components
AT-209
Page 211 of 3051

General SpecificationsNLAT0179
EngineSR20DE
Automatic transaxle modelRE0F06A
Automatic transaxle assembly Model code number 8E020
Transaxle gear ratioD range Variable
Reverse 1.586
Final drive 5.473
Recommended fluidNissan CVT fluid NS-1*1
Fluid capacity8.1!(7-1/8 Imp qt)
*1: Refer to MA section (ªFluids and Lubricantsº, ªRECOMMENDED FLUIDS AND LUBRICANTSº).
Any other fluid will damage the CVT.
Stall RevolutionNLAT0181
Engine Stall revolution rpm
(SR20DE) 2,350 - 2,850
Line PressureNLAT0182
Engine speed
rpmLine pressure kPa (bar, kg/cm2, psi)
R position D position L position
Idle 598 (5.98, 6.1, 87)
Stall 4,119 (41.2, 42, 597)
Removal and InstallationNLAT0197Unit: mm (in)
Distance between end of converter housing and torque converter 15.9 (0.626) or more
A/T Fluid Temperature SensorNLAT0326
Condition Specification (Approximately)
Cold [20ÉC (68ÉF)]
¯
Hot [80ÉC (176ÉF)]1.5V
¯
0.5V2.5 kW
¯
0.3 kW
Solenoid ValvesNLAT0327
Solenoid valve Resistance (Approx.) Terminal number
Line pressure solenoid 2.5 - 5W8
Torque converter clutch solenoid 10 - 20W9
Dropping ResistorNLAT0328
Resistance 11.2 - 12.8W
SERVICE DATA AND SPECIFICATIONS (SDS)
General Specifications
AT-210
Page 212 of 3051

FRONT & REAR AXLE
SECTION
AX
CONTENTS
FRONT AXLE..................................................................2
Precautions ..................................................................2
PRECAUTIONS.........................................................2
Preparation ..................................................................2
SPECIAL SERVICE TOOLS........................................2
COMMERCIAL SERVICE TOOLS................................2
Noise, Vibration and Harshness (NVH)
Troubleshooting ...........................................................3
NVH TROUBLESHOOTING CHART............................3
On-vehicle Service.......................................................3
FRONT AXLE PARTS................................................3
FRONT WHEEL BEARING.........................................3
DRIVE SHAFT...........................................................4
Wheel Hub and Knuckle ..............................................5
COMPONENTS.........................................................5
REMOVAL.................................................................5
INSTALLATION..........................................................7
DISASSEMBLY..........................................................7
INSPECTION.............................................................8
ASSEMBLY...............................................................8
Drive Shaft .................................................................10
COMPONENTS.......................................................10
REMOVAL............................................................... 11
INSTALLATION........................................................ 11
DISASSEMBLY........................................................12
INSPECTION...........................................................14
ASSEMBLY.............................................................14
Service Data and Specifications (SDS).....................19
DRIVE SHAFT.........................................................19
DYNAMIC DAMPER (WHERE FITTED).....................20
WHEEL BEARING (FRONT).....................................20
REAR AXLE...................................................................21
Precautions ................................................................21
PRECAUTIONS.......................................................21
Preparation ................................................................21
SPECIAL SERVICE TOOLS......................................21
COMMERCIAL SERVICE TOOLS..............................21
Noise, Vibration and Harshness (NVH)
Troubleshooting .........................................................22
On-vehicle Service.....................................................22
REAR AXLE PARTS.................................................22
REAR WHEEL BEARING.........................................22
Wheel Hub .................................................................23
COMPONENTS.......................................................23
REMOVAL...............................................................23
INSTALLATION........................................................24
Service Data and Specifications (SDS).....................26
WHEEL BEARING (REAR).......................................26
Page 213 of 3051
SBR686C
Precautions
PRECAUTIONSNLAX0001+When installing rubber parts, final tightening must be car-
ried out under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack,
hand tools and mats in designated positions.
+After installing removed suspension parts, check wheel
alignment and adjust if necessary.
+Use flare nut wrench when removing or installing brake
tubes.
+Always torque brake lines when installing.
Preparation
SPECIAL SERVICE TOOLSNLAX0002
Tool number
Tool nameDescription
HT72520000
Ball joint remover
NT146
Removing tie-rod outer end and lower ball joint
KV38106800
Differential side oil seal
protector
NT147
Installing drive shaft
KV38106800
COMMERCIAL SERVICE TOOLSNLAX0003
Tool name Description
1 Flare nut crowfoot
2 Torque wrench
NT360
Removing and installing each brake piping
a: 10 mm (0.39 in)
FRONT AXLE
Precautions
AX-2
Page 214 of 3051

Noise, Vibration and Harshness (NVH)
Troubleshooting
=NLAX0004NVH TROUBLESHOOTING CHARTNLAX0004S01Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
Reference page—
AX-14
—
AX-5, 23
—
AX-3, 22
—
—
SU-4
SU-4
SU-4
BR-6
ST-5
Possible cause and
SUSPECTED PARTS
Excessive joint angle
Joint sliding resistance
Imbalance
Improper installation, looseness
Parts interference
Wheel bearing damage
DRIVE SHAFT
AXLE
SUSPENSION
TIRES
ROAD WHEEL
BRAKES
STEERING
SymptomDRIVE SHAFTNoise, Vibration× × × ×××× ×
Shake× × × ×××× ×
AXLENoise×× × ×××× ×
Shake×× × ×××× ×
Vibration×× × ×× ×
Shimmy×× ×××× ×
Judder× ×××× ×
Poor quality ride or
handling××× ×××
×: Applicable
SMA525A
On-vehicle Service
FRONT AXLE PARTSNLAX0005Check front axle and front suspension parts for excessive play,
cracks, wear or other damage.
+Shake each front wheel to check for excessive play.
+Make sure that cotter pin is inserted.
+Retighten all axle and suspension nuts and bolts to the speci-
fied torque.
Tightening torque:
Refer to SU-4, “FRONT SUSPENSION”.
SFA805B
FRONT WHEEL BEARINGNLAX0006+Check that wheel bearings operate smoothly.
+Check axial end play.
Axial end play:
0.05 mm (0.0020 in)
If out of specification or wheel bearing does not turn smoothly,
replace wheel bearing assembly.
Refer to “Wheel Hub and Knuckle”, “FRONT AXLE”, AX-5.
FRONT AXLE
Noise, Vibration and Harshness (NVH) Troubleshooting
AX-3
Page 215 of 3051
SFA108A
DRIVE SHAFTNLAX0007Check for grease leakage or other damage.
FRONT AXLE
On-vehicle Service (Cont’d)
AX-4
Page 216 of 3051
Wheel Hub and Knuckle
COMPONENTS=NLAX0008
NAX006
1. Drive shaft
2. Knuckle
3. Baffle plate (where fitted)
4. ABS sensor5. Wheel bearing assembly
6. Snap ring
7. Hub bolt
8. Wheel hub9. Wheel bearing lock nut
10. Cotter pin
11. Brake disc
12. Wheel nut
REMOVALNLAX0009CAUTION:
Before removing the front axle assembly, disconnect the ABS
wheel sensor from the assembly. Then move it away from the
front axle assembly area.
Failure to do so may result in damage to the sensor wires and
the sensor becoming inoperative.
SFA090A
1. Remove wheel bearing lock nut.
FRONT AXLE
Wheel Hub and Knuckle
AX-5
