Page 177 of 3051

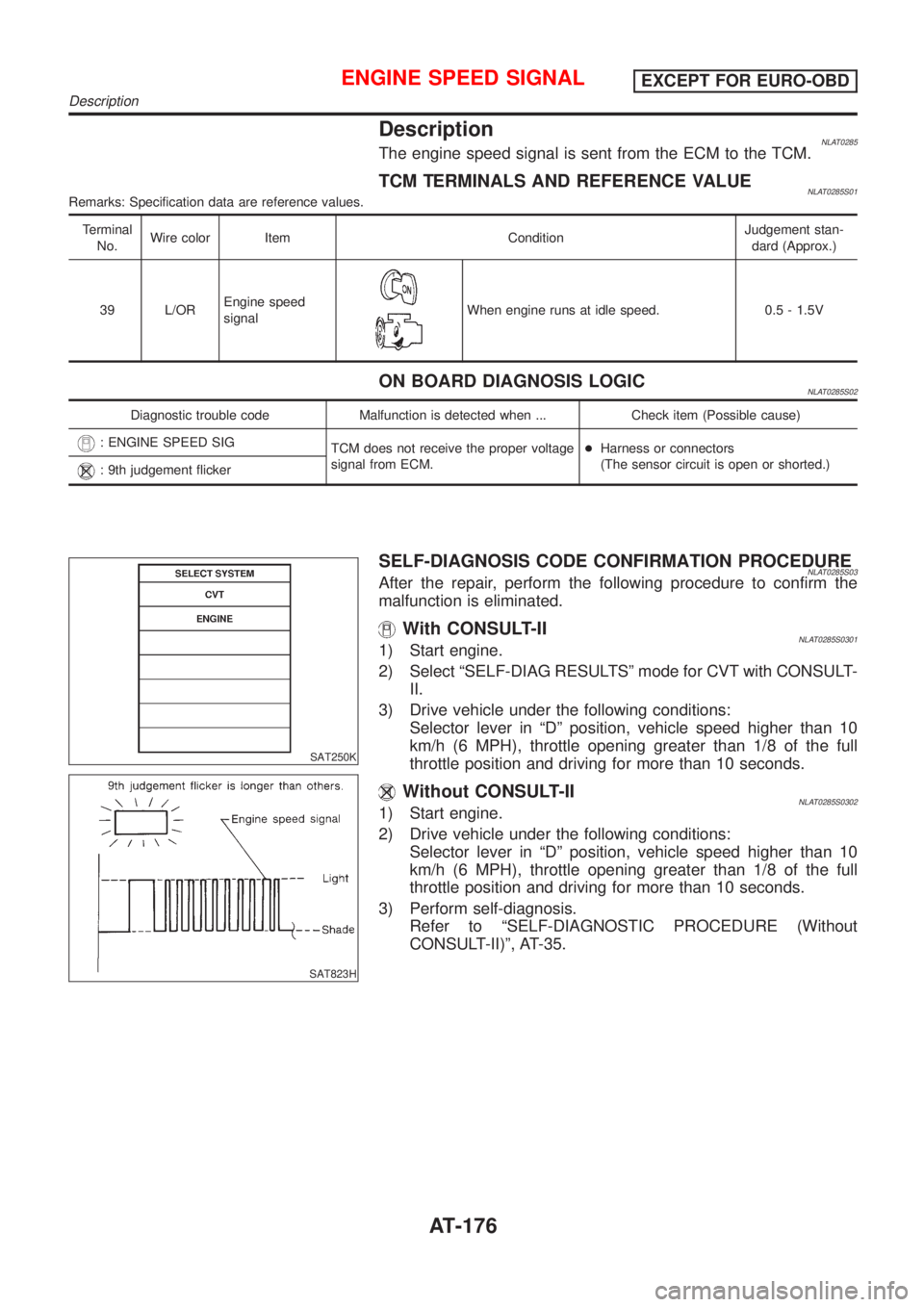

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLAT0285The engine speed signal is sent from the ECM to the TCM. TCM TERMINALS AND REFERENCE VALUENLAT0285S01Remarks: Specification data are reference values. Terminal No.Wire color Item Co

Page 178 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð AT Ð ENGSSNLAT0286 YAT178 ENGINE SPEED SIGNALEXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð ENGSS AT-177

Page 179 of 3051

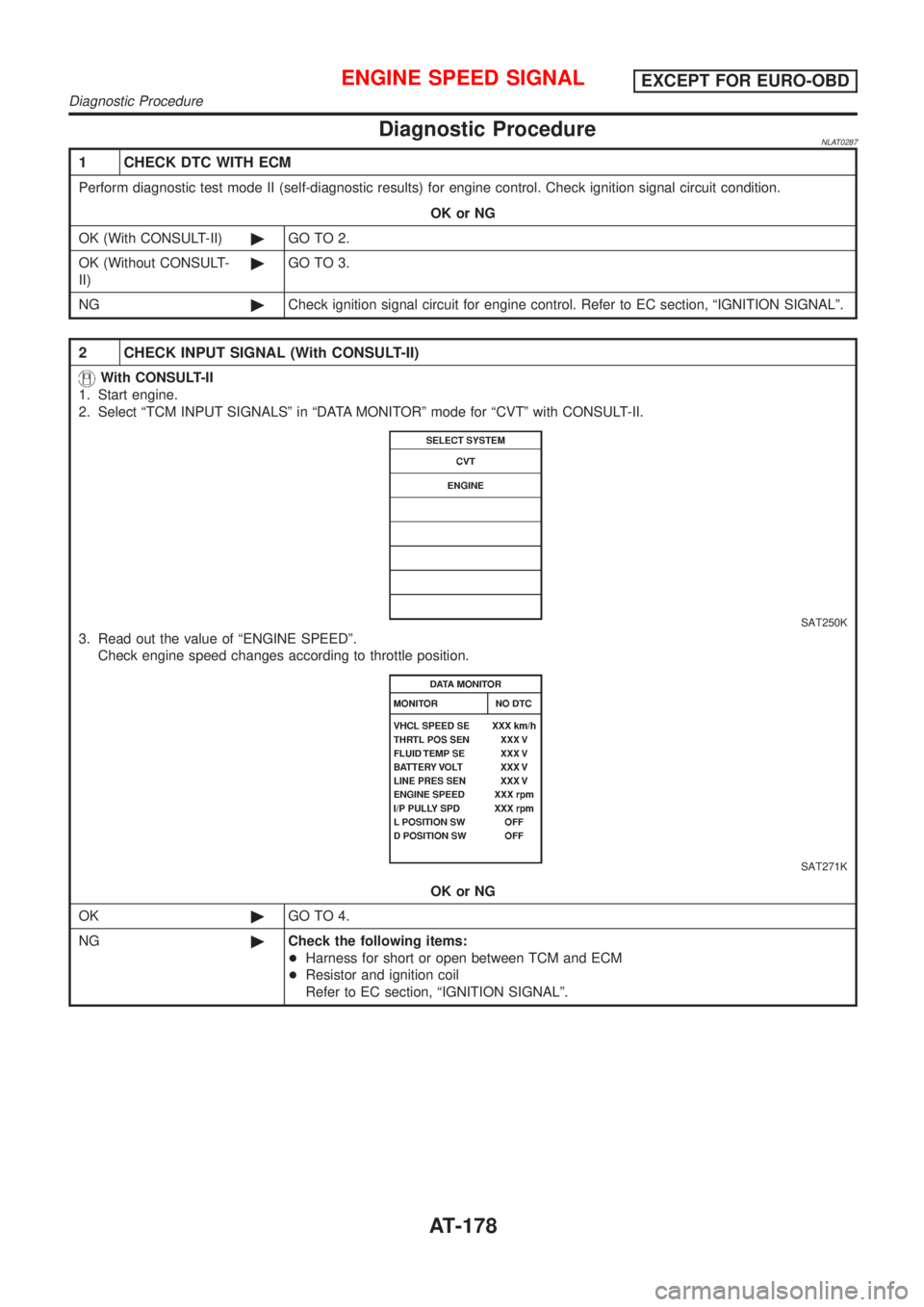

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLAT0287 1 CHECK DTC WITH ECM Perform diagnostic test mode II (self-diagnostic results) for engine control. Check ignition signal circuit condition. OK or NG OK (With CONSULT-II)©

Page 180 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK INPUT SIGNAL (Without CONSULT-II) Without CONSULT-II 1. Start engine. 2. Check voltage between TCM terminal 39 and ground. Voltage (Idle speed): Refer to EC section, ªIGNITION SIGNALº. SAT42

Page 181 of 3051

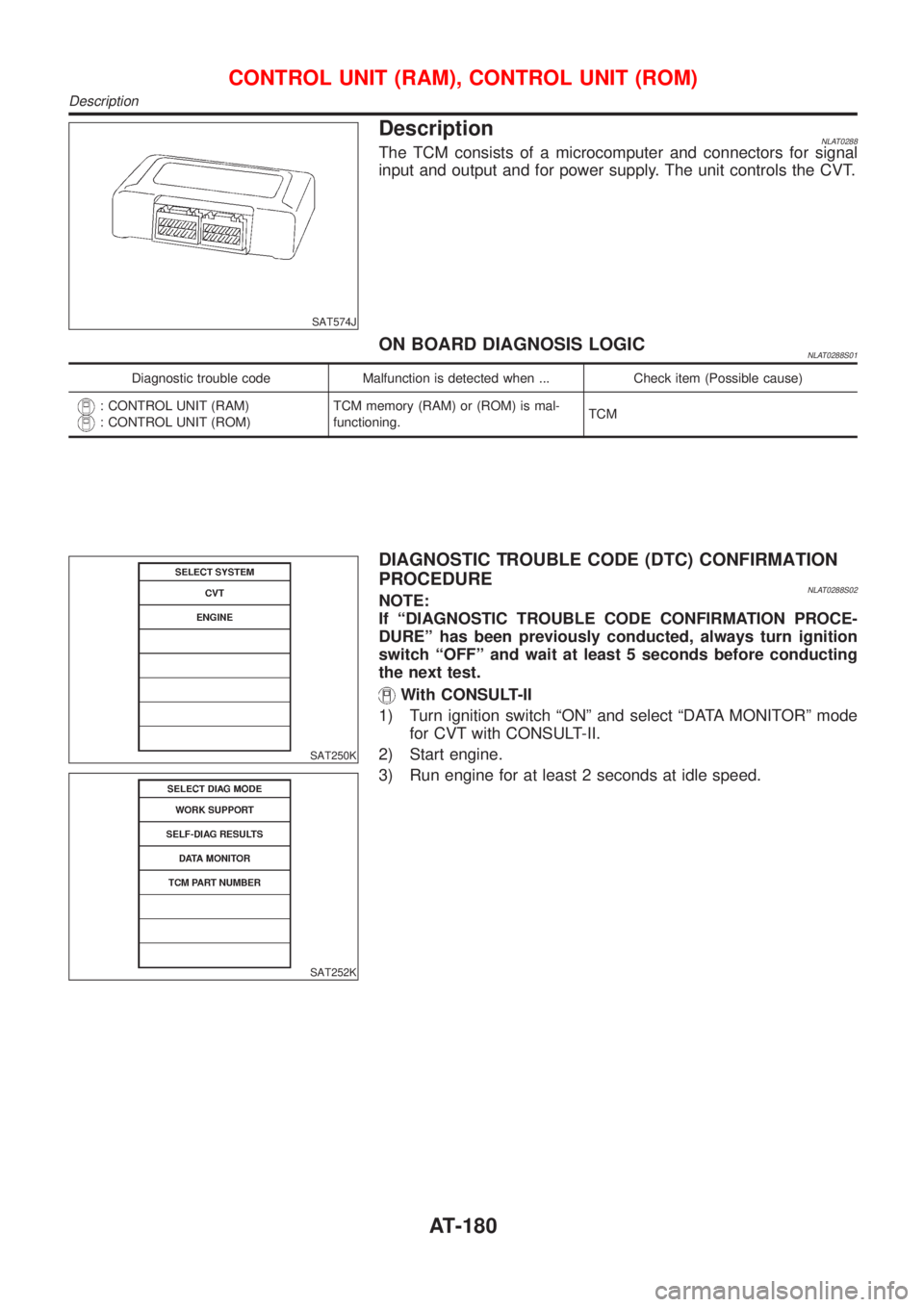

NISSAN ALMERA TINO 2001 Service Repair Manual SAT574J DescriptionNLAT0288The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the CVT. ON BOARD DIAGNOSIS LOGICNLAT0288S01 Diagnosti

Page 182 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic Procedure=NLAT0289 1 CHECK DTC With CONSULT-II 1. Turn ignition switch ªONº and select ªSELF-DIAG RESULTSº mode for CVT with CONSULT-II. 2. Touch ªERASEº. PERFORM DIAGNOSTIC TROUBLE C

Page 183 of 3051

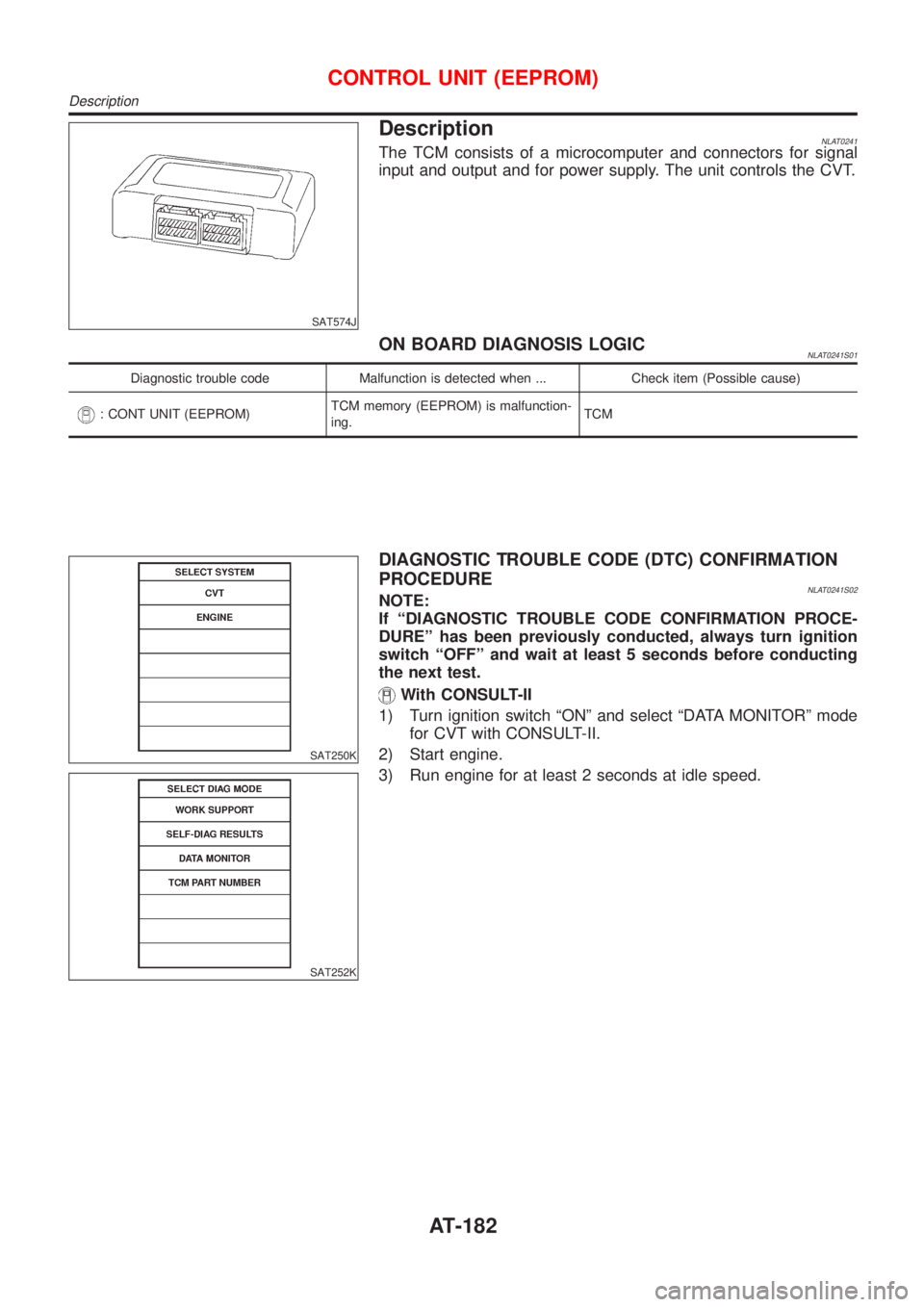

NISSAN ALMERA TINO 2001 Service Repair Manual SAT574J DescriptionNLAT0241The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the CVT. ON BOARD DIAGNOSIS LOGICNLAT0241S01 Diagnosti

Page 184 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic Procedure=NLAT0242 1 CHECK DTC With CONSULT-II 1. Turn ignition switch ªONº and select ªSELF-DIAG RESULTSº mode for CVT with CONSULT-II. 2. Move selector lever to ªRº position. 3. Dep
