Page 985 of 3051

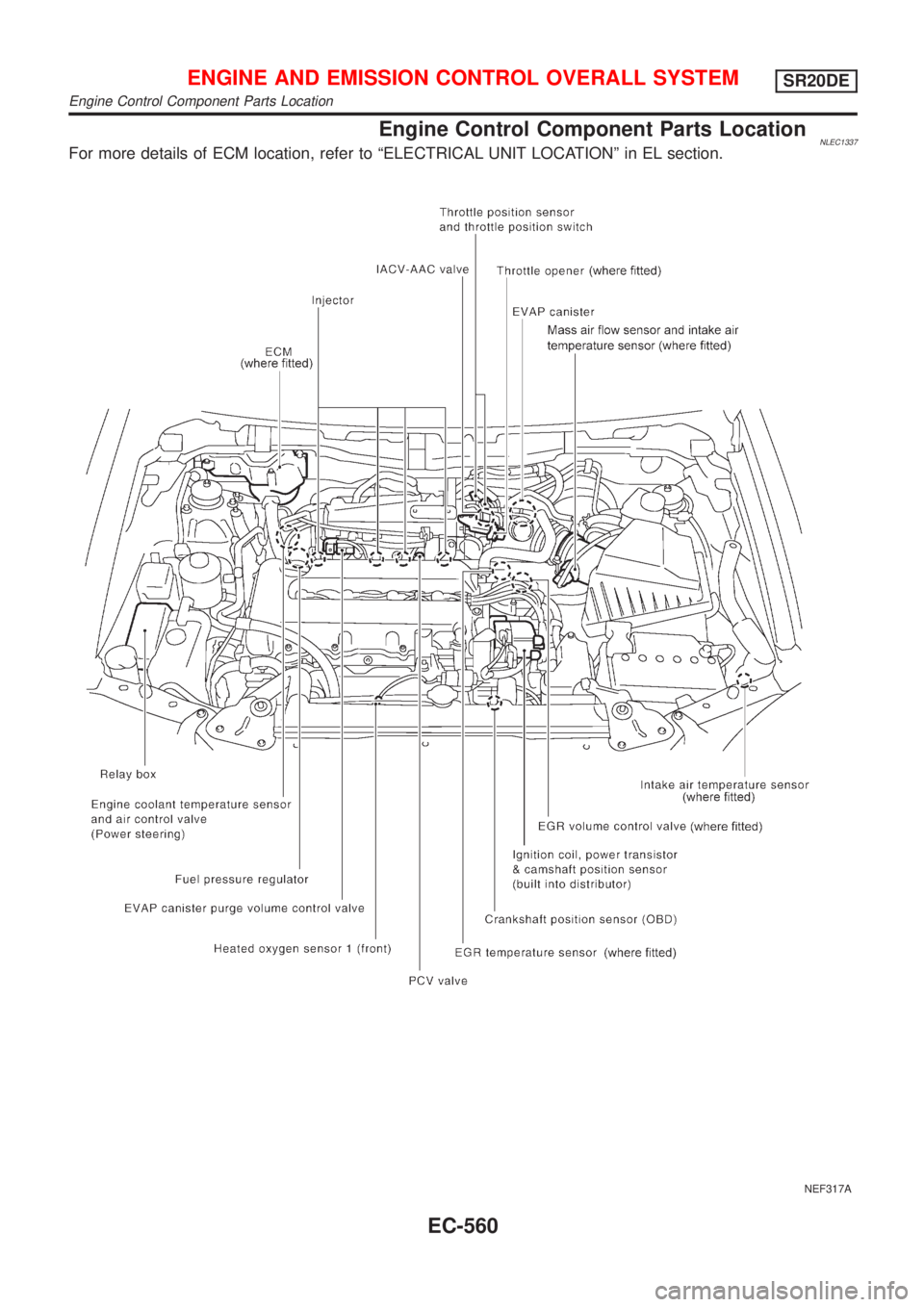

NISSAN ALMERA TINO 2001 Service Repair Manual Engine Control Component Parts LocationNLEC1337For more details of ECM location, refer to ªELECTRICAL UNIT LOCATIONº in EL section. NEF317A ENGINE AND EMISSION CONTROL OVERALL SYSTEMSR20DE Engine Co

Page 986 of 3051

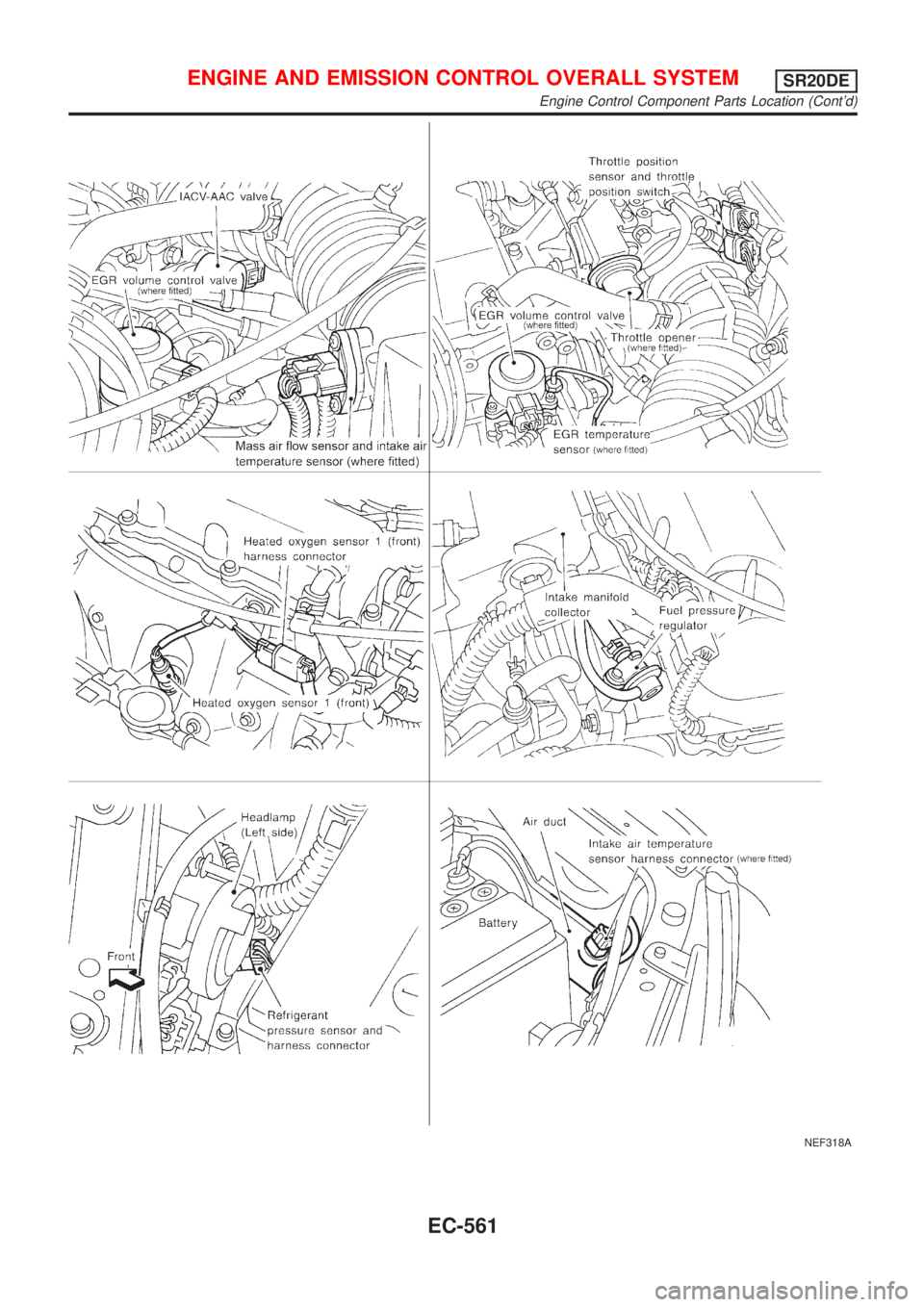

NISSAN ALMERA TINO 2001 Service Repair Manual NEF318A ENGINE AND EMISSION CONTROL OVERALL SYSTEMSR20DE Engine Control Component Parts Location (Contd) EC-561

Page 987 of 3051

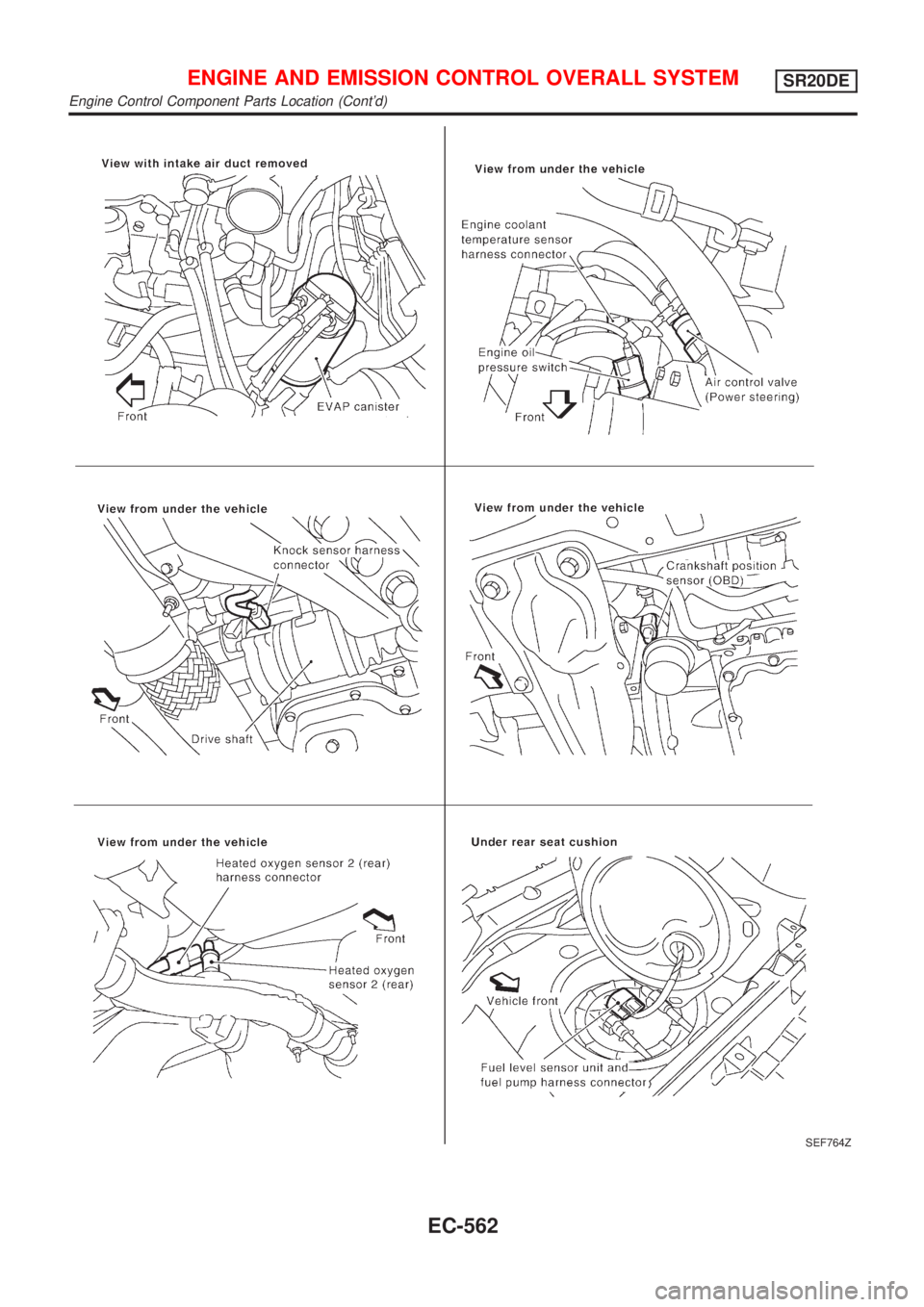

NISSAN ALMERA TINO 2001 Service Repair Manual SEF764Z ENGINE AND EMISSION CONTROL OVERALL SYSTEMSR20DE Engine Control Component Parts Location (Contd) EC-562

Page 988 of 3051

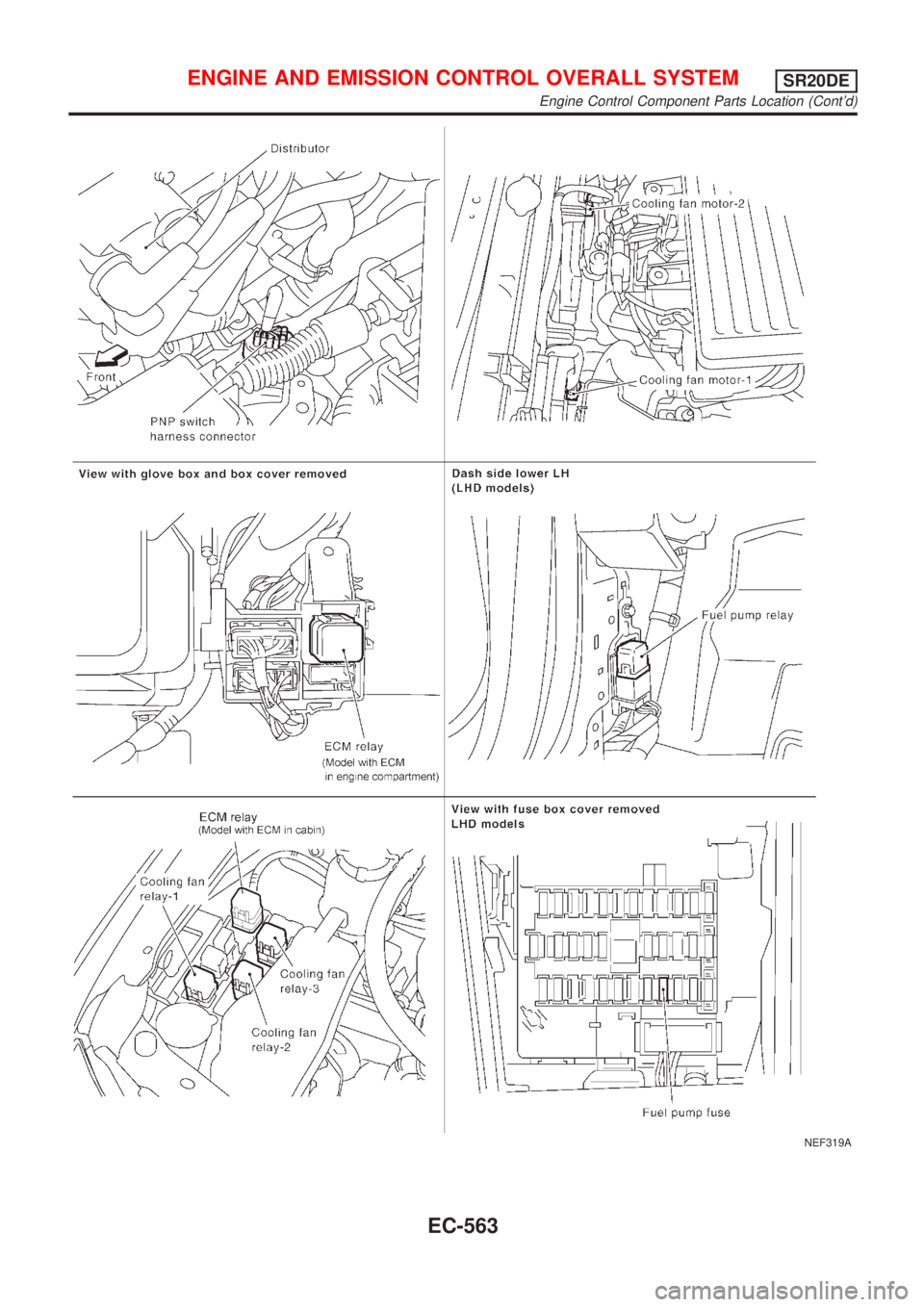

NISSAN ALMERA TINO 2001 Service Repair Manual NEF319A ENGINE AND EMISSION CONTROL OVERALL SYSTEMSR20DE Engine Control Component Parts Location (Contd) EC-563

Page 989 of 3051

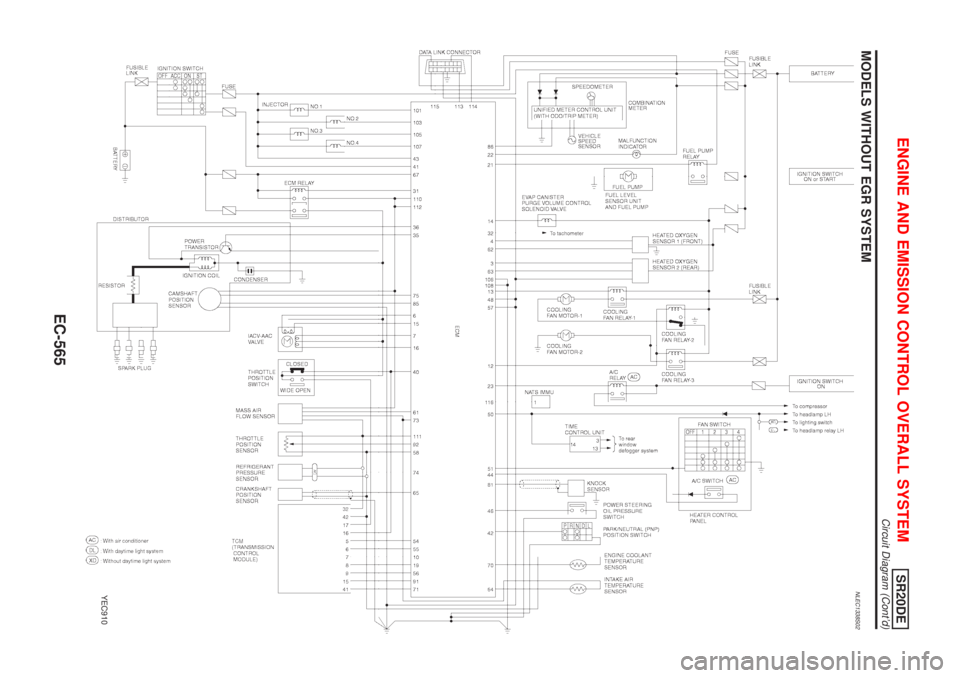

NISSAN ALMERA TINO 2001 Service Repair Manual Circuit DiagramNLEC1338MODELS WITH EGR SYSTEMNLEC1338S01 YEC685 ENGINE AND EMISSION CONTROL OVERALL SYSTEMSR20DE Circuit Diagram EC-564

Page 990 of 3051

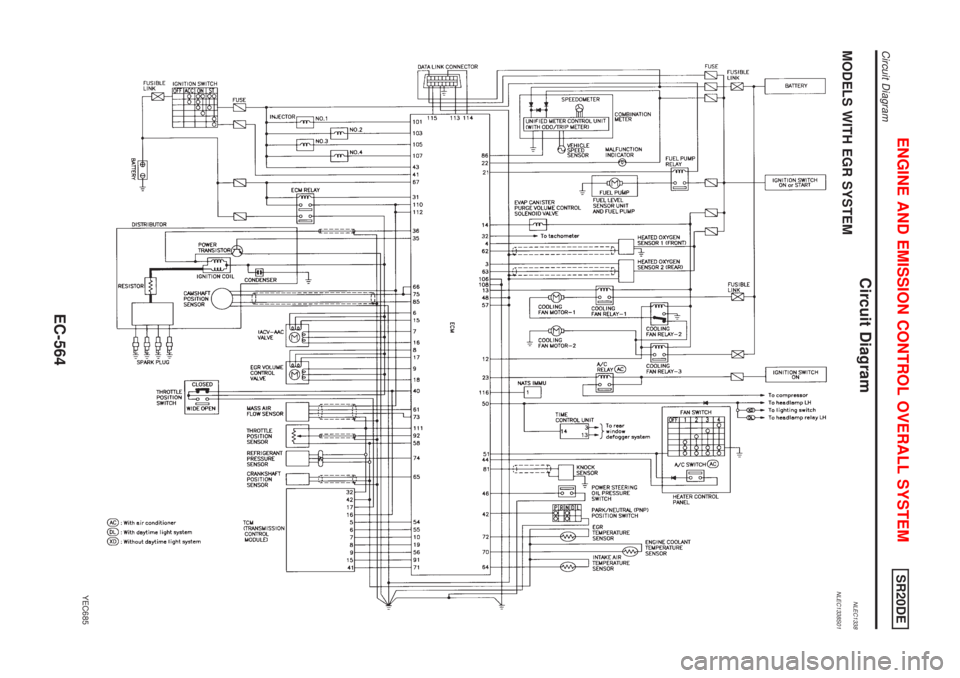

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITHOUT EGR SYSTEMNLEC1338S02 YEC910 ENGINE AND EMISSION CONTROL OVERALL SYSTEMSR20DE Circuit Diagram (Contd) EC-565

Page 991 of 3051

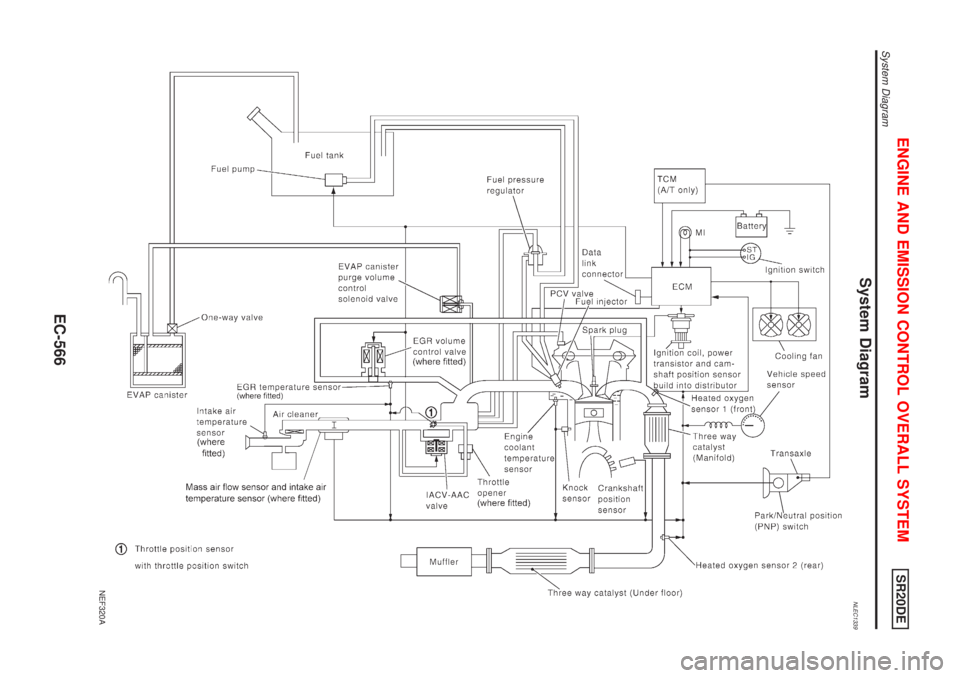

NISSAN ALMERA TINO 2001 Service Repair Manual System DiagramNLEC1339 NEF320A ENGINE AND EMISSION CONTROL OVERALL SYSTEMSR20DE System Diagram EC-566

Page 992 of 3051

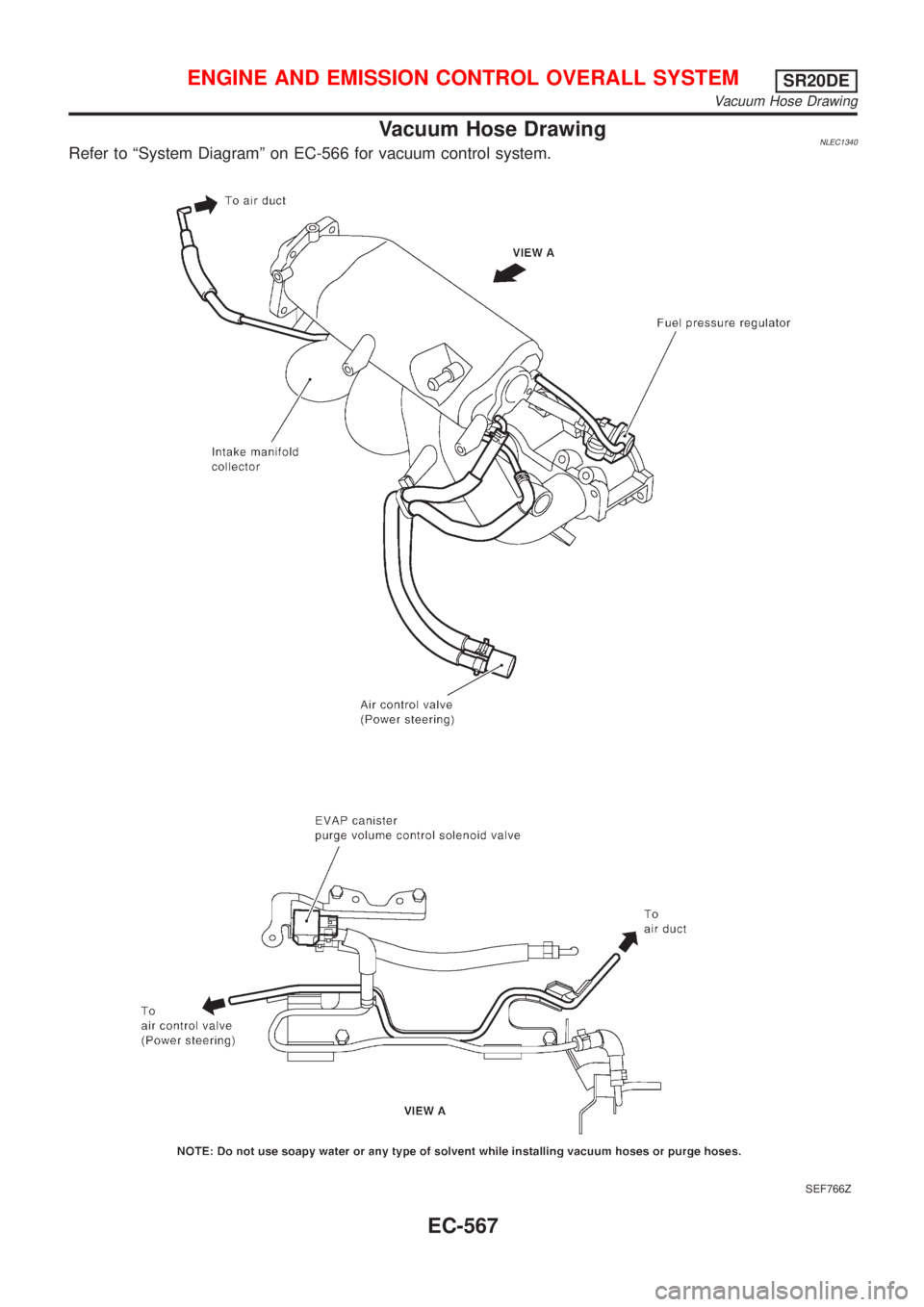

NISSAN ALMERA TINO 2001 Service Repair Manual Vacuum Hose DrawingNLEC1340Refer to ªSystem Diagramº on EC-566 for vacuum control system. SEF766Z ENGINE AND EMISSION CONTROL OVERALL SYSTEMSR20DE Vacuum Hose Drawing EC-567
