Page 2409 of 3051

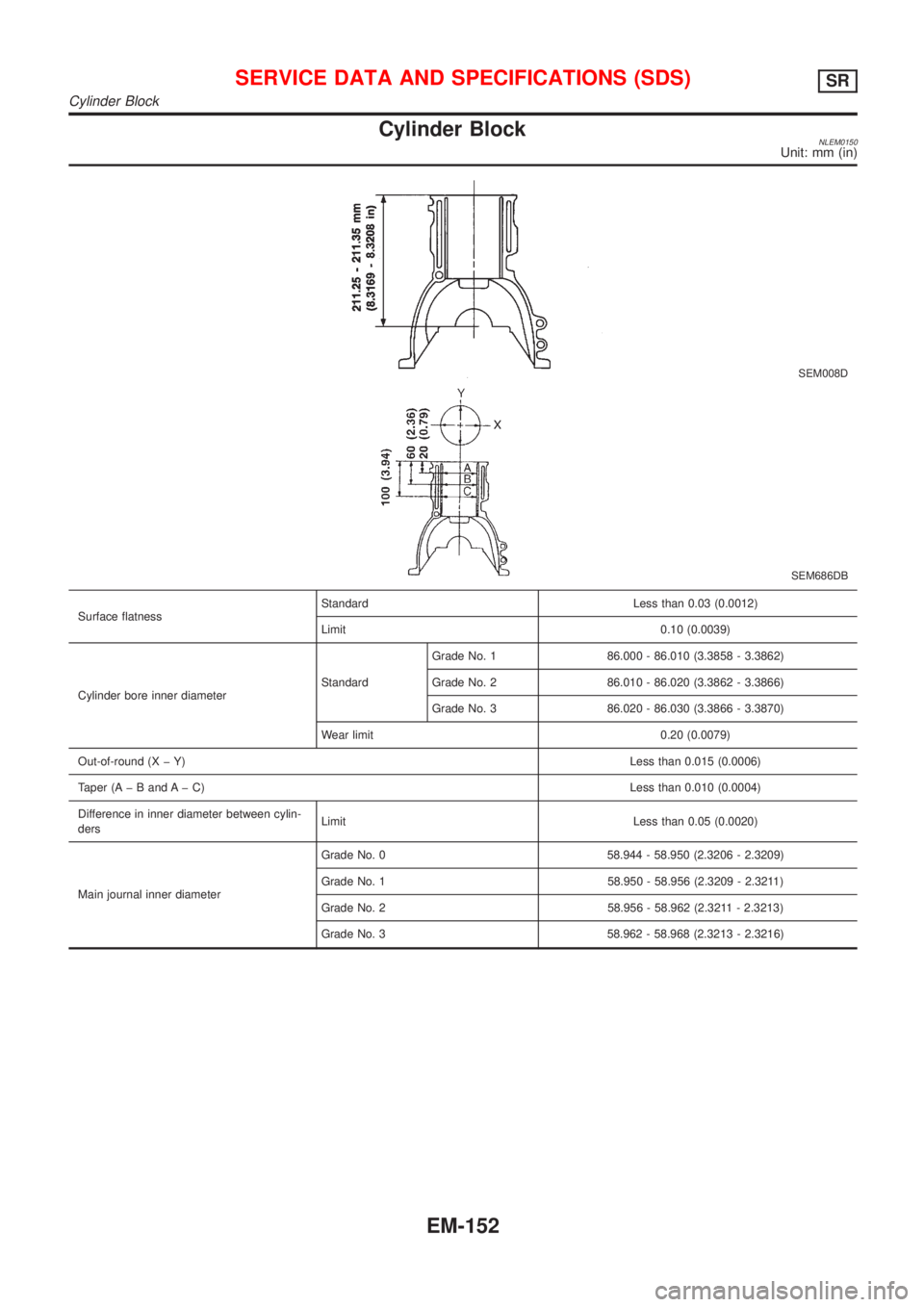

NISSAN ALMERA TINO 2001 Service Repair Manual Cylinder BlockNLEM0150Unit: mm (in) SEM008D SEM686DB Surface flatnessStandard Less than 0.03 (0.0012) Limit 0.10 (0.0039) Cylinder bore inner diameterStandardGrade No. 1 86.000 - 86.010 (3.3858 - 3.38

Page 2410 of 3051

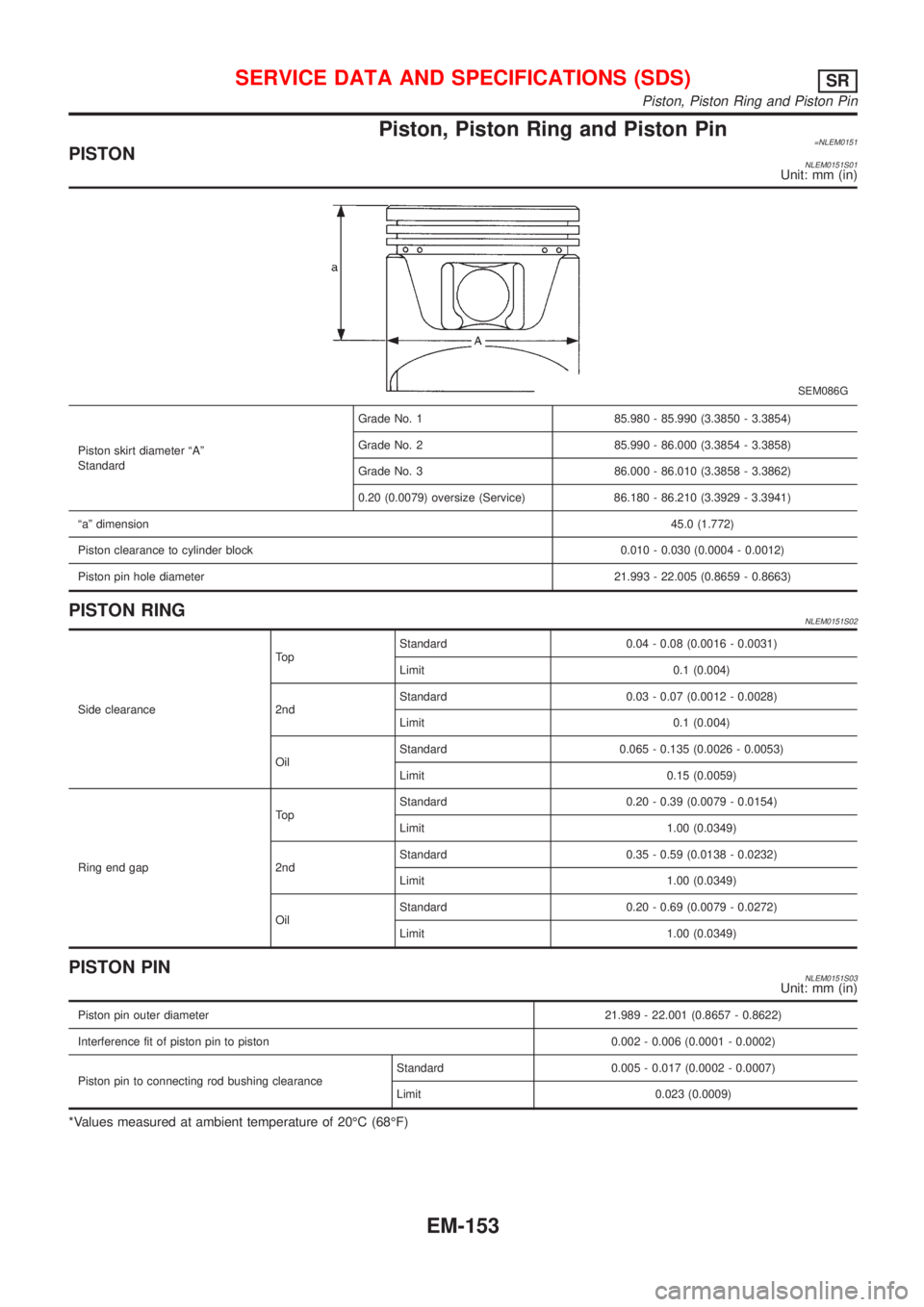

NISSAN ALMERA TINO 2001 Service Repair Manual Piston, Piston Ring and Piston Pin=NLEM0151PISTONNLEM0151S01Unit: mm (in) SEM086G Piston skirt diameter ªAº StandardGrade No. 1 85.980 - 85.990 (3.3850 - 3.3854) Grade No. 2 85.990 - 86.000 (3.3854

Page 2411 of 3051

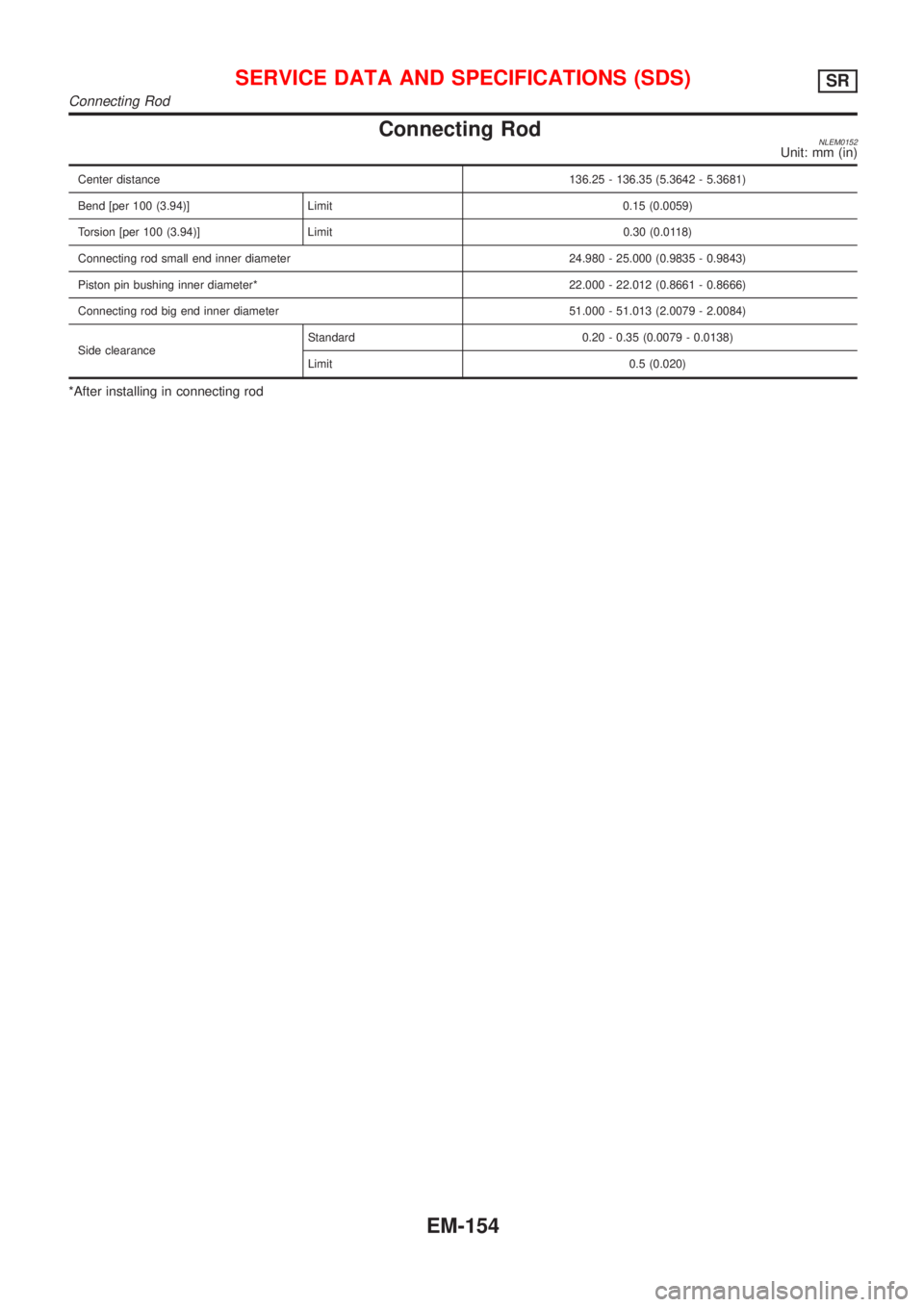

NISSAN ALMERA TINO 2001 Service Repair Manual Connecting RodNLEM0152Unit: mm (in) Center distance136.25 - 136.35 (5.3642 - 5.3681) Bend [per 100 (3.94)] Limit 0.15 (0.0059) Torsion [per 100 (3.94)] Limit 0.30 (0.0118) Connecting rod small end inn

Page 2412 of 3051

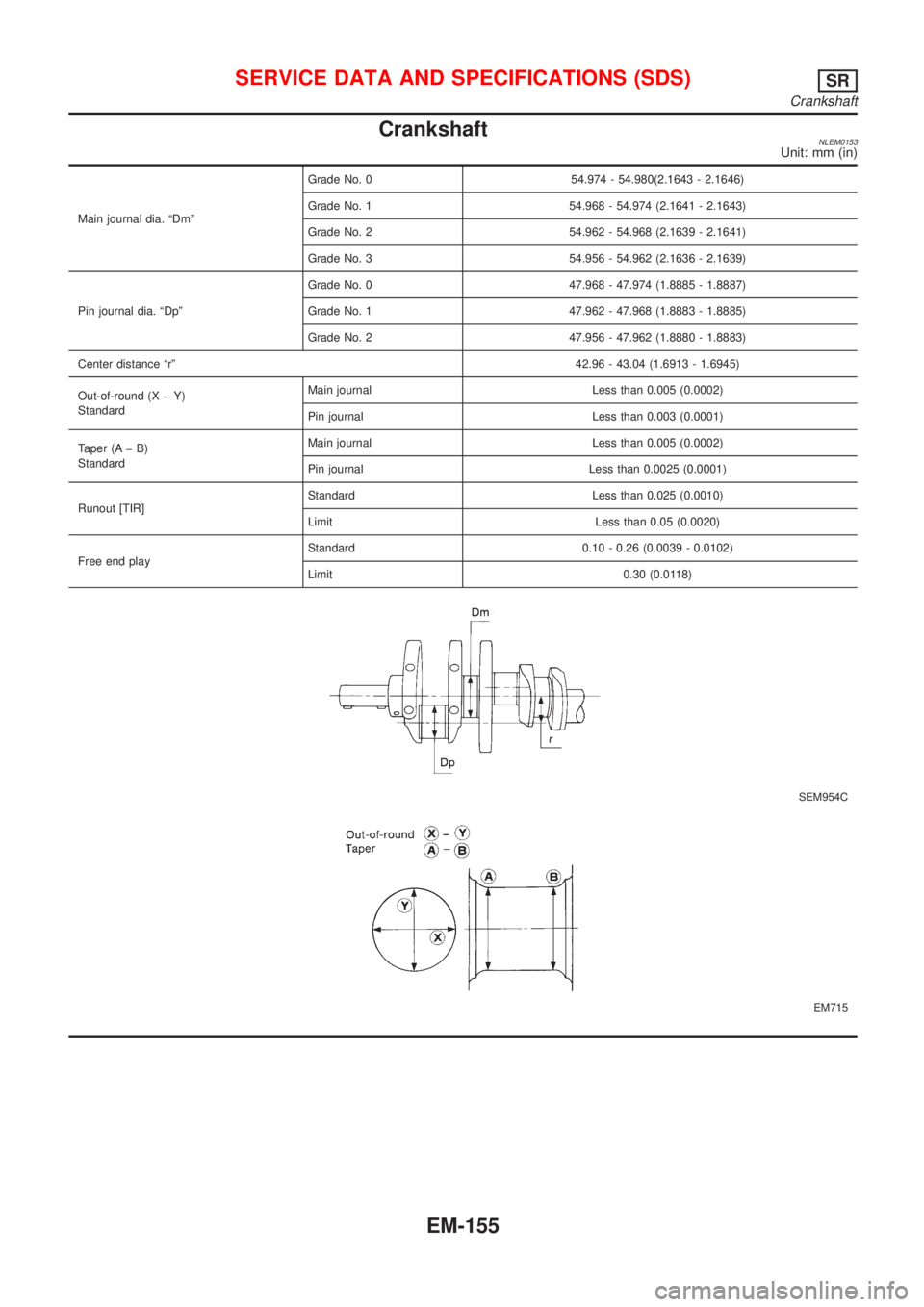

NISSAN ALMERA TINO 2001 Service Repair Manual CrankshaftNLEM0153Unit: mm (in) Main journal dia. ªDmºGrade No. 0 54.974 - 54.980(2.1643 - 2.1646) Grade No. 1 54.968 - 54.974 (2.1641 - 2.1643) Grade No. 2 54.962 - 54.968 (2.1639 - 2.1641) Grade N

Page 2413 of 3051

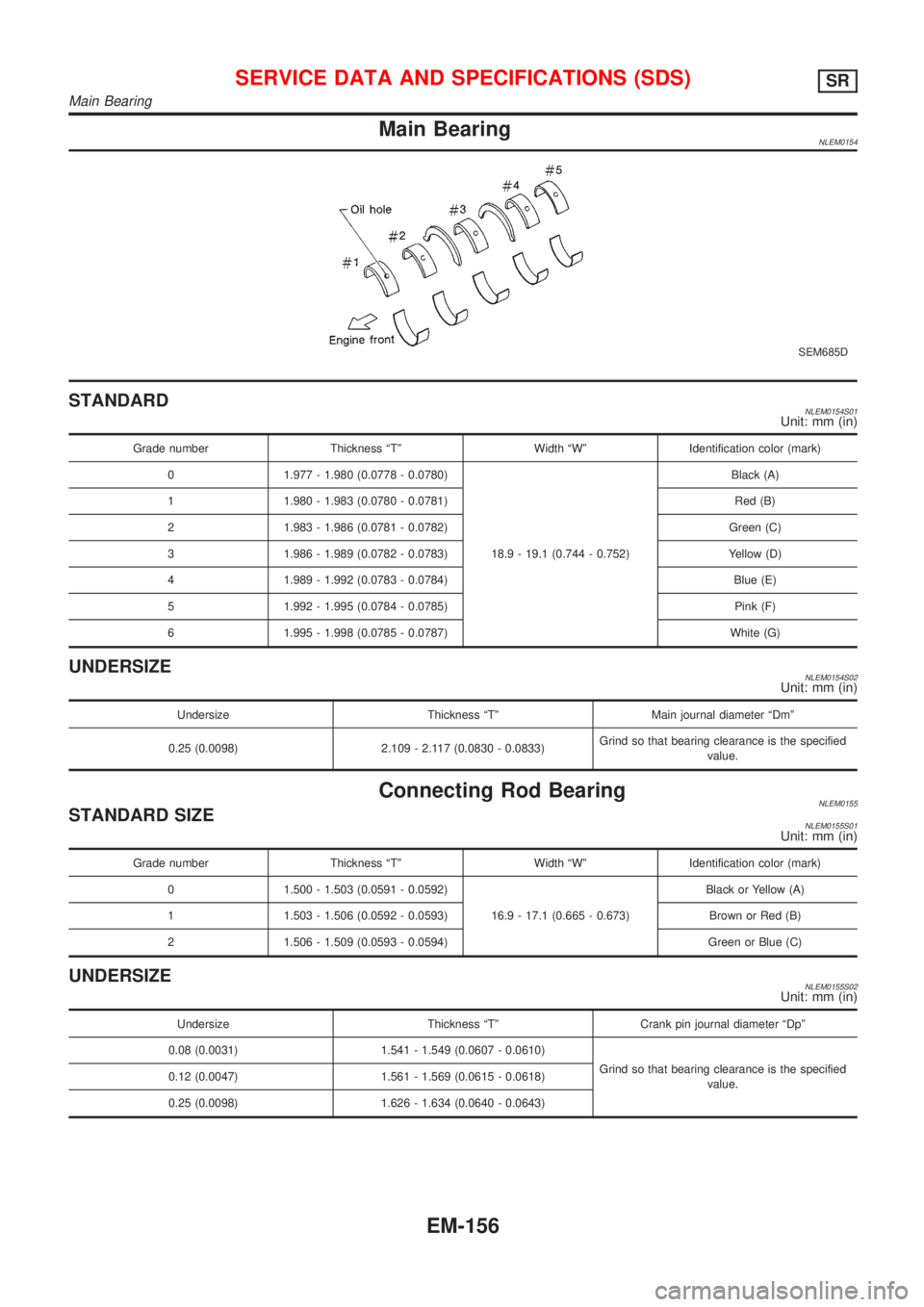

NISSAN ALMERA TINO 2001 Service Repair Manual Main BearingNLEM0154 SEM685D STANDARDNLEM0154S01Unit: mm (in) Grade number Thickness ªTº Width ªWº Identification color (mark) 0 1.977 - 1.980 (0.0778 - 0.0780) 18.9 - 19.1 (0.744 - 0.752)Black (A

Page 2414 of 3051

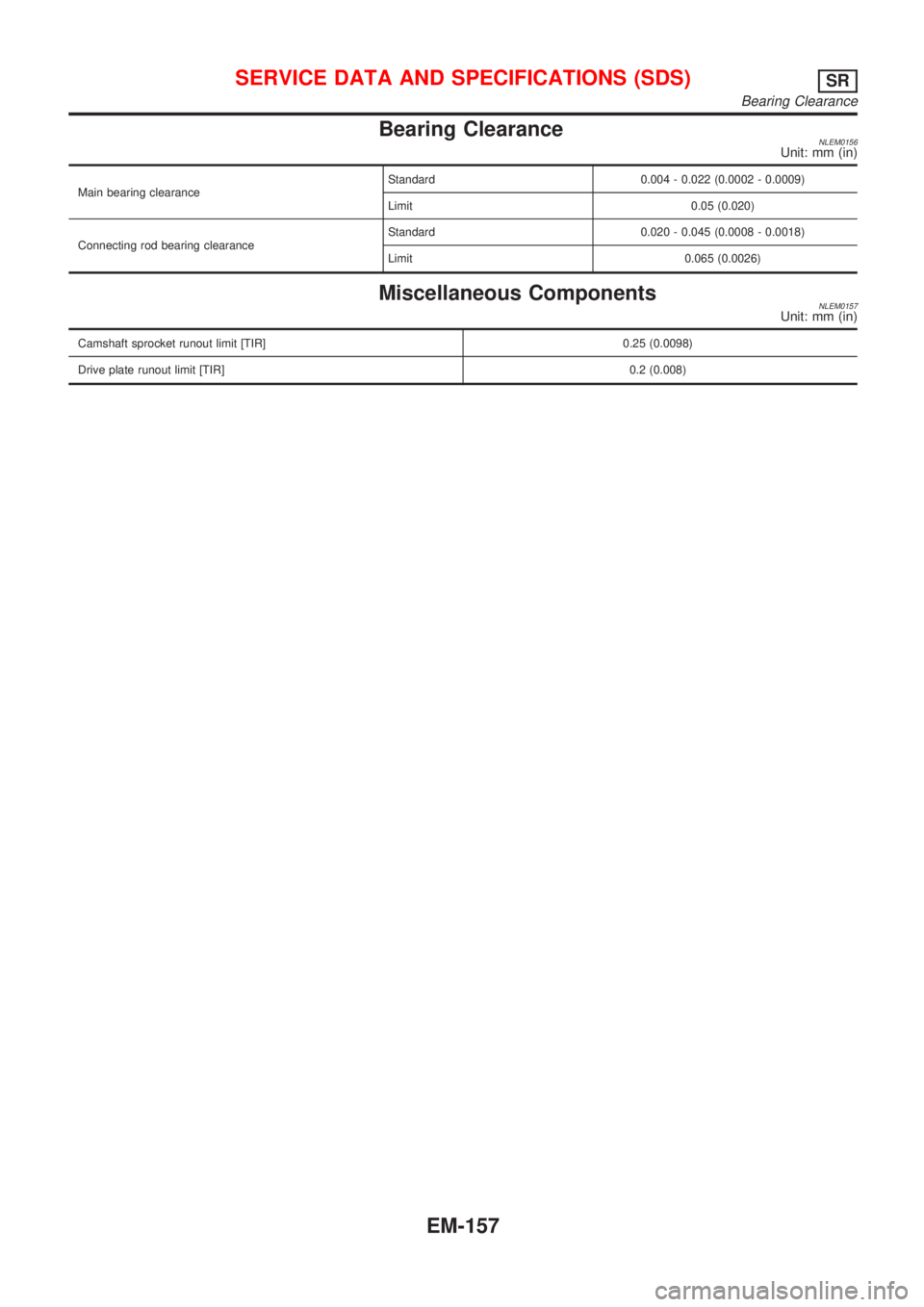

NISSAN ALMERA TINO 2001 Service Repair Manual Bearing ClearanceNLEM0156Unit: mm (in) Main bearing clearanceStandard 0.004 - 0.022 (0.0002 - 0.0009) Limit 0.05 (0.020) Connecting rod bearing clearanceStandard 0.020 - 0.045 (0.0008 - 0.0018) Limit

Page 2415 of 3051

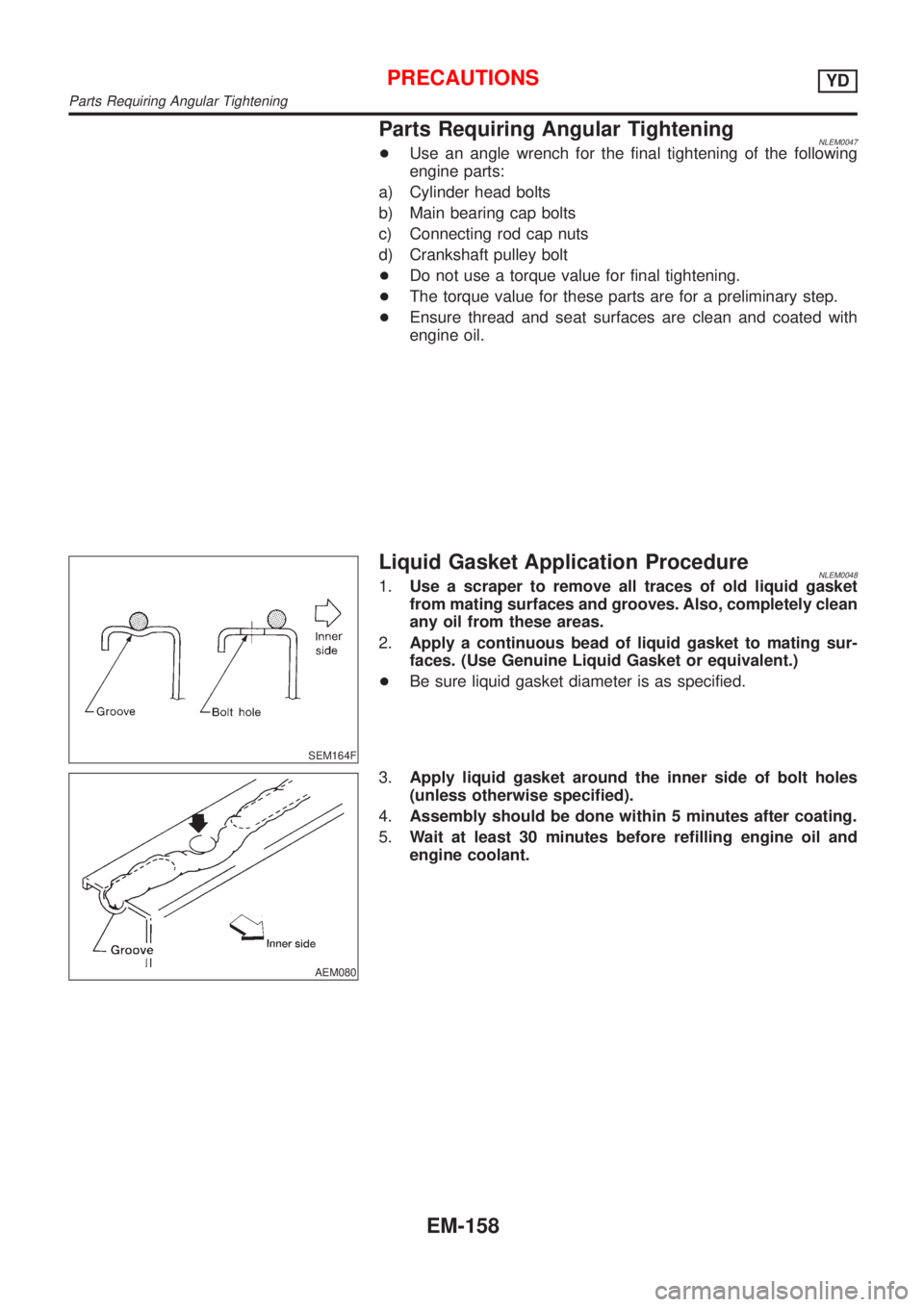

NISSAN ALMERA TINO 2001 Service Repair Manual Parts Requiring Angular TighteningNLEM0047+Use an angle wrench for the final tightening of the following engine parts: a) Cylinder head bolts b) Main bearing cap bolts c) Connecting rod cap nuts d) Cr

Page 2416 of 3051

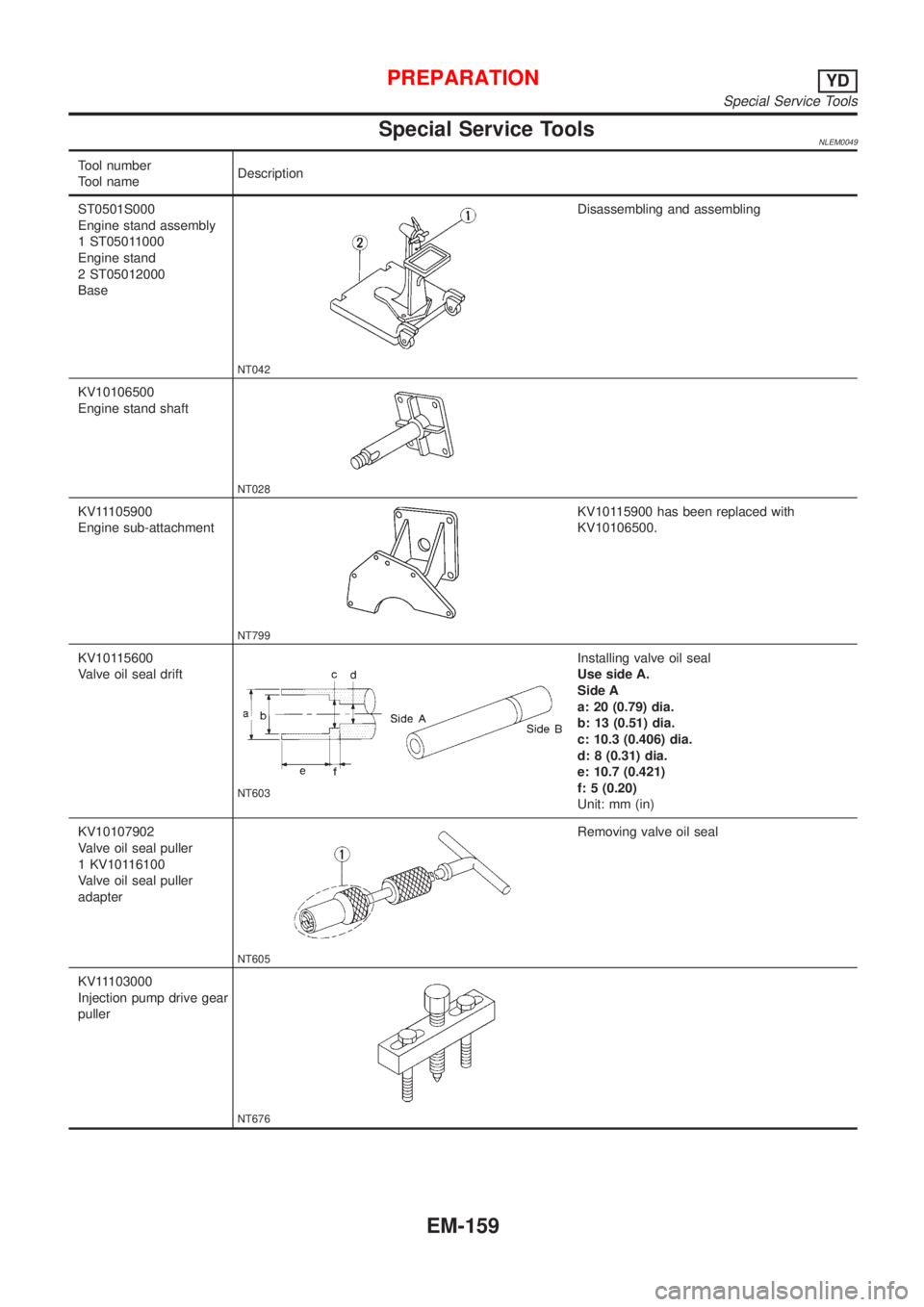

NISSAN ALMERA TINO 2001 Service Repair Manual Special Service ToolsNLEM0049 Tool number Tool nameDescription ST0501S000 Engine stand assembly 1 ST05011000 Engine stand 2 ST05012000 Base NT042 Disassembling and assembling KV10106500 Engine stand s
