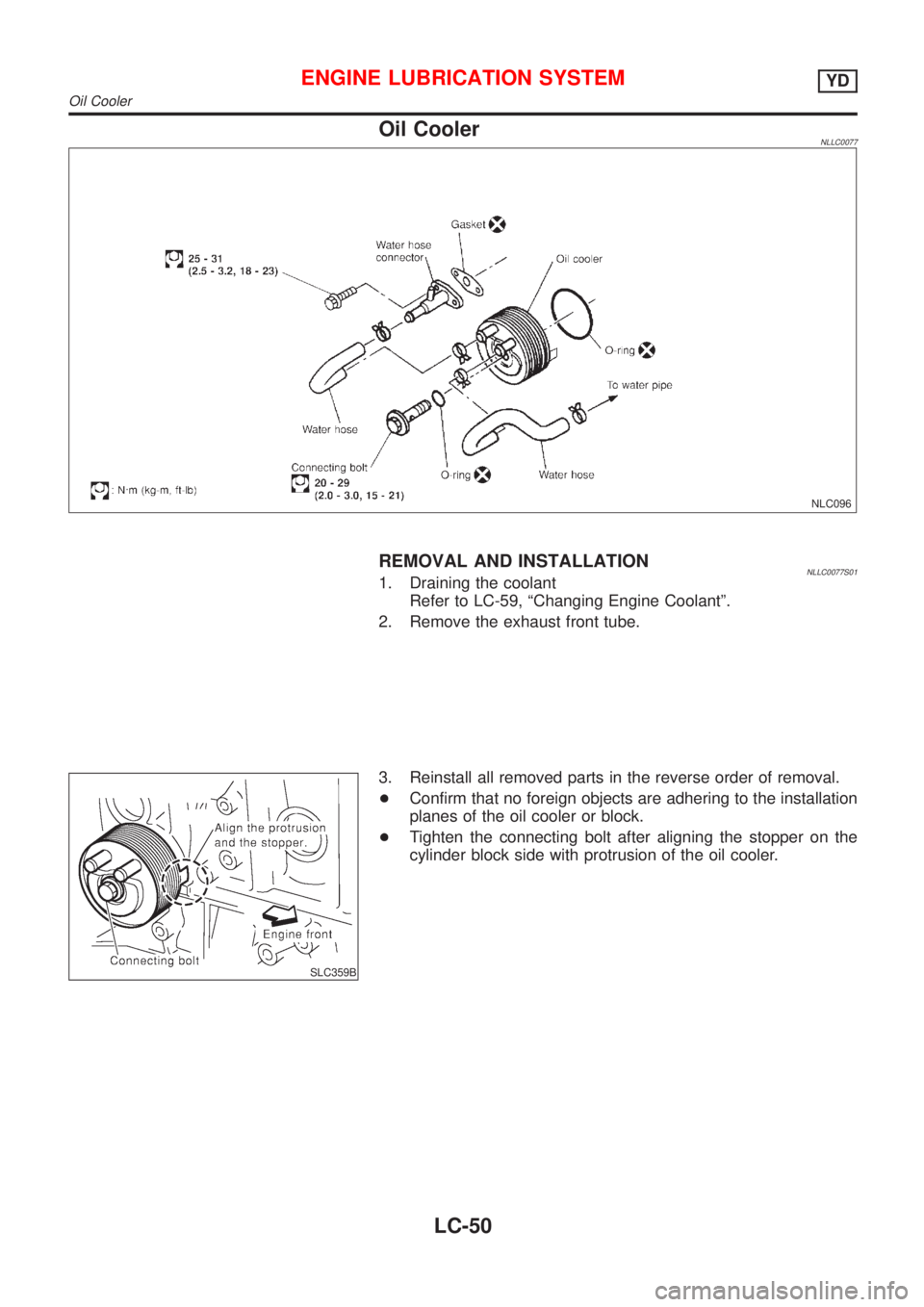

NISSAN ALMERA TINO 2001 Service Repair Manual Oil CoolerNLLC0077
NLC096
REMOVAL AND INSTALLATIONNLLC0077S011. Draining the coolant
Refer to LC-59, ªChanging Engine Coolantº.
2. Remove the exhaust front tube.
SLC359B
3. Reinstall all removed par

Page 2754 of 3051

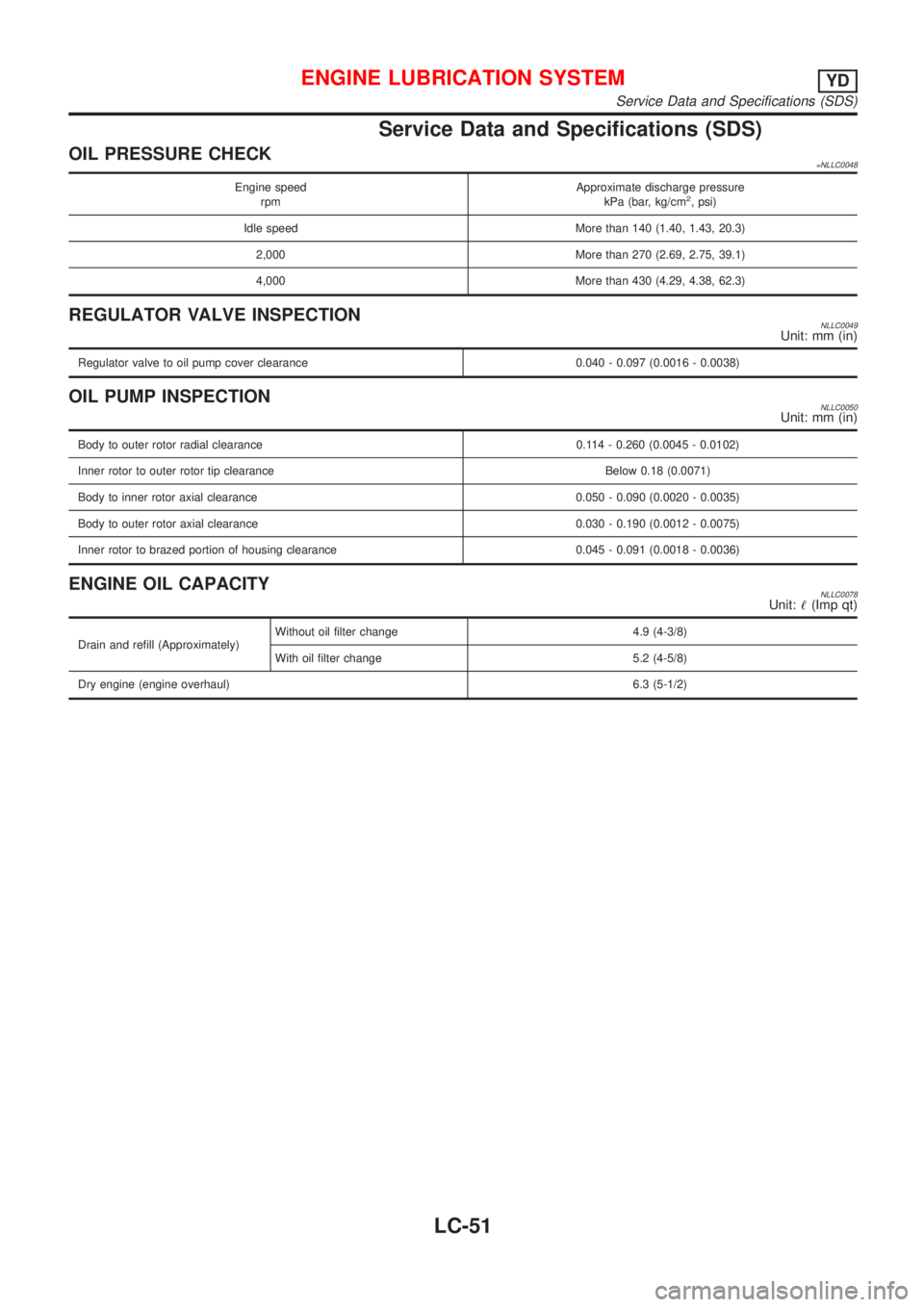

NISSAN ALMERA TINO 2001 Service Repair Manual Service Data and Specifications (SDS)
OIL PRESSURE CHECK=NLLC0048
Engine speed
rpmApproximate discharge pressure
kPa (bar, kg/cm2, psi)
Idle speed More than 140 (1.40, 1.43, 20.3)
2,000 More than 270

Page 2755 of 3051

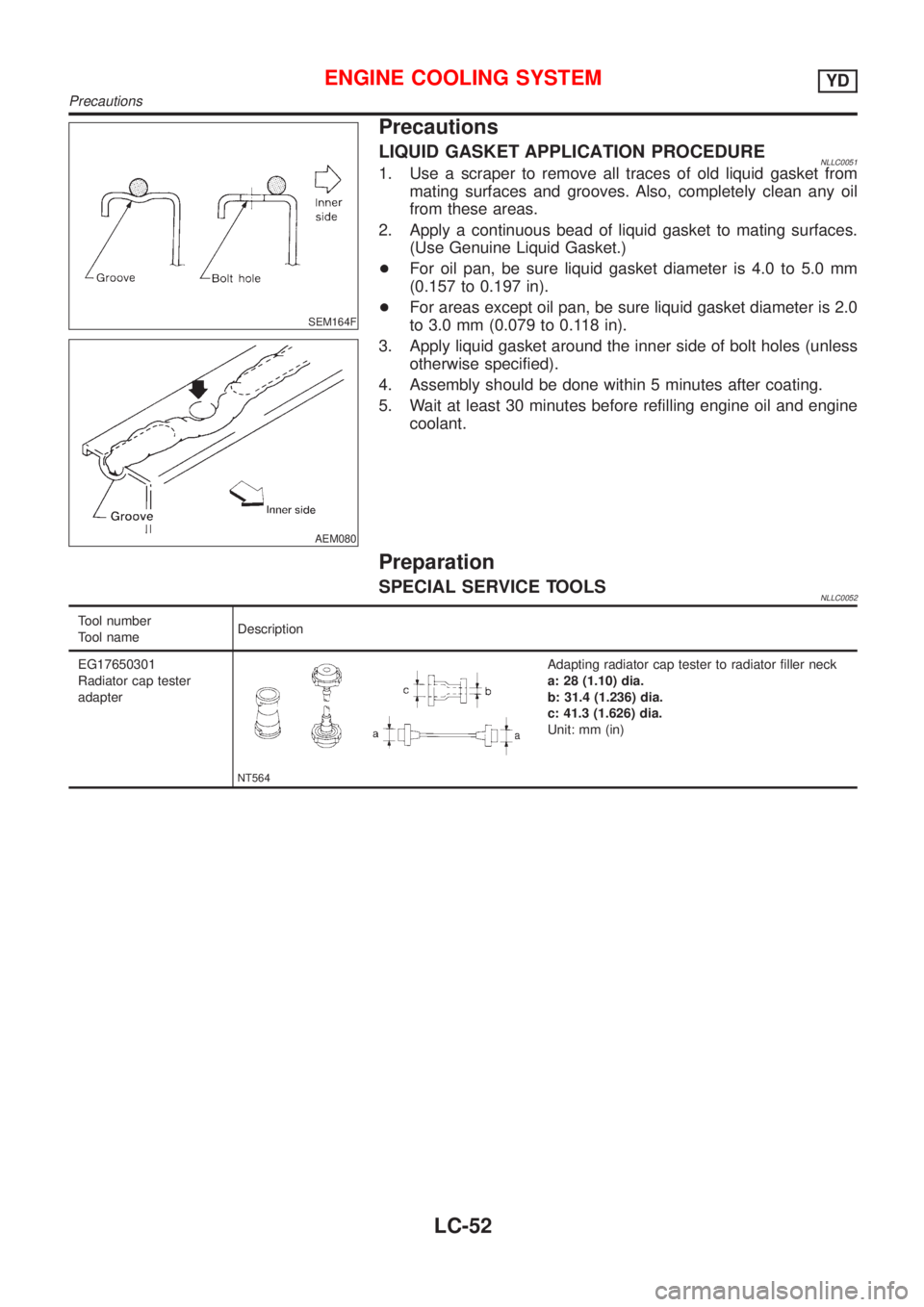

NISSAN ALMERA TINO 2001 Service Repair Manual SEM164F
AEM080
Precautions
LIQUID GASKET APPLICATION PROCEDURENLLC00511. Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from t

Page 2756 of 3051

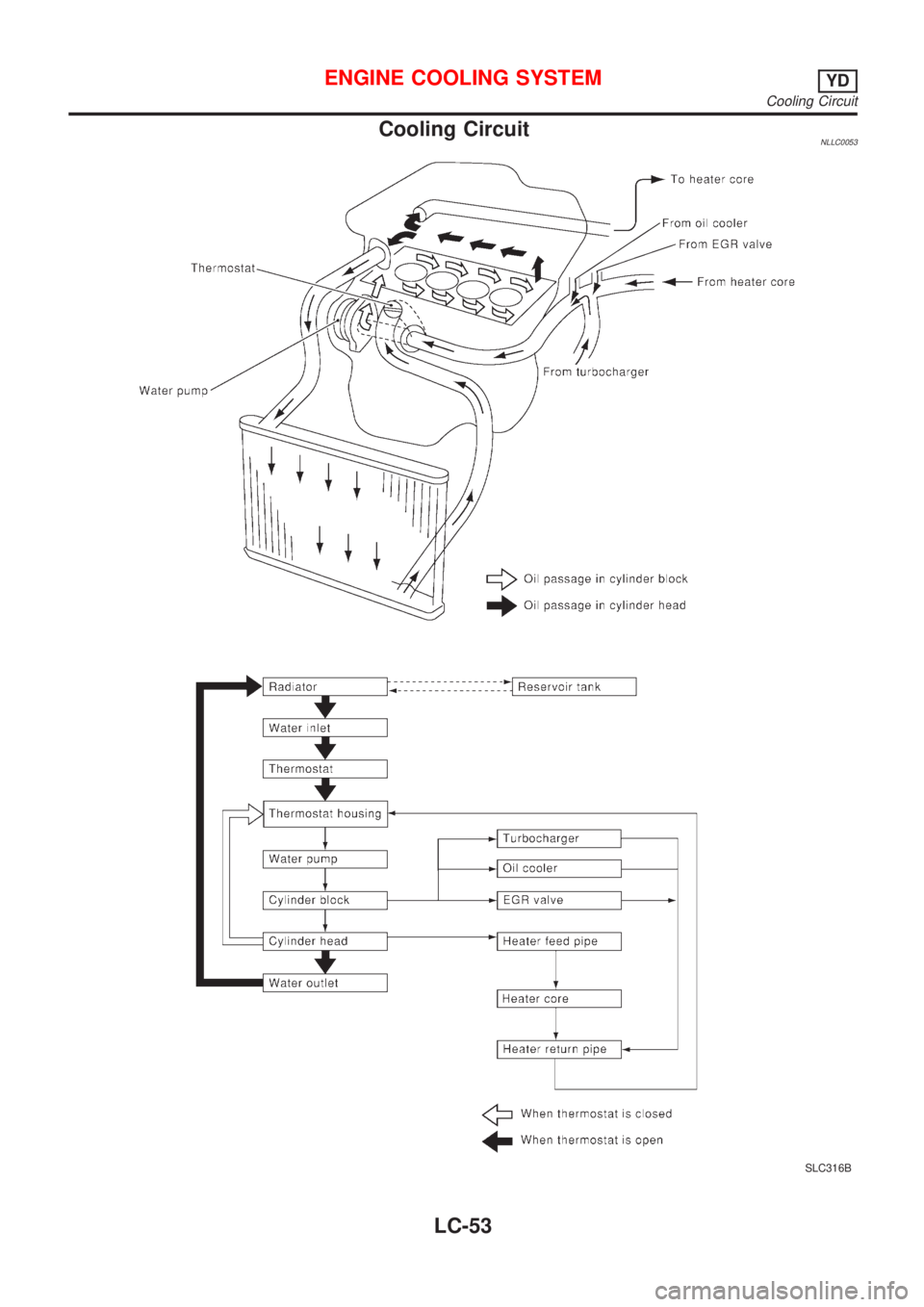

NISSAN ALMERA TINO 2001 Service Repair Manual Cooling CircuitNLLC0053
SLC316B
ENGINE COOLING SYSTEMYD
Cooling Circuit
LC-53

Page 2757 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual System CheckNLLC0054WARNING:
Never remove the radiator cap when the engine is hot; serious
burns could be caused by high pressure fluid escaping from
the radiator.
Wrap a thick cloth around the cap an

System CheckNLLC0054WARNING:
Never remove the radiator cap when the engine is hot; serious
burns could be caused by high pressure fluid escaping from
the radiator.
Wrap a thick cloth around the cap and carefully remove it by
turning it a quarter turn to allow built-up pressure to escape
and then turn the cap all the way off.
CHECKING COOLING SYSTEM HOSESNLLC0054S01Check hoses for improper attachment, leaks, cracks, damage,
loose connections, chafing and deterioration.
CHECKING RADIATORNLLC0054S02Check radiator for mud or clogging. If necessary, clean radiator as
follows.
+Be careful not to bend or damage the radiator fins.
+When radiator is cleaned without removal, remove all sur-
rounding parts such as cooling fan, radiator shroud and horns.
Then tape the harness and connectors to prevent water from
entering.
1. Apply water by hose to the back side of the radiator core ver-
tically downward.
2. Apply water again to all radiator core surfaces once per
minute.
3. Stop washing if any stains no longer flow out from the radia-
tor.
4. Blow air into the back side of radiator core vertically downward.
+Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm
2,71
psi) and keep distance more than 30 cm (11.8 in).
5. Blow air again into all the radiator core surfaces once per
minute until no water sprays out.
SLC755AC
CHECKING RADIATOR CAPNLLC0054S03To check radiator cap, apply pressure to cap with a tester.
Radiator cap relief pressure:
Standard
78-98kPa
(0.78 - 0.98 bar, 0.8 - 1.0 kg/cm
2, 11 - 14 psi)
Limit
59-98kPa
(0.59 - 0.98 bar, 0.6 - 1.0 kg/cm
2,9-14psi)
SMA967B
Pull the negative pressure valve to open it.
Check that it closes completely when released.
+Check the radiator cap negative pressure valve for contamina-
tion or damage to the valve seat.
+Move the negative pressure valve to check for abnormalities to
the opening/shutting operation.
CAUTION:
+Be sure to perform the inspections after cooling down the
engine.
+Before connecting the radiator cap to the tester, apply
water or LLC to the cap sealing.
ENGINE COOLING SYSTEMYD
System Check
LC-54

Page 2758 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual +Replace the radiator cap if abnormalities are found with the
negative pressure valve, or if the valve opening pressure is out
of the standard range.
SLC756AA
CHECKING COOLING SYSTEM FOR LEAKSNLLC0054

Page 2759 of 3051

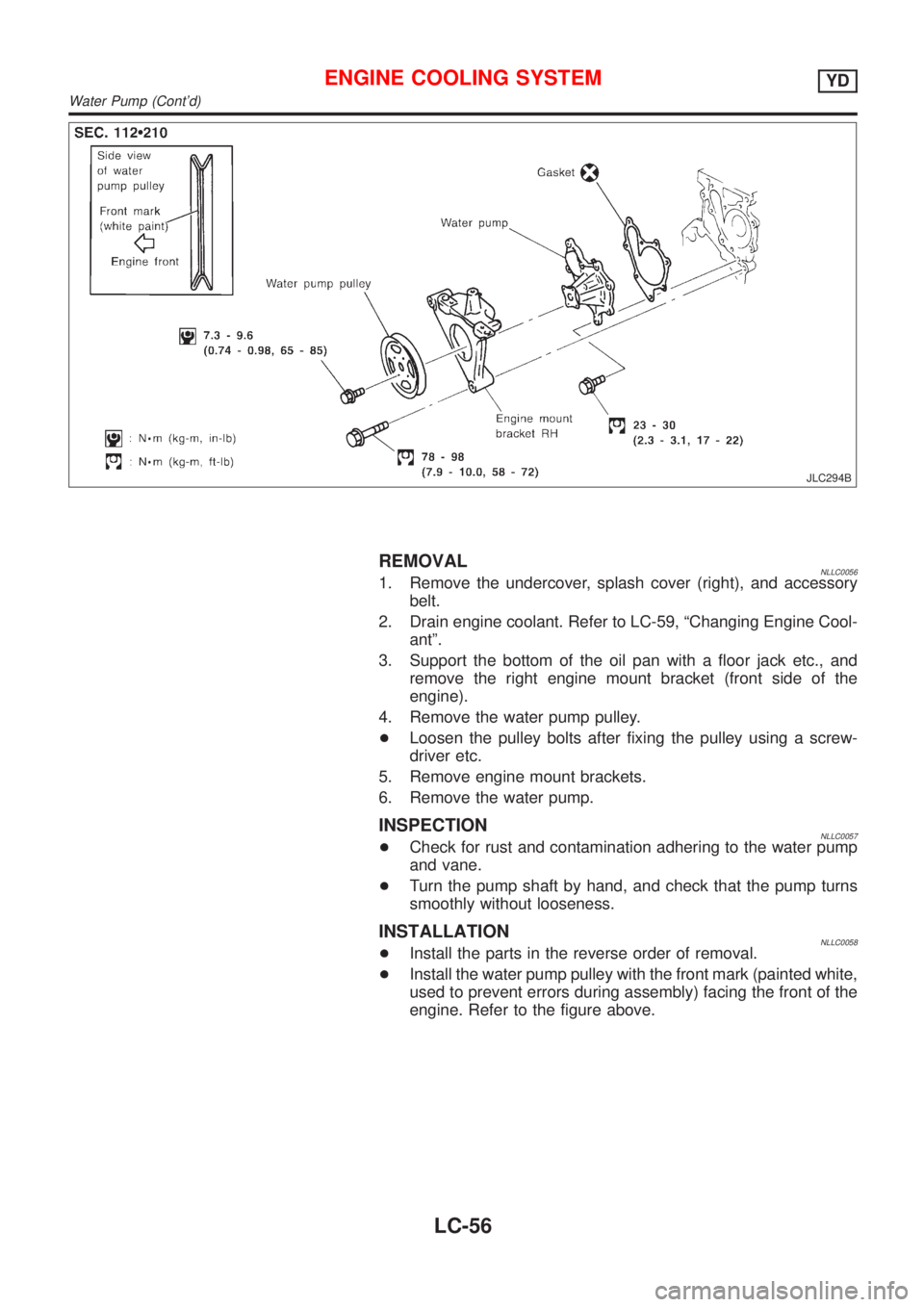

NISSAN ALMERA TINO 2001 Service Repair Manual JLC294B
REMOVALNLLC00561. Remove the undercover, splash cover (right), and accessory
belt.
2. Drain engine coolant. Refer to LC-59, ªChanging Engine Cool-
antº.
3. Support the bottom of the oil pan

Page 2760 of 3051

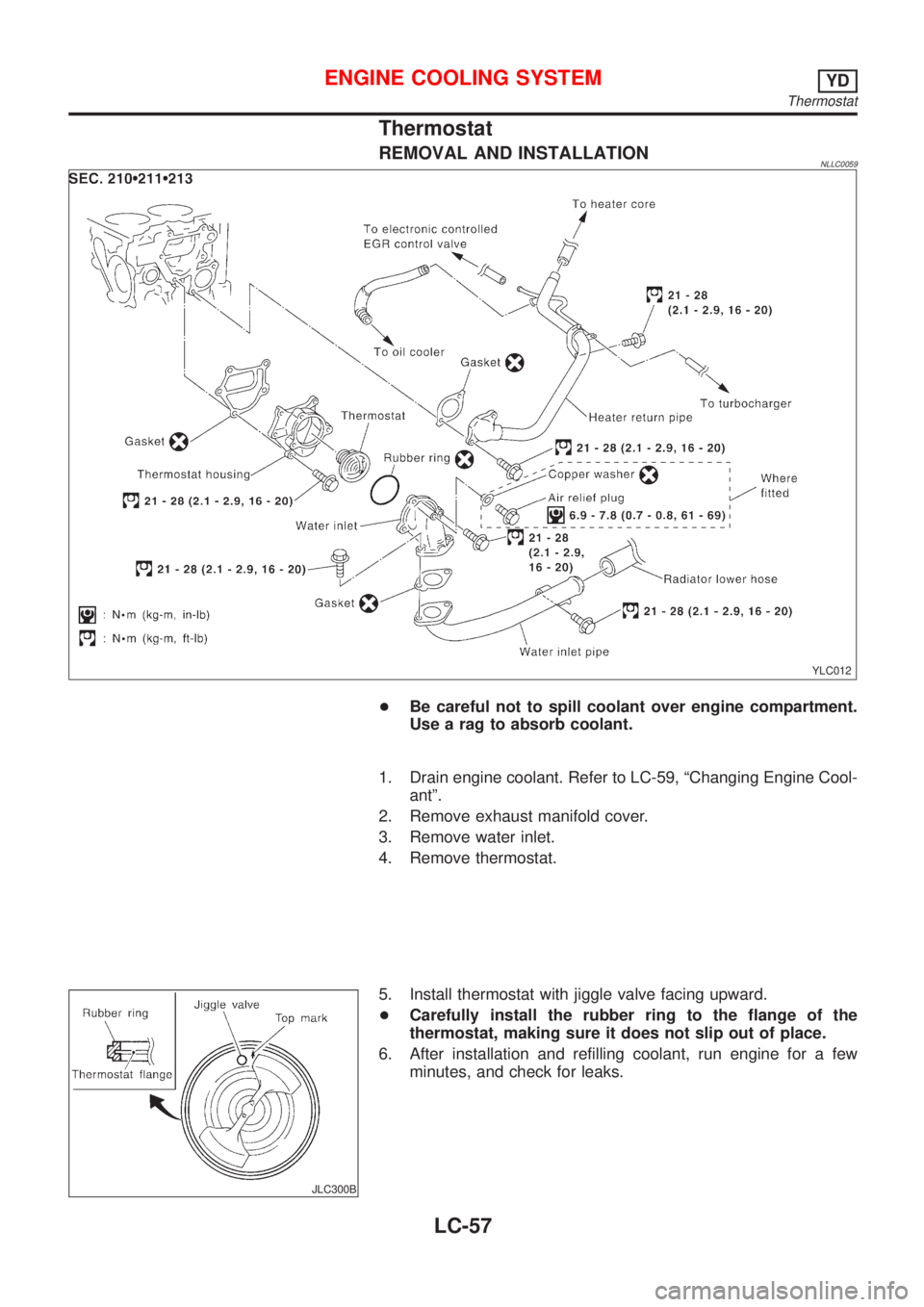

NISSAN ALMERA TINO 2001 Service Repair Manual Thermostat
REMOVAL AND INSTALLATIONNLLC0059
YLC012
+Be careful not to spill coolant over engine compartment.
Use a rag to absorb coolant.
1. Drain engine coolant. Refer to LC-59, ªChanging Engine Coo
