NISSAN ALMERA TINO 2001 Service Repair Manual 12 CHECK ECM POWER SUPPLY CIRCUIT-IV
1. Disconnect ECM relay. (For ECM relay location, refer to ªEngine Control Compartment Parts Locationº.)
2. Check voltage between ECM relay terminal 3 and ground

Page 578 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 16 CHECK ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5, 6 and 7.
SEF296X
OK or NG
OK©GO TO 17.
NG©Replace ECM relay.

Page 579 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF987W

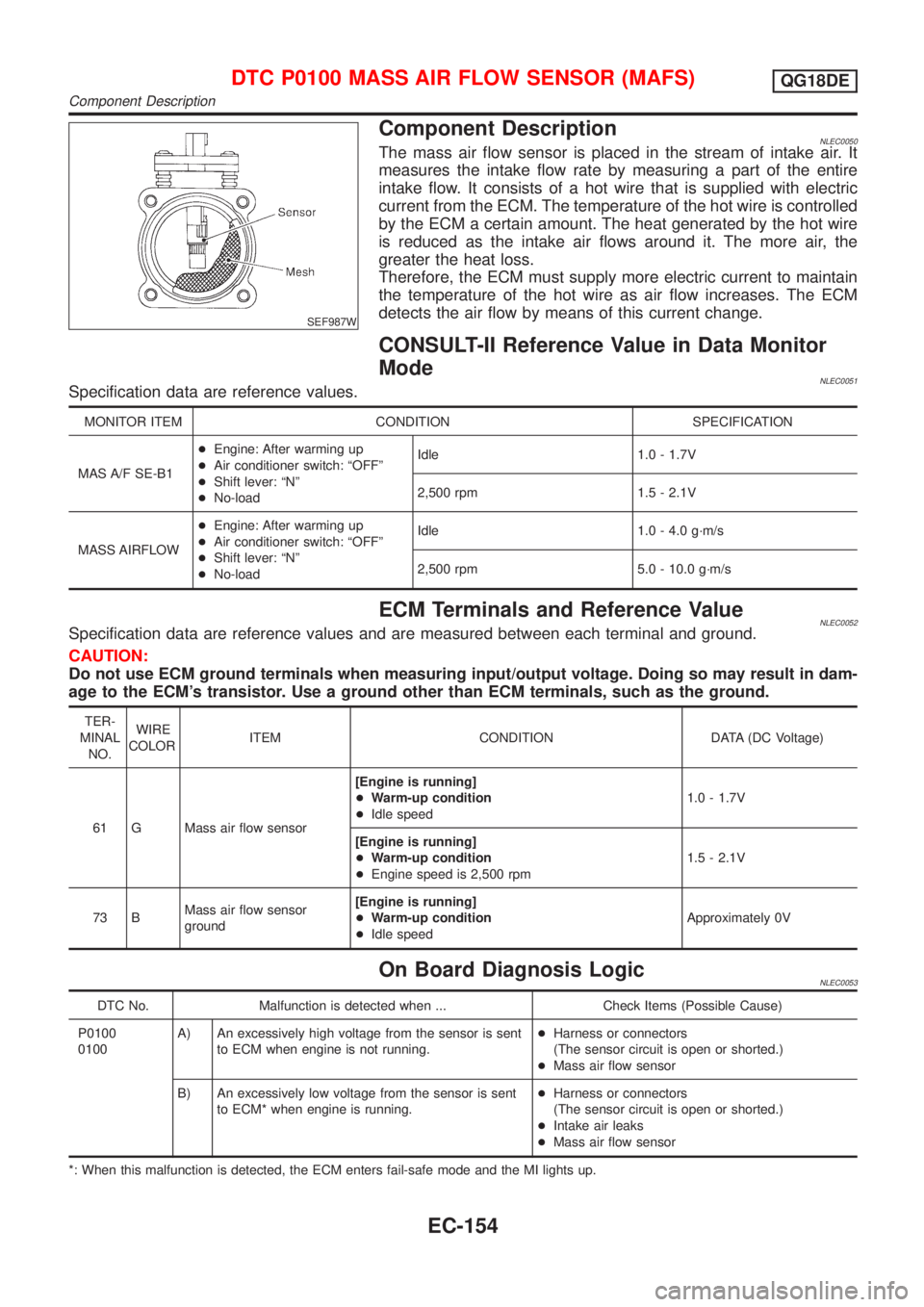

Component DescriptionNLEC0050The mass air flow sensor is placed in the stream of intake air. It
measures the intake flow rate by measuring a part of the entire
intake flow. It consists of a ho

SEF987W
Component DescriptionNLEC0050The mass air flow sensor is placed in the stream of intake air. It
measures the intake flow rate by measuring a part of the entire
intake flow. It consists of a hot wire that is supplied with electric
current from the ECM. The temperature of the hot wire is controlled
by the ECM a certain amount. The heat generated by the hot wire
is reduced as the intake air flows around it. The more air, the
greater the heat loss.
Therefore, the ECM must supply more electric current to maintain
the temperature of the hot wire as air flow increases. The ECM
detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor
Mode
NLEC0051Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1+Engine: After warming up
+Air conditioner switch: ªOFFº
+Shift lever: ªNº
+No-loadIdle 1.0 - 1.7V
2,500 rpm 1.5 - 2.1V
MASS AIRFLOW+Engine: After warming up
+Air conditioner switch: ªOFFº
+Shift lever: ªNº
+No-loadIdle 1.0 - 4.0 g´m/s
2,500 rpm 5.0 - 10.0 g´m/s
ECM Terminals and Reference ValueNLEC0052Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
61 G Mass air flow sensor[Engine is running]
+Warm-up condition
+Idle speed1.0 - 1.7V
[Engine is running]
+Warm-up condition
+Engine speed is 2,500 rpm1.5 - 2.1V
73 BMass air flow sensor
ground[Engine is running]
+Warm-up condition
+Idle speedApproximately 0V
On Board Diagnosis LogicNLEC0053
DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P0100
0100A) An excessively high voltage from the sensor is sent
to ECM when engine is not running.+Harness or connectors
(The sensor circuit is open or shorted.)
+Mass air flow sensor
B) An excessively low voltage from the sensor is sent
to ECM* when engine is running.+Harness or connectors
(The sensor circuit is open or shorted.)
+Intake air leaks
+Mass air flow sensor
*: When this malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG18DE
Component Description
EC-154

Page 580 of 3051

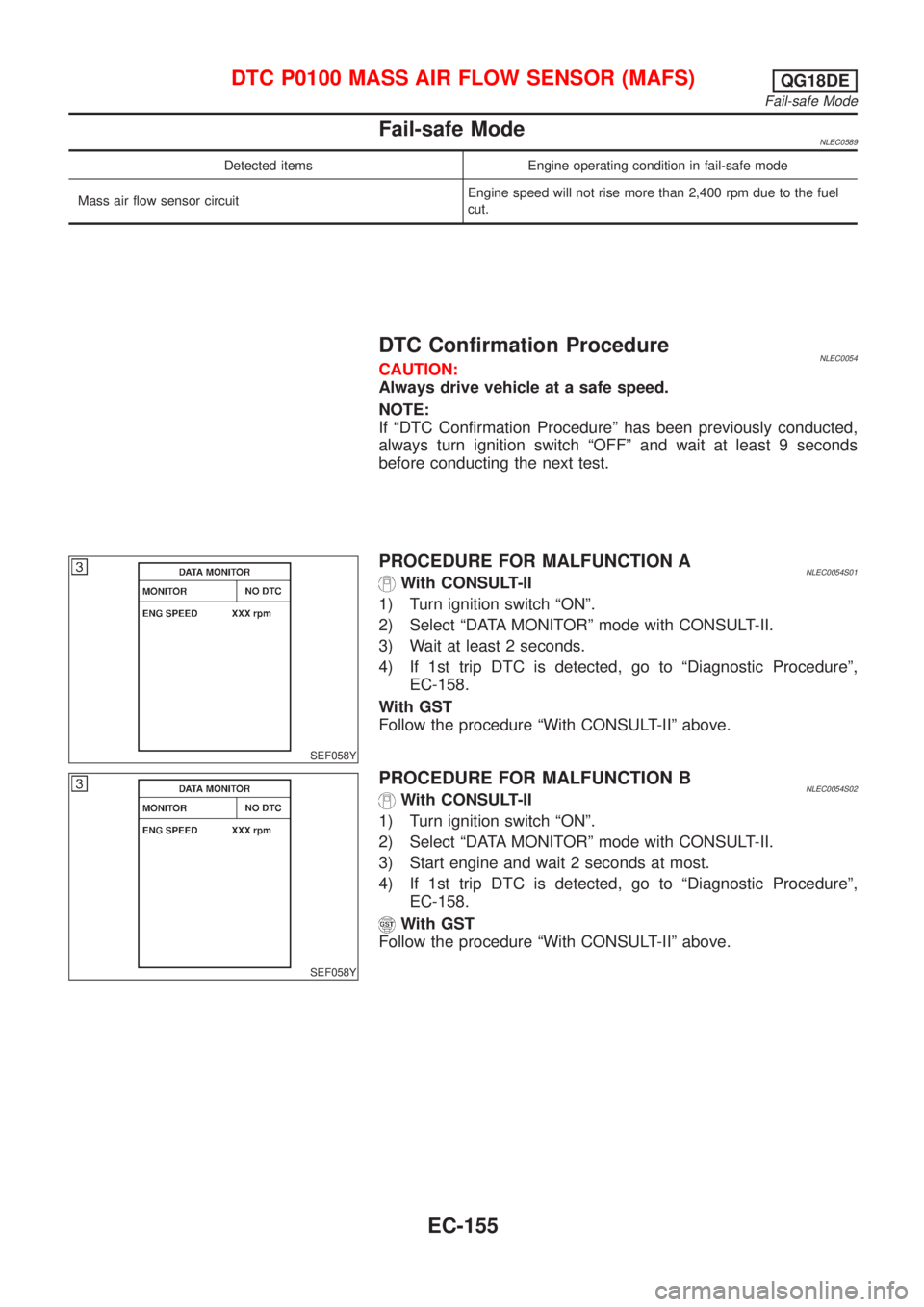

NISSAN ALMERA TINO 2001 Service Repair Manual Fail-safe ModeNLEC0589
Detected items Engine operating condition in fail-safe mode
Mass air flow sensor circuitEngine speed will not rise more than 2,400 rpm due to the fuel
cut.
DTC Confirmation Proc

Page 581 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0056MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0056S01
YEC651
DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG18DE
Wiring Diagram
EC-156

Page 582 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC0056S02
YEC873
DTC P0100 MASS AIR FLOW SENSOR (MAFS)QG18DE
Wiring Diagram (Contd)
EC-157

Page 583 of 3051

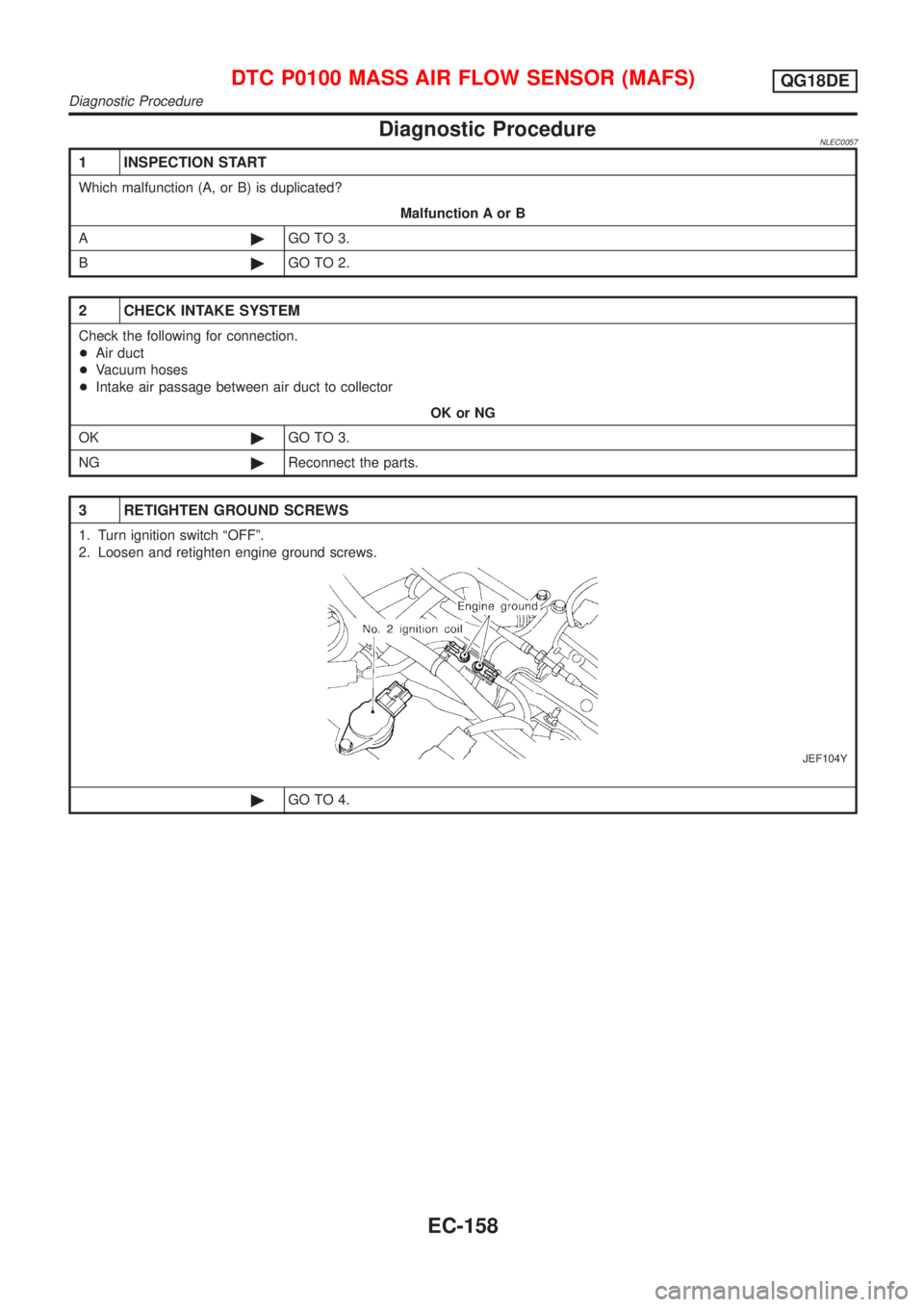

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0057
1 INSPECTION START
Which malfunction (A, or B) is duplicated?
Malfunction A or B
A©GO TO 3.
B©GO TO 2.
2 CHECK INTAKE SYSTEM
Check the following for connection.
+Air duc

Page 584 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK POWER SUPPLY
1. Disconnect mass air flow sensor harness connector.
JEF105Y
2. Turn ignition switch ªONº.
3. Check voltage between terminal 2, 4 and ground with CONSULT-II or tester.
SEF297X
