Page 1825 of 3051

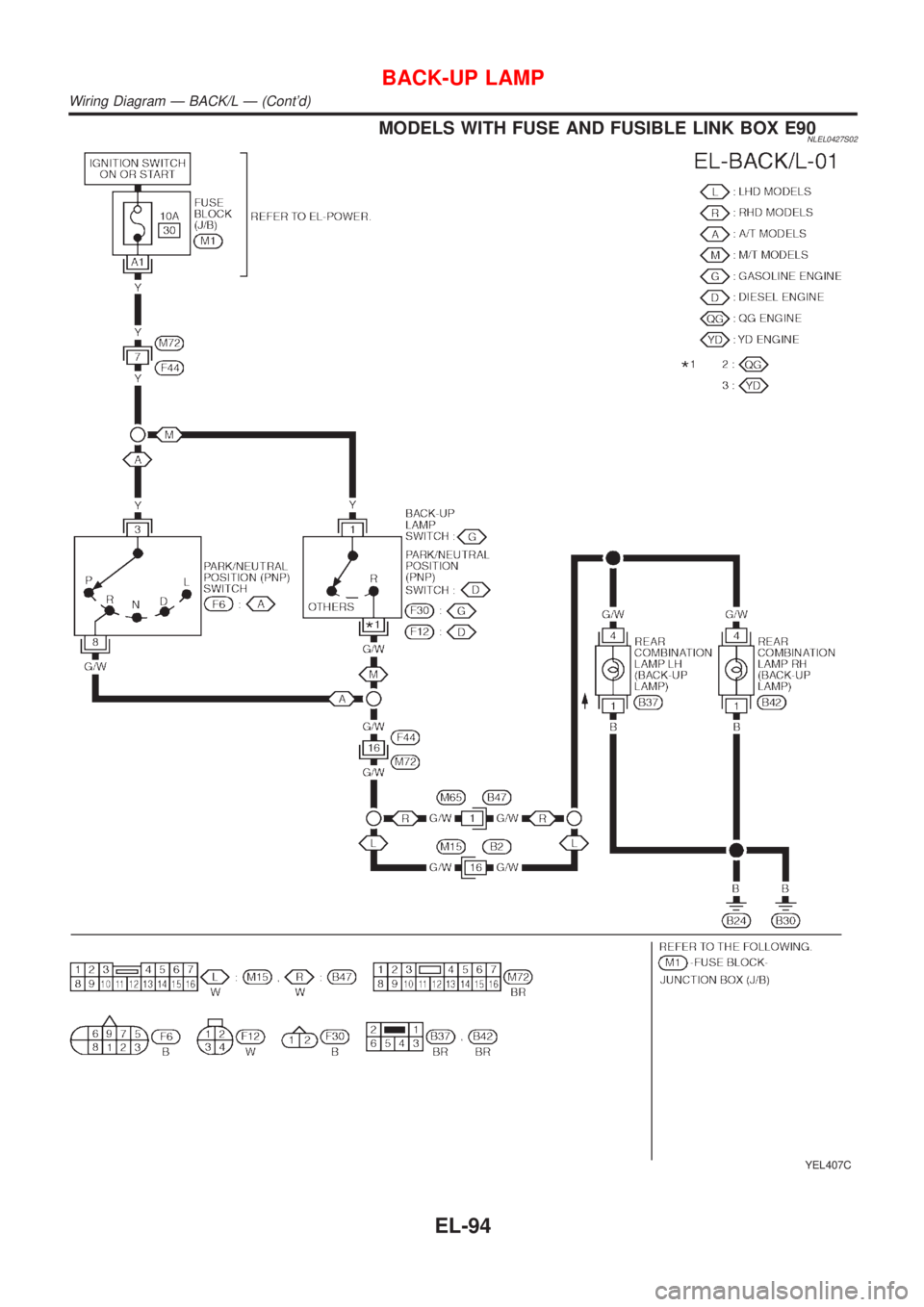

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0427S02
YEL407C
BACK-UP LAMP
Wiring Diagram Ð BACK/L Ð (Cont'd)
EL-94
Page 1826 of 3051

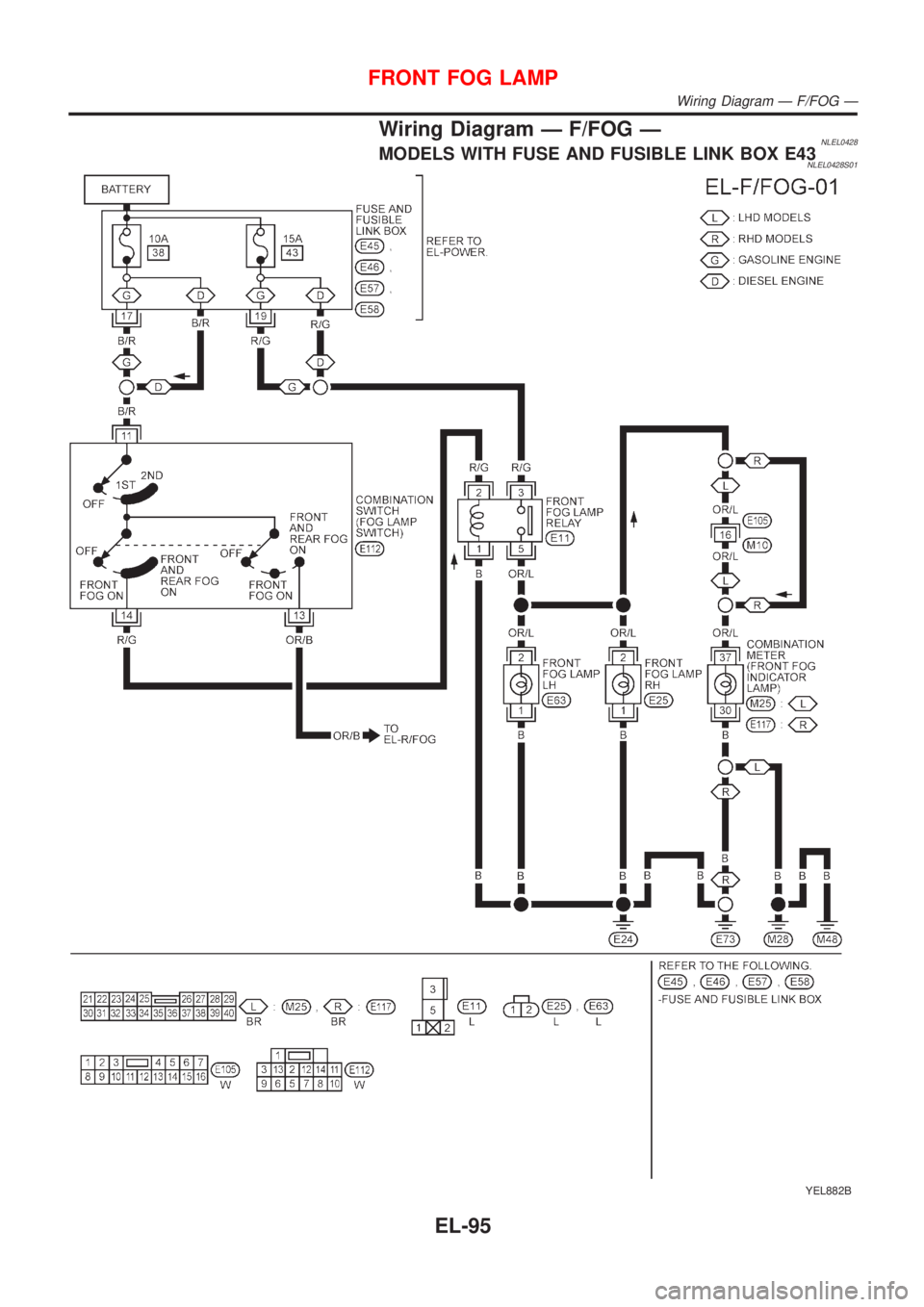

Wiring Diagram Ð F/FOG ÐNLEL0428MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0428S01
YEL882B
FRONT FOG LAMP
Wiring Diagram Ð F/FOG Ð
EL-95
Page 1827 of 3051

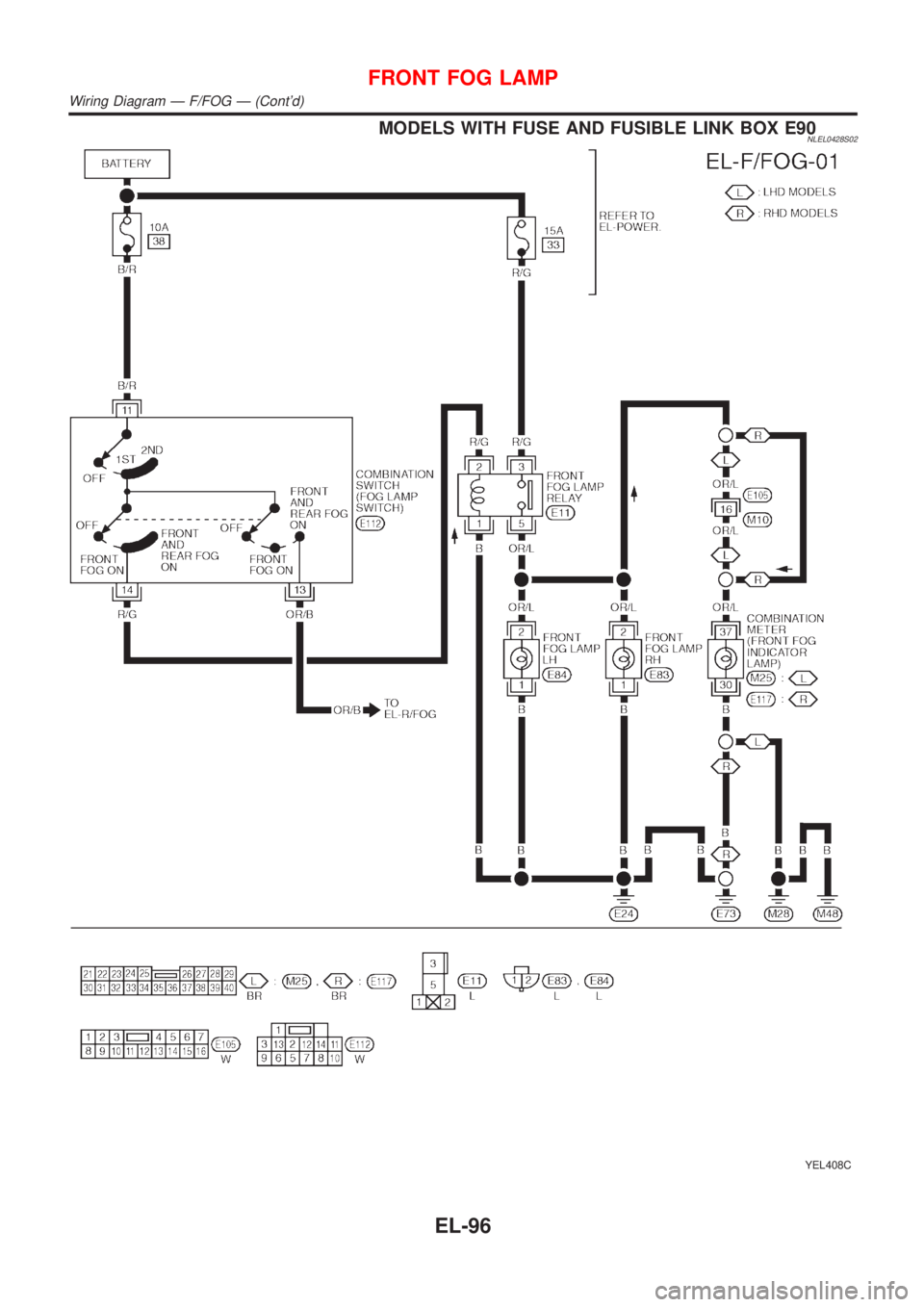

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0428S02
YEL408C
FRONT FOG LAMP
Wiring Diagram Ð F/FOG Ð (Cont'd)
EL-96
Page 1828 of 3051
NEL715

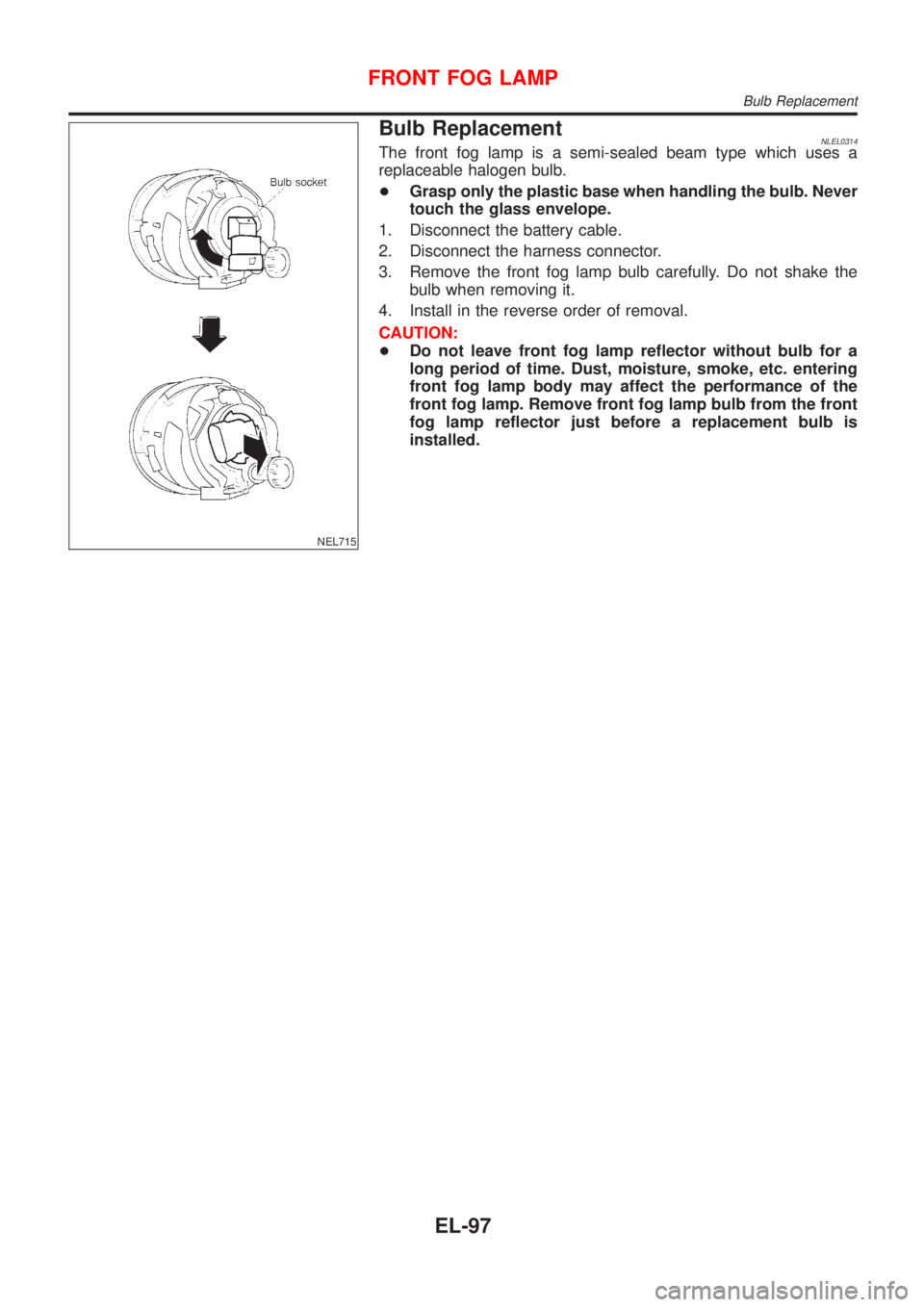

Bulb ReplacementNLEL0314The front fog lamp is a semi-sealed beam type which uses a
replaceable halogen bulb.
+Grasp only the plastic base when handling the bulb. Never
touch the glass envelope.
1. Disconnect the battery cable.
2. Disconnect the harness connector.
3. Remove the front fog lamp bulb carefully. Do not shake the
bulb when removing it.
4. Install in the reverse order of removal.
CAUTION:
+Do not leave front fog lamp reflector without bulb for a
long period of time. Dust, moisture, smoke, etc. entering
front fog lamp body may affect the performance of the
front fog lamp. Remove front fog lamp bulb from the front
fog lamp reflector just before a replacement bulb is
installed.
FRONT FOG LAMP
Bulb Replacement
EL-97
Page 1829 of 3051
NEL714

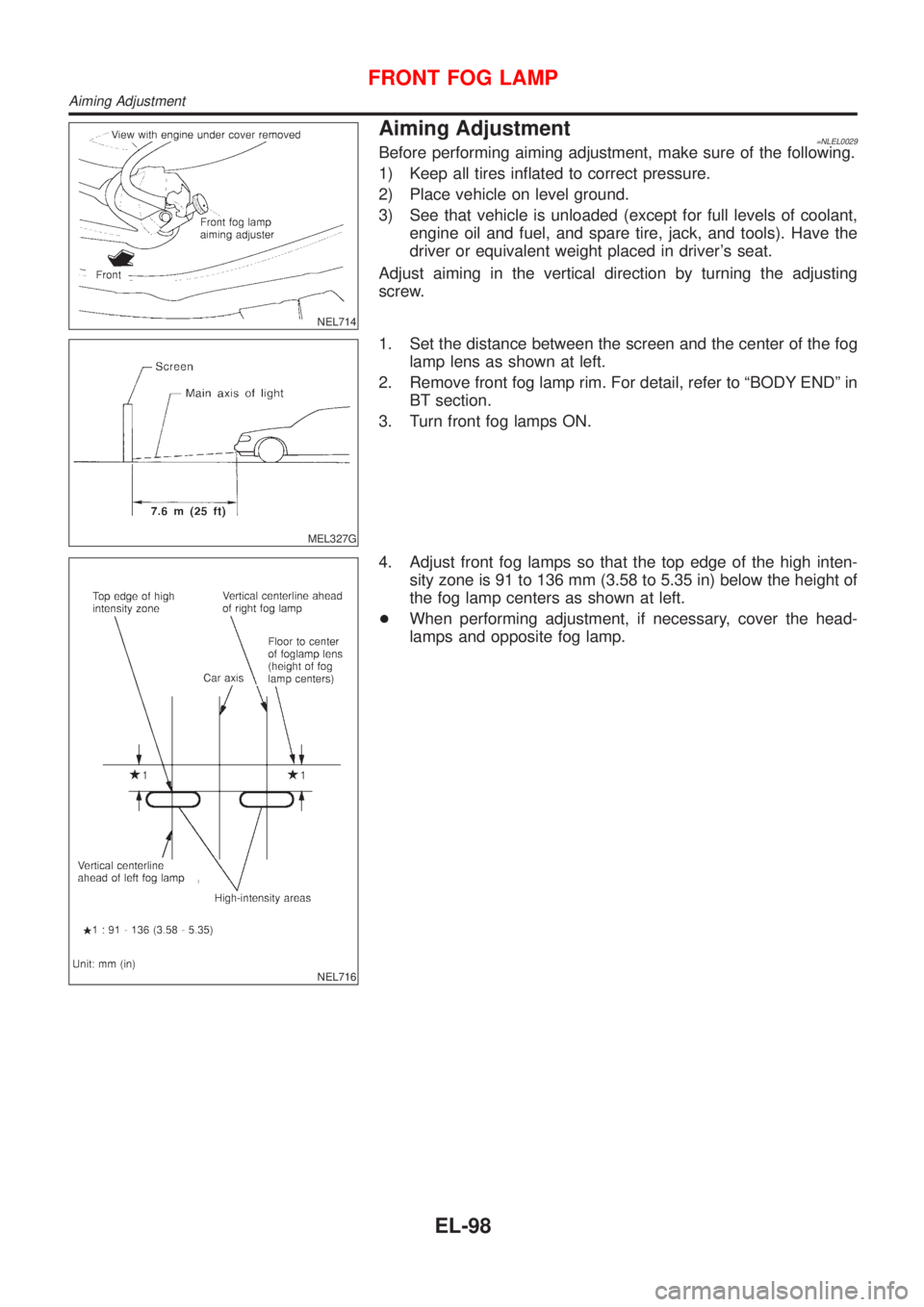

Aiming Adjustment=NLEL0029Before performing aiming adjustment, make sure of the following.
1) Keep all tires inflated to correct pressure.
2) Place vehicle on level ground.
3) See that vehicle is unloaded (except for full levels of coolant,
engine oil and fuel, and spare tire, jack, and tools). Have the
driver or equivalent weight placed in driver's seat.
Adjust aiming in the vertical direction by turning the adjusting
screw.
MEL327G
1. Set the distance between the screen and the center of the fog
lamp lens as shown at left.
2. Remove front fog lamp rim. For detail, refer to ªBODY ENDº in
BT section.
3. Turn front fog lamps ON.
NEL716
4. Adjust front fog lamps so that the top edge of the high inten-
sity zone is 91 to 136 mm (3.58 to 5.35 in) below the height of
the fog lamp centers as shown at left.
+When performing adjustment, if necessary, cover the head-
lamps and opposite fog lamp.
FRONT FOG LAMP
Aiming Adjustment
EL-98
Page 1830 of 3051
Wiring Diagram Ð R/FOG ÐNLEL0429MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0429S01
YEL883B
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð
EL-99
Page 1831 of 3051

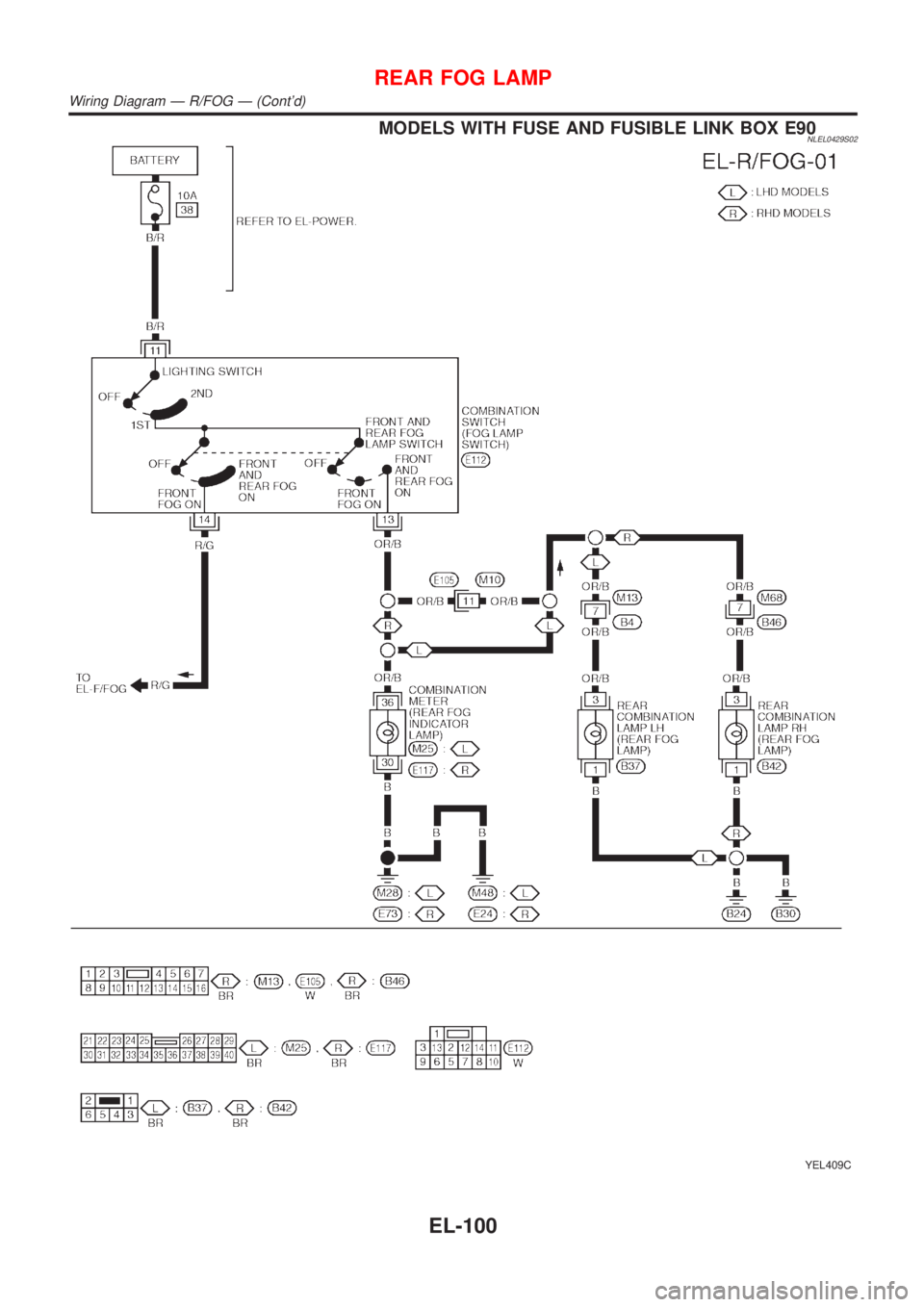

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0429S02
YEL409C
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð (Cont'd)
EL-100
Page 1832 of 3051
![NISSAN ALMERA TINO 2001 Service Repair Manual System DescriptionNLEL0430TURN SIGNAL OPERATIONNLEL0430S01Power is supplied at all times
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9
With the ignition switc NISSAN ALMERA TINO 2001 Service Repair Manual System DescriptionNLEL0430TURN SIGNAL OPERATIONNLEL0430S01Power is supplied at all times
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9
With the ignition switc](/manual-img/5/57352/w960_57352-1831.png)
System DescriptionNLEL0430TURN SIGNAL OPERATIONNLEL0430S01Power is supplied at all times
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 10, located in fuse block (J/B)]
+to time control unit terminal 1
Ground is supplied to time control unit terminal 16 through body grounds M28 and M48.
LH TurnNLEL0430S0101When the turn signal switch is moved to the L position, ground is supplied from body grounds E24 and E73
to
+time control unit terminal 2
+through turn signal switch terminals 3 and 1
With ground is supplied, time control unit controls the flashing of the LH turn signal lamps.
RH TurnNLEL0430S0102When the turn signal switch is moved to the R position, ground is supplied from body grounds E30 and E73
to
+time control unit terminal 4
+through turn signal switch terminals 2 and 1
With ground is supplied, time control unit controls the flashing of the RH turn signal lamps.
HAZARD LAMP OPERATIONNLEL0430S02Power is supplied at all times
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9
Ground is supplied to time control unit terminal 16 through body grounds M28 and M48.
With the hazard switch in the ON position, ground is supplied from body grounds M28 and M48 to
+time control unit terminal 5
+through hazard switch terminals 6 and 4
With ground is supplied, time control unit controls the flashing of the hazard warning lamps.
HAZARD REMINDER OPERATION FOR MULTI-REMOTE CONTROL SYSTEMNLEL0430S04When the doors are locked or unlocked by multi-remote controller, time control unit controls turn lamps haz-
ard reminder flashes as follows.
+Locked operation: Flash once
+Unlock operation: Flash twice
TURN SIGNAL AND HAZARD WARNING LAMPS
System Description
EL-101
