Page 113 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLAT0224+The step motor is ON/OFF of 4 aspects changes according to the signal from TCM. As a result, the flow of line pressure to primary pulley is changed and pulley ratio is controlled.

Page 114 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT250K SAT255K DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE NLAT0224S04CAUTION: +Always drive vehicle at a safe speed. +Be careful not to rev engine into the red zone on the tachometer. NOTE:

Page 115 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring Diagram Ð AT Ð STMNLAT0225 YAT182 DTC P1777 STEP MOTOR Ð CIRCUITEURO-OBD Wiring Diagram Ð AT Ð STM AT-114

Page 116 of 3051

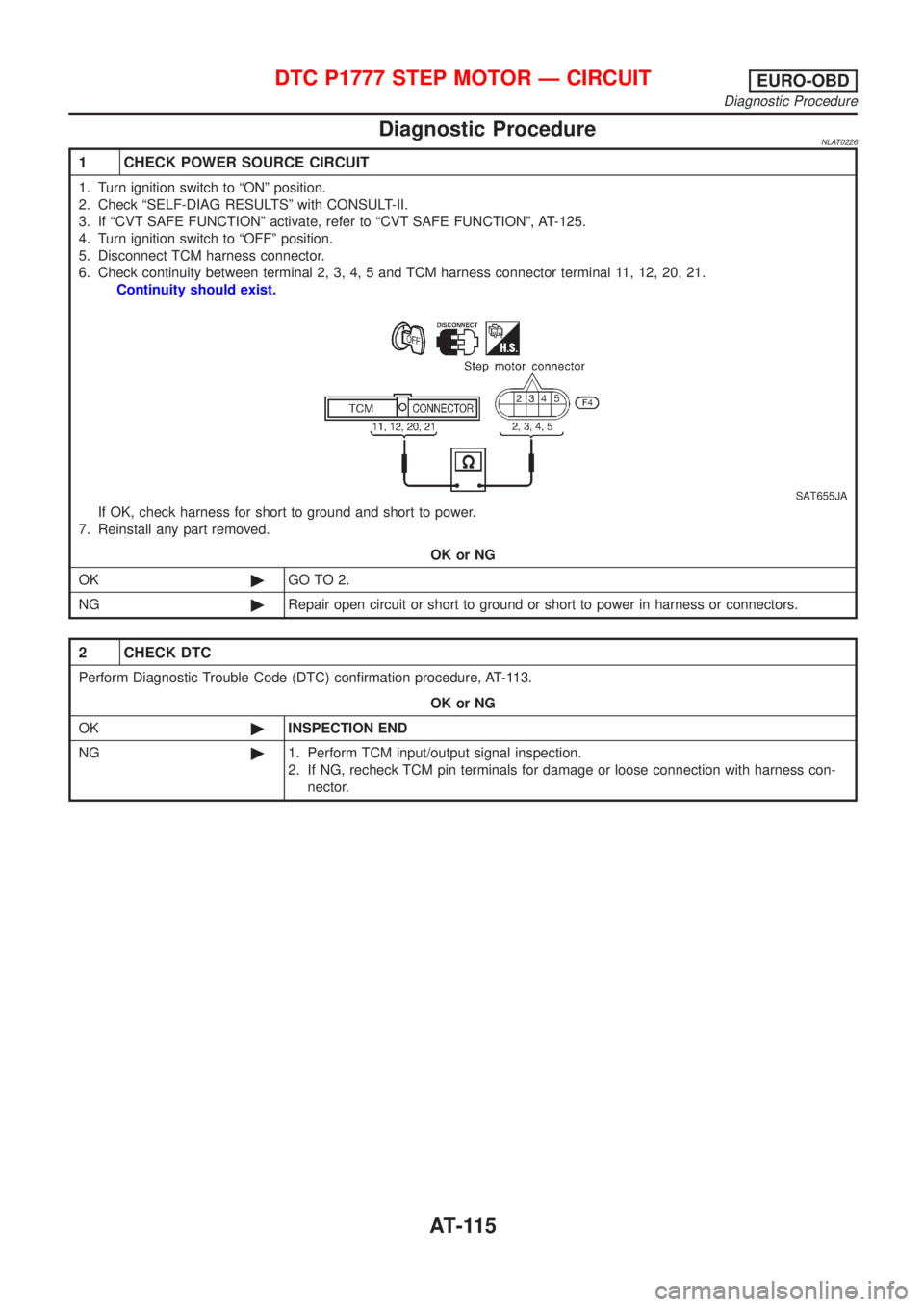

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLAT0226 1 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªONº position. 2. Check ªSELF-DIAG RESULTSº with CONSULT-II. 3. If ªCVT SAFE FUNCTIONº activate, refer to ªC

Page 117 of 3051

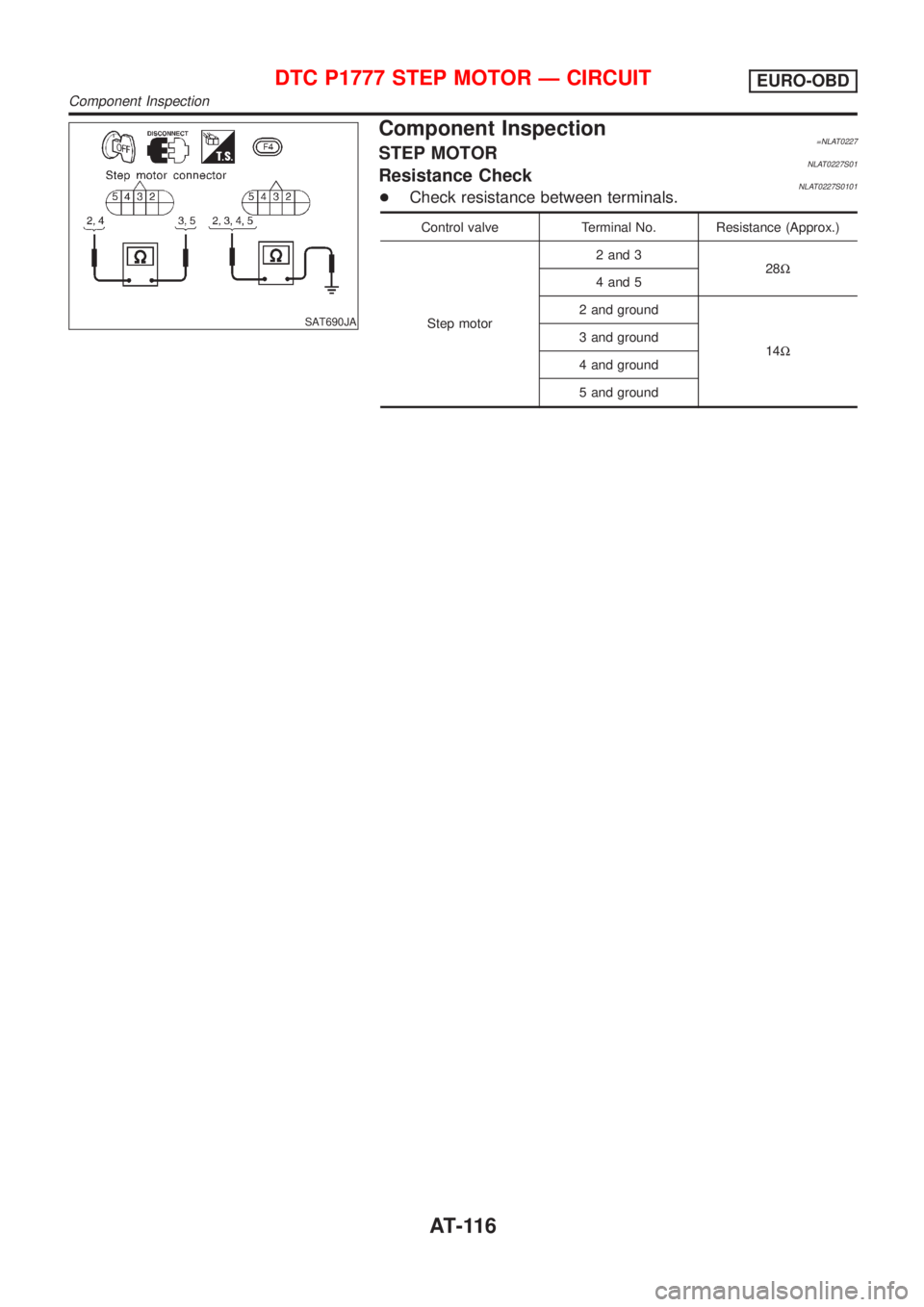

NISSAN ALMERA TINO 2001 Service Repair Manual SAT690JA Component Inspection=NLAT0227STEP MOTORNLAT0227S01Resistance CheckNLAT0227S0101+Check resistance between terminals. Control valve Terminal No. Resistance (Approx.) Step motor2 and 3 28W 4 and

Page 118 of 3051

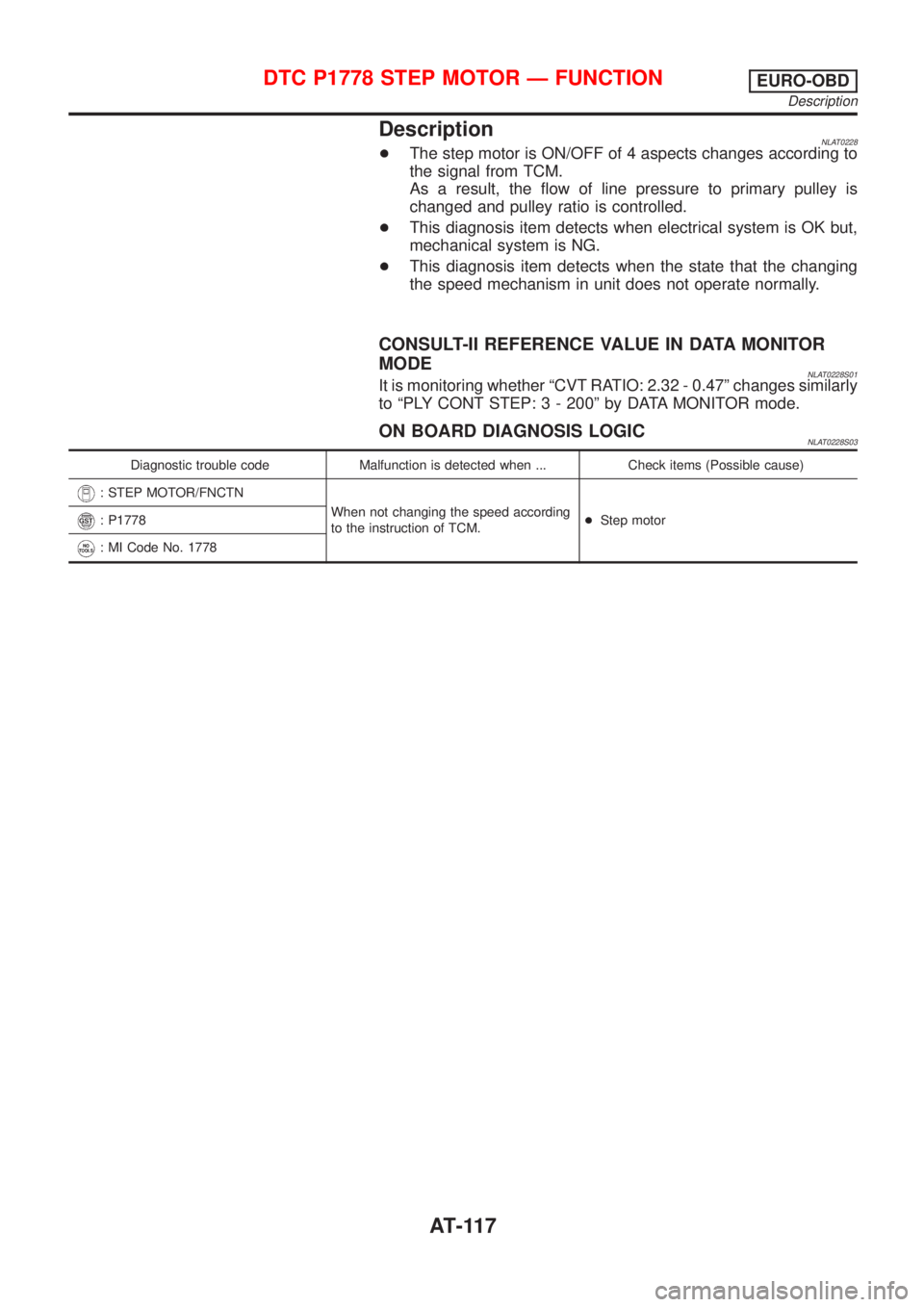

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLAT0228+The step motor is ON/OFF of 4 aspects changes according to the signal from TCM. As a result, the flow of line pressure to primary pulley is changed and pulley ratio is controlled.

Page 119 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SAT250K SAT252K SAT255K DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE NLAT0228S04CAUTION: +Always drive vehicle at a safe speed. +Be careful not to rev engine into the red zone on the tachomete

Page 120 of 3051

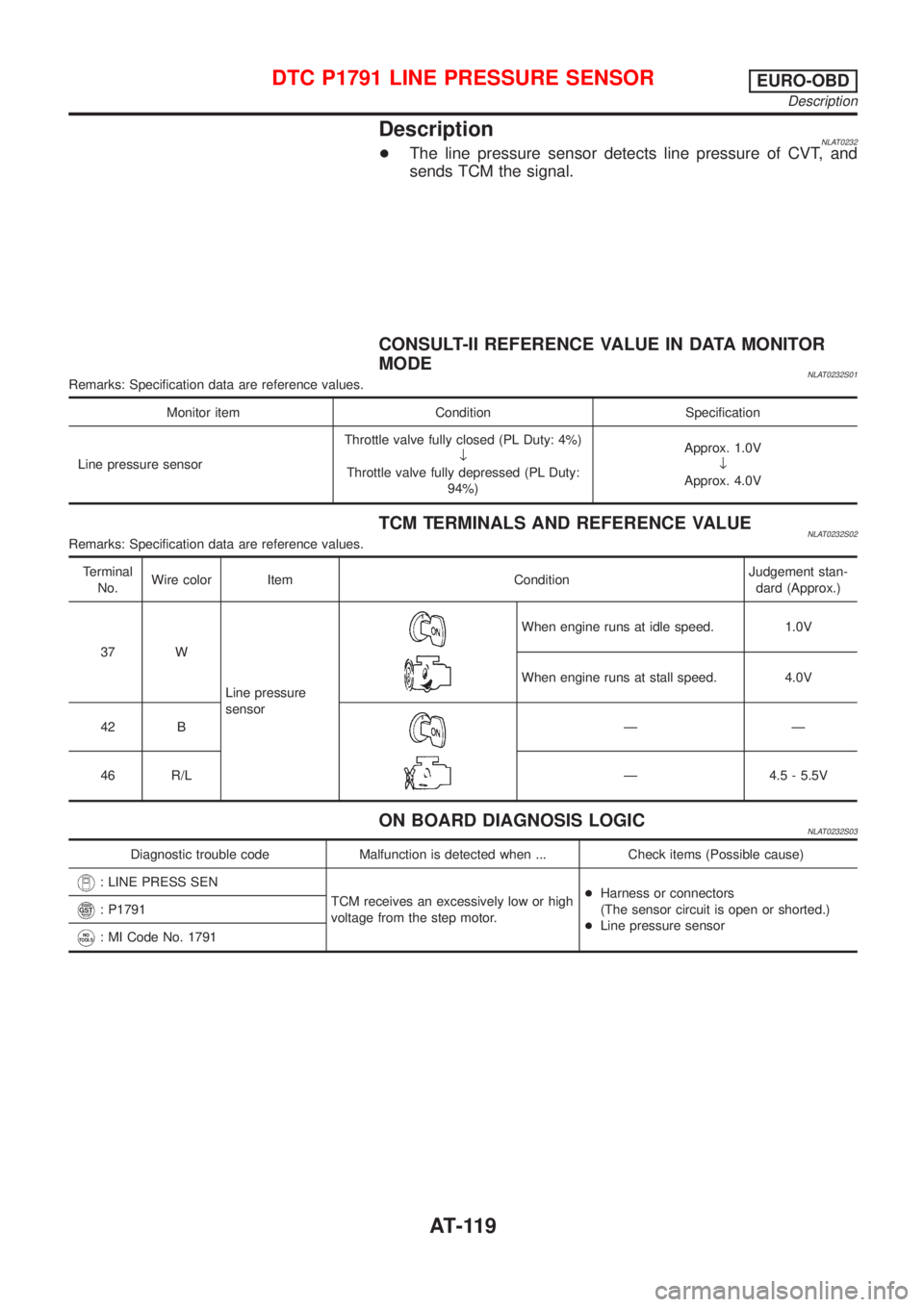

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLAT0232+The line pressure sensor detects line pressure of CVT, and sends TCM the signal. CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE NLAT0232S01Remarks: Specification data are referenc
