Page 2057 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Description=NLEL0485The TCU has the following functions.
INTERIOR LAMP TIMERNLEL0485S01The interior lamp timer is controlled by the TCU.
For further information, refer to ªINTERIOR ROOM LAMPº (EL-11

Description=NLEL0485The TCU has the following functions.
INTERIOR LAMP TIMERNLEL0485S01The interior lamp timer is controlled by the TCU.
For further information, refer to ªINTERIOR ROOM LAMPº (EL-116).
IGNITION KEY WARNING CHIME, LIGHT WARNING CHIME AND TRAILER DIRECTION
INDICATOR WARNING CHIME
NLEL0485S02The ignition key and light warning chime are controlled by the TCU.
For further information, refer to ªWARNING CHIMEº (EL-165).
REAR WINDOW DEFOGGER TIMERNLEL0485S03The rear window defogger and door mirror defogger system are controlled by the TCU.
For further information, refer to ªREAR WINDOW DEFOGGERº (EL-198).
POWER DOOR LOCK (SUPER LOCK)NLEL0485S04The power door lock (super lock) is controlled by the TCU.
For further information, refer to ªPOWER DOOR LOCK Ð Super Lock Ðº (EL-281).
MULTI-REMOTE CONTROL SYSTEMNLEL0485S05The multi-remote control system is controlled by the TCU.
For further information, refer to ªMULTI-REMOTE CONTROL SYSTEMº (EL-314).
FUNCTIONNLEL0485S06+The TCU has the following control function.
Item Details of control
Direction indicatorsSwitches the director indicators (Left, Right or All) when the combination
switch or hazard switch is operated.
Light warning chimeSounds warning chime when driver's door is opened with light switch in the
1st or 2nd position and ignition switch ªOFFº.
Ignition key warning chimeSounds warning chime when driver's door is opened with key in ignition and
the driver door lock knob (unlock sensor) is moved from the ªunlockº position
to the ªlockº position.
Trailer direction indicator warning chimeSounds warning chime when operating direction indicator (turn signal) and
towing a trailer.
Rear window defogger timerTurn off rear window defogger and door mirror heater, if equipped, about 15
minutes after the rear window defogger switch is turned ªONº.
Battery saverShuts off interior lamp in 30 minutes if any door is left open when ignition
switch is ªOFFº. The battery saver will reset if ignition switch is cycled or any
door is opened or closed.
Interior lamp timerKeep interior lamp illuminated for about 30 seconds when:
+driver's door is unlocked,
+the ignition is switched off,
+driver's door is opened and then closed.
The timer is cancelled, and interior lamp turns off when:
+driver's door is locked, or
+ignition switch is turned ªONº.
Power door lock Centrally locks and unlocks the vehicle
Super lock Activates and de-activates the super lock system.
TIME CONTROL UNIT
Description
EL-326

Page 2058 of 3051

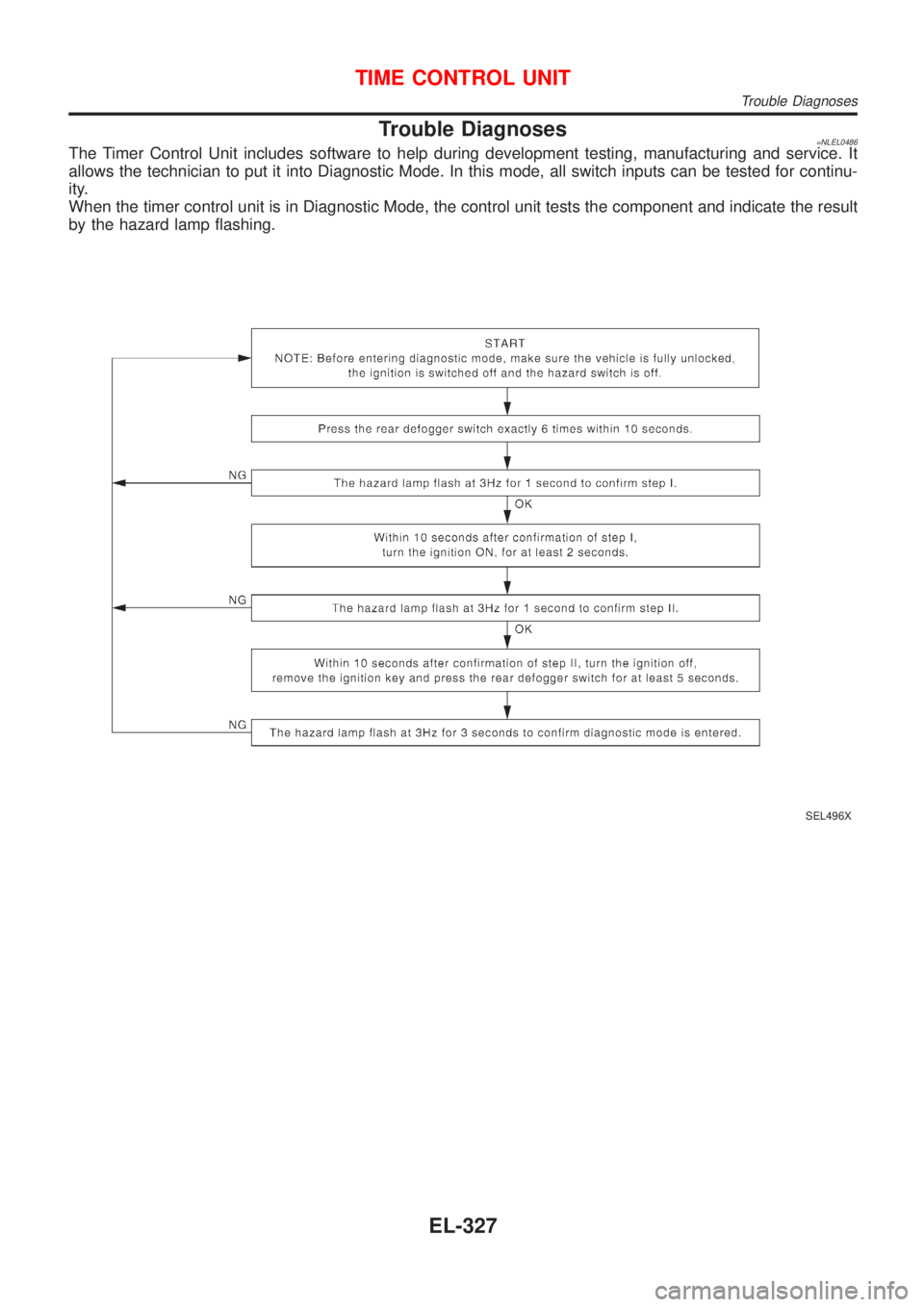

NISSAN ALMERA TINO 2001 Service Repair Manual Trouble Diagnoses=NLEL0486The Timer Control Unit includes software to help during development testing, manufacturing and service. It
allows the technician to put it into Diagnostic Mode. In this mode,

Page 2059 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual CHECKS=NLEL0486S15Once in Diagnostic Mode, the following inputs can be tested.
USER ACTION TCU Reaction COMPONENT TESTED
Drivers door opened from closed (all
other doors closed)Hazards flash once Dri

Page 2060 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual NOTE:
TIME CONTROL UNIT
Trouble Diagnoses (Contd)
EL-329

Page 2061 of 3051

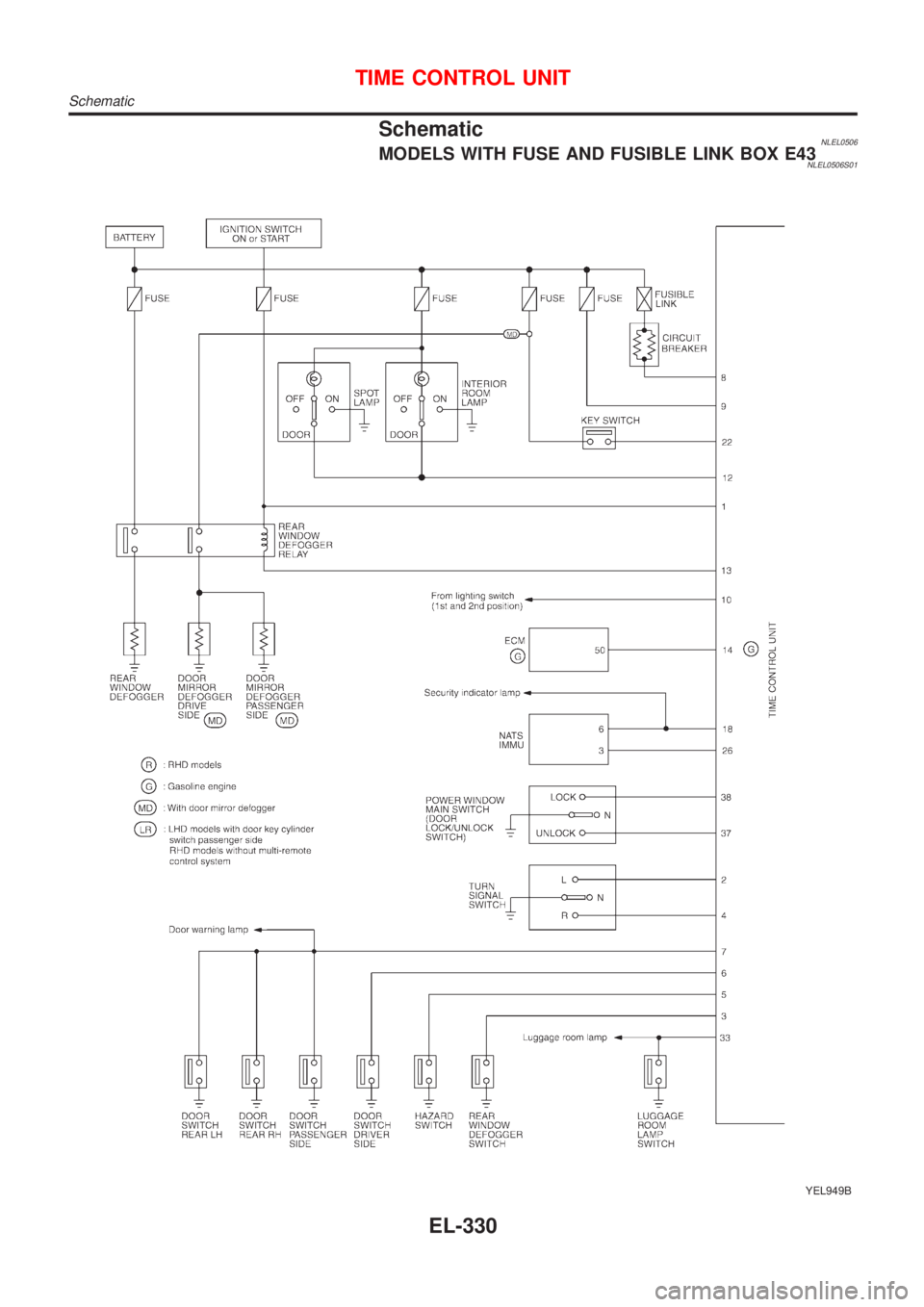

NISSAN ALMERA TINO 2001 Service Repair Manual SchematicNLEL0506MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0506S01
YEL949B
TIME CONTROL UNIT
Schematic
EL-330

Page 2062 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL950B
TIME CONTROL UNIT
Schematic (Contd)
EL-331

Page 2063 of 3051

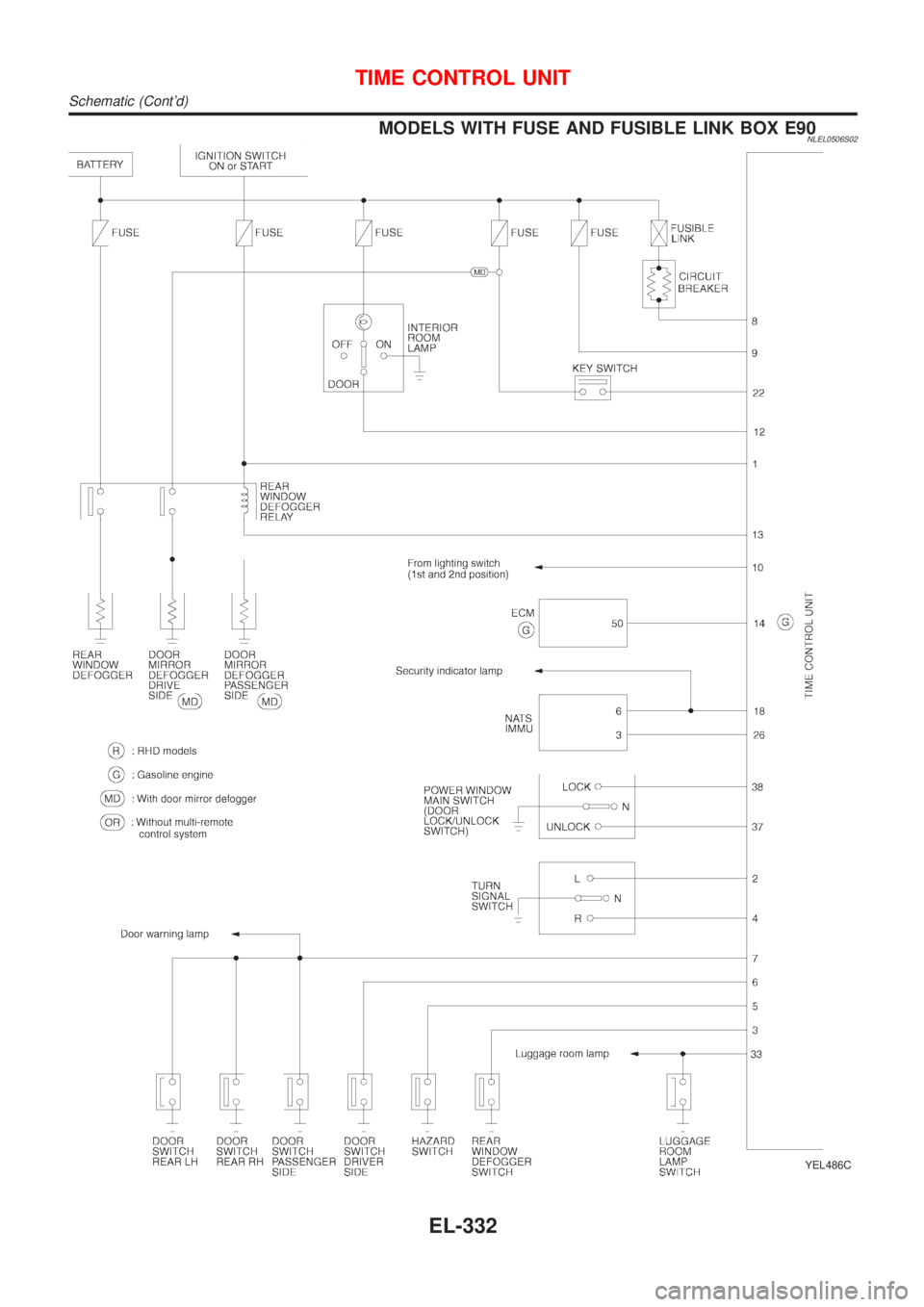

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0506S02
YEL486C
TIME CONTROL UNIT
Schematic (Contd)
EL-332

Page 2064 of 3051

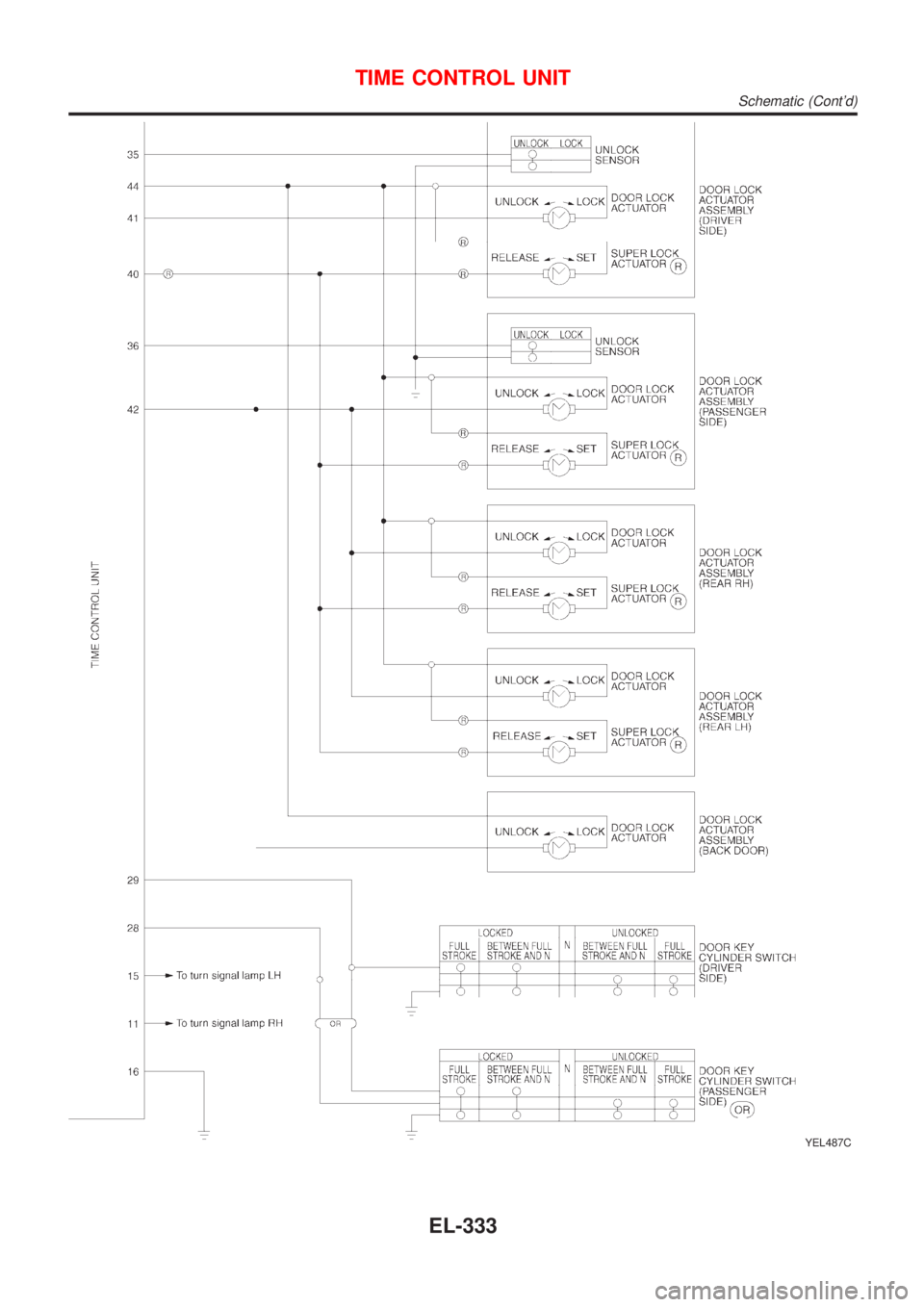

NISSAN ALMERA TINO 2001 Service Repair Manual YEL487C
TIME CONTROL UNIT
Schematic (Contd)
EL-333
