Page 1089 of 3051
![NISSAN ALMERA TINO 2001 Service Repair Manual TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
72 PUEGR temperature sen-
sor
(where fitted)[Engine is running]
+Warm-up condition
+Idle speedLess than 4.5V
[Engine is running]
+Warm-up condi NISSAN ALMERA TINO 2001 Service Repair Manual TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
72 PUEGR temperature sen-
sor
(where fitted)[Engine is running]
+Warm-up condition
+Idle speedLess than 4.5V
[Engine is running]
+Warm-up condi](/manual-img/5/57352/w960_57352-1088.png)

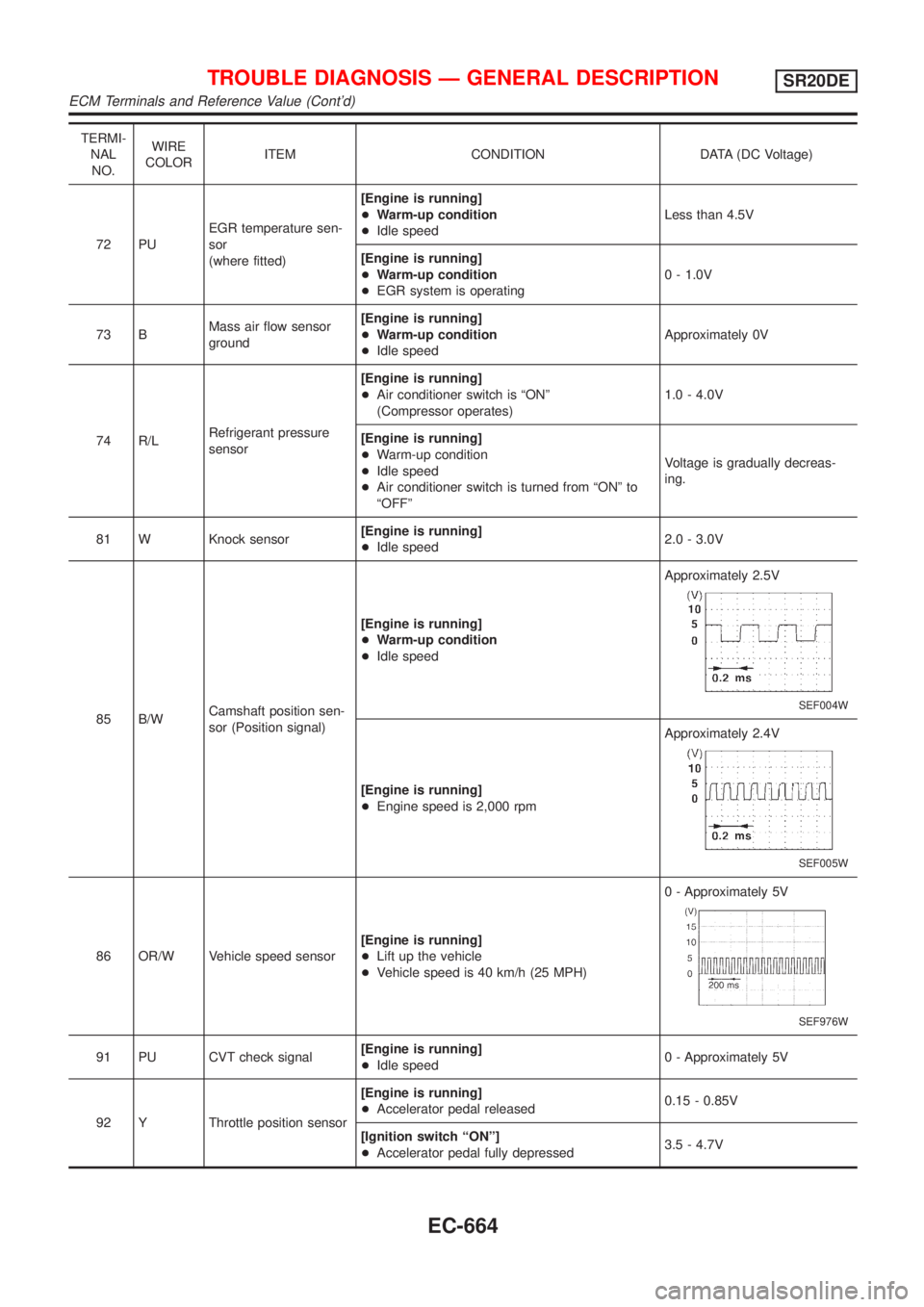

TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
72 PUEGR temperature sen-
sor
(where fitted)[Engine is running]
+Warm-up condition
+Idle speedLess than 4.5V
[Engine is running]
+Warm-up condition
+EGR system is operating0 - 1.0V
73 BMass air flow sensor
ground[Engine is running]
+Warm-up condition
+Idle speedApproximately 0V
74 R/LRefrigerant pressure
sensor[Engine is running]
+Air conditioner switch is ªONº
(Compressor operates)1.0 - 4.0V
[Engine is running]
+Warm-up condition
+Idle speed
+Air conditioner switch is turned from ªONº to
ªOFFºVoltage is gradually decreas-
ing.
81 W Knock sensor[Engine is running]
+Idle speed2.0 - 3.0V
85 B/WCamshaft position sen-
sor (Position signal)[Engine is running]
+Warm-up condition
+Idle speedApproximately 2.5V
SEF004W
[Engine is running]
+Engine speed is 2,000 rpmApproximately 2.4V
SEF005W
86 OR/W Vehicle speed sensor[Engine is running]
+Lift up the vehicle
+Vehicle speed is 40 km/h (25 MPH)0 - Approximately 5V
SEF976W
91 PU CVT check signal[Engine is running]
+Idle speed0 - Approximately 5V
92 Y Throttle position sensor[Engine is running]
+Accelerator pedal released0.15 - 0.85V
[Ignition switch ªONº]
+Accelerator pedal fully depressed3.5 - 4.7V
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONSR20DE
ECM Terminals and Reference Value (Cont'd)
EC-664
Page 1090 of 3051

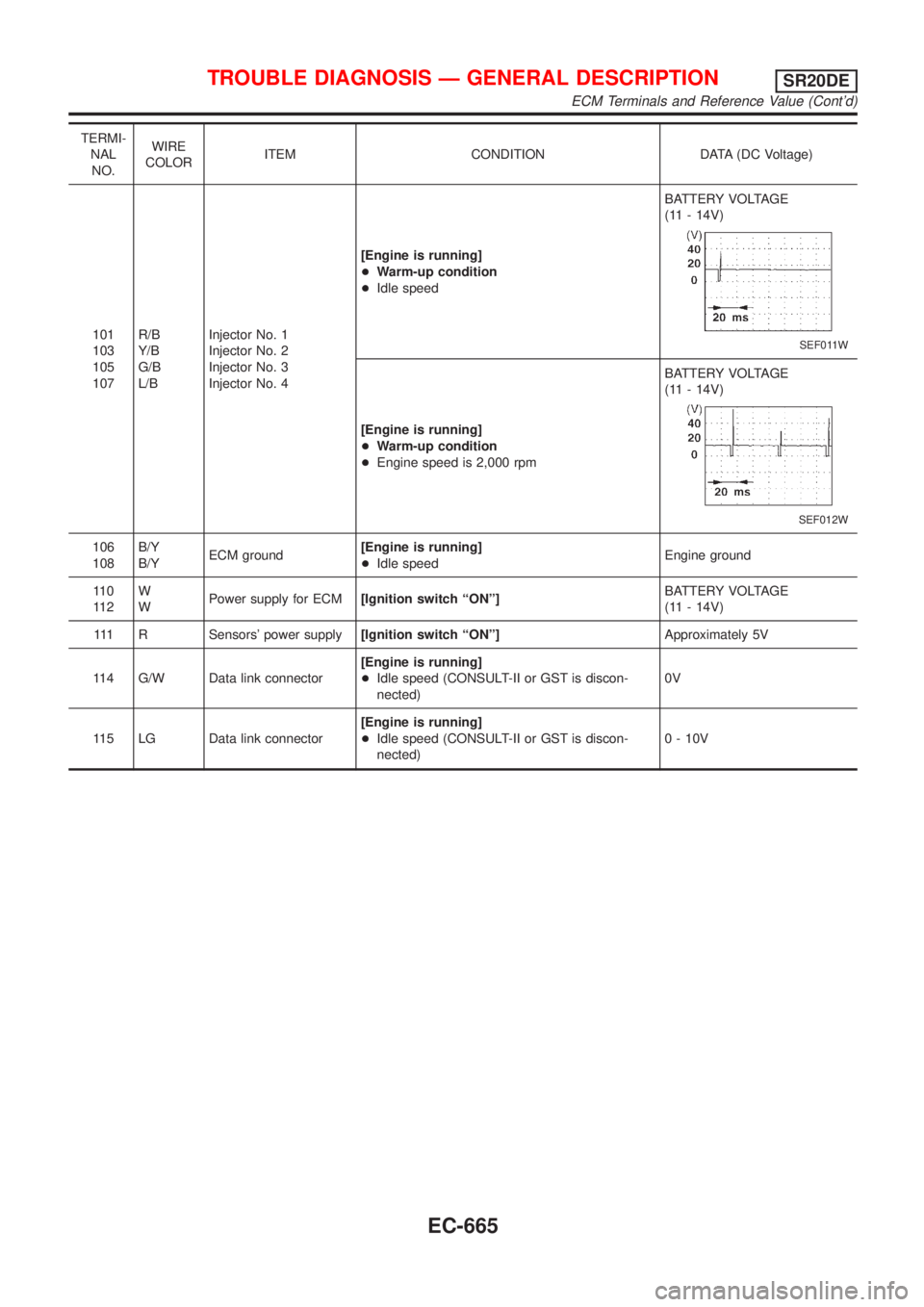

TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101
103
105
107R/B
Y/B
G/B
L/BInjector No. 1
Injector No. 2
Injector No. 3
Injector No. 4[Engine is running]
+Warm-up condition
+Idle speedBATTERY VOLTAGE
(11 - 14V)
SEF011W
[Engine is running]
+Warm-up condition
+Engine speed is 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
SEF012W
106
108B/Y
B/YECM ground[Engine is running]
+Idle speedEngine ground
11 0
11 2W
WPower supply for ECM[Ignition switch ªONº]BATTERY VOLTAGE
(11 - 14V)
111 R Sensors' power supply[Ignition switch ªONº]Approximately 5V
114 G/W Data link connector[Engine is running]
+Idle speed (CONSULT-II or GST is discon-
nected)0V
115 LG Data link connector[Engine is running]
+Idle speed (CONSULT-II or GST is discon-
nected)0 - 10V
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONSR20DE
ECM Terminals and Reference Value (Cont'd)
EC-665
Page 1091 of 3051

DescriptionNLEC1748The specification (SP) value indicates the tolerance of the value that is displayed in ªDATA MONITOR (SPEC)º
mode of CONSULT-II during normal operation of the Engine Control System. When the value in ªDATA MONI-
TOR (SPEC)º mode is within the SP value, the Engine Control System is confirmed OK. When the value in
ªDATA MONITOR (SPEC)º mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
+B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
+A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
+MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionNLEC1749+Vehicle driven distance: More than 5,000 km (3,107 miles)
+Barometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm2, 14.25 - 15.12 psi)
+Atmospheric temperature: 20 - 30ÉC (68 - 86ÉF)
+Engine coolant temperature: 75 - 95ÉC (167 - 203ÉF)
+Transmission: Warmed-up*1
+Electrical load: Not applied*2
+Engine speed: Idle
*1: For after the engine is warmed up to normal operating temperature, drive vehicle until ªFLUID TEMP SEº
(CVT fluid temperature sensor signal) indicates less than 0.9V.
*2: Rear window defogger switch, air conditioner switch, lighting switch are ªOFFº. Cooling fans are not oper-
ating. Steering wheel is straight ahead.
SEF601Z
Inspection ProcedureNLEC1750NOTE:
Perform ªDATA MONITOR (SPEC)º mode in maximum scale dis-
play.
1. Perform ªBasic Inspectionº, EC-623.
2. Confirm that the testing conditions indicated above are met.
3. Select ªB/FUEL SCHDLº, ªA/F ALPHA-B1º and ªMAS A/F
SE-B1º in ªDATA MONITOR (SPEC)º mode with CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to ªDiagnostic Procedureº, EC-667.
TROUBLE DIAGNOSIS Ð SPECIFICATION VALUESR20DE
Description
EC-666
Page 1092 of 3051

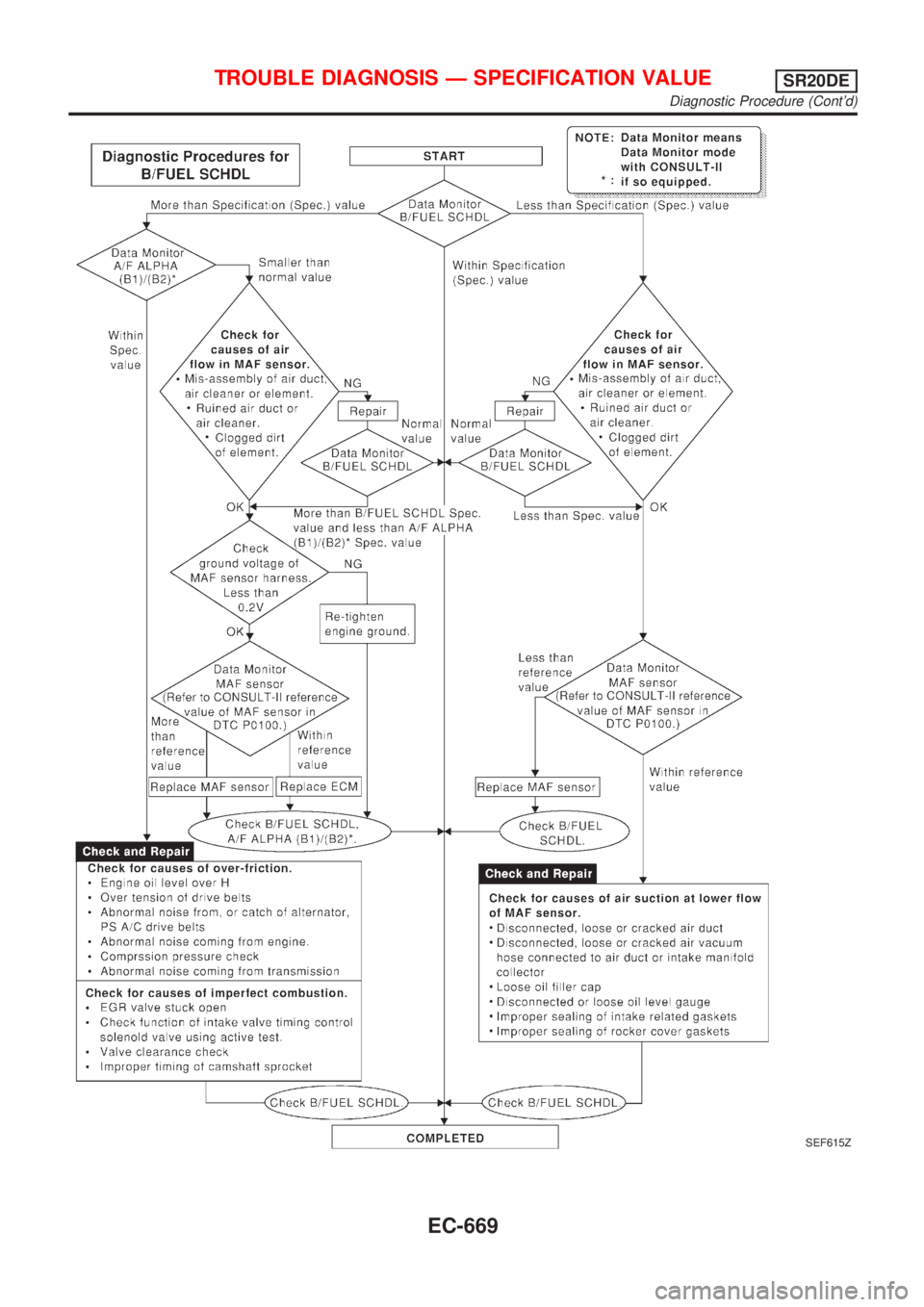

Diagnostic ProcedureNLEC1751
SEF613ZA
TROUBLE DIAGNOSIS Ð SPECIFICATION VALUESR20DE
Diagnostic Procedure
EC-667

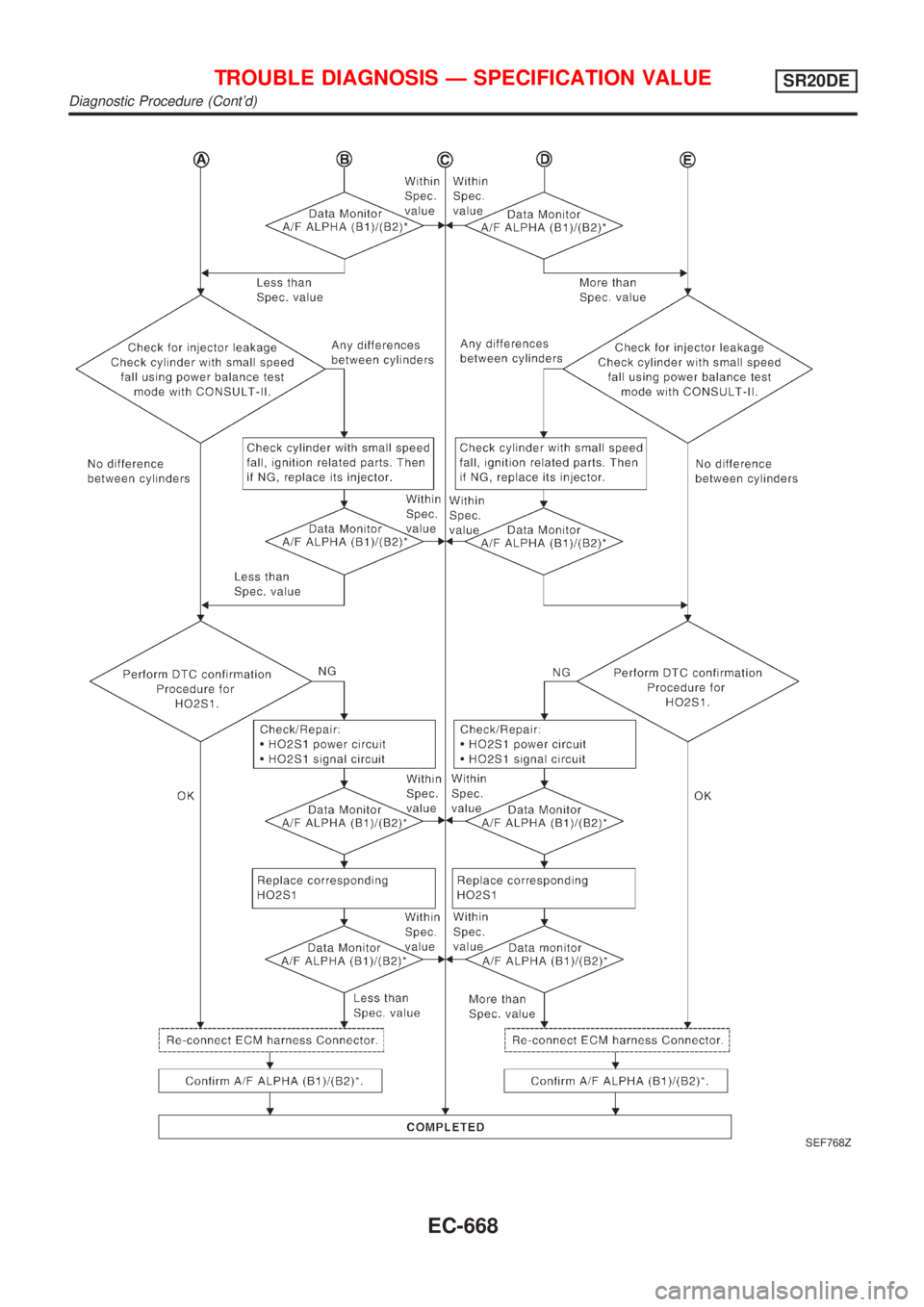

Page 1093 of 3051
SEF768Z
TROUBLE DIAGNOSIS Ð SPECIFICATION VALUESR20DE
Diagnostic Procedure (Cont'd)
EC-668
Page 1094 of 3051
SEF615Z
TROUBLE DIAGNOSIS Ð SPECIFICATION VALUESR20DE
Diagnostic Procedure (Cont'd)
EC-669
Page 1095 of 3051

DescriptionNLEC1376Intermittent incidents (I/I) may occur. In many cases, the problem resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the custom-
er's complaint often do not recur on DTC (1st trip) visits. Realize also that the most frequent cause of I/I
occurrences is poor electrical connections. Because of this, the conditions under which the incident occurred
may not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indi-
cate the specific problem area.
COMMON I/I REPORT SITUATIONSNLEC1376S01
STEP in Work Flow Situation
IIThe CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than ª0º or
ª1tº.
III The symptom described by the customer does not recur.
IV (1st trip) DTC data does not appear during the DTC Confirmation Procedure.
VI The Diagnostic Procedure for PXXXX does not indicate the problem area.
Diagnostic ProcedureNLEC1377
1 INSPECTION START
Erase (1st trip) DTCs. Refer to ªHow to Erase Emission-related Diagnostic Informationº, EC-594, EC-596.
©GO TO 2.
2 CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection. Refer to GI-27, ªGROUND INSPECTIONº.
OK or NG
OK©GO TO 3.
NG©Repair or replace.
3 SEARCH FOR ELECTRICAL INCIDENT
Perform GI-22, ªIncident Simulation Testsº.
OK or NG
OK©INSPECTION END
NG©Repair or replace.
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTSR20DE
Description
EC-670
Page 1096 of 3051

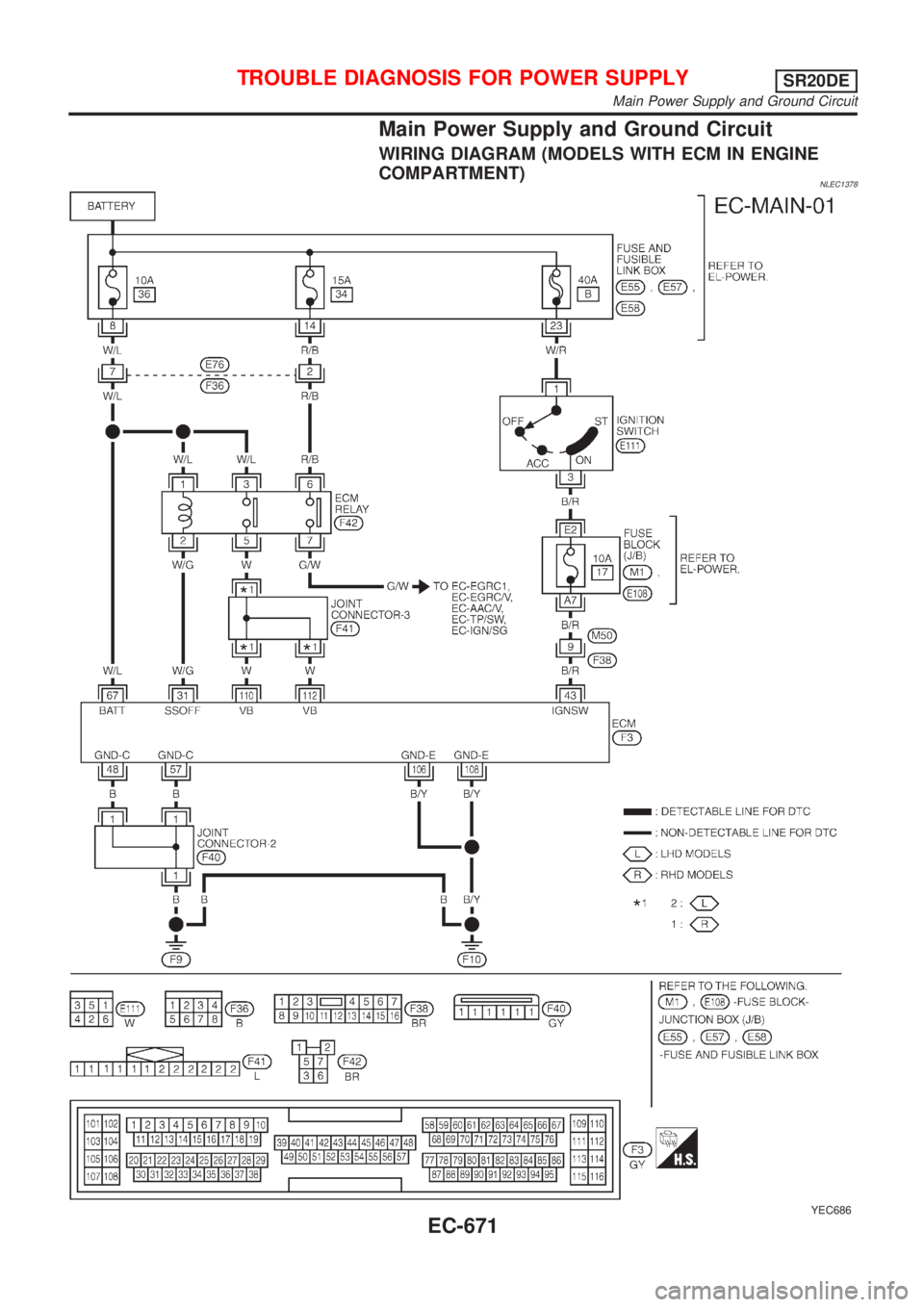

Main Power Supply and Ground Circuit
WIRING DIAGRAM (MODELS WITH ECM IN ENGINE
COMPARTMENT)
NLEC1378
YEC686
TROUBLE DIAGNOSIS FOR POWER SUPPLYSR20DE
Main Power Supply and Ground Circuit
EC-671
