Page 633 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC0125S04 YEC877 DTC P0133 HEATED OXYGEN SENSOR 1 (FRONT) (RESPONSE MONITORING) QG18DE Wiring Diagram (Contd) EC-208

Page 634 of 3051

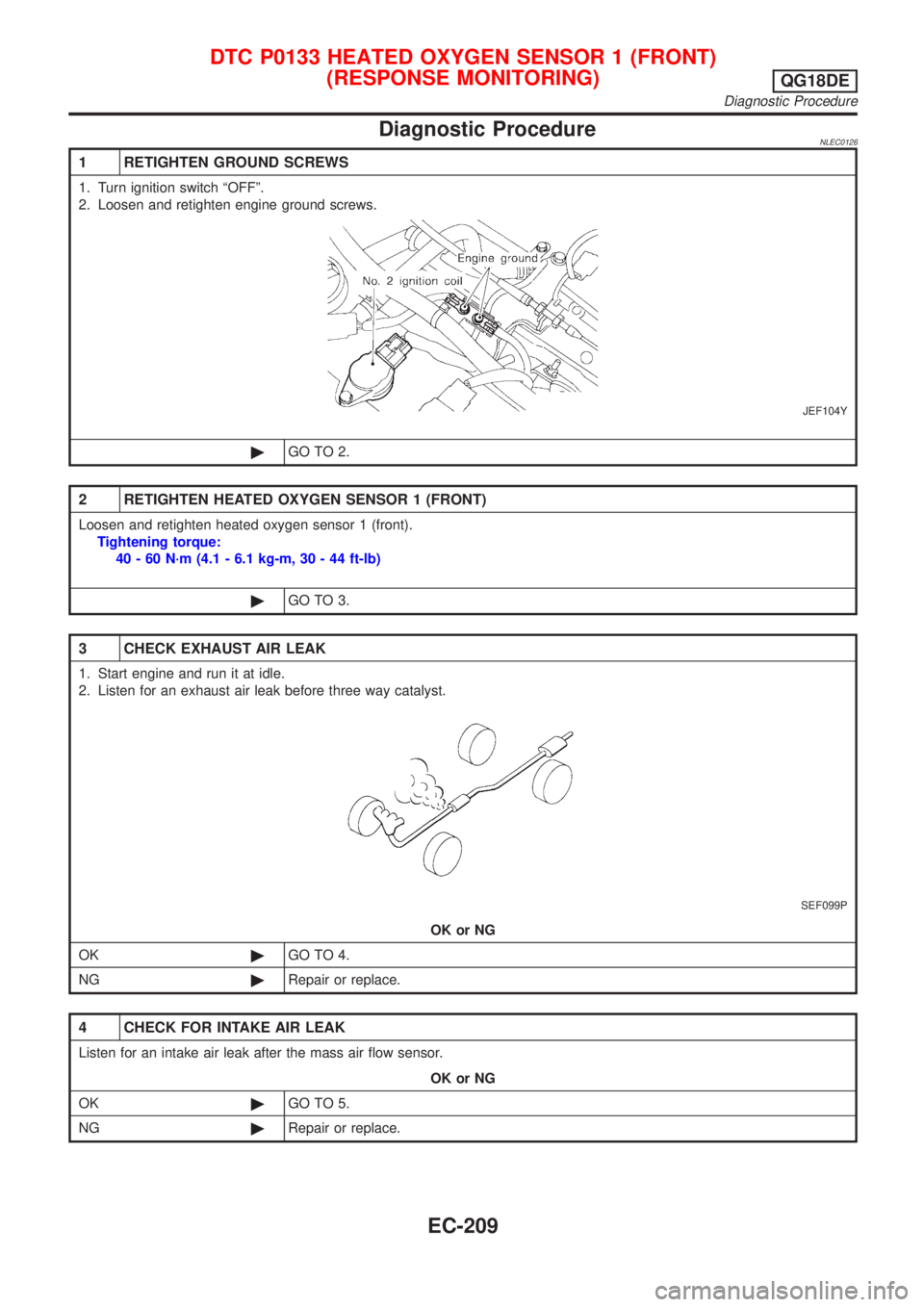

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0126 1 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. JEF104Y ©GO TO 2. 2 RETIGHTEN HEATED OXYGEN SENSOR 1 (FRONT) Loos

Page 635 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CLEAR THE SELF-LEARNING DATA With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Select ªSELF-LEARN CONTROLº in ªWORK SUPPORTº mode with CONSULT-II. 3. Clear the s

Page 636 of 3051

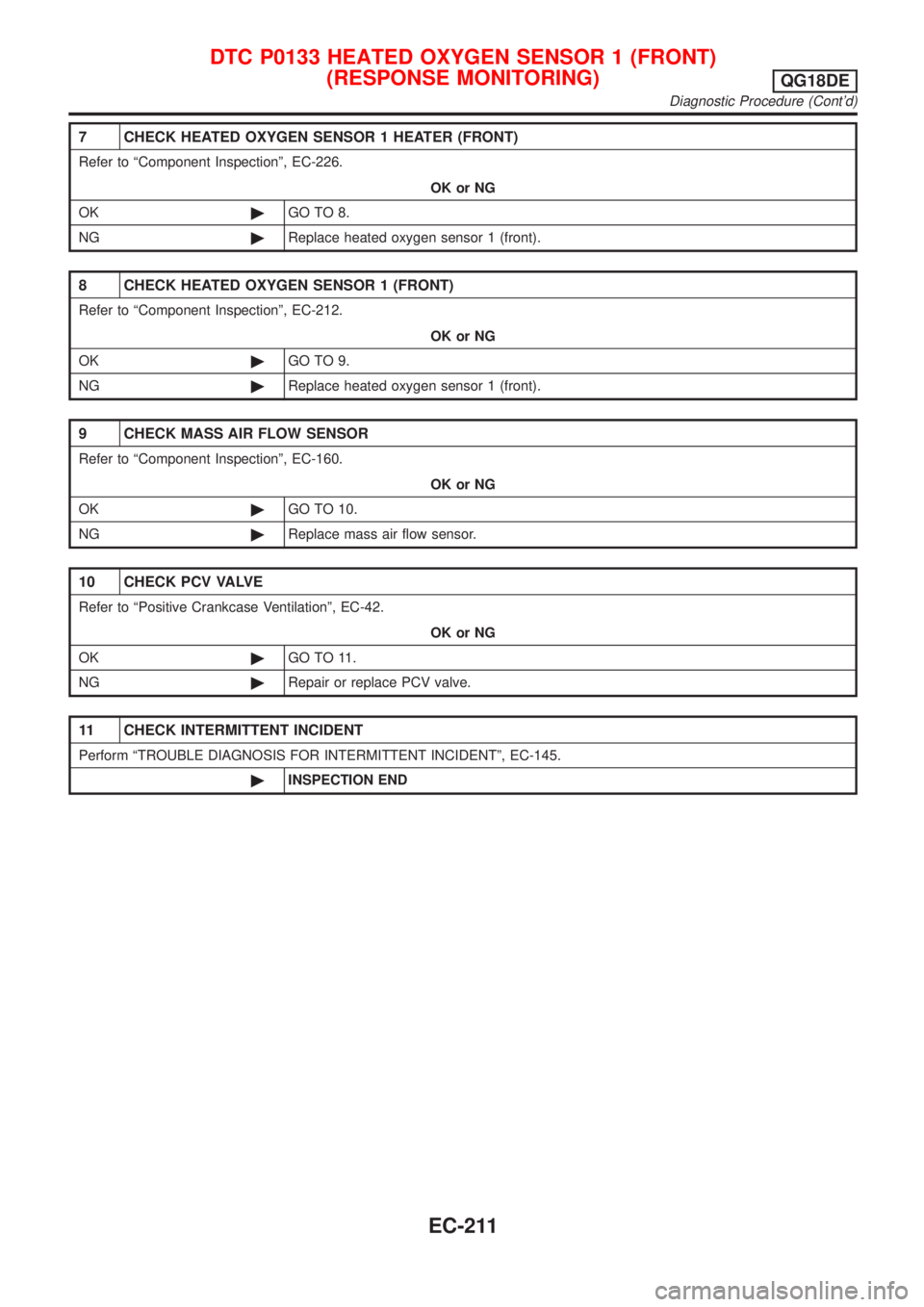

NISSAN ALMERA TINO 2001 Service Repair Manual 7 CHECK HEATED OXYGEN SENSOR 1 HEATER (FRONT) Refer to ªComponent Inspectionº, EC-226. OK or NG OK©GO TO 8. NG©Replace heated oxygen sensor 1 (front). 8 CHECK HEATED OXYGEN SENSOR 1 (FRONT) Refer

Page 637 of 3051

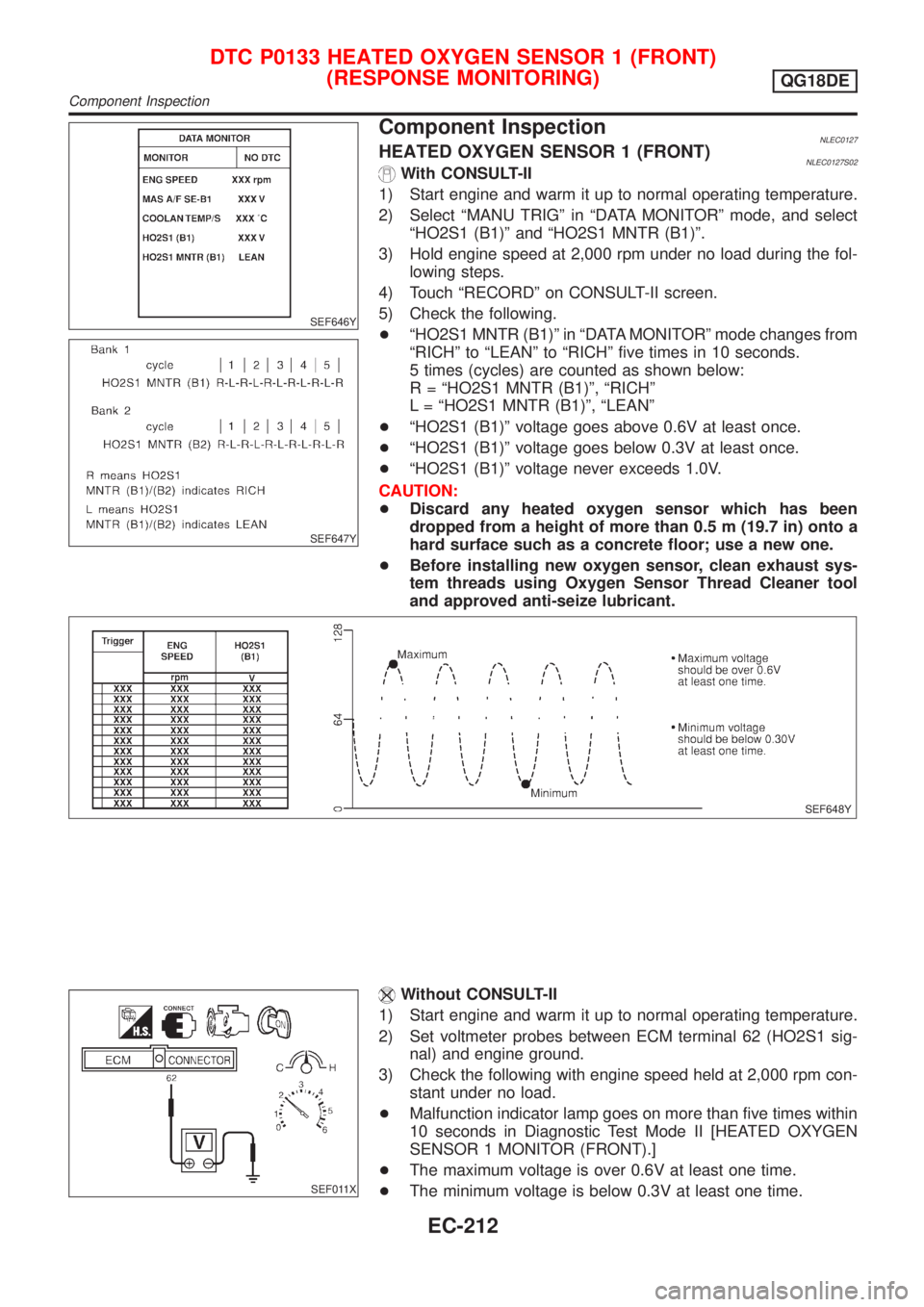

NISSAN ALMERA TINO 2001 Service Repair Manual SEF646Y SEF647Y Component InspectionNLEC0127HEATED OXYGEN SENSOR 1 (FRONT)NLEC0127S02With CONSULT-II 1) Start engine and warm it up to normal operating temperature. 2) Select ªMANU TRIGº in ªDATA M

Page 638 of 3051

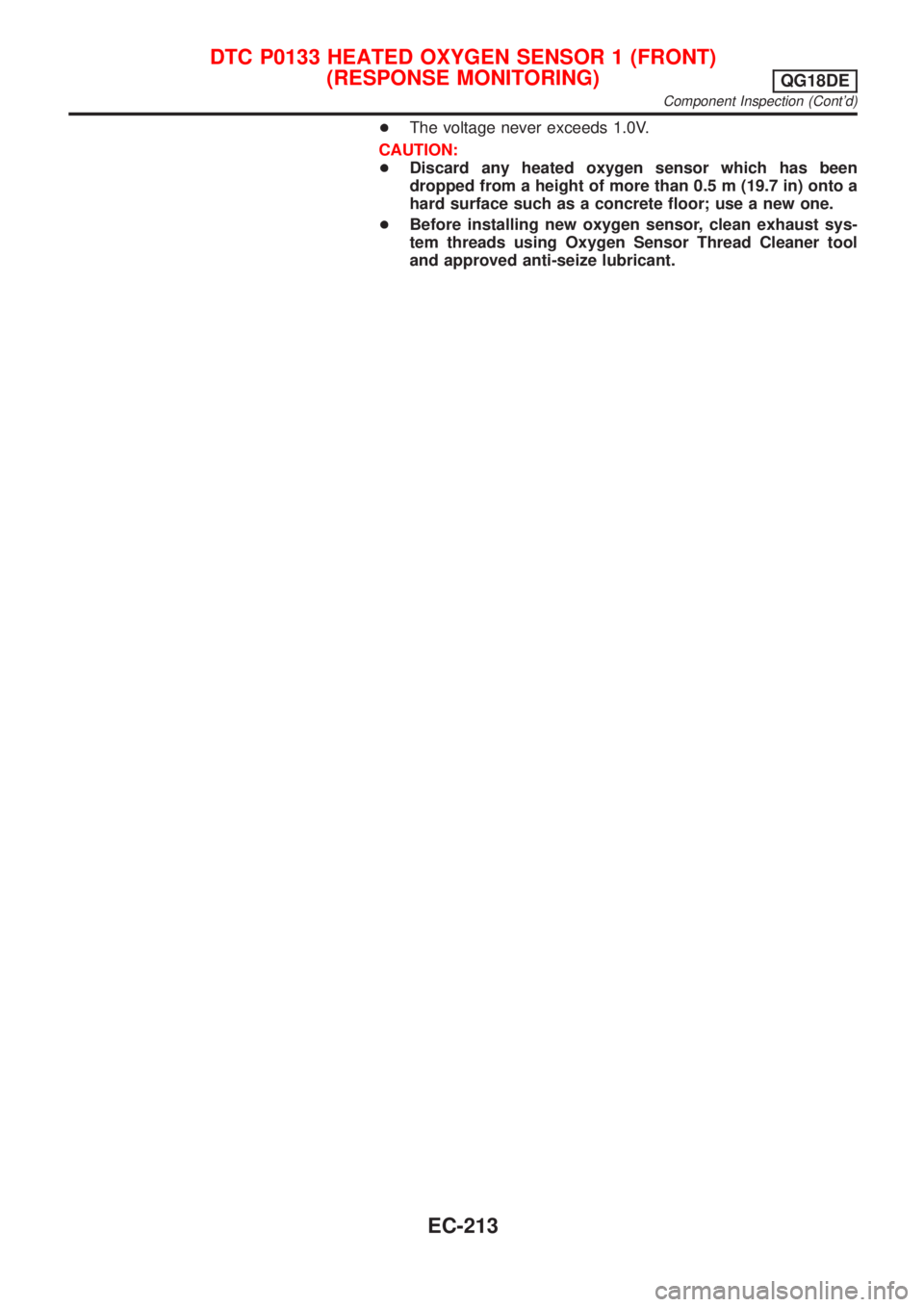

NISSAN ALMERA TINO 2001 Service Repair Manual +The voltage never exceeds 1.0V. CAUTION: +Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new on

Page 639 of 3051

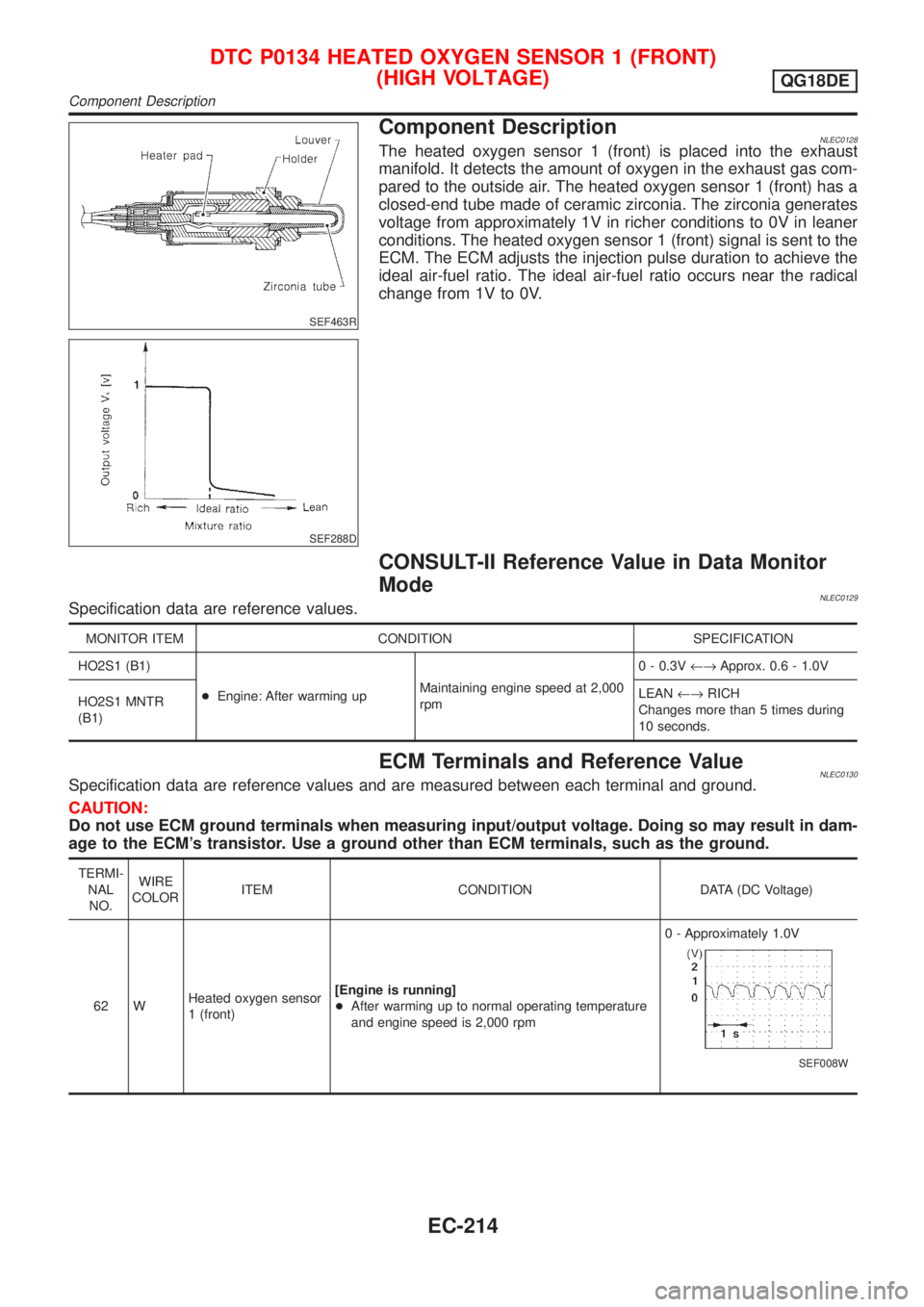

NISSAN ALMERA TINO 2001 Service Repair Manual SEF463R SEF288D Component DescriptionNLEC0128The heated oxygen sensor 1 (front) is placed into the exhaust manifold. It detects the amount of oxygen in the exhaust gas com- pared to the outside air. T

Page 640 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF301U On Board Diagnosis LogicNLEC0131To judge the malfunction, the diagnosis checks that the heated oxygen sensor 1 (front) output is not inordinately high. DTC No. Malfunction is detected when ...
