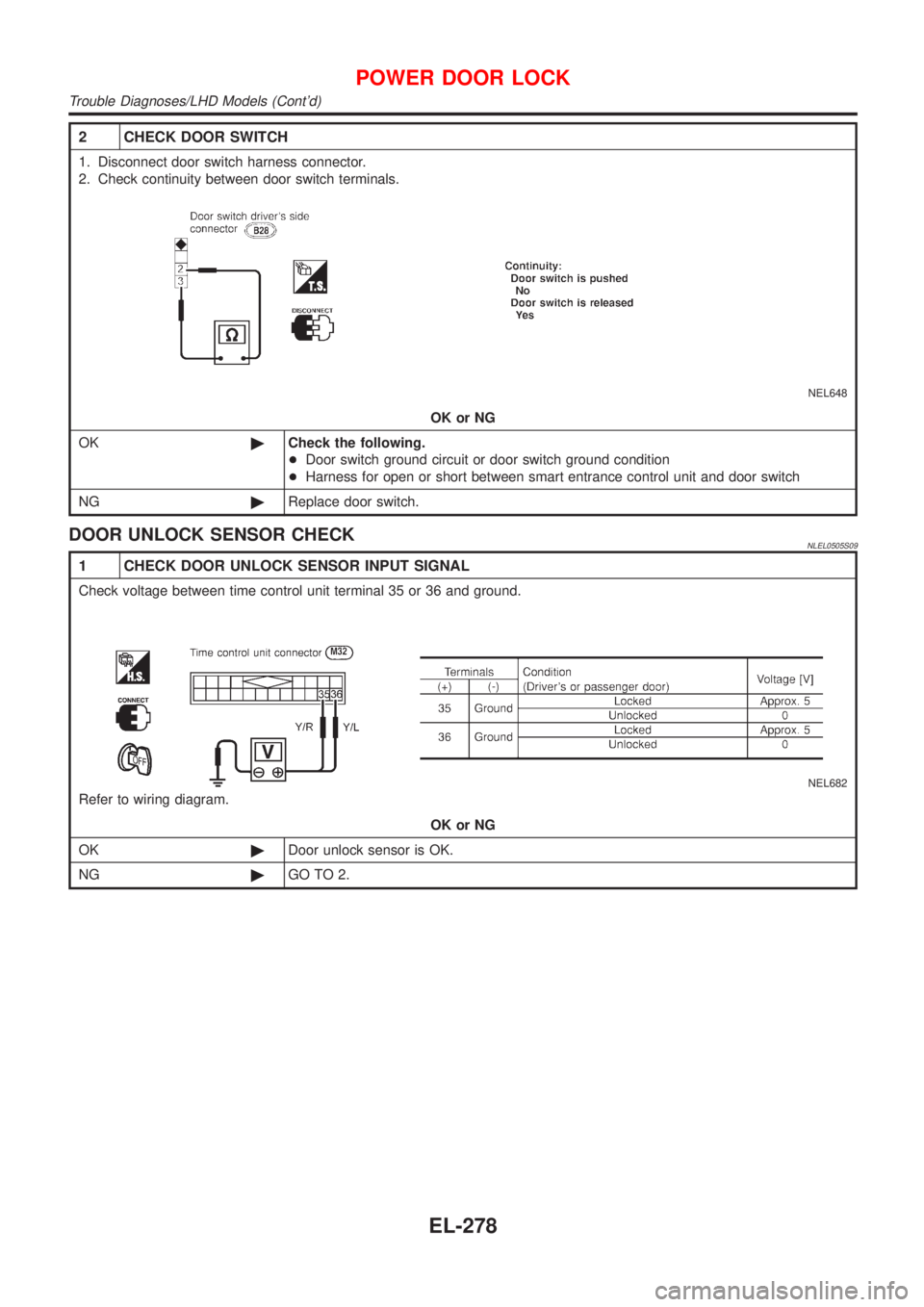

NISSAN ALMERA TINO 2001 Service Repair Manual 2 CHECK DOOR SWITCH
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminals.
NEL648
OK or NG
OK©Check the following.
+Door switch ground circuit or door switch

Page 2010 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 2 CHECK DOOR UNLOCK SENSOR
1. Disconnect door unlock sensor connector.
2. Check continuity between door unlock sensor terminals 2 and 4.
NEL683
OK or NG
OK©Check the following.
+Door unlock sensor gr

Page 2011 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 2 CHECK KEY SWITCH (INSERT)
Check continuity between key switch terminals 1 and 2.
NEL787
OK or NG
OK©Check the following.
+10A fuse [No. 12, located in fuse block (J/B)]
+Harness for open or short b

Page 2012 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual System Description/RHD ModelsNLEL0395OUTLINENLEL0395S01Power door lock system with super lock and key reminder is controlled by time control unit. Super lock has a
higher anti-theft performance than c

System Description/RHD ModelsNLEL0395OUTLINENLEL0395S01Power door lock system with super lock and key reminder is controlled by time control unit. Super lock has a
higher anti-theft performance than conventional power door lock systems.
When super lock is in released condition, lock knob operation locks or unlocks door.
When super lock is in set condition, lock knob operation cannot lock nor unlock door.
SEL831U
OPERATIONNLEL0395S02Power door lock/unlock and super lock set/release operation by door key cylinder
+With the key inserted into front door key cylinder, turning it to LOCK will lock all doors and set super lock.
(Super lock will not be set while key is inserted in the ignition key cylinder.)
+With the key inserted into front door key cylinder, turning it to UNLOCK will unlock all doors and release
super lock.
Power door lock/unlock and super lock set/release operation by multi-remote controller (If equipped)
+Pressing multi-remote controller LOCK button will lock all doors and set super lock. (Super lock will not be
set while key is inserted in the ignition key cylinder.)
+Pressing multi-remote controller UNLOCK button once will unlock driver door and release super lock. Then,
if an unlock signal is sent from the remote controller again within 5 seconds, all other doors will be
unlocked.
Power door lock and super lock release operation (by NATS IMMU signal)
+When the super lock is set, turning the ignition key switch to ON will release the super lock. All doors will
unlock once, but then immediately lock again.
Power door lock/unlock operation by lock/unlock switch
+With lock/unlock switch on driver door trim setting to LOCK will lock all doors.
+With lock/unlock switch on driver door trim setting to UNLOCK will unlock all doors.
Lock/unlock switch operation cannot control super lock.
Key reminder system
+If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
POWER DOOR LOCK Ð SUPER LOCK Ð
System Description/RHD Models
EL-281

Page 2013 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual knob, key or multi-remote controller to ªLOCKº locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
System initialization
+System initialization i

Page 2014 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual NOTE:
POWER DOOR LOCK Ð SUPER LOCK Ð
System Description/RHD Models (Contd)
EL-283

Page 2015 of 3051

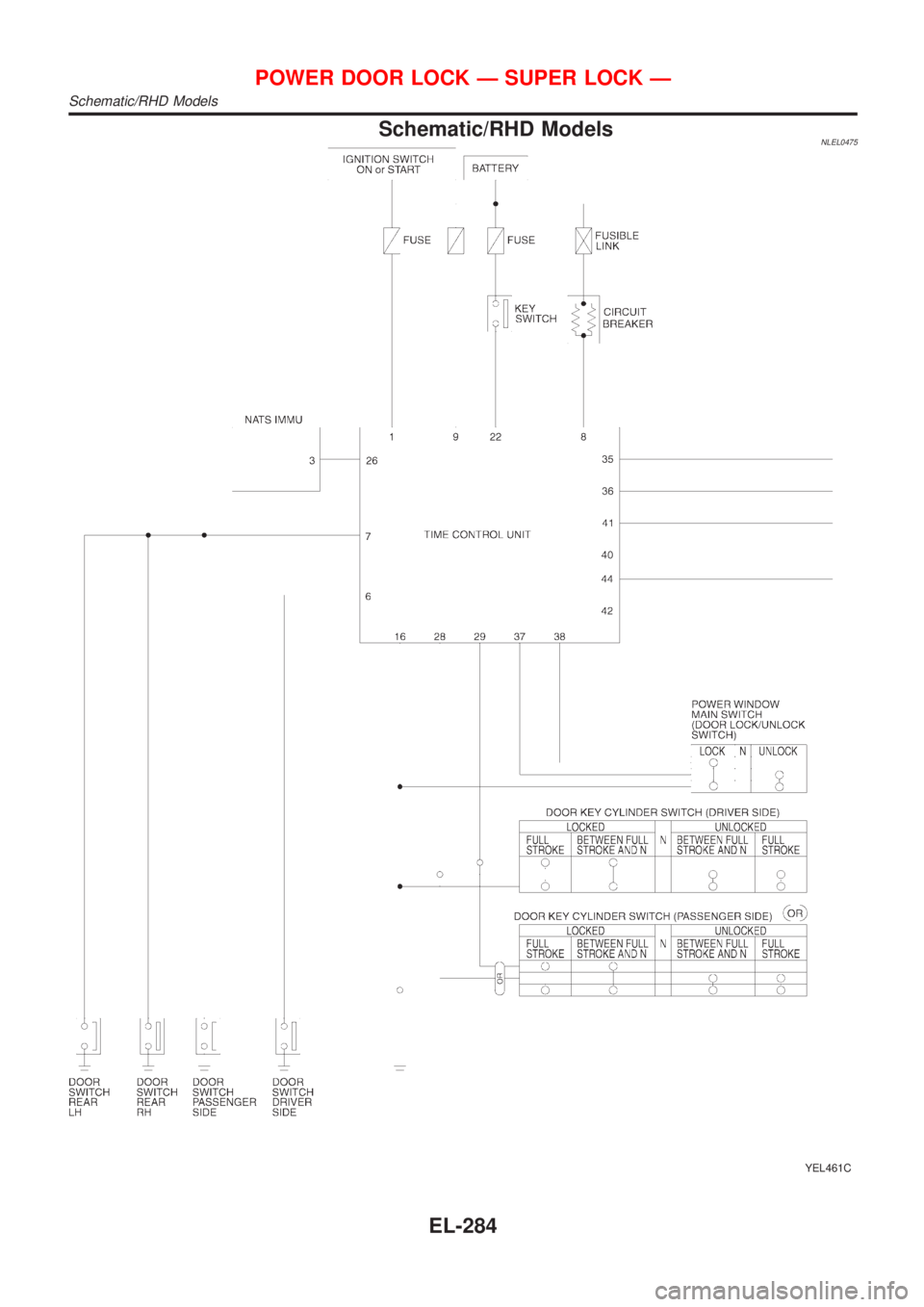

NISSAN ALMERA TINO 2001 Service Repair Manual Schematic/RHD ModelsNLEL0475
YEL461C
POWER DOOR LOCK Ð SUPER LOCK Ð
Schematic/RHD Models
EL-284

Page 2016 of 3051

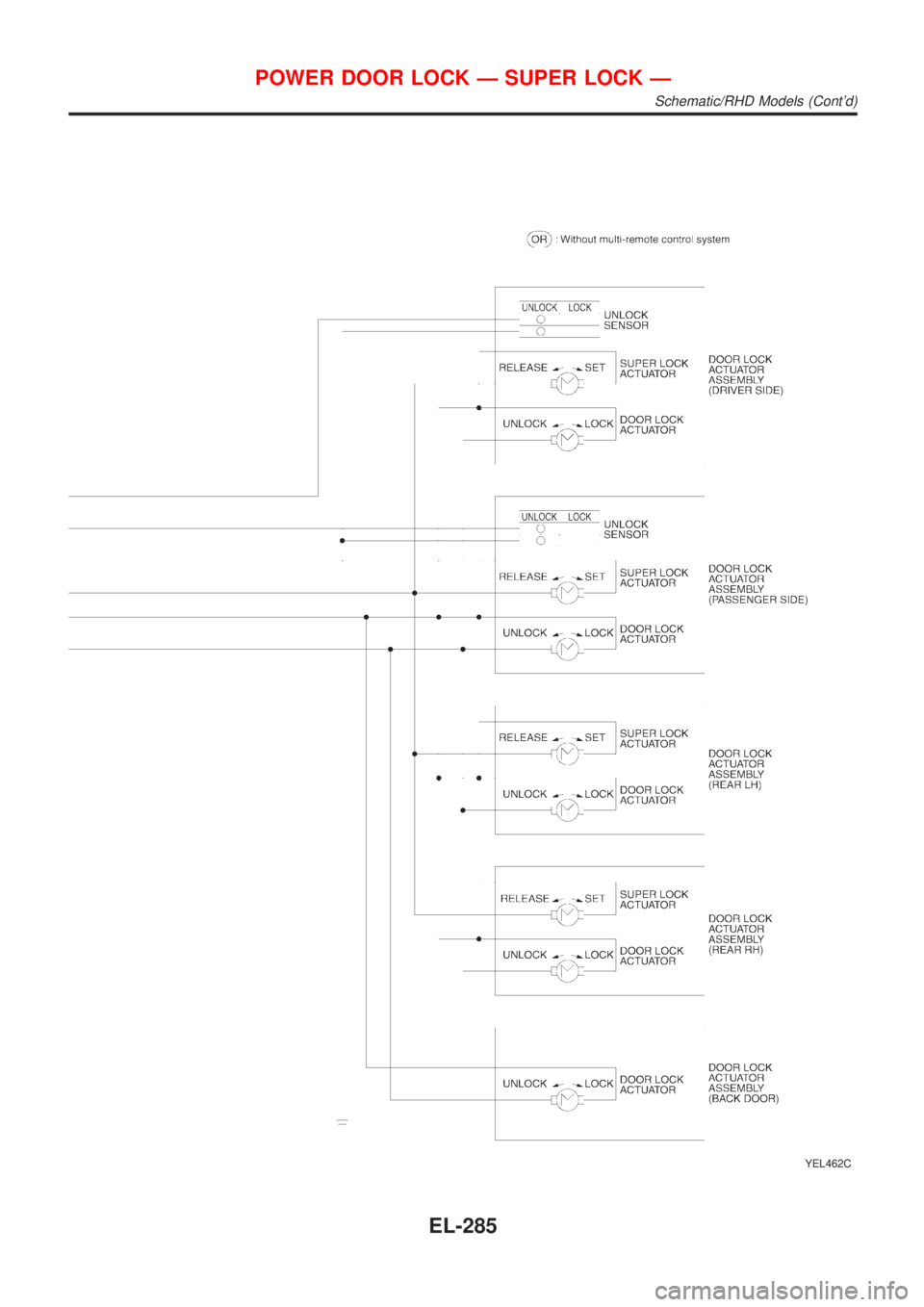

NISSAN ALMERA TINO 2001 Service Repair Manual YEL462C
POWER DOOR LOCK Ð SUPER LOCK Ð
Schematic/RHD Models (Contd)
EL-285
