NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC1220S04 YEC893 HEATED OXYGEN SENSOR 1 (FRONT)QG18DE Wiring Diagram (Contd) EC-416

Page 842 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1221 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 3. 2 CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine and warm it up to normal operating

Page 843 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. JEF104Y 3. Disconnect heated oxygen sensor 1 (front) harness connector. SEF012XA ©GO TO 5. 5 R

Page 844 of 3051

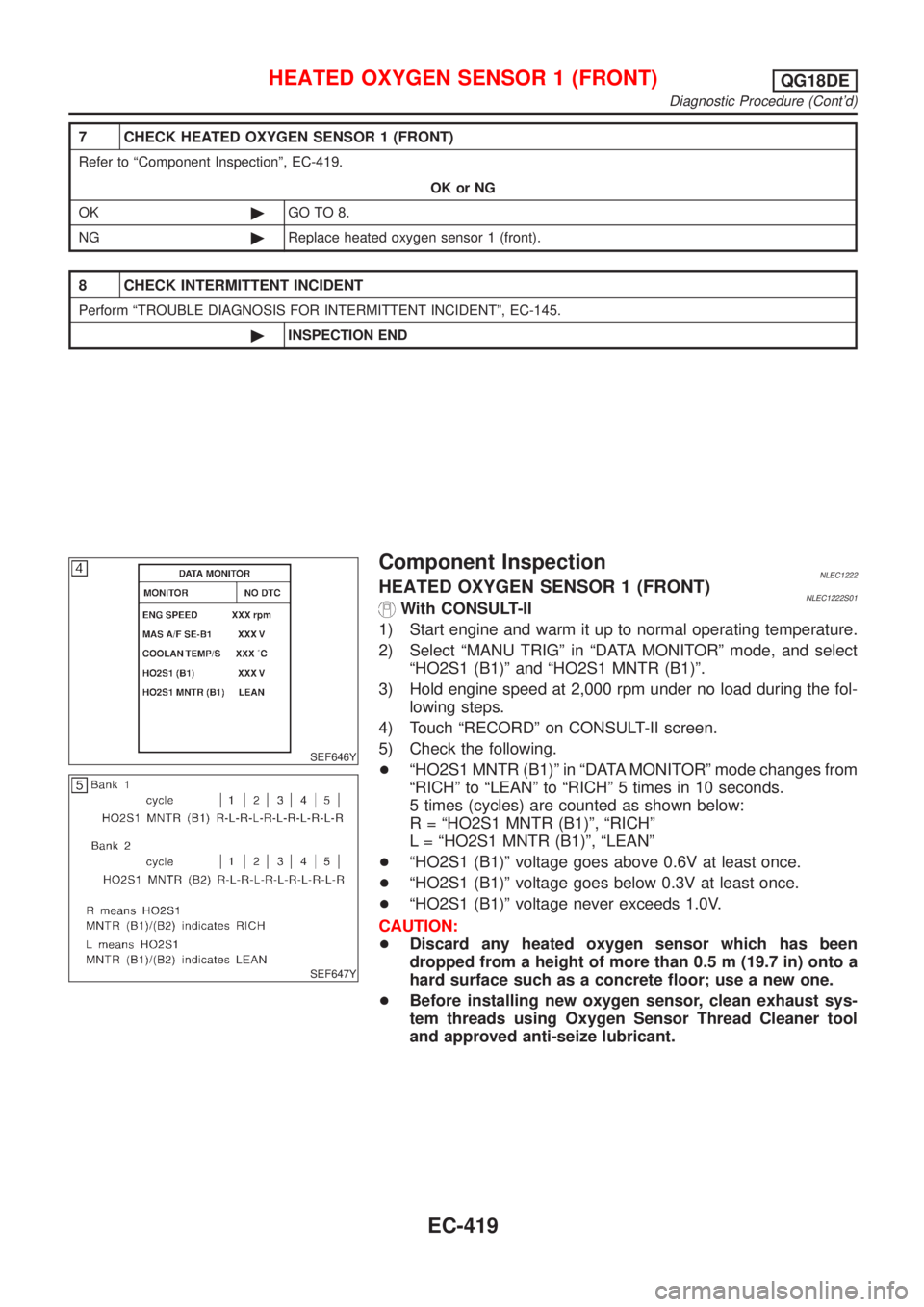

NISSAN ALMERA TINO 2001 Service Repair Manual 7 CHECK HEATED OXYGEN SENSOR 1 (FRONT) Refer to ªComponent Inspectionº, EC-419. OK or NG OK©GO TO 8. NG©Replace heated oxygen sensor 1 (front). 8 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAG

Page 845 of 3051

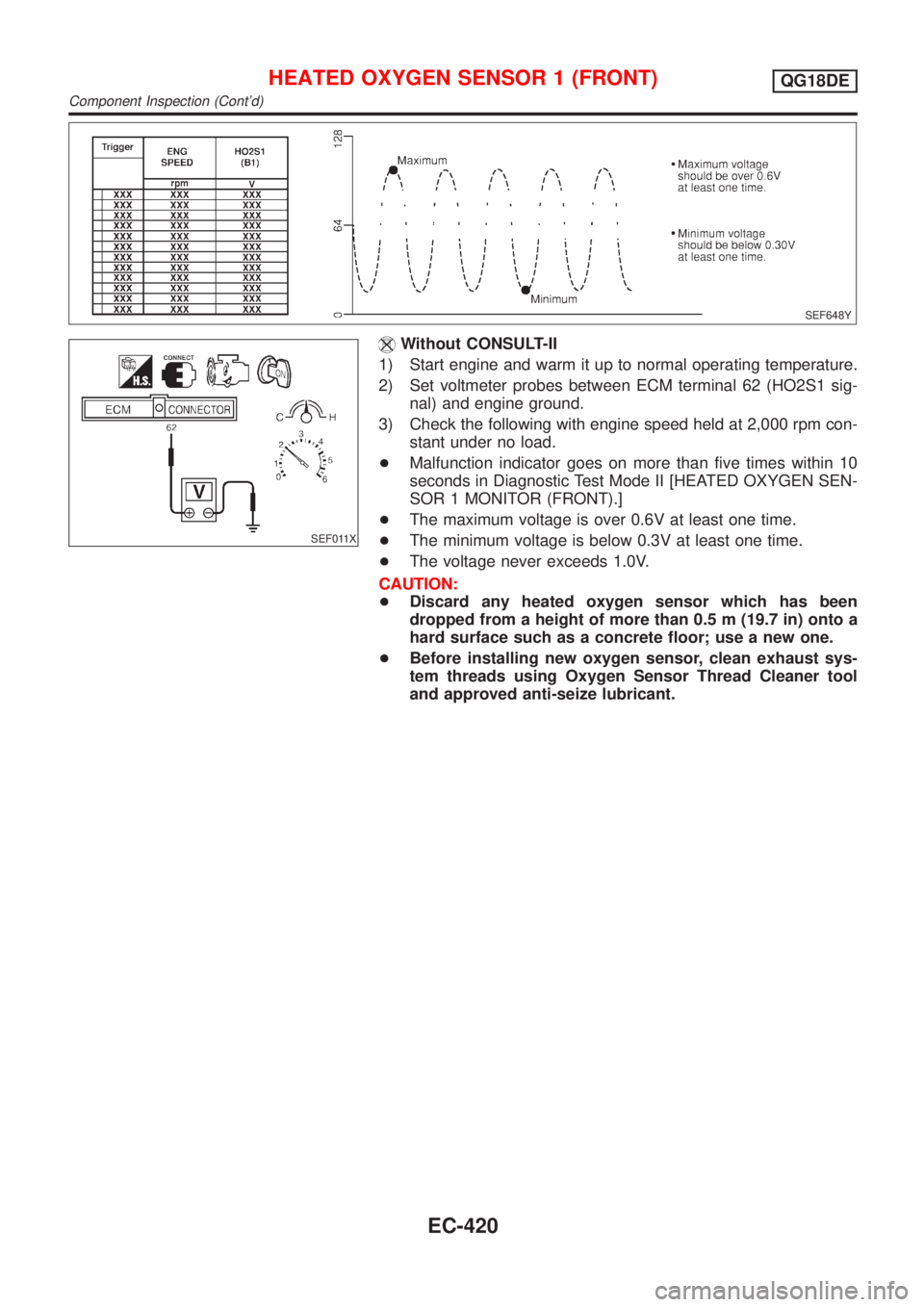

NISSAN ALMERA TINO 2001 Service Repair Manual SEF648Y SEF011X Without CONSULT-II 1) Start engine and warm it up to normal operating temperature. 2) Set voltmeter probes between ECM terminal 62 (HO2S1 sig- nal) and engine ground. 3) Check the foll

Page 846 of 3051

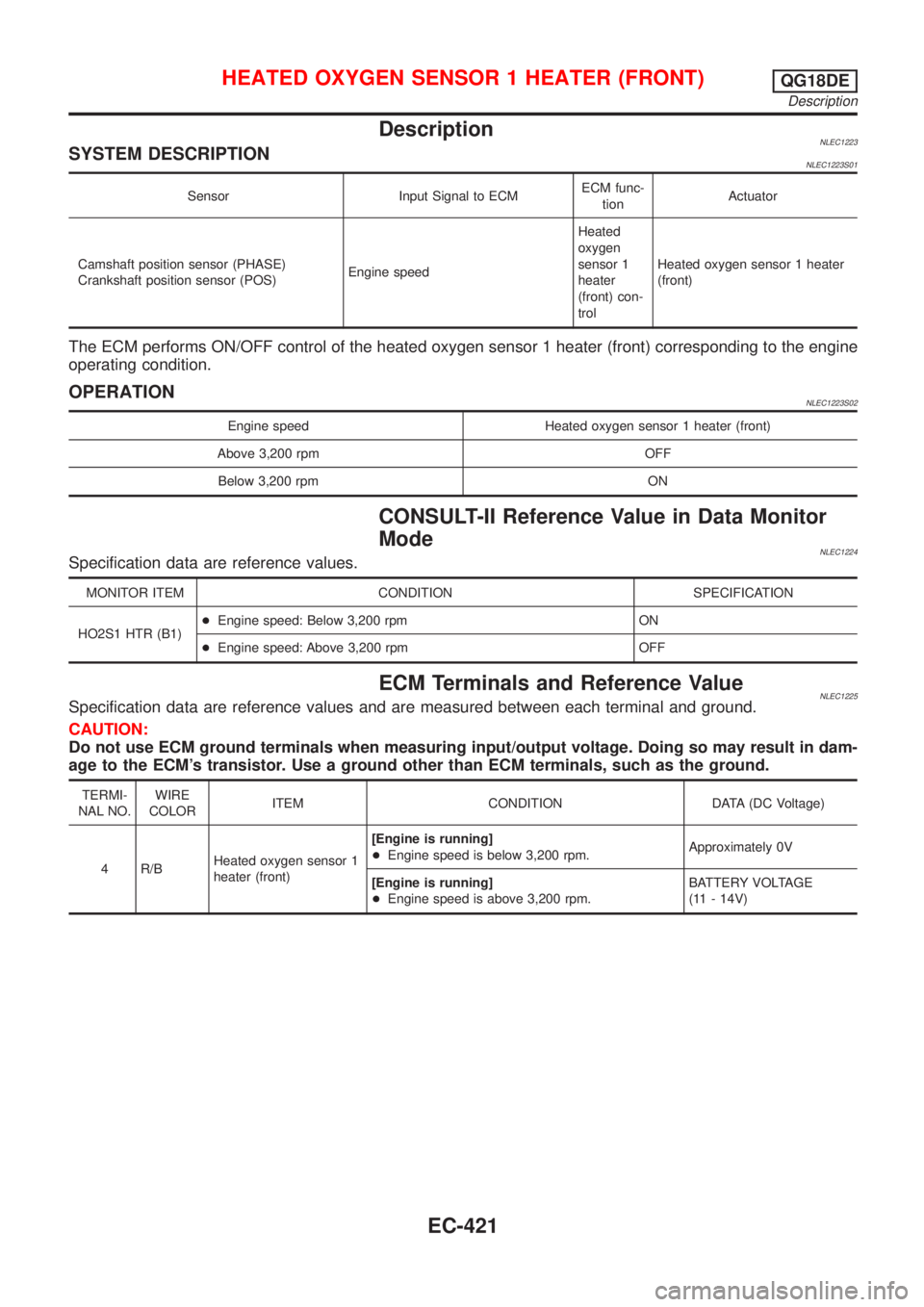

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLEC1223SYSTEM DESCRIPTIONNLEC1223S01 Sensor Input Signal to ECMECM func- tionActuator Camshaft position sensor (PHASE) Crankshaft position sensor (POS)Engine speedHeated oxygen sensor 1 he

Page 847 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC1228MODELS WITH ECM IN ENGINE COMPARTMENTNLEC1228S03 YEC677 HEATED OXYGEN SENSOR 1 HEATER (FRONT)QG18DE Wiring Diagram EC-422

Page 848 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC1228S04 YEC894 HEATED OXYGEN SENSOR 1 HEATER (FRONT)QG18DE Wiring Diagram (Contd) EC-423
