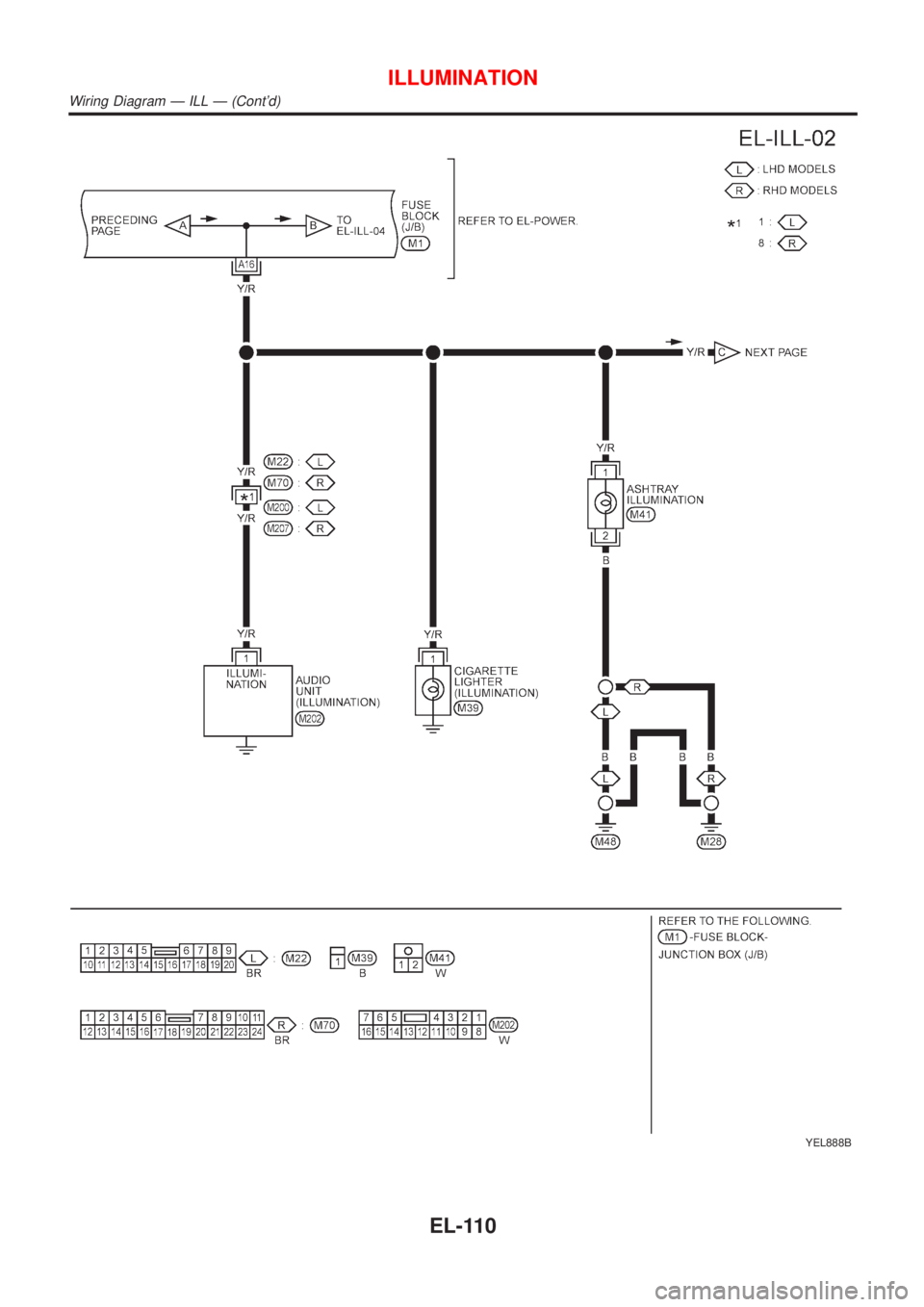

Page 1841 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL888B
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-110

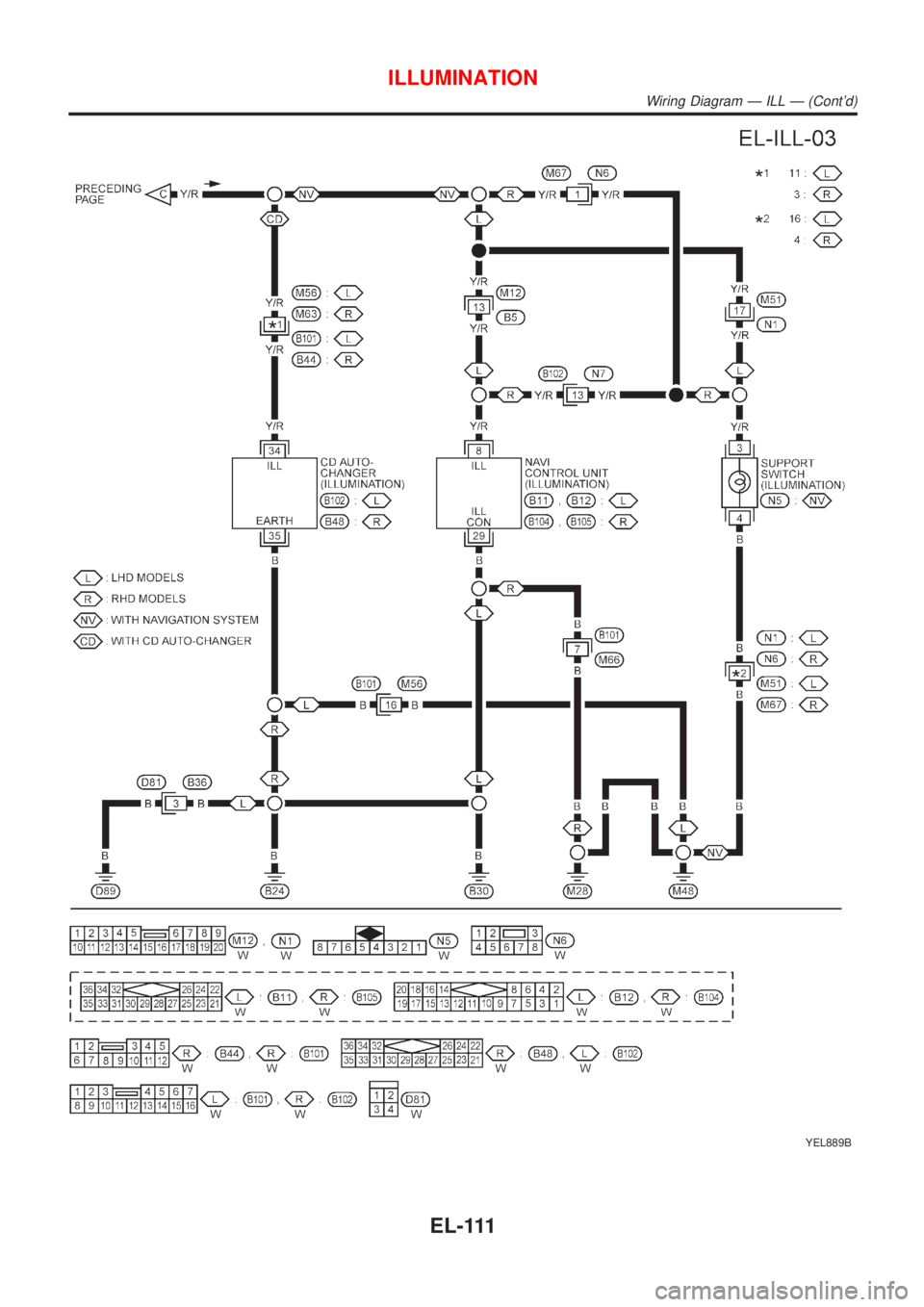

Page 1842 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL889B
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-111

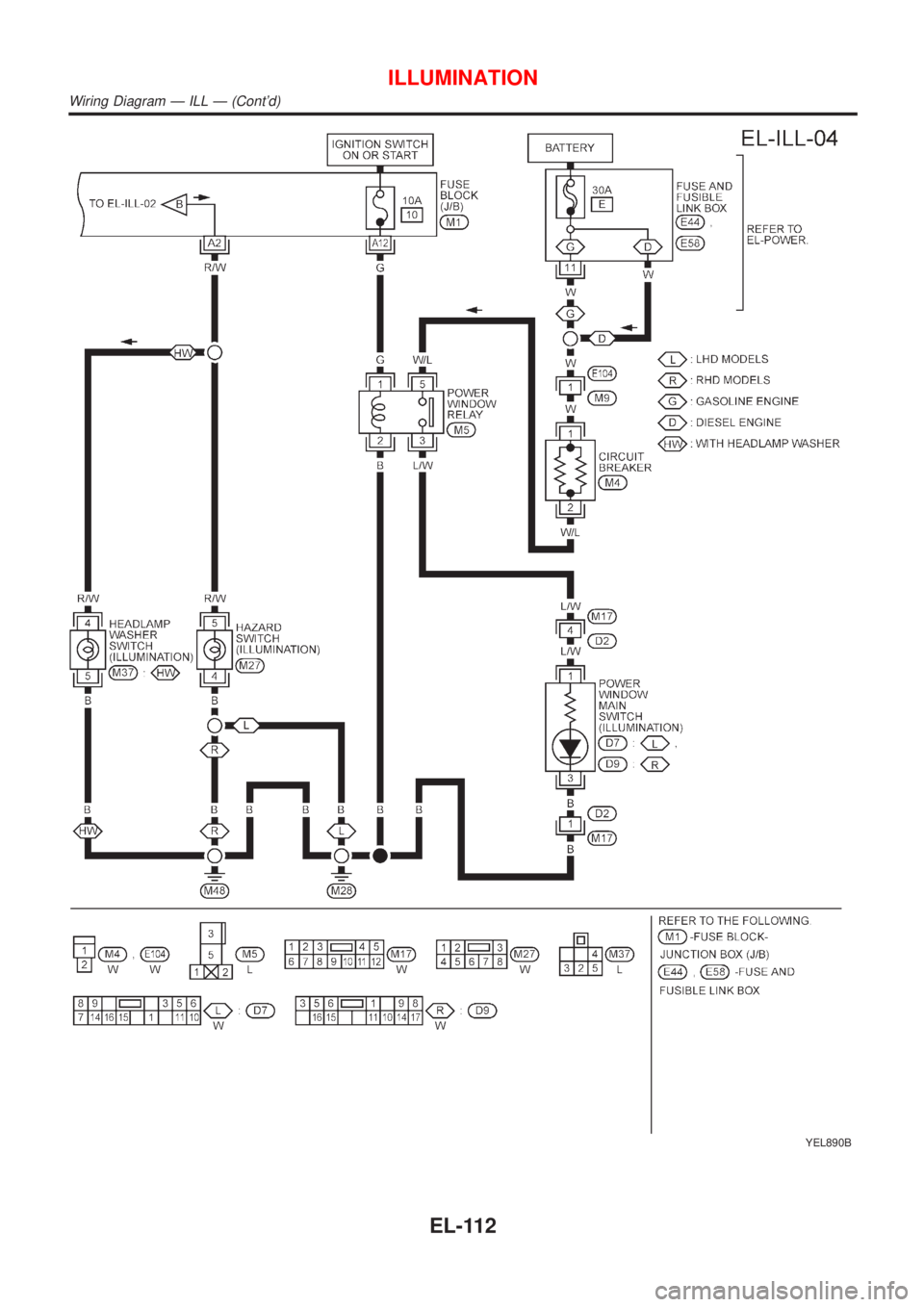

Page 1843 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL890B
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-112

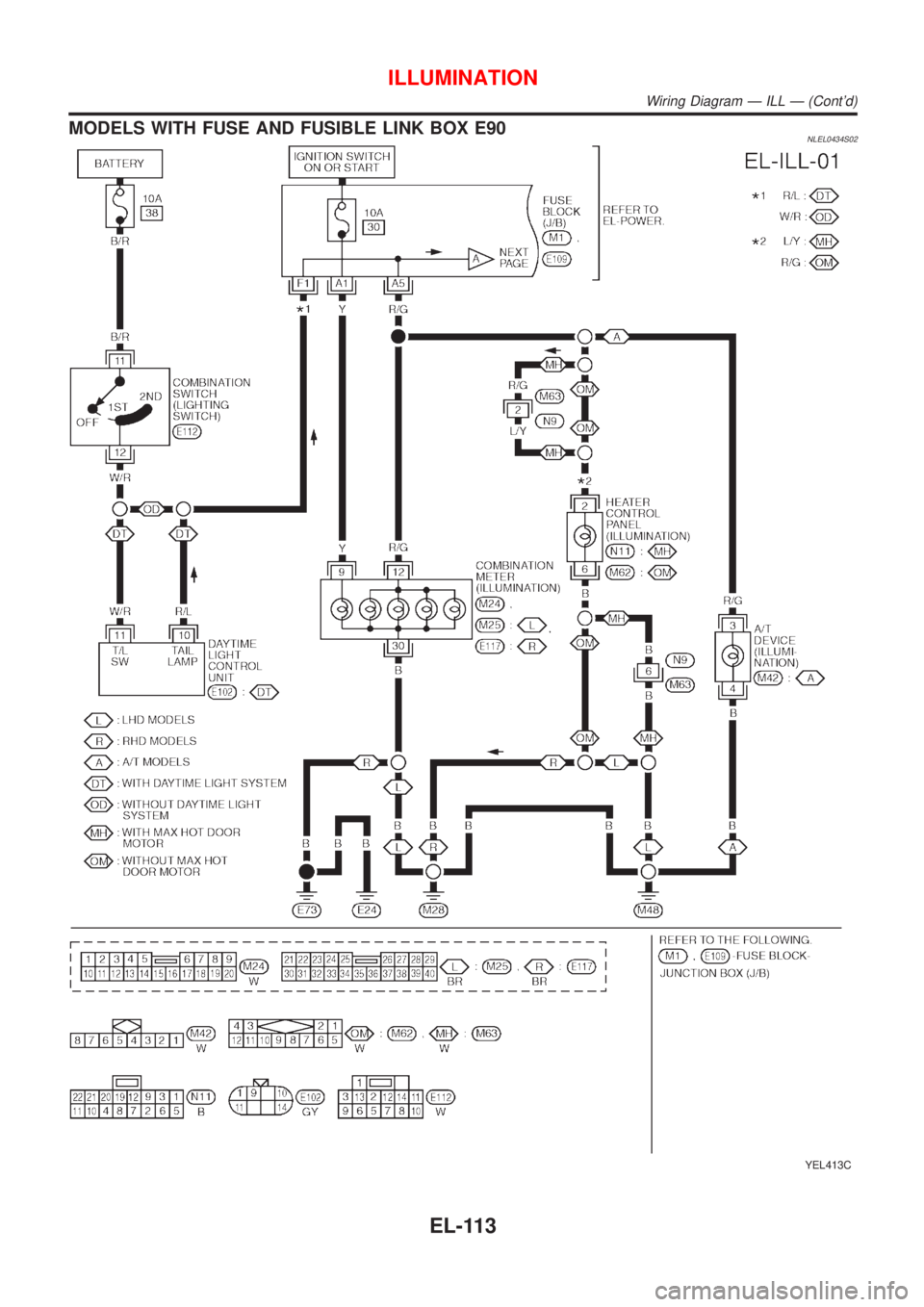

Page 1844 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0434S02
YEL413C
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-113

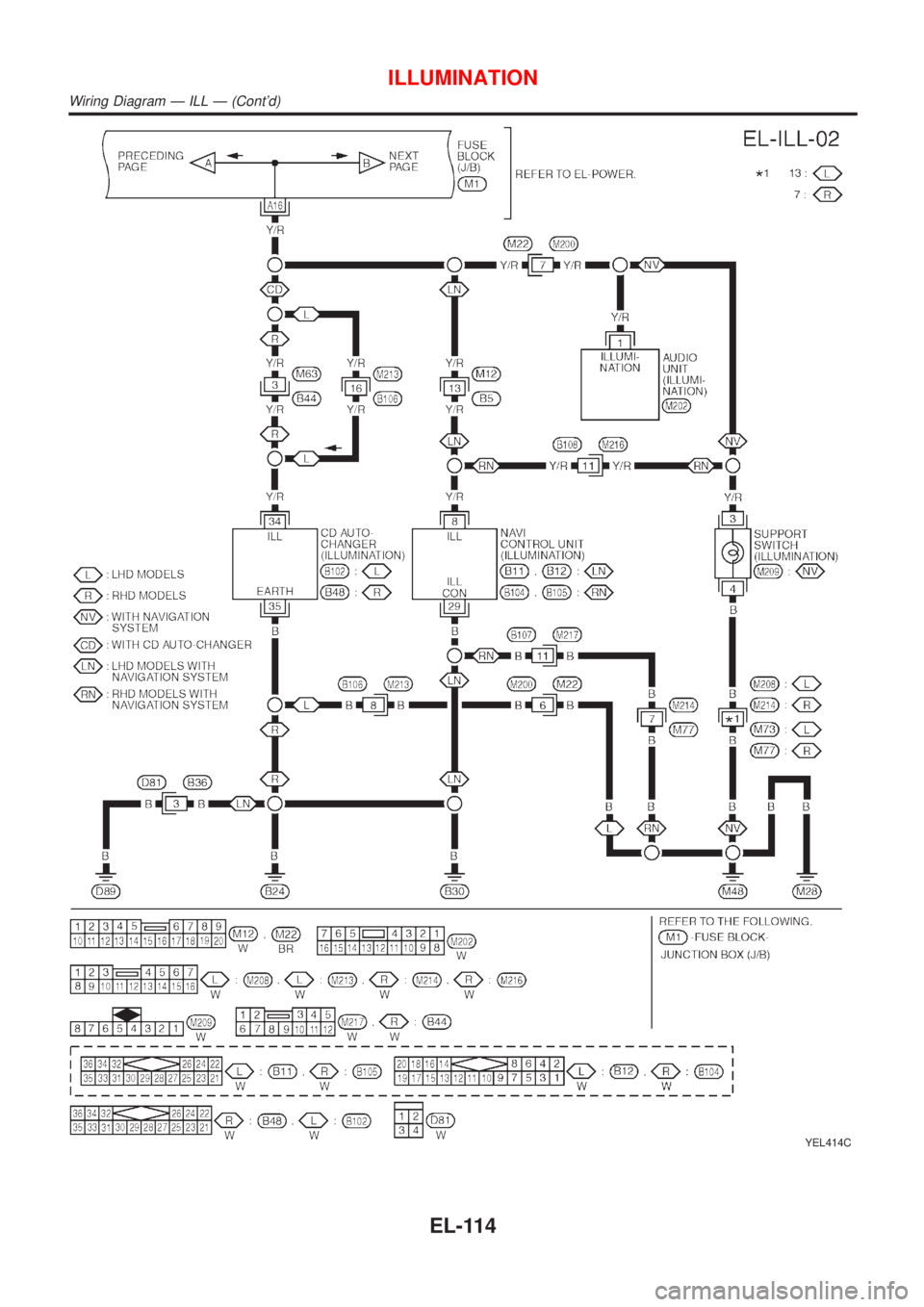

Page 1845 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL414C
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-114

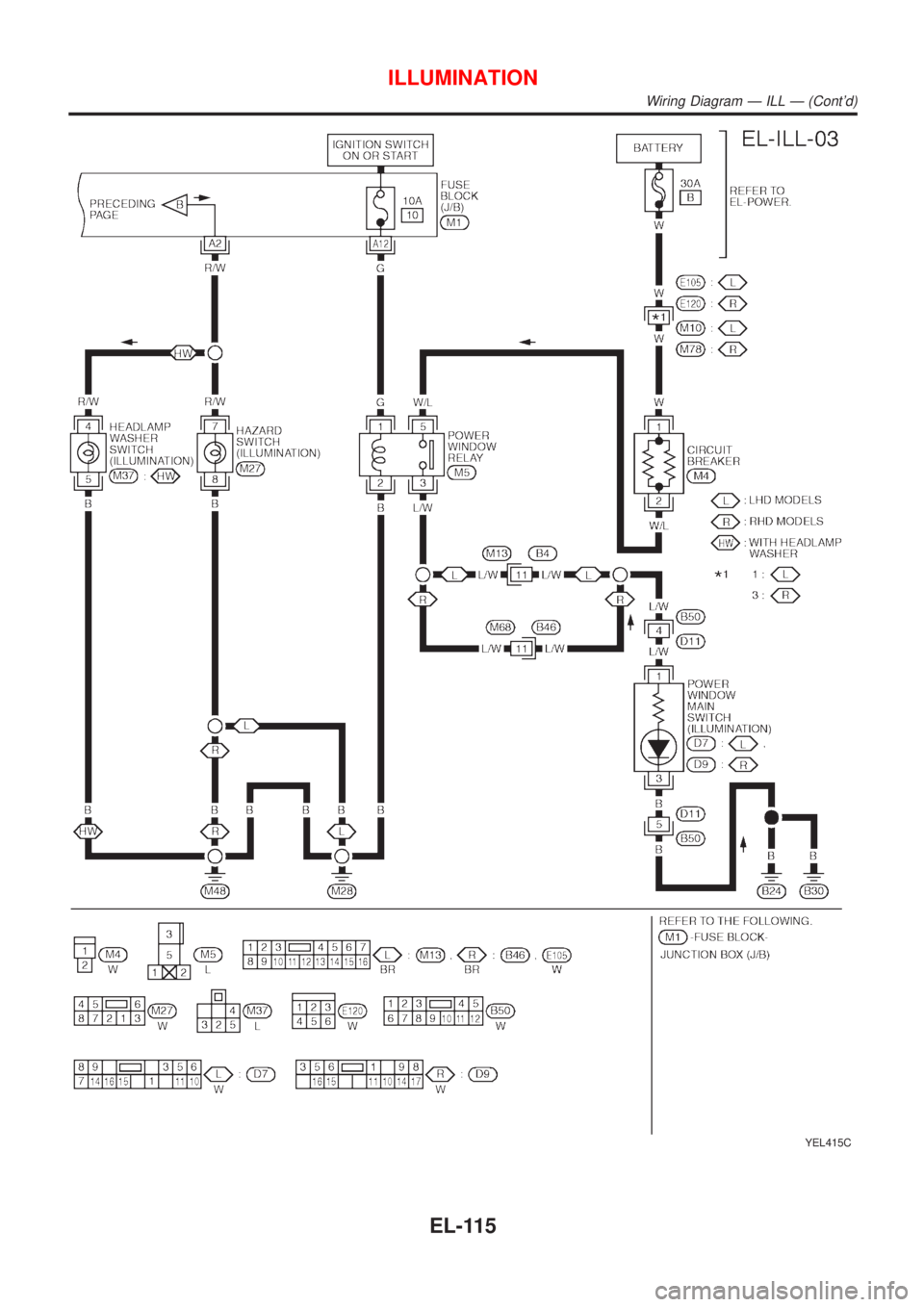

Page 1846 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YEL415C
ILLUMINATION
Wiring Diagram Ð ILL Ð (Contd)
EL-115

Page 1847 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual System DescriptionNLEL0435POWER SUPPLY AND GROUNDNLEL0435S01Power is supplied at all times:
+through 15A fuse [No. 5, located in the fuse block (J/B)]
+to time control unit terminal 9,
+through 10A fu

System DescriptionNLEL0435POWER SUPPLY AND GROUNDNLEL0435S01Power is supplied at all times:
+through 15A fuse [No. 5, located in the fuse block (J/B)]
+to time control unit terminal 9,
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to key switch terminal 1 and
+through 10A fuse [No. 13, located in the fuse block (J/B)]
+to spot lamp terminal 1, and
+to interior room lamp terminal 1.
When the key is removed from ignition key cylinder, power is interrupted:
+through key switch terminal 2
+to time control unit terminal 22.
With the ignition key switch in the ON or START position, power is supplied:
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to time control unit terminal 1.
Ground is supplied:
+through body grounds terminals M28 and M48
+to time control unit terminal 16
When the driver side door is opened, ground is supplied:
+through body grounds B24 and B30
+to door switch driver side terminal 3
+from door switch driver side terminal 2
+to time control unit terminal 6.
When any door is opened, ground is supplied:
+through case ground of each door switch
+to each door switch terminal 1
+to time control unit terminal 7.
When the driver side door is unlocked, the time control unit receives a ground signal:
+through body grounds terminals M28 and M48
+to door unlock sensor terminal 2 (LHD models) or 4 (RHD models)
+from door unlock sensor terminal 5 (LHD models) or 2 (RHD models)
+to time control unit terminal 35.
When a signal, or combination of signals is received by the time control unit, ground is supplied:
+through time control unit terminal 12
+to spot lamp terminal 2, and
+to interior room lamp terminal 2.
With power and ground supplied, the interior room lamp and spot lamp illuminates when the lamp switch is
in ªDOORº position.
SWITCH OPERATIONNLEL0435S02When interior room lamp switch is in ªONº position, ground is supplied:
+through case grounds of interior room lamp
+to interior room lamp.
With power and ground supplied, the interior room lamp illuminates.
INTERIOR ROOM LAMP TIMER OPERATIONNLEL0435S03When interior room lamp switch is in the ªDOORº position, the time control unit keeps the interior room lamp
illuminated for about 30 seconds when:
+unlock signal is supplied from driver's door unlock sensor while all doors are closed
+key is removed from ignition key cylinder while all doors are closed
+driver's door is opened and then closed
INTERIOR ROOM LAMP
System Description
EL-116

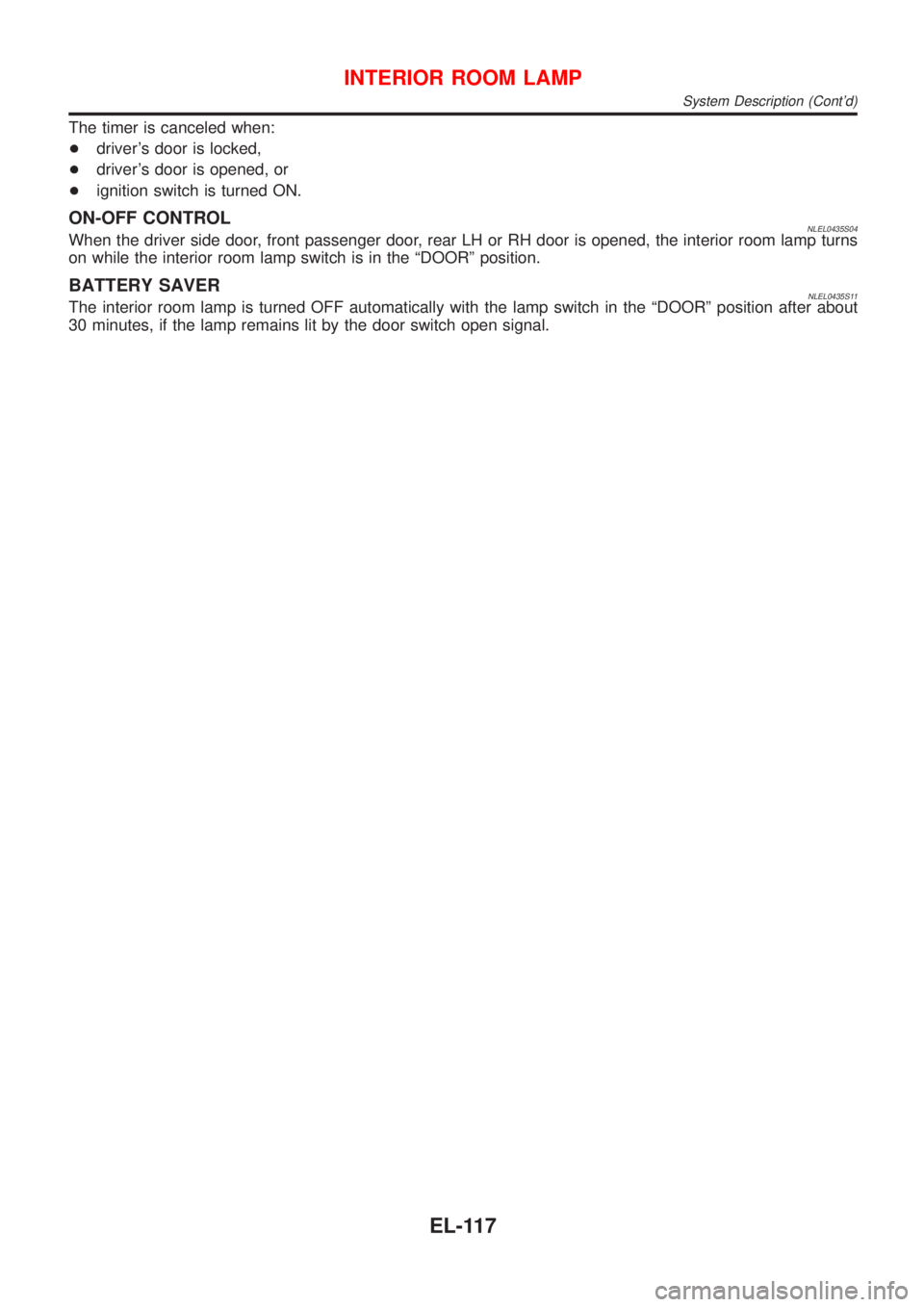

Page 1848 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual The timer is canceled when:
+drivers door is locked,
+drivers door is opened, or
+ignition switch is turned ON.
ON-OFF CONTROLNLEL0435S04When the driver side door, front passenger door, rear LH or R
