Page 593 of 3051

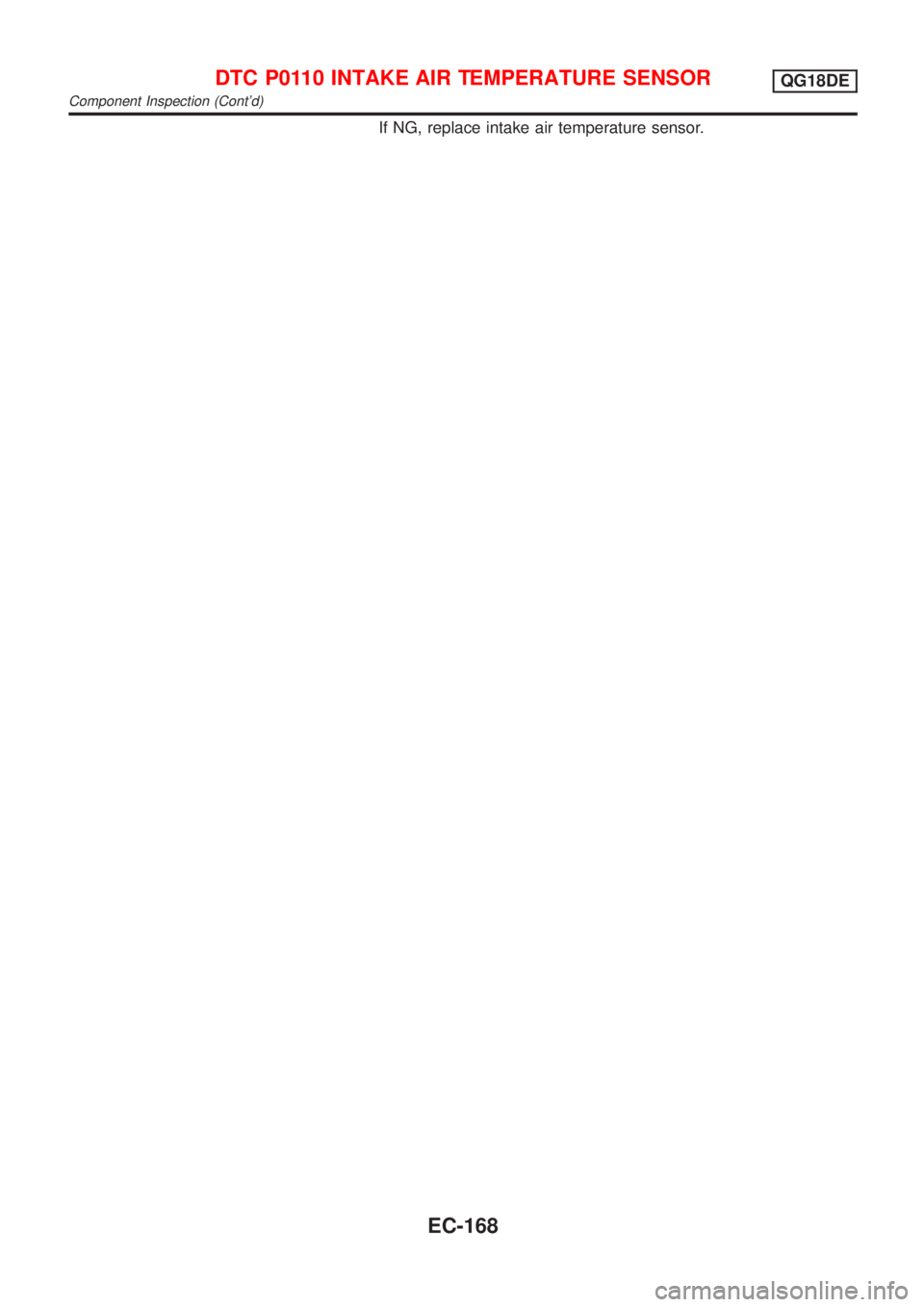

NISSAN ALMERA TINO 2001 Service Repair Manual If NG, replace intake air temperature sensor. DTC P0110 INTAKE AIR TEMPERATURE SENSORQG18DE Component Inspection (Contd) EC-168

Page 594 of 3051

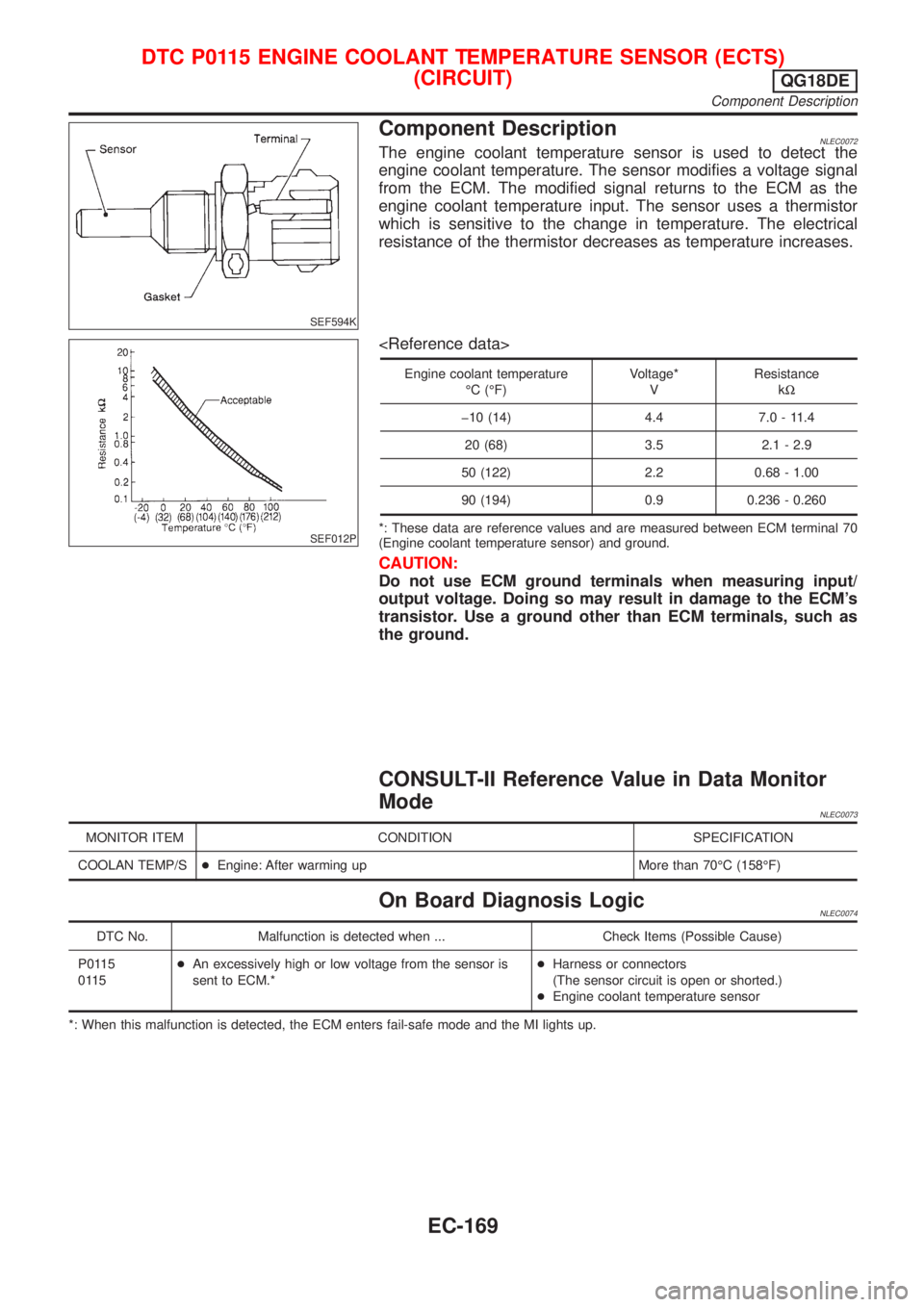

NISSAN ALMERA TINO 2001 Service Repair Manual SEF594K Component DescriptionNLEC0072The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal retu

Page 595 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Fail-safe ModeNLEC0566 Detected items Engine operating condition in fail-safe mode Engine coolant tempera- ture sensor circuitEngine coolant temperature will be determined by ECM based on the time aft

Page 596 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0076MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0076S01 YEC653 DTC P0115 ENGINE COOLANT TEMPERATURE SENSOR (ECTS) (CIRCUIT) QG18DE Wiring Diagram EC-171

Page 597 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC0076S02 YEC875 DTC P0115 ENGINE COOLANT TEMPERATURE SENSOR (ECTS) (CIRCUIT) QG18DE Wiring Diagram (Contd) EC-172

Page 598 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0077 1 CHECK POWER SUPPLY 1. Turn ignition switch ªOFFº. 2. Disconnect engine coolant temperature sensor harness connector. SEF999W 3. Turn ignition switch ªONº. 4. Check v

Page 599 of 3051

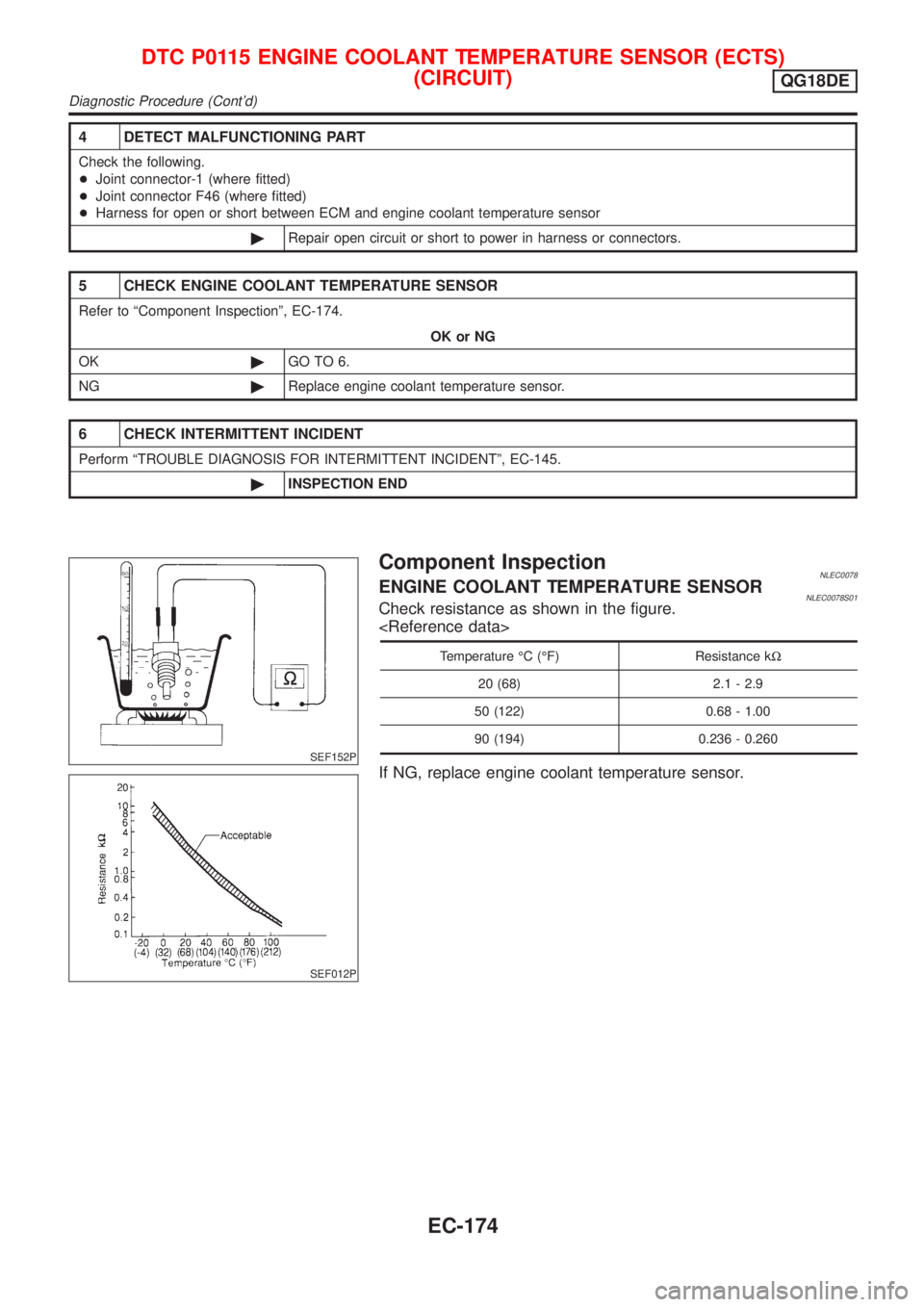

NISSAN ALMERA TINO 2001 Service Repair Manual 4 DETECT MALFUNCTIONING PART Check the following. +Joint connector-1 (where fitted) +Joint connector F46 (where fitted) +Harness for open or short between ECM and engine coolant temperature sensor ©R

Page 600 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Component DescriptionNLEC0079NOTE: If DTC P0120 (0120) is displayed with DTC P0510 (0510), first perform trouble diagnosis for DTC P0510, EC-352. The throttle position sensor responds to the accelerat
