Page 1673 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 2) Start engine and run it for at least 2 seconds at idle speed. (If engine does not run, turn ignition switch to ªSTARTº for at least 2 seconds.) 3) Turn ignition switch ªOFFº, wait at least 5 se

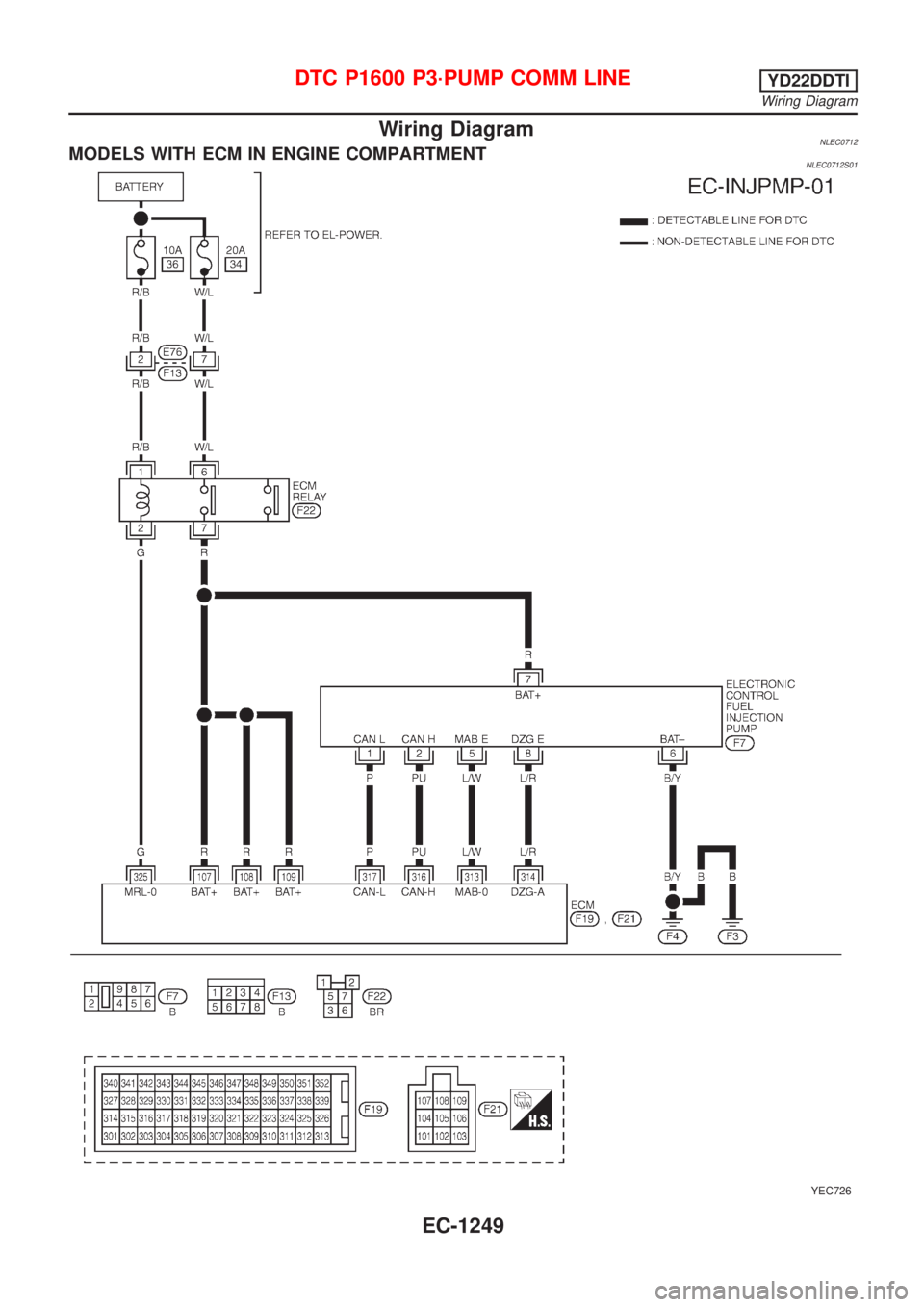

Page 1674 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0712MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0712S01 YEC726 DTC P1600 P3´PUMP COMM LINEYD22DDTI Wiring Diagram EC-1249

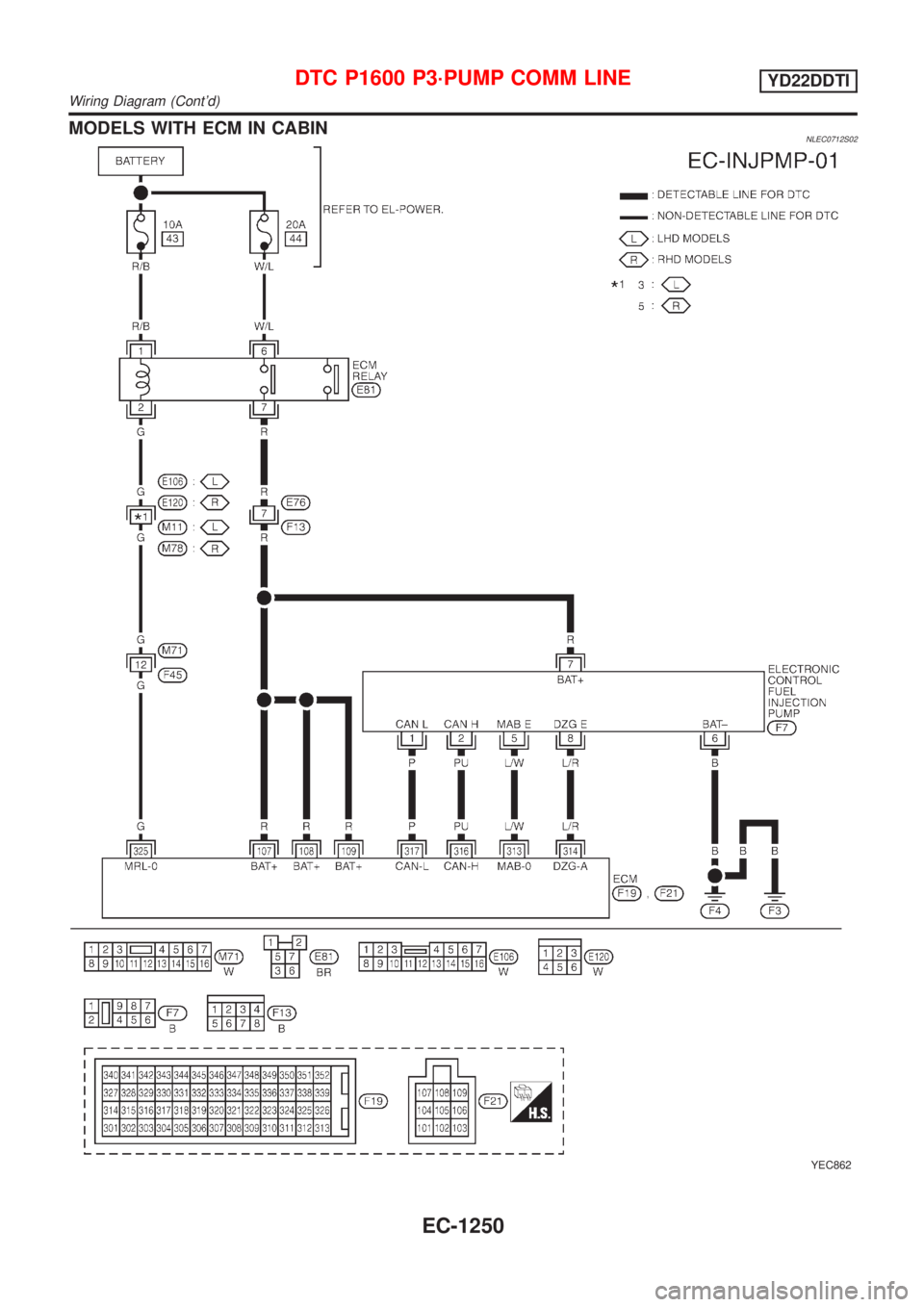

Page 1675 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC0712S02 YEC862 DTC P1600 P3´PUMP COMM LINEYD22DDTI Wiring Diagram (Contd) EC-1250

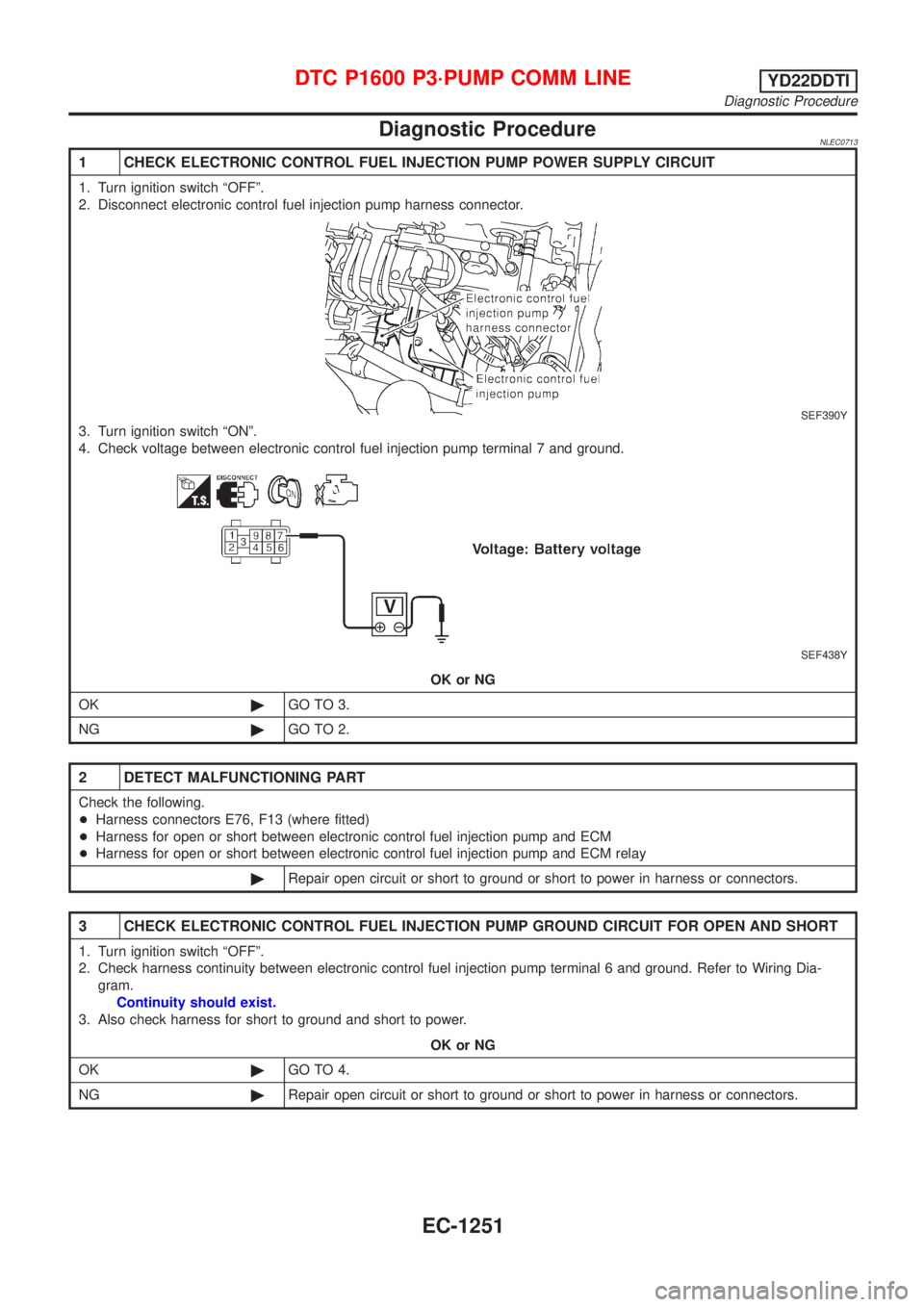

Page 1676 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0713 1 CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP POWER SUPPLY CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect electronic control fuel injection pump harness connector

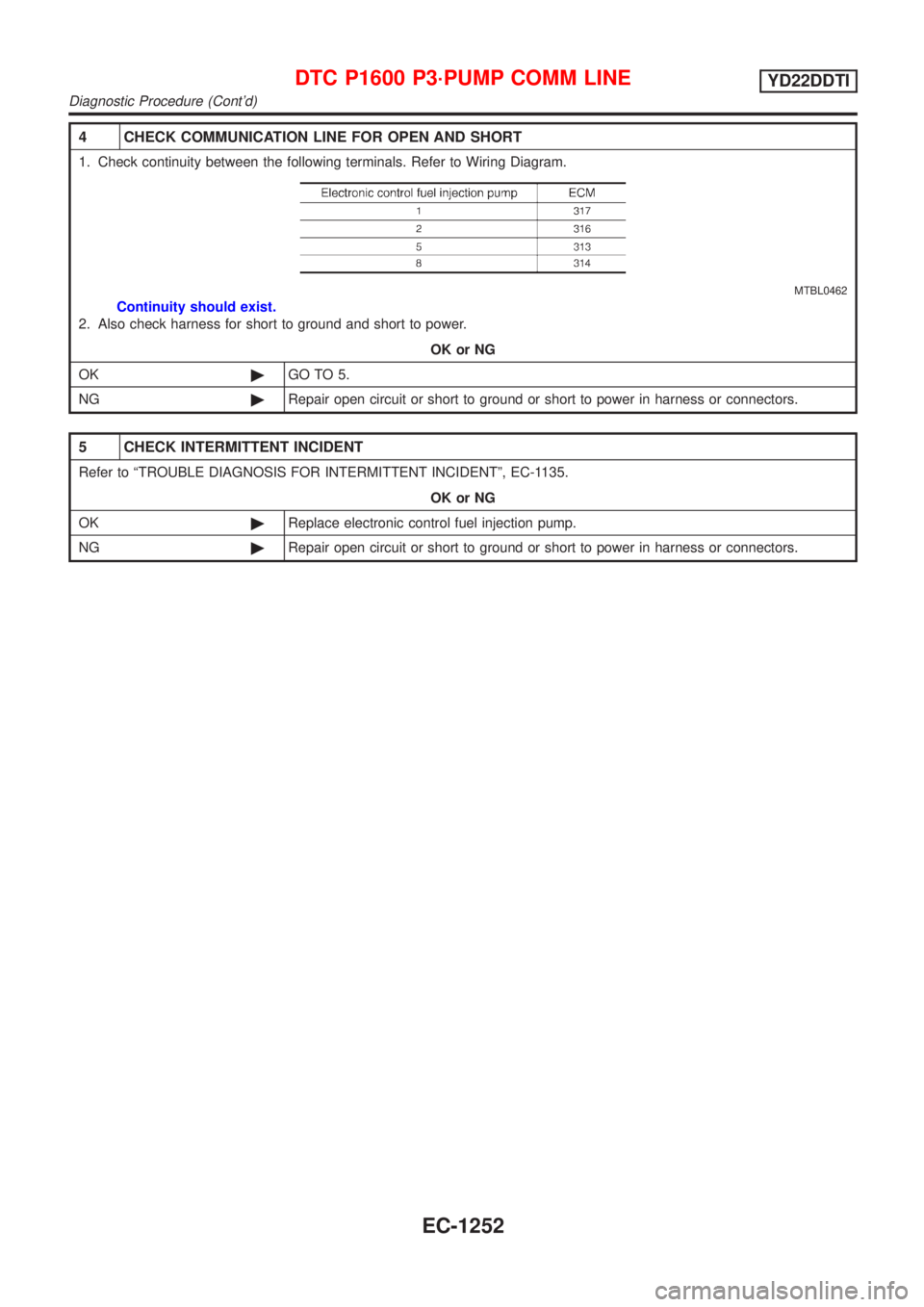

Page 1677 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK COMMUNICATION LINE FOR OPEN AND SHORT 1. Check continuity between the following terminals. Refer to Wiring Diagram. MTBL0462 Continuity should exist. 2. Also check harness for short to ground

Page 1678 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEC220B DescriptionNLEC0668The ECM consists of a microcomputer and connectors for signal input and output and for power supply. The unit controls the engine. On Board Diagnosis LogicNLEC0669 DTC Malfu

Page 1679 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0671 1 INSPECTION START With CONSULT-II 1. Turn ignition switch ªONº. 2. Select ªSELF DIAG RESULTSº mode with CONSULT-II. 3. Touch ªERASEº. 4. Perform ªDTC Confirmation

Page 1680 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual ECM Terminals and Reference ValueNLEC0744Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output
