Page 1049 of 3051

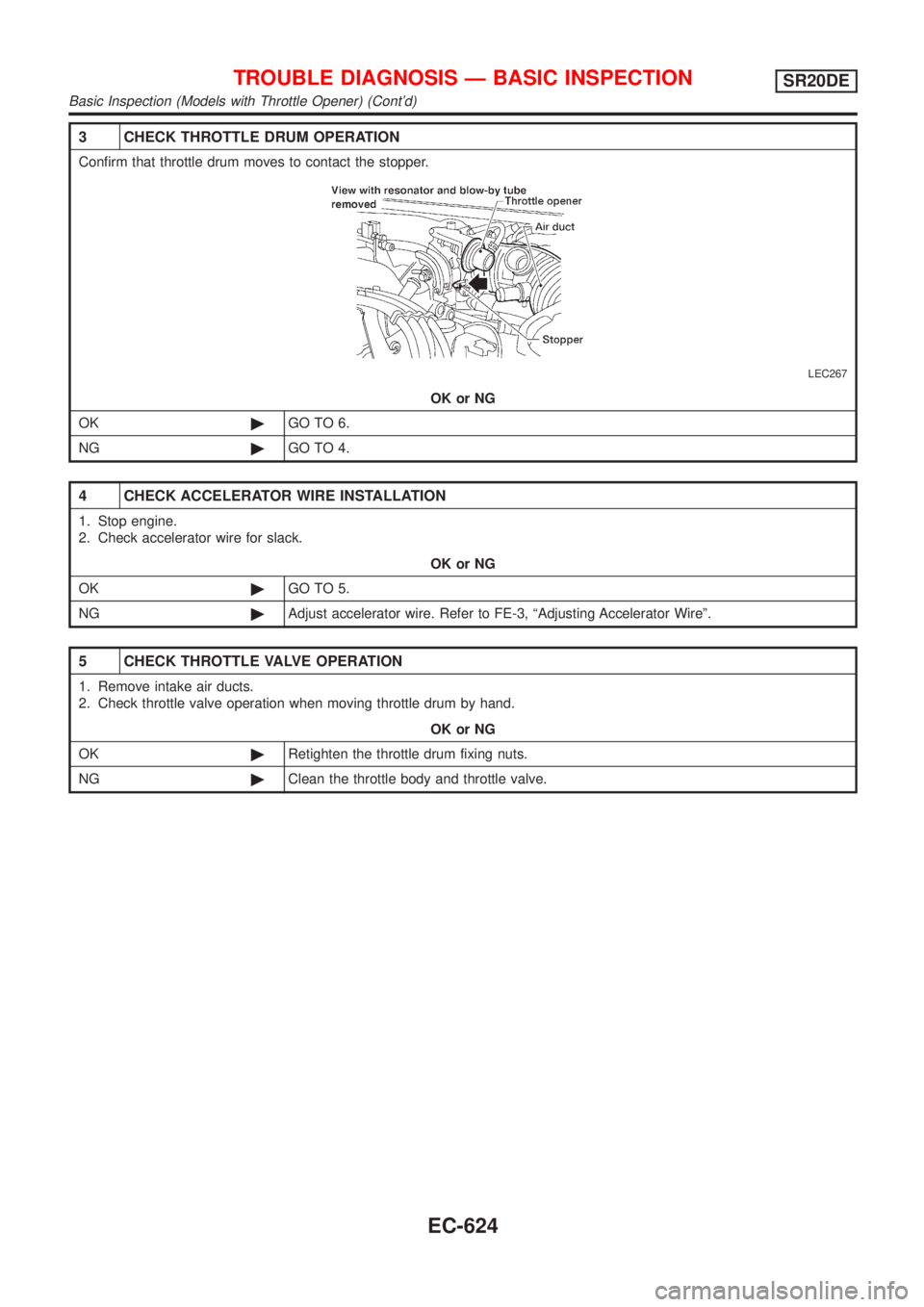

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK THROTTLE DRUM OPERATION Confirm that throttle drum moves to contact the stopper. LEC267 OK or NG OK©GO TO 6. NG©GO TO 4. 4 CHECK ACCELERATOR WIRE INSTALLATION 1. Stop engine. 2. Check accele

Page 1050 of 3051

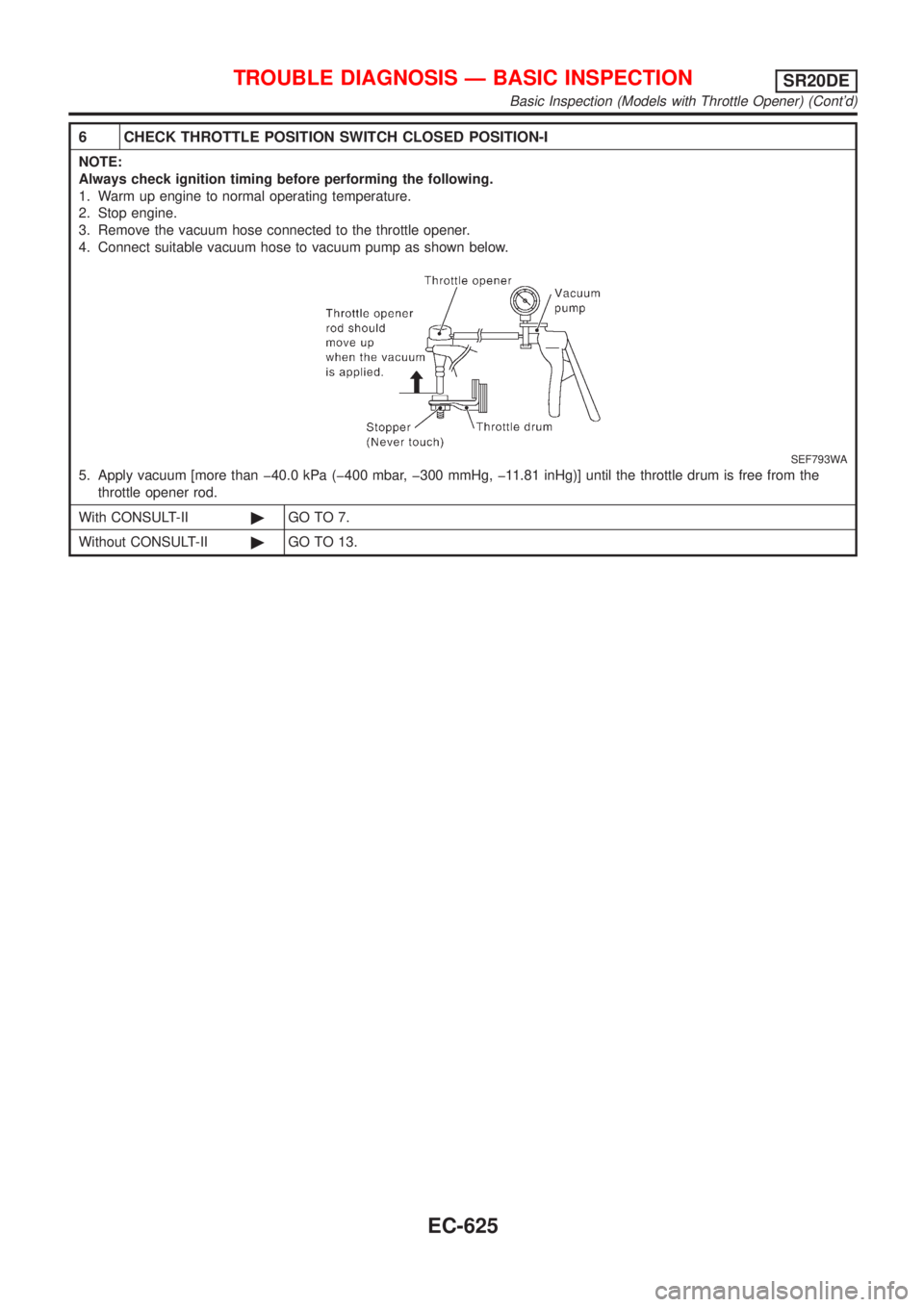

NISSAN ALMERA TINO 2001 Service Repair Manual 6 CHECK THROTTLE POSITION SWITCH CLOSED POSITION-I NOTE: Always check ignition timing before performing the following. 1. Warm up engine to normal operating temperature. 2. Stop engine. 3. Remove the

Page 1051 of 3051

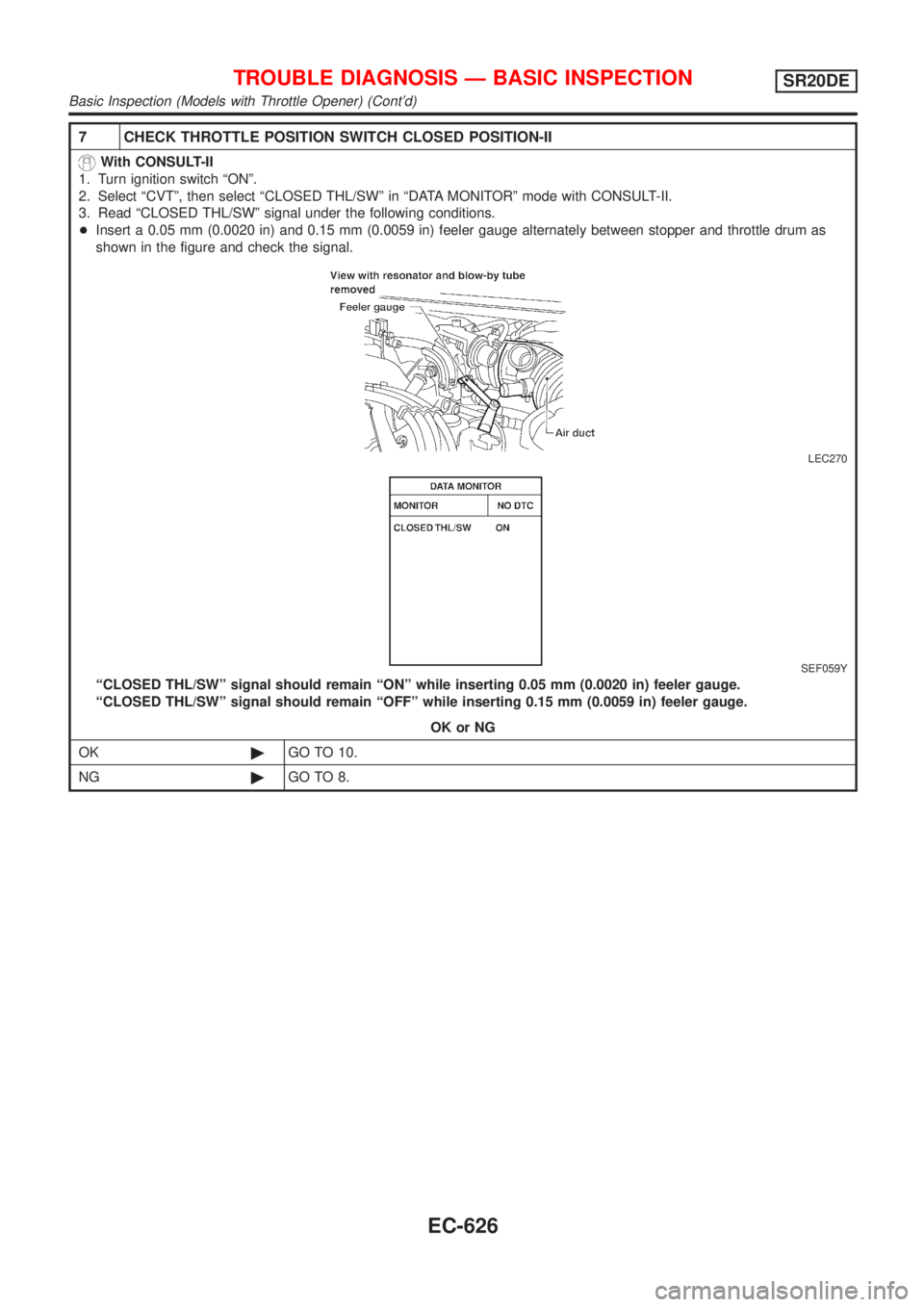

NISSAN ALMERA TINO 2001 Service Repair Manual 7 CHECK THROTTLE POSITION SWITCH CLOSED POSITION-II With CONSULT-II 1. Turn ignition switch ªONº. 2. Select ªCVTº, then select ªCLOSED THL/SWº in ªDATA MONITORº mode with CONSULT-II. 3. Read

Page 1052 of 3051

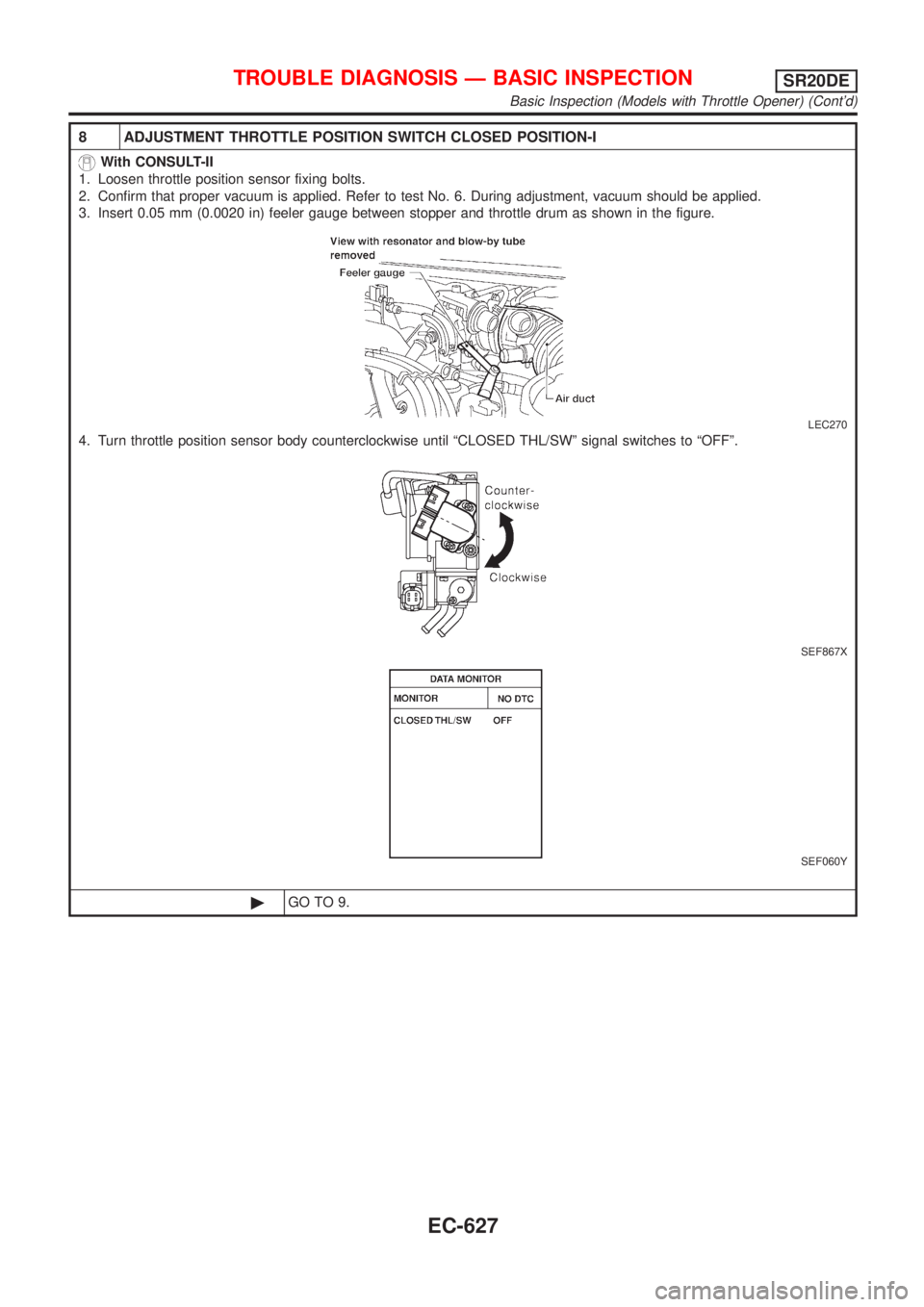

NISSAN ALMERA TINO 2001 Service Repair Manual 8 ADJUSTMENT THROTTLE POSITION SWITCH CLOSED POSITION-I With CONSULT-II 1. Loosen throttle position sensor fixing bolts. 2. Confirm that proper vacuum is applied. Refer to test No. 6. During adjustmen

Page 1053 of 3051

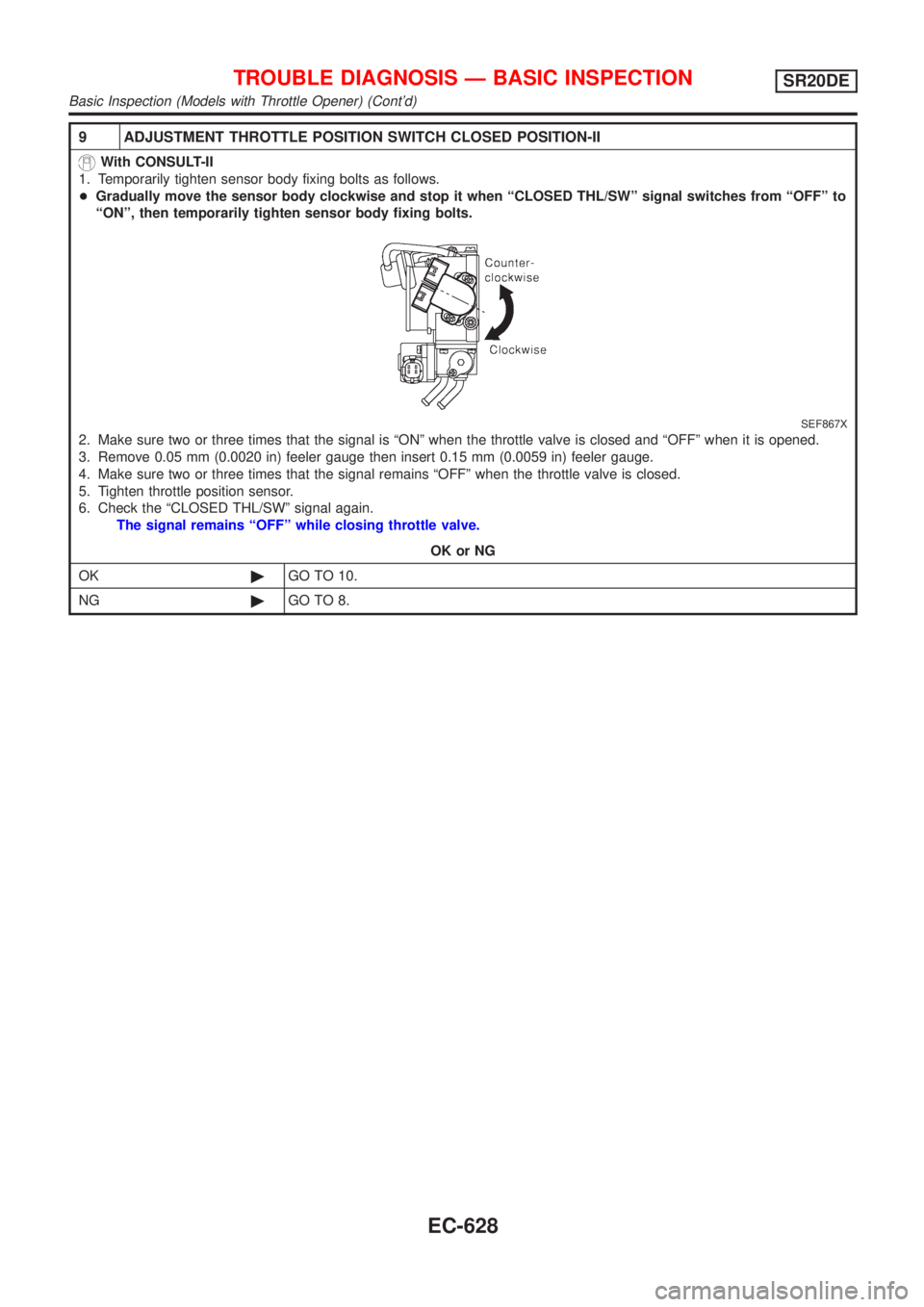

NISSAN ALMERA TINO 2001 Service Repair Manual 9 ADJUSTMENT THROTTLE POSITION SWITCH CLOSED POSITION-II With CONSULT-II 1. Temporarily tighten sensor body fixing bolts as follows. +Gradually move the sensor body clockwise and stop it when ªCLOSED

Page 1054 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 10 RESET THROTTLE POSITION SENSOR IDLE POSITION MEMORY With CONSULT-II NOTE: Always warm up engine to normal operating temperature. If engine is cool, the throttle position sensor idle posi- tion memo

Page 1055 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 11 CHECK IGNITION TIMING-I With CONSULT-II 1. Turn ignition switch ªOFFº. 2. Release vacuum from throttle opener. 3. Remove vacuum pump and vacuum hose from throttle opener. 4. Reinstall original va

Page 1056 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 13 CHECK THROTTLE POSITION SWITCH CLOSED POSITION-II Without CONSULT-II 1. Disconnect closed throttle position switch harness connector. 2. Check continuity between closed throttle position switch ter
