Page 2529 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SFE642A 9. Remove exhaust center tube. SFE643A 10. Remove heat insulators from fuel tank side. SFE644A 11. Set a suitable transmission jack under fuel tank. 12. Remove fuel tank mounting band bolts wh

Page 2530 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Fuel Level Sensor UnitNLFE0032 NFE074 JFE613A REMOVALNLFE0032S011. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Remove rear seat cushion. Refer to BT-49,“Removal and I

Page 2531 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SFE376A 7. Remove lock ring using a lock ring socket (SST). SFE648AA 8. Pull out the fuel level sensor unit and fuel pump. +Do not damage the arm of the fuel level sensor unit. INSTALLATIONNLFE0032S02

Page 2532 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SMA211A Checking Exhaust SystemNLFE0022Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage, chafing or deterioration. SEF180A Removal and InstallationNLFE0018CAUTI

Page 2533 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual YFE004 EXHAUST SYSTEMYD Removal and Installation (Cont’d) FE-24

Page 2534 of 3051

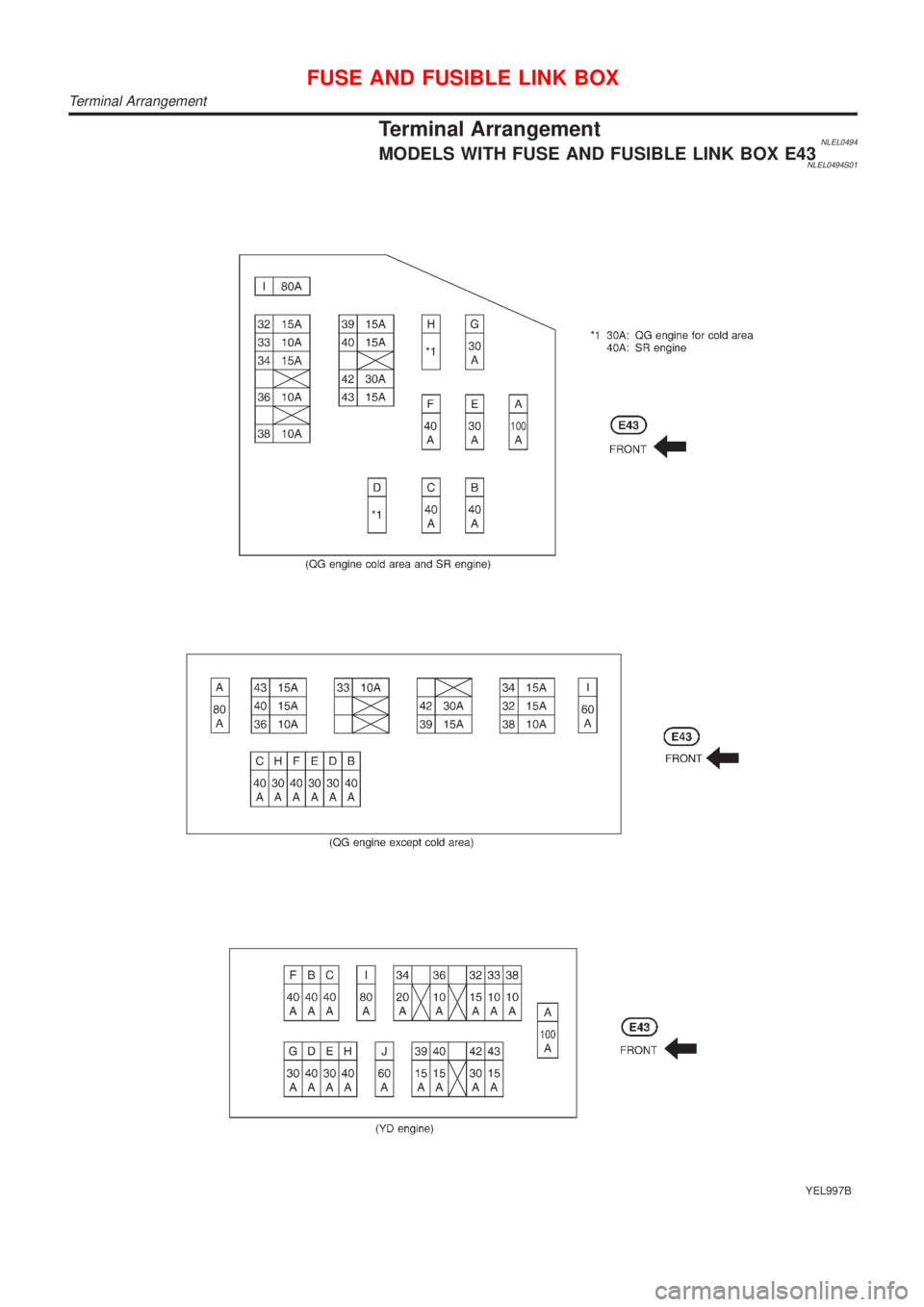

NISSAN ALMERA TINO 2001 Service Repair Manual Termina lArrangement YEL996B Terminal Arrangement

Page 2535 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Termina lArrangement YEL997B Terminal Arrangement

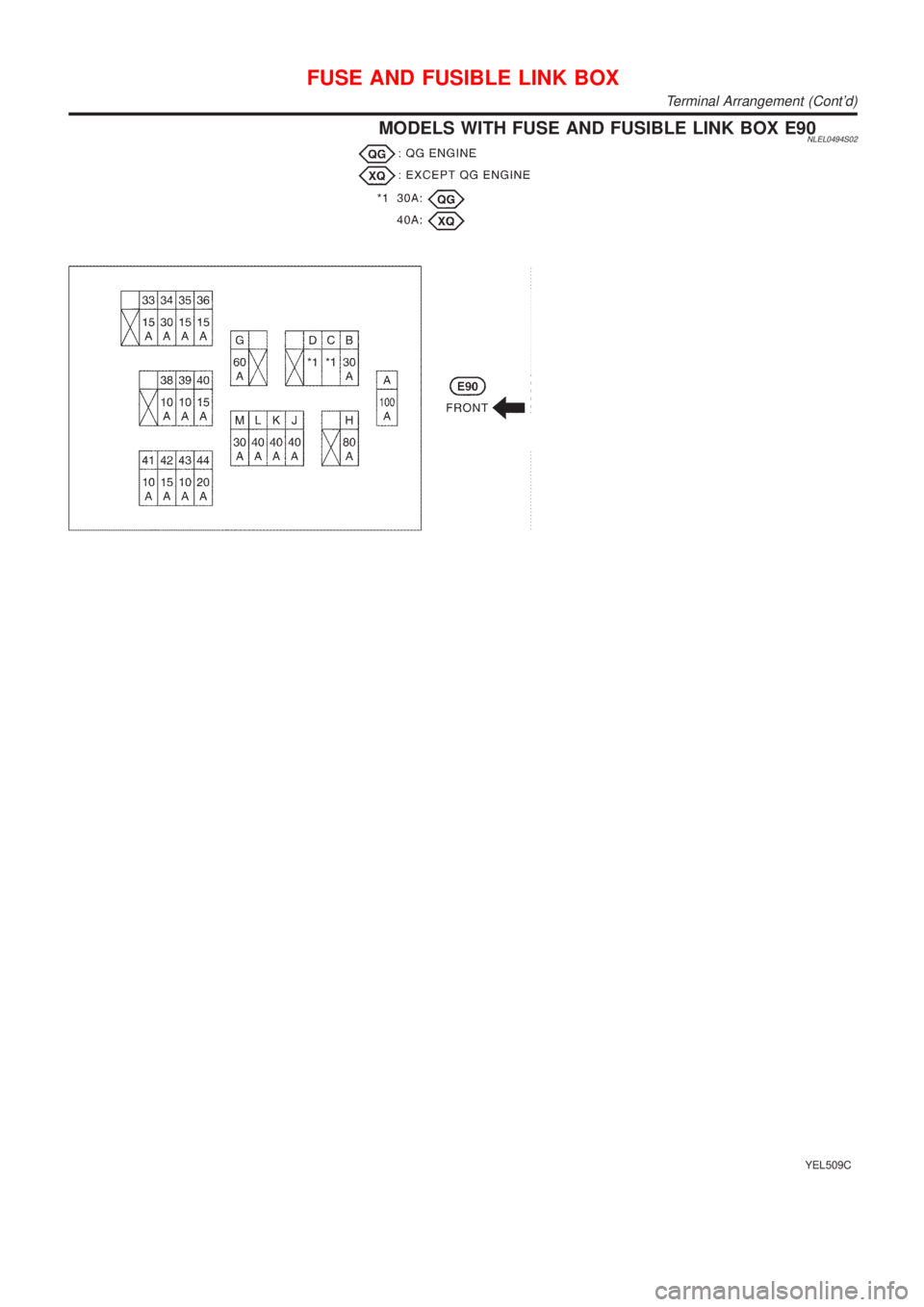

Page 2536 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual MODELSWIT HFUS EAN DFUSIBL ELIN KBO XE90 YEL509C Terminal Arrangement (Contd)
