Page 1385 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 3 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. SEF202X ©GO TO 4. 4 CHECK INPUT SIGNAL CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect

Page 1386 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 6 DETECT MALFUNCTIONING PART Check the following. +Joint connector-2 (where fitted) +Joint connector F46 (where fitted) +Harness for open or short between HO2S2 and ECM ©Repair open circuit or short

Page 1387 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual SEF032X Without CONSULT-II 1) Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes. 2) Stop vehicle with engine running. 3) Set voltmeter probes between EC

Page 1388 of 3051

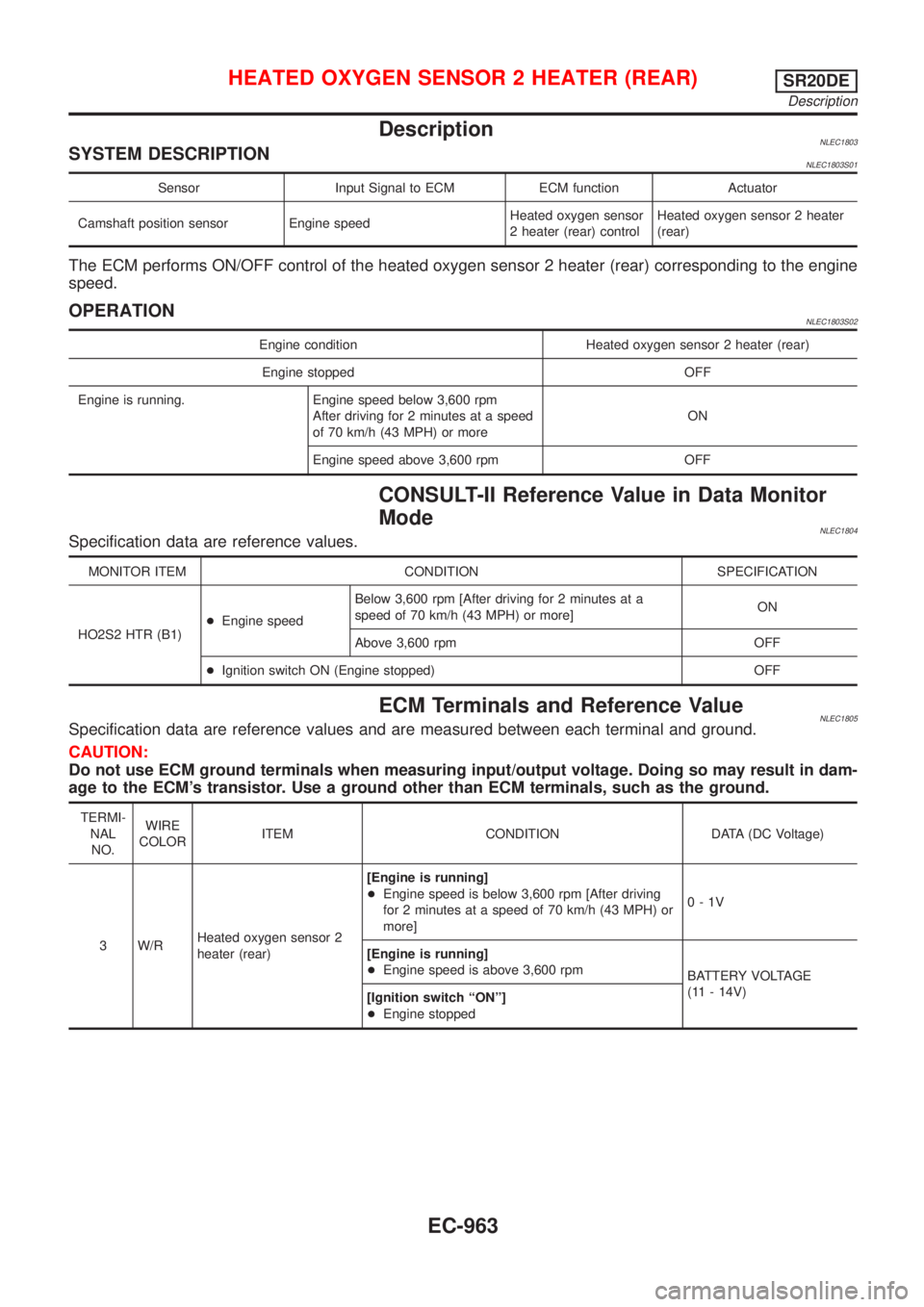

NISSAN ALMERA TINO 2001 Service Repair Manual DescriptionNLEC1803SYSTEM DESCRIPTIONNLEC1803S01 Sensor Input Signal to ECM ECM function Actuator Camshaft position sensor Engine speedHeated oxygen sensor 2 heater (rear) controlHeated oxygen sensor

Page 1389 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC1806MODELS WITH ECM IN ENGINE COMPARTMENTNLEC1806S03 YEC747 HEATED OXYGEN SENSOR 2 HEATER (REAR)SR20DE Wiring Diagram EC-964

Page 1390 of 3051

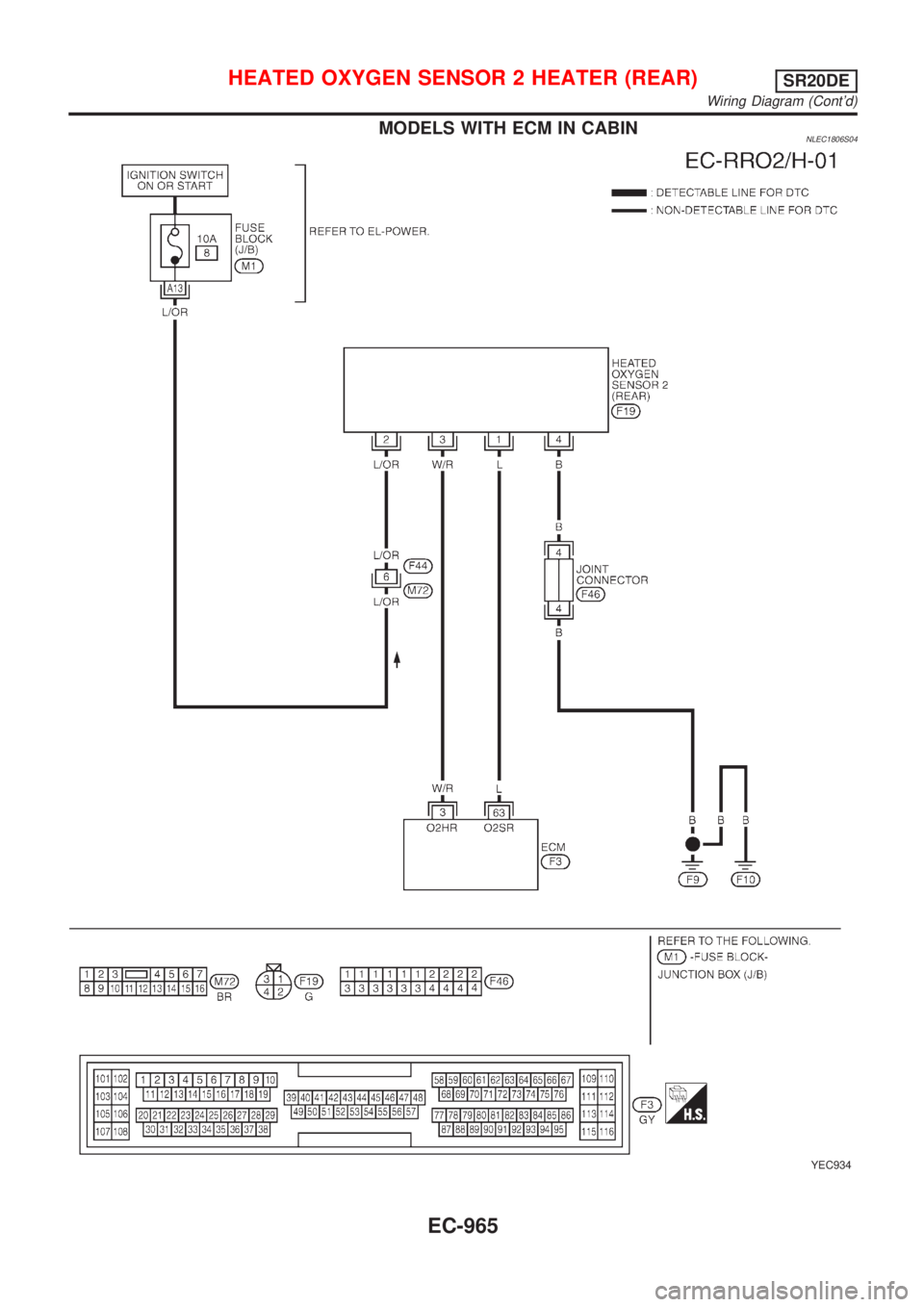

NISSAN ALMERA TINO 2001 Service Repair Manual MODELS WITH ECM IN CABINNLEC1806S04 YEC934 HEATED OXYGEN SENSOR 2 HEATER (REAR)SR20DE Wiring Diagram (Contd) EC-965

Page 1391 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1807 1 CHECK OVERALL FUNCTION Without CONSULT-II 1. Start engine and drive the vehicle at over 70 km/h (43 MPH) for 2 consecutive minutes. 2. Stop vehicle and keep the engine r

Page 1392 of 3051

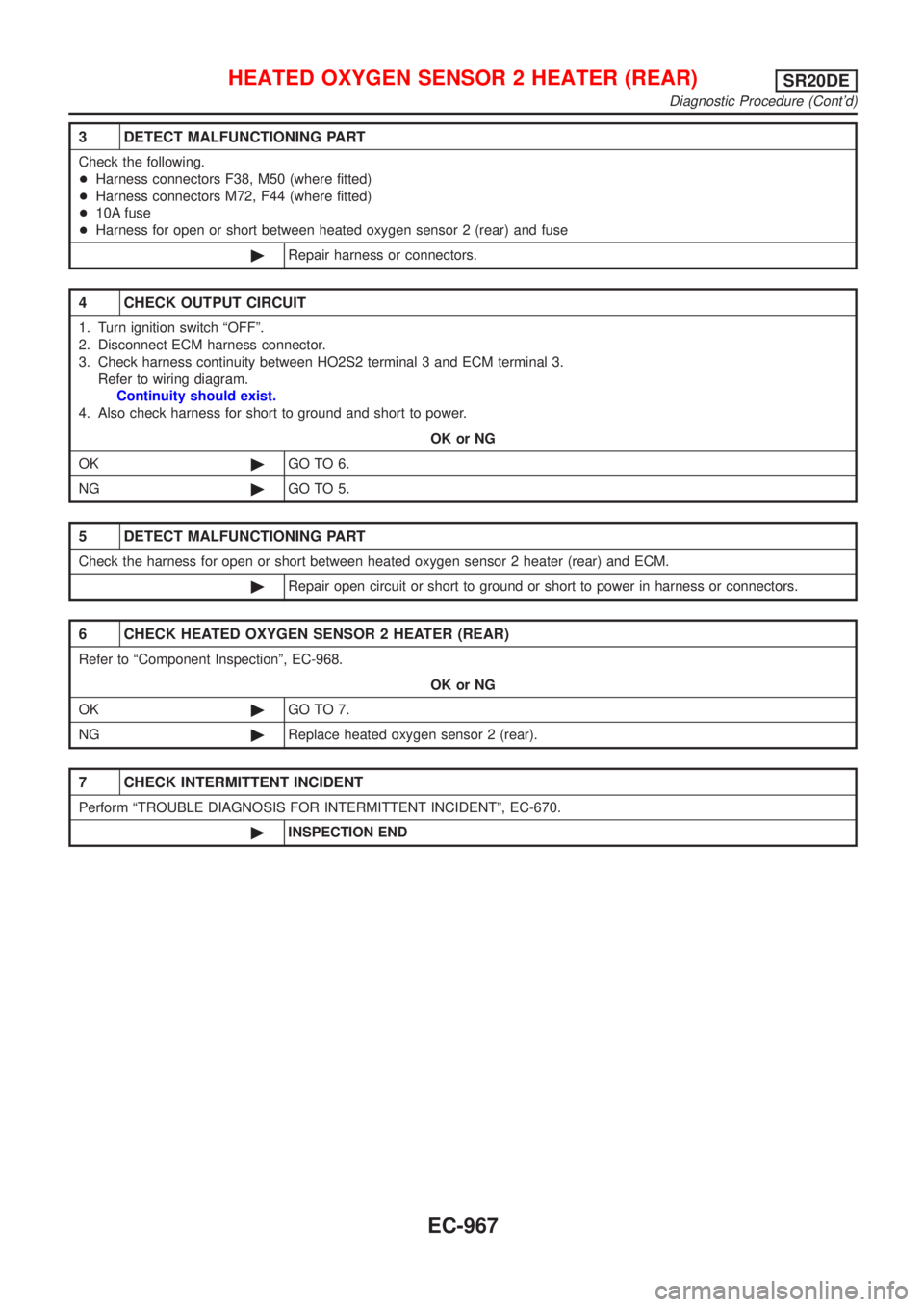

NISSAN ALMERA TINO 2001 Service Repair Manual 3 DETECT MALFUNCTIONING PART Check the following. +Harness connectors F38, M50 (where fitted) +Harness connectors M72, F44 (where fitted) +10A fuse +Harness for open or short between heated oxygen sen
