Page 713 of 3051

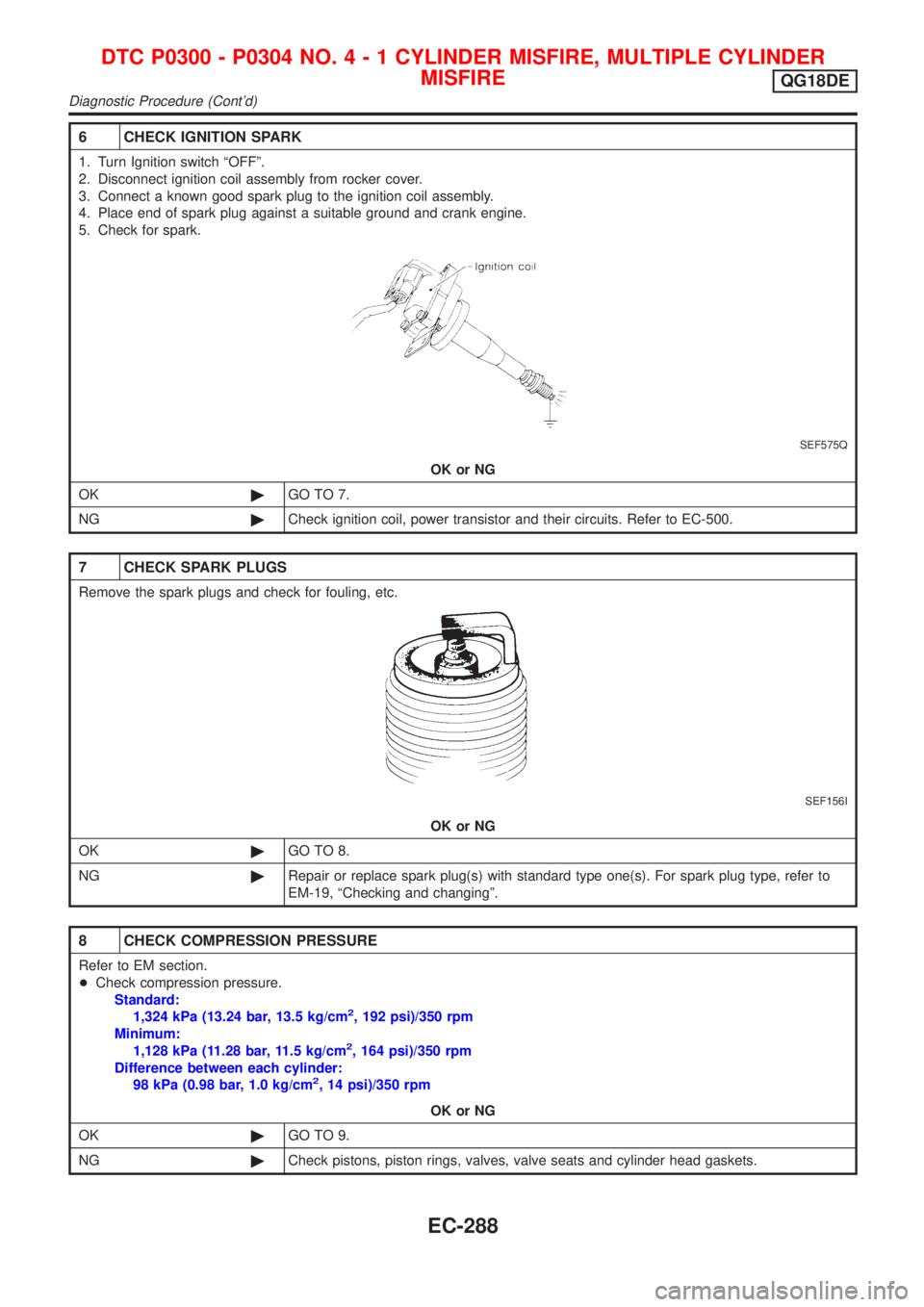

NISSAN ALMERA TINO 2001 Service Repair Manual 6 CHECK IGNITION SPARK 1. Turn Ignition switch ªOFFº. 2. Disconnect ignition coil assembly from rocker cover. 3. Connect a known good spark plug to the ignition coil assembly. 4. Place end of spark

Page 714 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 9 CHECK FUEL PRESSURE 1. Install any parts removed. 2. Release fuel pressure to zero. Refer to EC-43. 3. Install fuel pressure gauge and check fuel pressure. JEF087Y At idle: Approx. 235 kPa (2.35 bar

Page 715 of 3051

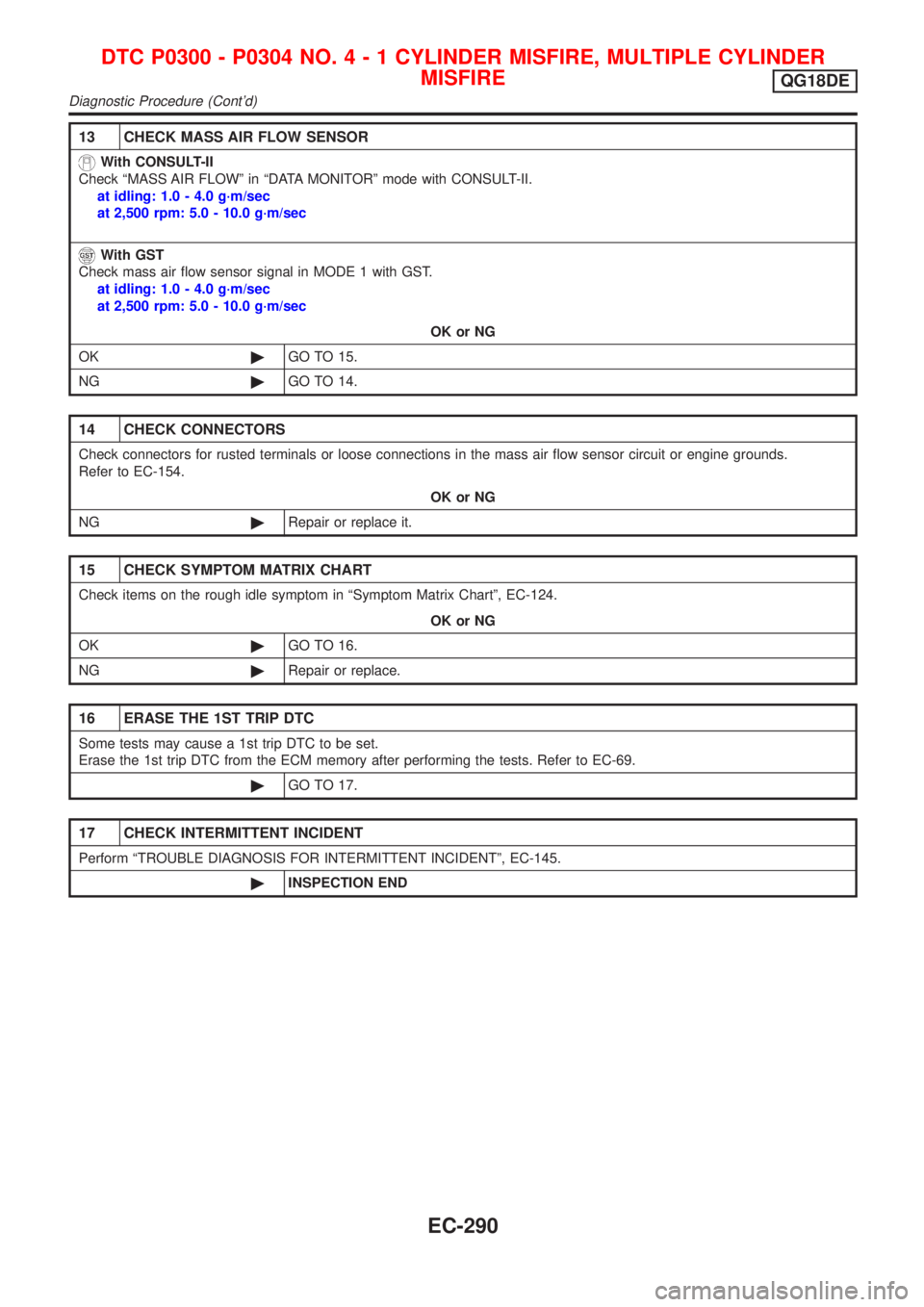

NISSAN ALMERA TINO 2001 Service Repair Manual 13 CHECK MASS AIR FLOW SENSOR With CONSULT-II Check ªMASS AIR FLOWº in ªDATA MONITORº mode with CONSULT-II. at idling: 1.0 - 4.0 g´m/sec at 2,500 rpm: 5.0 - 10.0 g´m/sec With GST Check mass air

Page 716 of 3051

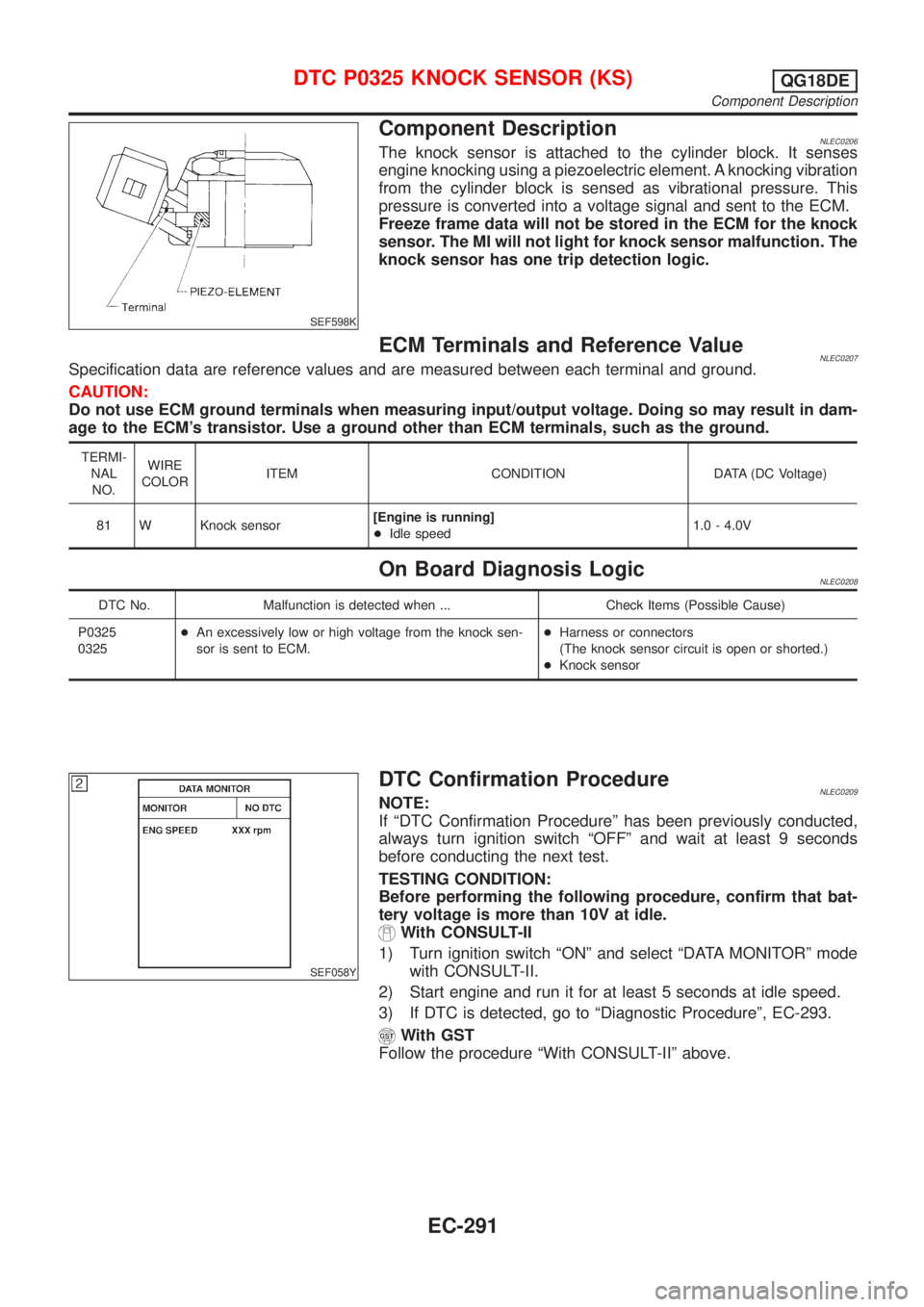

NISSAN ALMERA TINO 2001 Service Repair Manual SEF598K Component DescriptionNLEC0206The knock sensor is attached to the cylinder block. It senses engine knocking using a piezoelectric element. A knocking vibration from the cylinder block is sensed

Page 717 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0210 YEC657 DTC P0325 KNOCK SENSOR (KS)QG18DE Wiring Diagram EC-292

Page 718 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC0211 1 RETIGHTEN GROUND SCREWS Loosen and retighten engine ground screws. JEF104Y ©GO TO 2. 2 CHECK INPUT SIGNAL CIRCUIT-1 1. Turn ignition switch ªOFFº. 2. Disconnect ECM h

Page 719 of 3051

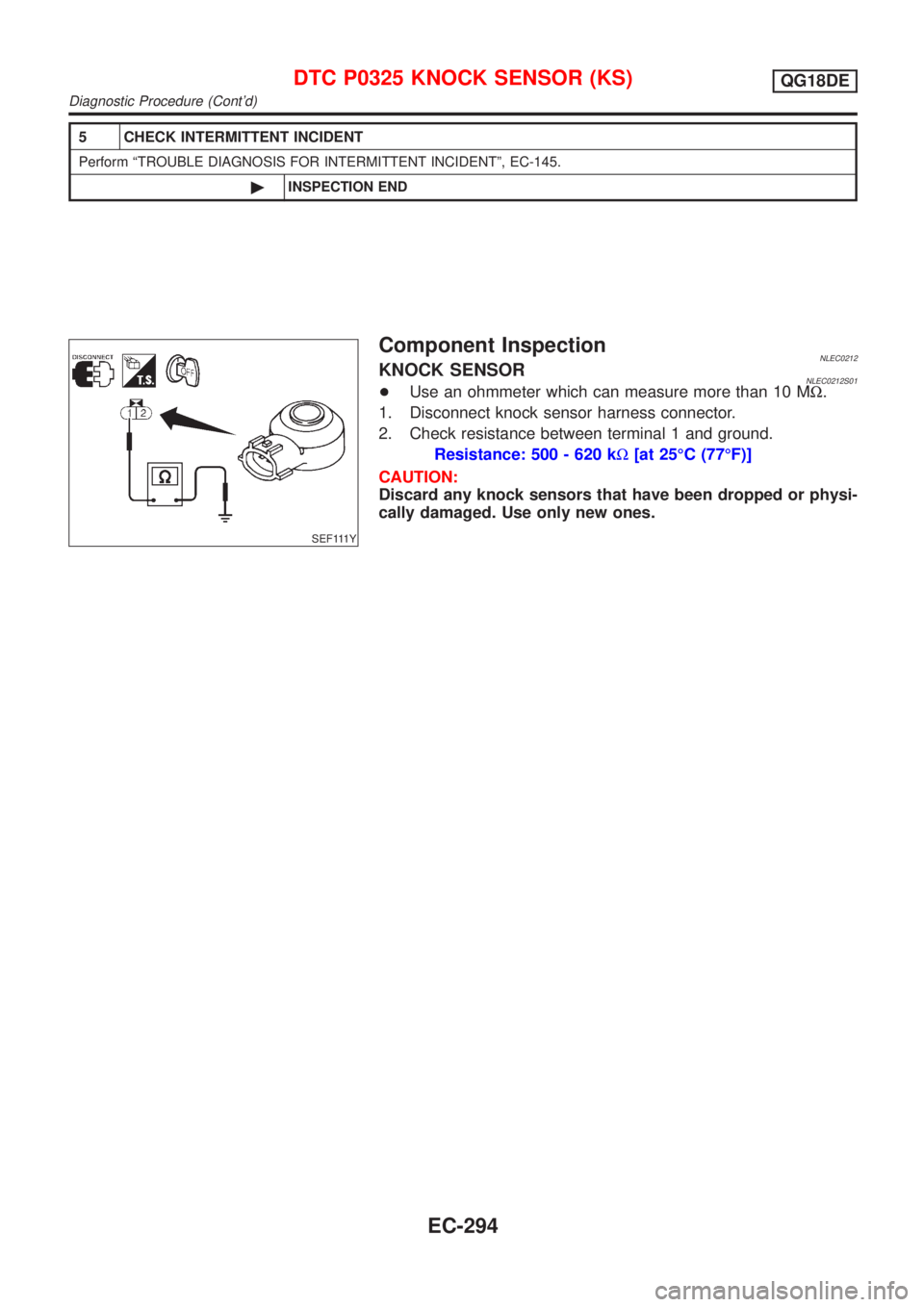

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-145. ©INSPECTION END SEF111Y Component InspectionNLEC0212KNOCK SENSORNLEC0212S01+Use an ohmmeter which can me

Page 720 of 3051

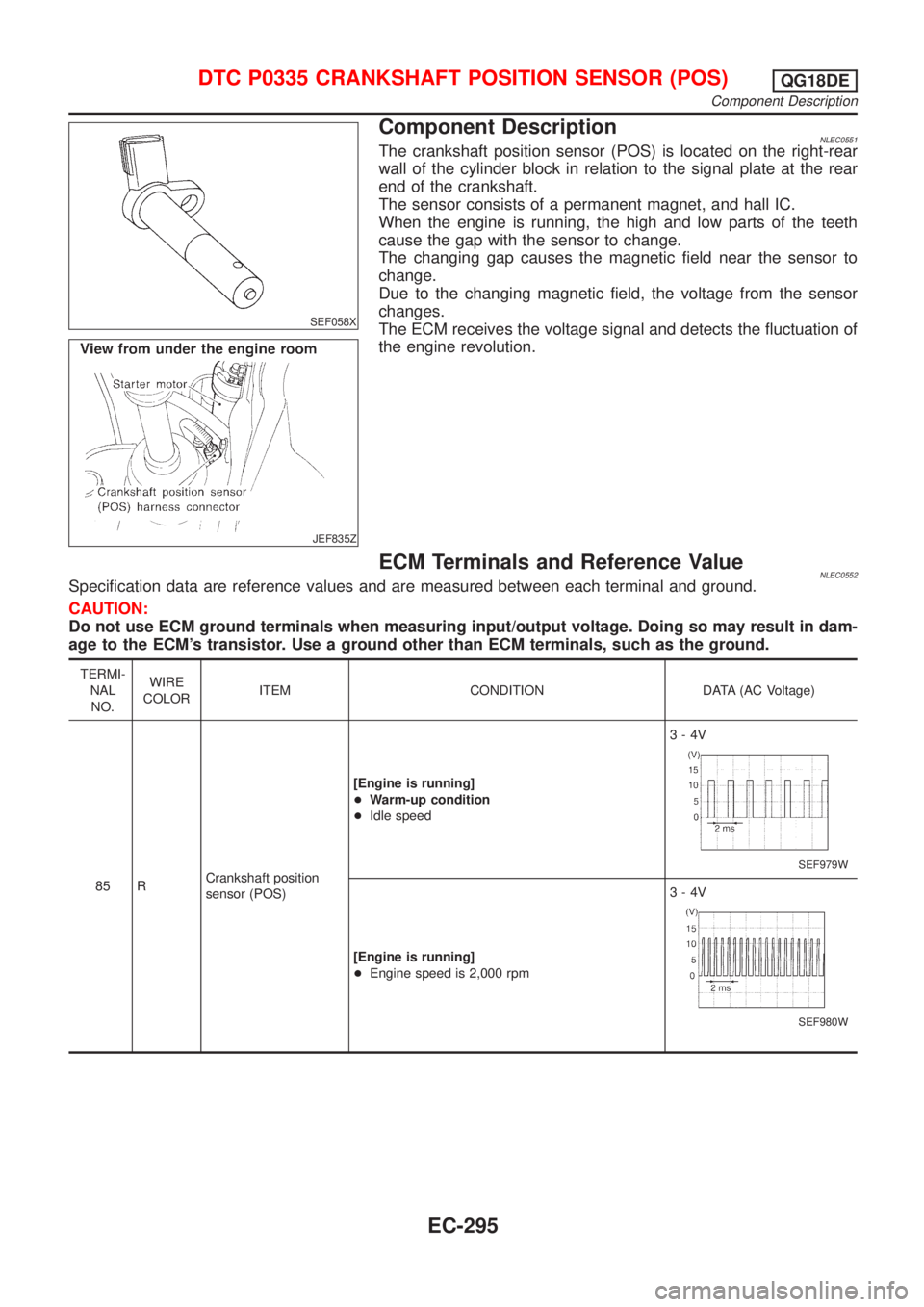

NISSAN ALMERA TINO 2001 Service Repair Manual SEF058X JEF835Z Component DescriptionNLEC0551The crankshaft position sensor (POS) is located on the right-rear wall of the cylinder block in relation to the signal plate at the rear end of the cranksh
