Page 2345 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual NMA006 Changing Air Cleaner FilterNLEM0120VISCOUS PAPER TYPENLEM0120S01Unfasten clamps to change air cleaner filter. The viscous paper type filter does not need cleaning. AIR CLEANERSR Changing Air Cl

Page 2346 of 3051

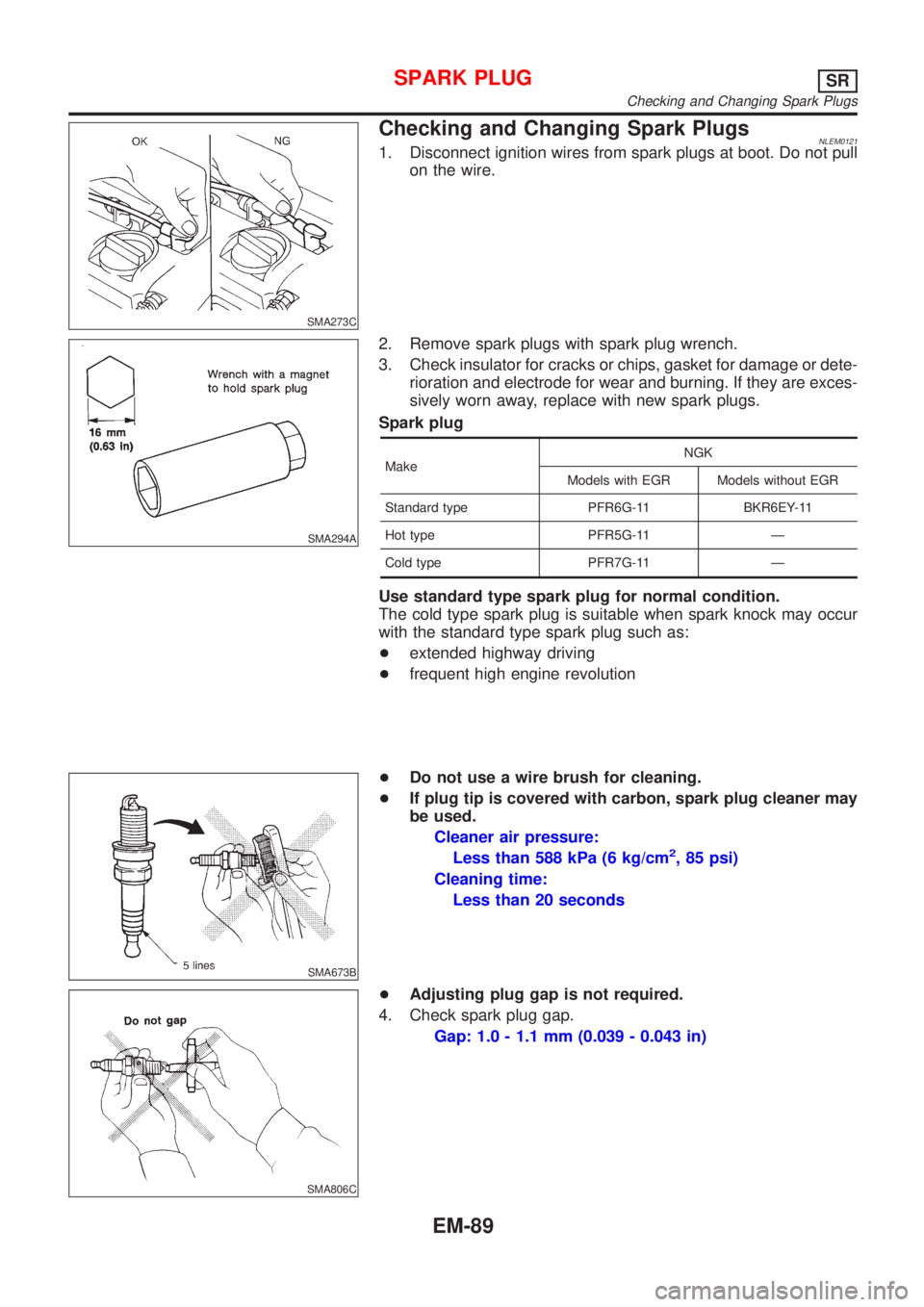

NISSAN ALMERA TINO 2001 Service Repair Manual SMA273C Checking and Changing Spark PlugsNLEM01211. Disconnect ignition wires from spark plugs at boot. Do not pull on the wire. SMA294A 2. Remove spark plugs with spark plug wrench. 3. Check insulato

Page 2347 of 3051

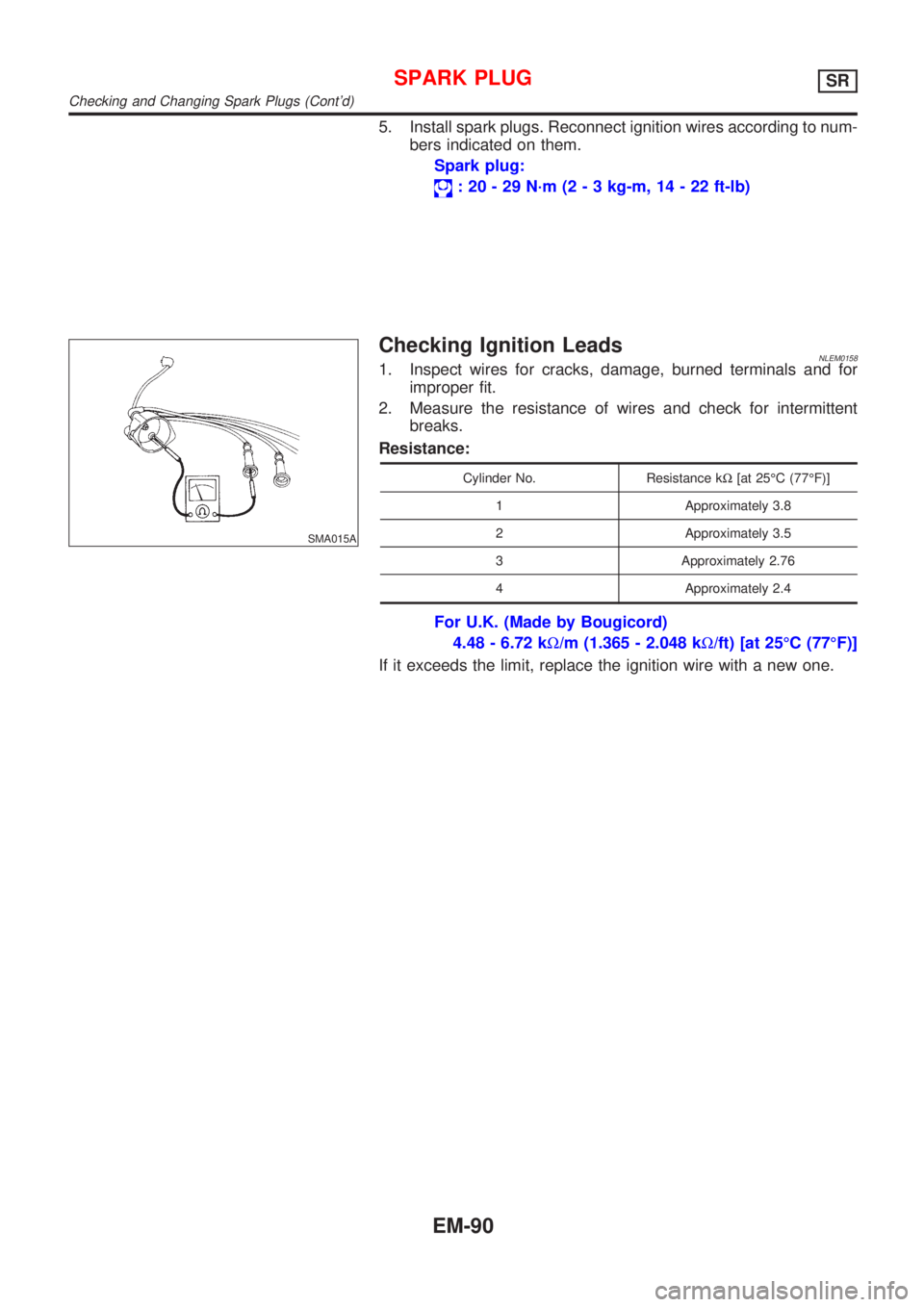

NISSAN ALMERA TINO 2001 Service Repair Manual 5. Install spark plugs. Reconnect ignition wires according to num- bers indicated on them. Spark plug: : 20 - 29 N´m (2 - 3 kg-m, 14 - 22 ft-lb) SMA015A Checking Ignition LeadsNLEM01581. Inspect wire

Page 2348 of 3051

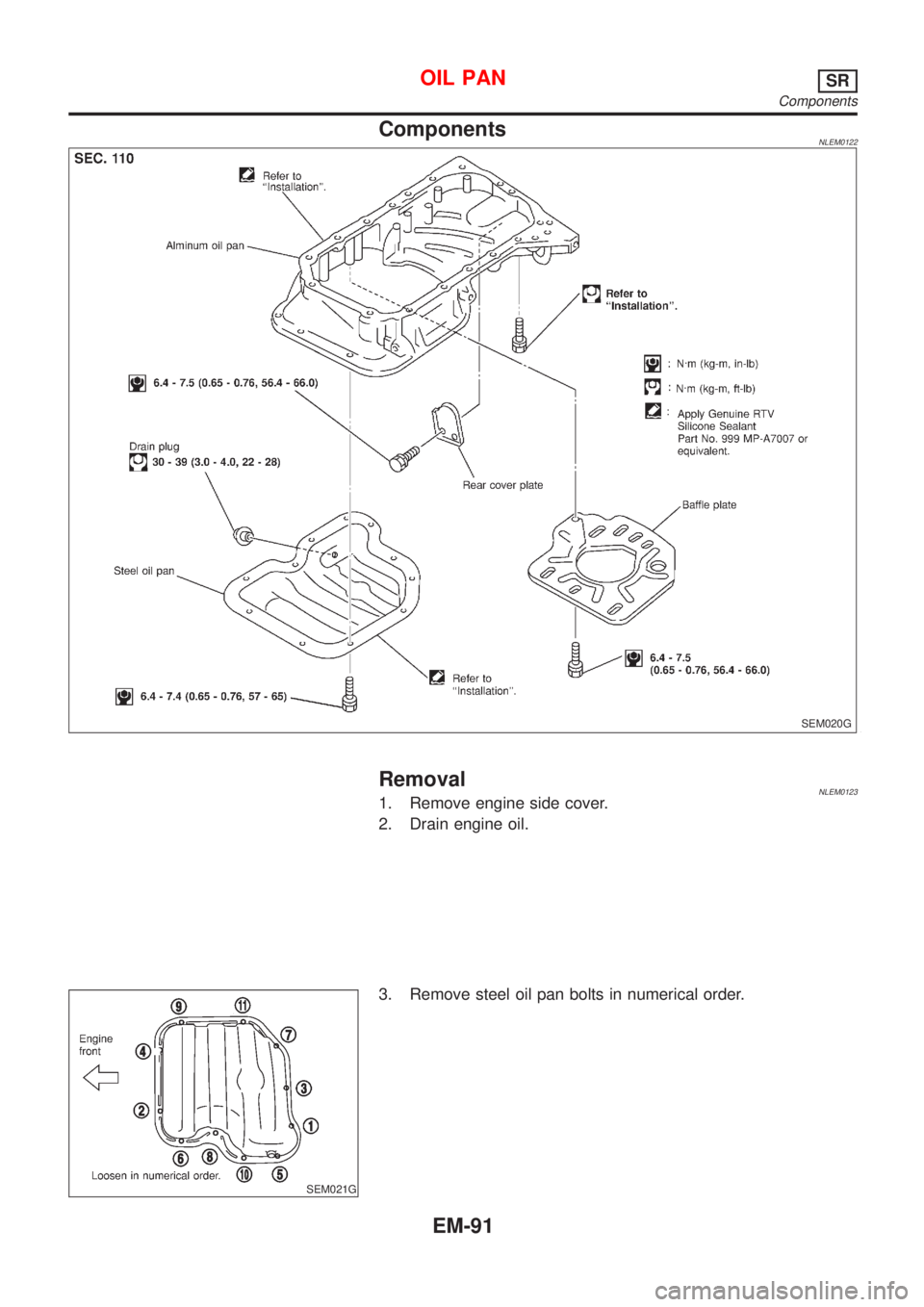

NISSAN ALMERA TINO 2001 Service Repair Manual ComponentsNLEM0122 SEM020G RemovalNLEM01231. Remove engine side cover. 2. Drain engine oil. SEM021G 3. Remove steel oil pan bolts in numerical order. OIL PANSR Components EM-91

Page 2349 of 3051

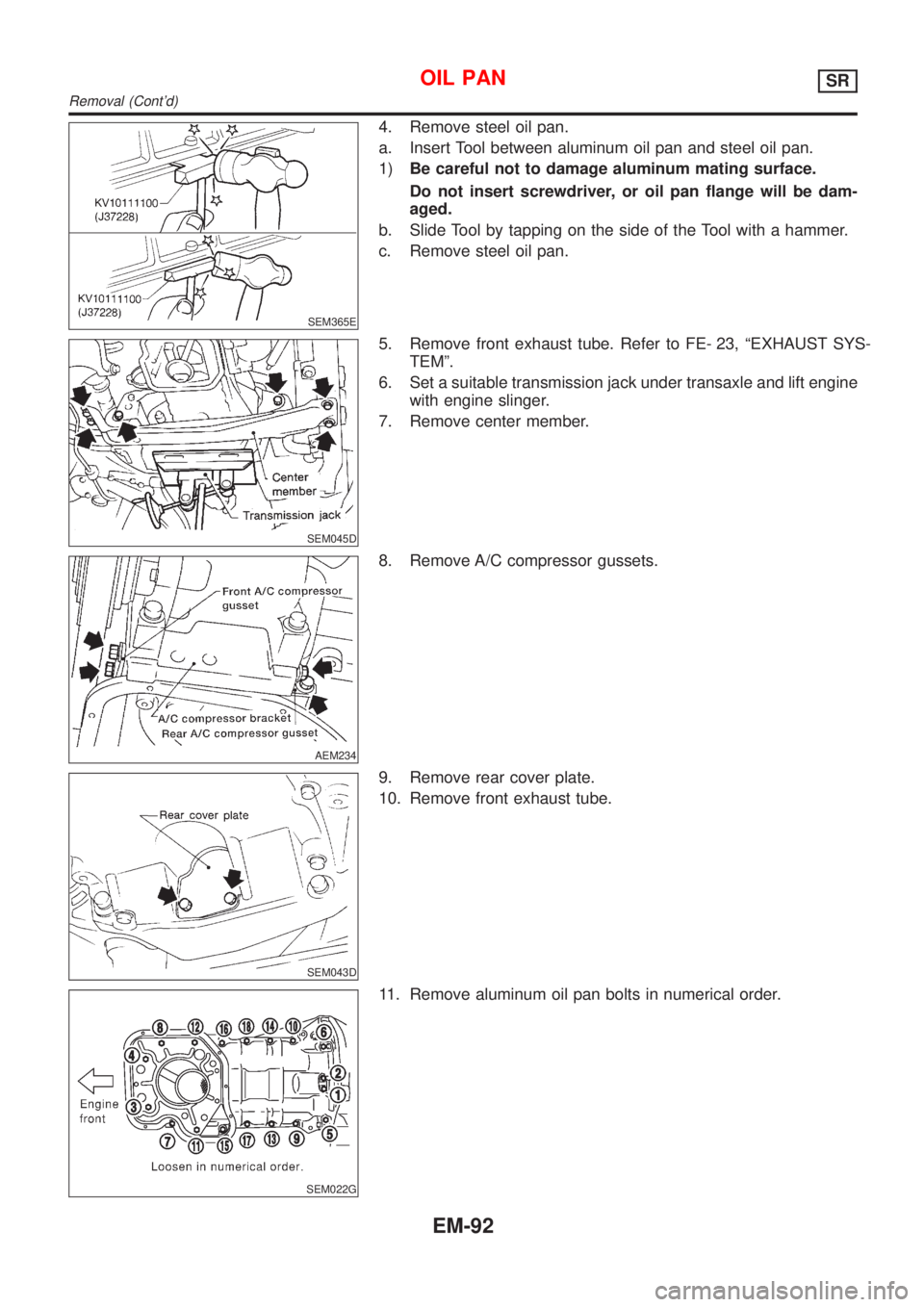

NISSAN ALMERA TINO 2001 Service Repair Manual SEM365E SEM045D AEM234 SEM043D SEM022G Removal (Contd)

Page 2350 of 3051

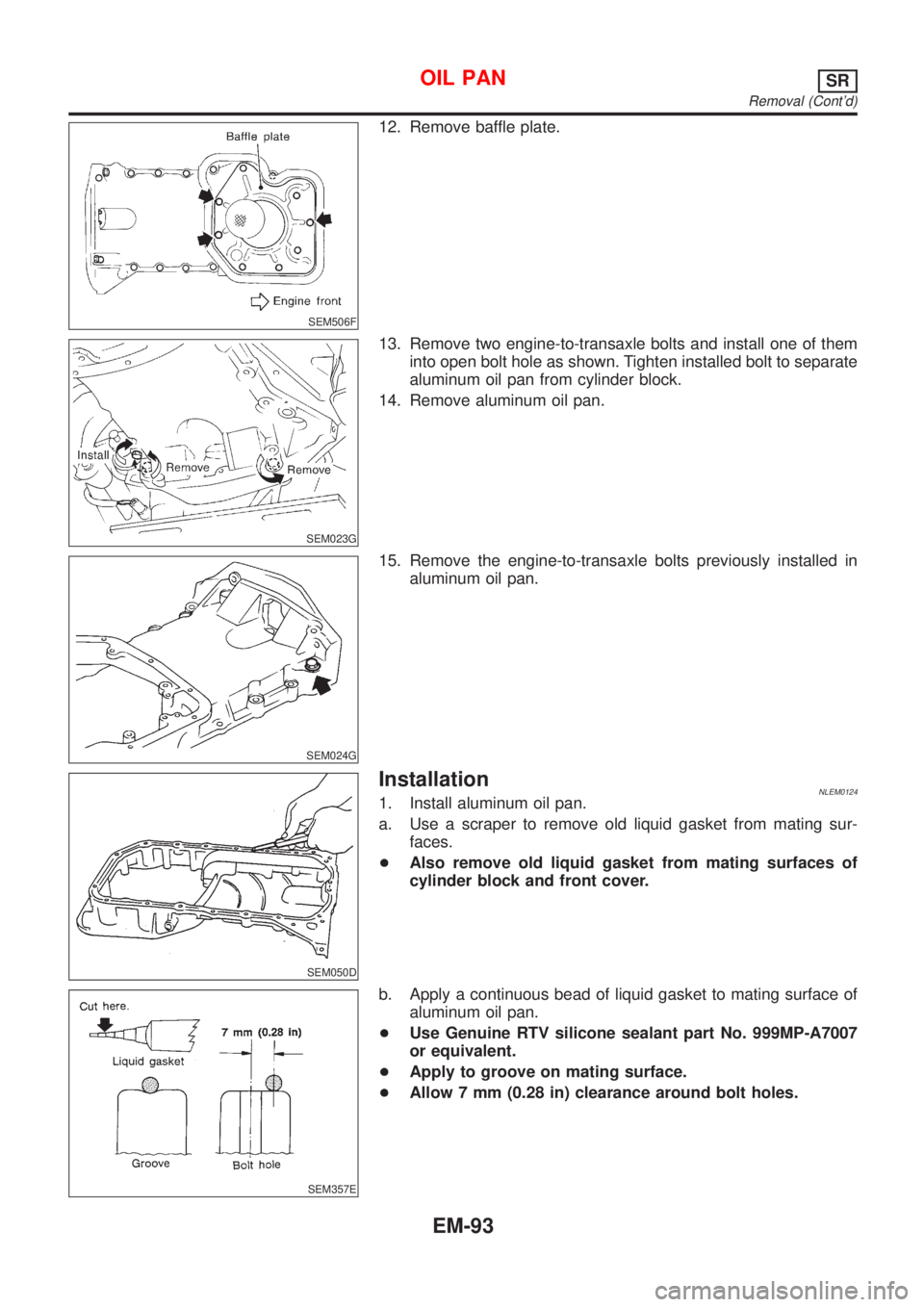

NISSAN ALMERA TINO 2001 Service Repair Manual SEM506F 12. Remove baffle plate. SEM023G 13. Remove two engine-to-transaxle bolts and install one of them into open bolt hole as shown. Tighten installed bolt to separate aluminum oil pan from cylinde

Page 2351 of 3051

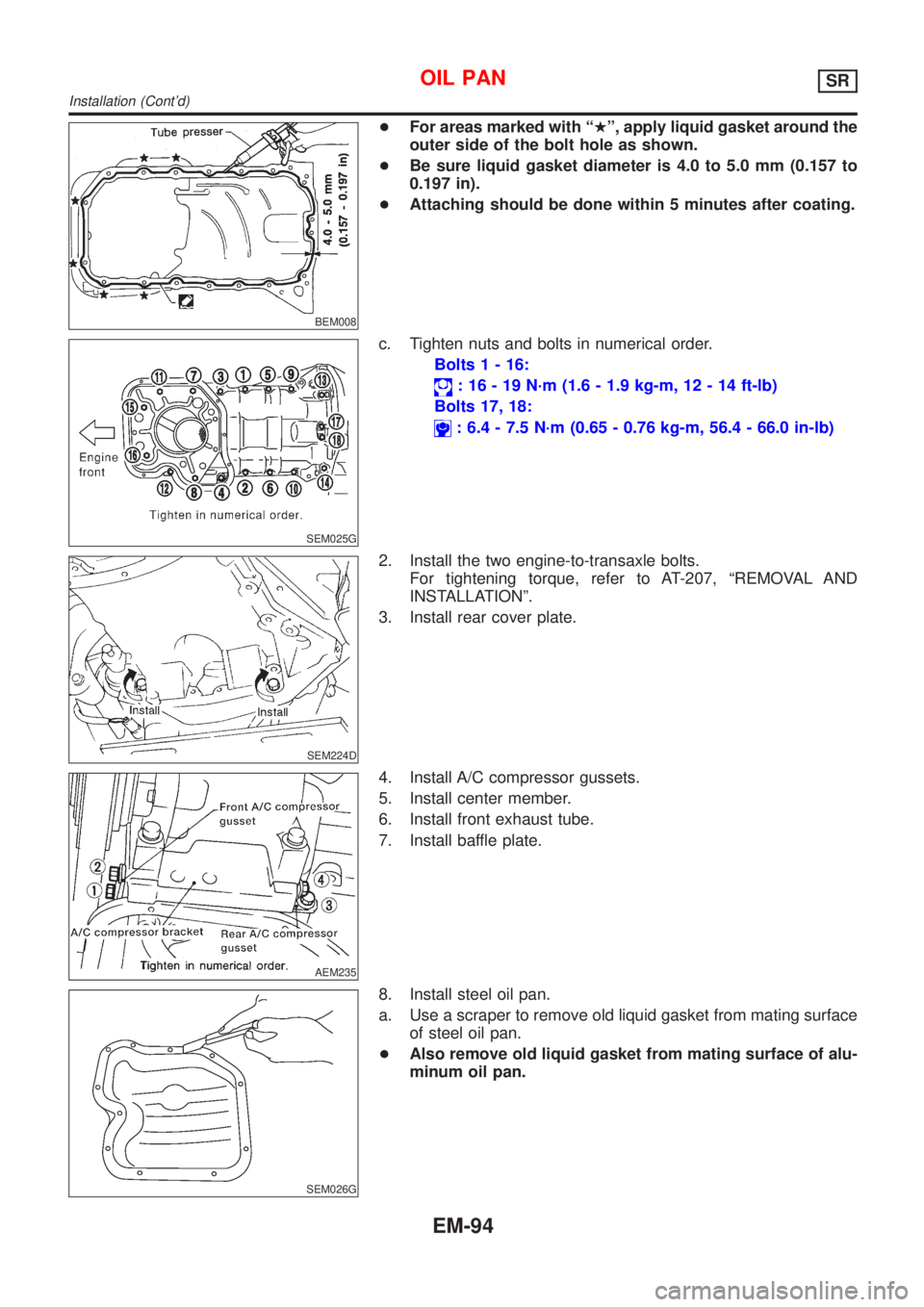

NISSAN ALMERA TINO 2001 Service Repair Manual BEM008 +For areas marked with ªHº, apply liquid gasket around the outer side of the bolt hole as shown. +Be sure liquid gasket diameter is 4.0 to 5.0 mm (0.157 to 0.197 in). +Attaching should be don

Page 2352 of 3051

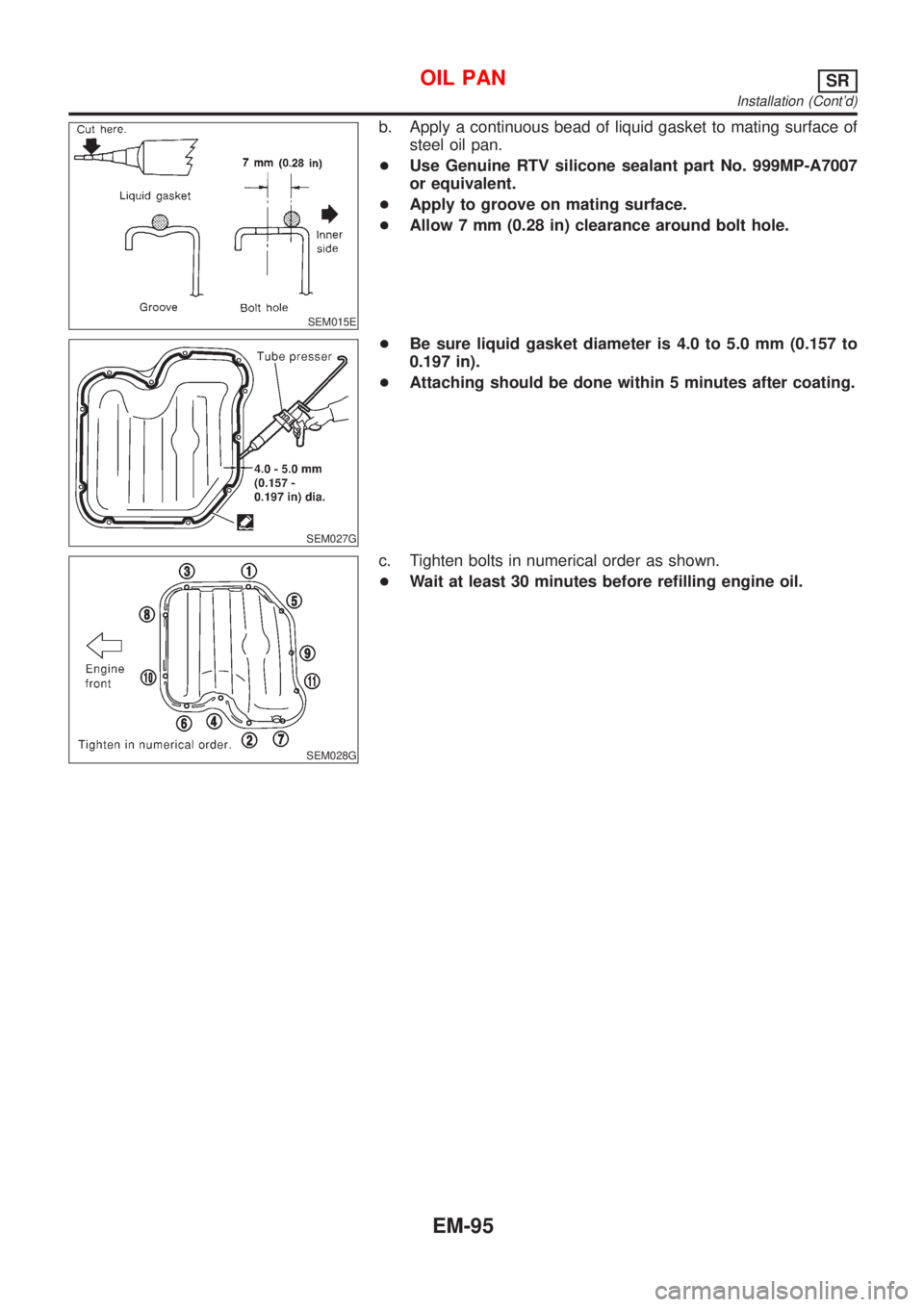

NISSAN ALMERA TINO 2001 Service Repair Manual SEM015E b. Apply a continuous bead of liquid gasket to mating surface of steel oil pan. +Use Genuine RTV silicone sealant part No. 999MP-A7007 or equivalent. +Apply to groove on mating surface. +Allow
