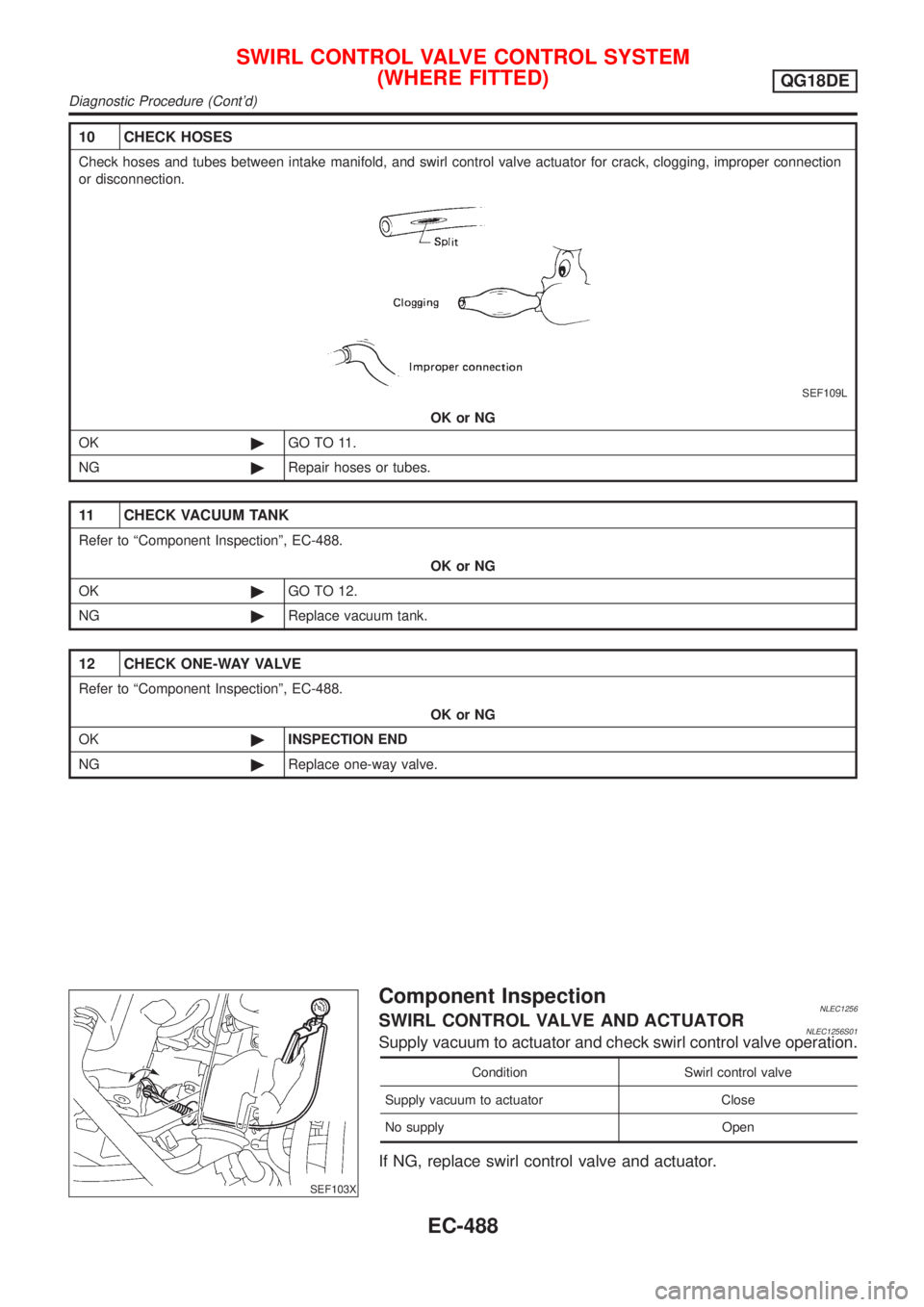

NISSAN ALMERA TINO 2001 Service Repair Manual 10 CHECK HOSES Check hoses and tubes between intake manifold, and swirl control valve actuator for crack, clogging, improper connection or disconnection. SEF109L OK or NG OK©GO TO 11. NG©Repair hose

Page 914 of 3051

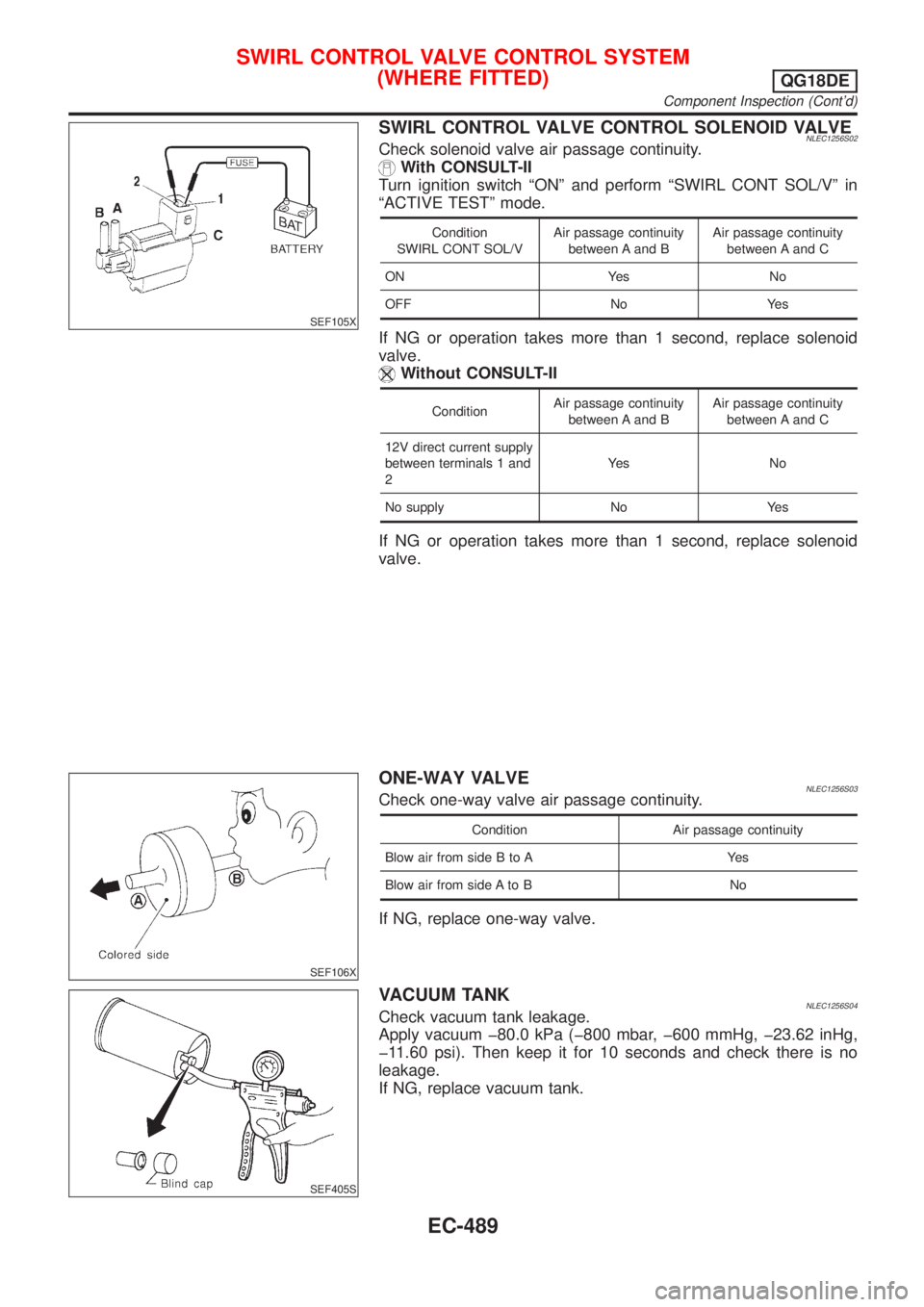

NISSAN ALMERA TINO 2001 Service Repair Manual SEF105X SWIRL CONTROL VALVE CONTROL SOLENOID VALVENLEC1256S02Check solenoid valve air passage continuity. With CONSULT-II Turn ignition switch ªONº and perform ªSWIRL CONT SOL/Vº in ªACTIVE TEST

Page 915 of 3051

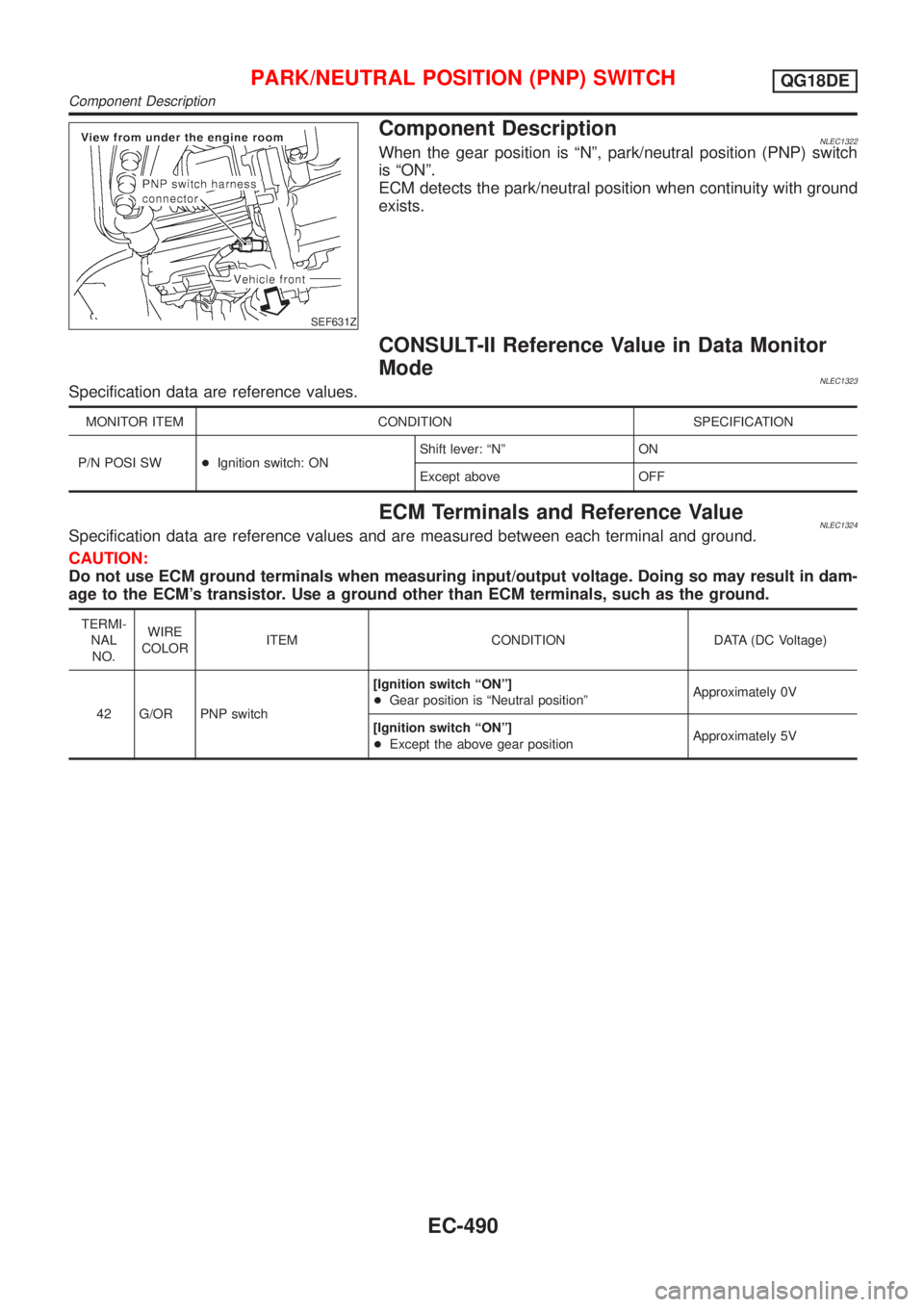

NISSAN ALMERA TINO 2001 Service Repair Manual SEF631Z Component DescriptionNLEC1322When the gear position is ªNº, park/neutral position (PNP) switch is ªONº. ECM detects the park/neutral position when continuity with ground exists. CONSULT-II

Page 916 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC1328 YEC753 PARK/NEUTRAL POSITION (PNP) SWITCHQG18DE Wiring Diagram EC-491

Page 917 of 3051

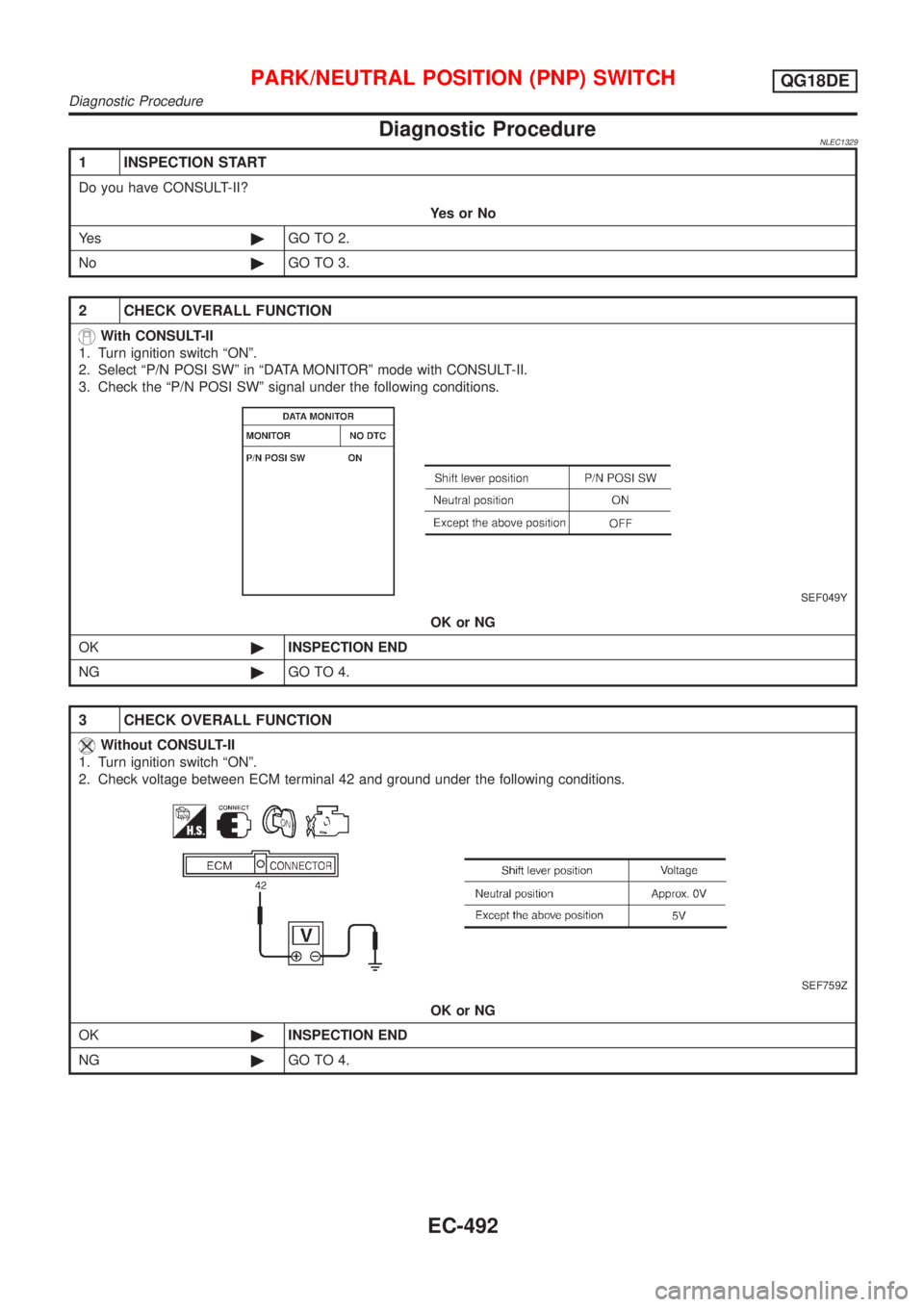

NISSAN ALMERA TINO 2001 Service Repair Manual Diagnostic ProcedureNLEC1329 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 3. 2 CHECK OVERALL FUNCTION With CONSULT-II 1. Turn ignition switch ªONº. 2. Select ªP/N POS

Page 918 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual 4 CHECK GROUND CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect PNP switch harness connector. SEF631Z 3. Check harness continuity between PNP switch harness connector terminal 2 and body ground.

Page 919 of 3051

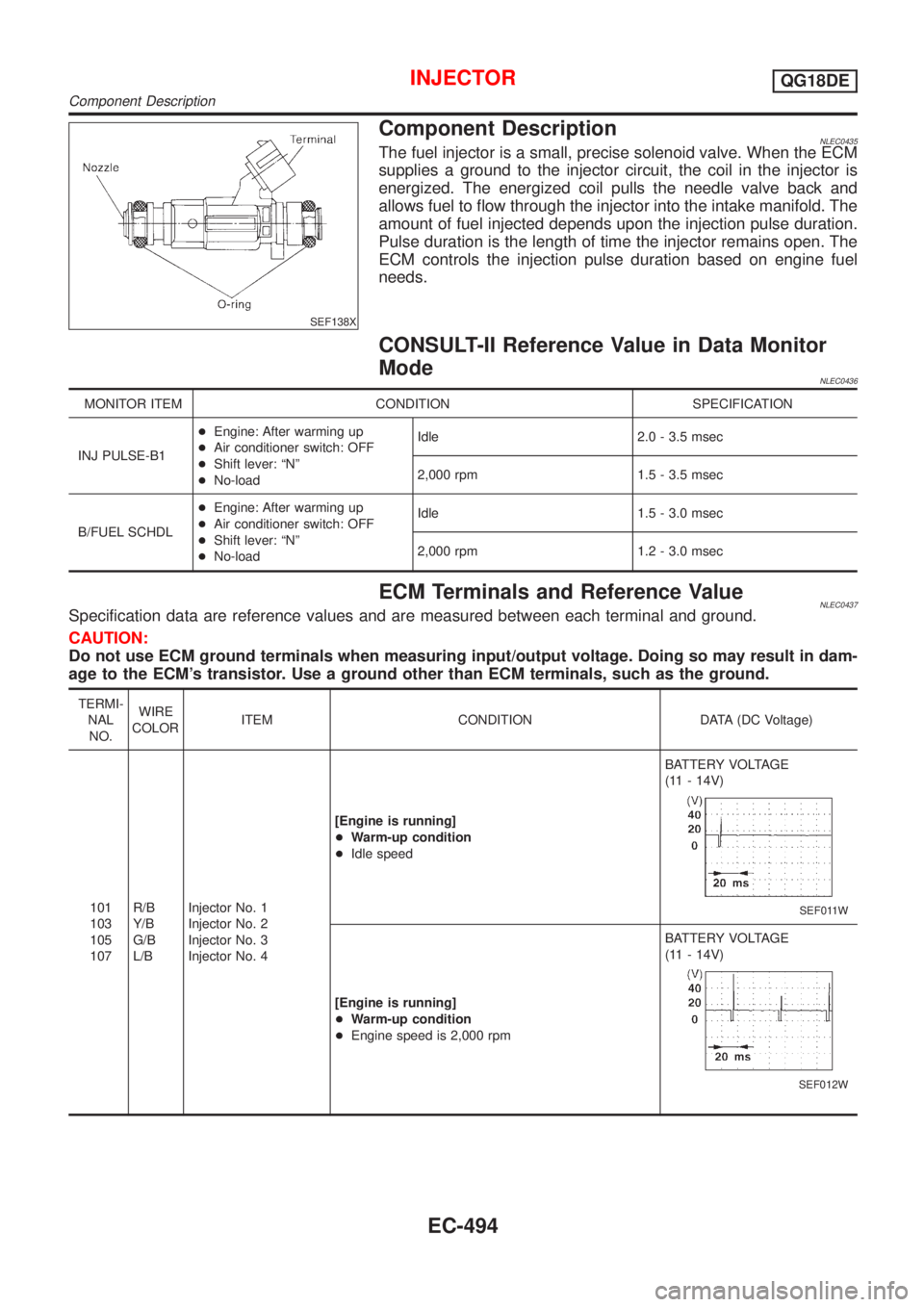

NISSAN ALMERA TINO 2001 Service Repair Manual SEF138X Component DescriptionNLEC0435The fuel injector is a small, precise solenoid valve. When the ECM supplies a ground to the injector circuit, the coil in the injector is energized. The energized

Page 920 of 3051

NISSAN ALMERA TINO 2001 Service Repair Manual Wiring DiagramNLEC0434MODELS WITH ECM IN ENGINE COMPARTMENTNLEC0434S01 YEC672 INJECTORQG18DE Wiring Diagram EC-495
