Page 1585 of 3051

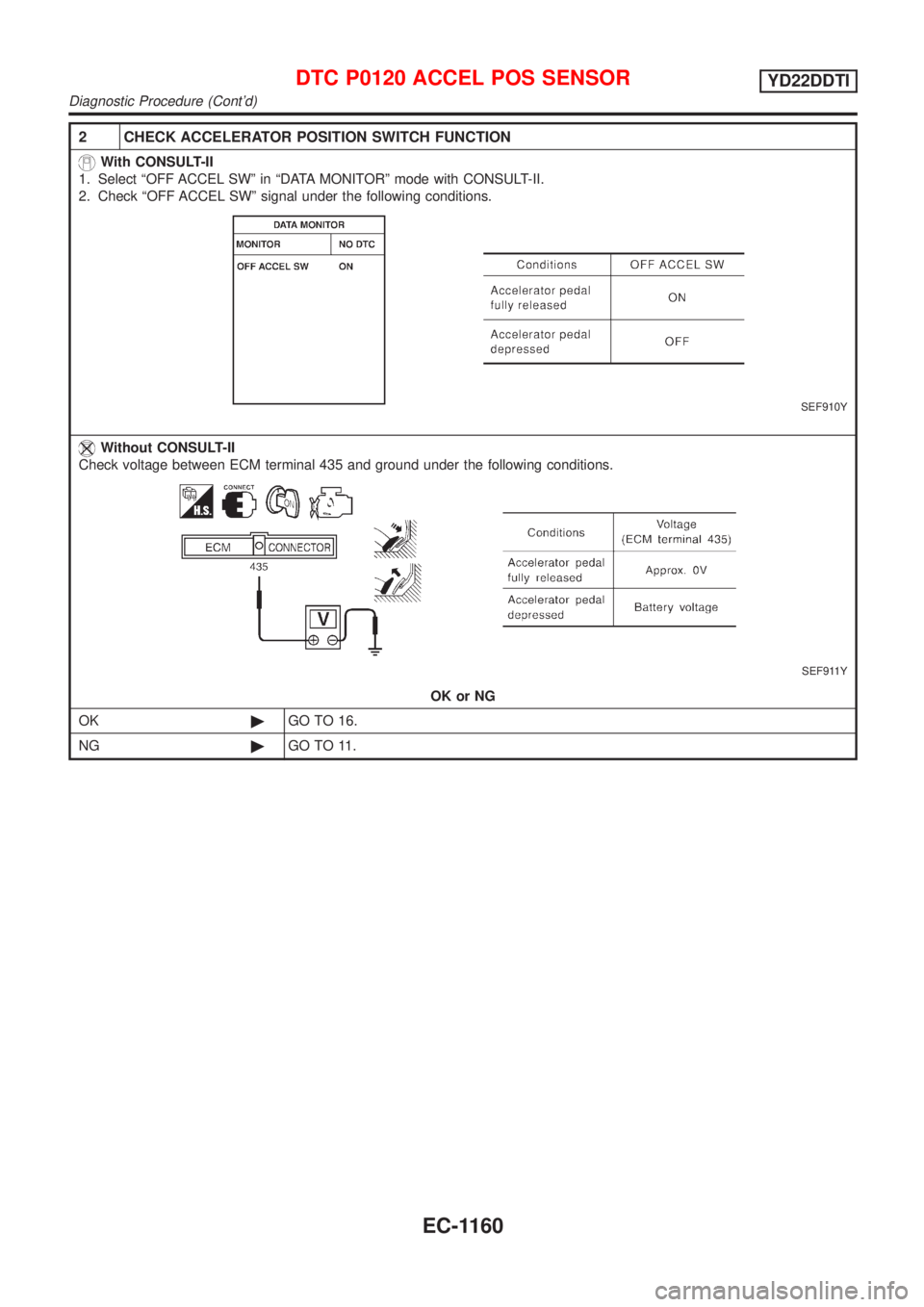

NISSAN ALMERA TINO 2001 Service Repair Manual 2 CHECK ACCELERATOR POSITION SWITCH FUNCTION With CONSULT-II 1. Select ªOFF ACCEL SWº in ªDATA MONITORº mode with CONSULT-II. 2. Check ªOFF ACCEL SWº signal under the following conditions. SEF91

Page 1586 of 3051

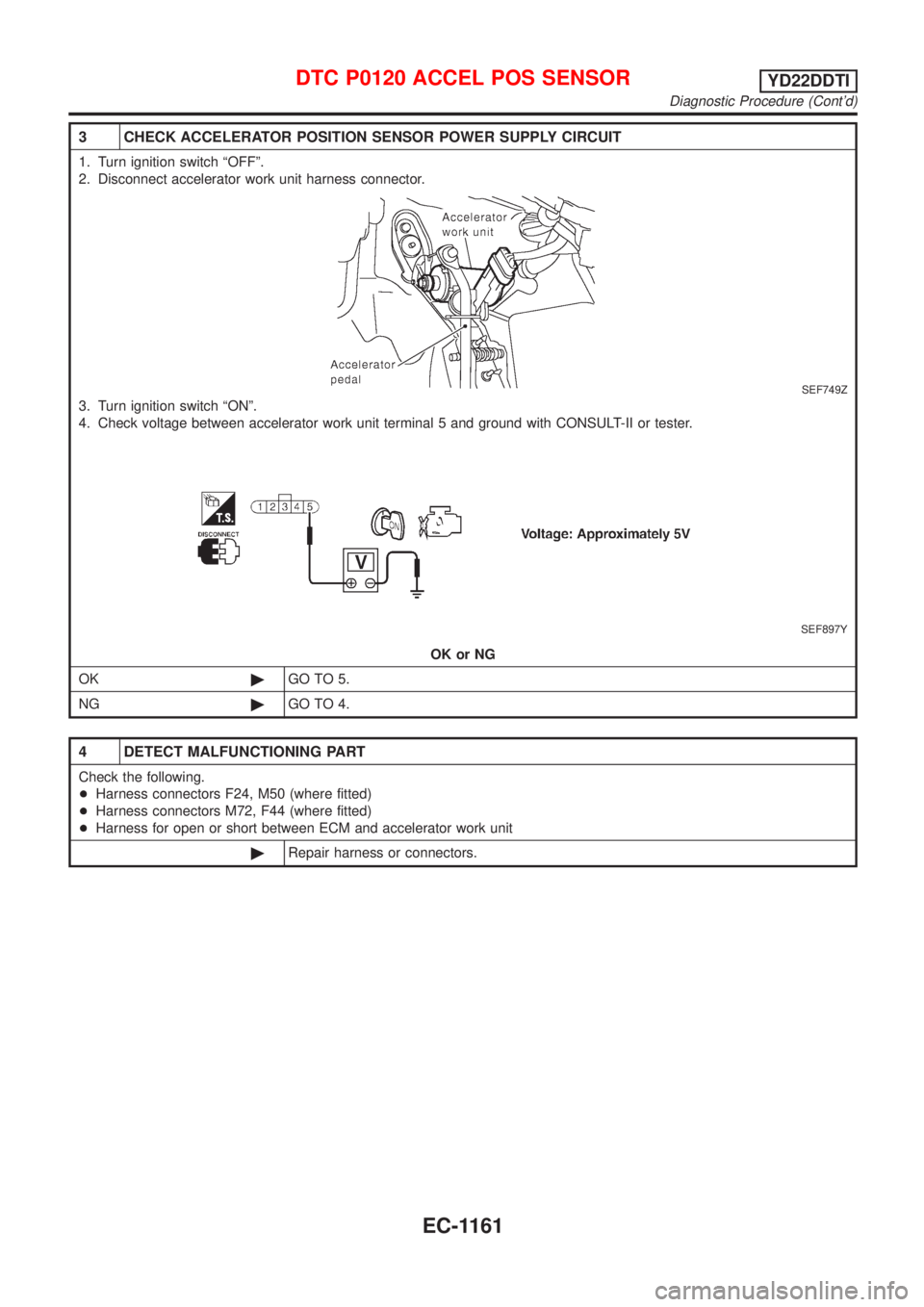

NISSAN ALMERA TINO 2001 Service Repair Manual 3 CHECK ACCELERATOR POSITION SENSOR POWER SUPPLY CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect accelerator work unit harness connector. SEF749Z 3. Turn ignition switch ªONº. 4. Check voltag

Page 1587 of 3051

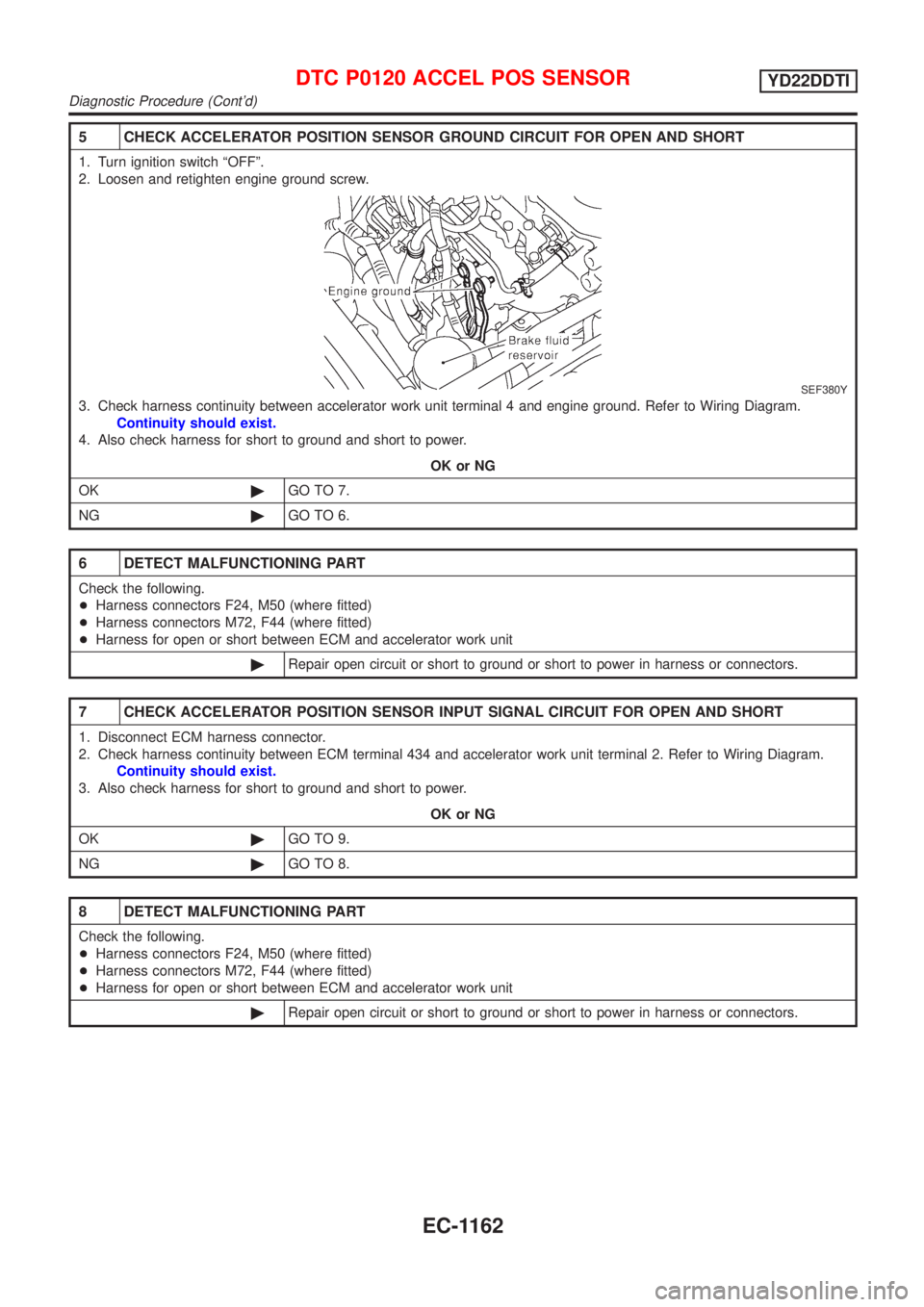

NISSAN ALMERA TINO 2001 Service Repair Manual 5 CHECK ACCELERATOR POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screw. SEF380Y 3. Check harness continuity between accelera

Page 1588 of 3051

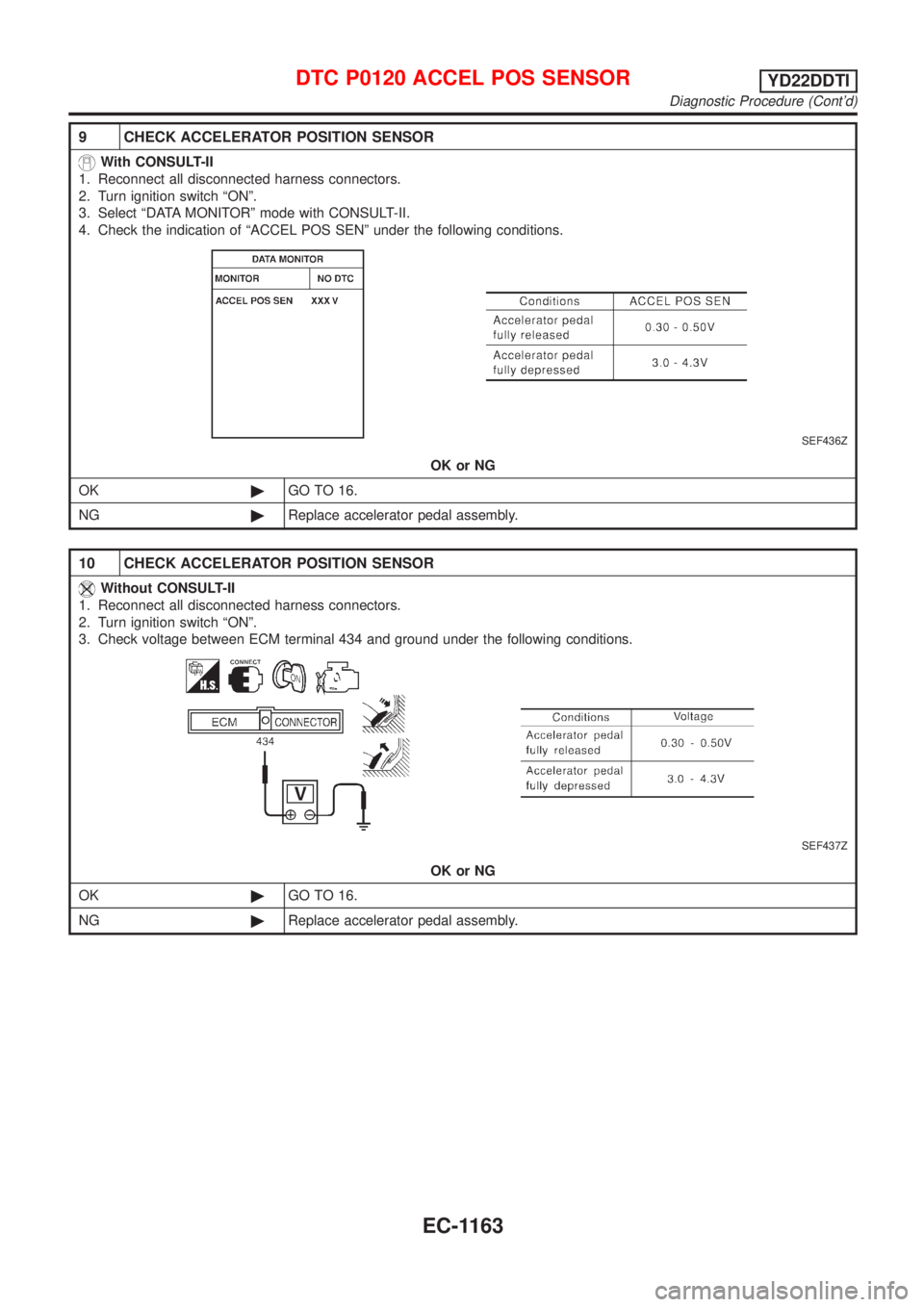

NISSAN ALMERA TINO 2001 Service Repair Manual 9 CHECK ACCELERATOR POSITION SENSOR With CONSULT-II 1. Reconnect all disconnected harness connectors. 2. Turn ignition switch ªONº. 3. Select ªDATA MONITORº mode with CONSULT-II. 4. Check the indi

Page 1589 of 3051

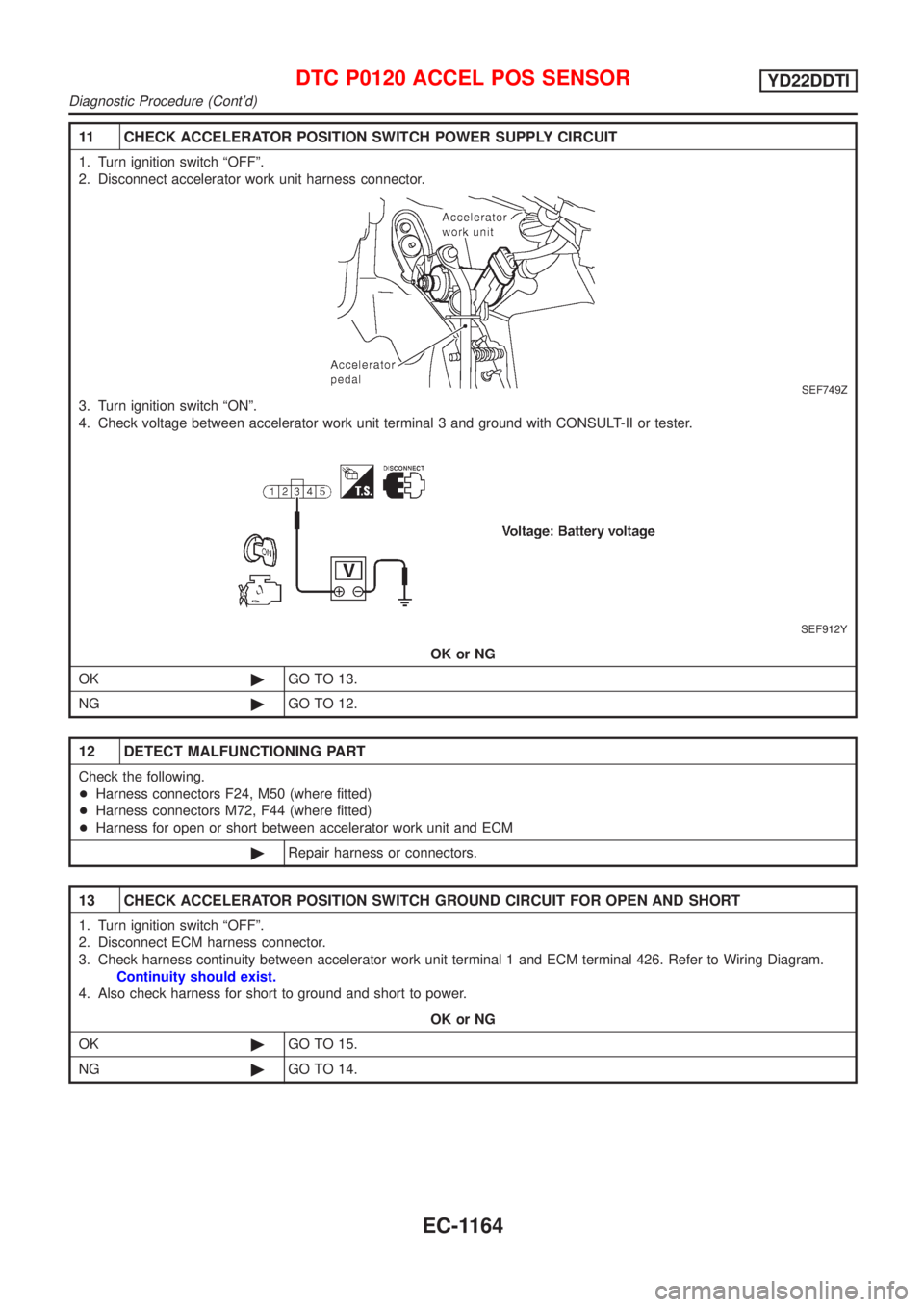

NISSAN ALMERA TINO 2001 Service Repair Manual 11 CHECK ACCELERATOR POSITION SWITCH POWER SUPPLY CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect accelerator work unit harness connector. SEF749Z 3. Turn ignition switch ªONº. 4. Check volta

Page 1590 of 3051

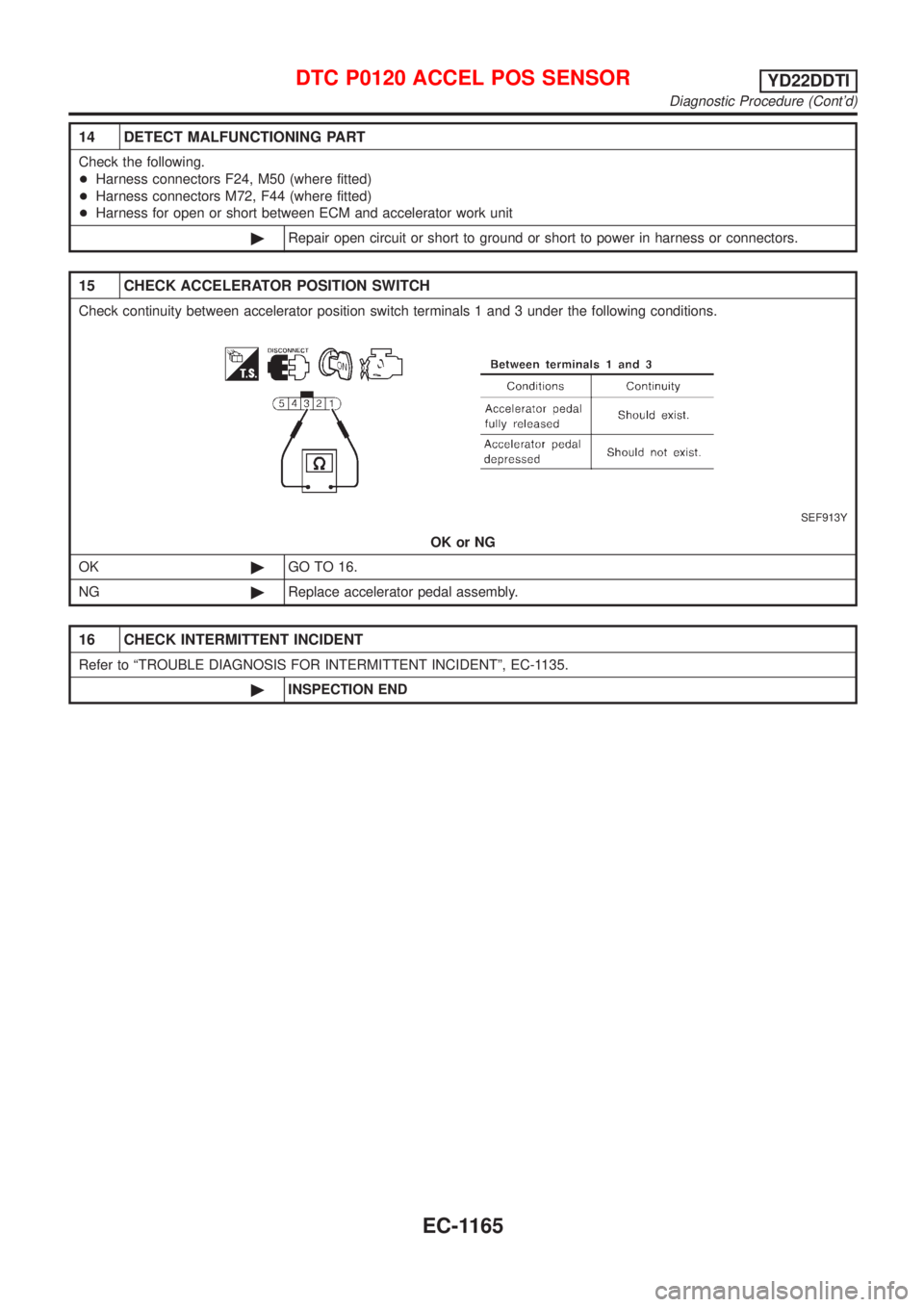

NISSAN ALMERA TINO 2001 Service Repair Manual 14 DETECT MALFUNCTIONING PART Check the following. +Harness connectors F24, M50 (where fitted) +Harness connectors M72, F44 (where fitted) +Harness for open or short between ECM and accelerator work u

Page 1591 of 3051

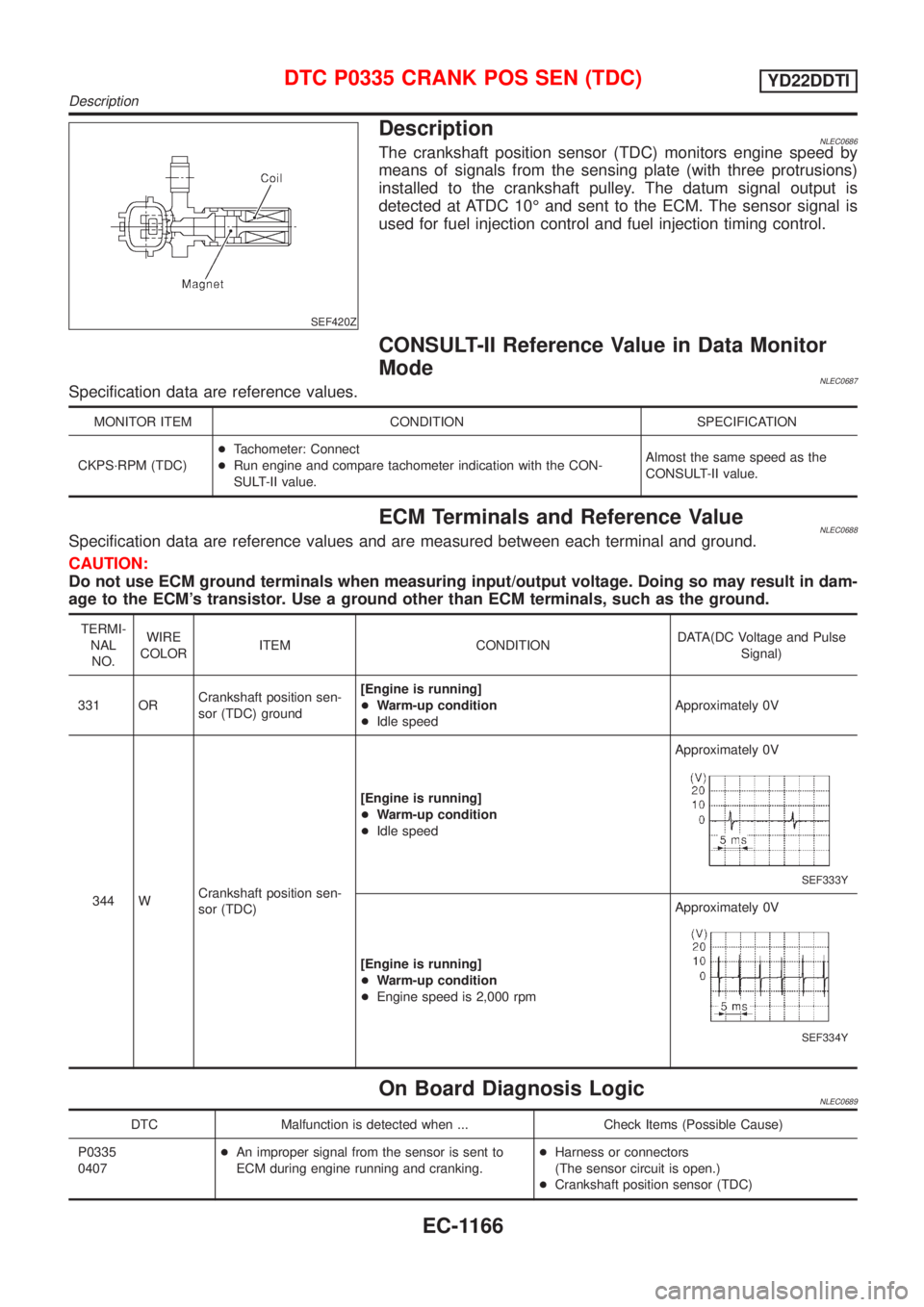

NISSAN ALMERA TINO 2001 Service Repair Manual SEF420Z DescriptionNLEC0686The crankshaft position sensor (TDC) monitors engine speed by means of signals from the sensing plate (with three protrusions) installed to the crankshaft pulley. The datum

Page 1592 of 3051

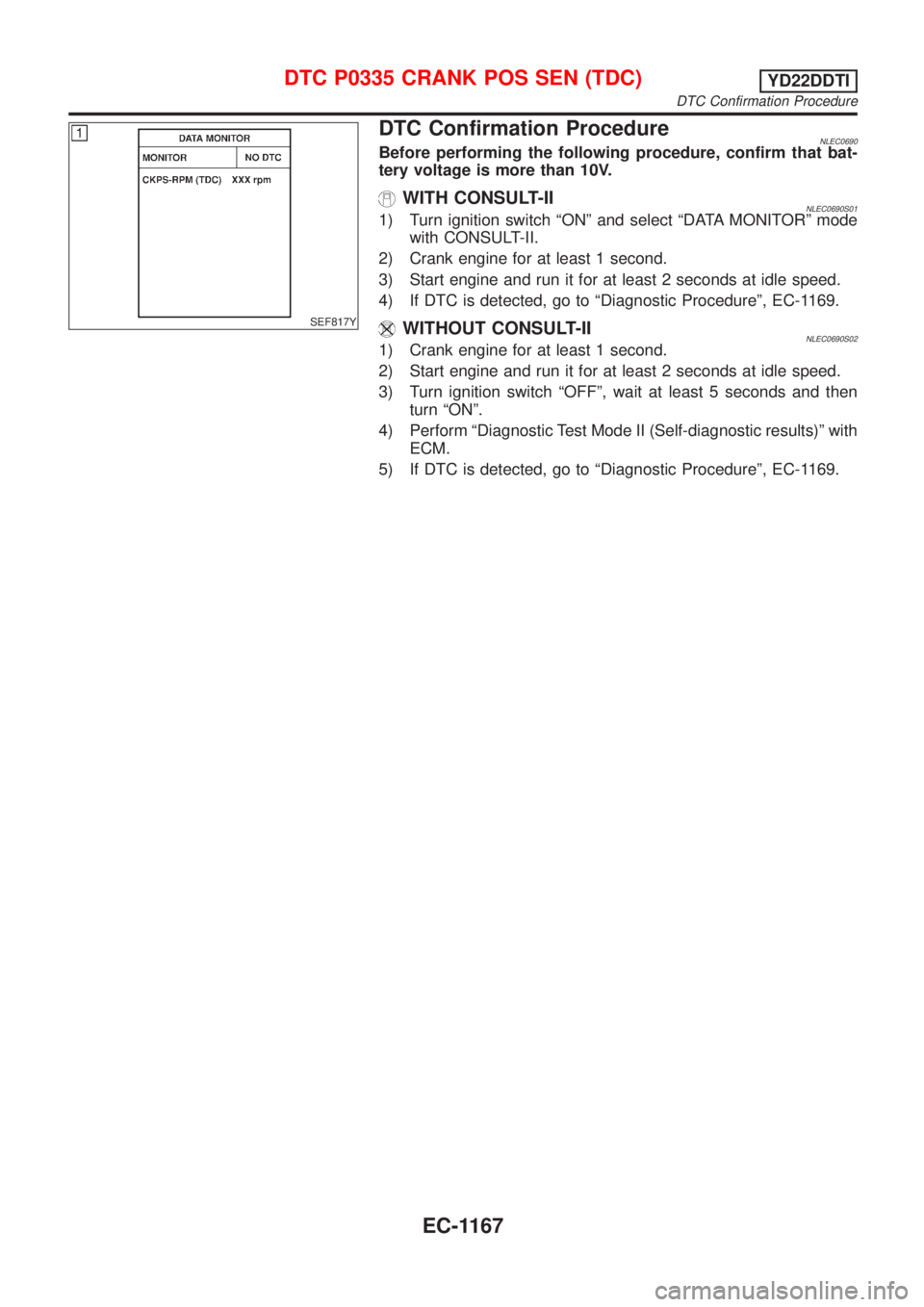

NISSAN ALMERA TINO 2001 Service Repair Manual SEF817Y DTC Confirmation ProcedureNLEC0690Before performing the following procedure, confirm that bat- tery voltage is more than 10V. WITH CONSULT-IINLEC0690S011) Turn ignition switch ªONº and selec
