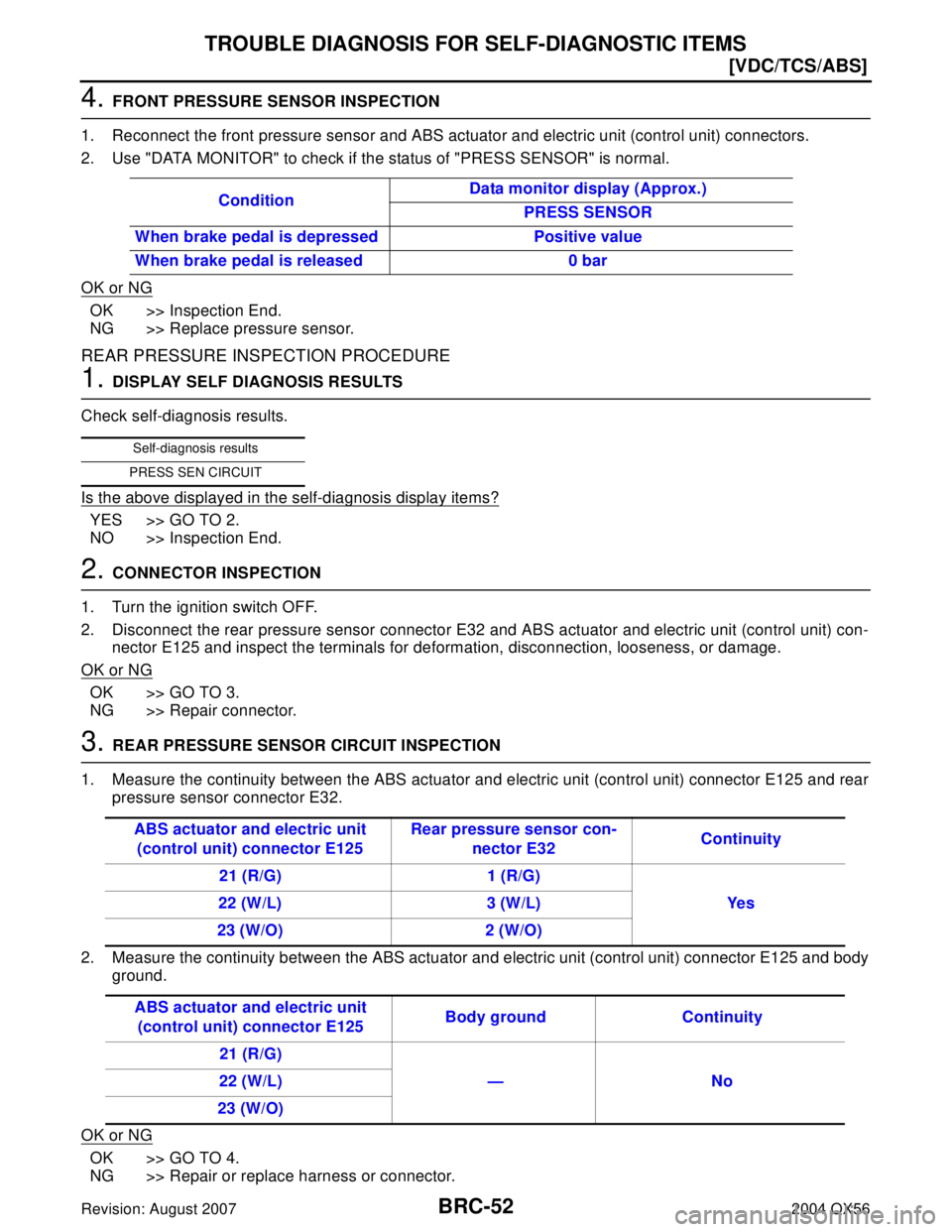

BRC-52
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
4. FRONT PRESSURE SENSOR INSPECTION
1. Reconnect the front pressure sensor and ABS actuator and electric unit (control unit) connectors.
2. Use "DATA MONITOR" to check if the status of "PRESS SENSOR" is normal.
OK or NG
OK >> Inspection End.
NG >> Replace pressure sensor.
REAR PRESSURE INSPECTION PROCEDURE
1. DISPLAY SELF DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2. CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the rear pressure sensor connector E32 and ABS actuator and electric unit (control unit) con-
nector E125 and inspect the terminals for deformation, disconnection, looseness, or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair connector.
3. REAR PRESSURE SENSOR CIRCUIT INSPECTION
1. Measure the continuity between the ABS actuator and electric unit (control unit) connector E125 and rear
pressure sensor connector E32.
2. Measure the continuity between the ABS actuator and electric unit (control unit) connector E125 and body
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connector.ConditionData monitor display (Approx.)
PRESS SENSOR
When brake pedal is depressed Positive value
When brake pedal is released 0 bar
Self-diagnosis results
PRESS SEN CIRCUIT
ABS actuator and electric unit
(control unit) connector E125Rear pressure sensor con-
nector E32Continuity
21 (R/G) 1 (R/G)
Ye s 22 (W/L) 3 (W/L)
23 (W/O) 2 (W/O)
ABS actuator and electric unit
(control unit) connector E125Body ground Continuity
21 (R/G)
—No 22 (W/L)
23 (W/O)
Page 1066 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-53
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
4. REAR PRESSURE SENSOR INSPECTION
1. Reconnect the rear pressure sensor and INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-53
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
4. REAR PRESSURE SENSOR INSPECTION
1. Reconnect the rear pressure sensor and](/manual-img/42/57034/w960_57034-1065.png)

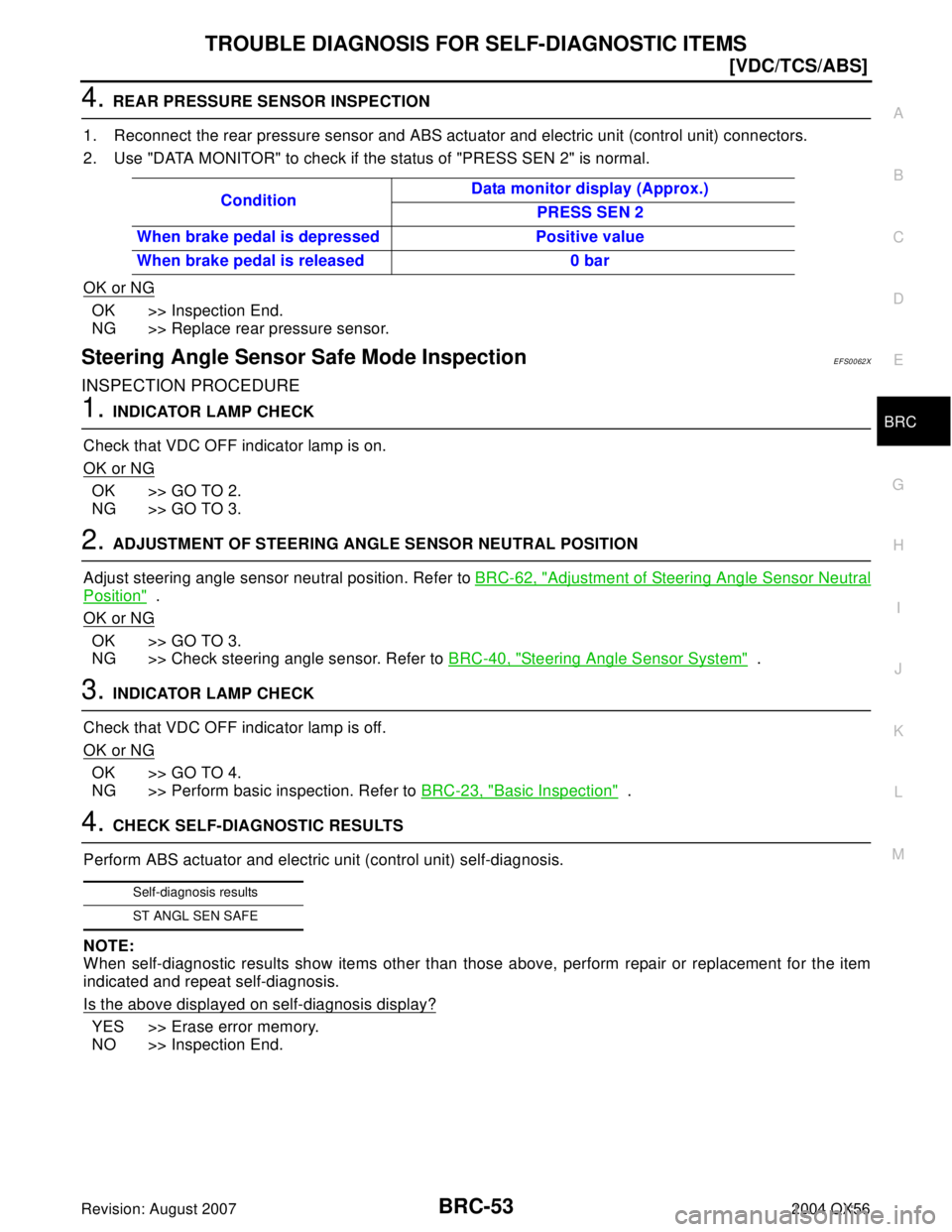

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-53
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
4. REAR PRESSURE SENSOR INSPECTION
1. Reconnect the rear pressure sensor and ABS actuator and electric unit (control unit) connectors.
2. Use "DATA MONITOR" to check if the status of "PRESS SEN 2" is normal.
OK or NG
OK >> Inspection End.
NG >> Replace rear pressure sensor.
Steering Angle Sensor Safe Mode InspectionEFS0062X
INSPECTION PROCEDURE
1. INDICATOR LAMP CHECK
Check that VDC OFF indicator lamp is on.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Adjust steering angle sensor neutral position. Refer to BRC-62, "
Adjustment of Steering Angle Sensor Neutral
Position" .
OK or NG
OK >> GO TO 3.
NG >> Check steering angle sensor. Refer to BRC-40, "
Steering Angle Sensor System" .
3. INDICATOR LAMP CHECK
Check that VDC OFF indicator lamp is off.
OK or NG
OK >> GO TO 4.
NG >> Perform basic inspection. Refer to BRC-23, "
Basic Inspection" .
4. CHECK SELF-DIAGNOSTIC RESULTS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
NOTE:
When self-diagnostic results show items other than those above, perform repair or replacement for the item
indicated and repeat self-diagnosis.
Is the above displayed on self-diagnosis display?
YES >> Erase error memory.
NO >> Inspection End.ConditionData monitor display (Approx.)
PRESS SEN 2
When brake pedal is depressed Positive value
When brake pedal is released 0 bar
Self-diagnosis results
ST ANGL SEN SAFE
Page 1067 of 3371
![INFINITI QX56 2004 Factory Service Manual BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
CAN Communication System InspectionEFS003RB
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition swi INFINITI QX56 2004 Factory Service Manual BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
CAN Communication System InspectionEFS003RB
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition swi](/manual-img/42/57034/w960_57034-1066.png)

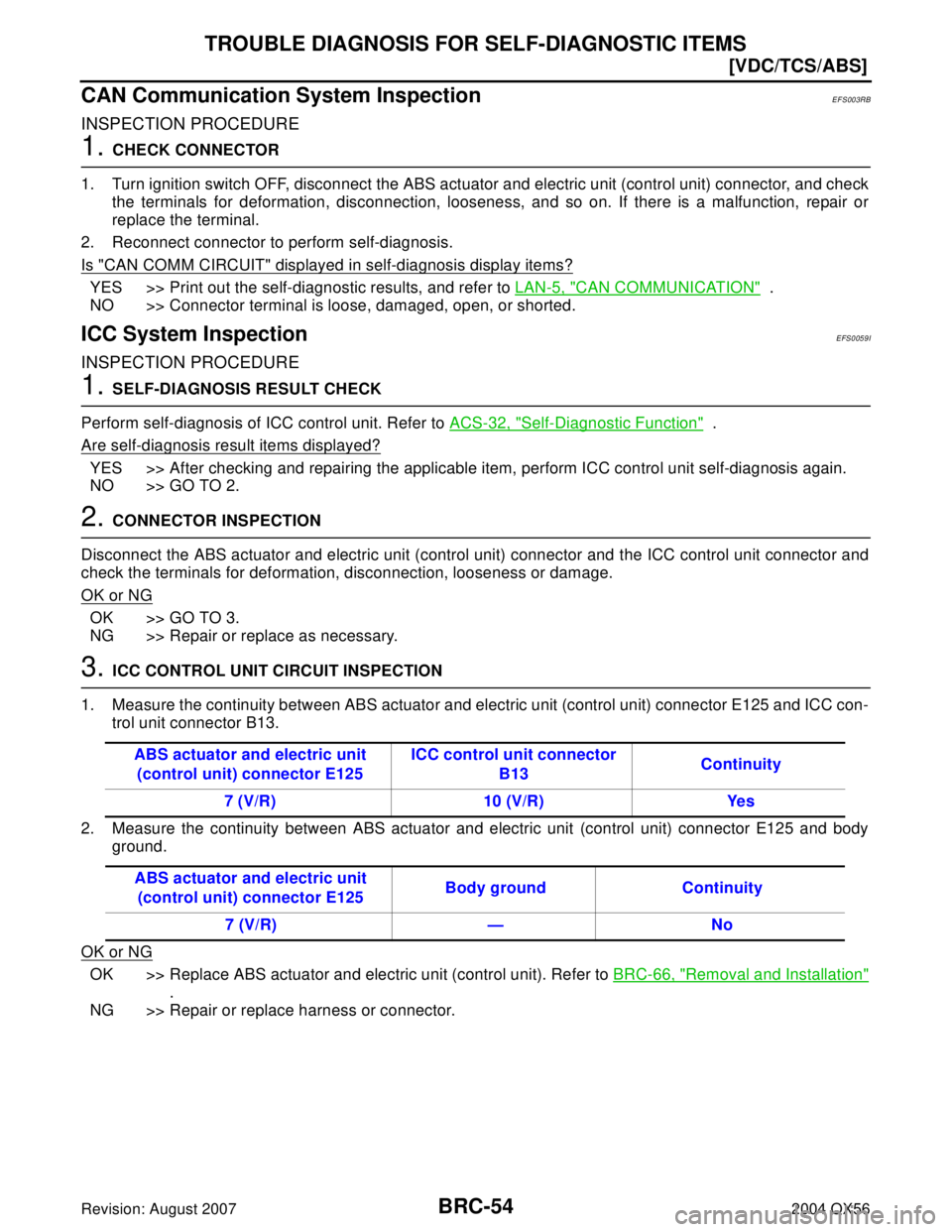

BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
CAN Communication System InspectionEFS003RB
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check
the terminals for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or
replace the terminal.
2. Reconnect connector to perform self-diagnosis.
Is "CAN COMM CIRCUIT" displayed in self-diagnosis display items?
YES >> Print out the self-diagnostic results, and refer to LAN-5, "CAN COMMUNICATION" .
NO >> Connector terminal is loose, damaged, open, or shorted.
ICC System InspectionEFS0059I
INSPECTION PROCEDURE
1. SELF-DIAGNOSIS RESULT CHECK
Perform self-diagnosis of ICC control unit. Refer to ACS-32, "
Self-Diagnostic Function" .
Are self-diagnosis result items displayed?
YES >> After checking and repairing the applicable item, perform ICC control unit self-diagnosis again.
NO >> GO TO 2.
2. CONNECTOR INSPECTION
Disconnect the ABS actuator and electric unit (control unit) connector and the ICC control unit connector and
check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
3. ICC CONTROL UNIT CIRCUIT INSPECTION
1. Measure the continuity between ABS actuator and electric unit (control unit) connector E125 and ICC con-
trol unit connector B13.
2. Measure the continuity between ABS actuator and electric unit (control unit) connector E125 and body
ground.
OK or NG
OK >> Replace ABS actuator and electric unit (control unit). Refer to BRC-66, "Removal and Installation"
.
NG >> Repair or replace harness or connector.ABS actuator and electric unit
(control unit) connector E125ICC control unit connector
B13Continuity
7 (V/R) 10 (V/R) Yes
ABS actuator and electric unit
(control unit) connector E125Body ground Continuity
7 (V/R) — No
Page 1068 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-55
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Inspection For Self-diagnosis Result "ST ANGLE SEN SIGNAL"EFS003RC
INSPECTION INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-55
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Inspection For Self-diagnosis Result "ST ANGLE SEN SIGNAL"EFS003RC
INSPECTION](/manual-img/42/57034/w960_57034-1067.png)
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-55
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Inspection For Self-diagnosis Result "ST ANGLE SEN SIGNAL"EFS003RC
INSPECTION PROCEDURE
1. PERFORM SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Do self-diagnosis results indicate anything other than shown above?
Yes >> Perform repair or replacement for the item indicated.
No >> Perform adjustment of steering angle sensor neutral position. GO TO 2.
2. PERFORM SELF-DIAGNOSIS AGAIN
1. Turn the ignition switch to OFF and then to ON to erase self-diagnosis results.
2. Perform ABS actuator and electric unit (control unit) self-diagnosis again.
Are any self-diagnosis results displayed?
Yes >> Replace steering angle sensor. Refer to BRC-68, "Removal and Installation" .
No >> Inspection End.
Inspection For Self-diagnosis Result "DECEL G SEN SET"EFS003RD
INSPECTION PROCEDURE
1. PERFORM SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Do self-diagnosis results indicate anything other than shown above?
Yes >> Perform repair or replacement for the item indicated.
No >> Perform adjustment of decel G sensor neutral position. GO TO 2.
2. PERFORM SELF-DIAGNOSIS AGAIN
1. Turn the ignition switch to OFF and then to ON to erase self-diagnosis results.
2. Perform ABS actuator and electric unit (control unit) self-diagnosis again.
Are any self-diagnosis results displayed?
Yes >> Replace decel G sensor. Refer to BRC-69, "Removal and Installation" .
No >> Inspection End.
VDC OFF Indicator lamp Does Not IlluminateEF S0 03 RE
INSPECTION PROCEDURE
1. CHECK VDC OFF INDICATOR LAMP
Disconnect ABS actuator and electric unit (control unit) connector E125.
Do the ABS warning lamp and VDC OFF indicator lamp illuminate?
Yes >> Replace combination meter.
No >> Replace ABS actuator and electric unit (control unit).
2. PERFORM SELF-DIAGNOSIS AGAIN
1. Turn the ignition switch to OFF and then to ON to erase self-diagnosis results.
2. Perform ABS actuator and electric unit (control unit) self-diagnosis again.
Are any self-diagnosis results displayed?
Yes >> Replace decel G sensor. Refer to BRC-69, "Removal and Installation" .
No >> Inspection End.Self-diagnosis results : ST ANGLE SEN SIGNAL
Self-diagnosis results : DECEL G SEN SET
Page 1069 of 3371
BRC-56
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: August 20072004 QX56
Component InspectionEF S0 03 RF
VDC OFF SWITCH
Check the continuity between terminals 1 and 2.
1 - 2 : Continuity should exist when pushing the
switch.
Continuity should not exist when releasing
the switch.
PFIA0307E
Page 1070 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMS
BRC-57
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
TROUBLE DIAGNOSES FOR SYMPTOMSPFP:99999
ABS Works FrequentlyEFS0044T
1. CHECK WARNING LAMP INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMS
BRC-57
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
TROUBLE DIAGNOSES FOR SYMPTOMSPFP:99999
ABS Works FrequentlyEFS0044T
1. CHECK WARNING LAMP](/manual-img/42/57034/w960_57034-1069.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
BRC-57
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
TROUBLE DIAGNOSES FOR SYMPTOMSPFP:99999
ABS Works FrequentlyEFS0044T
1. CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
OK or NG
OK >> GO TO 2.
NG >> Carry out self-diagnosis. Refer to BRC-29, "
SELF-DIAGNOSIS" .
2. CHECK WHEEL SENSORS
Check the following.
Wheel sensor mounting for looseness
Wheel sensors for physical damage
Wheel sensor connectors for terminal damage or loose connections
OK or NG
OK >> GO TO 3.
NG >> Repair or replace as necessary.
3. CHECK FRONT AND REAR AXLES
Check front and rear axles for excessive looseness. Refer to FAX-5, "
WHEEL HUB" or RAX-5, "WHEEL
HUB" .
OK or NG
OK >> GO TO 4.
NG >> Repair as necessary.
4. CHECK BRAKE FLUID PRESSURE
Check brake fluid pressure distribution.
Refer to BRC-23, "
Basic Inspection" .
Is brake fluid pressure distribution normal?
YES >> Inspection End.
NO >> Perform Basic Inspection. Refer to BRC-23, "
Basic Inspection" .
Page 1071 of 3371
![INFINITI QX56 2004 Factory Service Manual BRC-58
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: August 20072004 QX56
Unexpected Pedal ActionEFS0044U
1. CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
OK INFINITI QX56 2004 Factory Service Manual BRC-58
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: August 20072004 QX56
Unexpected Pedal ActionEFS0044U
1. CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
OK](/manual-img/42/57034/w960_57034-1070.png)
BRC-58
[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
Revision: August 20072004 QX56
Unexpected Pedal ActionEFS0044U
1. CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
OK or NG
OK >> GO TO 2.
NG >> Carry out self-diagnosis. Refer to BRC-29, "
SELF-DIAGNOSIS" .
2. CHECK BRAKE PEDAL STROKE
Check brake pedal stroke.
Is pedal stroke excessive?
YES >> Perform Basic Inspection. Refer to BRC-23, "Basic
Inspection" .
NO >> GO TO 3.
3. CHECK CONNECTOR AND BRAKING PERFORMANCE
1. Disable ABS by disconnecting ABS actuator and electric unit (control unit) connector.
2. Drive vehicle and check brake operation.
NOTE:
Stopping distance may be longer than vehicles without ABS when road condition is slippery.
NOTE:
Driving the vehicle with the ABS actuator and electric unit (control unit) disconnected may induce DTCs in
electrical control units using CAN communication. After the inspection, clear all DTCs. Refer to BRC-10,
"CAN COMMUNICATION" .
OK or NG
OK >> GO TO 4.
NG >> Perform Basic Inspection. Refer to BRC-23, "
Basic Inspection" .
4. CHECK WHEEL SENSORS
Check the following.
Wheel sensor mounting for looseness
Wheel sensors for physical damage
Wheel sensor connectors for terminal damage or loose connections
OK or NG
OK >> Check ABS actuator and electric unit (control unit) connector terminals for deformation, discon-
nection, looseness or damage. Reconnect ABS actuator and electric unit (control unit) harness
connector. Then retest.
NG >> Repair or replace as necessary.
SBR5 40 A
Page 1072 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMS
BRC-59
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Long Stopping DistanceEFS0044V
1. CHECK BASE BRAKING SYSTEM PERFORMANCE
1. Disable ABS by INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSES FOR SYMPTOMS
BRC-59
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Long Stopping DistanceEFS0044V
1. CHECK BASE BRAKING SYSTEM PERFORMANCE
1. Disable ABS by](/manual-img/42/57034/w960_57034-1071.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
BRC-59
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Long Stopping DistanceEFS0044V
1. CHECK BASE BRAKING SYSTEM PERFORMANCE
1. Disable ABS by disconnecting ABS actuator and electric unit (control unit) connector.
2. Drive vehicle and check brake operation.
NOTE:
Stopping distance may be longer than vehicles without ABS when road condition is slippery.
OK or NG
OK >> Go to BRC-57, "ABS Works Frequently" .
NG >> Perform Basic Inspection. Refer to BRC-23, "
Basic Inspection" .
ABS Does Not WorkEFS0044W
CAUTION:
The ABS does not operate when the vehicle speed is 10 km/h (6 MPH) or less.
1. CHECK WARNING LAMP ACTIVATION
Turn ignition switch ON and check for warning lamp activation.
Warning lamp should activate for approximately 1 second after turning the ignition switch ON.
OK or NG
OK >> Carry out self-diagnosis. Refer to BRC-29, "SELF-DIAGNOSIS" .
NG >> Go to BRC-60, "
ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned On" .
Pedal Vibration or ABS Operation NoiseEFS0044X
NOTE:
During ABS activation, pedal vibration may be felt and a noise may be heard. This is normal and does not indi-
cate a malfunction.
1. CHECK SYMPTOM
1. Apply brake.
2. Start engine.
Does the symptom occur only when engine is started?
YES >> Carry out self-diagnosis. Refer to BRC-29, "SELF-DIAGNOSIS" .
NO >> GO TO 2.
2. RECHECK SYMPTOM
Does the symptom occur only when electrical equipment switches (such as headlamps) are turned on?
YES >> Check for radio, antenna or related wiring that is routed too close to the ABS actuator and electric
unit (control unit) and reroute as necessary.
NO >> Go to BRC-57, "
ABS Works Frequently" .
