Page 1449 of 3371

INFINITI QX56 2004 Factory Service Manual EC-258Revision: August 2007
DTC P0335 CKP SENSOR (POS)
2004 QX56
2. CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor (POS) harness
conne

Page 1450 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0335 CKP SENSOR (POS)
EC-259
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
6. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Che

Page 1451 of 3371

INFINITI QX56 2004 Factory Service Manual EC-260Revision: August 2007
DTC P0335 CKP SENSOR (POS)
2004 QX56
Component InspectionUBS00H46
CRANKSHAFT POSITION SENSOR (POS)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft positio

Page 1452 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)
EC-261
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)PFP:23731
Component DescriptionUBS00H48

DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)
EC-261
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)PFP:23731
Component DescriptionUBS00H48
The camshaft position sensor (PHASE) senses the protrusion of
exhaust valve cam sprocket to identify a particular cylinder. The
camshaft position sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
On Board Diagnosis LogicUBS00H49
DTC Confirmation ProcedureUBS00H4A
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.
4. If 1st trip DTC is detected, go to EC-263, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to next step.
5. Maintaining engine speed at more than 800 rpm for at least 5
seconds.
6. If 1st trip DTC is detected, go to EC-263, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0562E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340Camshaft position sen-
sor (PHASE) circuit
The cylinder No. signal is not sent to ECM
for the first few seconds during engine
cranking.
The cylinder No. signal is not sent to ECM
during engine running.
The cylinder No. signal is not in the normal
pattern during engine running.
Harness or connectors
(The sensor circuit is open or shorted)
Camshaft position sensor (PHASE)
Camshaft (Exhaust)
Starter motor (Refer to SC-10, "START-
ING SYSTEM" .)
Starting system circuit (Refer to SC-10,
"STARTING SYSTEM" .)
Dead (Weak) battery
SEF 0 58 Y

Page 1453 of 3371

INFINITI QX56 2004 Factory Service Manual EC-262Revision: August 2007
DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)
2004 QX56

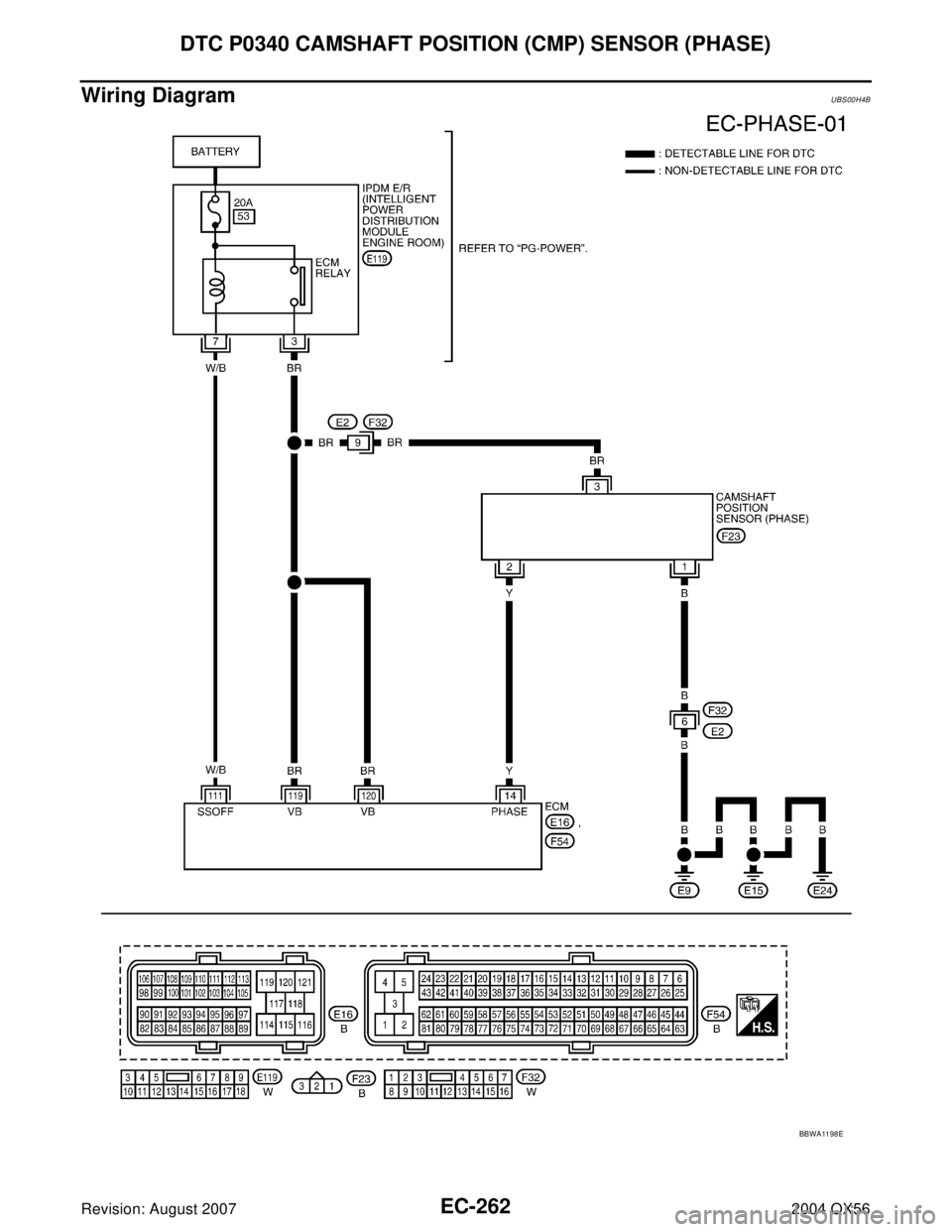

Wiring DiagramUBS00H4B
BBWA11 98 E

Page 1454 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)
EC-263
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
Specification data are reference values and are measured between each terminal and grou

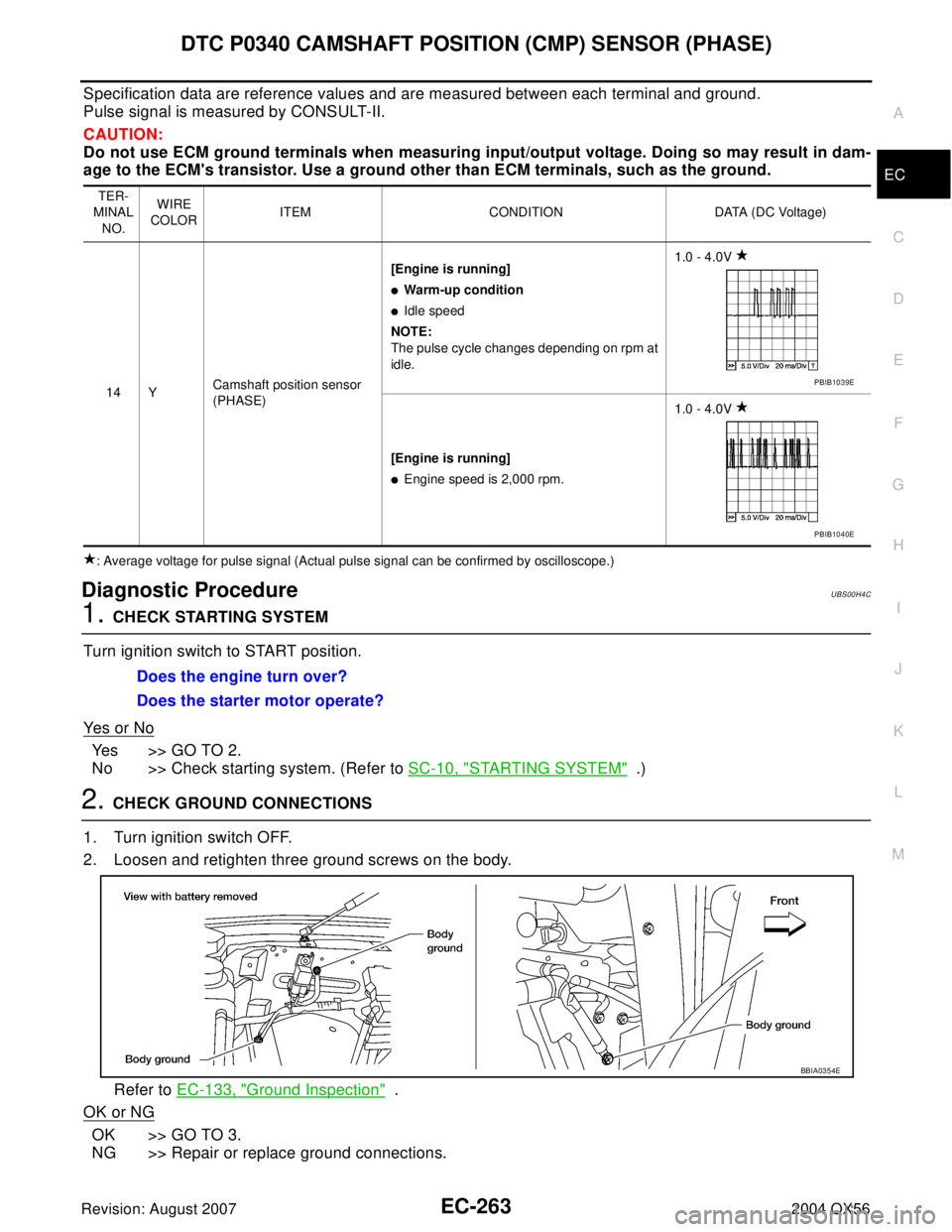

Page 1455 of 3371

INFINITI QX56 2004 Factory Service Manual EC-264Revision: August 2007
DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)
2004 QX56
3. CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor

Page 1456 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)
EC-265
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
7. CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM h
