Page 385 of 3371

INFINITI QX56 2004 Factory Service Manual AT-314 ASSEMBLY Revision: August 20072004 QX56 24. Install revolution sensor to transmission case. Tighten revolution sensor mounting bolt to the specified torque. Refer to AT-261, "Components" . CAU

Page 386 of 3371

INFINITI QX56 2004 Factory Service Manual ASSEMBLY AT-315 D E F G H I J K L MA B AT Revision: August 20072004 QX56 28. Install parking actuator support to rear extension (2WD models) or adapter case (4WD models). 29. Install needle bearing to

Page 387 of 3371

INFINITI QX56 2004 Factory Service Manual AT-316 ASSEMBLY Revision: August 20072004 QX56 33. Install bearing race in output shaft. 34. Install rear extension assembly (2WD models) or adapter case assembly (4WD models) according to the followi

Page 388 of 3371

INFINITI QX56 2004 Factory Service Manual ASSEMBLY AT-317 D E F G H I J K L MA B AT Revision: August 20072004 QX56 b.4WD models i. Install gasket to transmission case. CAUTION: Do not reuse gasket. Complete remove all moisture, oil and old

Page 389 of 3371

INFINITI QX56 2004 Factory Service Manual AT-318 ASSEMBLY Revision: August 20072004 QX56 36. Install direct clutch assembly in reverse brake. 37. Install high and low reverse clutch assembly in direct clutch assembly. 38. Using a flat-bladed

Page 390 of 3371

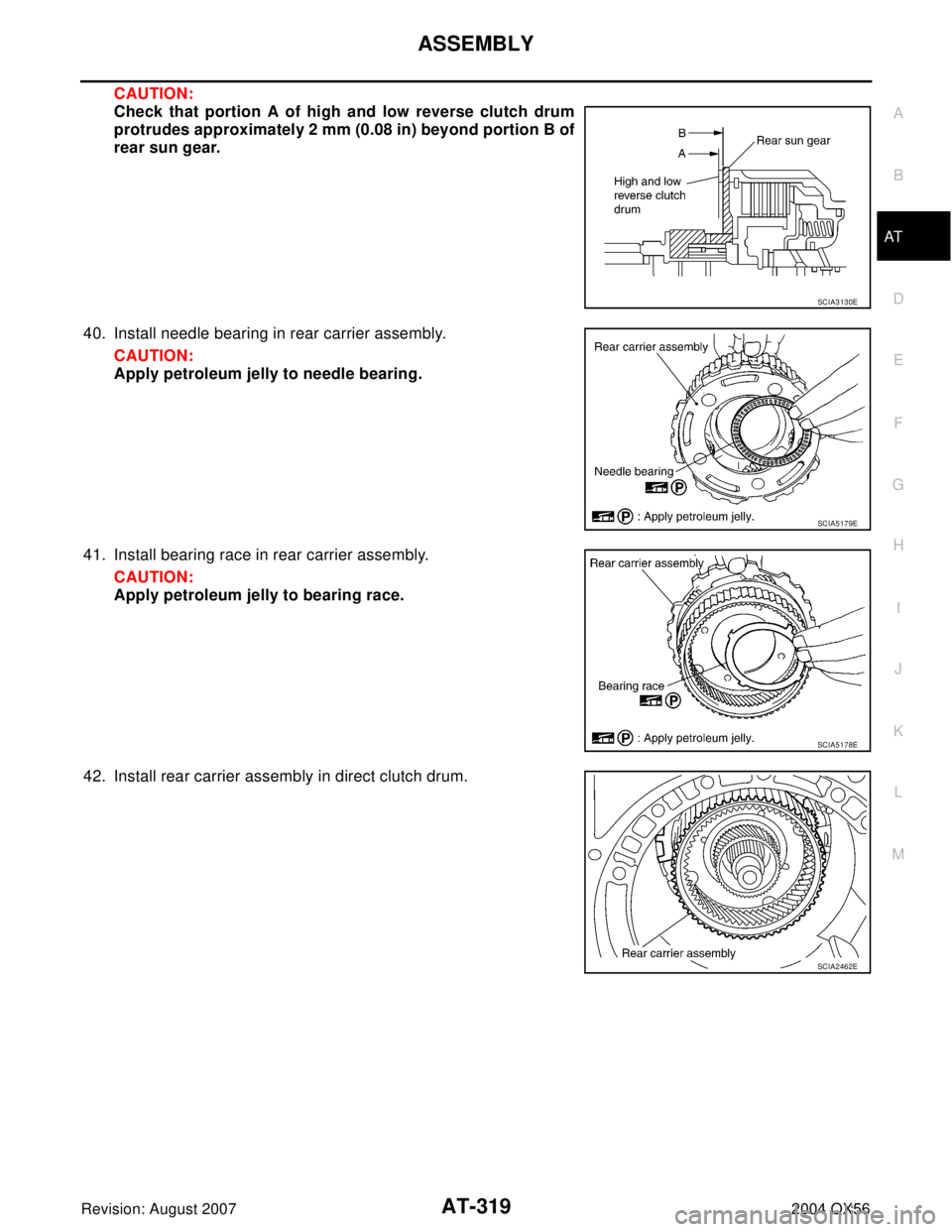

INFINITI QX56 2004 Factory Service Manual ASSEMBLY AT-319 D E F G H I J K L MA B AT Revision: August 20072004 QX56 CAUTION: Check that portion A of high and low reverse clutch drum protrudes approximately 2 mm (0.08 in) beyond portion B of re

Page 391 of 3371

INFINITI QX56 2004 Factory Service Manual AT-320 ASSEMBLY Revision: August 20072004 QX56 43. Install needle bearing (rear side) in mid carrier assembly. CAUTION: Apply petroleum jelly to needle bearing. 44. Install needle bearing (front side)

Page 392 of 3371

INFINITI QX56 2004 Factory Service Manual ASSEMBLY AT-321 D E F G H I J K L MA B AT Revision: August 20072004 QX56 48. Install band servo anchor end pin and lock nut in transmission case. CAUTION: Do not reuse band servo anchor end pin. 49. I
