Page 2121 of 3371

INFINITI QX56 2004 Factory Service Manual GI-40
LIFTING POINT
Revision: August 20072004 QX56
LIFTING POINTPFP:00000
Pantograph JackEAS0014W
WAR NIN G:
Never get under the vehicle while it is supported only by the jack. Always use safety stan

Page 2122 of 3371

INFINITI QX56 2004 Factory Service Manual LIFTING POINT
GI-41
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: August 20072004 QX56
2-Pole LiftEAS0014Y
WA RN ING:
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front

Page 2123 of 3371

INFINITI QX56 2004 Factory Service Manual GI-42
TOW TRUCK TOWING
Revision: August 20072004 QX56
TOW TRUCK TOWINGPFP:00000
To w Tr u c k To w i n gEAS0014Z
WAR NIN G:
Never get under the vehicle while it is supported only by the jack. Alway

Page 2124 of 3371

INFINITI QX56 2004 Factory Service Manual TOW TRUCK TOWING
GI-43
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: August 20072004 QX56
4WD MODELS
NISSAN does not recommend towing automatic transmission
equipped vehicles with the drive wheels on the ground

TOW TRUCK TOWING
GI-43
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: August 20072004 QX56
4WD MODELS
NISSAN does not recommend towing automatic transmission
equipped vehicles with the drive wheels on the ground.
CAUTION:
When towing with the front wheels on the ground or rear
wheels on the ground (If you do not use towing dollies): Set
the free-running hubs to the free position and move the
transfer case shift lever into the “2H” position.
When towing with the front on the ground: Turn the ignition
key to the OFF position and secure the steering wheel in a
straight ahead position with a rope or similar device. Never
place the ignition key in the LOCK position. This will result
in damage to the steering lock mechanism.
Observe the following restricted towing speeds and distances.
Towing Point
CAUTION:
Never tow the vehicle using only the towing points. To avoid
damaging the vehicle body, use proper towing equipment when
towing.
Vehicle Recovery (Freeing a stuck vehicle)EAS00150
Tow chains or cables must be attached only to the main structural members of the vehicle or the
towing hooks (if so equipped). Otherwise, the vehicle body will be damaged.
Use the towing hook (if so equipped) only to free a vehicle stuck in sand, snow, mud, etc. Never
tow the vehicle for a long distance using only the towing hook.
The towing hook is under tremendous force when used to free a stuck vehicle. Never pull the hook
at an angle.
Always pull the cable straight out from the front or rear of the vehicle.
Pulling devices should be routed so they do not touch any part of the suspension, steering, brake,
or cooling systems.
Pulling devices such as ropes or canvas straps are not recommended for use in vehicle towing or
recovery.
WA RN ING:
Stand clear of a stuck vehicle.
Do not spin your tires at high speed. This could cause them to explode and result in serious injury.
Parts of your vehicle could also overheat and be damaged.Speed : Below 95 km/h (60 MPH)
Distance : Less than 800 km (500 miles)
WAIA0032E
WAIA0055E

Page 2125 of 3371

INFINITI QX56 2004 Factory Service Manual GI-44
TIGHTENING TORQUE OF STANDARD BOLTS
Revision: August 20072004 QX56
TIGHTENING TORQUE OF STANDARD BOLTSPFP:00000
Tightening Torque Table EAS00151
*: Nominal diameter
1.Special parts are excluded.

Page 2126 of 3371

INFINITI QX56 2004 Factory Service Manual RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
GI-45
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: August 20072004 QX56
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTSPFP:00000
Recommended Chemical Products and Sealants

Page 2127 of 3371

INFINITI QX56 2004 Factory Service Manual GI-46
IDENTIFICATION INFORMATION
Revision: August 20072004 QX56
IDENTIFICATION INFORMATIONPFP:00010
Model VariationEAS00153
WAIA0058E
Drive Type Body Engine Transmission Destination Grade Model
4X2 Wa

Page 2128 of 3371

INFINITI QX56 2004 Factory Service Manual IDENTIFICATION INFORMATION
GI-47
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: August 20072004 QX56

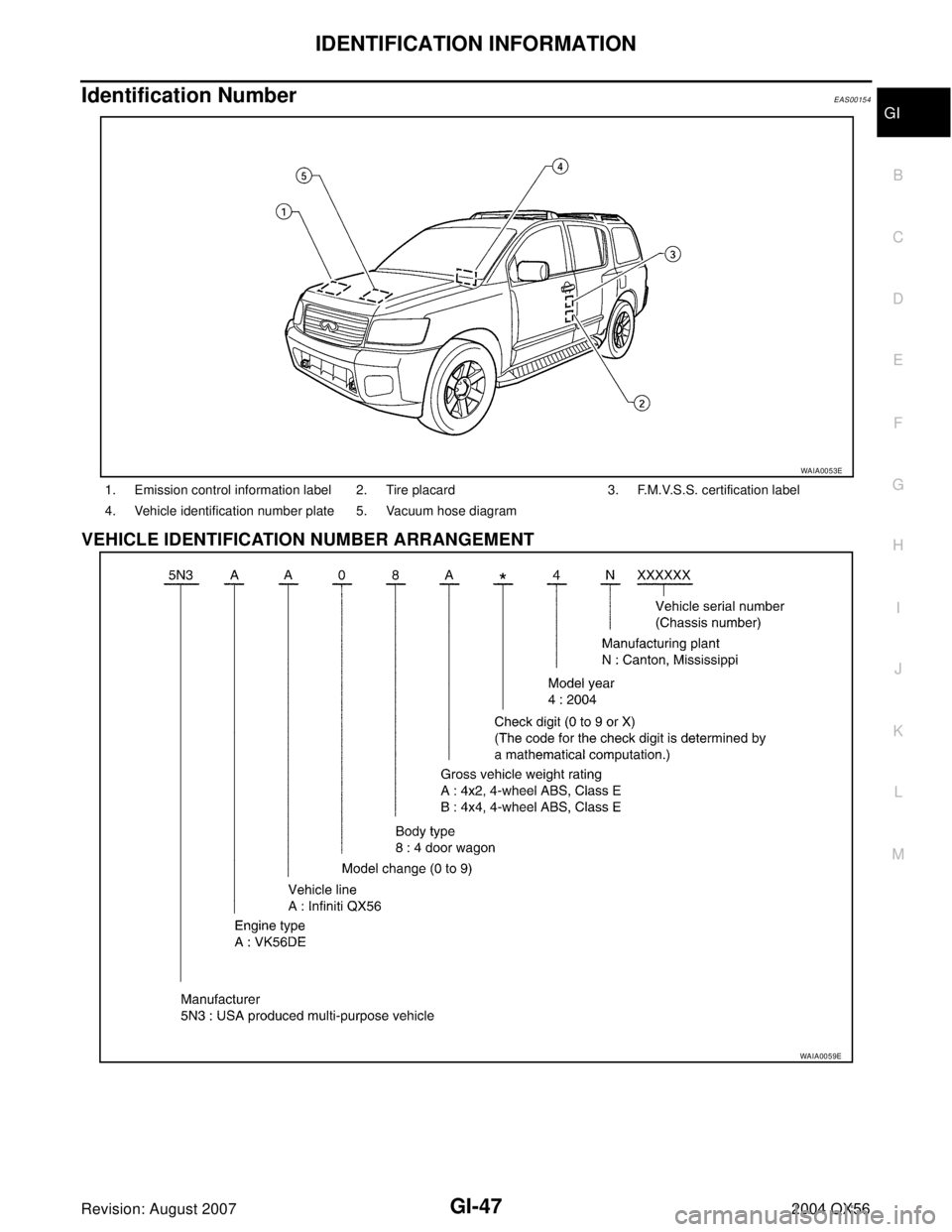

Identification NumberEAS00154
VEHICLE IDENTIFICATION NUMBER ARRANGEMENT
1. Emission control information label
