![INFINITI QX56 2004 Factory Service Manual BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: August 20072004 QX56
If YES, GO TO 2.
If NO, GO TO 5.
2. Is there any indication other than indications relating to CAN communication system in the self-dia INFINITI QX56 2004 Factory Service Manual BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: August 20072004 QX56
If YES, GO TO 2.
If NO, GO TO 5.
2. Is there any indication other than indications relating to CAN communication system in the self-dia](/manual-img/42/57034/w960_57034-1016.png)
BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: August 20072004 QX56
If YES, GO TO 2.
If NO, GO TO 5.
2. Is there any indication other than indications relating to CAN communication system in the self-diagnosis
results?
If YES, GO TO 3.
If NO, GO TO 4.
3. Based on self-diagnosis results unrelated to CAN communication, carry out the inspection.
4. Malfunctions may be detected in self-diagnosis depending on control units carrying out CAN communica-
tion. Therefor, erase the self-diagnosis results.
5. Diagnose CAN communication system. Refer to BRC-10, "
CAN COMMUNICATION" .
Precautions for Brake ControlEFS003QD
During ABS operation, the brake pedal may vibrate lightly and a mechanical noise may be heard. This is
normal.
Just after starting vehicle, the brake pedal may vibrate or a motor operating noise may be heard from
engine compartment. This is a normal status of operation check.
Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnosis. Besides electrical system inspection, check booster operation, brake fluid level, and fluid leaks.
If incorrect tire sizes or types are installed on the vehicle or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.
If there is a radio, antenna or related wiring near control module, ABS function may have a malfunction or
error.
If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness
pinches, open circuits or improper wiring.
If the following components are replaced with non-genuine components or modified, the VDC OFF indica-
tor lamp and SLIP indicator lamp may turn on or the VDC system may not operate properly. Components
related to suspension (shock absorbers, struts, springs, bushings, etc.), tires, wheels (exclude specified
size), components related to brake system (pads, rotors, calipers, etc.), components related to engine
(muffler, ECM, etc.), components related to body reinforcement (roll bar, tower bar, etc.).
Driving with broken or excessively worn suspension components, tires or brake system components may
cause the VDC OFF indicator lamp and the SLIP indicator lamp to turn on, and the VDC system may not
operate properly.
When the TCS or VDC is activated by sudden acceleration or sudden turn, some noise may occur. The
noise is a result of the normal operation of the TCS and VDC.
When driving on roads which have extreme slopes (such as mountainous roads) or high banks (such as
sharp curves on a freeway), the VDC may not operate normally, or the VDC warning lamp and the SLIP
indicator lamp may turn on. This is not a problem if normal operation can be resumed after restarting the
engine.
Sudden turns (such as spin turns, acceleration turns), drifting, etc. with VDC turned off may cause the yaw
rate/side G sensor to indicate a problem. This is not a problem if normal operation can be resumed after
restarting the engine.
Precautions for CAN SystemEFS003QE
Do not apply voltage of 7.0V or higher to terminal to be measured.
Maximum open terminal voltage of tester in use must be less than 7.0V.
Before checking harnesses, turn ignition switch OFF and disconnect battery negative cable.
Page 1018 of 3371
PRECAUTIONS
BRC-5
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
Area to be repaired must be soldered and wrapped with tape.
Make sure that fraying of twisted wire is within 110 mm (4.33 in).
Do not make a bypass connection to repaired area. (If the circuit
is bypassed, characteristics of twisted wire will be lost.)
Wiring Diagrams and Trouble Diagnosis EF S0 03 QF
When you read wiring diagrams, refer to the following:
GI-15, "How to Read Wiring Diagrams".
PG-4, "POWER SUPPLY ROUTING CIRCUIT".
When you perform trouble diagnosis, refer to the following:
GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES".
GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident".
PKIA0306E
PKIA0307E
Page 1019 of 3371
BRC-6
[VDC/TCS/ABS]
PREPARATION
Revision: August 20072004 QX56
PREPARATIONPFP:00002
Special Service ToolEFS003QG
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsEFS003QH
Tool number
(Kent-Moore No.)
Tool nameDescription
(J-45741)
ABS active wheel sensor testerChecking operation of ABS active wheel sen-
sors
WFIA0101E
Tool nameDescription
1. Flare nut crowfoot
2. Torque wrenchRemoving and installing brake piping
a: 10mm (0.39 in)/12mm (0.47 in)
S-NT360
Page 1020 of 3371
SYSTEM DESCRIPTION
BRC-7
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
SYSTEM DESCRIPTIONPFP:00000

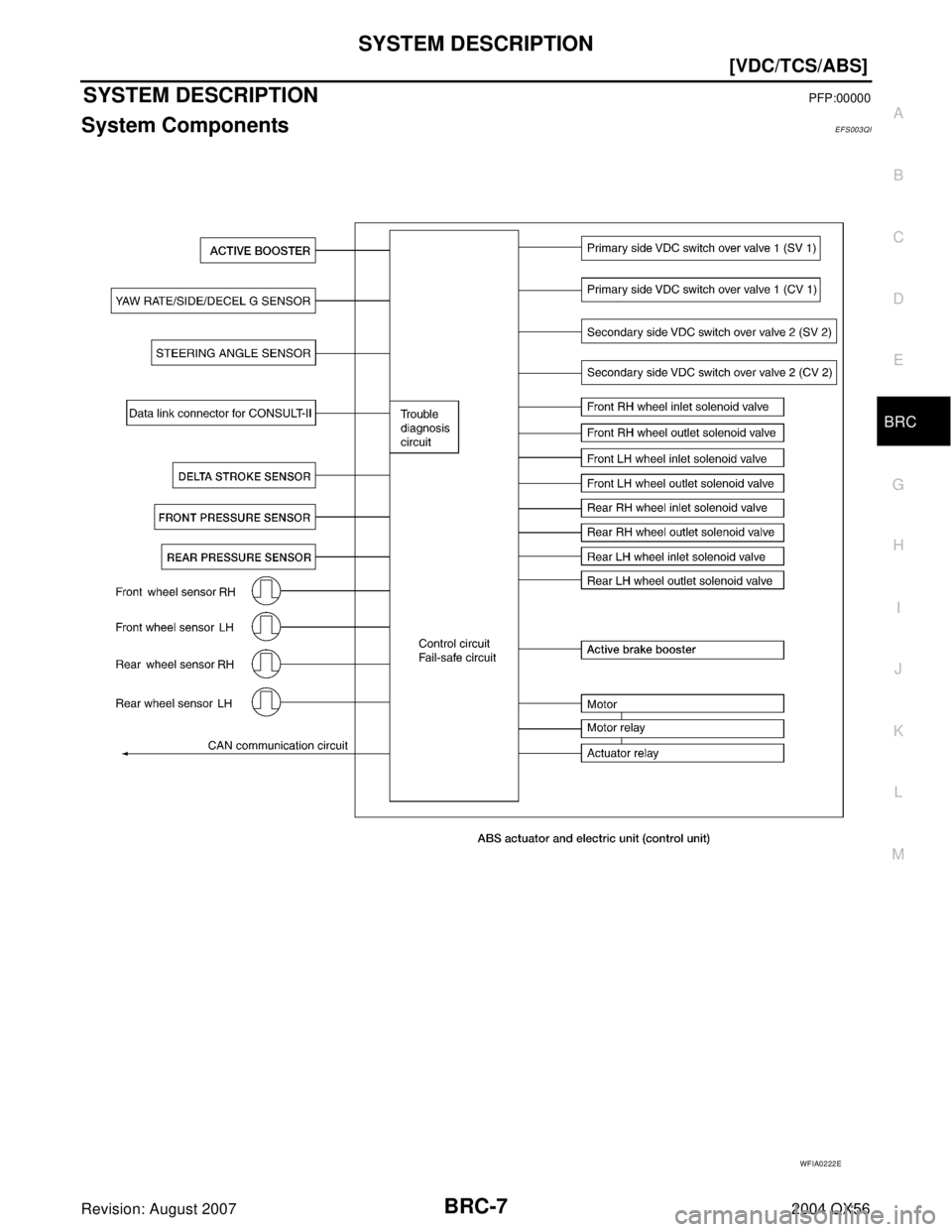

System ComponentsEFS003QI
WFIA0222E
Page 1021 of 3371
![INFINITI QX56 2004 Factory Service Manual BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: August 20072004 QX56
ABS FunctionEFS003QJ
The Anti-Lock Brake System detects wheel revolution while braking and improves handling stability during
sud INFINITI QX56 2004 Factory Service Manual BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: August 20072004 QX56
ABS FunctionEFS003QJ
The Anti-Lock Brake System detects wheel revolution while braking and improves handling stability during
sud](/manual-img/42/57034/w960_57034-1020.png)
BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: August 20072004 QX56
ABS FunctionEFS003QJ
The Anti-Lock Brake System detects wheel revolution while braking and improves handling stability during
sudden braking by electrically preventing wheel lockup. Maneuverability is also improved for avoiding
obstacles.
If the electrical system malfunctions, the Fail-Safe function is activated, the ABS becomes inoperative and
the ABS warning lamp turns on.
The electrical system can be diagnosed using CONSULT-II.
During ABS operation, the brake pedal may vibrate lightly and a mechanical noise may be heard. This is
normal.
Just after starting the vehicle, the brake pedal may vibrate or a motor operating noise may be heard from
engine compartment. This is a normal status of operation check.
Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
EBD FunctionEFS003QK
Electronic Brake Distribution is a function that detects subtle slippages between the front and rear wheels
during braking, and it improves handling stability by electronically controlling the brake fluid pressure
which results in reduced rear wheel slippage.
If the electrical system malfunctions, the Fail-Safe function is activated, the EBD and ABS become inoper-
ative, and the ABS warning lamp and BRAKE warning lamp are turned on.
The electrical system can be diagnosed using CONSULT-II.
During EBD operation, the brake pedal may vibrate lightly and a mechanical noise may be heard. This is
normal.
Just after starting the vehicle, the brake pedal may vibrate or a motor operating noise may be heard from
engine compartment. This is a normal status of operation check.
TCS FunctionEFS003QL
Spinning of the drive wheels is detected by the ABS actuator and electric unit (control unit) using inputs
from the wheel speed sensors. If wheel spin occurs, the drive wheel right and left brake fluid pressure
control and engine fuel cut are activated while the throttle value is restricted to reduce the engine torque
and decrease the amount of wheel spin. In addition, the throttle opening is controlled to achieve the opti-
mum engine torque.
Depending on road condition, the vehicle may have a sluggish feel. This is normal, because optimum trac-
tion has the highest priority during TCS operation.
TCS may be activated during sudden vehicle acceleration, wide open throttle acceleration, sudden trans-
mission shifts or when the vehicle is driven on a road with a varying surface friction coefficient.
The SLIP indicator lamp flashes to inform the driver of TCS operation.
VDC FunctionEFS003QM
In addition to the ABS/TCS function, the driver steering amount and brake operation amount are detected
from the steering angle sensor and front and rear pressure sensors, and the vehicle's driving status
(amount of under steering/over steering) is determined using inputs from the yaw rate sensor/side G sen-
sor, wheel speed sensors, etc. and this information is used to improve vehicle stability by controlling the
braking and engine torque application to the wheels.
The SLIP indicator lamp flashes to inform the driver of VDC operation.
During VDC operation, the vehicle body and brake pedal may vibrate lightly and a mechanical noise may
be heard. This is normal.
The ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp may turn on when the vehicle is
subject to strong shaking or large vibration, such as when the vehicle is on a turn table or a ship while the
engine is running or on a steep slope. In this case, restart the engine on a normal road and if the ABS
warning lamp, VDC OFF indicator lamp and SLIP indicator lamp turn off, there is no problem.
Fail-Safe FunctionEFS003QN
CAUTION:
If the Fail-Safe function is activated, perform the Self Diagnosis for ABS/TCS/VDC system.
Page 1022 of 3371
![INFINITI QX56 2004 Factory Service Manual SYSTEM DESCRIPTION
BRC-9
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
ABS/EBD SYSTEM
In case of an electrical malfunction with the ABS, the ABS warning lamp, VDC OFF indicat INFINITI QX56 2004 Factory Service Manual SYSTEM DESCRIPTION
BRC-9
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
ABS/EBD SYSTEM
In case of an electrical malfunction with the ABS, the ABS warning lamp, VDC OFF indicat](/manual-img/42/57034/w960_57034-1021.png)
SYSTEM DESCRIPTION
BRC-9
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
ABS/EBD SYSTEM
In case of an electrical malfunction with the ABS, the ABS warning lamp, VDC OFF indicator lamp and SLIP
indicator lamp will turn on. In case of an electrical malfunction with the EBD system, the BRAKE warning lamp,
ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp will turn on.
The system will revert to one of the following conditions of the Fail-Safe function.
1. For ABS malfunction, only the EBD is operative and the condition of the vehicle is the same condition of
vehicles without ABS/TCS/VDC system.
2. For EBD malfunction, the EBD and ABS become inoperative, and the condition of the vehicle is the same
as the condition of vehicles without ABS/TCS/VDC or EBD system.
VDC/TCS SYSTEM
In case of TCS/VDC system malfunction, the VDC OFF indicator lamp and SLIP indicator lamp are turned on
and the condition of the vehicle is the same as the condition of vehicles without TCS/VDC system. In case of
an electrical malfunction with the TCS/VDC system, the ABS control continues to operate normally without
TCS/VDC control.
ACTIVE BOOSTER
The active brake booster consists of a vacuum booster, an active booster control group and a delta stroke
sensor. In case of brake booster system malfunction due to loss of vacuum, the delta stroke sensor will signal
the ABS actuator and electric unit (control unit) that a booster failure has occurred. The active booster then
applies supplemental force to the master cylinder relative to the amount of force exerted on the brake pedal.

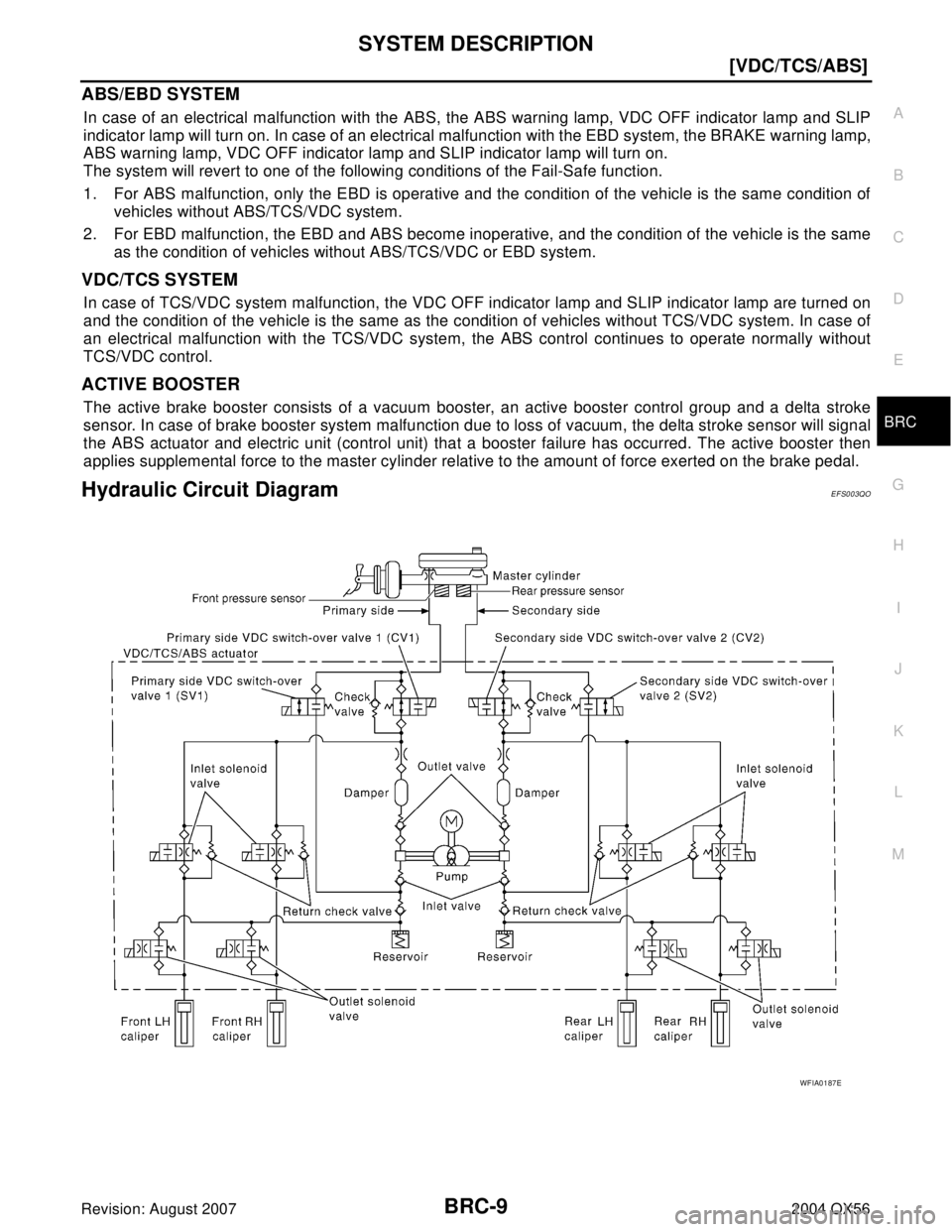

Hydraulic Circuit DiagramEFS003QO
WFIA0187E
Page 1023 of 3371
BRC-10
[VDC/TCS/ABS]
CAN COMMUNICATION
Revision: August 20072004 QX56
CAN COMMUNICATIONPFP:23710
System DescriptionEFS003QP
Refer to LAN-5, "CAN COMMUNICATION" .
Page 1024 of 3371
![INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
BRC-11
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
TROUBLE DIAGNOSISPFP:00000
How to Perform Trouble Diagnoses for Quick and Accurate RepairEFS003QQ
INTRO INFINITI QX56 2004 Factory Service Manual TROUBLE DIAGNOSIS
BRC-11
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
TROUBLE DIAGNOSISPFP:00000
How to Perform Trouble Diagnoses for Quick and Accurate RepairEFS003QQ
INTRO](/manual-img/42/57034/w960_57034-1023.png)
TROUBLE DIAGNOSIS
BRC-11
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: August 20072004 QX56
TROUBLE DIAGNOSISPFP:00000
How to Perform Trouble Diagnoses for Quick and Accurate RepairEFS003QQ
INTRODUCTION
The ABS/TCS/VDC system has an electronic control unit to control
major functions. The control unit accepts input signals from sensors
and controls actuator operation. It is also important to check for con-
ventional problems such as air leaks in the booster or lines, lack of
brake fluid, or other problems with the brake system.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electrical connections or faulty wiring. In this case,
careful checking of suspicious circuits may help prevent the replace-
ment of good parts.
A visual check only may not find the cause of the problem, so a road
test should be performed.
Before undertaking actual checks, take just a few minutes to talk with
a customer who approaches with an ABS/TCS/VDC complaint. The
customer is a very good source of information on such problems,
especially intermittent ones. Through the talks with the customer,
find out what symptoms are present and under what conditions they
occur.
Start your diagnosis by looking for “conventional” problems first. This
is one of the best ways to troubleshoot brake problems on an ABS/
TCS/VDC equipped vehicle. Also check related Service Bulletins for
information.
SEF 2 33 G
SEF 2 34 G
