Page 2521 of 3371

INFINITI QX56 2004 Factory Service Manual LT-90 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: August 20072004 QX56 Turn Signal Lamp Does Not OperateEKS007BQ 1. CHECK COMBINATION SWITCH INPUT SIGNAL With CONSULT-II Select “BCM” on CONSUL

Page 2522 of 3371

INFINITI QX56 2004 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-91 C D E F G H I J L MA B LT Revision: August 20072004 QX56 4. CHECK GROUND 1. Check continuity between front turn/fog lamp LH harness con- nector E101 terminal

Page 2523 of 3371

INFINITI QX56 2004 Factory Service Manual LT-92 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: August 20072004 QX56 3. CHECK GROUND CIRCUIT Check continuity between rear turn signal lamp harness connector B35 LH and B105 RH terminal 3 (B) and

Page 2524 of 3371

INFINITI QX56 2004 Factory Service Manual TURN SIGNAL AND HAZARD WARNING LAMPS LT-93 C D E F G H I J L MA B LT Revision: August 20072004 QX56 3. CHECK HAZARD SWITCH CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect BCM connector and hazard s

Page 2525 of 3371

INFINITI QX56 2004 Factory Service Manual LT-94 TURN SIGNAL AND HAZARD WARNING LAMPS Revision: August 20072004 QX56 Bulb Replacement (Front Turn Signal Lamp)EKS007BU 1. Remove turn/fog lamp assembly. Refer to LT- 7 9 , "Removal and Installat

Page 2526 of 3371

INFINITI QX56 2004 Factory Service Manual LIGHTING AND TURN SIGNAL SWITCH LT-95 C D E F G H I J L MA B LT Revision: August 20072004 QX56 LIGHTING AND TURN SIGNAL SWITCHPFP:25540 Removal and InstallationEKS007BY REMOVAL 1. Remove steering colu

Page 2527 of 3371

INFINITI QX56 2004 Factory Service Manual LT-96 HAZARD SWITCH Revision: August 20072004 QX56 HAZARD SWITCHPFP:25290 Removal and InstallationEKS007BZ REMOVAL 1. Remove cluster lid C. Refer to IP-12, "Cluster Lid C" . 2. Remove screws and remo

Page 2528 of 3371

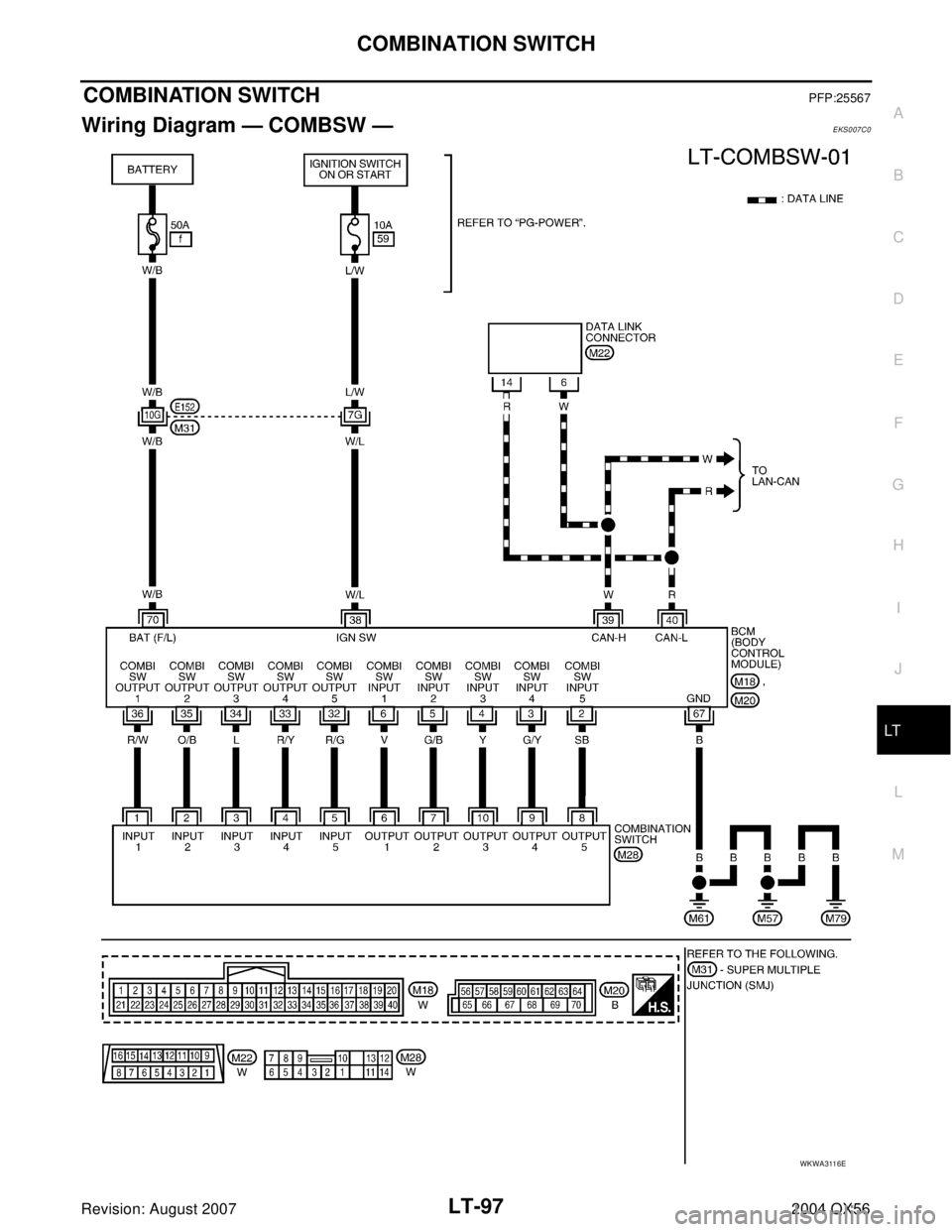

INFINITI QX56 2004 Factory Service Manual COMBINATION SWITCH LT-97 C D E F G H I J L MA B LT Revision: August 20072004 QX56 COMBINATION SWITCHPFP:25567 Wiring Diagram — COMBSW —EKS007C0 WKWA3116E
