AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
Front Door Switch LH Circuit InspectionEIS0 02 ZA
1. CHECK FUNCTION
With CONSULT-II
Touch "BCM" with “DOOR SW DR” on the DATA MONITOR, check
ON/OFF operation when the front door is open and closed.
*:Refer to SE-40, "DATA MONITOR" .
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Front door switch LH circuit is OK.
NG >> GO TO 2.
2. CHECK FRONT DOOR SWITCH LH
1. Turn ignition switch OFF.
2. Disconnect front door switch.
3. Check continuity between front door switch LH terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace front door switch LH.
3. CHECK HARNESS CONTINUITY
1. Disconnect BCM.
2. Check continuity between BCM connector M19 terminal 47 and
front door switch LH connector B8 terminal 2.
3. Check continuity between BCM connector M19 terminal 47 and
ground.
OK or NG
OK >> Front door switch LH circuit is OK.
NG >> Repair or replace harness.
Monitor item [OPERA-
TION or UNIT]Contents
DOOR SW
DR*“ON/
OFF”Door open (ON)/door closed (OFF) status judged from
the front door switch is displayed.
PIIA0291E
Terminals
Condition Continuity
(+) (–)
2GroundWith the front door switch LH pressed No
With the front door switch LH released Yes
LIIA1493E
47 (SB) - 2 (SB) : Continuity should exist.
47 (SB) - Ground : Continuity should not exist.
LIIA1027E
Page 3034 of 3371

AUTOMATIC DRIVE POSITIONER
SE-85
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
UART Communication Line Circuit InspectionEIS002ZB
1. CHECK UART LINE INPUT/OUTPUT SIGNAL 1
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and
ground, with oscilloscope.
OK or NG
OK >> GO TO 2.
NG >> Check the following.
When voltage wave form does not appear with a constant voltage (approx. 5V), replace driver
seat control unit.
When voltage wave form does not appear with a constant voltage (approx. 0V), replace auto-
matic driver seat control unit.
2. CHECK UART LINE INPUT/OUTPUT SIGNAL 2
Check signal between automatic drive positioner control unit con-
nector ground, with oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> Check the following.
When voltage wave form does not appear with a constant voltage (approx. 5V), replace auto-
matic drive positioner control unit.
When voltage wave form does not appear with a constant voltage (approx. 0V), replace driver
seat control unit.
ConnectorTe r m i n a l s
(Wire color)
Condition Signal
(+) (–)
P2 17 (W) GroundPedal
adjusting
switch ON
(FOR-
WARD or
BACK-
WARD
operation)
PIIA4599E
PIIA4814E
ConnectorTe r m i n a l s
(Wire color)
Condition Signal
(+) (–)
M33 10 (L) GroundPedal
adjusting
switch ON
(FOR-
WARD or
BACK-
WARD
operation)
PIIA4816E
PIIA4813E
Page 3035 of 3371
SE-86
AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
3. CHECK UART LINE HARNESS
1. Disconnect driver seat control unit and automatic drive posi-
tioner control unit.
2. Check continuity between driver seat control unit connector P2
terminals 1, 17, and automatic drive positioner connector M33
terminals 10, 26.
3. Check continuity between driver seat control unit connector P2
terminals 1, 17 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK DRIVER SEAT CONTROL UNIT
Does the automatic drive positioner operate when the driver seat control unit is exchanged?
OK or NG
OK >> Replace driver seat control unit.
NG >> Replace automatic drive positioner control unit.1 (L) - 10 (L) : Continuity should exist.
17 (W) - 26 (W) : Continuity should exist.
1 (L) - Ground : Continuity should not exist.
17 (W) - Ground : Continuity should not exist.
PIIA4598E
Page 3036 of 3371
AUTOMATIC DRIVE POSITIONER
SE-87
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
Removal and InstallationEIS0 02 Z C
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" and BR-6, "BRAKE PEDAL" .
Page 3037 of 3371
SE-88
POWER SEAT
Revision: August 20072004 QX56
POWER SEATPFP:87016

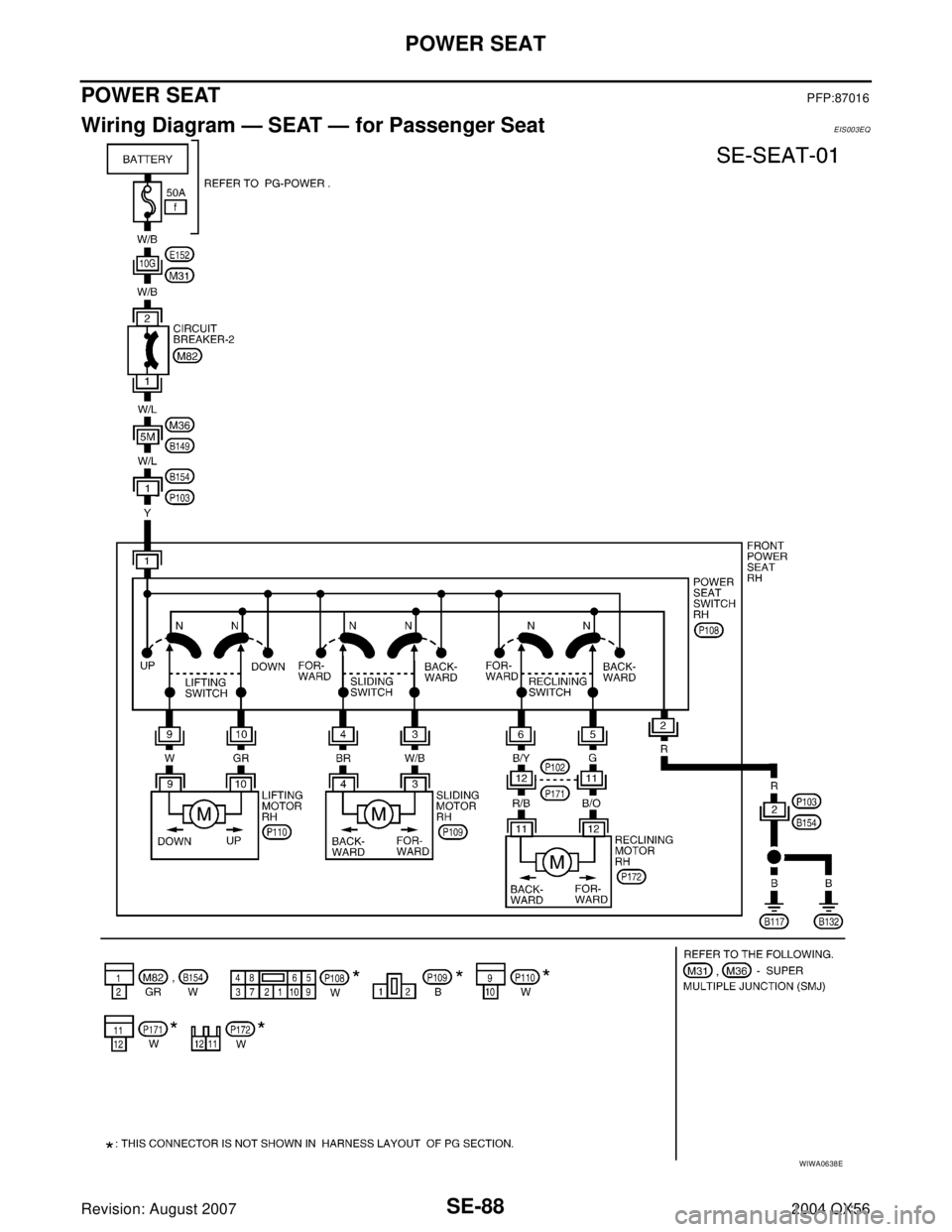

Wiring Diagram — SEAT — for Passenger SeatEIS003EQ
WIWA0638E
Page 3038 of 3371
HEATED SEAT
SE-89
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
H E AT E D S E ATPFP:87335
Description EIS002ZF

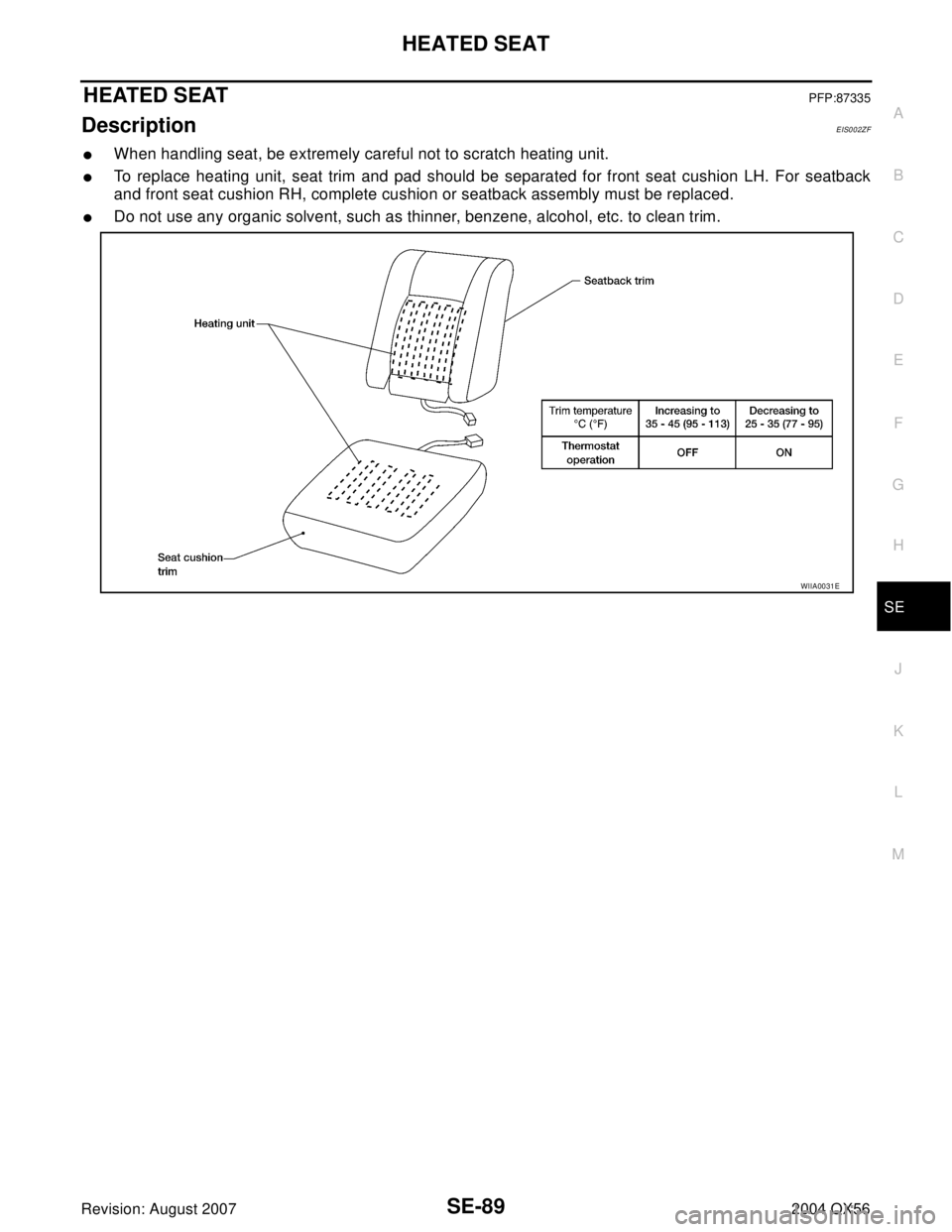

When handling seat, be extremely careful not to scratch heating unit.
To replace heating unit, seat trim and pad should be separated for front seat cushion LH. For seatback
and front seat cushion RH, complete cushion or seatback assembly must be replaced.
Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.
WIIA0031E
Page 3039 of 3371
SE-90
HEATED SEAT
Revision: August 20072004 QX56

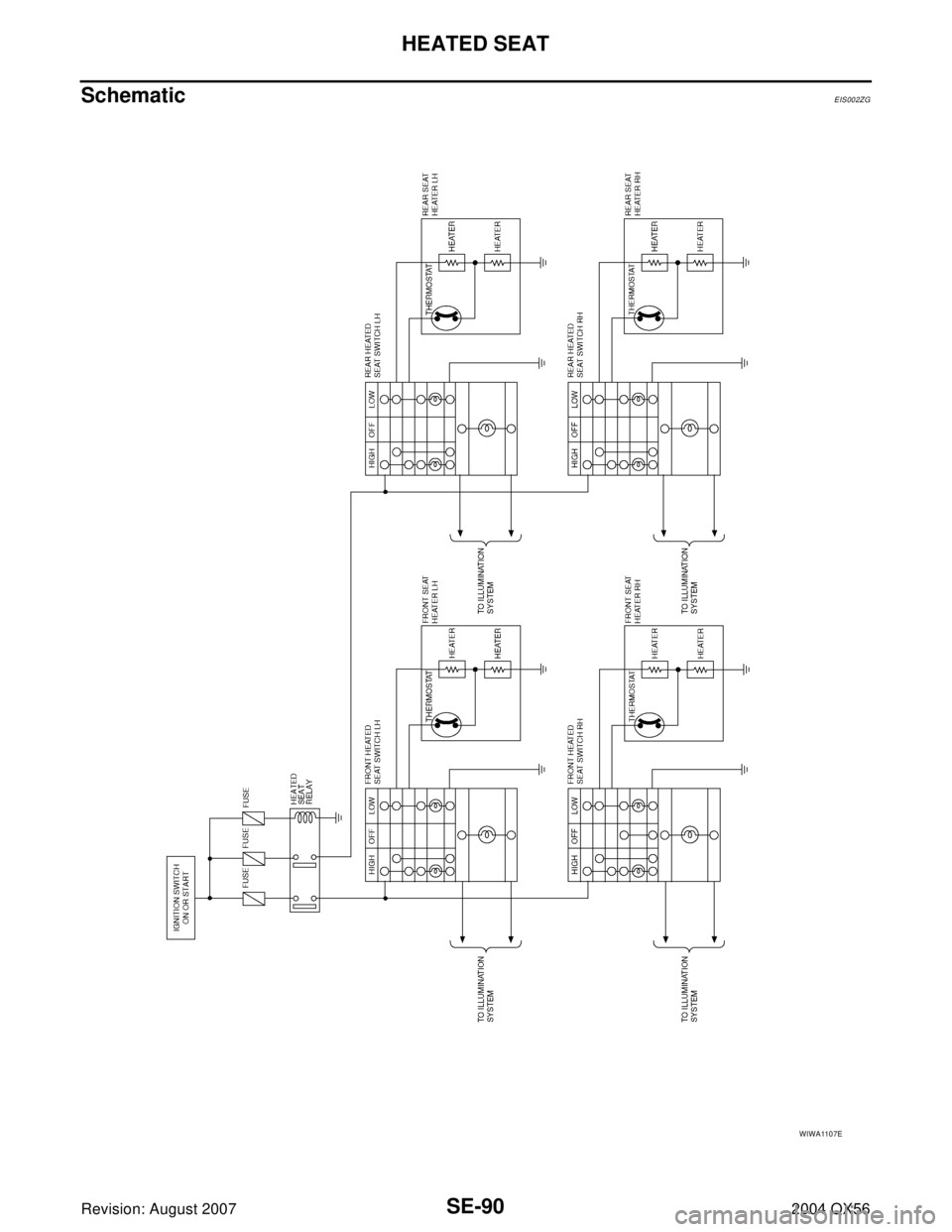

SchematicEIS002ZG
WIWA1107E
Page 3040 of 3371
HEATED SEAT
SE-91
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56

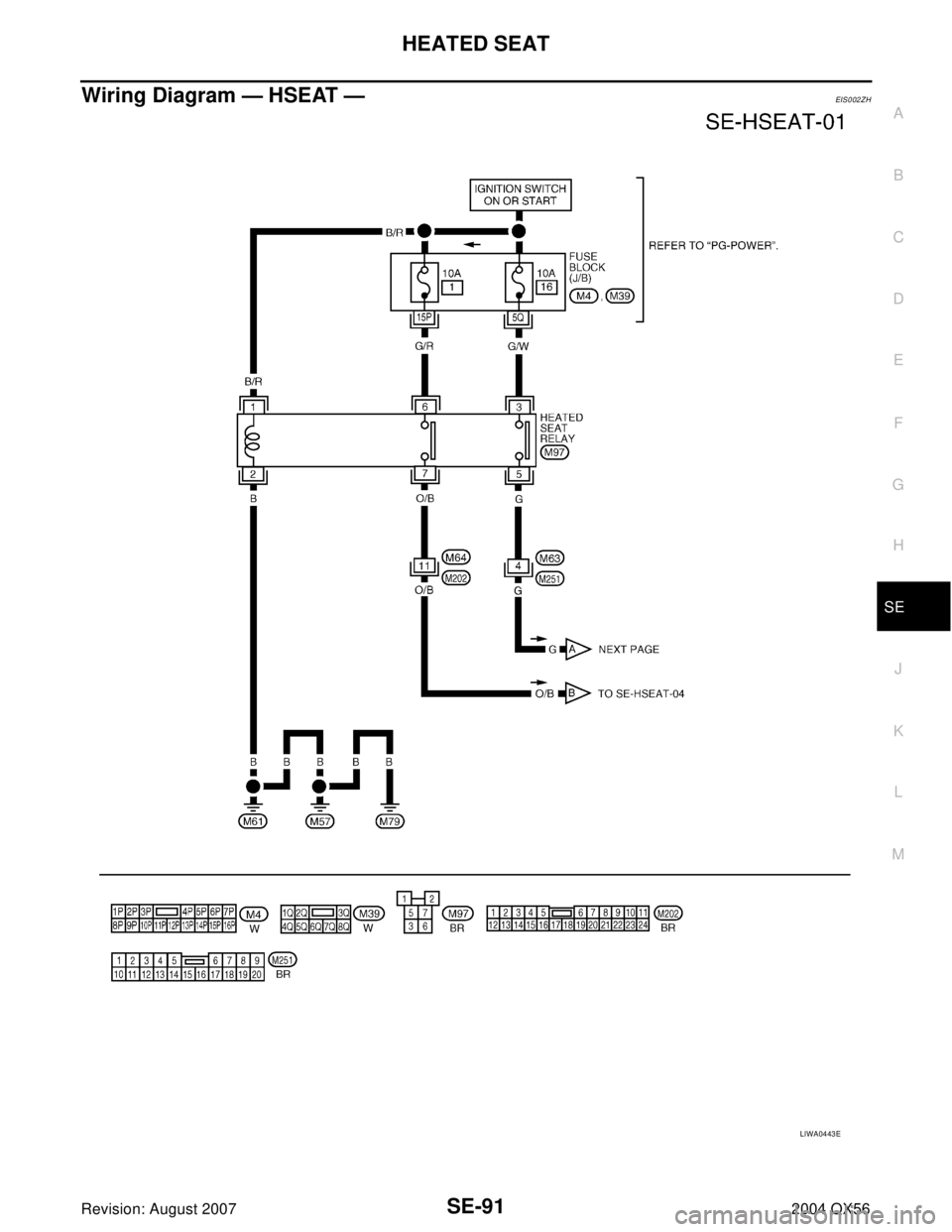

Wiring Diagram — HSEAT —EIS0 02 Z H
LIWA0443E
