FRONT WIPER AND WASHER SYSTEM
Revision: August 20072004 QX56
2. IPDM E/R TO FRONT WIPERS CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector terminal
and front wiper motor harness connector terminal.
OK or NG
OK >> GO TO 3.
NG >> Check for short circuit or open circuit in harness
between IPDM E/R and front wiper motor.
3. IPDM E/R INSPECTION
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Turn ignition switch ON.
3. Select "LO" on "ACTIVE TEST" screen.
4. When front wiper relay is operating, check voltage between IPDM E/R terminals.
Without CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Turn on front wipers using the auto active test. Refer to PG-23, "
Auto Active Test" .
3. When front wiper relay is operating, check voltage between
IPDM E/R terminals.
OK or NG
OK >> Replace the wiper motor. Refer to WW-29, "Removal and Installation of Wiper Motor and Linkage"
.
NG >> Replace IPDM E/R. Refer to PG-29, "
Removal and Installation of IPDM E/R" .
4. COMBINATION SWITCH TO BCM INSPECTION
Select "BCM" on CONSULT-II. With “WIPER” data monitor, check
that “FR WIPER HI” turns ON-OFF according to operation of wiper
switch.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installa-
tion of BCM" .
NG >> Replace wiper switch. Refer to WW-31, "
Removal and
Installation of Wiper and Washer Switch" .
IPDM E/R Front wiper motor
Continuity
ConnectorTe r m i n a l
(wire color)ConnectorTe r m i n a l
(wire color)
E121 32 (L) E23 3 (L) Yes
WKIA2086E
IPDM E/R
Vo ltag e
(Approx.) (–) (+)
ConnectorTe r m i n a l
(wire color)ConnectorTe r m i n a l
(wire color)
E122 38 (B)
E121 32 (L) Battery voltage
E124 59 (B)
WKIA3198E
WKIA1018E
Page 3338 of 3371

FRONT WIPER AND WASHER SYSTEM
WW-25
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: August 20072004 QX56
ONLY FRONT WIPER HI DOES NOT OPERATE
Inspection Procedure
1. CHECK IPDM E/R TO FRONT WIPERS
With CONSULT-II
1. Select "IPDM E/R" with CONSULT-II, and select "ACTIVE
TEST" on "SELECT DIAG MODE" screen.
2. Select "FRONT WIPER" on "SELECT TEST ITEM" screen.
3. Select "HI" on "ACTIVE TEST" screen.
4. Confirm front wiper high operation.
Without CONSULT-II
1. Turn on front wipers using auto active test. Refer to PG-23,
"Auto Active Test" .
2. Confirm front wiper operation.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. IPDM E/R TO FRONT WIPERS CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector terminal
and front wiper motor harness connector terminal.
OK or NG
OK >> GO TO 3.
NG >> Check for short circuit or open circuit in harness
between IPDM E/R and front wiper motor.
SKIA3486E
IPDM E/R Front wiper motor
Continuity
ConnectorTe r m i n a l
(wire color)ConnectorTe r m i n a l
(wire color)
E121 35 (L/B) E23 2 (L/B) Yes
WKIA2087E
Page 3339 of 3371

WW-26
FRONT WIPER AND WASHER SYSTEM
Revision: August 20072004 QX56
3. IPDM E/R INSPECTION
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Turn ignition switch ON.
3. Select "HI" on "ACTIVE TEST" screen.
4. When front wiper high relay is operating, check voltage between IPDM E/R terminals.
Without CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Turn on front wipers using the auto active test. Refer to PG-23, "
Auto Active Test" .
3. When front wiper high relay is operating, check voltage between
IPDM E/R terminals.
OK or NG
OK >> Replace the wiper motor. Refer to WW-29, "Removal and Installation of Wiper Motor and Linkage"
.
NG >> Replace IPDM E/R. Refer to PG-29, "
Removal and Installation of IPDM E/R" .
4. COMBINATION SWITCH TO BCM INSPECTION
Select "BCM" on CONSULT-II. With “WIPER” data monitor, check
that “FR WIPER HI” turns ON-OFF according to operation of wiper
switch.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installa-
tion of BCM" .
NG >> Replace wiper switch. Refer to WW-31, "
Removal and
Installation of Wiper and Washer Switch" .
ONLY FRONT WIPER INT DOES NOT OPERATE
Inspection Procedure
1. COMBINATION SWITCH TO BCM INSPECTION
Select "BCM" on CONSULT-II. With “WIPER” data monitor, check
that “FR WIPER INT” turns ON-OFF according to operation of wiper
switch.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installa-
tion of BCM" .
NG >> Replace wiper switch. Refer to WW-31, "
Removal and
Installation of Wiper and Washer Switch" .
IPDM E/R
Voltage
(Approx.) (–) (+)
ConnectorTerminal (wire
color)ConnectorTerminal (wire
color)
E122 38 (B)
E121 35 (L/B) Battery voltage
E124 59 (B)
WKIA3200E
WKIA1018E
WKIA1018E
Page 3340 of 3371

FRONT WIPER AND WASHER SYSTEM
WW-27
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: August 20072004 QX56
FRONT WIPER INTERMITTENT OPERATION SWITCH POSITION CANNOT BE ADJUSTED
Inspection Procedure
1. COMBINATION SWITCH TO BCM INSPECTION
Select "BCM" on CONSULT-II. With “WIPER” data monitor, check
that “INT VOLUME” changes in order from 1 to 7 according to opera-
tion of the intermittent switch dial position.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installa-
tion of BCM" .
NG >> Replace wiper switch. Refer to WW-31, "
Removal and
Installation of Wiper and Washer Switch" .
WIPERS DO NOT WIPE WHEN FRONT WASHER OPERATES
Inspection Procedure
1. COMBINATION SWITCH TO BCM INSPECTION
Select "BCM" on CONSULT-II. With “WIPER” data monitor, check
that “FR WASHER SW” turns ON-OFF according to operation of
front washer switch.
OK or NG
OK >> Replace BCM. Refer to BCS-19, "Removal and Installa-
tion of BCM" .
NG >> Replace wiper switch. Refer to WW-31, "
Removal and
Installation of Wiper and Washer Switch" .
FRONT WIPERS OPERATE FOR 10 SECONDS, STOP FOR 20 SECONDS, AND AFTER
REPEATING THIS OPERATION FIVE TIMES, THEY BECOME INOPERATIVE
CAUTION:
When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers front wipers locked and stops wiper output, which causes this symp-
tom.
This status can be checked by using IPDM E/R "DATA MONITOR". Under this condition, "WIP
PROT" reads "BLOCK".
Inspection Procedure
1. CHECK IPDM E/R TO FRONT WIPER MOTOR
With CONSULT-II
Select "IPDM E/R" with CONSULT-II. With “WIPER” data monitor,
confirm that "WIP AUTO STOP" changes from "ACT P" to "STOP P"
according to wiper operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 2.
WKIA1018E
WKIA1018E
SKIA5301E
Page 3341 of 3371

WW-28
FRONT WIPER AND WASHER SYSTEM
Revision: August 20072004 QX56
2. IPDM E/R TO FRONT WIPER MOTOR CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector terminal
and front wiper motor harness connector terminal.
4. Check continuity between IPDM E/R harness connector terminal
and ground.
OK or NG
OK >> Connect connectors. GO TO 3.
NG >> Repair harness or connector.
3. IPDM E/R TO FRONT WIPER MOTOR AUTO STOP CIRCUIT INSPECTION
1. Turn ignition switch ON.
2. While front wiper motor is stopped and while operating, measure
voltage between IPDM E/R terminal 43 and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and
Installation of IPDM E/R" .
NG >> Replace front wiper motor. Refer to WW-29, "
Removal and Installation of Wiper Motor and Link-
age" .
IPDM E/R Front wiper motor
Continuity
ConnectorTe r m i n a l
(wire color)ConnectorTe r m i n a l
(wire color)
E122 43 (L/Y) E23 6 (L/Y) Yes
WKIA2084E
IPDM E/R
Continuity
Connector Terminal (wire color)
E122 43 (L/Y) Ground No
WKIA2088E
IPDM E/R
(–) ConditionVoltag e
(Approx.) (+)
ConnectorTe r m i n a l
(wire color)
E122 43 (L/Y) GroundWiper operating Fluctuating
Wiper stopped 0V
WKIA2085E
Page 3342 of 3371

FRONT WIPER AND WASHER SYSTEM
WW-29
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: August 20072004 QX56
Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop
Location
EKS007FH
REMOVAL
1. Operate the wiper motor, and stop it at the auto stop position.
2. Remove the wiper arm mounting covers.
3. Remove the wiper arm mounting nuts, then remove the wiper arms.
INSTALLATION
1. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).
2. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” and “L2” immediately before
tightening nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop within clearance “L1” and “L2”.
Before reinstalling wiper arm, clean up the pivot area as illus-
trated. This will reduce possibility of wiper arm looseness.
Tighten wiper arm nuts to specified torque.
Removal and Installation of Wiper Motor and Linkage EKS007FI
REMOVAL
1. Operate the wiper motor, and stop it at the auto stop position.Clearance “L1” : 41.5 - 56.5 mm (1.634 - 2.224 in)
Clearance “L2” : 52.5 - 67.5 mm (2.067 - 2.657 in)
Front wiper arm
nuts: 23.6 N·m
(2.4 kg-m, 17 ft-lb)
SEL543TA
SEL024J
LKIA0408E
1. Wiper arm mounting covers 2. Wiper arm mounting nuts 3. Front RH wiper arm and blade assembly
4. Wiper frame mounting bolts 5. Wiper frame assembly 6. Wiper motor to frame mounting bolts
7. Wiper motor mounting spacer 8. Wiper motor 9. Front LH wiper arm and blade assembly
Page 3343 of 3371

WW-30
FRONT WIPER AND WASHER SYSTEM
Revision: August 20072004 QX56
2. Remove wiper arms from the vehicle. Refer to WW-29, "Removal and Installation of Front Wiper Arms,
Adjustment of Wiper Arms Stop Location" .
3. Remove the cowl top extension. Refer to EI-18, "
COWL TOP" .
4. Disconnect wiper motor connector.
5. Remove cowl top extension bracket.
6. Remove wiper frame assembly mounting bolts, and remove
wiper frame assembly.
7. Remove wiper motor from wiper frame assembly.
INSTALLATION
CAUTION:
Do not drop the wiper motor or cause it to contact other parts.
Check the grease conditions of the motor arm and wiper link joint(s). Apply grease if necessary.
1. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper
switch OFF (auto stop).
2. Disconnect wiper motor connector.
3. Install wiper motor to wiper frame assembly, and install assembly into the vehicle.
4. Install cowl top extension bracket.
5. Connect wiper motor connector. Turn the wiper switch ON to operate the wiper motor, then turn wiper
switch OFF (auto stop).
6. Install cowl top extension. Refer to EI-18, "
COWL TOP" .
7. Install wiper arms. Refer to WW-29, "
Removal and Installation of Front Wiper Arms, Adjustment of Wiper
Arms Stop Location" .

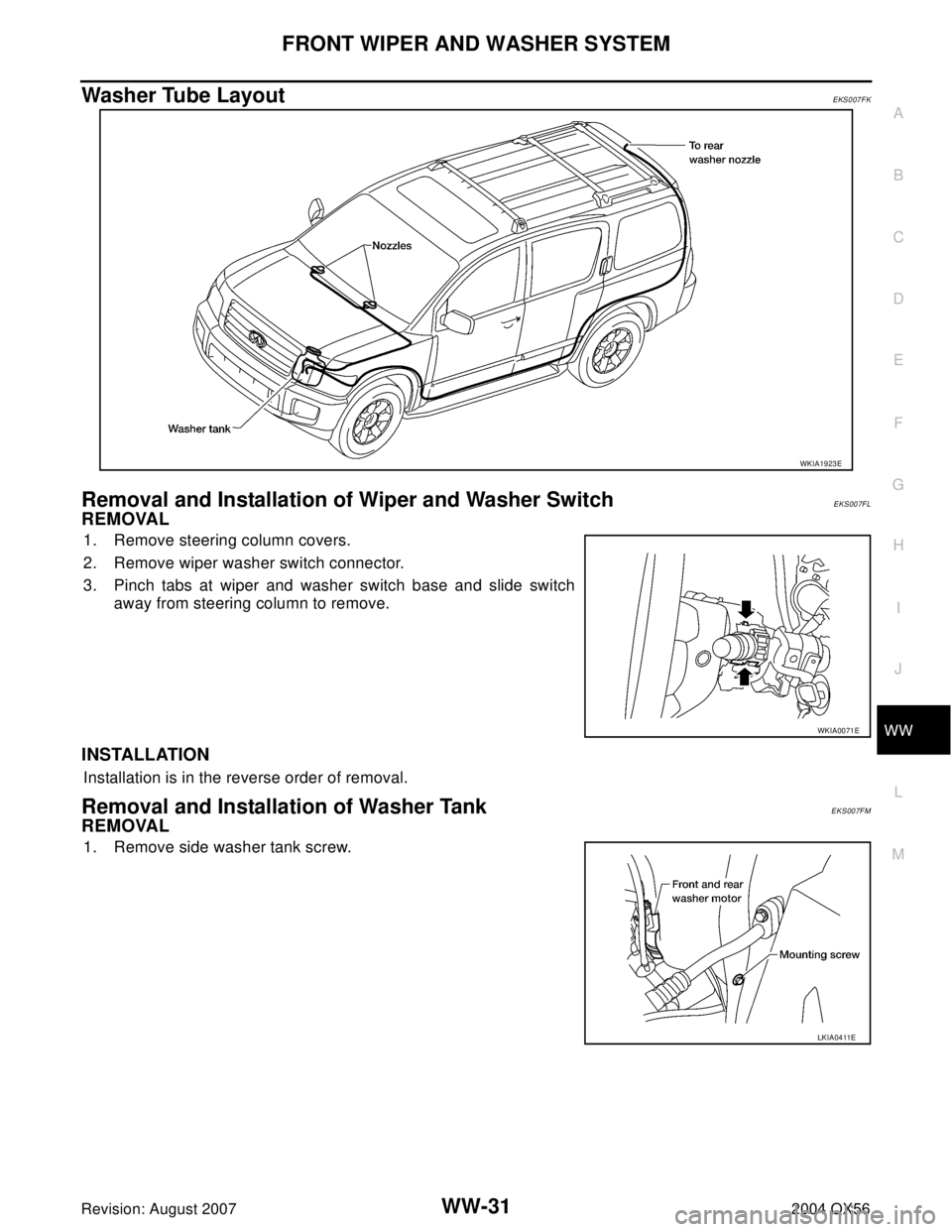

Washer Nozzle Adjustment EKS007FJ
This vehicle is equipped with non-adjustable washer nozzles.
If not satisfied with washer fluid spray coverage, confirm that the
washer nozzle is installed correctly.
If the washer nozzle is installed correctly, and the washer fluid
spray coverage is not satisfactory, replace washer nozzle.
LKIA0409E
PKIA2552E
Page 3344 of 3371
FRONT WIPER AND WASHER SYSTEM
WW-31
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: August 20072004 QX56
Washer Tube Layout EKS007FK
Removal and Installation of Wiper and Washer Switch EKS007FL
REMOVAL
1. Remove steering column covers.
2. Remove wiper washer switch connector.
3. Pinch tabs at wiper and washer switch base and slide switch
away from steering column to remove.
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation of Washer Tank EKS007FM
REMOVAL
1. Remove side washer tank screw.
WKIA1923E
WKIA0071E
LKIA0411E
