Page 1521 of 3371

INFINITI QX56 2004 Factory Service Manual EC-330Revision: August 2007
DTC P0456 EVAP CONTROL SYSTEM
2004 QX56
7. CHECK FOR EVAP LEAK
Without CONSULT-II
1. Turn ignition switch OFF.
2. Apply 12 volts DC to EVAP canister vent control valve. Th

Page 1522 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0456 EVAP CONTROL SYSTEM
EC-331
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
9. CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent control val

Page 1523 of 3371

INFINITI QX56 2004 Factory Service Manual EC-332Revision: August 2007
DTC P0456 EVAP CONTROL SYSTEM
2004 QX56
13. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
Without CONSULT-II
1. Start engine and warm it up to normal o

Page 1524 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0456 EVAP CONTROL SYSTEM
EC-333
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
20. CHECK EVAP/ORVR LINE
Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kink, loos

Page 1525 of 3371

INFINITI QX56 2004 Factory Service Manual EC-334Revision: August 2007
DTC P0460 FUEL LEVEL SENSOR
2004 QX56
DTC P0460 FUEL LEVEL SENSORPFP:25060
Component DescriptionUBS00H5X
The fuel level sensor is mounted in the fuel level sensor unit. The

Page 1526 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0460 FUEL LEVEL SENSOR
EC-335
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
Diagnostic ProcedureUBS00H60
1. CHECK DTC WITH COMBINATION METER
Refer to DI-5, "
COMBINATION METERS" .
OK

Page 1527 of 3371

INFINITI QX56 2004 Factory Service Manual EC-336Revision: August 2007
DTC P0461 FUEL LEVEL SENSOR
2004 QX56
DTC P0461 FUEL LEVEL SENSORPFP:25060
Component DescriptionUBS00H62
The fuel level sensor is mounted in the fuel level sensor unit. The

EC-336Revision: August 2007
DTC P0461 FUEL LEVEL SENSOR
2004 QX56
DTC P0461 FUEL LEVEL SENSORPFP:25060
Component DescriptionUBS00H62
The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal to
the combination meter. The combination meter sends the fuel level
sensor signal to the ECM through CAN communication line.
It consists of two parts, one is mechanical float and the other is vari-
able resistor. Fuel level sensor output voltage changes depending on
the movement of the fuel mechanical float.
On Board Diagnosis LogicUBS00H63
NOTE:
If DTC P0461 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-135, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
Driving long distances naturally affect fuel gauge level.
This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has
been driven.
Overall Function CheckUBS00H64
Use this procedure to check the overall function of the fuel level sensor function. During this check, a 1st trip
DTC might not be confirmed.
WAR NIN G:
When performing following procedure, be sure to observe the handling of the fuel. Refer to FL-9,
"FUEL TANK" .
TESTING CONDITION:
Before starting overall function check, preparation of draining fuel and refilling fuel is required.
WITH CONSULT-II
NOTE:
Start from step 10, if it is possible to confirm that the fuel cannot be drained by 30 (7-7/8 US gal, 6-5/
8 Imp gal) in advance.
1. Prepare a fuel container and a spare hose.
2. Release fuel pressure from fuel line, refer to EC-46, "
FUEL PRESSURE RELEASE" .
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch OFF and wait at least 10 seconds then turn ON.
6. Select “FUEL LEVEL SE” in “DATA MONITOR” mode with CONSULT-II.
BBIA0402E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0461
0461Fuel level sensor circuit
range/performanceThe output signal of the fuel level sensor
does not change within the specified range
even though the vehicle has been driven a
long distance.
Harness or connectors
(The CAN communication line is open or
shorted)
Harness or connectors
(The sensor circuit is open or shorted)
Combination meter
Fuel level sensor

Page 1528 of 3371

INFINITI QX56 2004 Factory Service Manual DTC P0461 FUEL LEVEL SENSOR
EC-337
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56

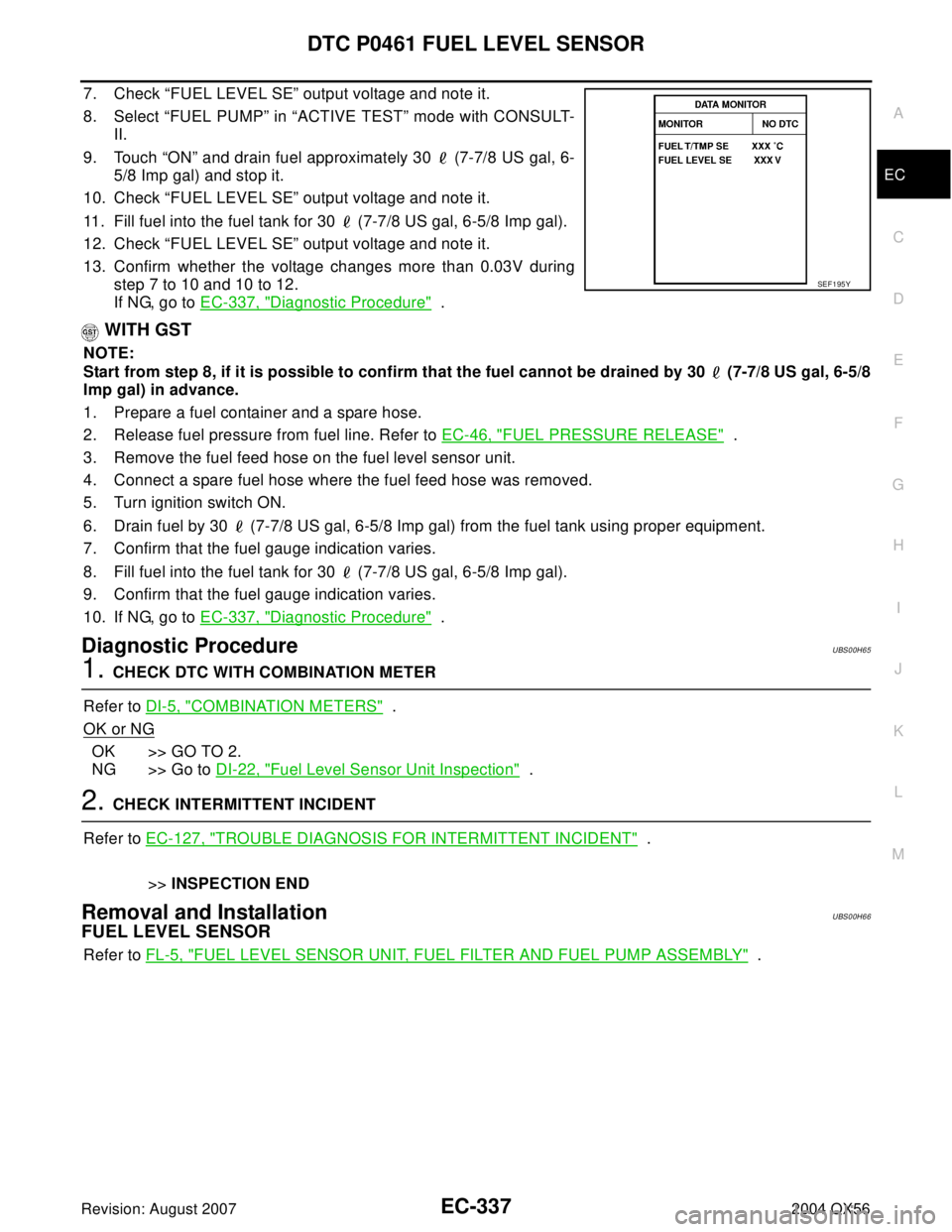

7. Check “FUEL LEVEL SE” output voltage and note it.
8. Select “FUEL PUMP” in “ACTIVE TEST” mode
