Page 2553 of 3371
LT-122
REAR COMBINATION LAMP
Revision: August 20072004 QX56
REAR COMBINATION LAMPPFP:26554
Bulb Replacement (Turn Signal)EKS007CR
NOTE:
The tail/stop lamp bulbs are LEDs and are not serviceable separately.
1. Remove rear combination lamp mounting bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb.
Installation is in the reverse order of removal.
Removal and InstallationEKS007CS
1. Remove rear combination lamp mounting bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Disconnect rear combination lamp connectors.
Installation is in the reverse order of removal.
WKIA1393E
Rear combination lamp
mounting bolts: 2.4 Nm (0.24 kg-m, 21 in-lb)
WKIA1393E
Page 2554 of 3371
TRAILER TOW
LT-123
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
TRAILER TOWPFP:93020
Component Parts and Harness Connector LocationEKS007CT
System DescriptionEKS007CU
Power is supplied at all times
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM (body control module) terminal 70, and
through 10A fuse [No. 32, located in the IPDM E/R (intelligent power distribution module engine room)]
through IPDM E/R terminal 61
to trailer tow relay 1 terminal 3, and
through 20A fuse (No. 53, located in the IPDM E/R)
to CPU of the IPDM E/R, and
through 30A fusible link (letter j , located in the fuse and fusible link box)
to trailer tow relay 2 terminals 3 and 6, and
through 40A fusible link (letter k , located in the fuse and fusible link box)
to electric brake (pre-wiring) terminal 5.
With the ignition switch in the ON or START position, power is supplied
WKIA3398E
Page 2555 of 3371

LT-124
TRAILER TOW
Revision: August 20072004 QX56
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38, and
through 10A fuse (No. 51, located in the IPDM E/R)
to trailer tow relay 2 terminal 1.
Ground is supplied
to BCM terminal 67 and
to electric brake (pre-wiring) terminal 1
through grounds M57, M61 and M79, and
to IPDM E/R terminals 38 and 59
to trailer tow relay 1 terminal 2
to trailer tow relay 2 terminal 2 and
to trailer connector terminal 2
through grounds E9, E15 and E24.
TRAILER TAIL LAMP OPERATION
The trailer tail lamps are controlled by the trailer tow relay 1.
With the lighting switch in the parking and tail lamp ON (1ST) position, AUTO position (and the auto light sys-
tem is activated) or headlamp ON (2ND) position, power is supplied
through the tail lamp relay, located in the IPDM E/R
through 10A fuse (No. 36, located in the IPDM E/R)
through IPDM E/R terminal 49
to trailer tow relay 1 terminal 1.
When energized, trailer tow relay 1 supplies tail lamp power to trailer connector terminal 6.
TRAILER BRAKE, TURN SIGNAL AND HAZARD LAMP OPERATION
The trailer brake, turn signal and hazard lamps are all controlled by the BCM. When the brake pedal is
depressed, the BCM receives stop lamp switch signal through CAN communication. If the brake pedal is
depressed or either turn signal or the hazard lamps are turned on, the BCM supplies voltage to the trailer
lamps to make them flash or turn on.
Left trailer brake, turn signal and hazard lamp output is supplied
through BCM terminal 52
to trailer connector terminal 1.
Right trailer brake, turn signal and hazard lamp output is supplied
through BCM terminal 51
to trailer connector terminal 4.
TRAILER BRAKE OPERATION
The trailer brake is controlled by the electric brake. The electric brake receives stop lamp switch signal at elec-
tric brake (pre-wiring) terminal 2 when the brake pedal is depressed.
When the brake pedal is depressed, power is supplied by the electric brake
through electric brake (pre-wiring) terminal 3
to trailer connector terminal 3.
TRAILER POWER SUPPLY OPERATION
The trailer power supply is controlled by the trailer tow relay 2.
When the ignition switch is in the ON or START position, power is supplied
through 10A fuse (No. 51, located in the IPDM E/R)
to IPDM E/R terminal 16
to trailer tow relay 2 terminal 1.
When energized, the trailer tow relay 2 supplies power
through trailer tow relay 2 terminals 5 and 7
to trailer connector terminal 5.
Page 2556 of 3371
TRAILER TOW
LT-125
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
SchematicEKS007CV
WKWA3120E
Page 2557 of 3371
LT-126
TRAILER TOW
Revision: August 20072004 QX56

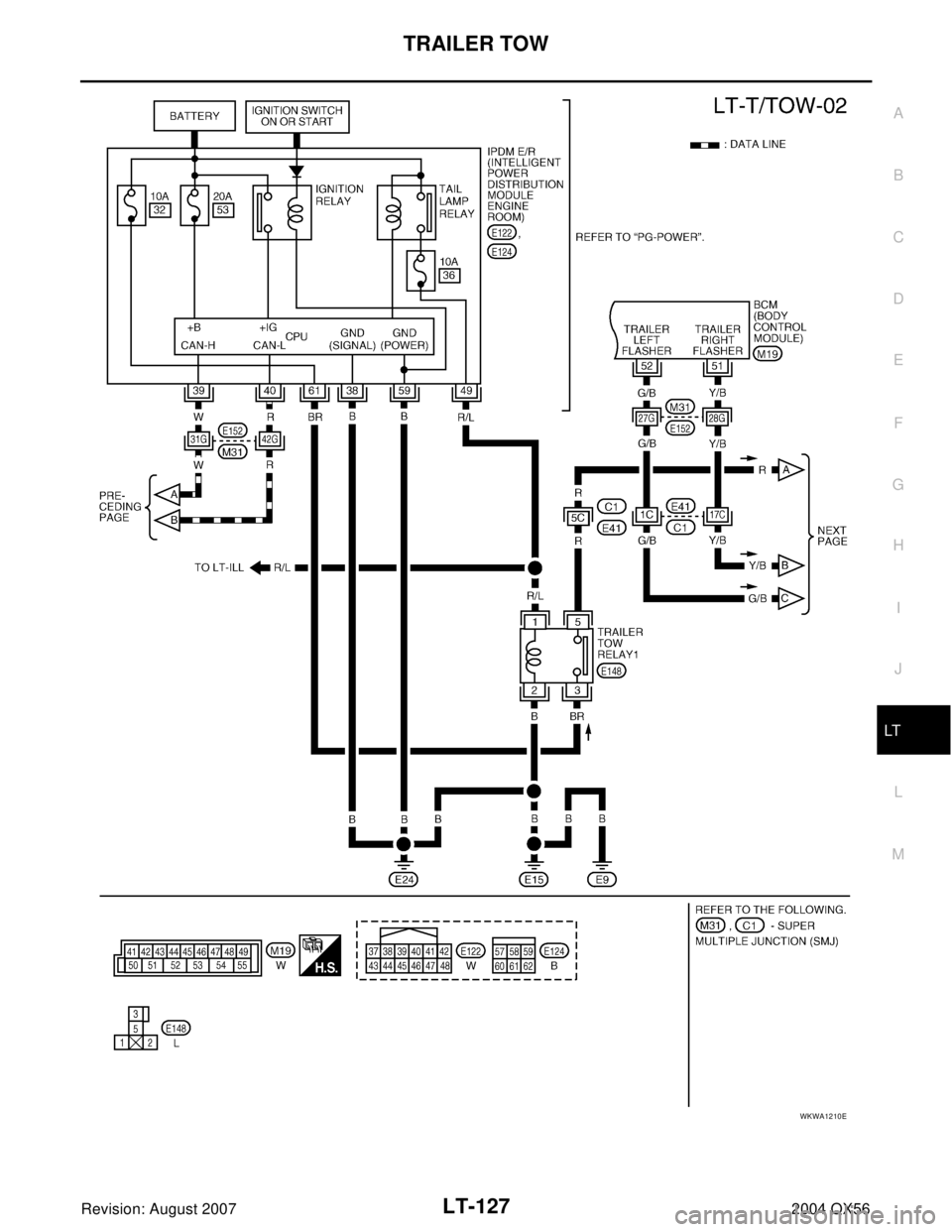

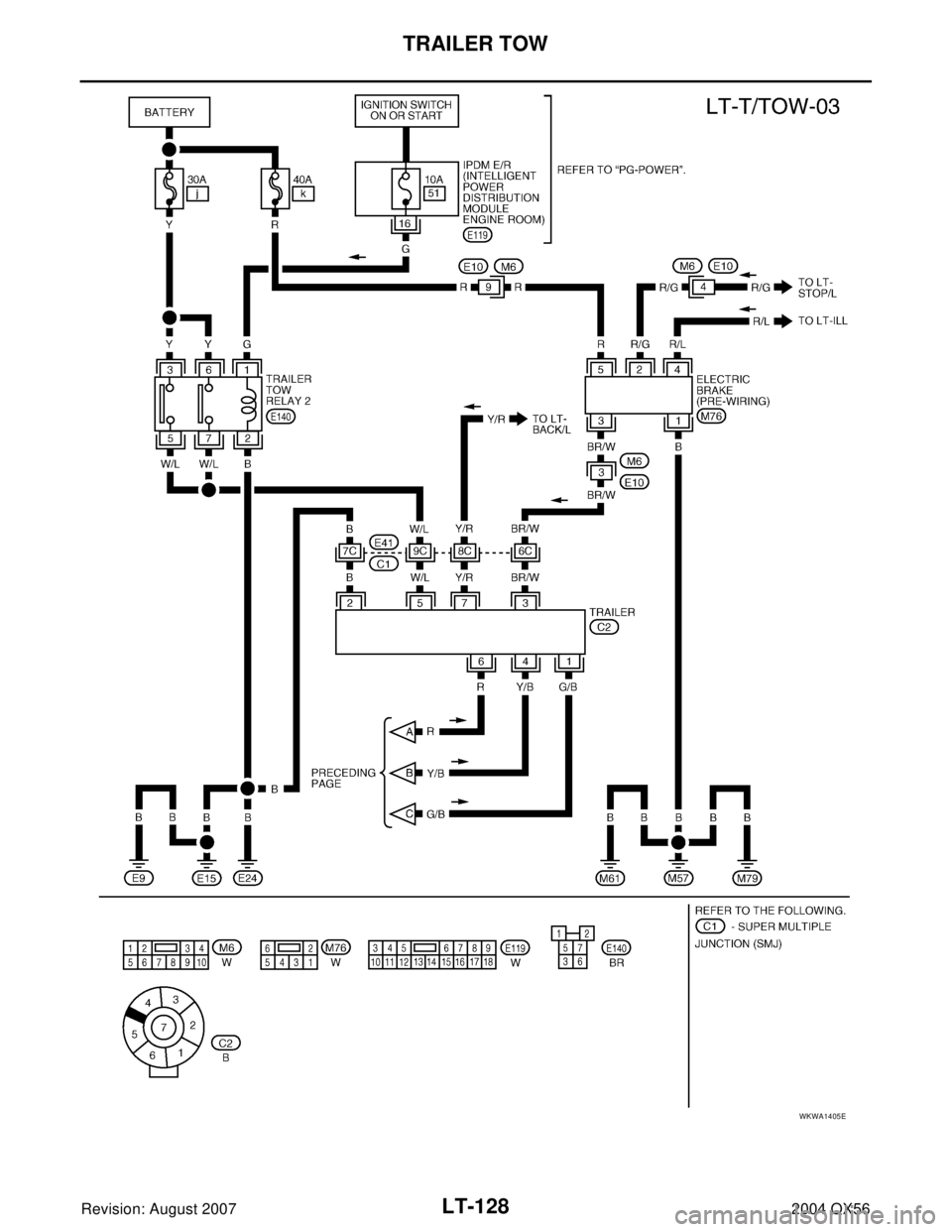

Wiring Diagram — T/TOW —EKS007CW
WKWA3121E
Page 2558 of 3371
TRAILER TOW
LT-127
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
WKWA1210E
Page 2559 of 3371
LT-128
TRAILER TOW
Revision: August 20072004 QX56
WKWA1405E
Page 2560 of 3371
INTERIOR ROOM LAMP
LT-129
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
INTERIOR ROOM LAMPPFP:26410

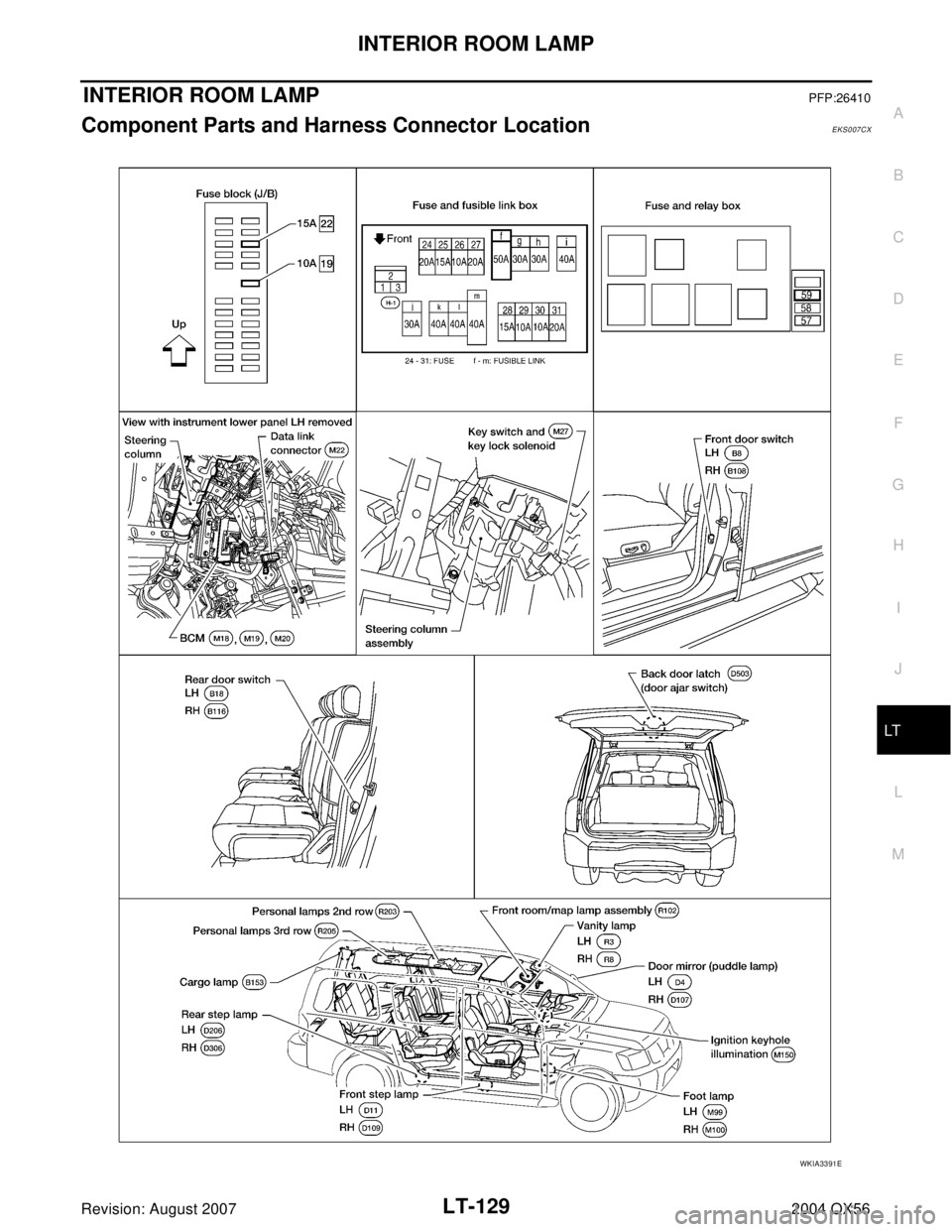

Component Parts and Harness Connector LocationEKS007CX
WKIA3391E
