Page 2769 of 3371

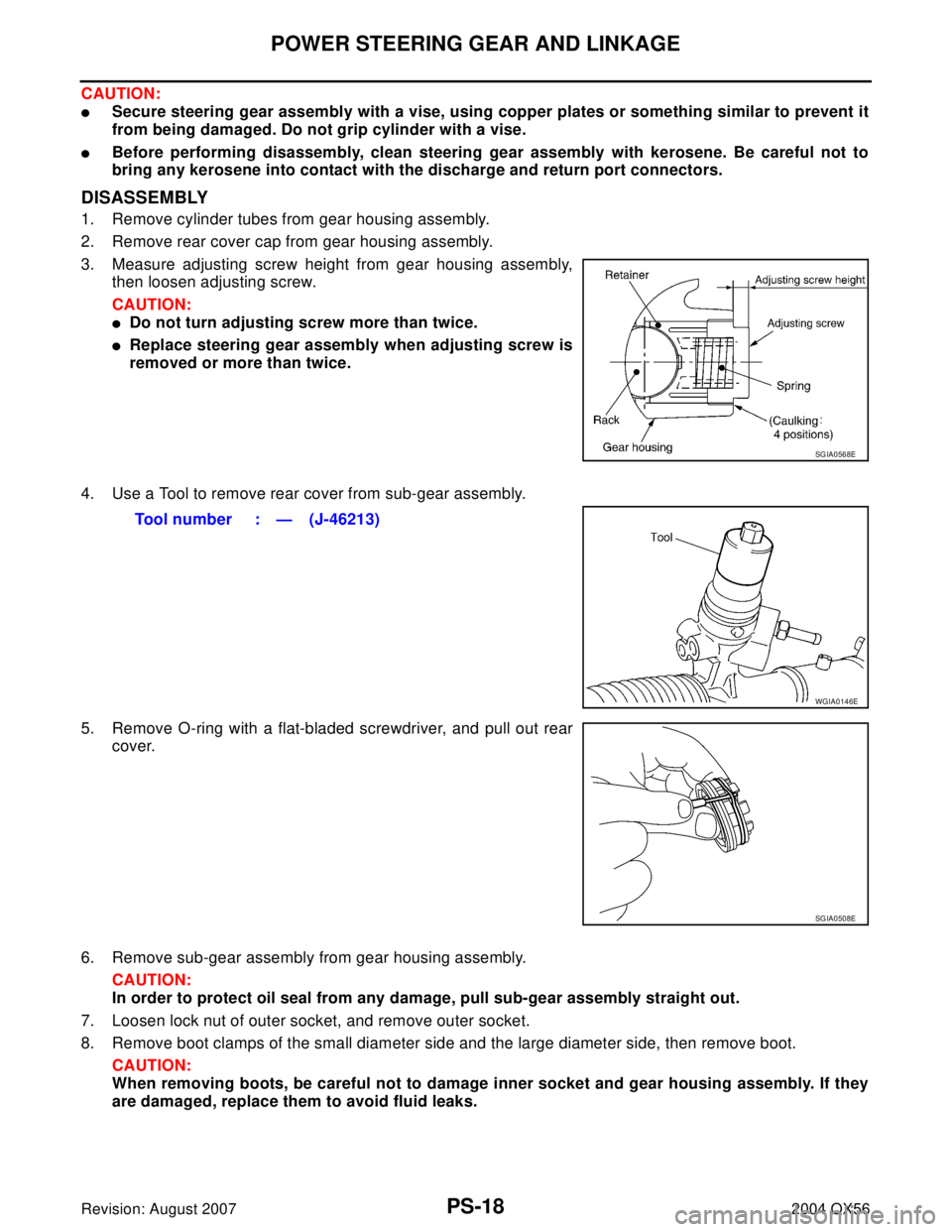

INFINITI QX56 2004 Factory Service Manual PS-18 POWER STEERING GEAR AND LINKAGE Revision: August 20072004 QX56 CAUTION: Secure steering gear assembly with a vise, using copper plates or something similar to prevent it from being damaged. Do

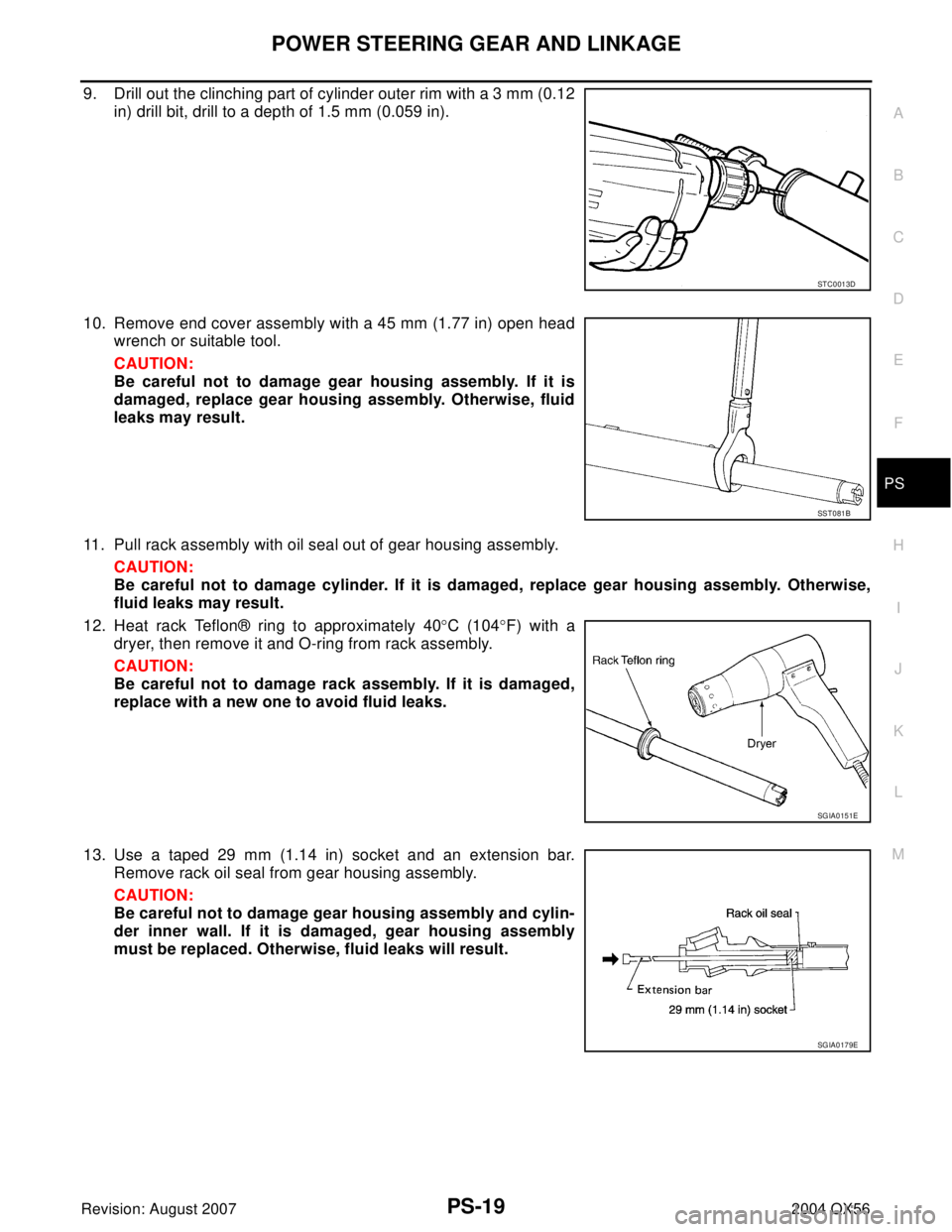

Page 2770 of 3371

INFINITI QX56 2004 Factory Service Manual POWER STEERING GEAR AND LINKAGE PS-19 C D E F H I J K L MA B PS Revision: August 20072004 QX56 9. Drill out the clinching part of cylinder outer rim with a 3 mm (0.12 in) drill bit, drill to a depth o

Page 2771 of 3371

INFINITI QX56 2004 Factory Service Manual PS-20 POWER STEERING GEAR AND LINKAGE Revision: August 20072004 QX56 INSPECTION AFTER DISASSEMBLY Boot Check boot for cracks and deformation. Replace if necessary. Rack Assembly Check rack gear for da

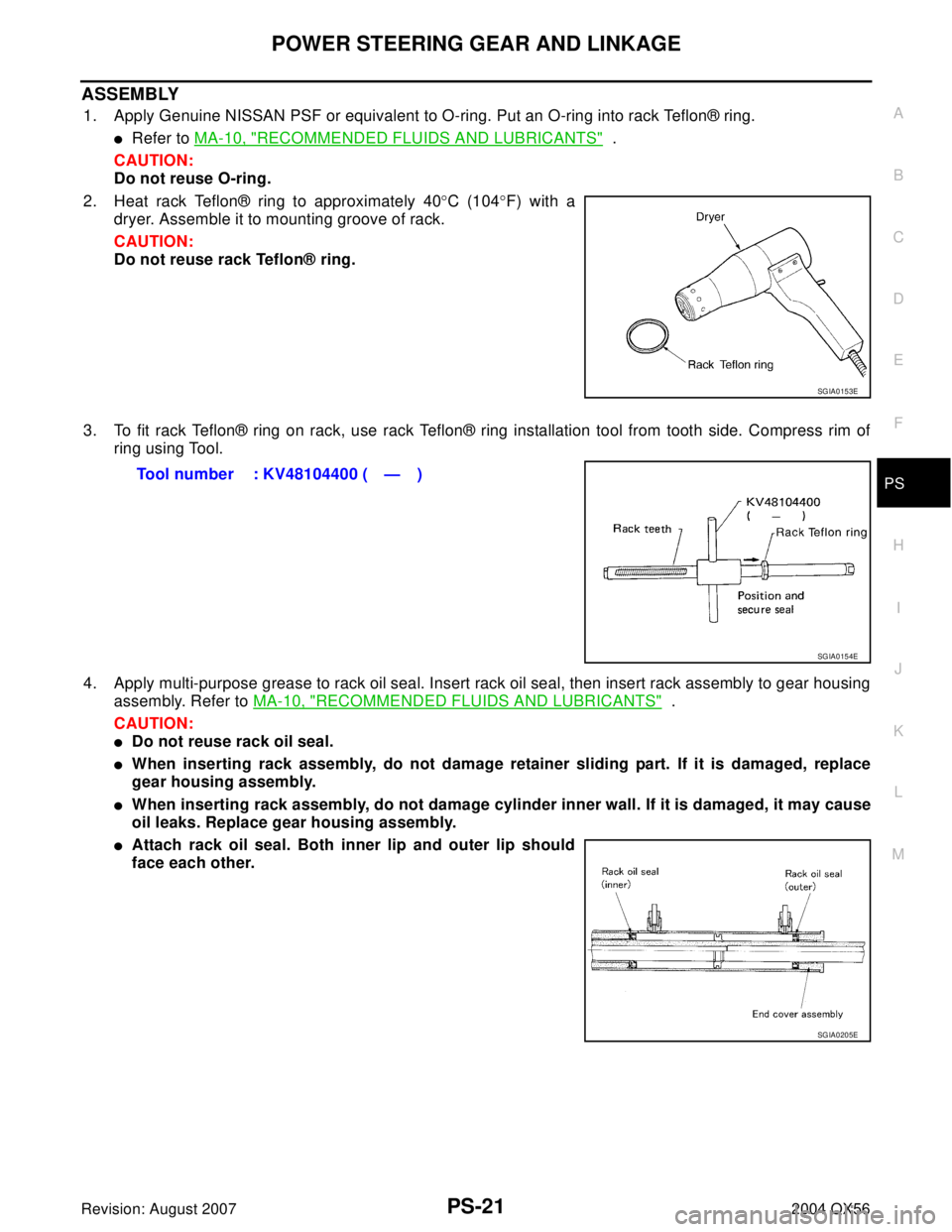

Page 2772 of 3371

INFINITI QX56 2004 Factory Service Manual POWER STEERING GEAR AND LINKAGE PS-21 C D E F H I J K L MA B PS Revision: August 20072004 QX56 ASSEMBLY 1. Apply Genuine NISSAN PSF or equivalent to O-ring. Put an O-ring into rack Teflon® ring. Ref

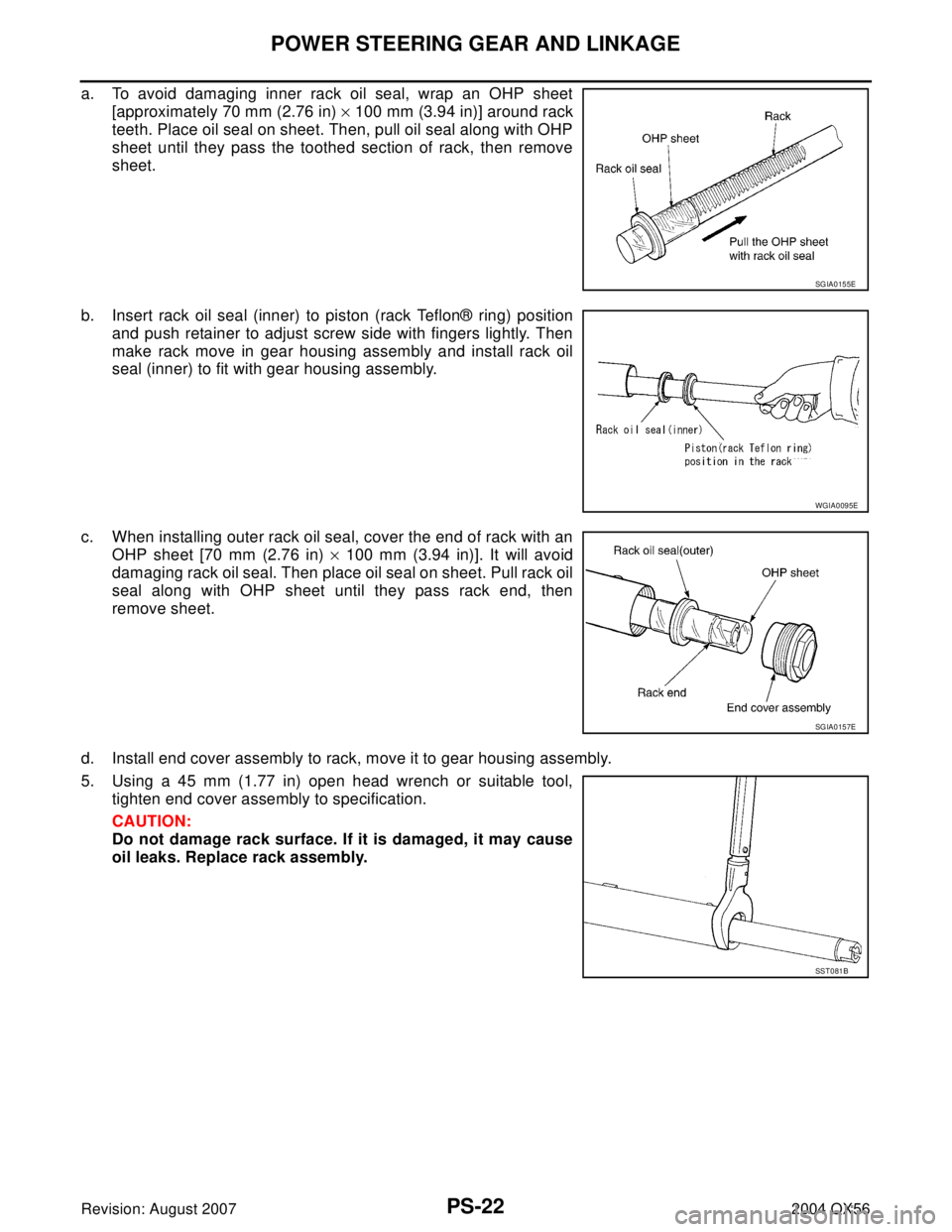

Page 2773 of 3371

INFINITI QX56 2004 Factory Service Manual PS-22 POWER STEERING GEAR AND LINKAGE Revision: August 20072004 QX56 a. To avoid damaging inner rack oil seal, wrap an OHP sheet [approximately 70 mm (2.76 in) × 100 mm (3.94 in)] around rack teeth.

Page 2774 of 3371

INFINITI QX56 2004 Factory Service Manual POWER STEERING GEAR AND LINKAGE PS-23 C D E F H I J K L MA B PS Revision: August 20072004 QX56 6. After tightening end cover assembly, caulk cylinder at one point as shown using a punch. This will pre

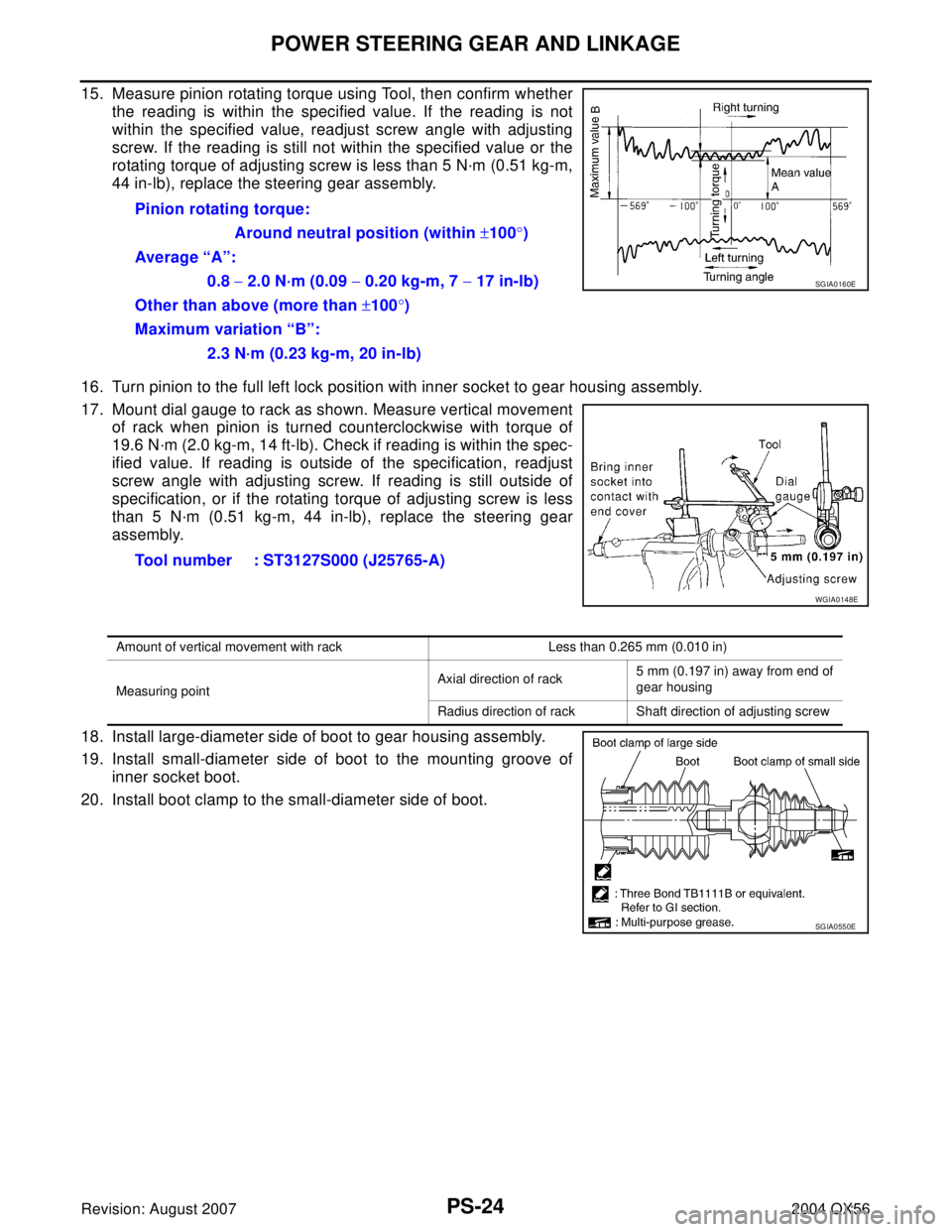

Page 2775 of 3371

INFINITI QX56 2004 Factory Service Manual PS-24 POWER STEERING GEAR AND LINKAGE Revision: August 20072004 QX56 15. Measure pinion rotating torque using Tool, then confirm whether the reading is within the specified value. If the reading is no

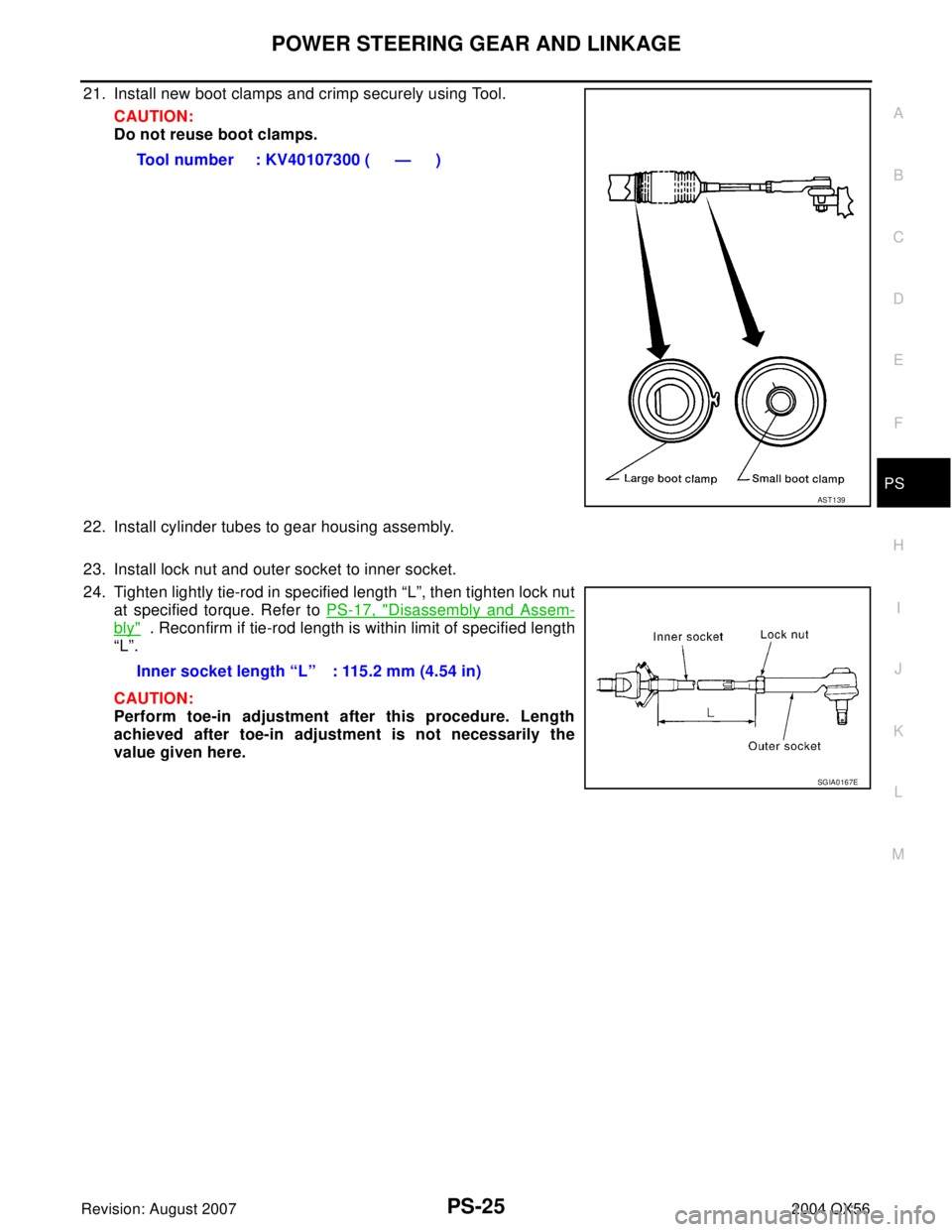

Page 2776 of 3371

INFINITI QX56 2004 Factory Service Manual POWER STEERING GEAR AND LINKAGE PS-25 C D E F H I J K L MA B PS Revision: August 20072004 QX56 21. Install new boot clamps and crimp securely using Tool. CAUTION: Do not reuse boot clamps. 22. Install
