Page 2017 of 3371

INFINITI QX56 2004 Factory Service Manual FFD-6 PREPARATION Revision: August 20072004 QX56 Commercial Service ToolsEDS0035H — (C-4171) HandleRemoving drive pinion front bearing outer race Removing drive pinion rear bearing outer race

Page 2018 of 3371

INFINITI QX56 2004 Factory Service Manual NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING FFD-7 C E F G H I J K L MA B FFD Revision: August 20072004 QX56 NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003 NVH Troubleshooting C

Page 2019 of 3371

INFINITI QX56 2004 Factory Service Manual FFD-8 FRONT OIL SEAL Revision: August 20072004 QX56 FRONT OIL SEALPFP:38189 Removal and InstallationEDS0035J REMOVAL 1. Remove front propeller shaft. Refer to PR-5, "REMOVAL" . 2. Separate the RH and

Page 2020 of 3371

INFINITI QX56 2004 Factory Service Manual FRONT OIL SEAL FFD-9 C E F G H I J K L MA B FFD Revision: August 20072004 QX56 INSTALLATION 1. Apply multi-purpose grease to cavity at sealing lips of front oil seal. Press front oil seal into gear ca

Page 2021 of 3371

INFINITI QX56 2004 Factory Service Manual FFD-10 SIDE OIL SEALS Revision: August 20072004 QX56 SIDE OIL SEALSPFP:33142 Removal and InstallationEDS0035K REMOVAL 1. Remove front final drive. Refer to FFD-12, "REMOVAL" . 2. Remove differential

Page 2022 of 3371

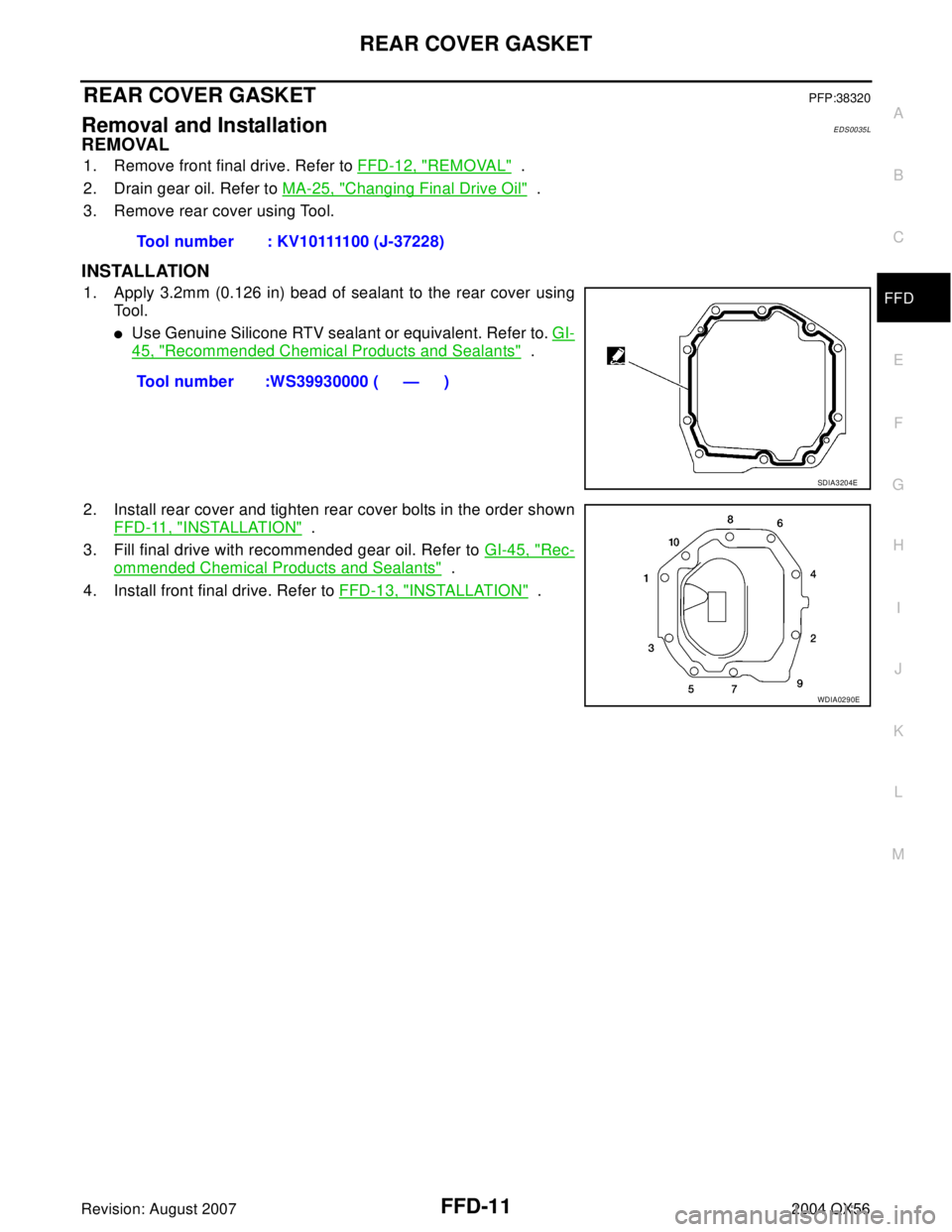

INFINITI QX56 2004 Factory Service Manual REAR COVER GASKET FFD-11 C E F G H I J K L MA B FFD Revision: August 20072004 QX56 REAR COVER GASKETPFP:38320 Removal and InstallationEDS0035L REMOVAL 1. Remove front final drive. Refer to FFD-12, "RE

Page 2023 of 3371

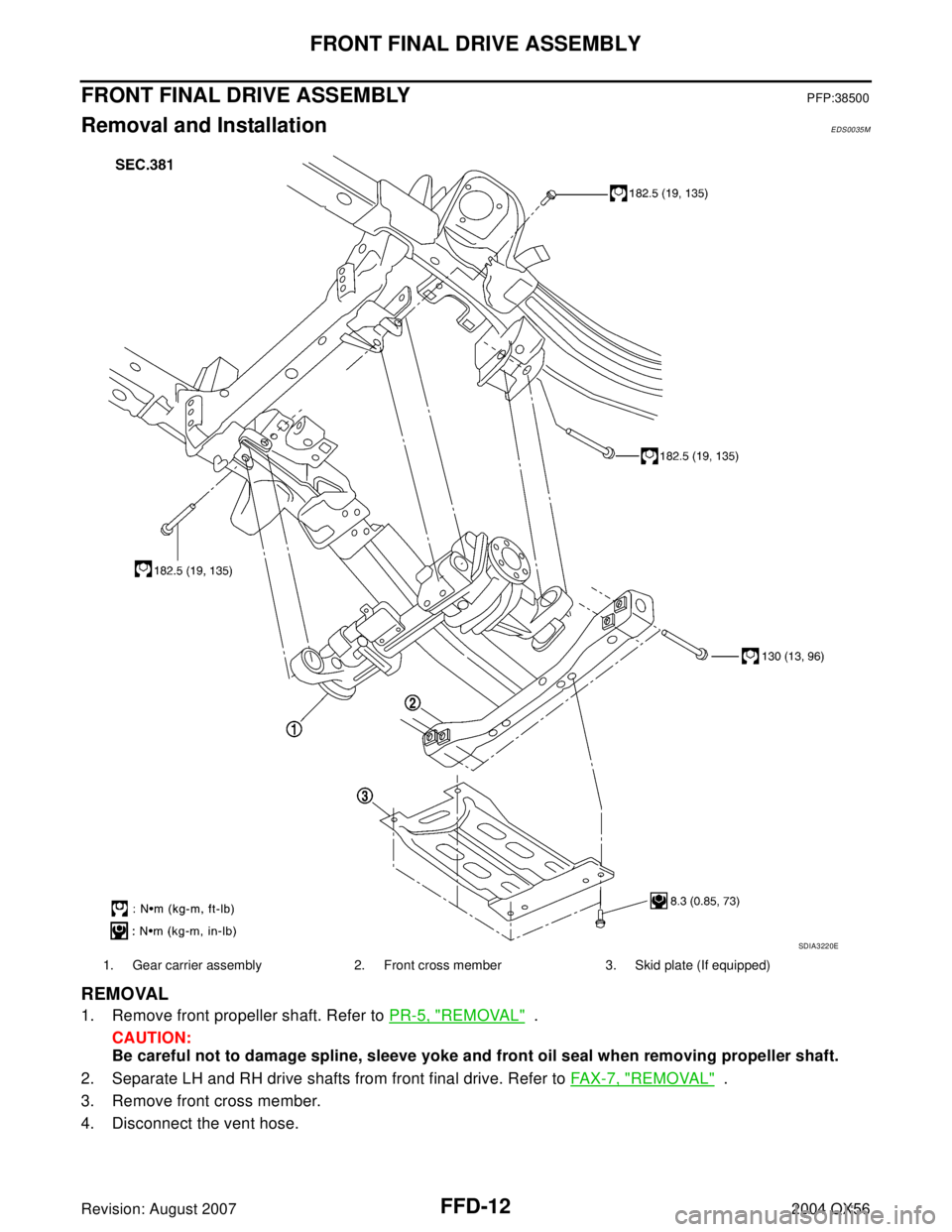

INFINITI QX56 2004 Factory Service Manual FFD-12 FRONT FINAL DRIVE ASSEMBLY Revision: August 20072004 QX56 FRONT FINAL DRIVE ASSEMBLYPFP:38500 Removal and InstallationEDS0035M REMOVAL 1. Remove front propeller shaft. Refer to PR-5, "REMOVAL"

Page 2024 of 3371

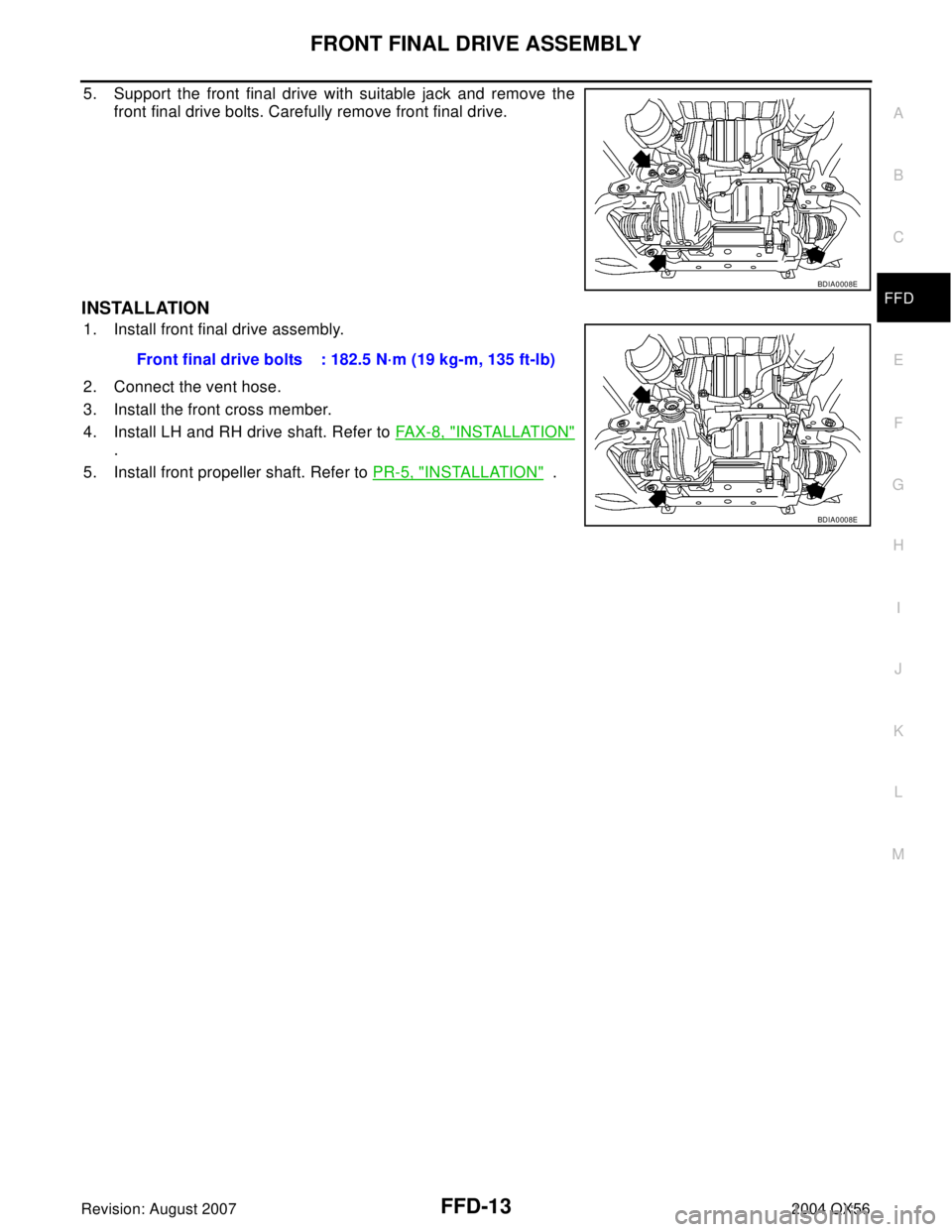

INFINITI QX56 2004 Factory Service Manual FRONT FINAL DRIVE ASSEMBLY FFD-13 C E F G H I J K L MA B FFD Revision: August 20072004 QX56 5. Support the front final drive with suitable jack and remove the front final drive bolts. Carefully remove
